Mobula 7 Happymodel Mobula7 1S Micro FPV BWhoop Drone 5IN1 AIO Flight Controller Built-in 2.4G ELRS V2.0 RX Nano3 1/3 CMOS

Mobula 7 Happymodel Mobula7 1S Micro FPV BWhoop Drone 5IN1 AIO Flight Controller Built-in 2.4G ELRS V2.0 RX Nano3 1/3 CMOS

Happymodel

$125.86

Shipping calculated at checkout.


RM1641845738819428

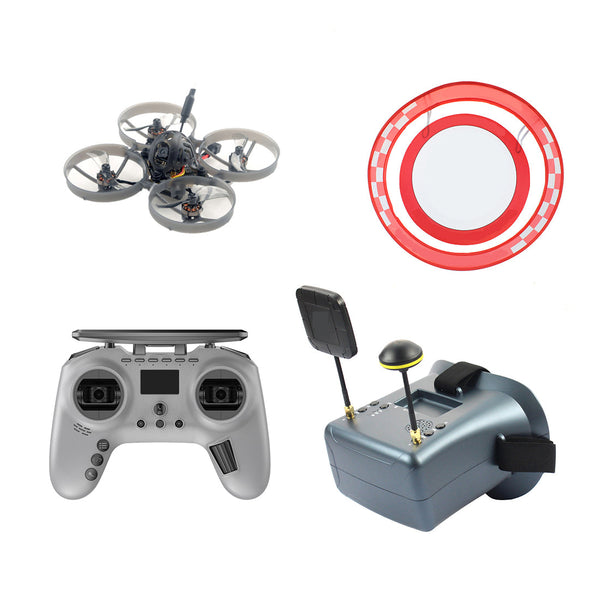

Happymodel Mobula7 1S Micro FPV Whoop Drone


We're glad to launched our new Mobula7 drone , this time the 75mm
whoop based on 1s power. Thanks to the new AIO flight controller and the
new third-generation RS0802 brushless motor, the new Mobula7 1s Will be
the best choice in the whoop season.

The world first 5-IN-1 AIO flight controller with ExpressLRS 2.0 ,
OPENVTX(up to 400mw), 12A Brushless Blheli_S ESC and Betaflight OSD
coming out recently. This is amazing flight controller for Brushless
whoop. You could get unbelievable RX and VTX range by using this flight
controller.

The new RS0802 motors comes with a new unibell design, use 1.5mm
shaft and include PCB bottom plate, high efficiency and much more
reliable.

New onboard OpenVTX , max power up to 400mw, provide RCE and PIT mode, it was very useful for race event.

Features:
X12 5-IN-1 AIO flight controller built-in 2.4G ELRS V2.0 and Openvtx
VTX Power up to 400mw
ELRS V2.0 Support
NEW RS0802 KV20000 motors
Runcam Nano3 The lightest 1/3 CMOS 800TVL Camera
Smooth and powerful
Compatible for 1S Lipo/LIHV
Recommend 1S 450mah/550mah/650mah battery(Not include)

Specifications:
Brand Name: Happymodel
Item Name: Mobula7 1S 75mm Micro FPV whoop drone
Wheelbase: 75mm
Size: 99mm*99mm*40mm
Weight: 24g

Receiver option:
2.4G ELRS SPI
SPI Frsky D8/D16
SPI Flysky
PNP (without onboard receiver)

Package includes:

Item Name

Qty

Mobula7 1S 75mm whoop Drone Frame (Mobula7 v4 frame)

1

Option1: X12 ELRS V1.0 flight controller built-in SPI ELRS 2.4G receiver

1

Option2: X12 Frsky V1.0 flight controller built-in SPI Frsky 2.4G receiver

Option3: X12 Flysky V1.0 flight controller built-in SPI Flysky 2.4G receiver

Option4: X12 PNP V1.0 flight controller without onboard receiver

RS0802 KV20000 brushless motor

4

Gemfan 1610-2 bi-blade propellers(4cw+4ccw)

1

Runcam Nano3 1/3 CMOS 800TVL camera

1

Onboard 5.8G Openvtx 0mw~400mw VTX

1

1S parallel charging board

1

Propeller disassemble tool

1

Extra camera canopy

1

Spare parts specifications:

Motor

Mode: RS0802 KV20000
Configu-ration:9N12P
Stator Diamter:8mm
Stator Length:2mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ10.5mm*13.5mm
Weight(g):2.0g
No.of Cells(Lipo):1S only

Propellers

Weight:0.24g
Material:PC
Pitch:1 inchProps Dia:40mm
Center Thickness:5mm
Center Hole Dia:1.5mm

Flight controller

X12 ELRS V1.0 flight controller built-in ELRS 2.4G receiver Target: CRAZYBEEF4SX1280
X12 Frsky V1.0 flight controller built-in SPI Frsky 2.4G receiver Target: CRAZYBEEF4FR
X12 Flysky V1.0 flight controller built-in SPI Flysky 2.4G receiver Target: CRAZYBEEF4FS
X12 PNP V1.0 flight controller without onboard receiver Target: CRAZYBEEF4DX
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU6000 or ICM20689(SPI connection)
Mount hole size: 25.5mm*25.5mm
Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in 12A(each) Blheli_S 4in1 ESC
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G OpenVTX 0mw~400mw
Built-in ExpressLRS 2.4G,Frsky D8/D16,Flysky AFHDS 2A
Built-in voltage detection
Built-in current sensor

Onboard 4in1 ESC

Power supply: 1S LiPo/LiPo HV
Current: 12A continuous peak 15A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: Z_H_30_REV16_7.HEX
Default protocol: DSHOT300
Support Bluejay firmware
When use Blujay firmware with 48khz, should set startup power to 1100/1200

Onboard SPI ExpressLRS 2.4GHz Receiver

Packet Rate option: 50Hz/150Hz/250Hz/500Hz
ExpressLRS Firmware version: V2.0
RF Frequency: 2.4GHz
Antenna : SMD antenna
Telemetry output Power: <12dBm
Receiver protocol:  SPI ExpressLRS
Compatible with ExpressLRS V2.0 TX Module
Couldn’t flash separately ExpressLRS firmware

Onboard Frsky SPI D8/D16 receiver Version

SPI BUS receiver Frsky D8 compatible
Compatible Non EU transmitter D8 modelChannels: 8ch
No ground interference ( Transmitter and receiver 1 m from the ground): 200meterFailsafe support

Onboard Flysky SPI receiver Version

SPI BUS receiver
Protocol: AFHDS and AFHDS-2A Switchable
Channels: 8ch(AFHDS) or 14ch(AFHDS-2A)
No ground interference ( Transmitter and receiver 1 m from the ground): 200meter
Failsafe support
PNP Version


(without onboard receiver)

Full UART1 for external Receiver
Support CRSF/GHOST/SBUS/IBUS/DSMX protocol
IR1 pad(invert RX1) used for SBUS input

Onboard 5.8g OPENVTX

Firmware version: OPENVTX
Smartaudio v2.1
PIT Mode support
RCE Mode support
Channels:48ch
Transmitting Power: 0/RCE/25mw/100mw/400mw
Power supply: DC 5V
Current (5v): <650ma (400mw)

Runcam Nano3

Model: RunCam Nano 3
Image Sensor: 1/3″ CMOS
Horizontal Resolution: 800TVL
Lens : 2.1mm(M8) FOV 150°
Signal System: NTSC
S/N Ratio: >50dB
Electronic Shutter Speed: Auto
Auto Gain Control (AGC): Auto
Min. Illumination: 0.01Lux@1.2F
D-WDR: Auto
Day/Night: Color
Power:DC 3-5.5V
Current: 110mA@5V 120mA@3.3V
Housing Material: ABS
Net Weight: 1.2g
Dimensions: L14mm*W14mm*H9mm
