1PCS IFlight For NIDICI Series Brushless Motor 2807 1300KV/ 2809/ 1250KV / 2812 3314 900KV/ 3115 900KV/ 1250KV/ Motor For Drone

IFlight For NIDICI Series Motor 2807 1300KV/ 2809 1250KV /2812 3314 900KV/ 3115 900KV/ 1250KV/  Brushless Motor  8-9-10inch Propeller for RC FPV Drone

Notice:

28 series - For 7 inches Frame Kit

3115/3314 - for 10 inches Frame Kit

Packing List:

1 x Brushless Motor

Description:

For NIDICI Affordable Series Motor, is designed to provide high-quality performance at an economical price. This series combines cost-effectiveness with reliable power, making it an excellent choice for hobbyists and enthusiasts who seek value without compromising on quality.

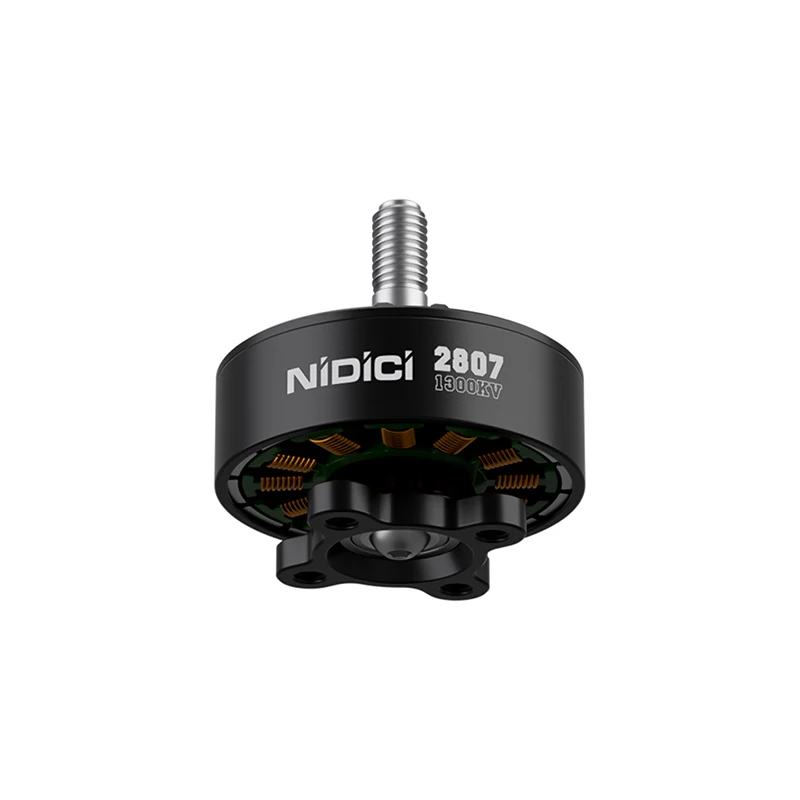

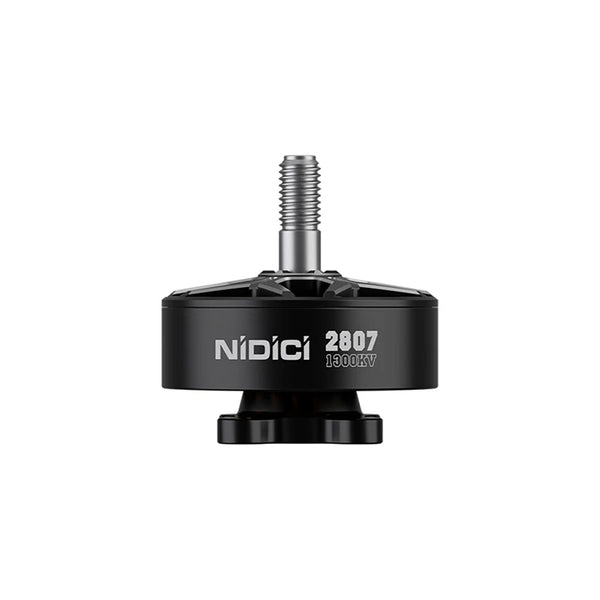

Specifications:

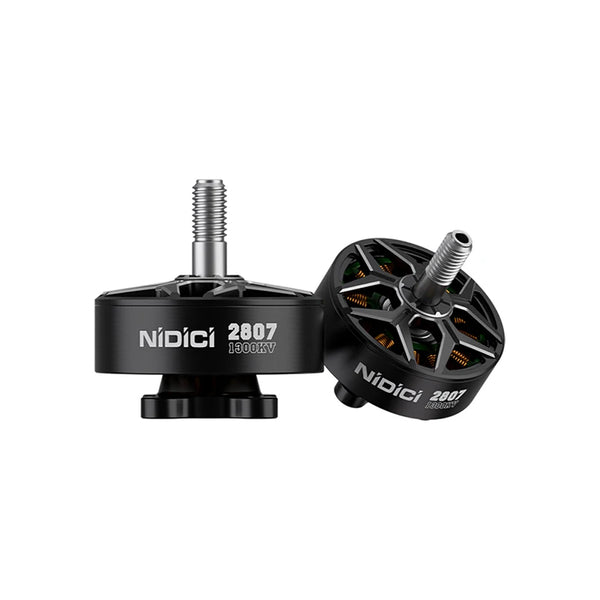

KV: 1300KV

Weight(included wire): 60.5g

Dimension: Ф33.55*34mm

Interphase Resistance: 61.15mΩ

Input Volts: 24V

Peak Current: 40.28A

Max Watt: 959.9W

Mounting Holes: 19*19 φ3mm

Rotor Specifications: Segmented bell

Shaft Diameter: 5mm

Shaft Protruding Length: 13.65mm

Lead: 260mm/18AWG

Magnet: N52H Curved

Configuration: 12N14P

Bearing Specification: φ11*5*5

Winding: Single Strand copper winding

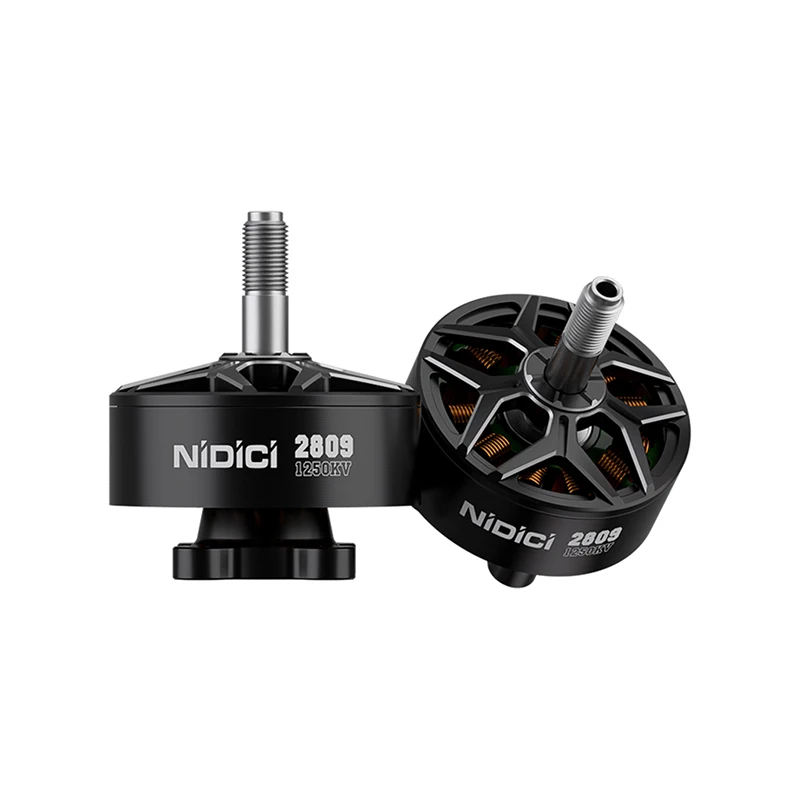

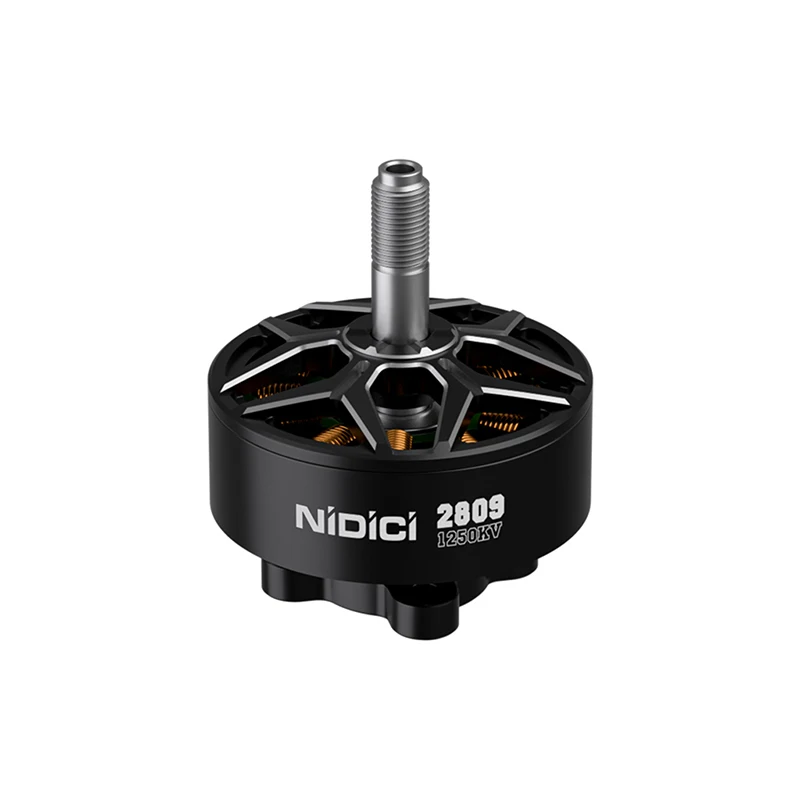

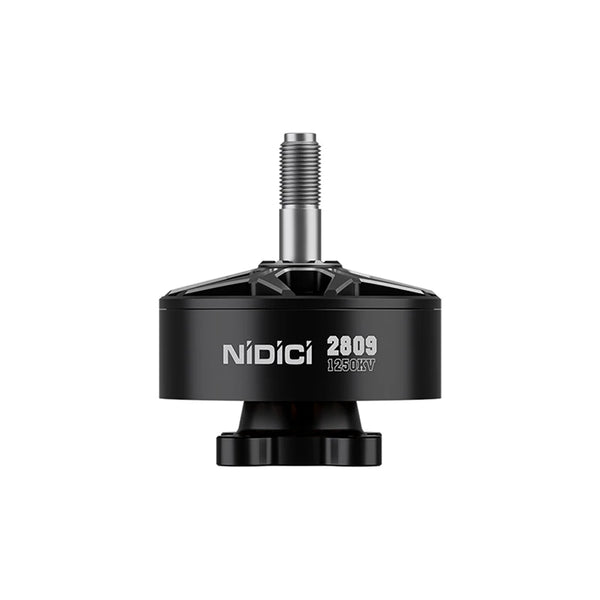

Specifications:

KV: 1250KV

Weight(included wire): 60.4g

Dimension: Ф33.55*39.3mm

Interphase Resistance: 65mΩ

Input Volts: 24V

Peak Current: 49.23A

Max Watt: 1147.1W

Mounting Holes: 19*19 φ3mm

Rotor Specifications: Segmented bell

Shaft Diameter: 5mm

Shaft Protruding Length: 15.15mm

Lead: 260mm/18AWG

Magnet: N52H Curved

Configuration: 12N14P

Bearing Specification: φ11*5*5

Winding: Single Strand copper winding

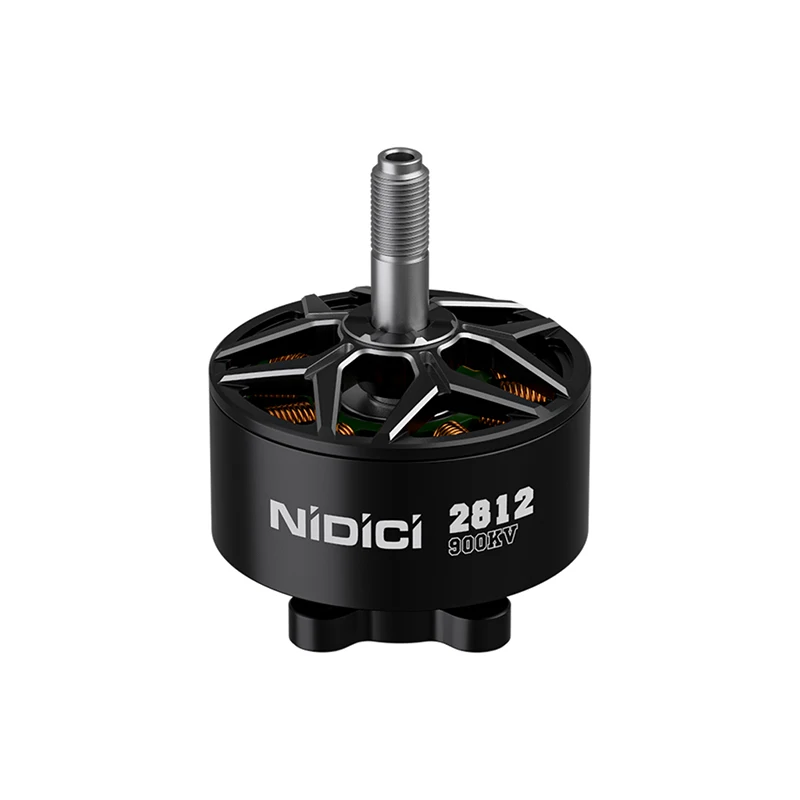

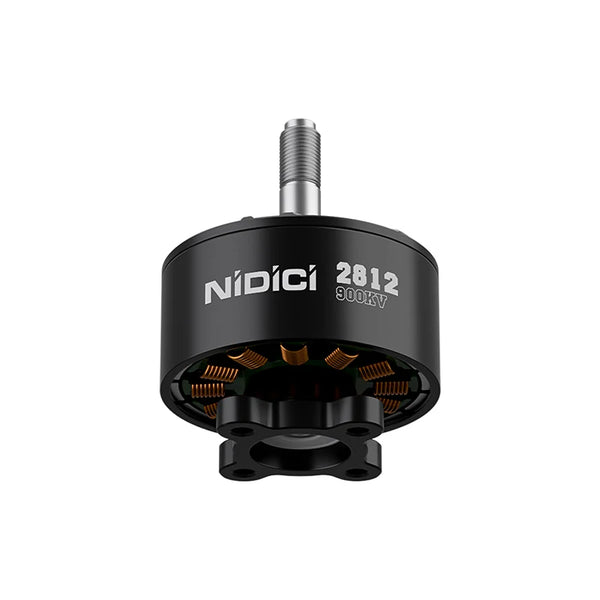

Specifications:

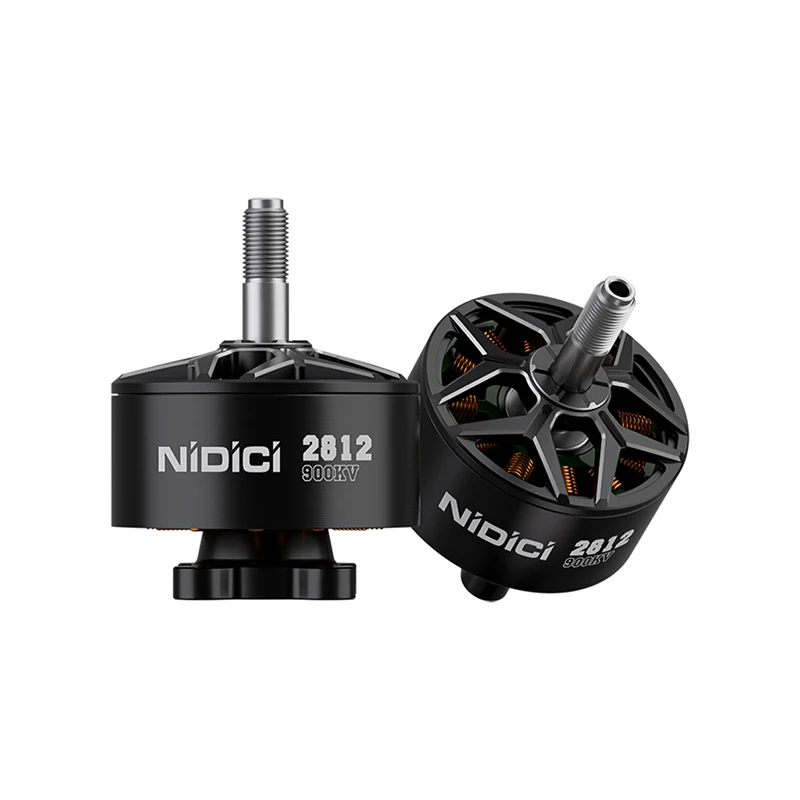

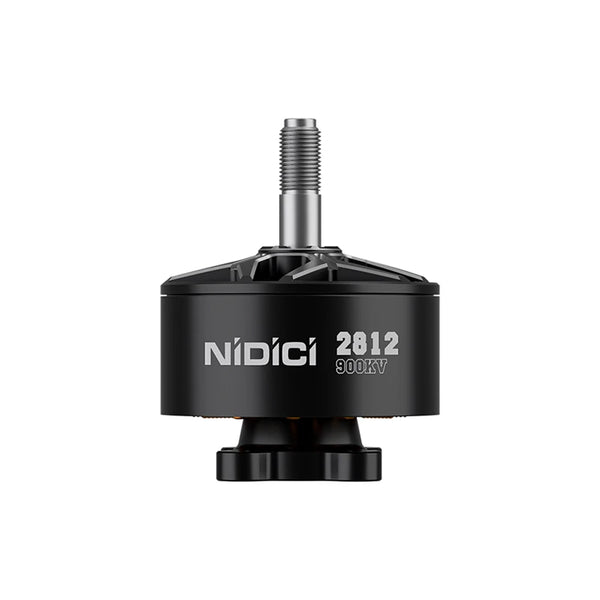

KV: 900KV

Weight(included wire): 60.4g

Dimension: Ф33.55*27.65mm

Interphase Resistance: 83.21mΩ

Input Volts: 24V

Peak Current: 43.86A

Max Watt: 1018W

Mounting Holes: 19*19 φ3mm

Rotor Specifications: Segmented bell

Shaft Diameter: 5mm

Shaft Protruding Length: 15.15mm

Lead: 260mm/18AWG

Magnet: N52H Curved

Configuration: 12N14P

Bearing Specification: φ11*5*5

Winding: Single Strand copper winding

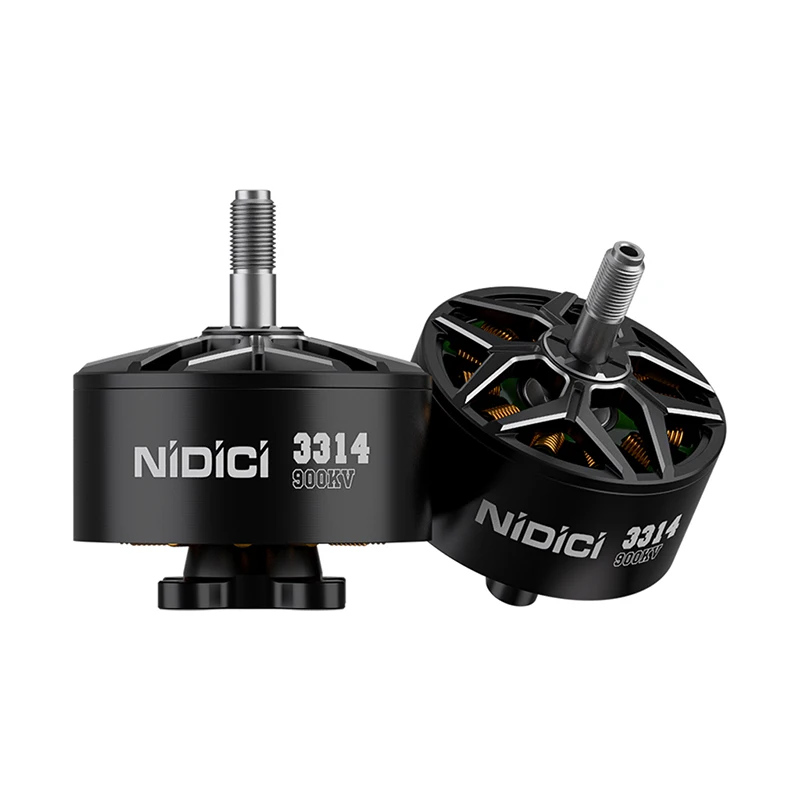

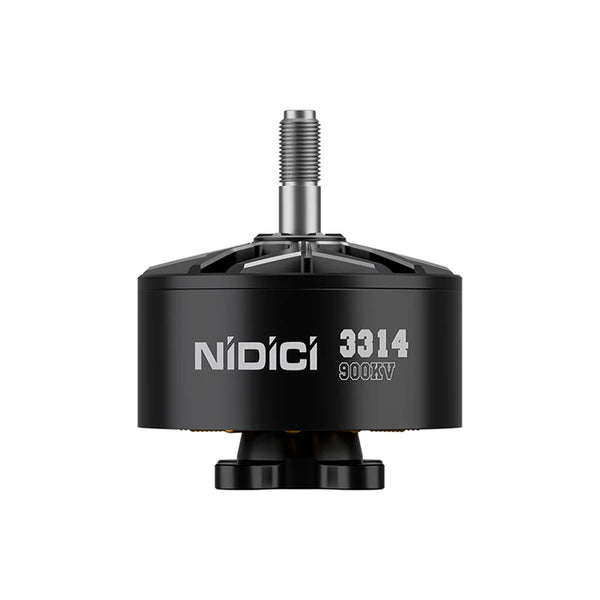

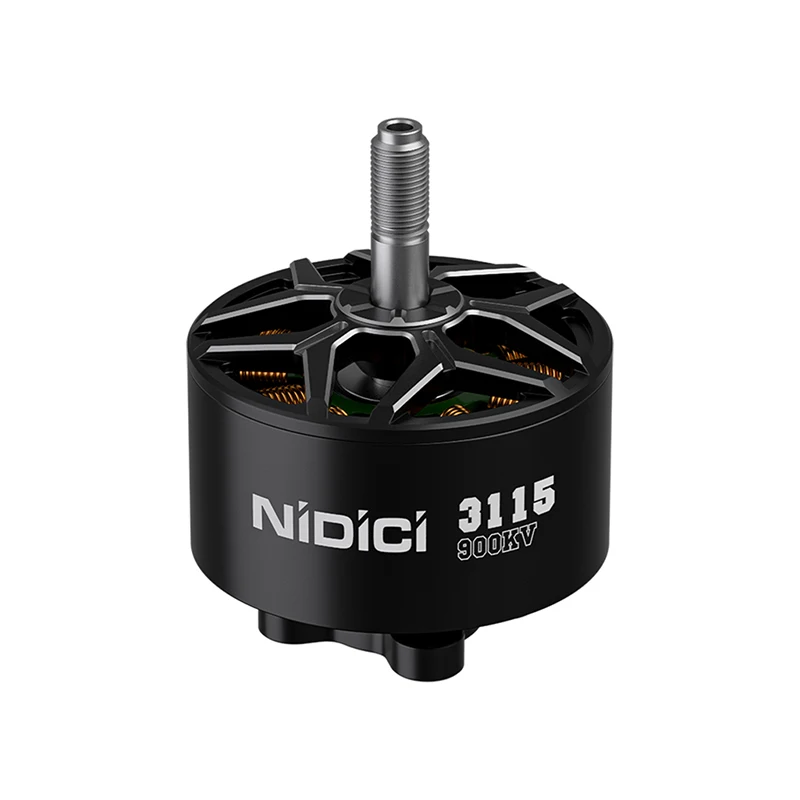

Specifications:

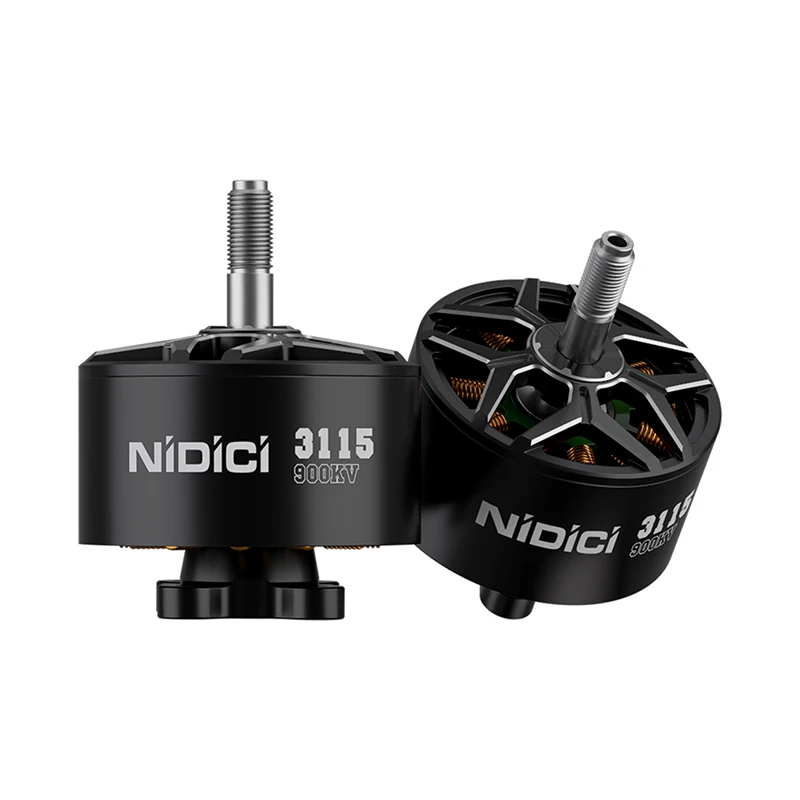

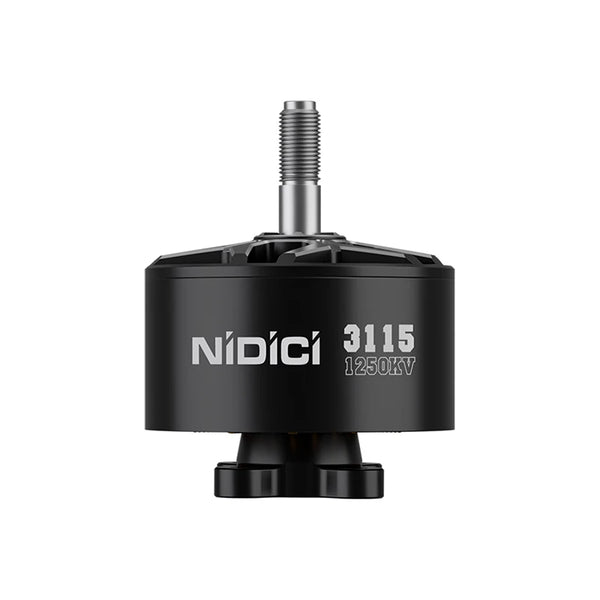

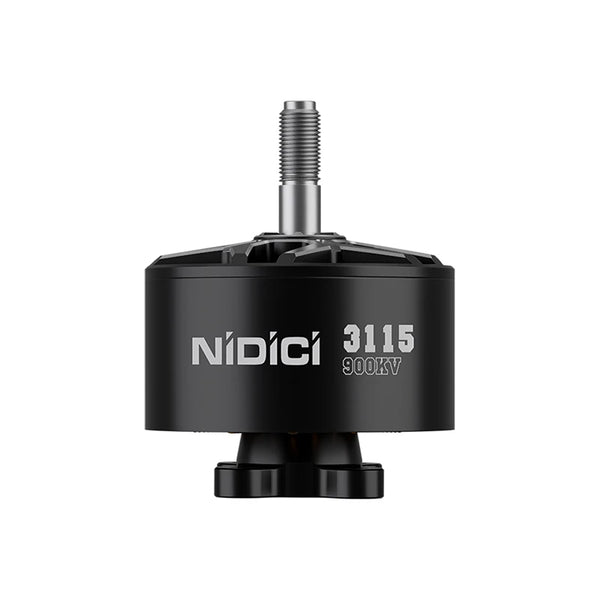

KV: 900KV/1250KV

Weight(included wire): 77g

Dimension: Ф36.85*46.8mm

Interphase Resistance: 51.24mΩ/24.15mΩ

Input Volts: 24V

Peak Current: 63.28A/78.86A

Max Watt: 1479.5W/1830.3W

Mounting Holes: 19*19 φ3mm

Rotor Specifications: Segmented bell

Shaft Diameter: 5mm

Shaft Protruding Length: 15.65mm

Lead: 260mm/18AWG

Magnet: N52H Curved

Configuration: 12N14P

Bearing Specification: φ11*5*5

Winding: Single Strand copper winding

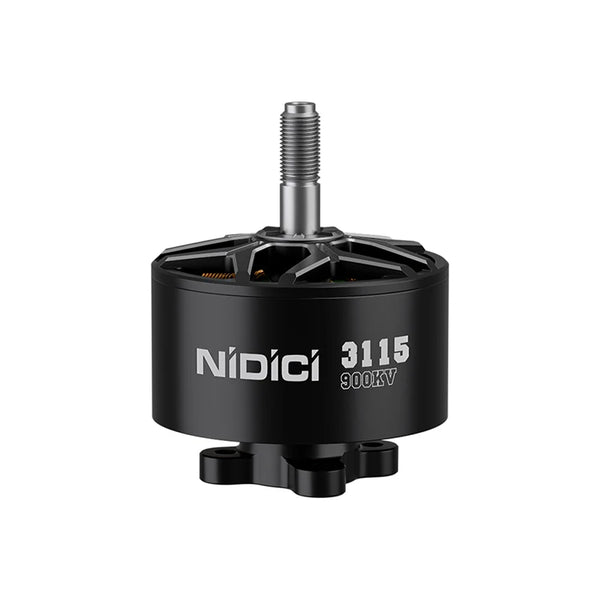

Specifications-:

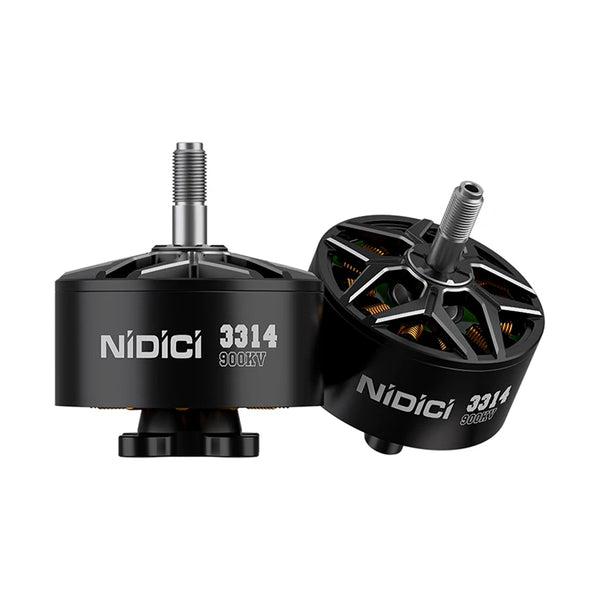

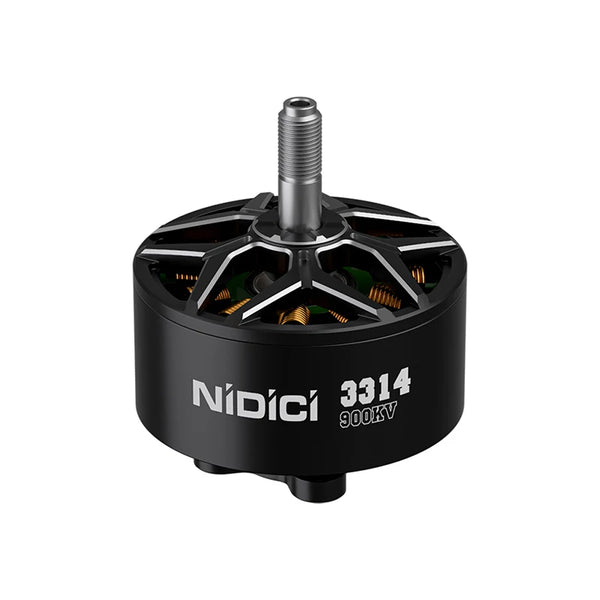

KV: 900KV

Weight(included wire): 123g

Dimension: Ф38.6*46.8mm

Interphase Resistance: 48.1mΩ

Input Volts: 24V

Peak Current: 58.48A

Max Watt: 1366.1W

Mounting Holes: 19*19 φ3mm

Rotor Specifications: Segmented bell

Shaft Diameter: 5mm

Shaft Protruding Length: 16.65mm

Lead: 400mm/16AWG

Magnet: N52H Curved

Configuration: 12N14P

Bearing Specification: φ11*5*5

Winding: Single Strand copper winding
