QWinOut J630 2.4GHz 4-Aixs Aircraft DIY RC Multicopter ARF 630mm Frame Kit Radiolink MINI PIX+GPS Brushless Motor ESC Altitude Hold

QWinOut

Sale price $249.65 Regular price $260.16

Shipping calculated at checkout.

DIY 2.4GHz 4-Aixs Quadcopter RC Drone ARF 630mm Frame Kit Radiolink MINI PIX+GPS Brushless Motor ESC Altitude Hold

Does not include Remote Controller and Battery

Spacifications:

Wheelbase:630mm

Size(L*W*H):510*510*255mm

Power Supply: 700KV Brushless Motor 3508 / 30A ESC No BEC

Propellers:  1555 Carbon Fiber Propellers

Flight Control/GPS:

Radiolink Mini PIX M8N GPS Flight Control

Battery recommend(does not include): 11.1V 4400MAH 30C ,XT60 Plug

Flight Time : 11 mins-15mins ( Depends on Enviromental )

Software:Mission Planner

Official website address :http://ardupilot.org/planner/index.html

APM is an open source flight control, can you play APM well depend on individual ability. Player must have ability of basic understanding of monolithic integrated circuit, c-language, knowledge of electrical,mechanical, and also needs a certain degree of mental capacity, financialand material resources, energy support.If you're not ready, then We recommend that you prepare some introductory information first.

Functions :

1. The aircraft in the air has a rise, fall, hover, forward, backward, turn left, turn right, left fly, right fly, self-stability, set high, a key return, headless mode, fixed point, a key landing , Rate control Acro novice with caution), automatic mode (AUTO), around the circle, guidance, follow the model, open source flight control flight stability, can be prepared
2. Aircraft body pure carbon cover the overall use of CNC precision machining.
3. MINI PIX with M8NGPS, 50cm positioning accuracy, beyond the u-box M8 chip, to achieve 1M positioning accuracy, open 20 seconds to search within 6 seconds, very strong valley positioning capabilities, support for a variety of positioning systems GPS, GLONASS L10F, QZSS L1 C / A, BeiDou b1, you can dual-mode work at the same time.
4. Simple operation With manual, as long as you are not the first contact, completely independent.
5. When using the charger, please do not charge the 3S and 4S batteries at the same time.
6. If you Do not understand the flight control and remote control, please do not modify any parameters and wiring.

Please Note : 1.When you charging ,please don't connect charger with 3S and 4S battery at the same time ,

                      2. Please don't change parameter and wires randomly , any questions ,please contact us , thank you .

.

Package Include :

Frame kit *1

700KV Brushless Motor *4

30A Brushless ESC *4

1555Propellers *2 pairs

Flight Control GPS Set  *1

Accessories kit *1

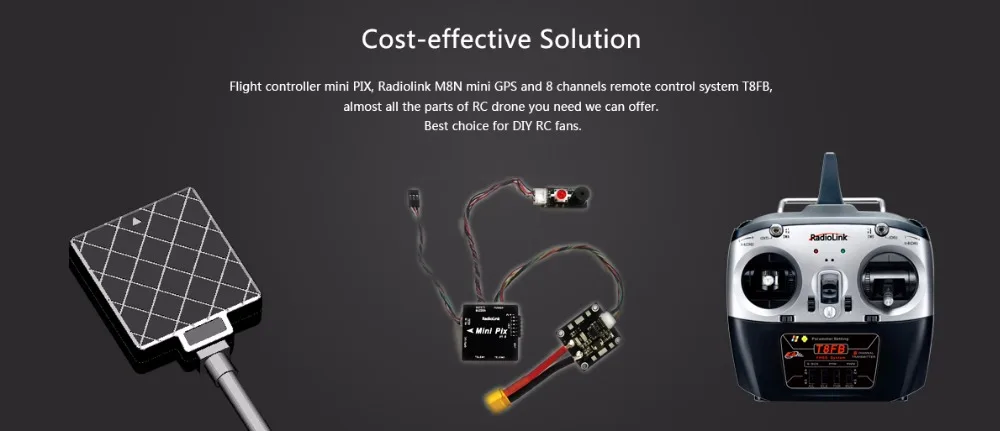

Radiolink Mini PIX M8N GPS Flight Control Vibration Damping by Software Atitude Hold for RC Racer Drone Multicopter Quadcopter

Note: The Mini M8N GPS Dedicated for Radiolink Mini PIX Flight Controller. Sm6b-ghs-tb 6pin Socket without Bracket

MINI PIX 1MINI PIX 2MINI PIX 3MINI PIX 4MINI PIX 5MINI PIX 6MINI PIX 7MINI PIX 8MINI PIX 9MINI PIX 10MINI PIX 11
