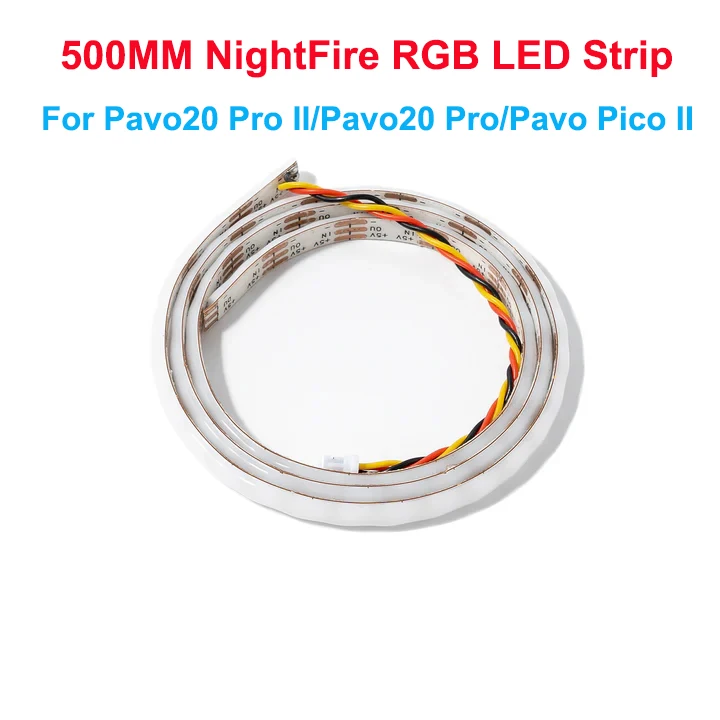

BETAFPV 500MM NightFire RGB LED Strip for FPV Drone Compatible with Pavo20 Pro II Pavo20 Pro Pavo Pico II FPV RC Drones

BETAFPV 500MM NightFire RGB LED Strip for FPV Drone Compatible with Pavo20 Pro II Pavo20 Pro Pavo Pico II FPV RC Drones

BETAFPV

$9.99

Shipping calculated at checkout.



Elevate your nighttime flying with the NightFire RGB LED Strip—the same premium lighting featured in the Pavo20 Pro NightFire Limited Edition. Designed for enhanced visibility and style, it features vibrant RGB LEDs that bring your whoop to life with a stunning spectrum of colors and dynamic display modes. Easily switch between 10 preset lighting effects and 7 colors by pressing the buttons. The NightFire RGB LED Strip is built to shine brilliantly against the night sky. Light up your flight path like never before.

RGB Controller

Input Voltage: 6V-18V (2S-4S)

Output Voltage: 5V

Output Current: 3A

Beads: WS2812B RGB colorful LED

Bead Count: Max. 128

Input Connector: GH1.25mm 3-Pin

Input/Output Connector: SH1.0mm 3-Pin

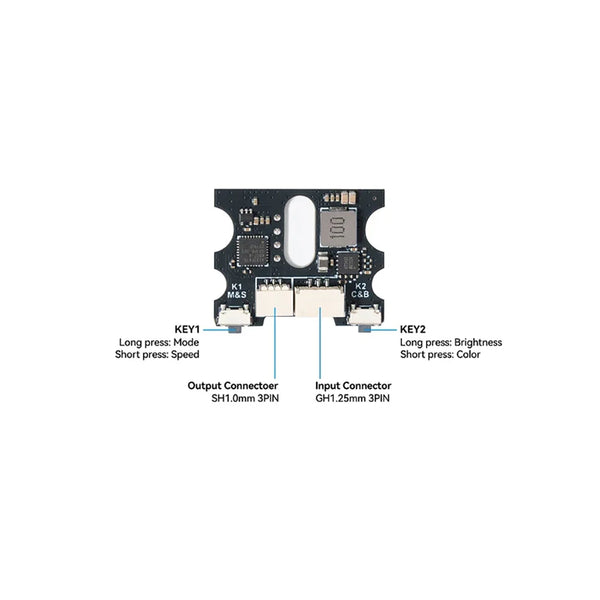

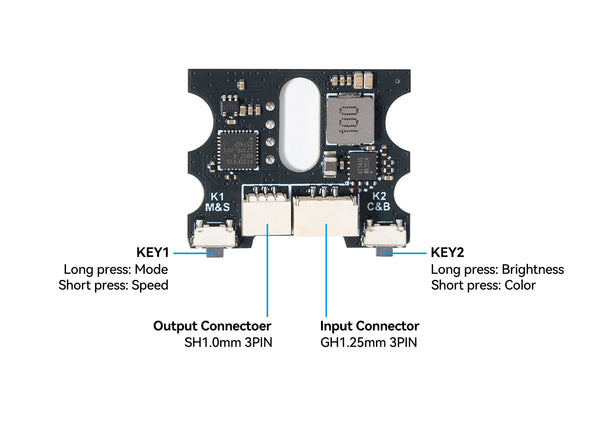

Diagram



RGB Controller Instructions

KEY1

Long Press

Switch Mode

10 modes:

  • Betaflight Mode

  • Solid Color Mode

  • Single Color Breathing Mode

  • Single Color Marquee Mode

  • Double-Sided Marquee Mode

  • Single Color Oriented Mode

  • Single Color Growth Mode

  • Rainbow Breathing Mode

  • Rainbow Gradient Mode

  • Double-Sided Rainbow Mode

Short Press

Switch Speed

Fast, Medium, Slow

KEY2

Long Press

Switch Brightness

100%, 75%, 50%, 25%

Short Press

Switch Color

White, Red, Yellow, Blue, Green, Cyan, Magenta, Off

Recommended

Quadcopter: Pavo20 Pro II, Pavo20 Pro, Pavo Pico II

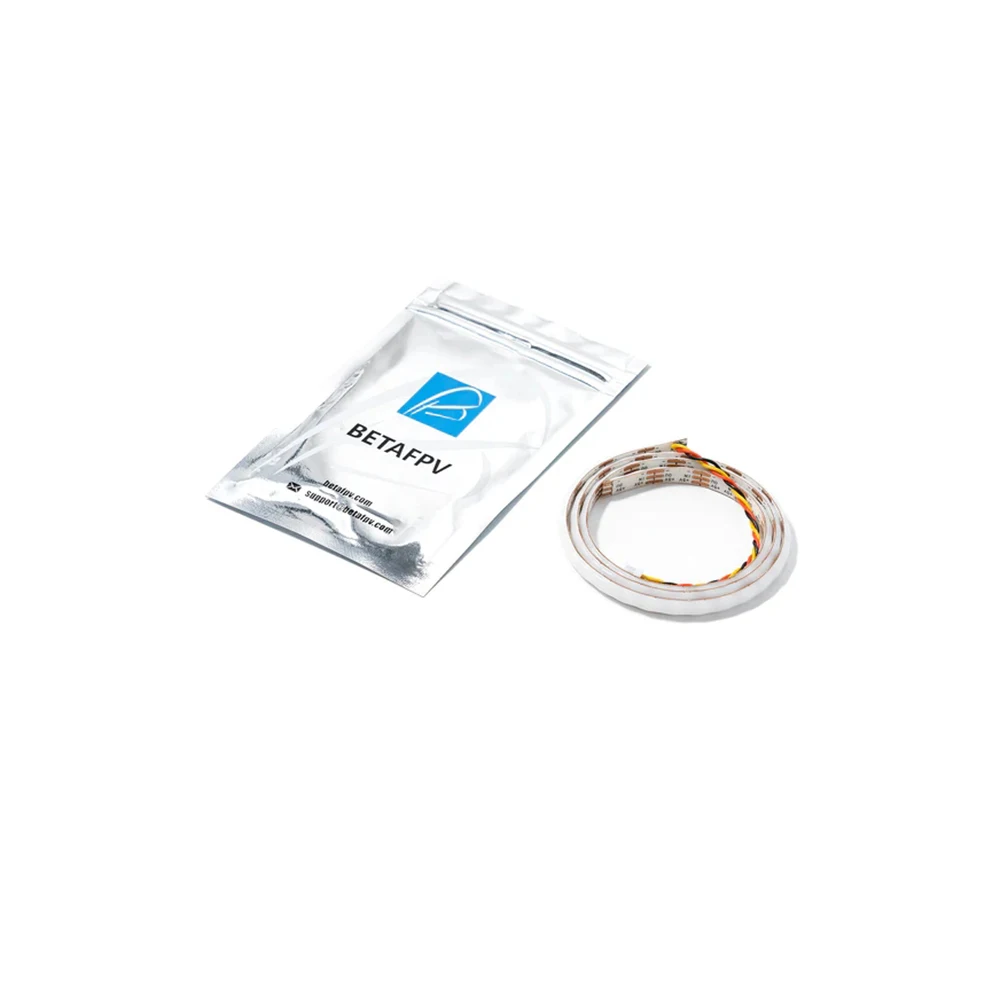

Package

NightFire RGB LED Strip (LED Strip Version)

1 * RGB LED Strip (500mm)

1 * 3-Pin Cable

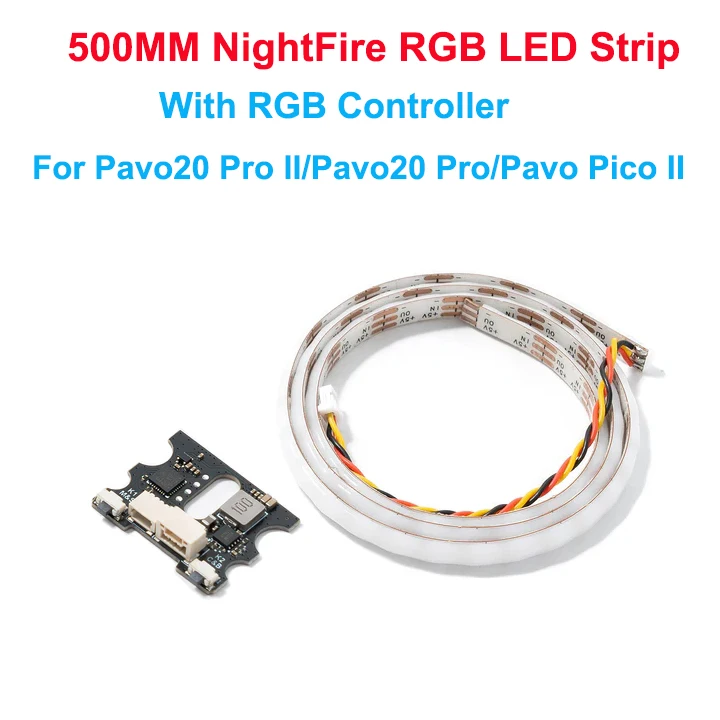

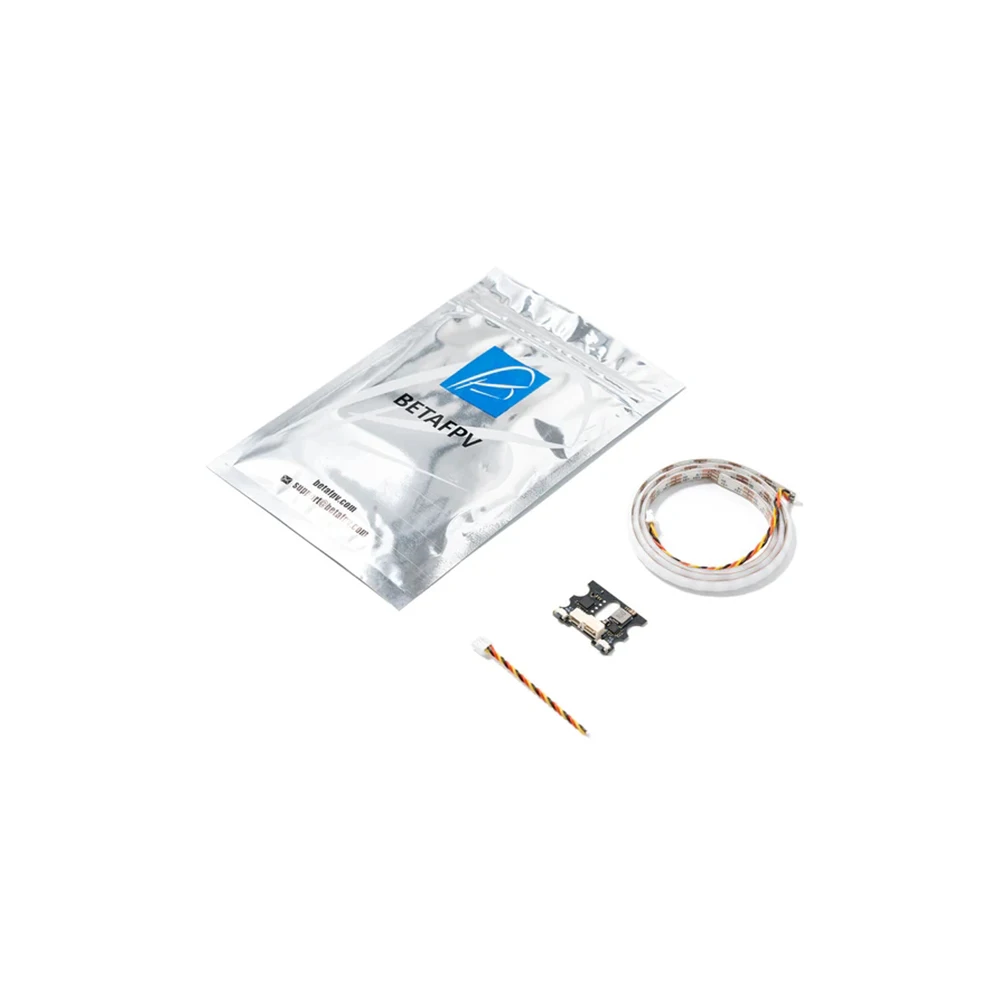

NightFire RGB LED Strip (Controller+LED Strip Version)

1 * RGB LED Strip (500mm)

1 * RGB Controller

1 * GH1.25 3-Pin Cable (50mm)
