BETAFPV Pavo Series COB LED Strip 5V 560mm Length 4mm Width Suit for BETAFPV Pavo Pico Pavo20 Meteor85 FPV RC Drones

The Pavo Series COB LED Strip is a 5V-powered LED strip measuring 560 mm*4 mm. It provides increased visibility and facilitates easy observation of the drone's flight by the pilots during nighttime or poorly lit conditions, which also enhances operational safety, It can be securely mounted on the frame whoop duct, adding unique lighting effects and a visually captivating appearance. Choose from a single color option of ice blue, white, green, or red, or even mix multiple colors to personalize and elevate your flying experience while ensuring safety.

Specification

• Item: Pavo Series COB LED Strip

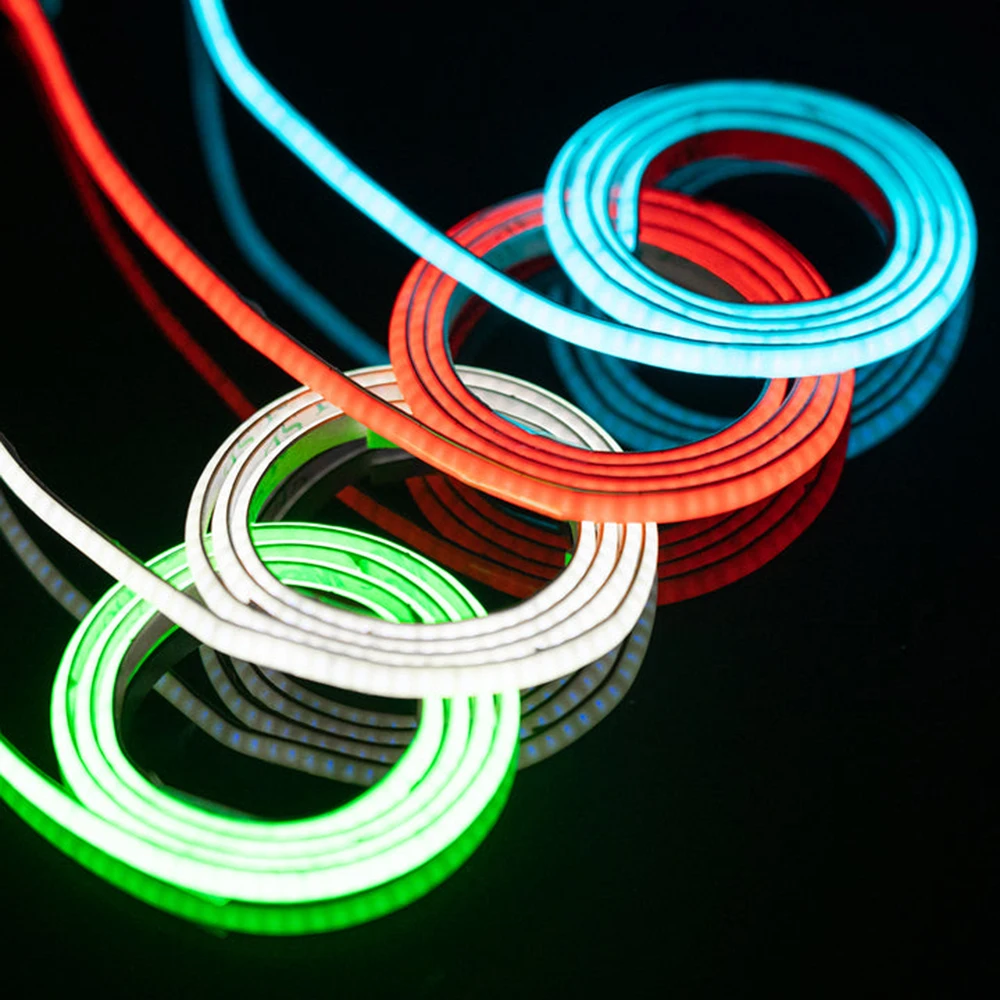

• Color: Ice Blue, White, Green, Red

• Length: 560mm

• Width: 4mm

• Supply Voltage: 5V

• Current: 450mA~600mA

• Control Signal: High and Low Logic Levels

• Applicable Drone: Pavo Pico, Pavo20, Meteor85

Configuration

• Connect the flight controller to the Betaflight configuration and switch to the CLI configuration interface.

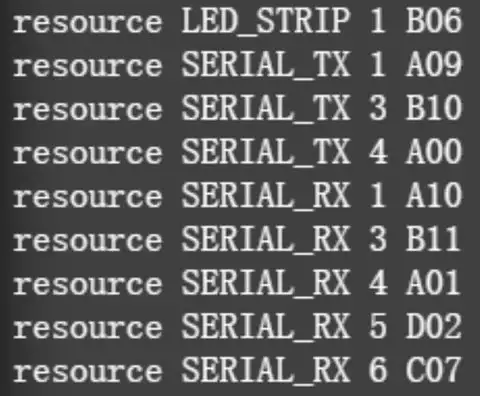

• Enter the RESOURCE in the CLI configuration interface and press ENTER to export the port pin configuration definition of the flight control.

• Select the available port on the flight controller as the control port to control the COB LED Strip. The following takes the TX1 port of the UART1 port as an example to configure the PINIO function of the flight controller:

resource SERIAL_TX 1 NONE	//Turn off the serial port function of the TX1 pin
resource PINIO 1 A09	//Configure the TX1 pin (i.e. A09 pin) as the No. 2 PINIO function
set pinio_box = 40,255,,255,255	//Set PINIO function range
save	//Save configuration

• Configure the PINIO function mapping relationship between the radio controller and the flight controller. In Betaflight Configuration, map the PINIO function No. 1 (USER1 in the picture below) to the AUX3 channel of the radio controller (or other channels are acceptable).

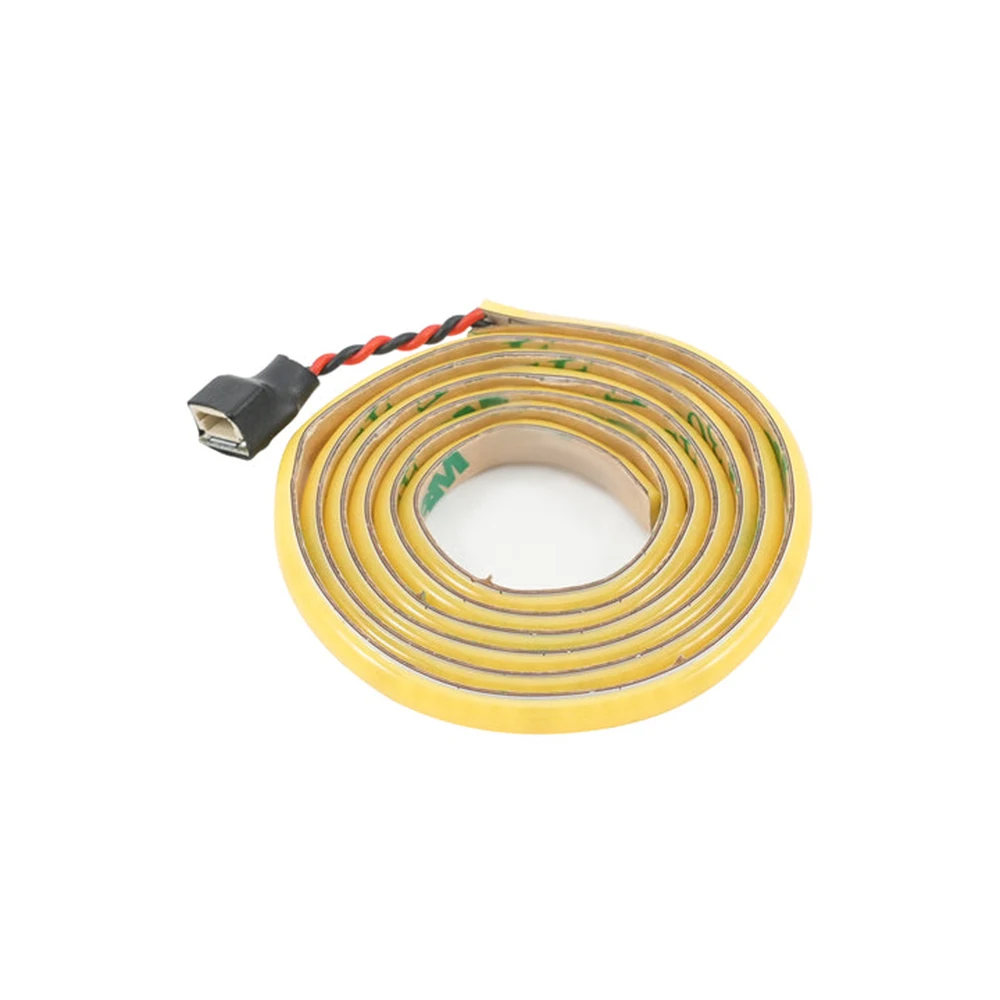

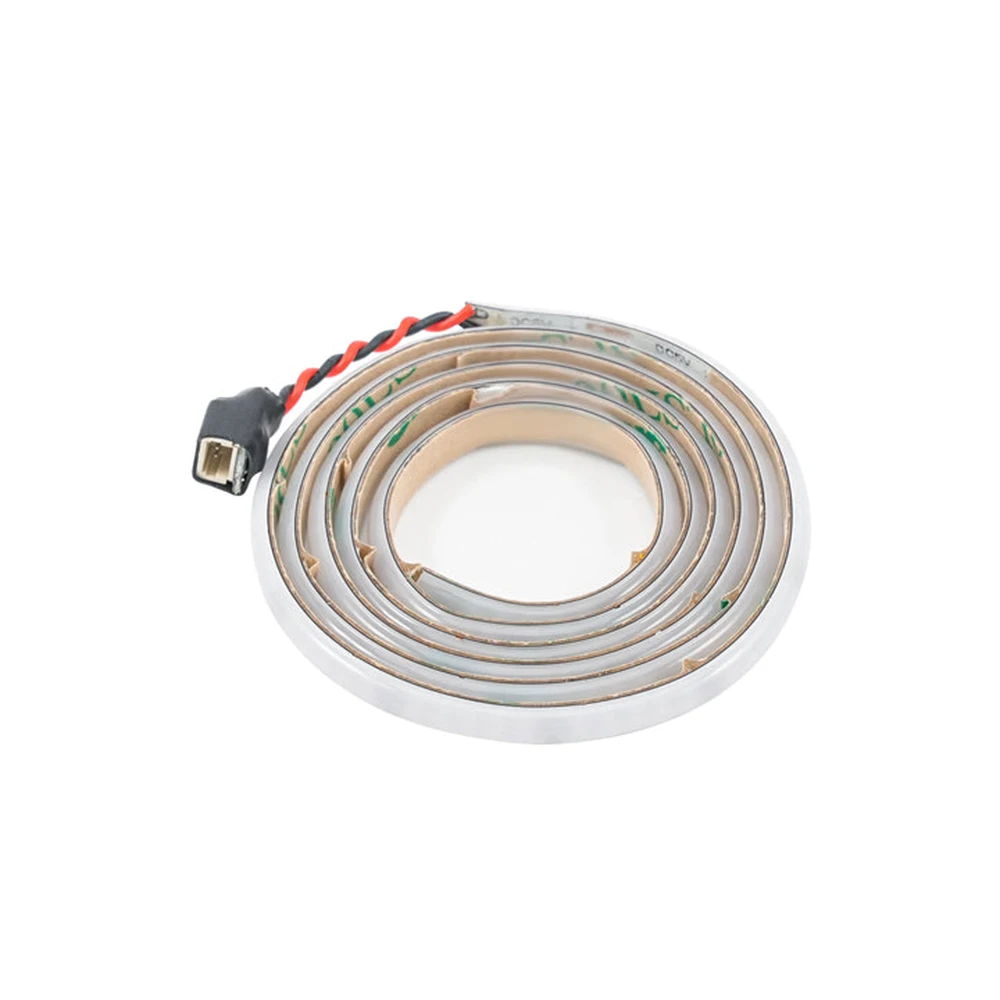

Note: The appearance of the Ice Blue COB LED Strip is light yellow, while the Green strip is white, and the white strip is yellow.

Package

Item: Pavo Series COB LED Strip1 * Pavo Series COB LED Strip(Ice Blue/White/Green/Red)

1 * Anti-static Bag
