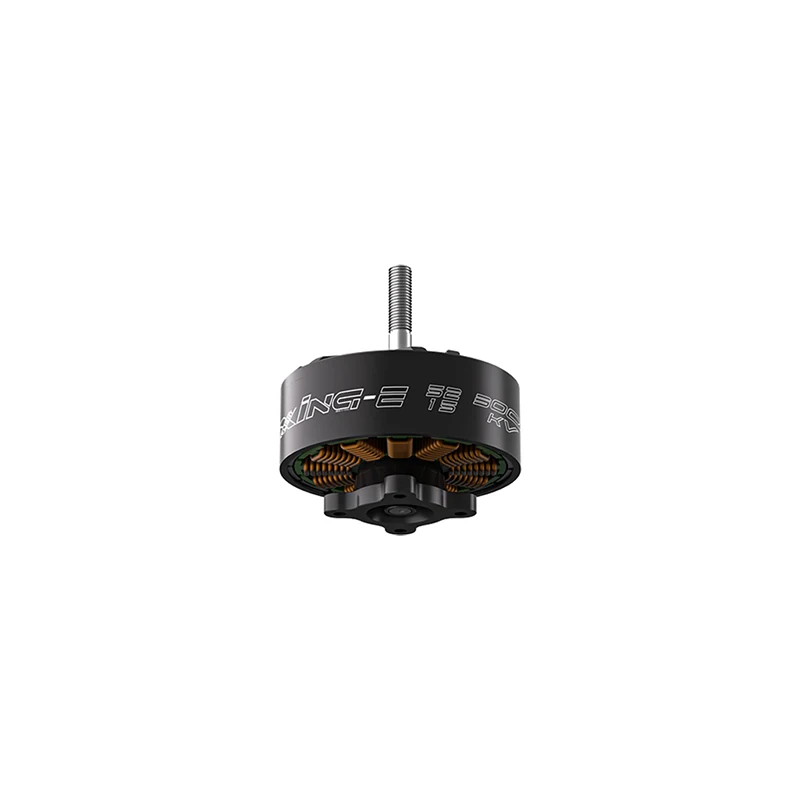

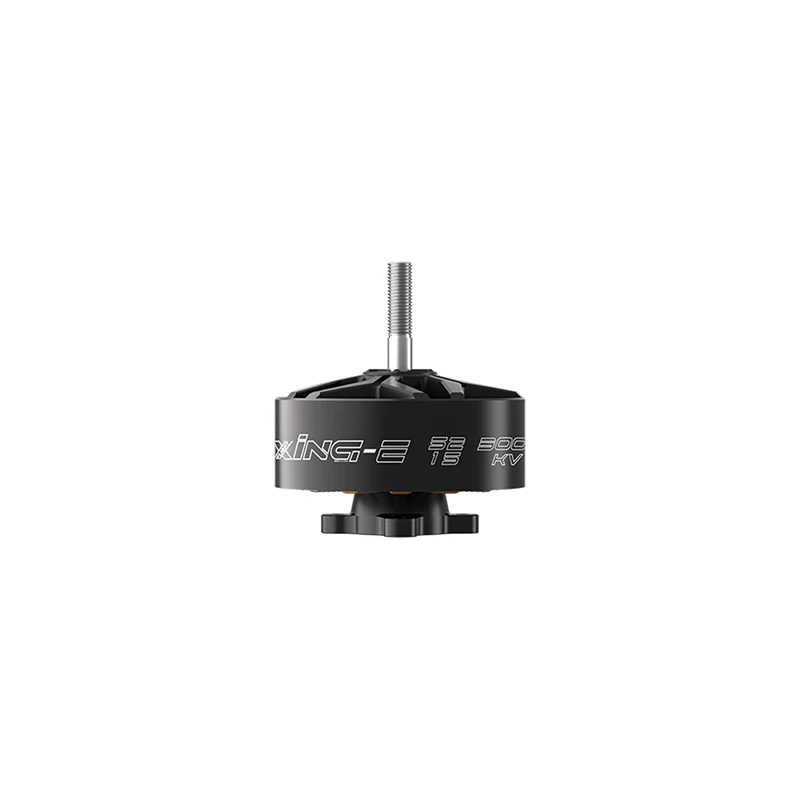

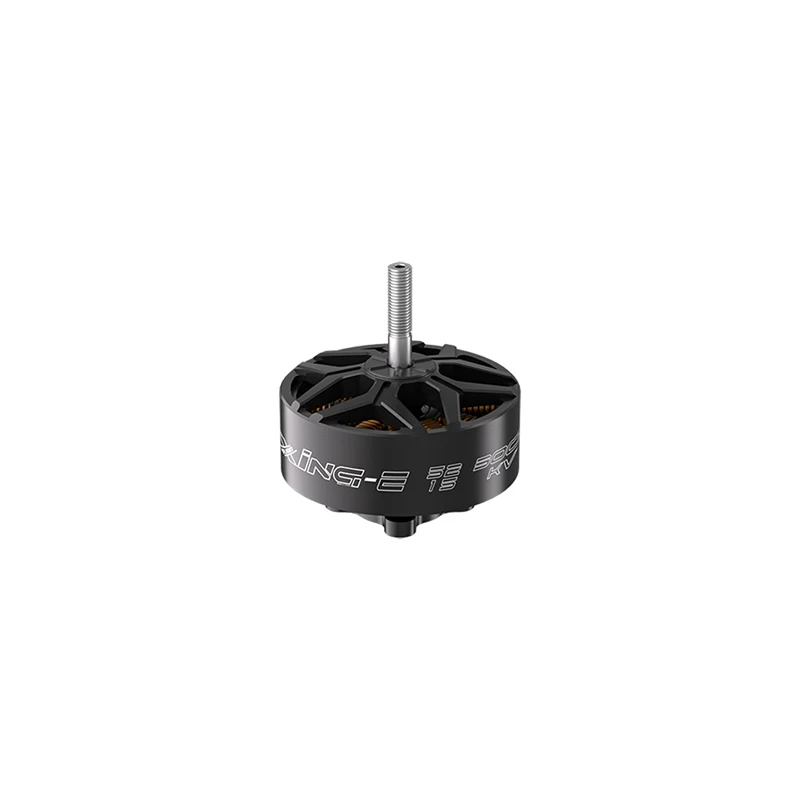

IFLIGHT XING-E 5215 Motor 300KV/500KV Motors for X-Class Quadcopters

Description

Meet the latest high-performance motor from Xing-E—engineered to shatter limits and redefine reliability for large drone builds. Leveraging cutting-edge technological advancements, this motor delivers consistent, dependable performance, making it a standout choice for enthusiasts and professionals focused on bigger X-Class quadcopters.

Specifications

Model: XING-E 5215 Motor

KV: 300KV / 500KV

Weight(included wire): 344.5g

Dimension: φ60.2*65mm

Interphase Resistance: 49.57mΩ / 25.58mΩ

Input V

olts: 12S / 8S

Peak Current: 71.07A / 106.49A

Max Watt: 3361.83W/ 3294.62W

Shaft Diameter: 6mm

Shaft Protruding Length: 26mm

Lead: 600mm/14AWG

Magnet: N52H-T

Configuration: 12N14P

Mounting holes: 30*30 φ4mm

Rotor Specifications: Segmented Bell

Bearing Specification: φ15*φ6*5

Winding: Multi-Strand copper winding

Packing List

1 x XING-E 5215 Motor

4 x M2*12mm screws

1 x M6 Flange Nut
