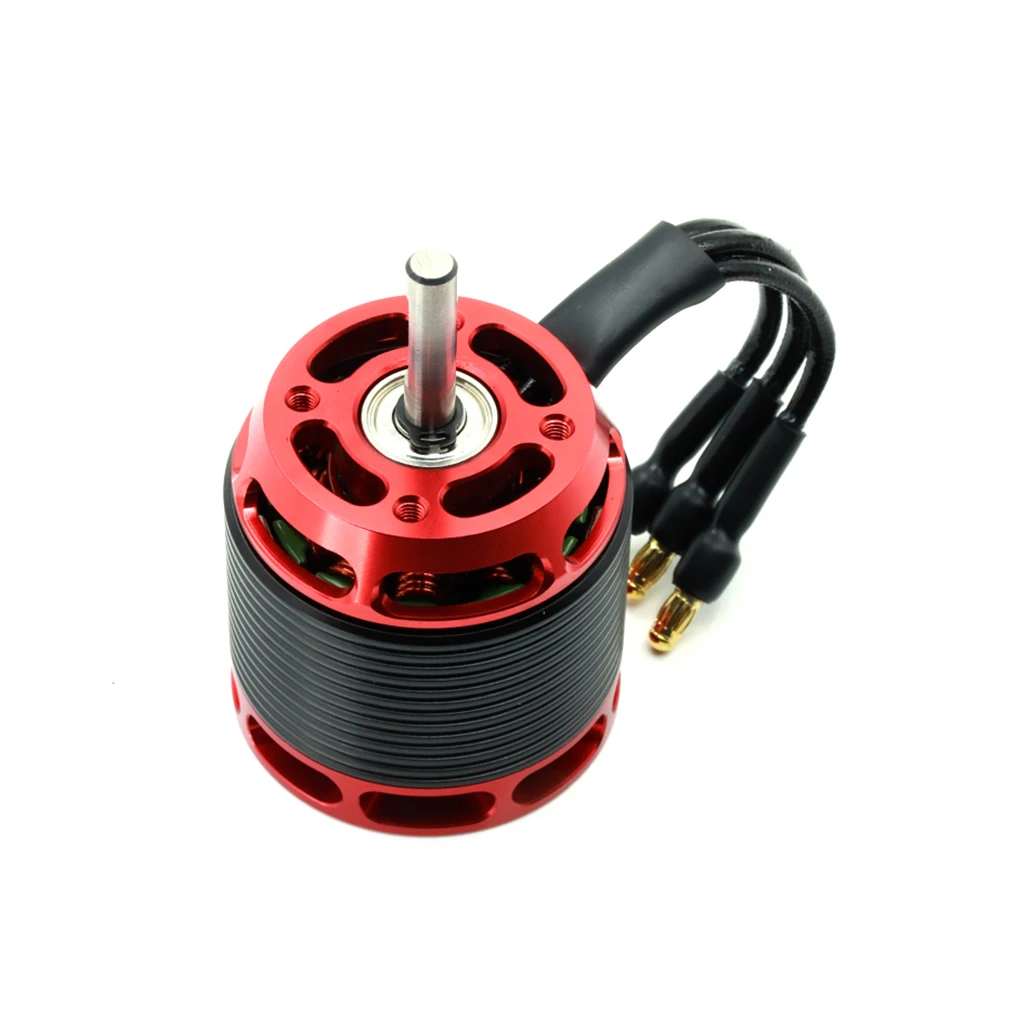

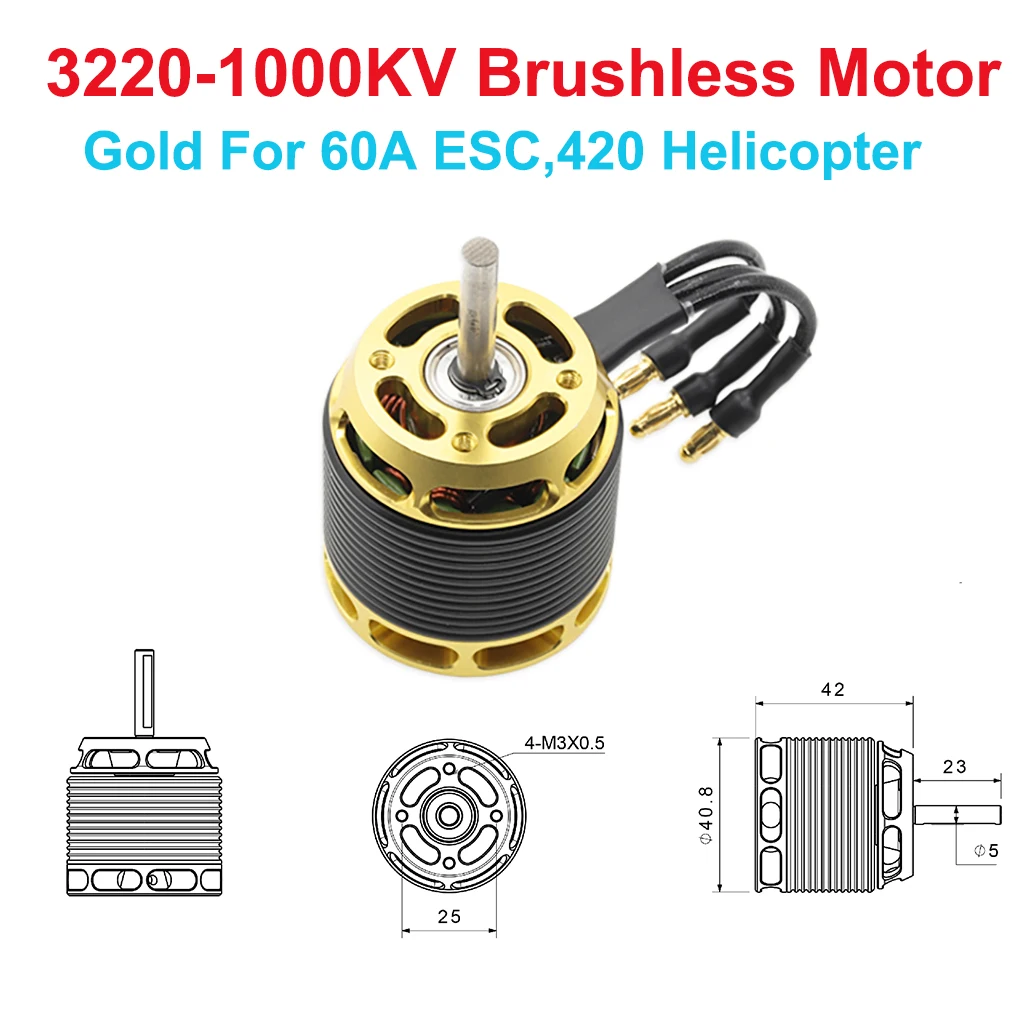

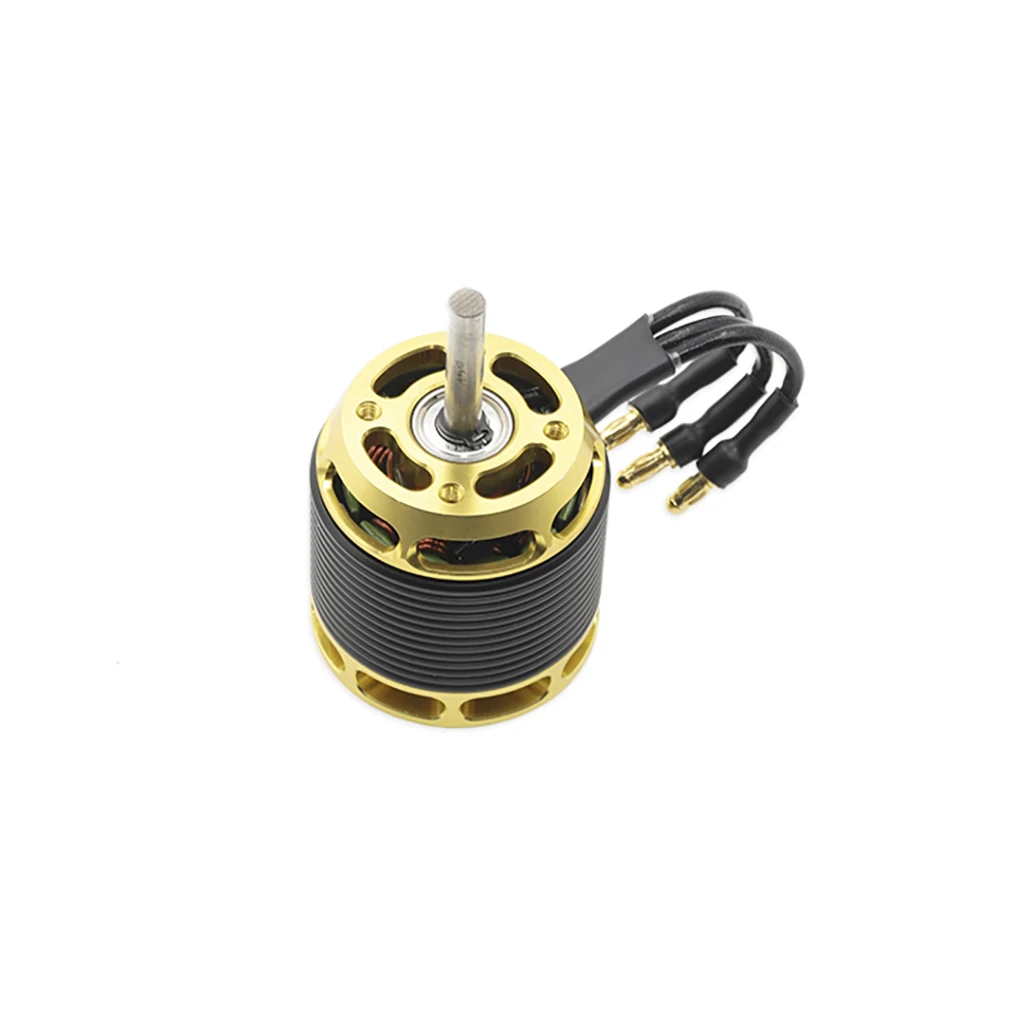

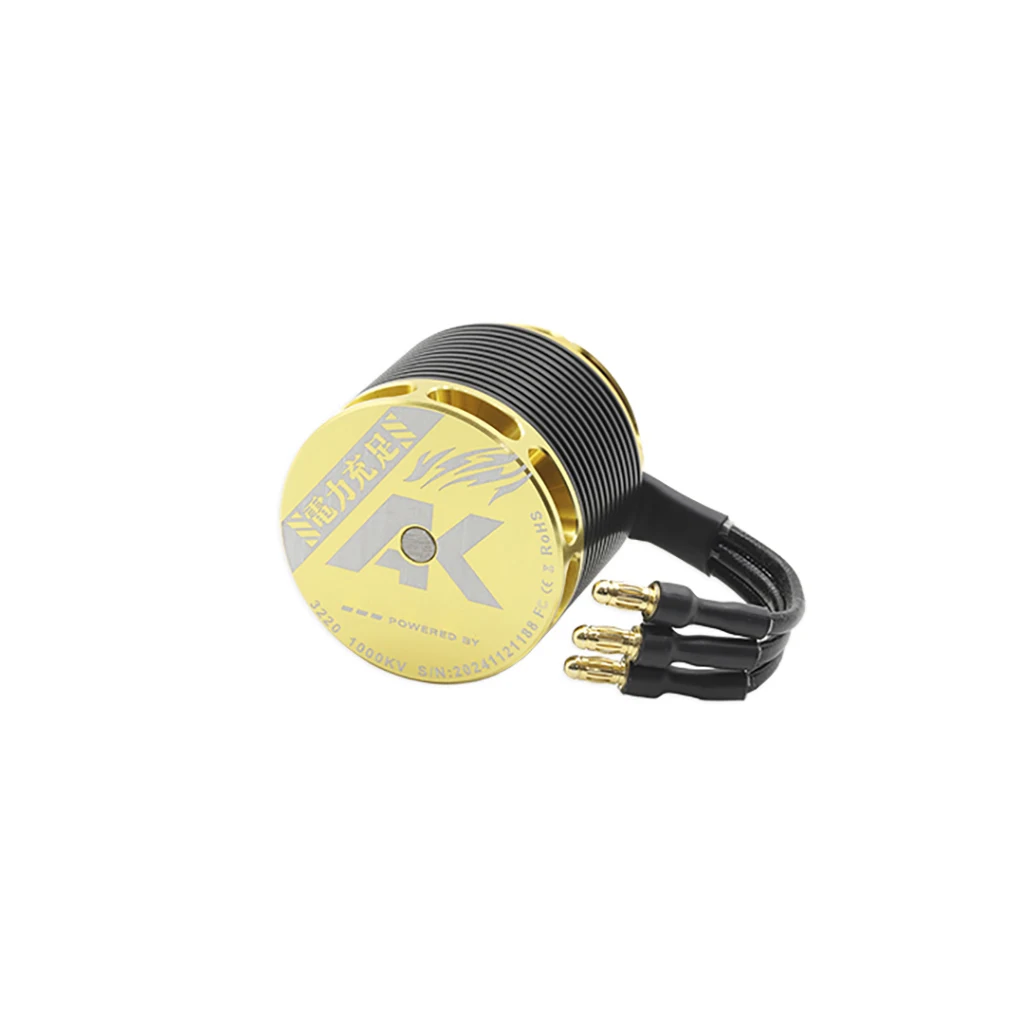

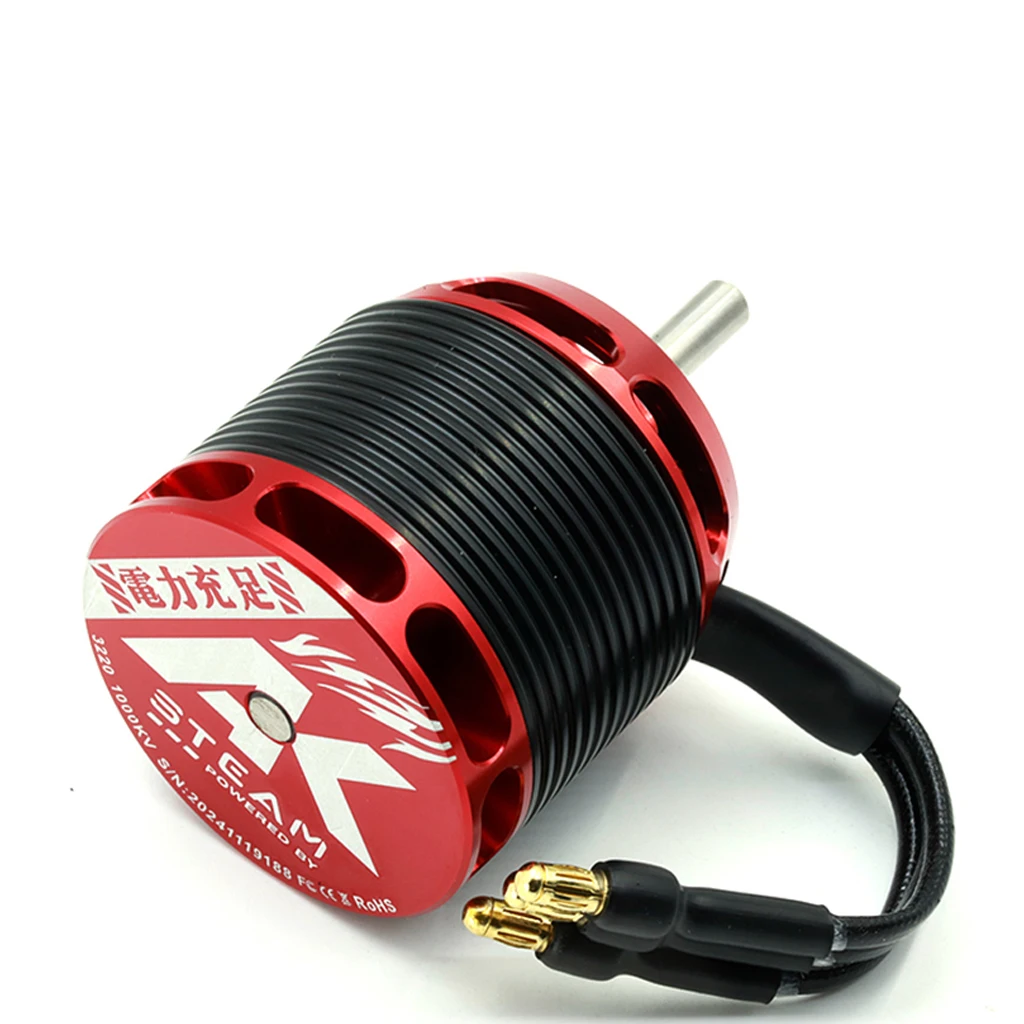

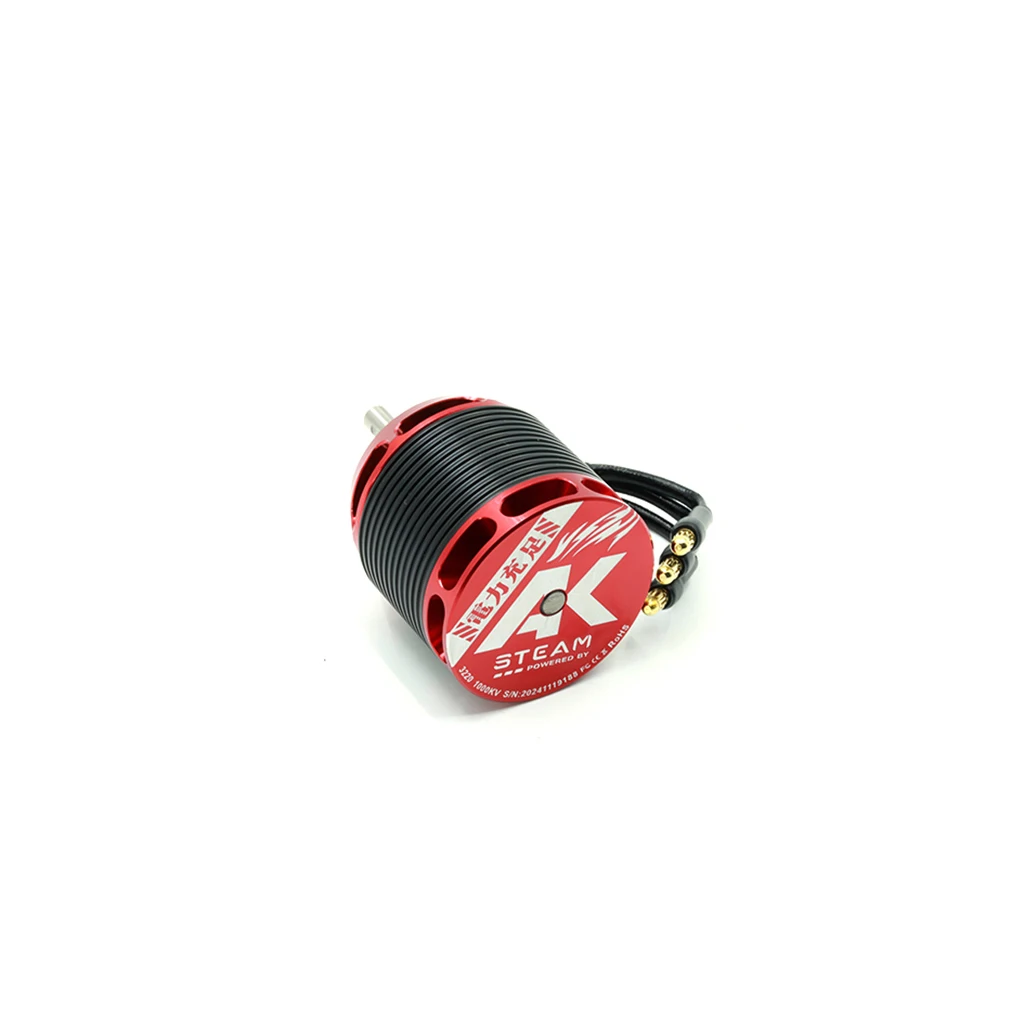

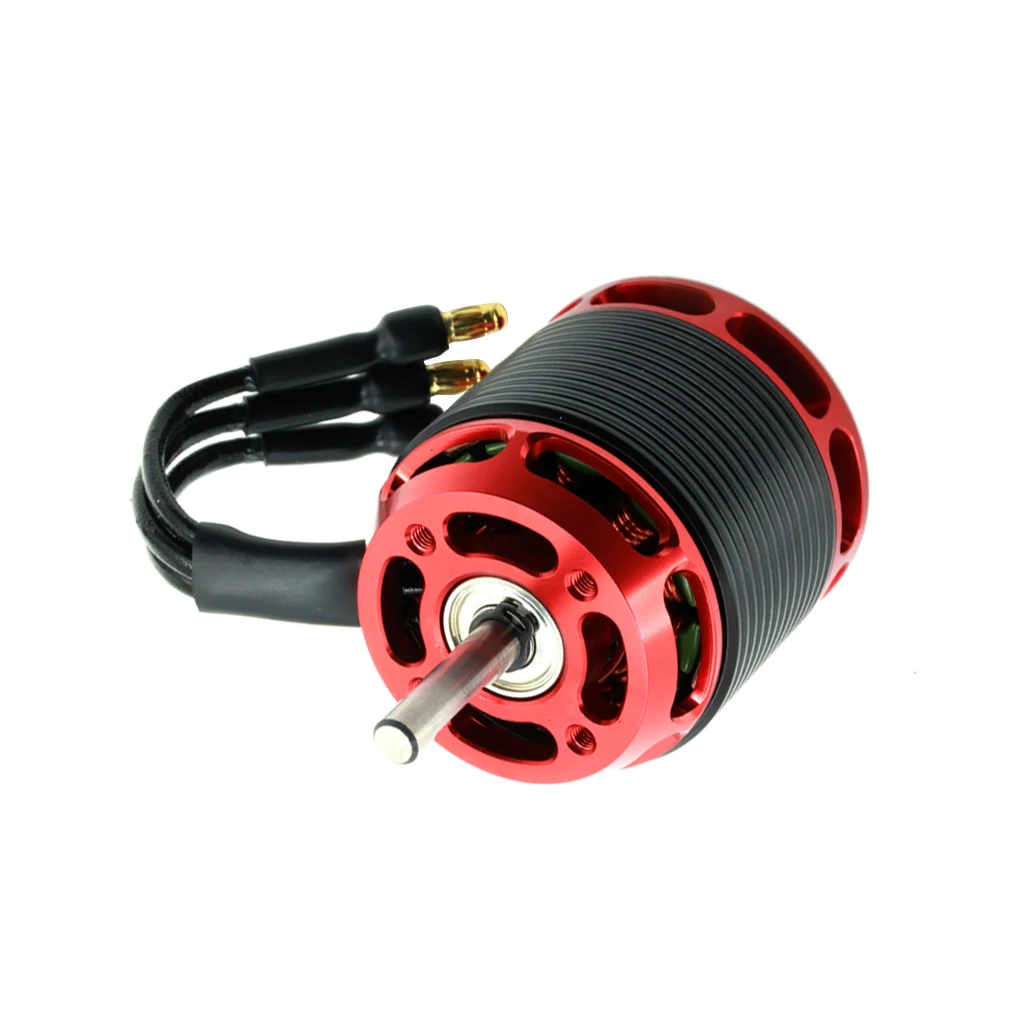

STEAM-RC MD3220 1000KV Brushless Motor 0.86MM Wire Diameter for 420 RC Helicopter

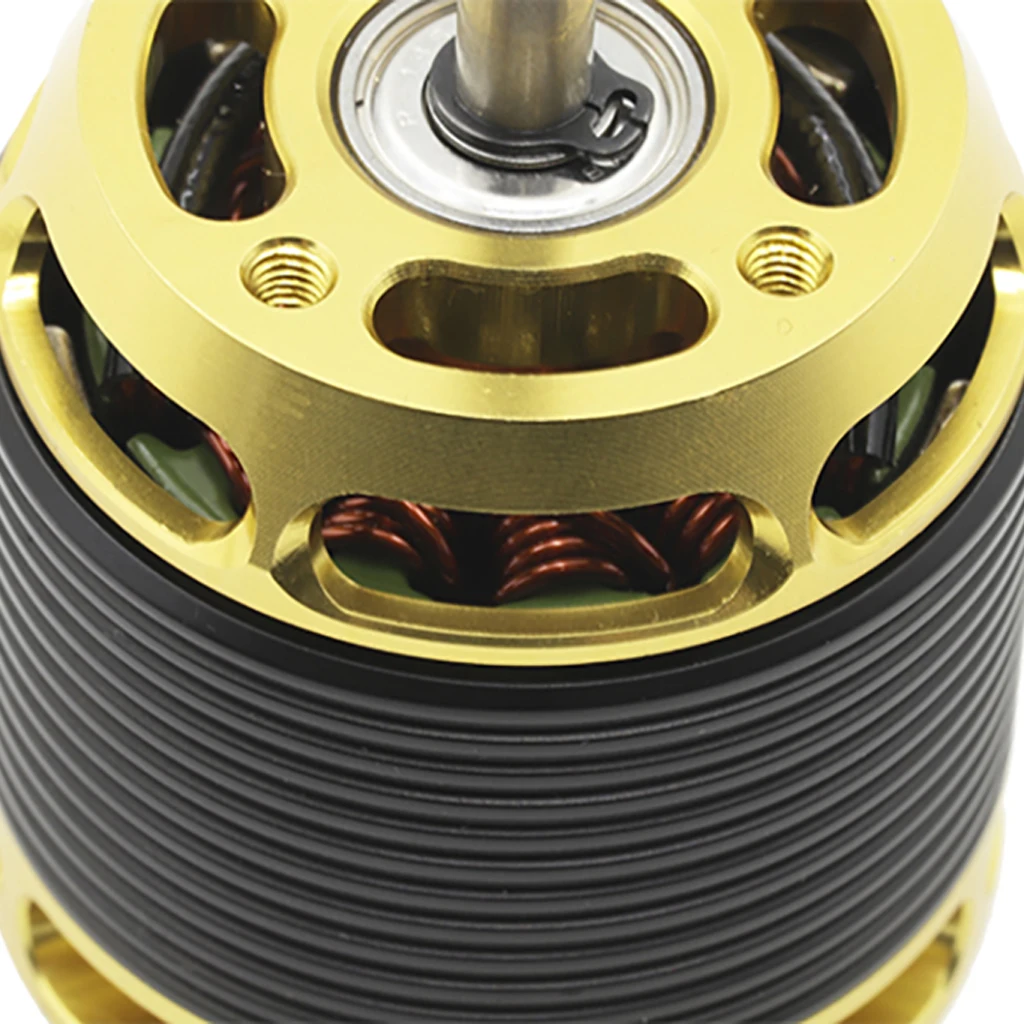

The 3220 brushless motor is suitable for 420 helicopters and is manufactured using 6061T6 aluminum alloy with high-precision CNC machining. Its distinctive large bearing design, 180-degree high-quality neodymium-iron-boron strong magnets, and built-in efficient active heat sinks provide ultra-low temperatures and effectively improve energy conversion efficiency.

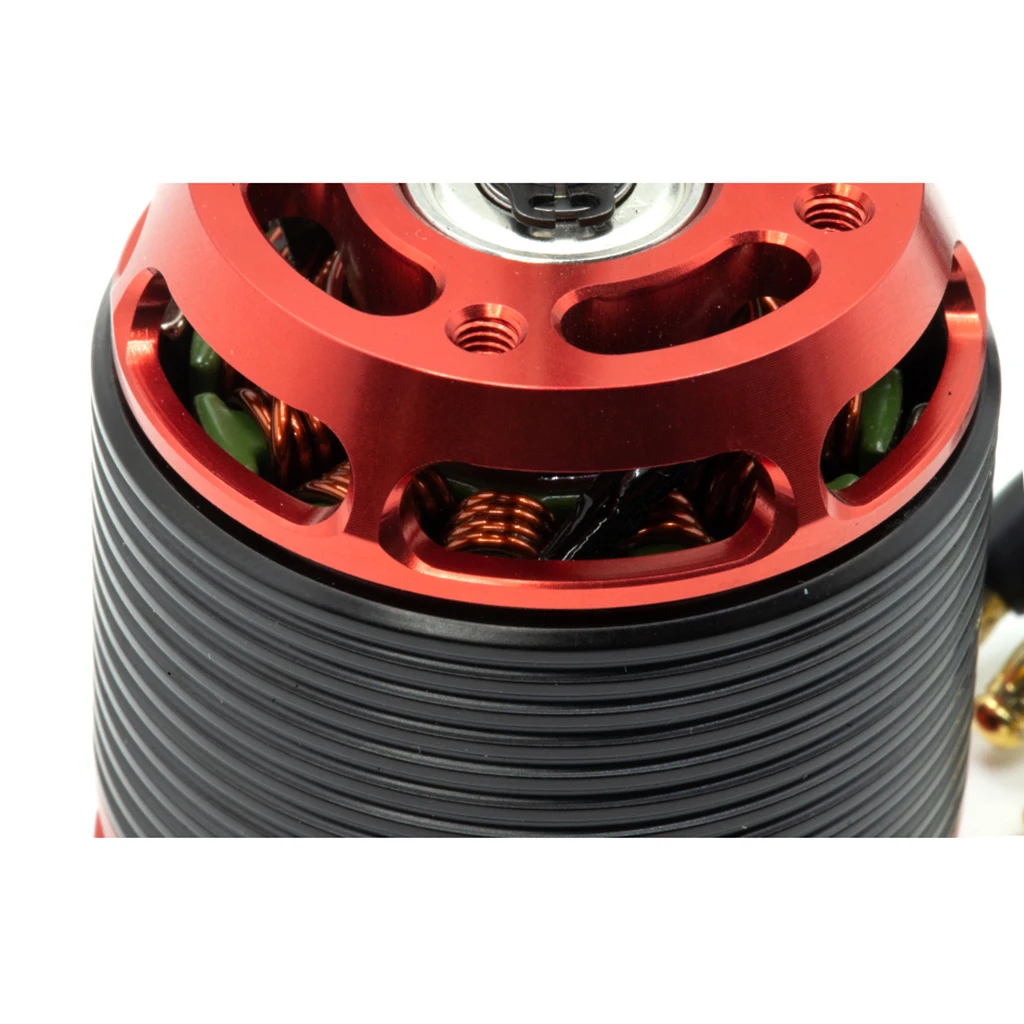

The third generation 3220 brushless motor uses 0.86mm single-strand thick copper wire, 7T 6T YY precise winding method, and is hand-wound with high slot fill rate. It delivers powerful performance while maintaining minimal vibration; a coin can stand on it when mounted on a helicopter. It is the standard power motor for competition-level 380/400/420/450 class helicopters.

Note: It is recommended to set the motor to 5° timing. For daily use, a 60A ESC is suitable, while an 80A ESC can reach its maximum performance. Mounting hole distance: 25mm.

Product Specifications:

Motor Shaft Diameter: 5mm
Motor Shaft Length: 21mm
Stator Diameter: 32mm
Stator Thickness: 20mm
Number of Stator Arms: 8mm
Number of Slots/Poles: 10N/10P
Motor Winding Turns: 5/3 Turn Delta
Motor Wire Diameter: 0.86mm
Motor Kv Value: 1000KV RPM/Volt
No-Load Current (IO/10V): Amps
Max Continuous Current: 85 Amps
Max Continuous Power: 1750 Watts
Weight: 172 Grams

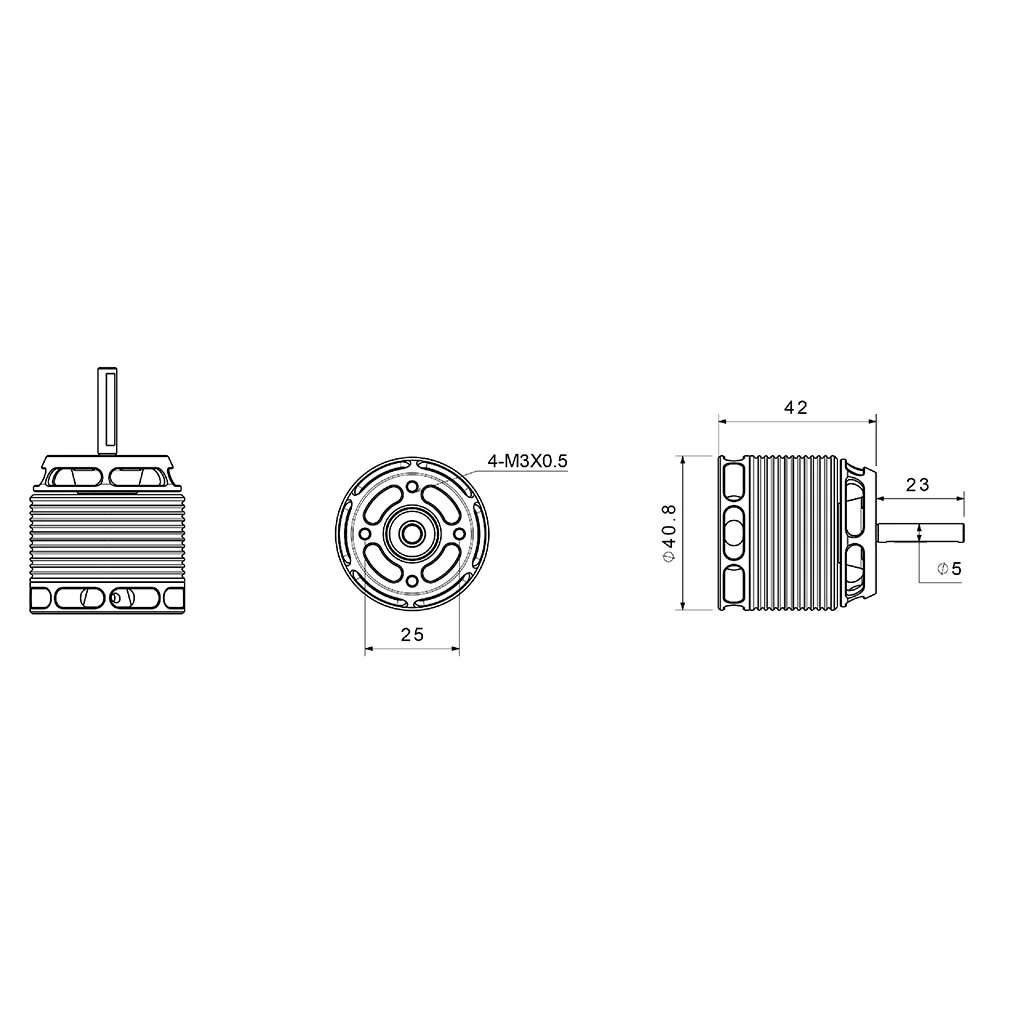

Outside Diameter: 40.8 mm
Shaft Diameter: 5 mm
Body Length: 54.5 mm
Overall Shaft Length: 90 mm
Maximum Supported Lipo Cell: 6S
Peak Continuous Current: 105 Amps (5 seconds)
Peak Continuous Power: 2260 Watts (5 seconds)
Motor Timing: 5deg~12deg
Drive Frequency: 8kHz~32kHz
