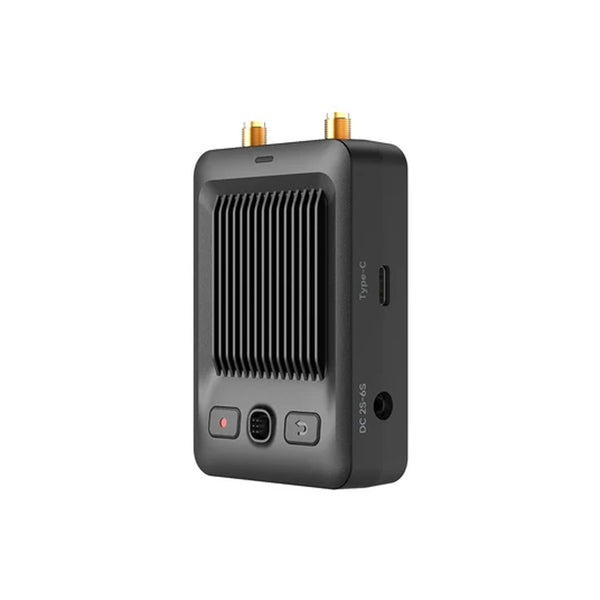

BETAFPV 5.5V-26.4V P1 HD VRX 1080p@60fps Transmission Resolution Compatible with P1 Air Unit HD VTX For VR04 HD Goggles

BETAFPV 5.5V-26.4V P1 HD VRX 1080p@60fps Transmission Resolution Compatible with P1 Air Unit HD VTX For VR04 HD Goggles

Note:

The Type C port is designed for firmware updates only. It does not support power input or video output.

Specifications:

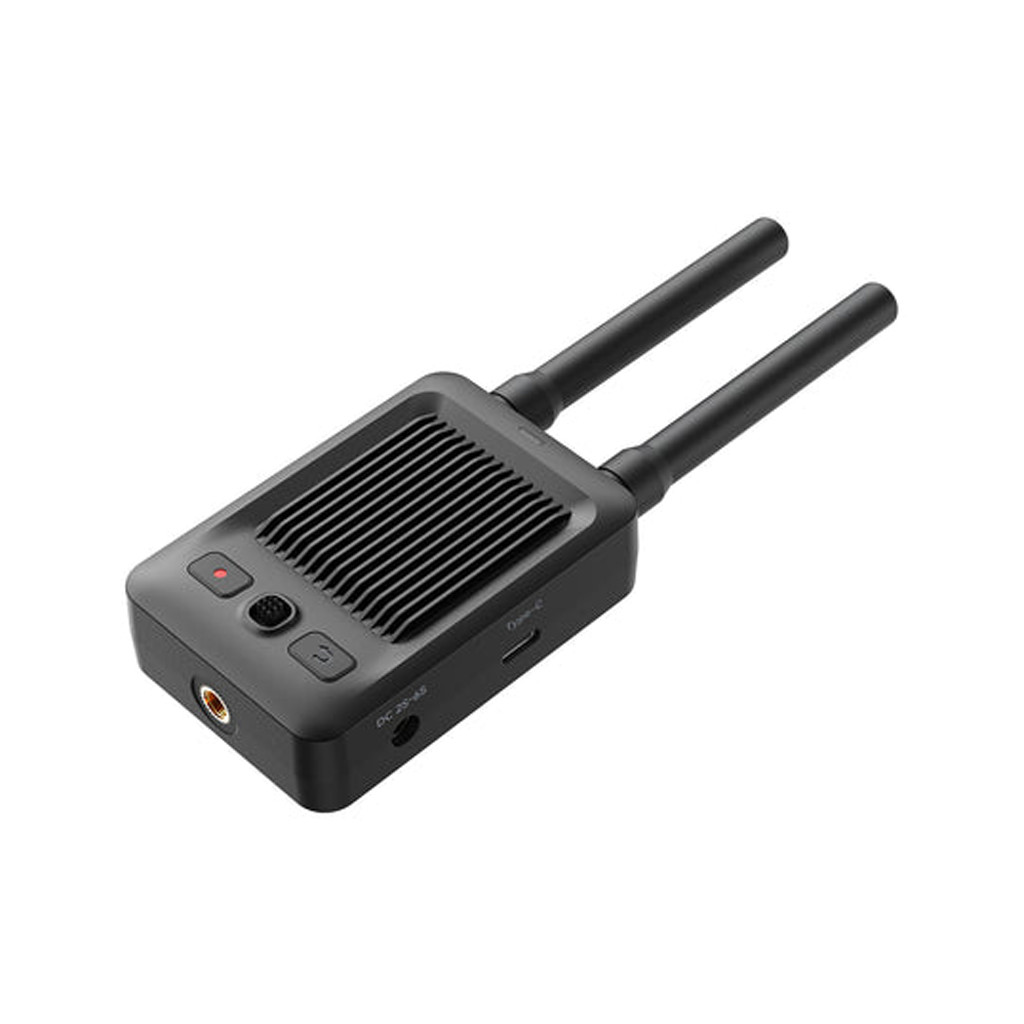

Item: P1 HD VRX (Standard)

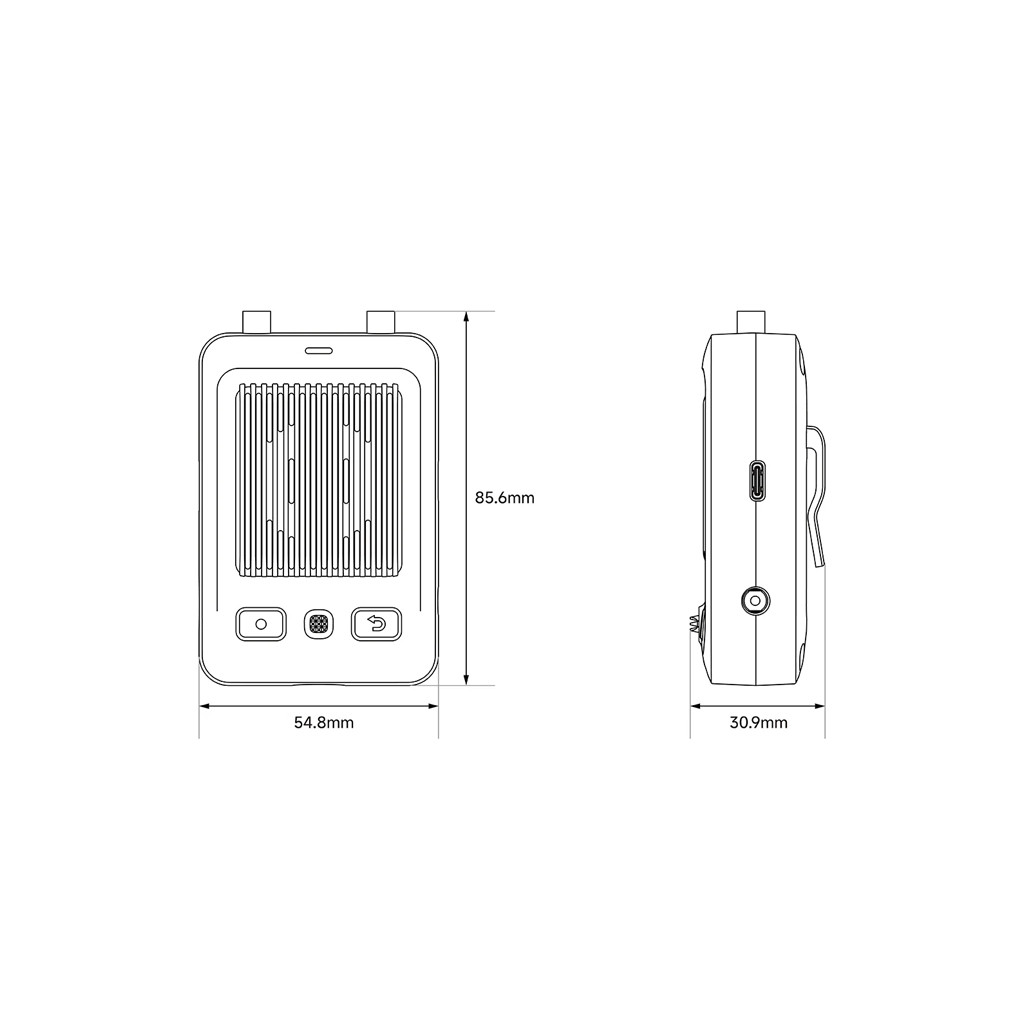

Size (not include antenna): 85.6 x 54.8 x 30.9mm

Weight: 150g

Frequency: 5.3GHz-5.8GHz

Transmission Resolution: 1080p@60fps

Input Voltage: 5.5V-26.4V

Bitrate: 25Mbps

Transmission range: ＞400m

Effective Isotropic Radiated Power (EIRP): <23dBm (FCC), <14dBm (CE)

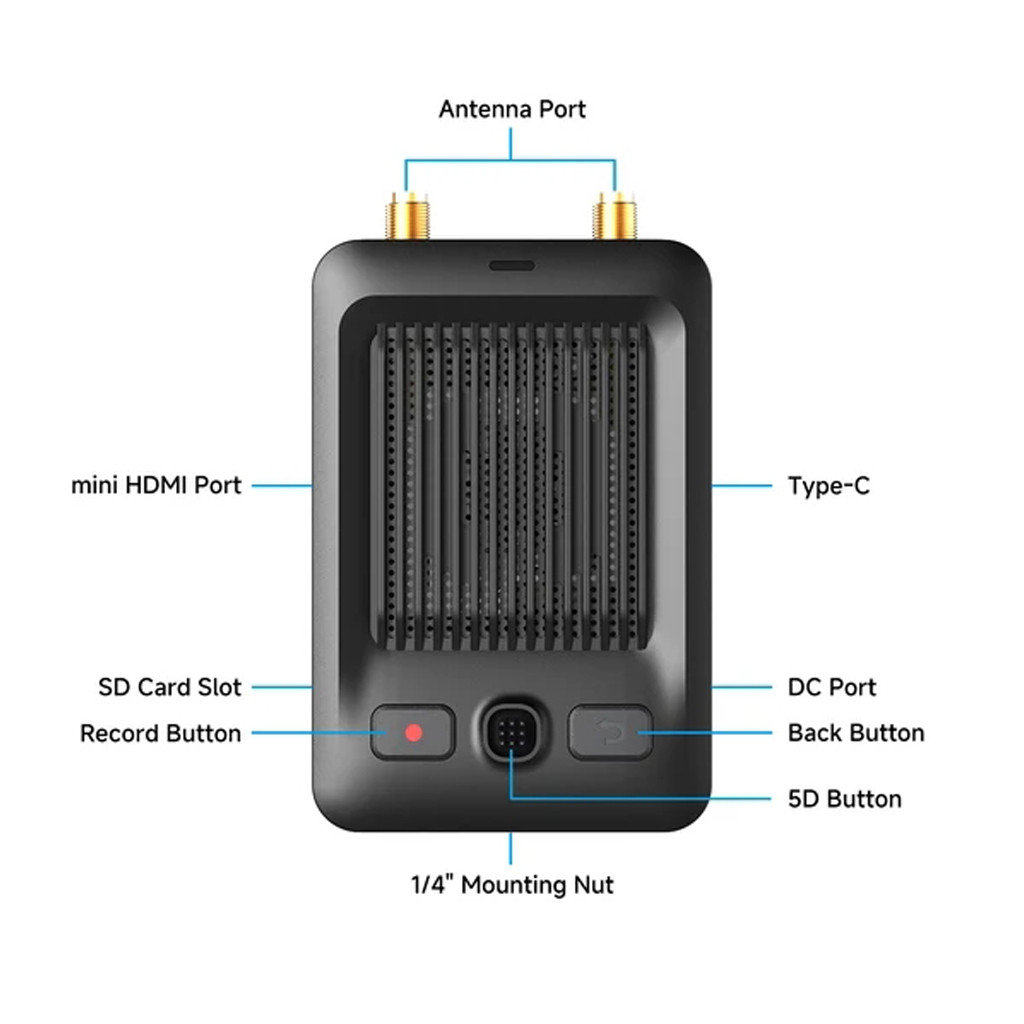

Ports: Type C, mini HDMI-compatible, micro SD card slot, DC5.5x21.mm port

SD Card Slot: Support max 1TB

Antenna Connector: RP-SMA Female (external thread, inner hole)

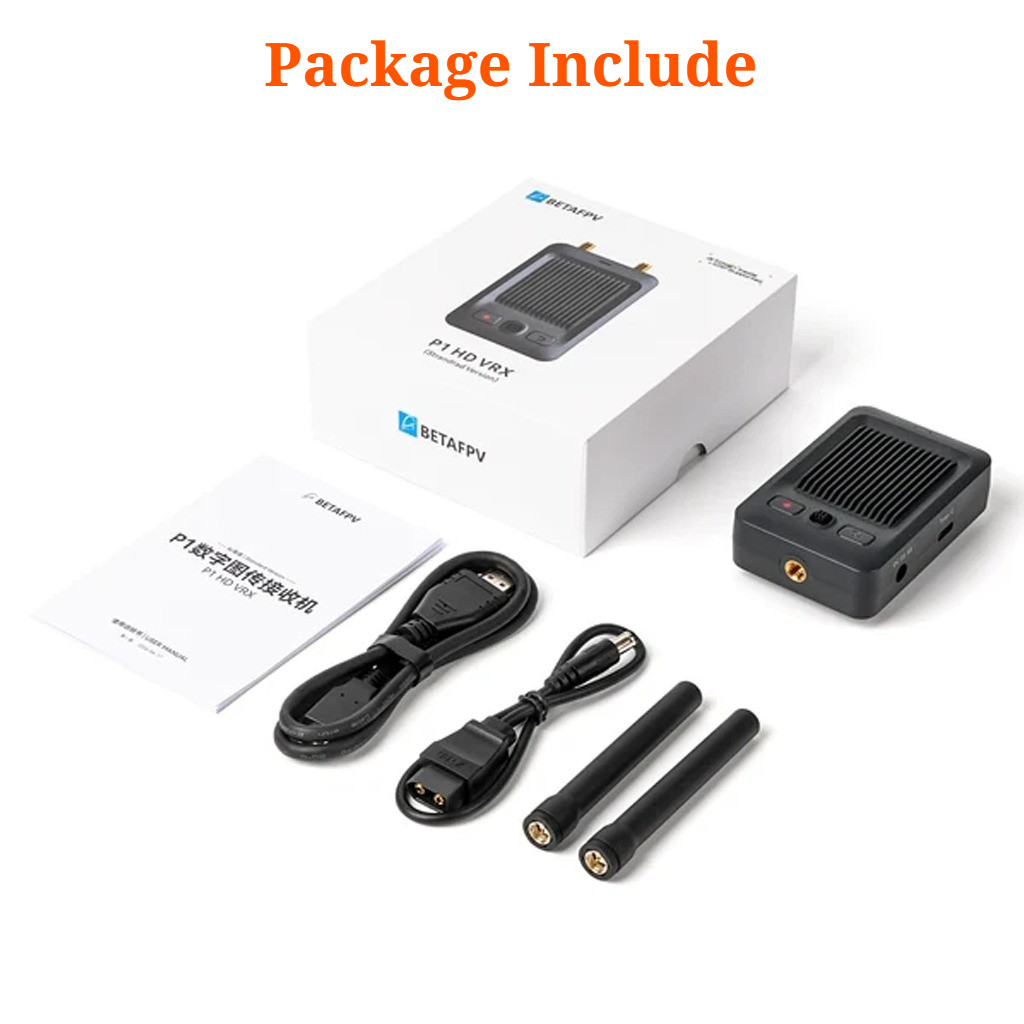

Package Includes:

1 * P1 HD VRX (Standard)

2 * 5.8G Antenna

1 * DC5521 to XT60 Power Cable

1 * Mini HDMI to HDMI Cable

1 * User Manual

Support the following devices:

P1 Air Unit, VR04 HD Goggles, Aquila20 P1, Meteor75 Pro P1, Matrix 1S AIO P1 HD FC, Monitor
