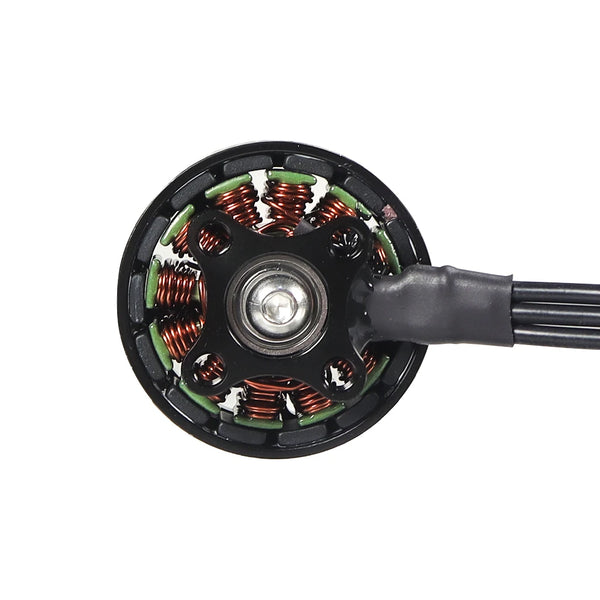

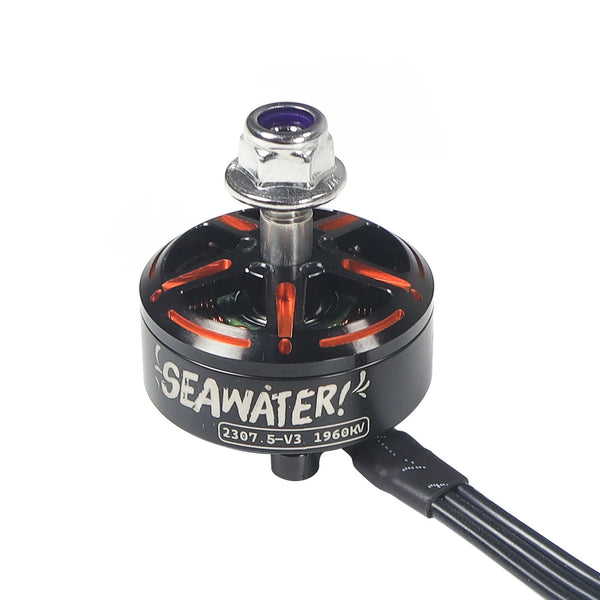

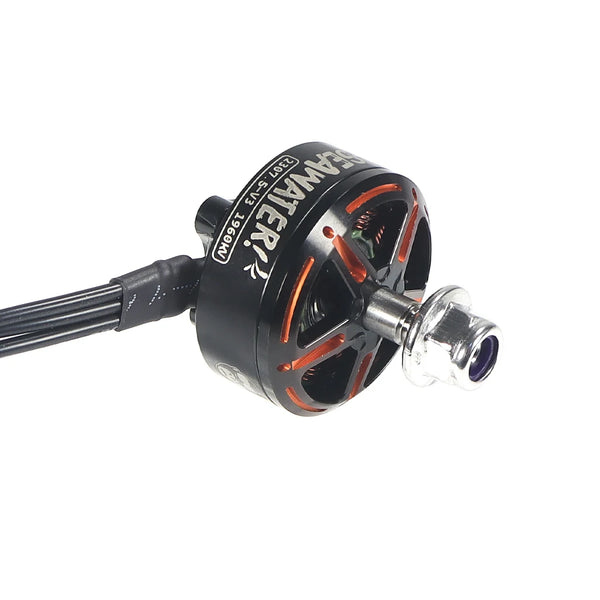

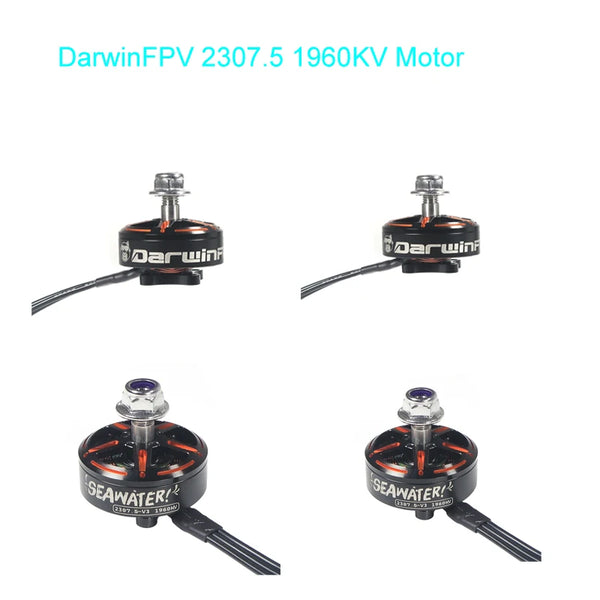

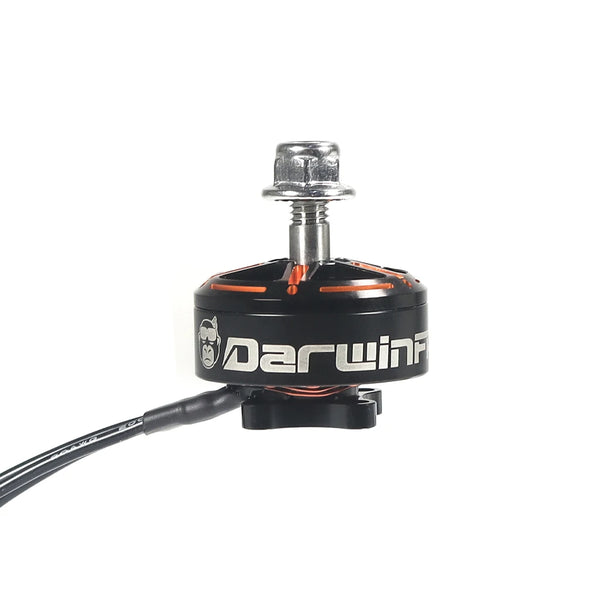

DarwinFPV 2307.5 1960KV V3 Brushless Seawater-proof Motor RC for Hulk II Waterproof RC Drone FPV Racing Multirotor Quadcopter

Description:

1. Treatment Processes Such As Magnetic Oxidation, Spindle Insulation Paint, And Stainless Steel Bearings Can Operate Normally Even After Soaking In Seawater For 24 Hours

 2.Compared To The 2207, 2207.5, And 2306 Motors, It Has A Larger Spindle Size, Greater Pulling Force, And Higher Efficiency, With A Weight Increase Of Only One Or Two Grams.

 3. Applicable To DarwinFPV 2307.5 1960KV Model Aircraft Uav Flying Machine

 4. Applicable To For Hulk II Waterproof Motor V3 Version

 Description:

 1. Model:2307.5 seawater-proof motor

 2.KV value: 1960KV

 3.Stator size: about 23x7.5mm

 4. Rated voltage: 24V

 5. No-load current: 2.16A/24V

 6. Maximum current: 40A

 7. Maximum power: 960W

 8. Number of slot poles: 12N14P

 9.Output shaft specifications: about 5x14mm

 10. Phase-to-phase resistance: 69mΩ

 11. Bearing specifications: about 4x9x4mm

 12.Rotor type: split

 13. Magnetic steel type: N52H

 14. Winding: single strand winding

 15. Outlet specification: 20AWGx150mm

 16.Mounting hole:16x16mm (M3)

 17. Product size: about 28x34mm

 18. Recommended adapted models: 5-6 inch flower aircraft, 6-7 inch long-distance aircraft

 Because the picture is a high-definition rendering, the appearance may be different, but it will not affect the use

 Material: ABS

 Package Contents:

 1 x Drone Motor

 Only the above package content, other products are not included.

 Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
