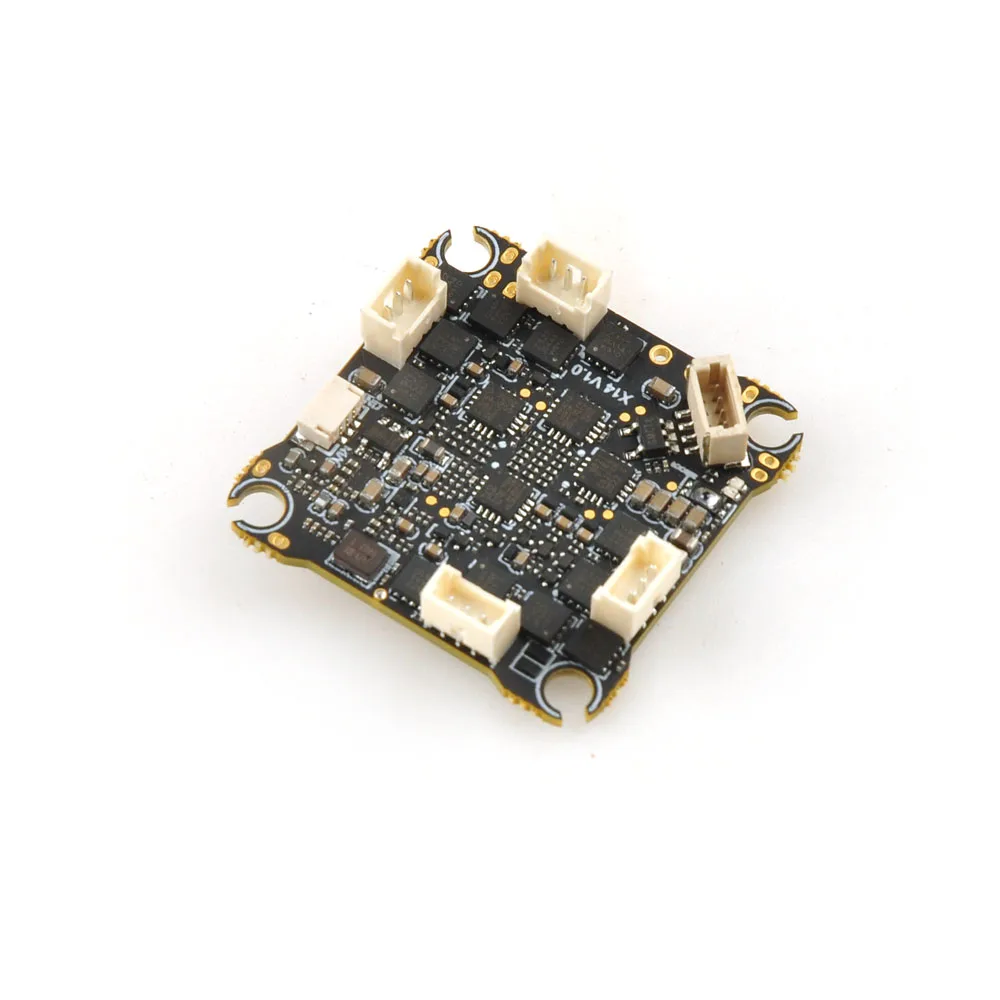

Happymodel X14 ELRS Flight Controller STM32G473 MCU 5.8GHz 48 Channel ICM42688P Gyro 12A 4-IN-1 ESC Drone 25.5mm x 25.5mm

Happymodel X14 ELRS Flight Controller STM32G473CEU6 MCU 5.8GHz 48 Channel ICM42688P Gyro  12A 4-IN-1 ESC Drone 25.5mm x 25.5mm


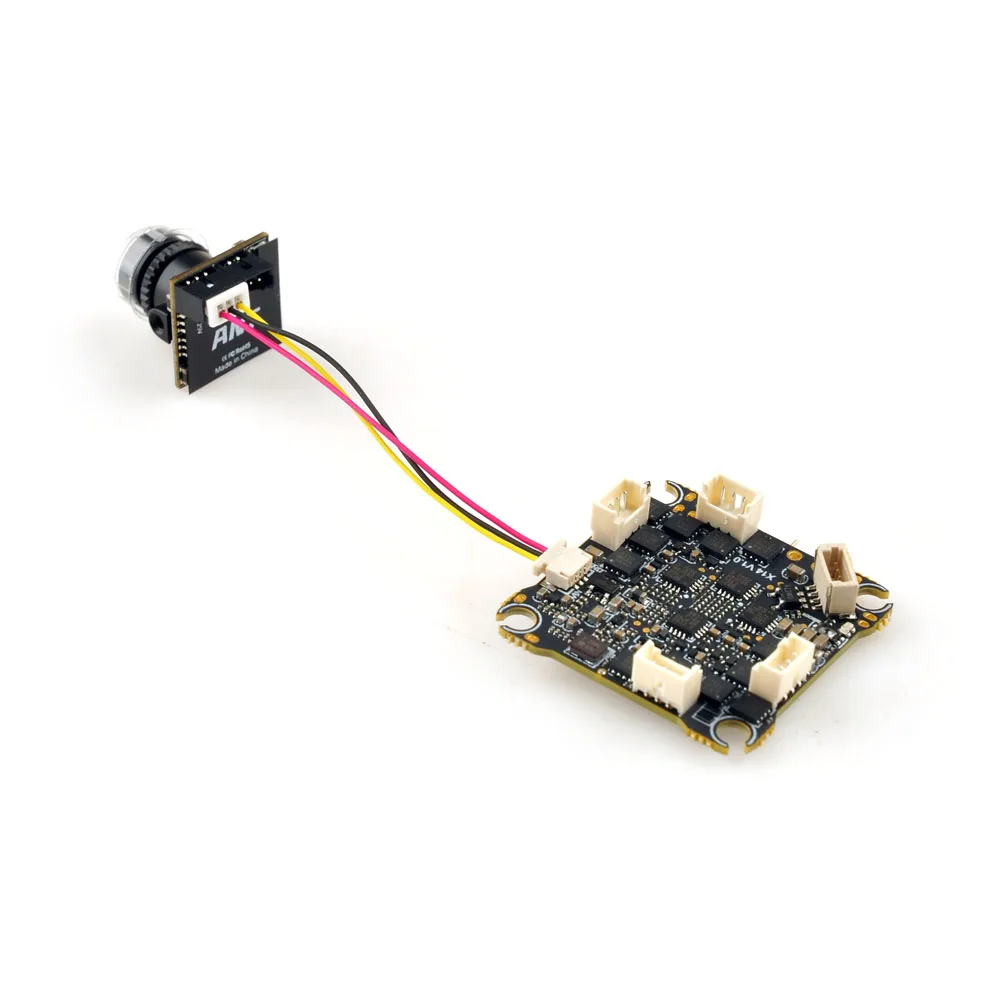

X14 ELRS flight controller is the updated version for X12ELRS PRO, this flight controller is based on STM32G473 MCU, provide more UARTs, built-in 12A 4-IN-1 ESC and Serial ELRS receiver, also comes with OPENVTX max power up to 400mw. It’s a good option for 75mm/85mm 2S whoops building.

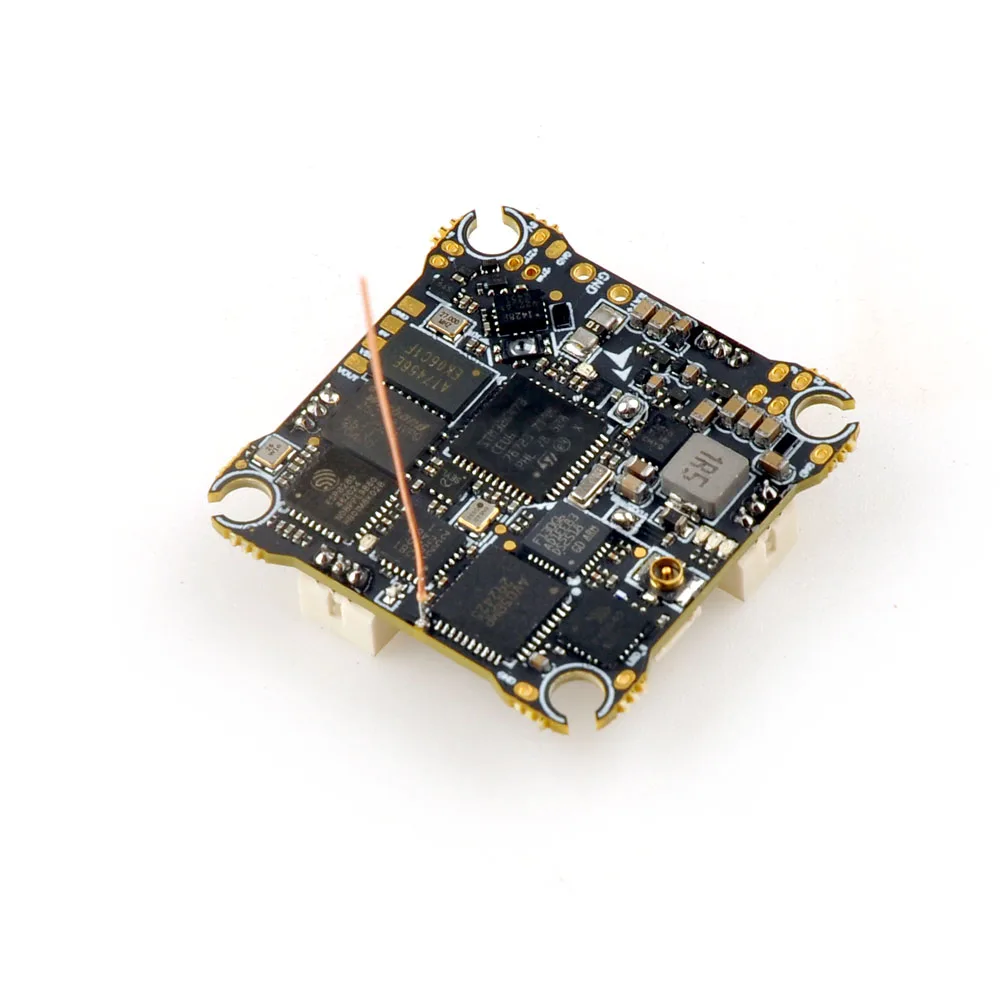

FC

MCU: STM32G473CEU6

Gyro: ICM42688P

Blackbox memory: 16MB

Sensor: Voltage & Current

BEC: 5V, Max. 2A

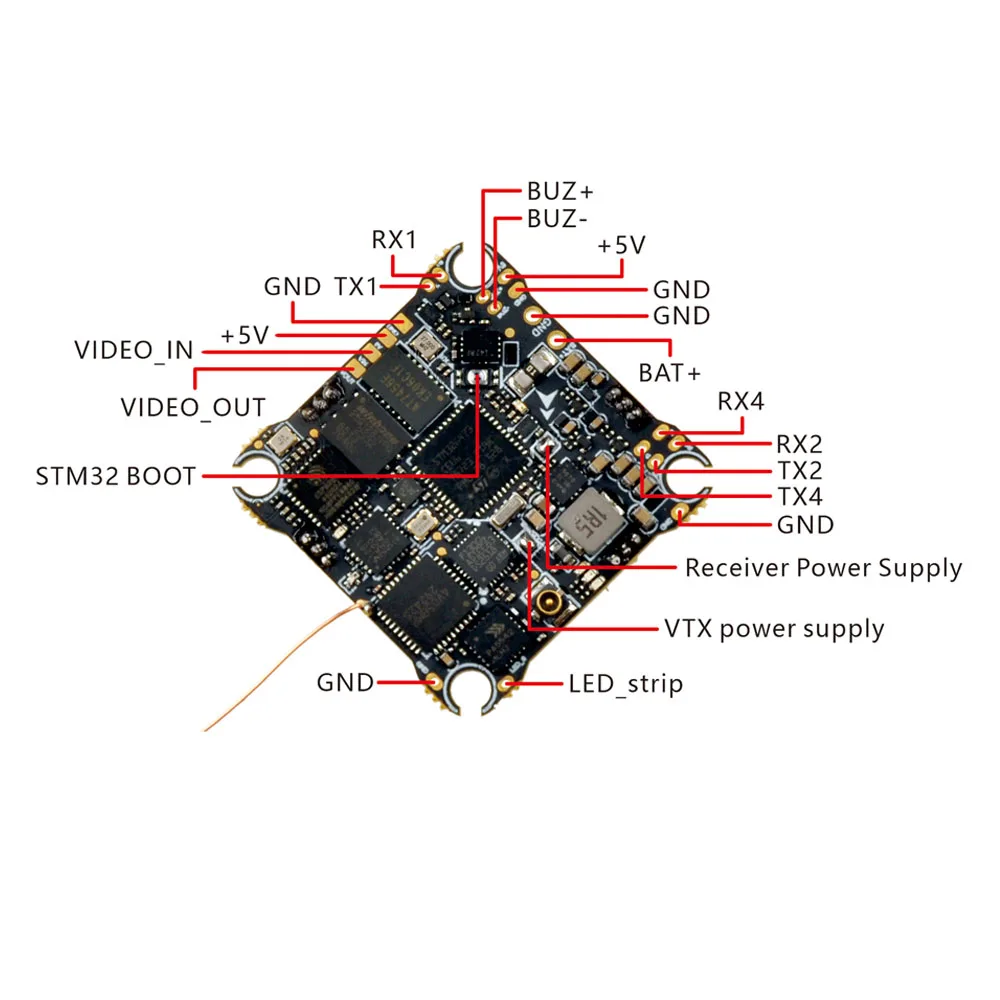

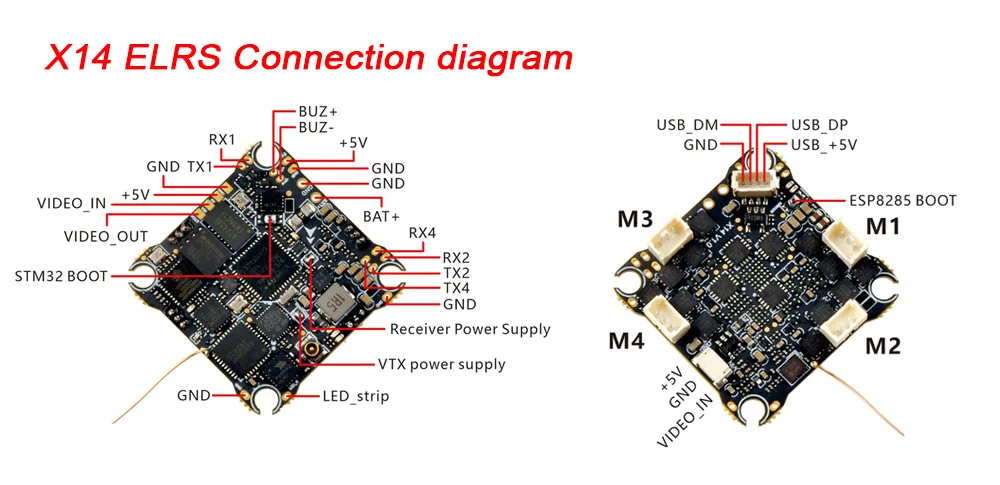

UART: UART 1, UART 2, UART 3 (For RX), UART 4(For VTX)

BetaFlight OSD: AT7456ELAH

ESC: 12A continuous

OPENVTX: 5.8GHz 48 channels, Max. 400mW

FC firmware target: CRAZYBEEG473

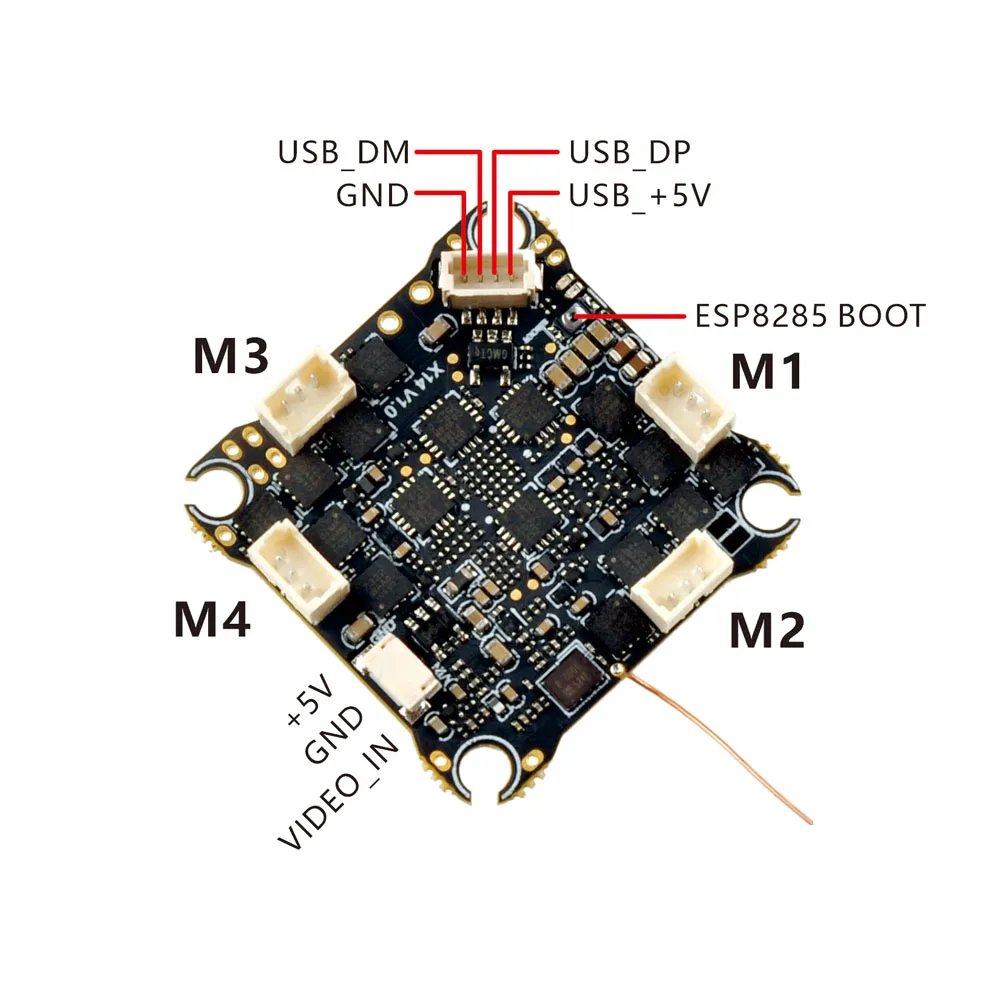

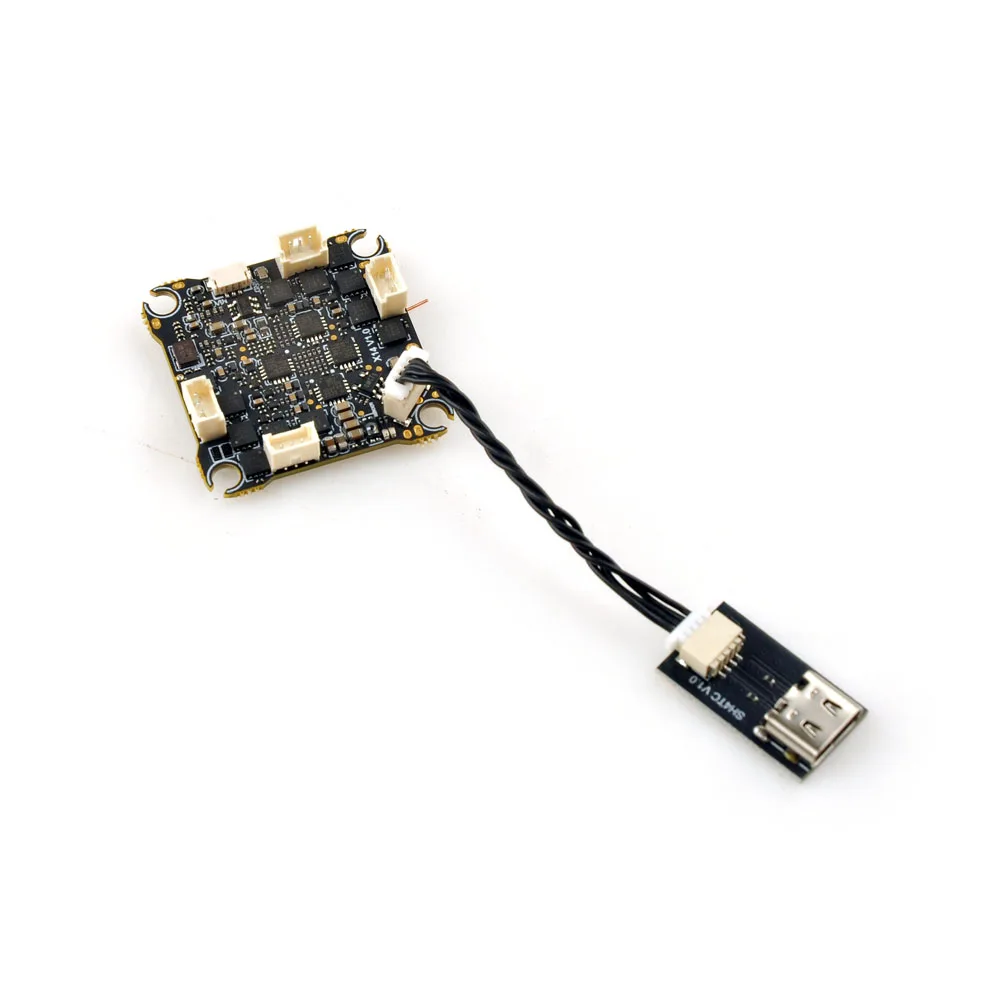

USB port: SH1.0-4Pin

Battery connector: XT30 or A30

Mounting hole size: 25.5mm x 25.5mm

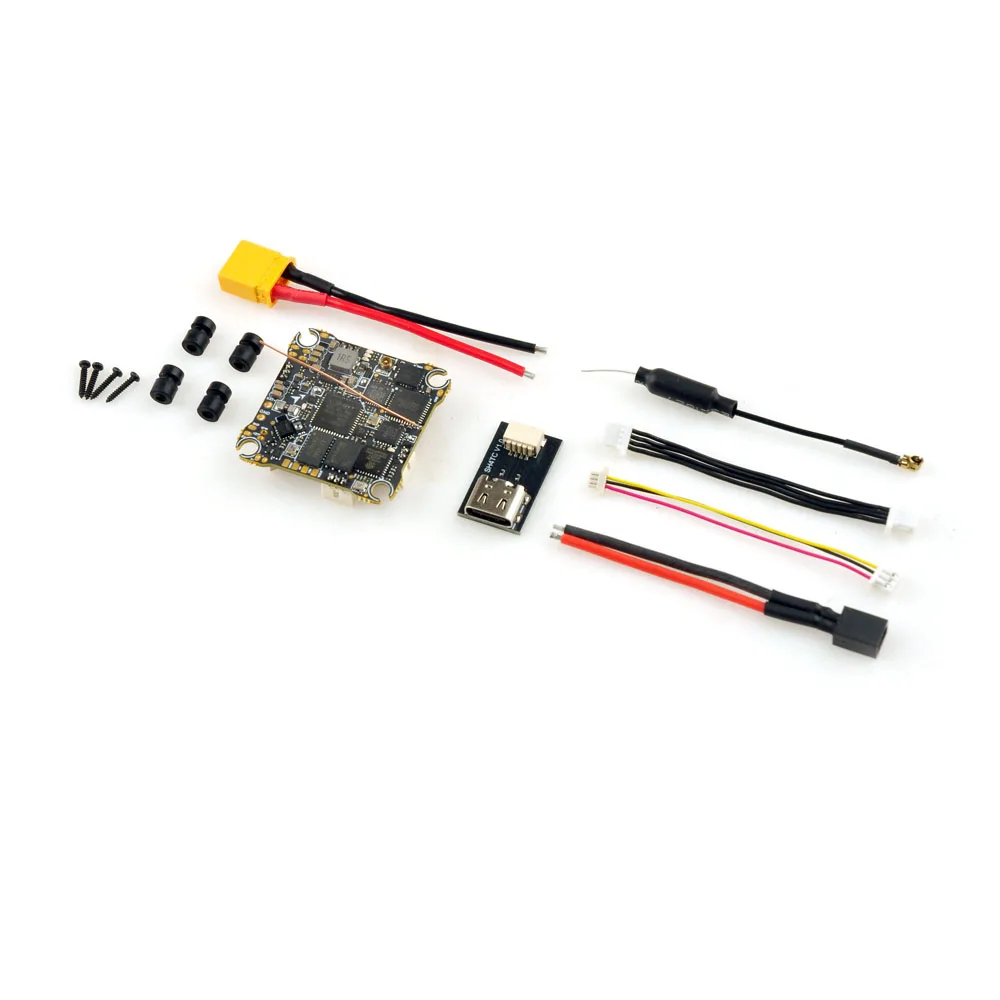

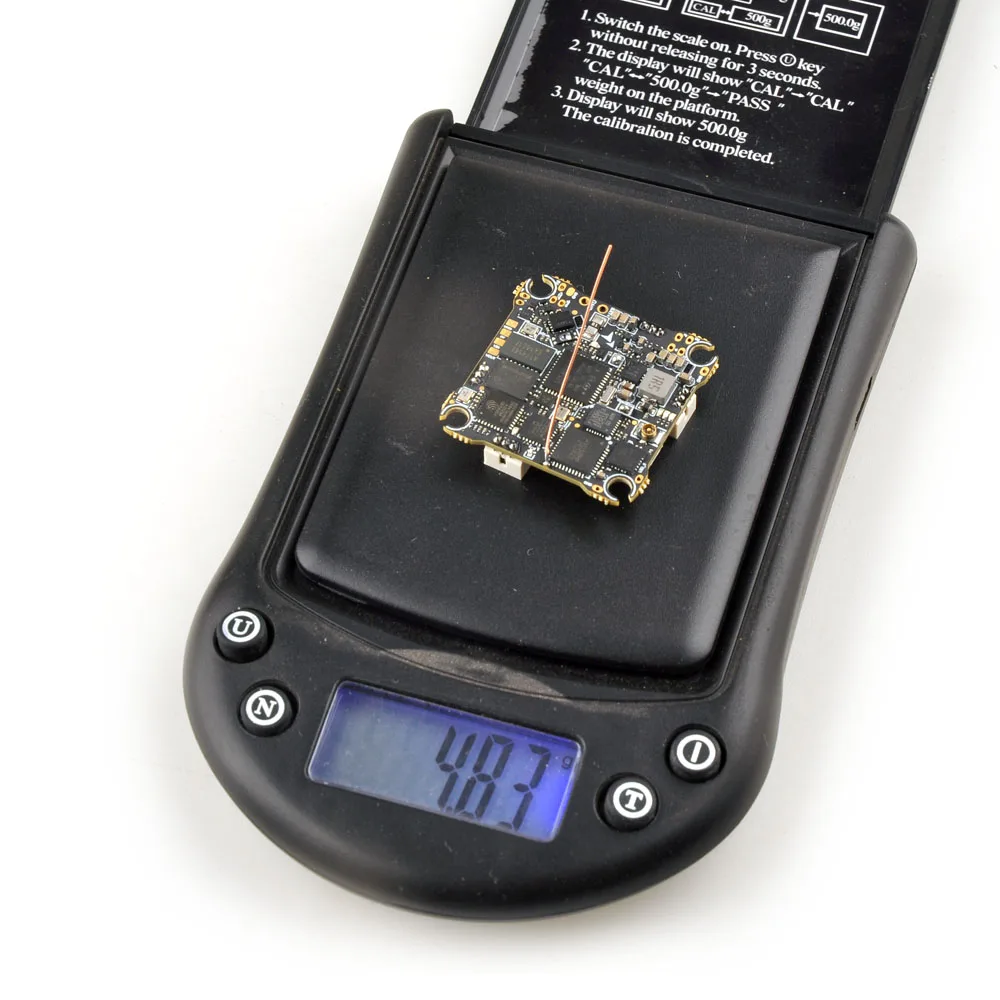

Weight: 4.83g without power pigtail and VTX antenna

ESC

Power input: 1-2S Lipo input

Current: 12A continuous, 15A peak

ESC firmware: V0.19 48KHz Bluejay

Firmware target: Z_H_30_48KHz

Digital signal protocol: DShot300, DShot600

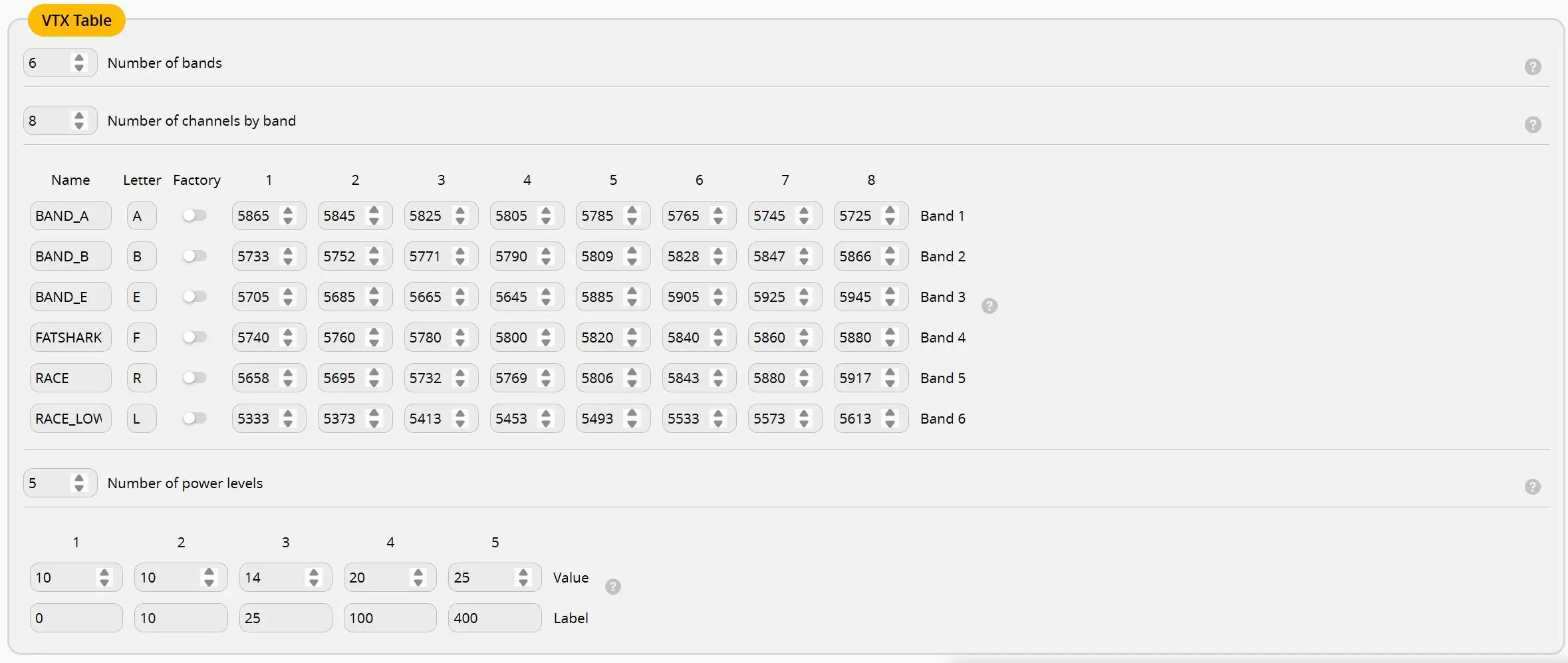

VTX

OPENVTX Firmware

Support firmware upgrade by openvtx configurator

Output power: PIT/10/25/100/400

Frequency: 5.8GHz 48 channels, with Raceband: 5658~5917MHz

Channel SEL: SmartAudio2.1

Modulation type: FM

Operating temperature: -10℃~+80℃

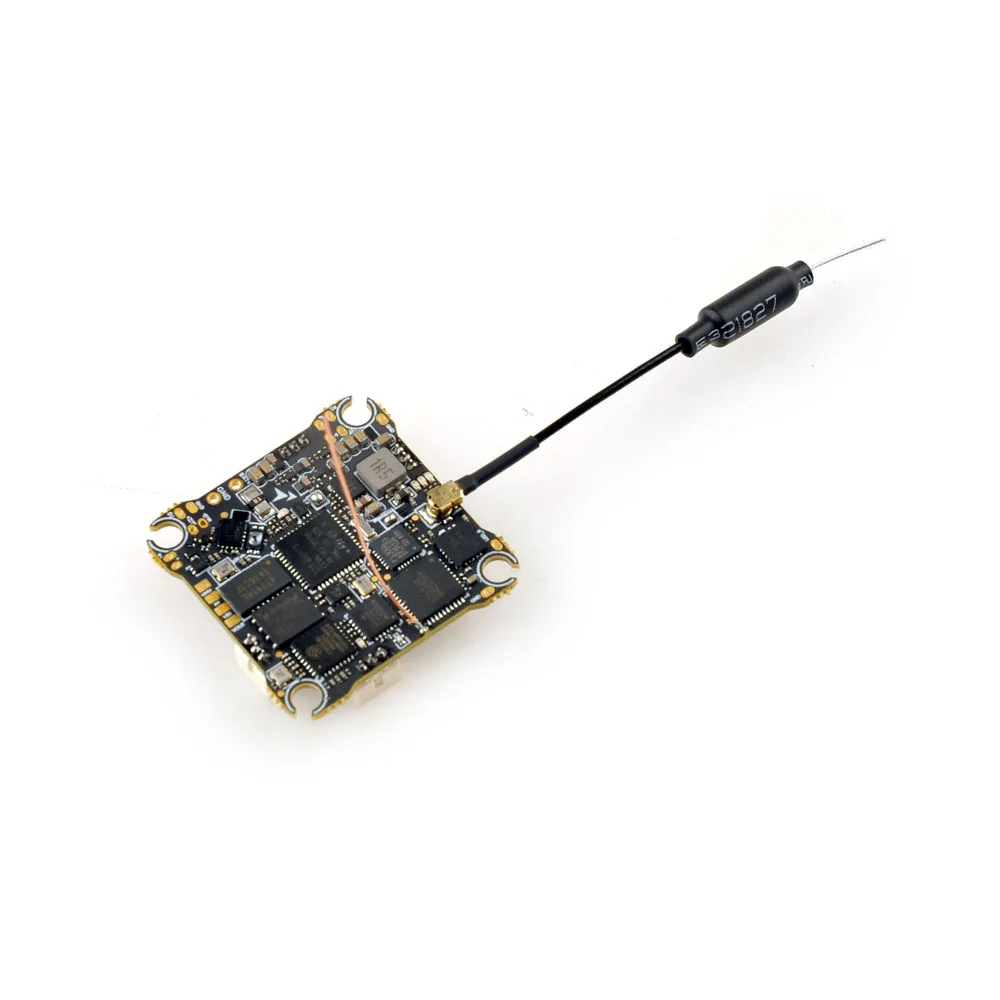

Antenna port: IPEX1/U.FL

RECEIVER

Serial ExpressLRS 2.4GHz

Antenna: Enameled copper wire 31mm length

Firmware target: HappyModel EP1/EP2 2.4GHz RX

Telemetry output Power: <12dBm

Compatible with ExpressLRS V3.x.x TX Module

ExpressLRS firmware version 3.0.1

Support flash firmware by WIFI

Bind method is the same like all ExpressLRS 2.4GHz receivers

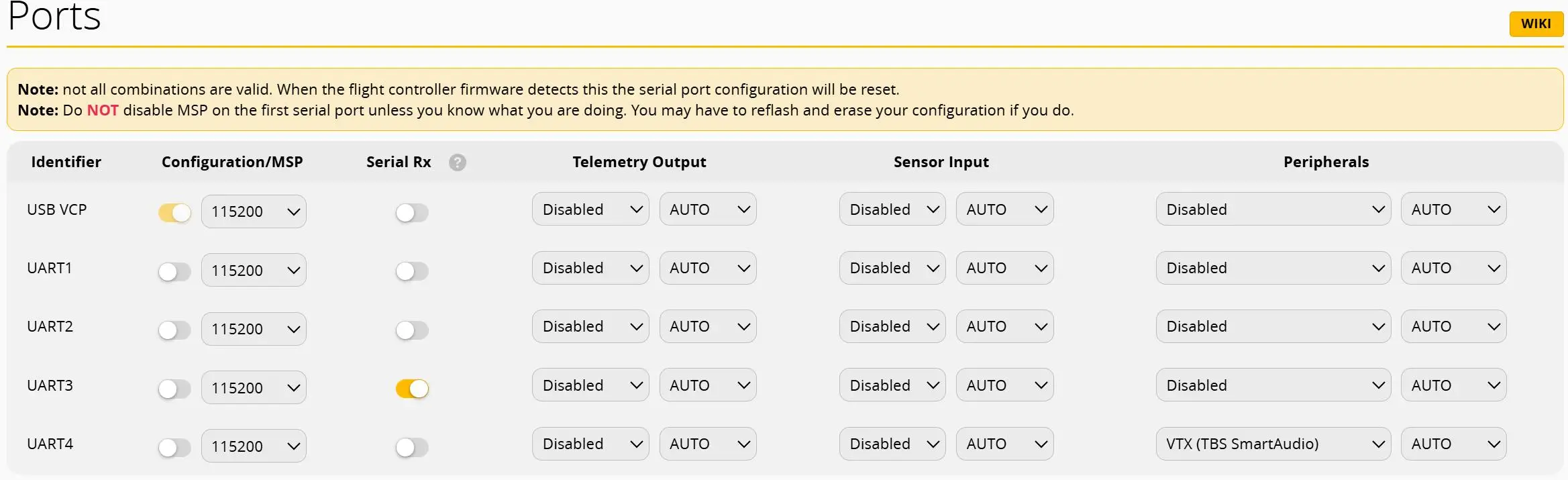

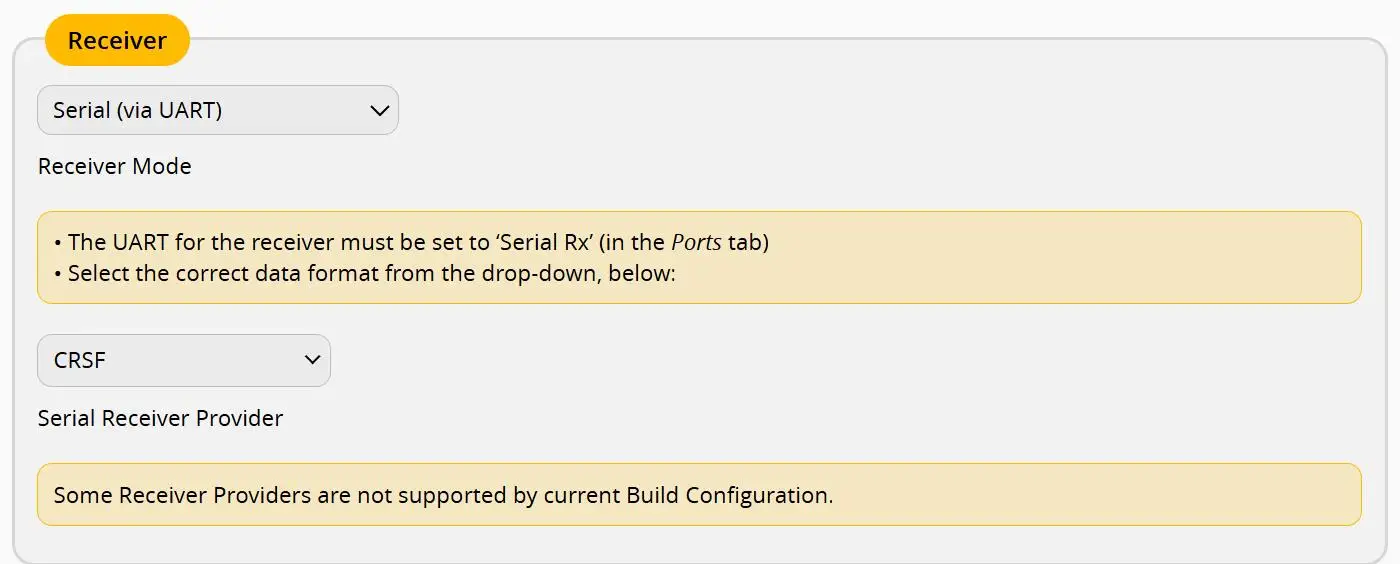

Noted: Visit https://app.betaflight.com and click “select your device” then choose can’t find my USB device, then connect comport and betaflight configurator.
