iFlight Borg-F7 Mini Stack with Borg-F7 Mini Flight Controller /Mini 60 ESC for FPV Racing Drone Quadcopter

Note There are three type Version,Pls select want items do you want.Thanks

For Borg Mini F7 Flight Controller(JUST Only Flight Controller)

For Borg Mini 60 ESC(Just only ESC)

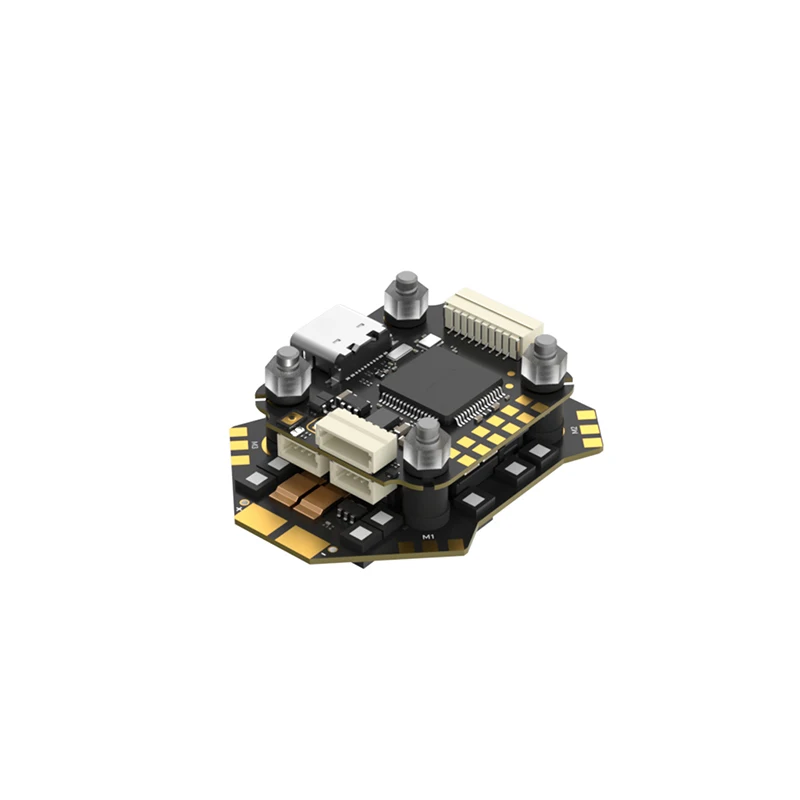

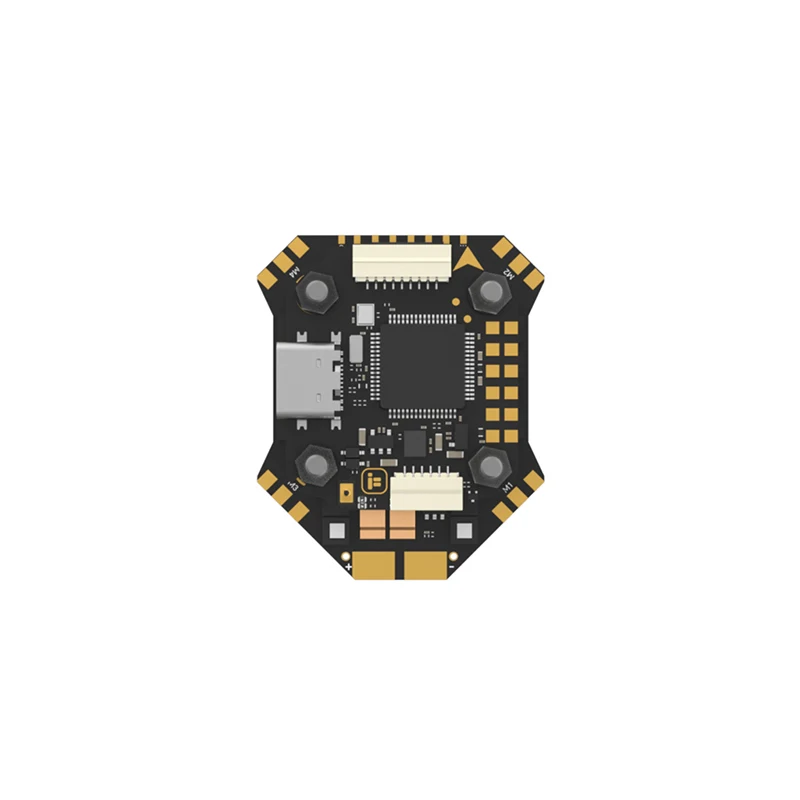

For Borg Mini F7 Stack (Mini 60 4-IN-1 ESC)

Description:

Introducing the All-New for Borg Series – Power Meets Precision!

The for Borg F7 Mini Flight Controller is specifically designed for racing fpv, providing unmatched performance. Elevate your racing experience with the cutting-edge technology of the for Borg Series!

FC Features

Supports 4S to 8S battery inputs, offering versatility for various racing setups.

Integrated 12V BEC provides stable power for your VTX system and allows remote control to switch it on and off.

FPC cables ensure secure connections with ESCs, while SH1.0 connectors enhance reliability across all other interfaces.


FC Specifications

Input voltage: 4-8S; Support LIHV battery

MCU: STM32F722RET6

Gyro: ICM42688

Barometer: SPA06-003

OSD Chip: AT7456E（LGA）

Flash: 32MB (Blackbox flash)

UARTS: 6

Motor outputs: 4

I2C serial: Not supported

VTX protocol: support DJI MSP/Smartaudio/IRCTramp/HDZero

LED controller: Yes

Beeper pad: Yes

Betaflight Firmware target: IFLIGHT_BLITZ_F722

INAV Firmware target: IFLIGHT_BLITZ_F722

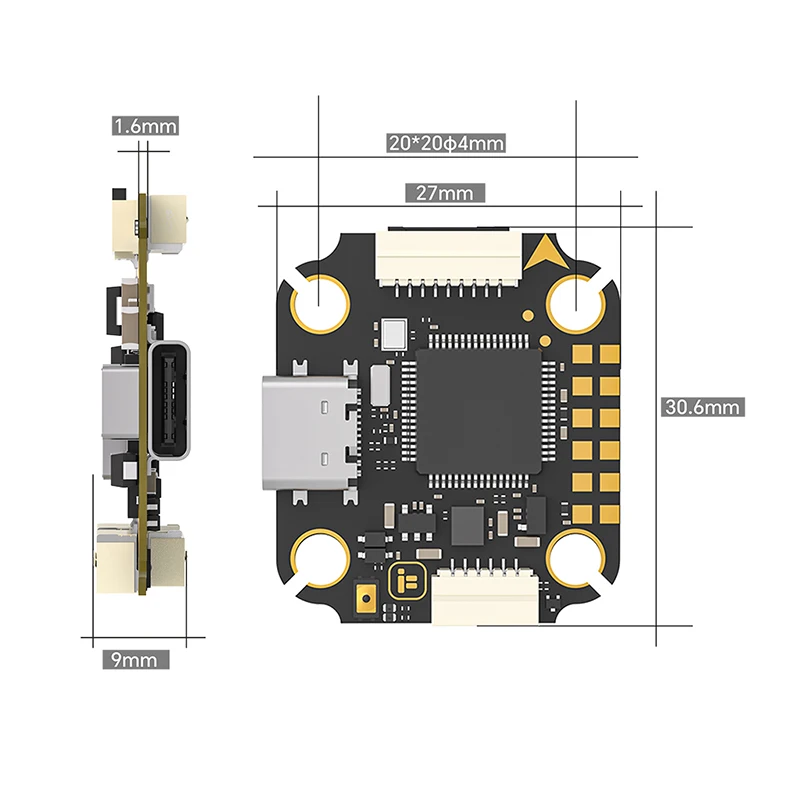

Mount pattern: 20*20φ4

Dimensions: 27*30.6mm±1

Weight: 6.8g±1

BEC: 5V 2.5A, 12V 2A (12V with VTX switch)

Wiring Suggestion

UART 1 for VTX HD / Analog

UART 2 for Receiver

UART 3 for GPS or other sensors that require a serial port

UART 4 for GPS

UART 5 for GPS or other sensors that require a serial port

UART 6 for ESC Telemet

ESC Specifications

Product Name: for Borg Mini 60 ESC

Input Voltage: 2-6S; Support LIHV battery

Max. Continuous Current: 60A

Max. Burst Current: 65A (10s)

MCU: STM32G071N

Driver: FD6288

Firmware: BL32 (32bit ESC)

Target: IFLIGHT_BLITZ_G3 32.9

Current Sensor: Yes

BEC: N/A

Telemetry: Supported

Bidirectional DSHOT: Supported

Dimensions: 42*35mm±1

Mounting Holes: 20 x20 mm/Φ4mm

Weight: 9.8g±1

Protocol: Supports DShot150/300/600、MultiShot、OneShot etc.


Packing List

1 x for Borg Mini F7 Flight Controller (According to selection)

1 x for Borg Mini 60 ESC (According to selection)

1 x Cable set

5 x silicon grommets
