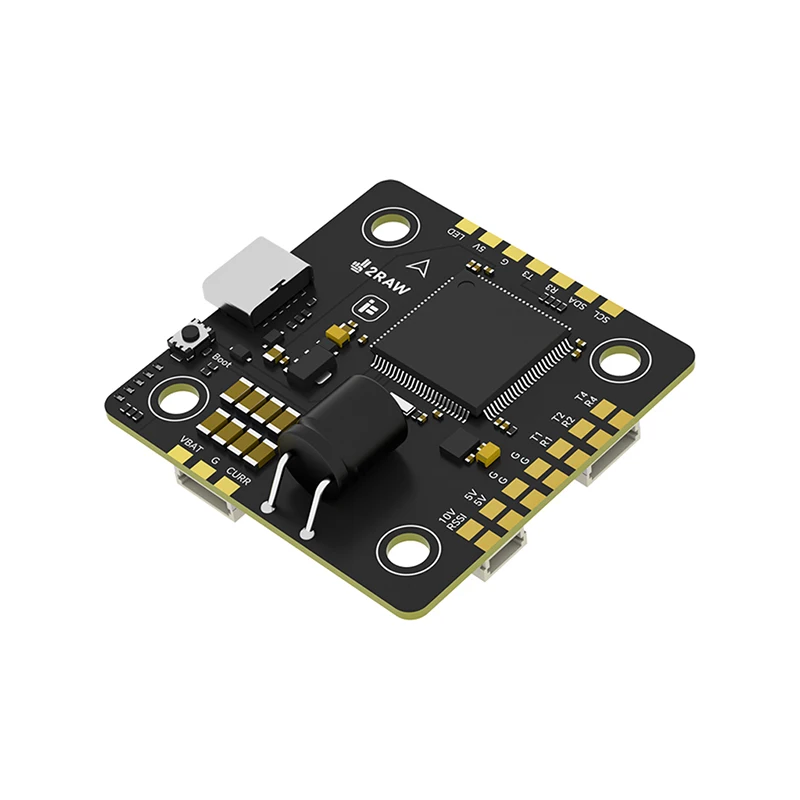

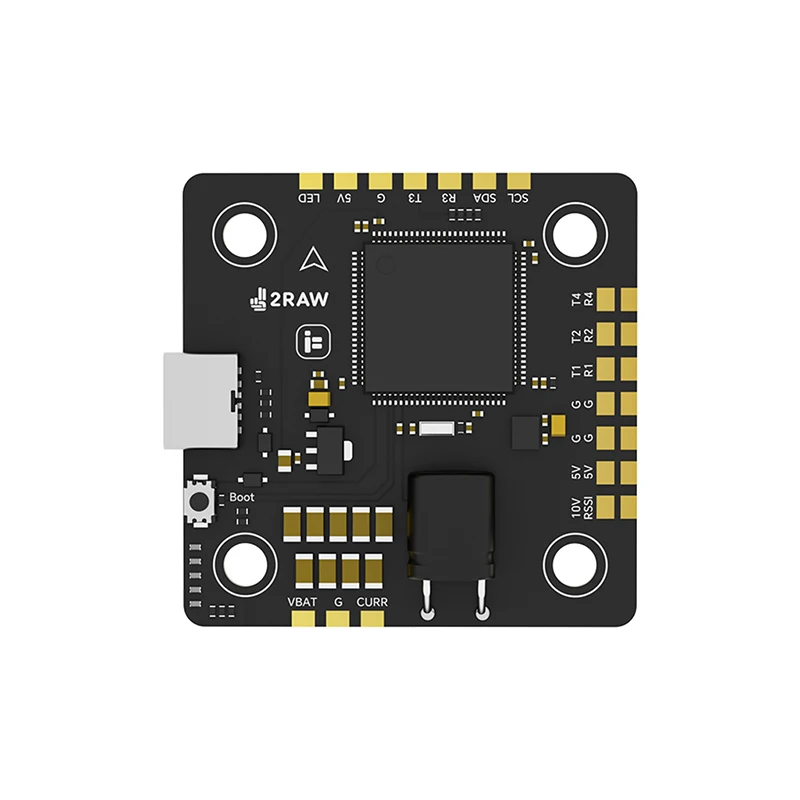

IFlight Thunder-H7 Flight Controller ICM42688P Blackbox 512MB BEC 5V 1.5A/ 10V 1.5A, 30.5mm for RC FPV Drone Quadcopter

Description

The 2RAW H7 ForThunder represents a pioneering development in drone technology. It is distinguished as the first flight controller engineered to accommodate direct 12s input. The 2RAW H7-Thunder is crafted with an emphasis on durability and high performance, setting a new standard in flight controller design.

Features

High-Speed H7 Processor

Powered by a high-speed H7 processor chip, it provides precise D-shot timings for enhanced performance, even with x8 motor configurations.

Exclusive Capacitor Filtration Slot

Features a unique capacitor filtration slot with a 63V 100uF capacitor for a clean electrical signal.

Versatile Design

Designed for versatility, it offers both plug-and-play options and solder pads, meeting the stringent requirements of any professional build.

Specifications

MCU: STM32H743

Gyro: ICM42688P

Barometer: SPL06-001

OSD Chip: No

Flash: 512MB (Blackbox flash)

UARTS: 6

Motor outputs: 4x (SH1.0 connector)

I2C serial: SDA / SLA pads

LED controller: Yes

Beeper pad: Yes

BF Firmware: 2RAW_THUNDER_H7

INAV Firmware: 2RAW_THUNDER_H7

Mount pattern: 30.5*30.5mm / φ4mm

Dimensions: 42*42 mm

Weight: 14g

BEC: 5V 1.5A / 10V 1.5A (Burst: 2A/120s)

Wiring Suggestion

UART1 for VTX HD

UART2 for Receiver

UART3 for Other sensors that require a serial port

UART4 for GPS

UART6 for ESC Telemetry

Packing List

1 x Thunder-H7 Flight Controller

1 x FC connectors (as above)

1 x silicon grommets
