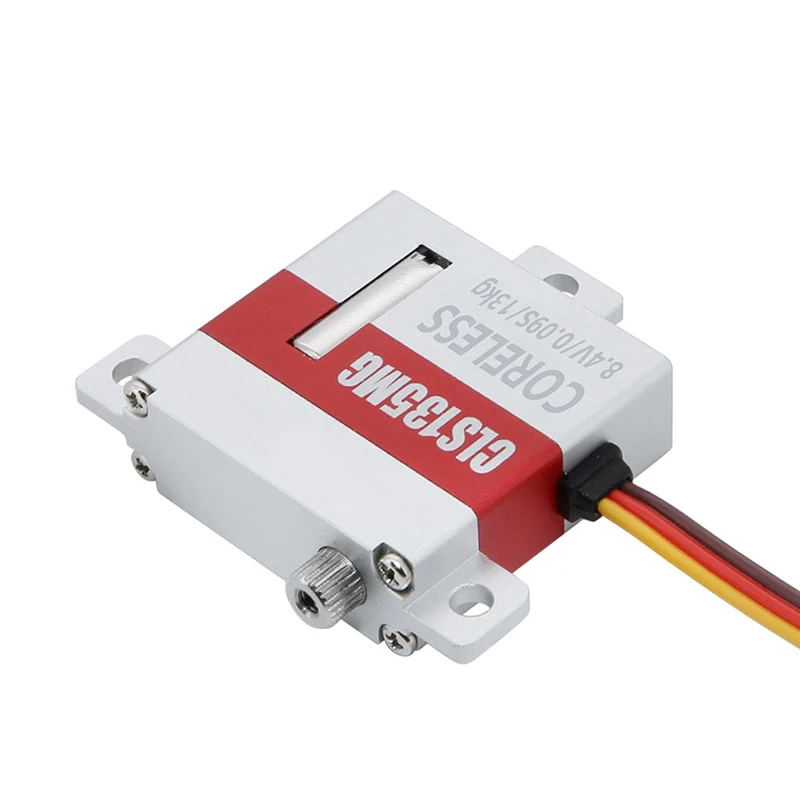

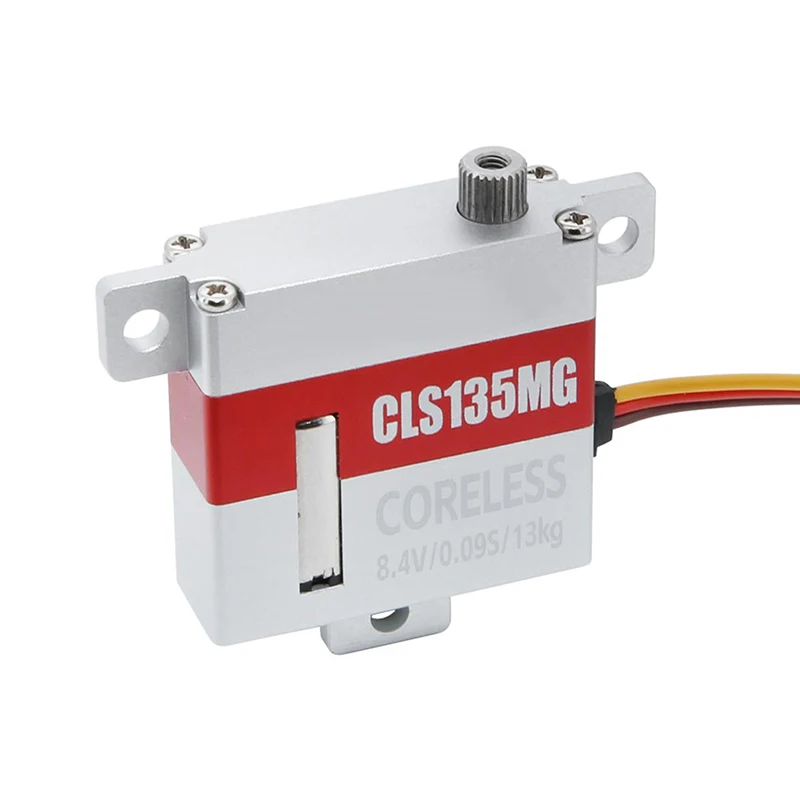

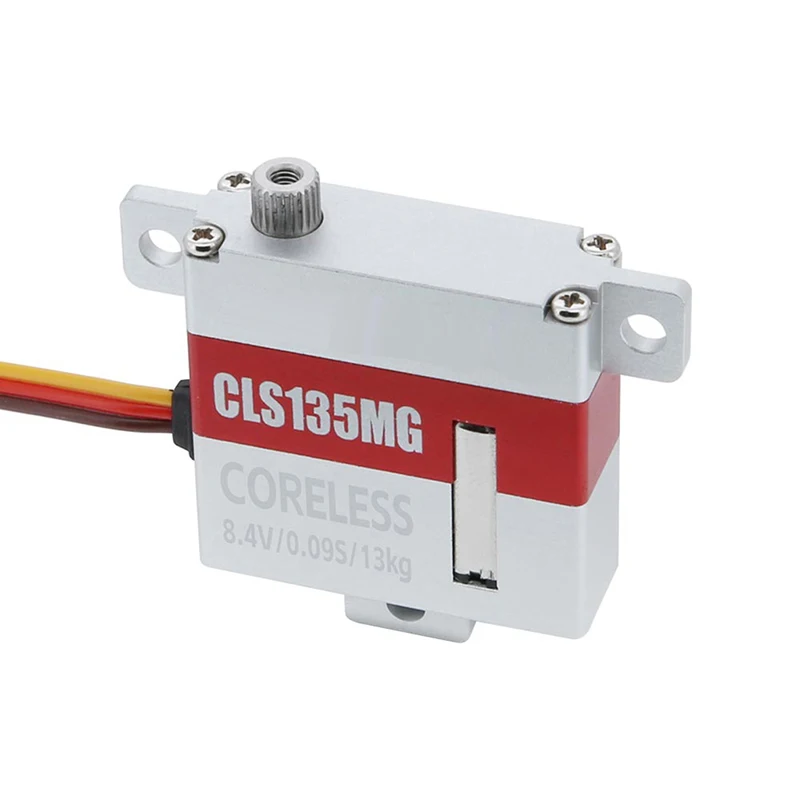

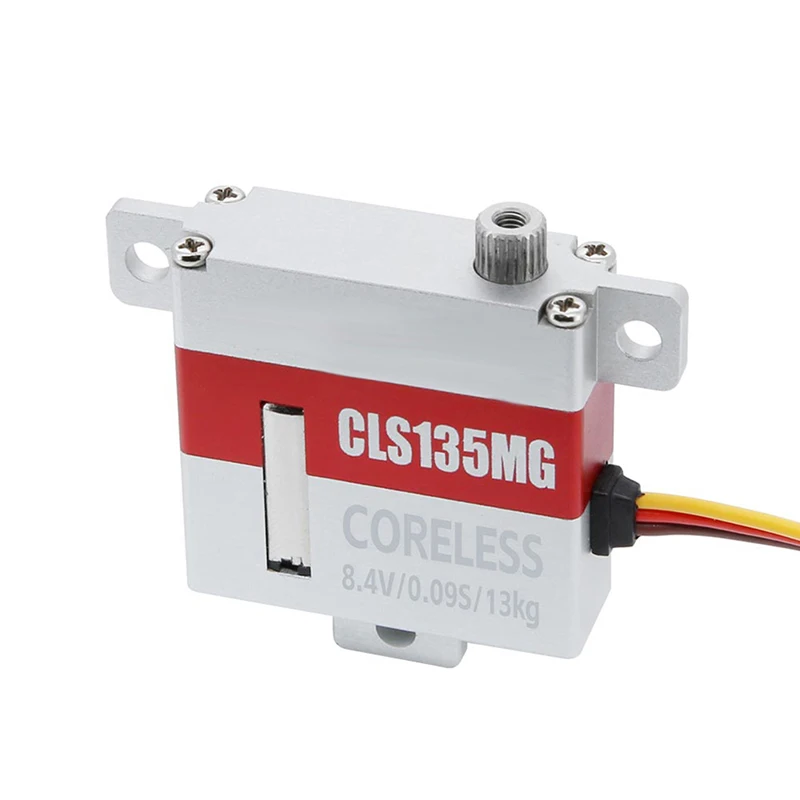

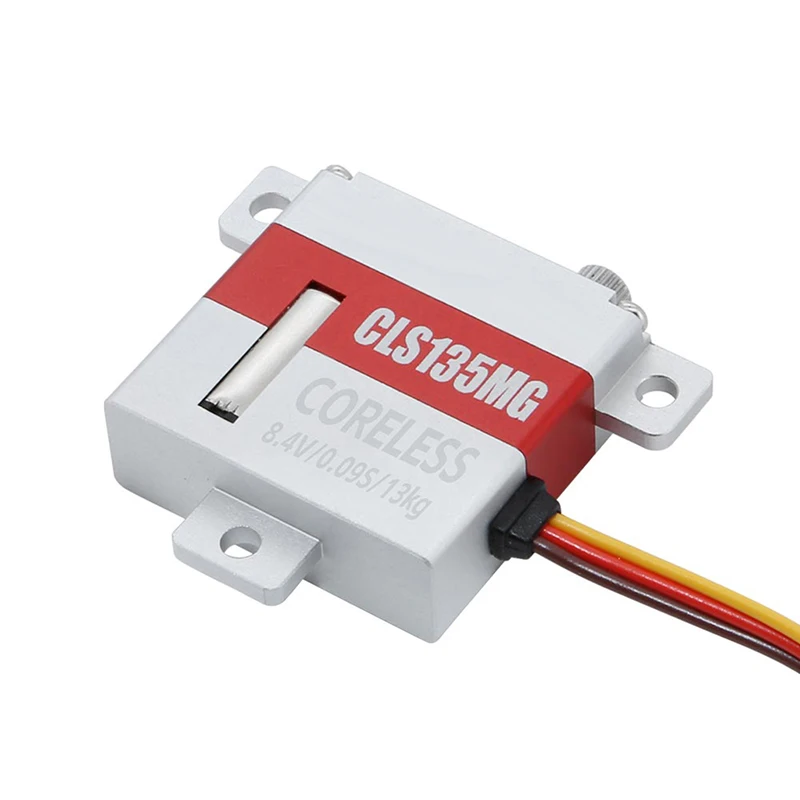

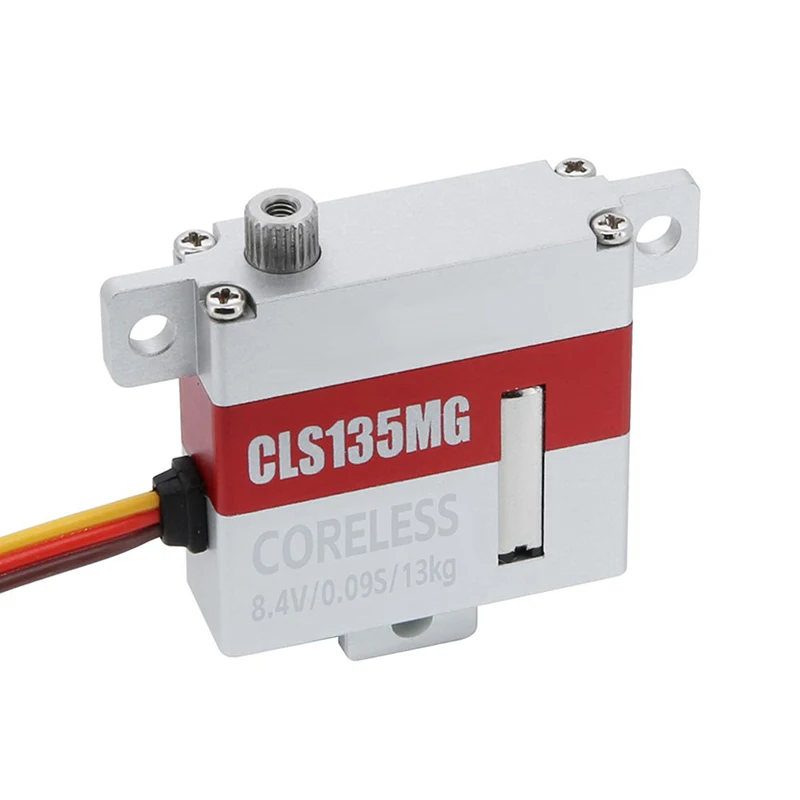

JX CLS135MG 13kg Mini Coreless Motor Servo Metal Gear Digital Wing Servo for Fixed-wing FPV Drone Helicopter Models

JX Servo

Regular price $56.99

Shipping calculated at checkout.

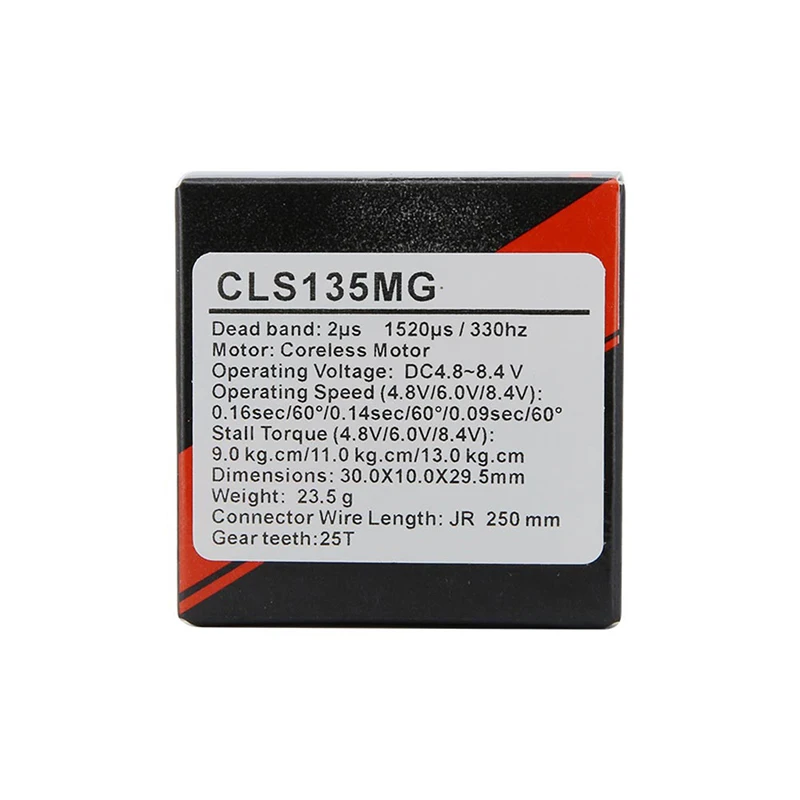

Specification
Dead band: 2μs

Motor:Coreless Motor

Working frequence: 1520μs / 330hz

Operating Voltage: DC4.8~8.4 V

Operating Speed (4.8V): 0.16sec/60°

Operating Speed (6.0V): 0.14 sec/60°

Operating Speed (8.4V): 0.09 sec/60°

Stall Torque (4.8V):9.0 kg.cm

Stall Torque (6.0V):11.0 kg.cm

Stall Torque (8.4V):13.0 kg.cm

Dimensions: 30.0X10.0X29.5mm

Weight: 23.5 g

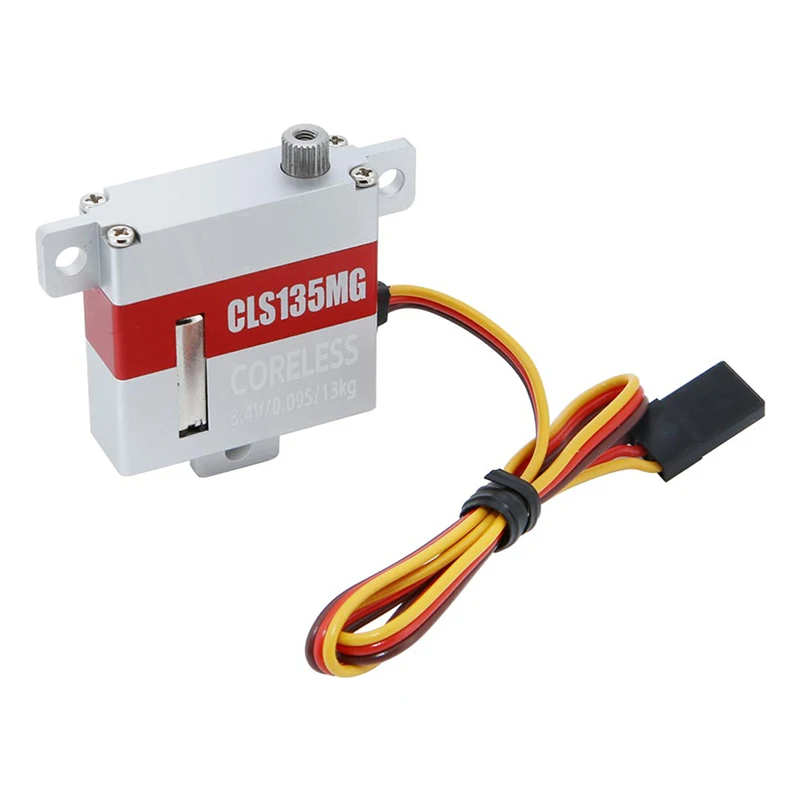

Connector Wire Length: JR250 mm

Bearing: 2BB
Gear Teeth:25T
Cable length: JR250mm, brown-red-orange; laser-engraved dimensions: top cover 25×9mm, middle casing 18×9mm, bottom cover 18×12mm

Product Overview

This high‑performance thin‑type metal gear digital servo adopts coreless motor design, full‑metal housing structure, delivering powerful torque, fast response speed and high positioning accuracy. Support high‑voltage 8.4V input, ideal for RC glider, fixed‑wing aircraft, jet plane and other RC model projects.

Main Features

Coreless Motor TechnologyCoreless drive motor brings quick response, low noise and high transmission efficiency, stable performance under continuous operation.

Full CNC Metal HousingPrecision‑machined aluminum alloy casing, excellent heat dissipation, anti‑impact, effectively protect internal components, extend service life.

Metal Gear SetDurable metal gears offer great wear‑resistance and heavy‑load capacity, withstand big torque output without easy gear slipping.

High‑Voltage SupportWorks up to 8.4V voltage, output strong 13kg torque, 0.09s fast response speed, satisfy high‑demand model application.

Compact Flat‑Shape StructureFlat thin body with mounting lugs, easy installation for narrow space of fixed‑wing aircraft, multiple mounting holes for flexible assembly.

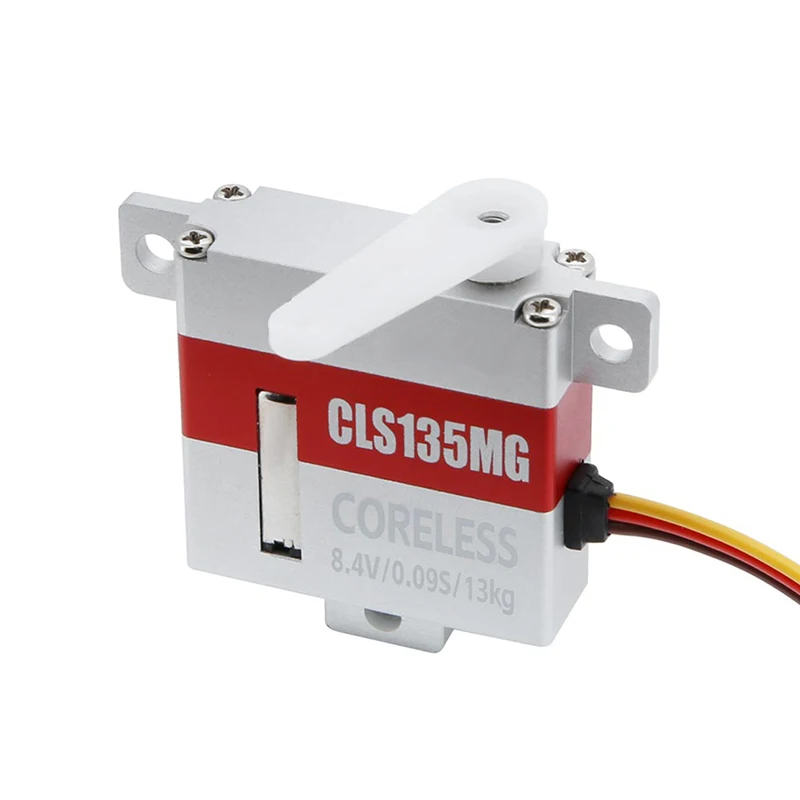

Complete Accessories PackageComes with multi‑style servo horns, mounting screws and connecting wire, ready‑to‑use after unpacking.

Specifications

Item	Parameter
Model	CLS135MG
Motor Type	Coreless Motor
Gear	Metal Gear
Working Voltage	6.0‑8.4V
Torque(8.4V)	13kg·cm
Response Speed(8.4V)	0.09s/60°
Housing Material	CNC Aluminum Alloy
Control Signal	PWM Digital Signal
Application	RC Fixed‑wing Airplane, Glider, Jet Aircraft, RC Models

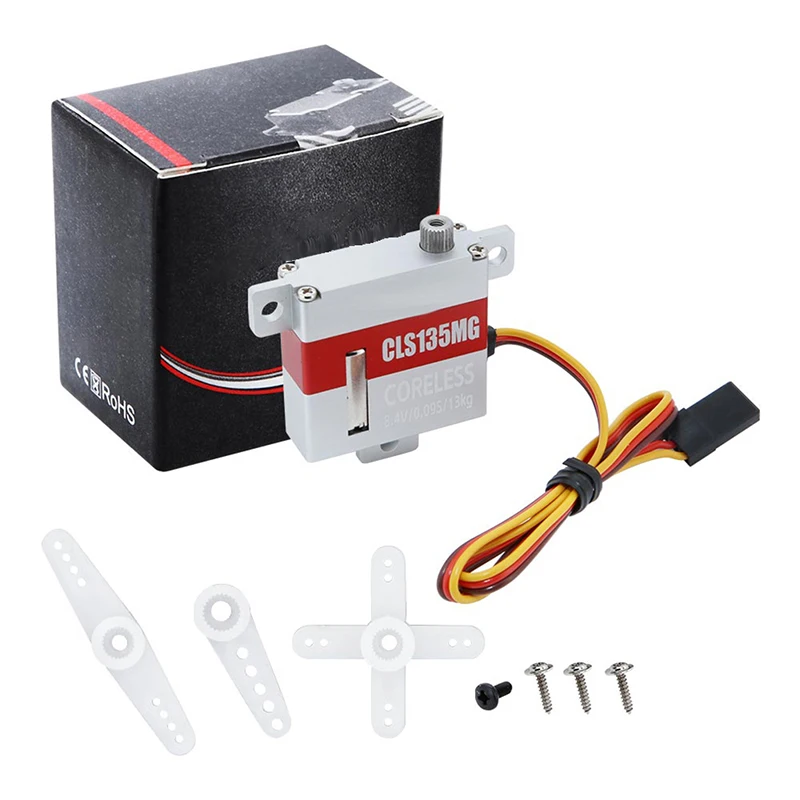

Package Contents

1 × Digital Servo1 × Extension Wire3 × Different Shape Servo HornsSeveral × Mounting Screws

Warm Tips

Do not overload the servo beyond rated torque, which may cause gear damage.
Please match suitable power supply, do not exceed maximum 8.4V working voltage.
Check servo horn locking screw after installation to prevent loose during high‑speed operation.
Keep away from water, avoid internal circuit short‑circuit damage.
