QWinOut APM2.6 2.5 2.52 Power Module Current Module APM with 5.3V DC BEC for APM 2.8 PIX PIXHAWK RC DIY Copter Accessory

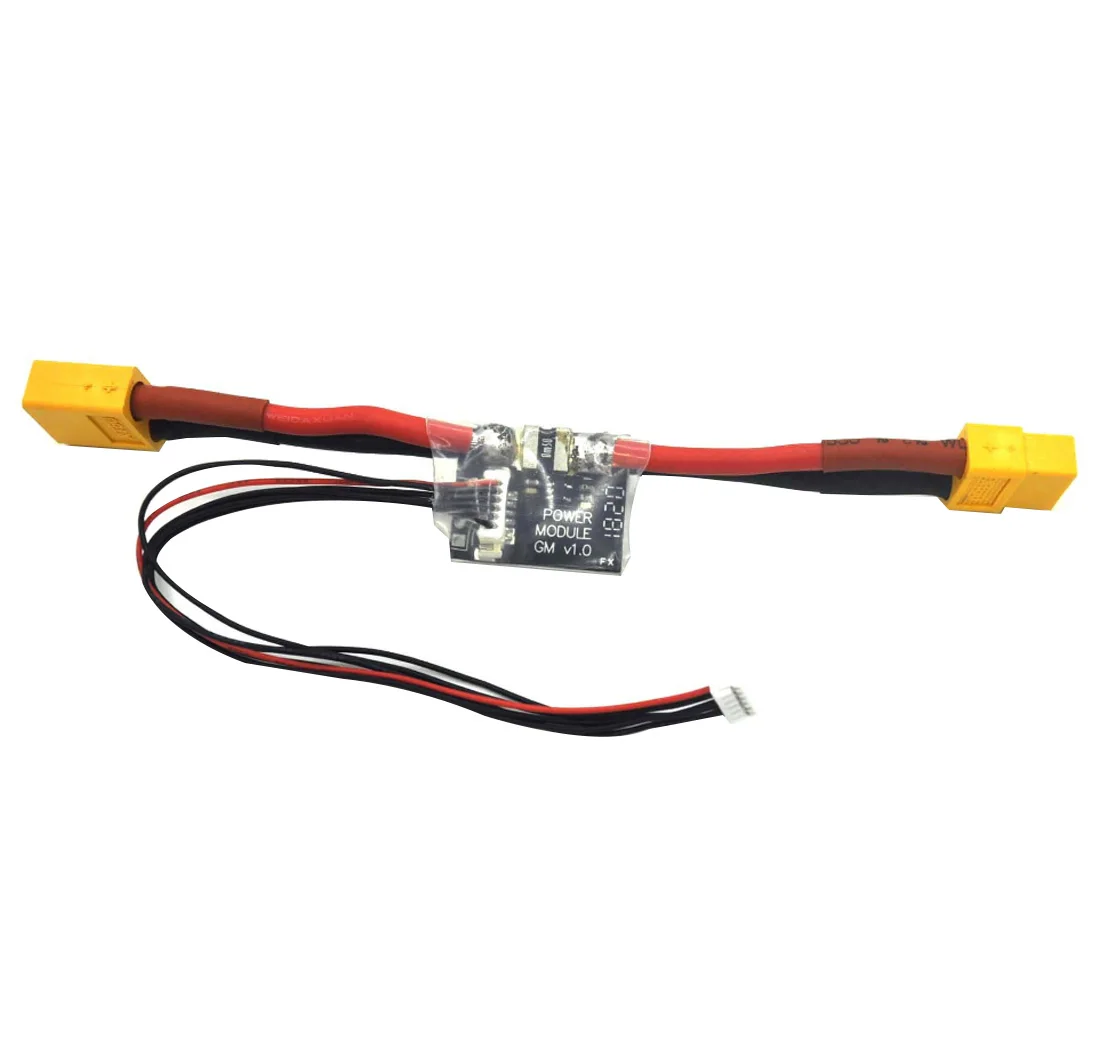

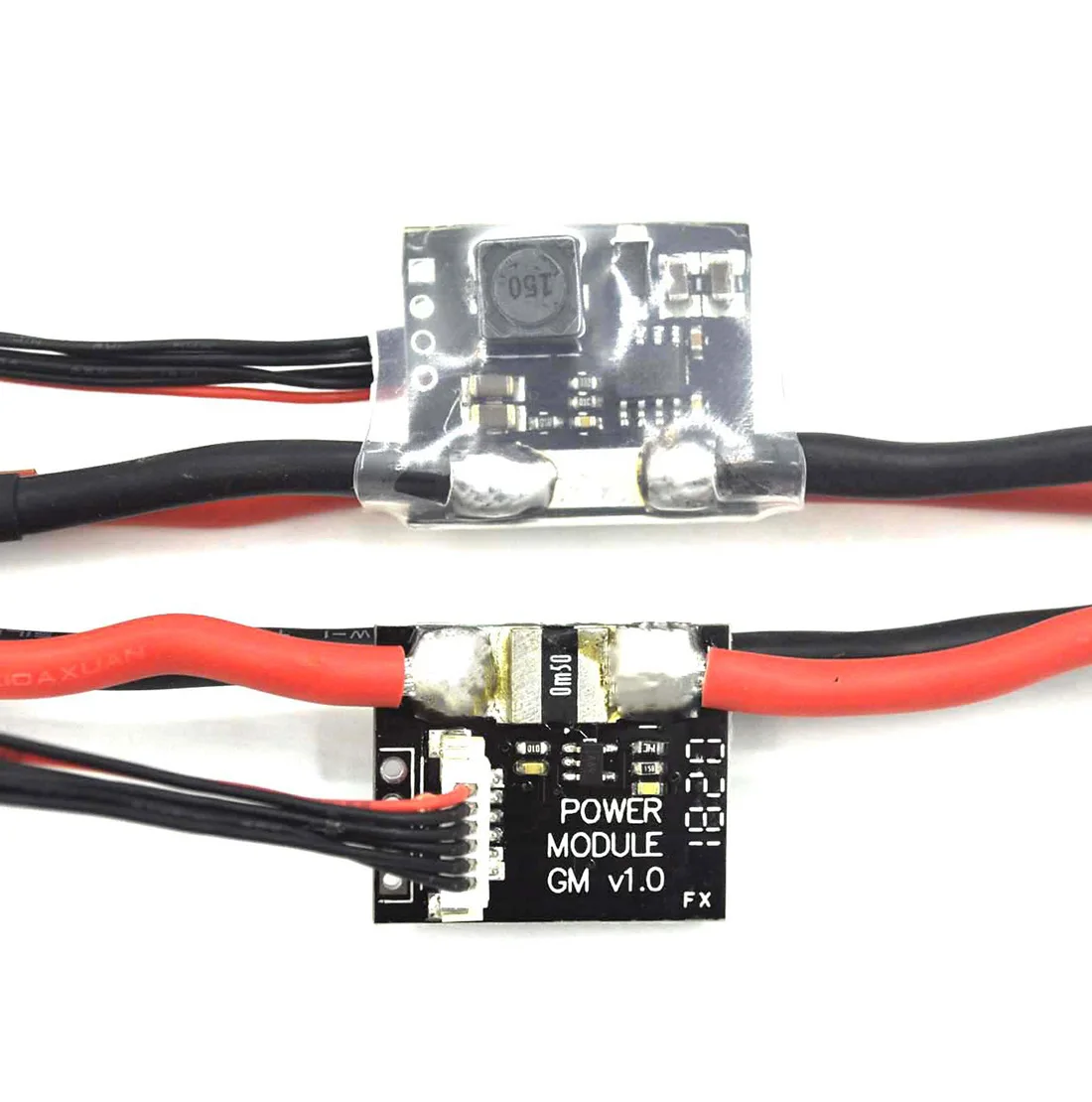

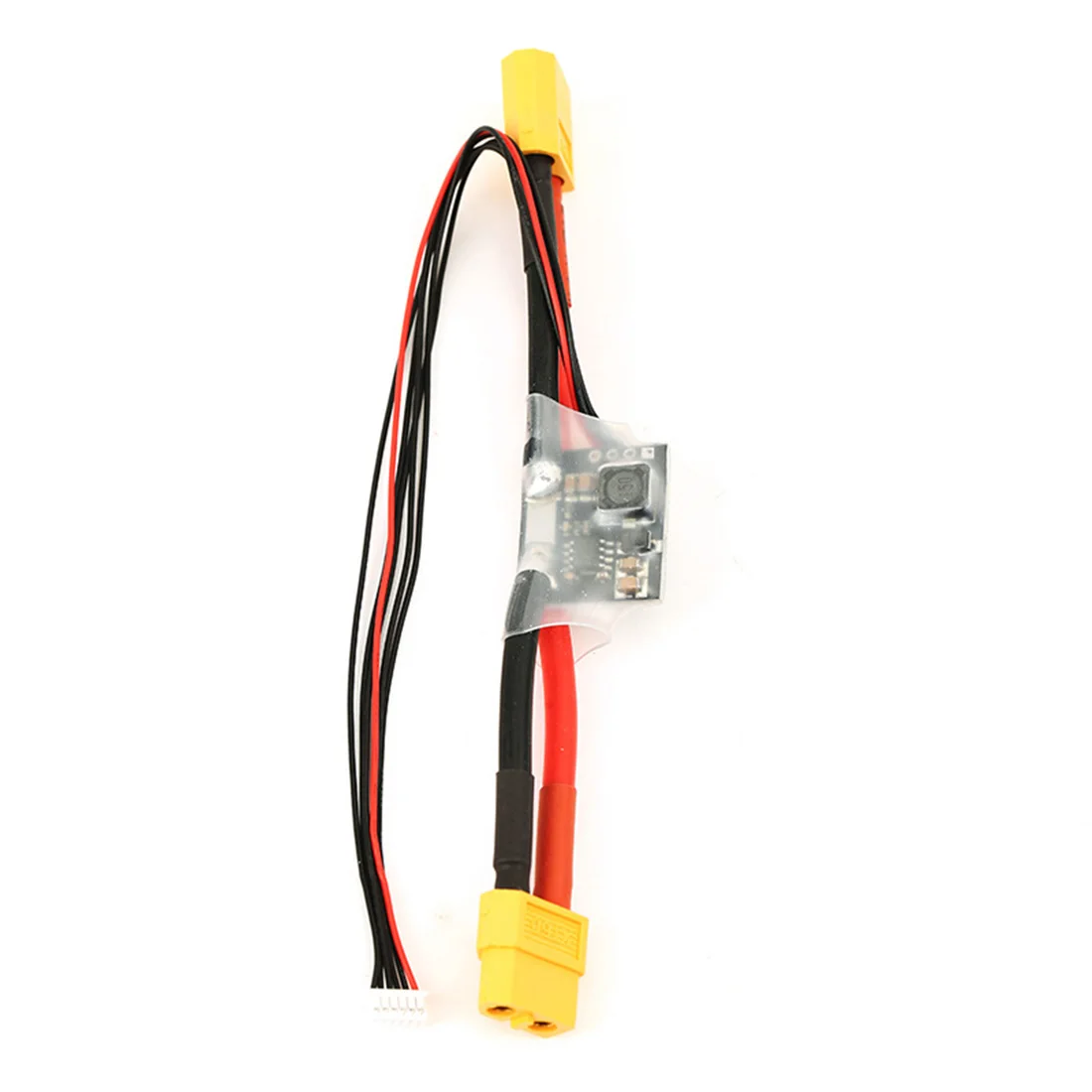

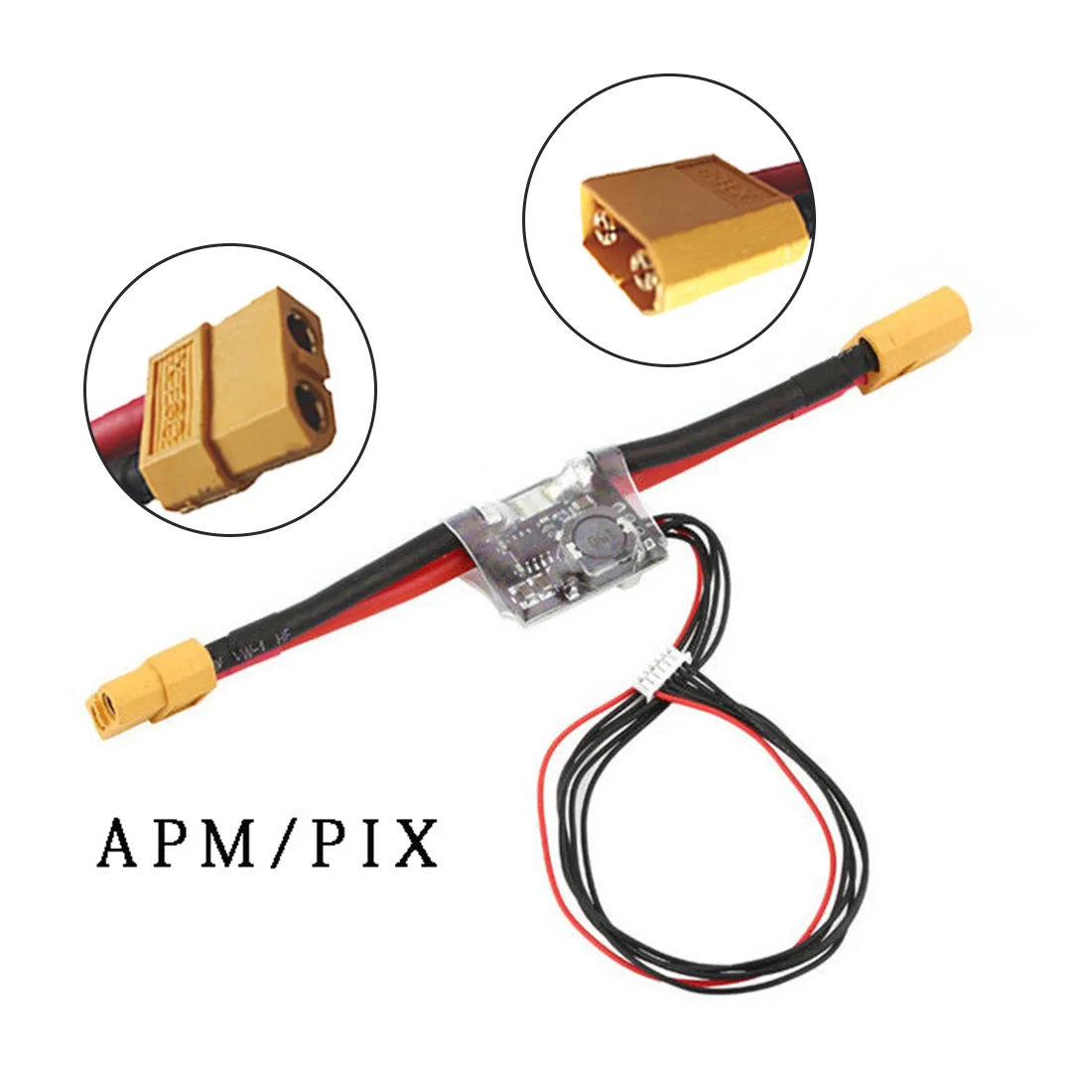

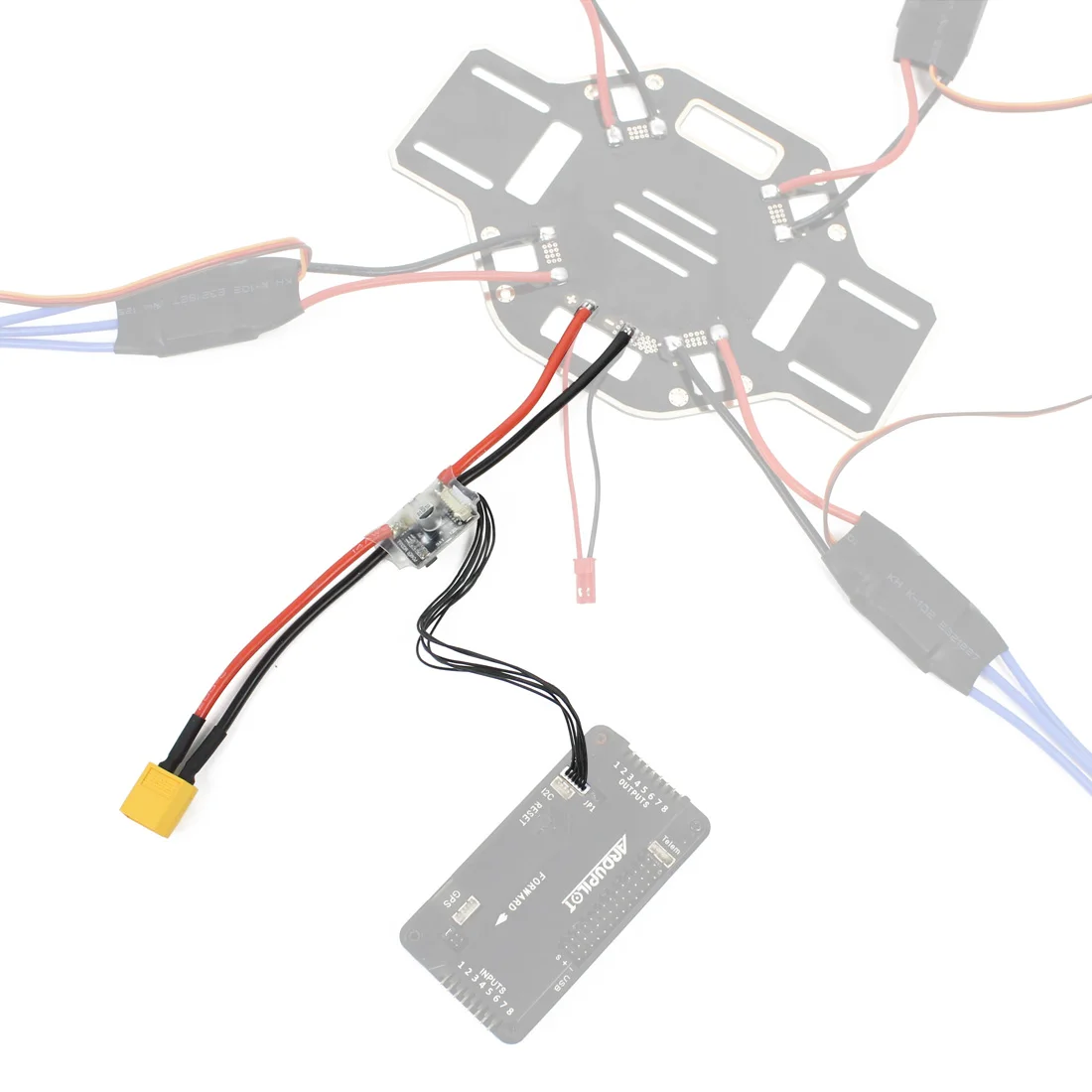

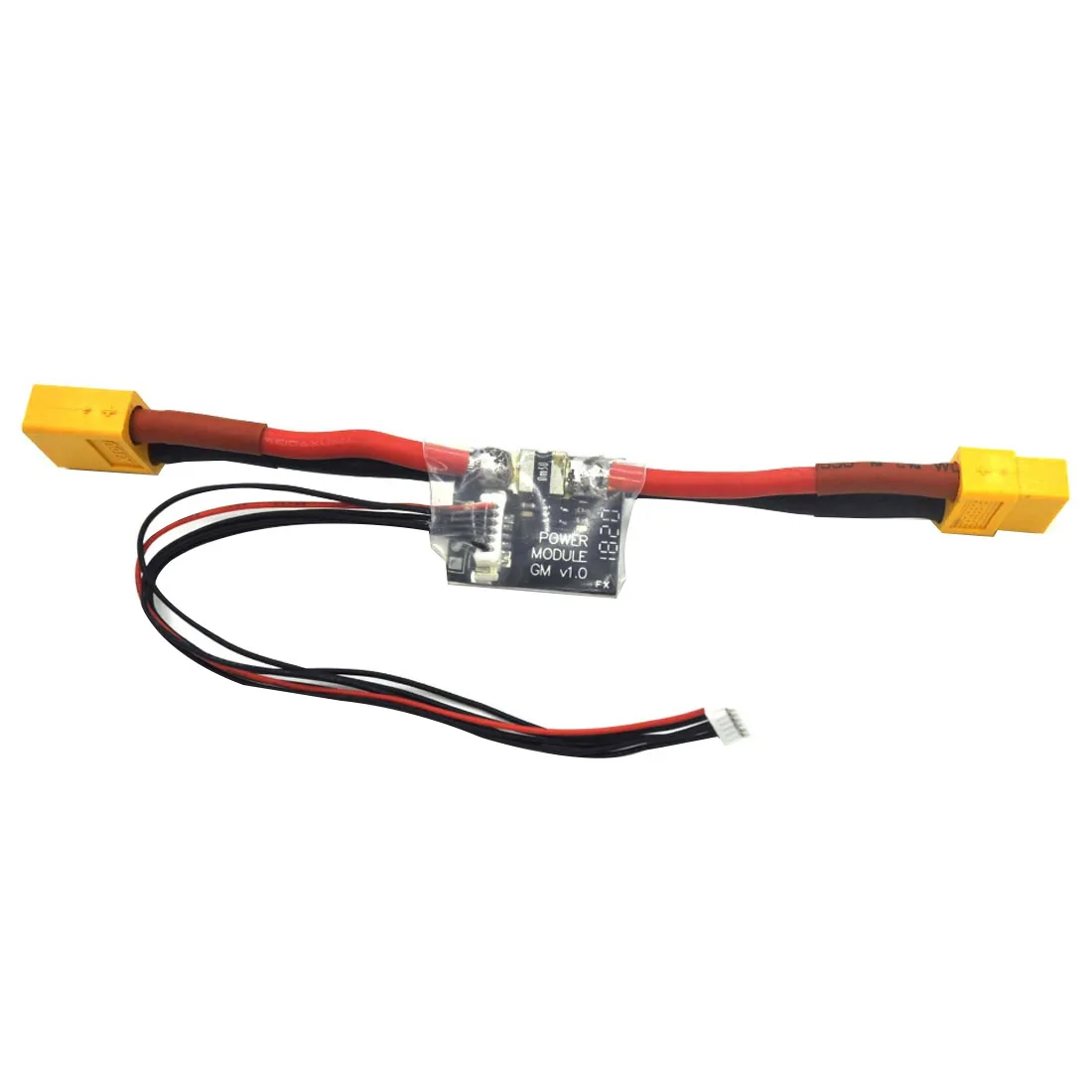

The APM 2.5 Power Module is a simple way of providing your APM 2.5 with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6-pos cable. The on-board switching regulator outputs 5.3V and a maximum of 2.25A from up to a 4S LiPo battery. The Power Module comes completely assembled with XT60 connectors, and wrapped in shrink tubing for protection.

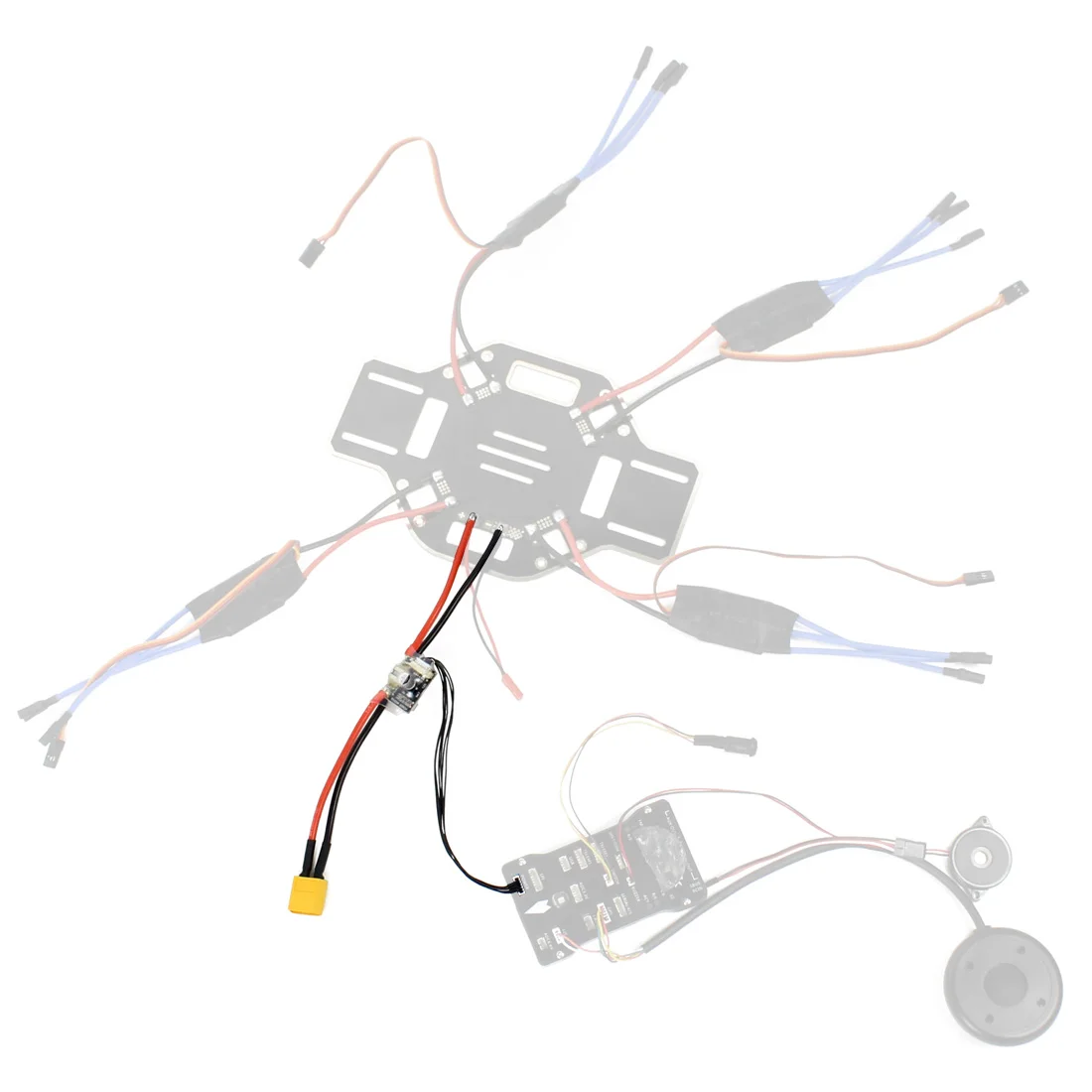

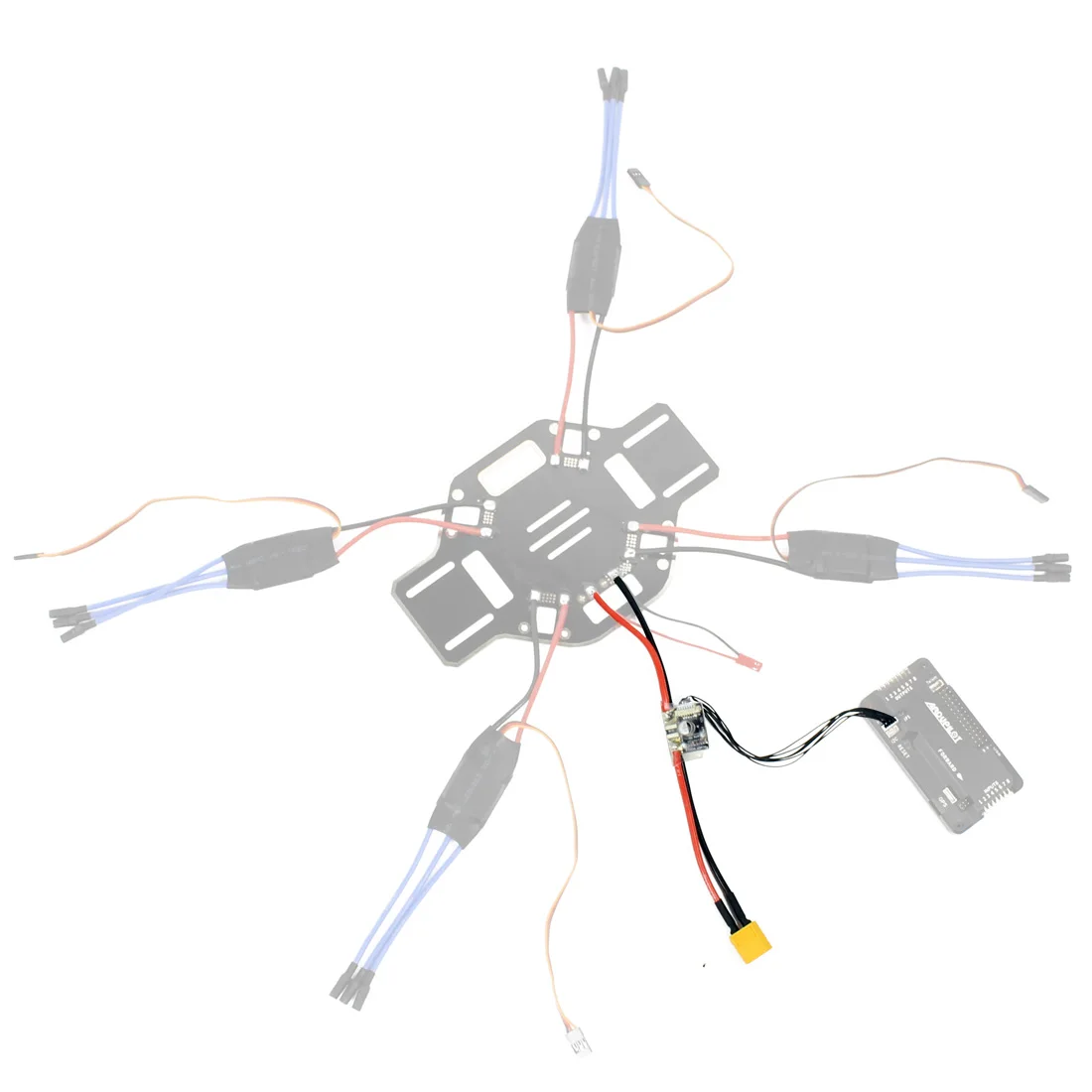

Note: The Power Module is only designed to power APM, a RC receiver and APM accessories (GPS, 3DR radio). It is notdesigned to power servos. Use your aircraft's own ESC/BEC for that.

Specifications:

• Max input voltage: 25V
• Max current sensing: 90A
• Voltage and current measurement configured for 5V ADC
• Switching regulator outputs 5.3V and 2.25A max

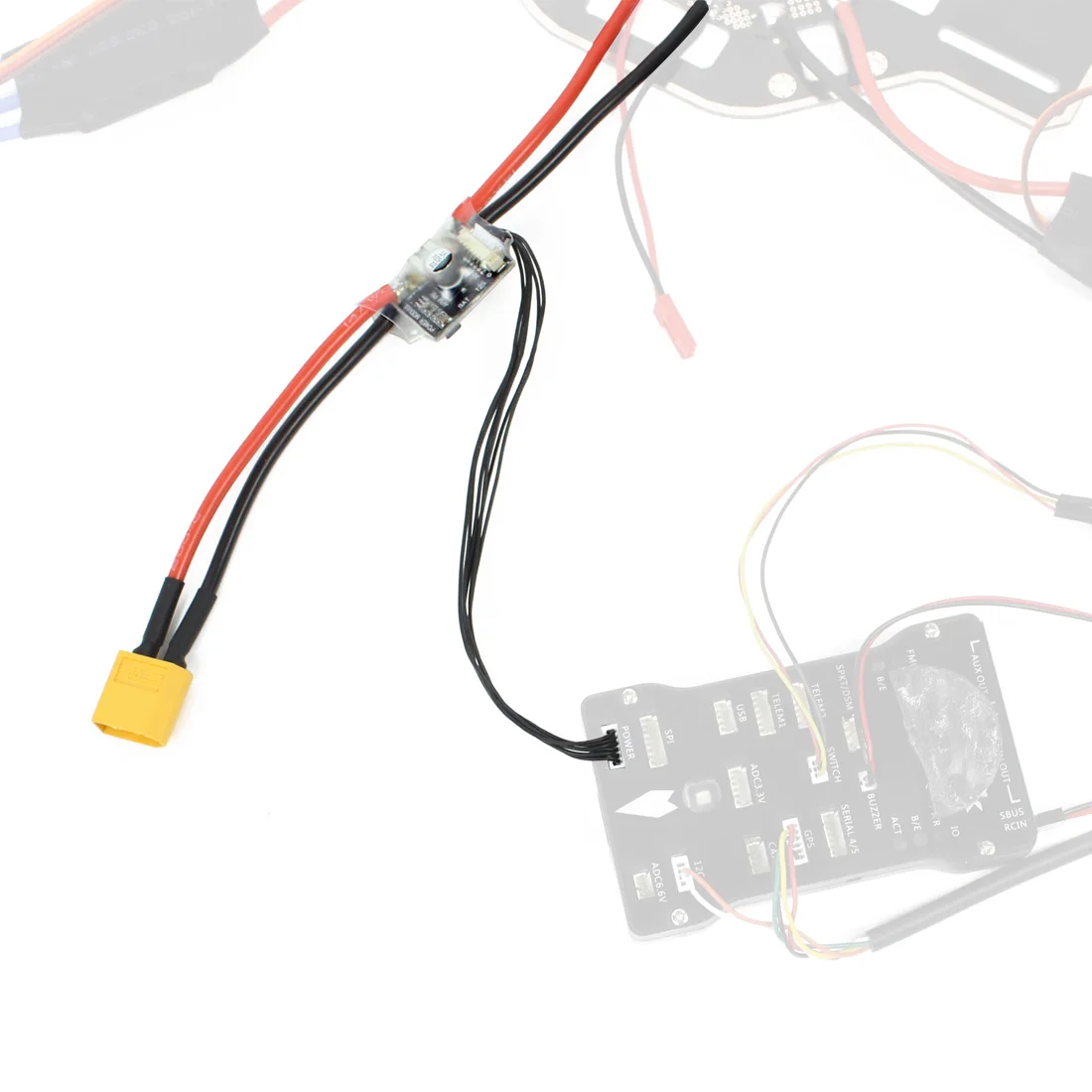

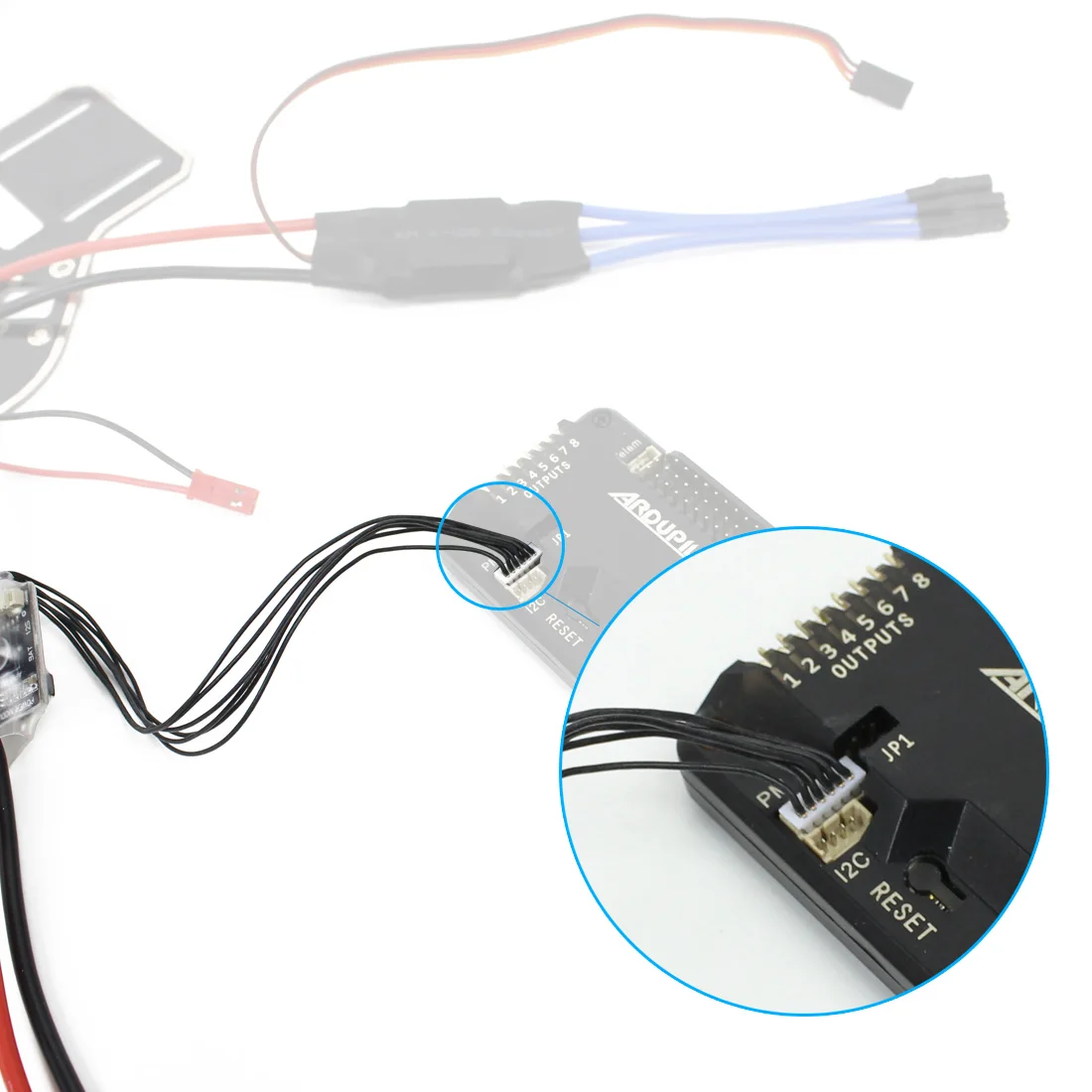

• 6-pos DF13 cable plugs directly to APM 2.5's 'PM' connecto
• For APM 2.8 PIX PIXHAWK

•

•

•

•

•

•

•

•

•

•

•

•

•

•
