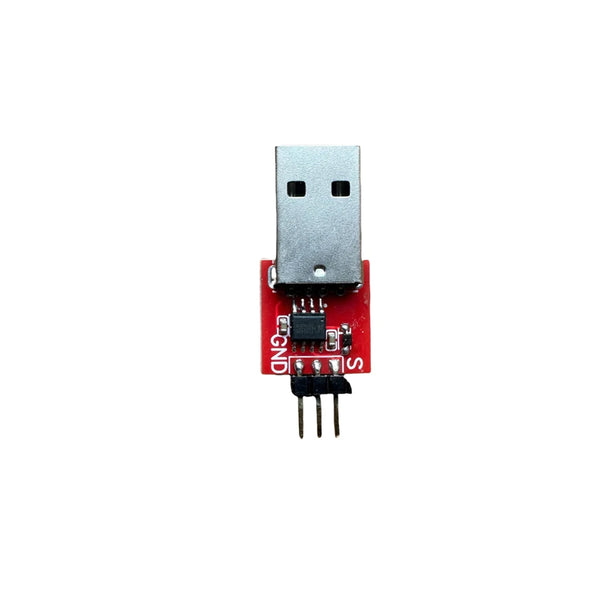

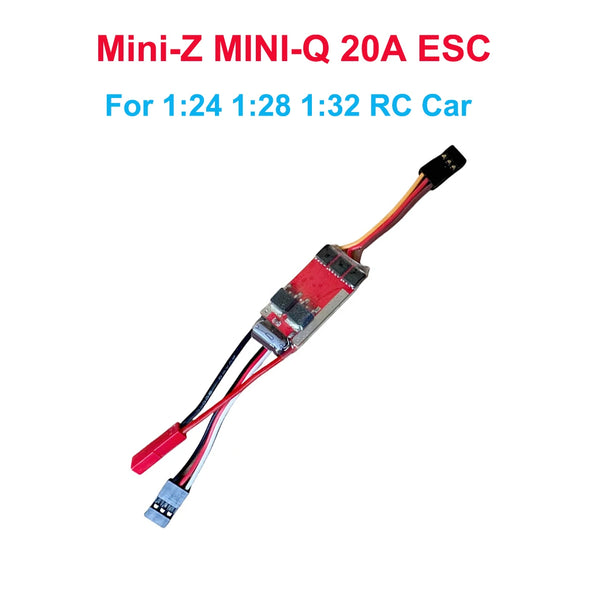

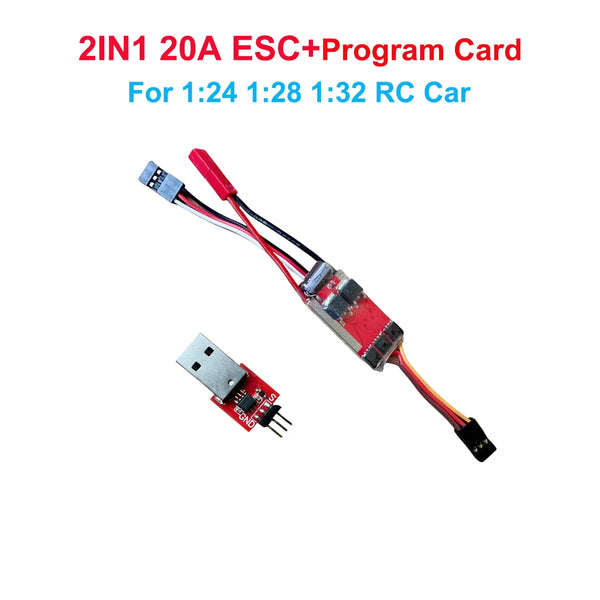

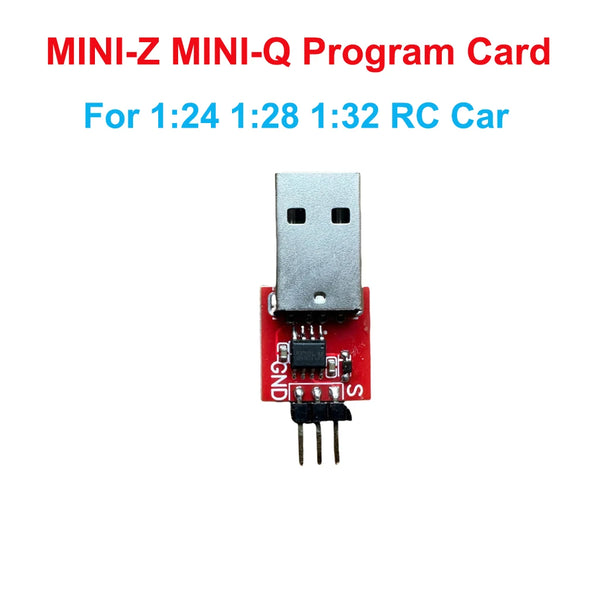

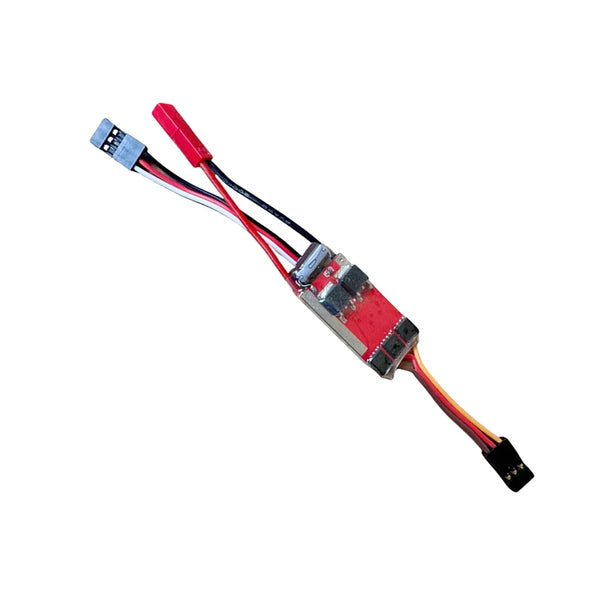

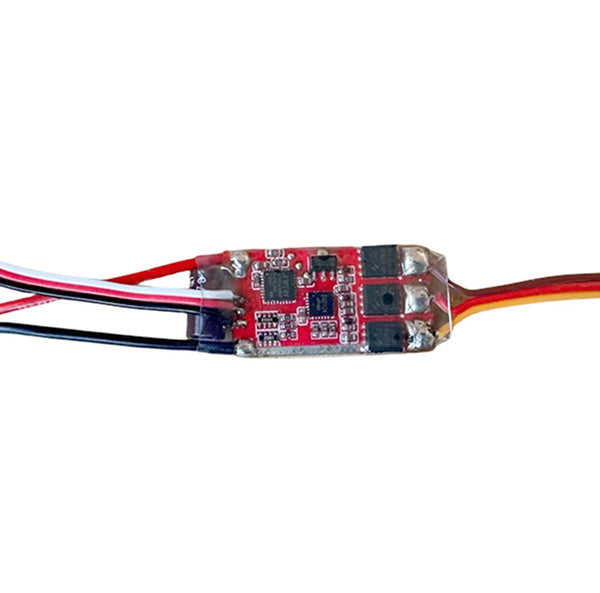

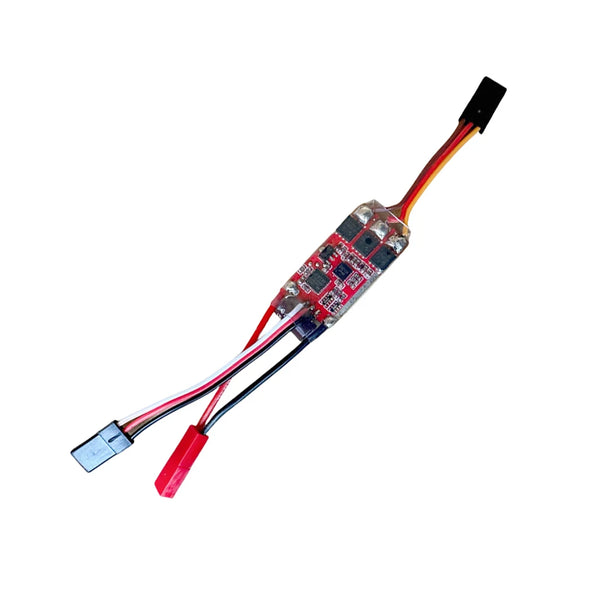

QWinOut 20A Brushless ESC Speed Controller With Program Card For 1/24 1/28 1/32 RC Cars For Mini-Q Mini-Z MINI-Q

Using AM32 open source firmware, you can freely adjust the parameter, support dshot/pwm signal.

Low-speed linear, high-speed can be violent, speed regulation is very silky smooth, low temperature does not get hot.

Support bidirectional/unidirectional operation, adjustable drag brake, sinusoidal start and other functions.

Rapid forward and reverse switching is very smooth. For more details, please refer to AM32 official description.

AM32-20A parameters

1: Voltage range 2-3S (7.4-12.6V)

2: Single LIPO protection voltage 3.0V

3: Continuous operating current 20A

4: Instantaneous current up to 30A

5: BEC output: 5V2A

6: Size 40*18*6(mm)

7: PCB board size: 35*17MM

8: Weight: about 8.6G
