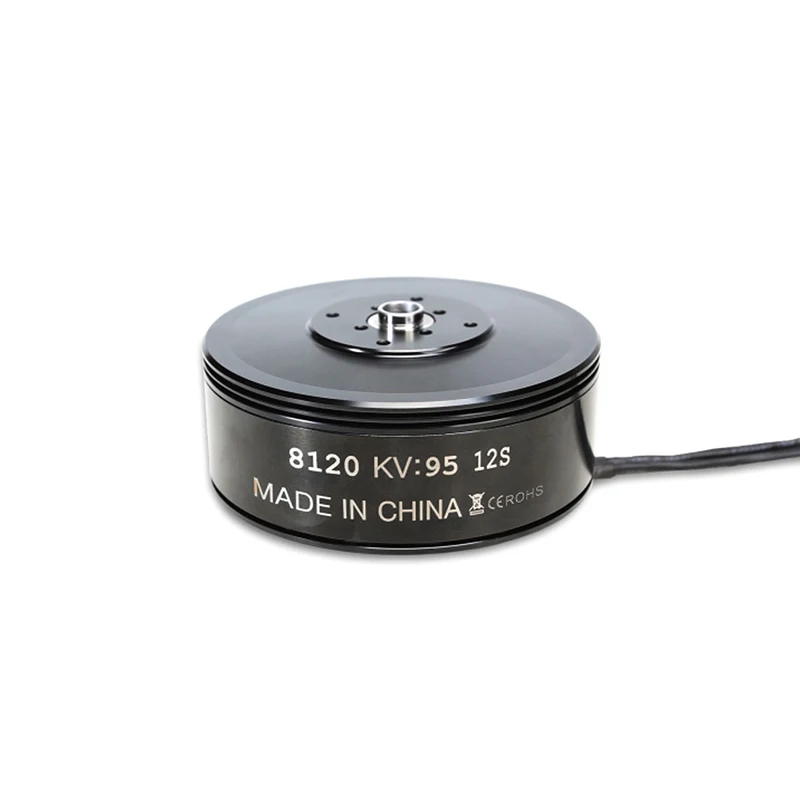

Tarot Martin 8120 95KV 12S High Torque Brushless Motor TL81M20 for RC Racing Multirotor Hexacopter

QWinOut

Regular price $155.15

Shipping calculated at checkout.

Product Overview

This 8120 95KV 12S outrunner brushless motor is professionally developed for heavy-load, long-endurance industrial multi-rotor UAVs. Adopting mature disc-type outer rotor structure and strict production testing standards, it delivers stable high torque output, low power consumption and ultra-low vibration during continuous heavy-duty operation. Perfect match for 6-axis large plant protection drones, aerial mapping inspection UAVs, low-altitude cargo delivery aircraft and other large-scale multi-copter platforms.

Core Advantages & Craftsmanship

1. Premium CNC Machined Housing

The whole motor shell is fully processed by CNC aviation aluminum alloy with fine surface finishing. Strict dynamic balance calibration greatly reduces resonance and shaking at high rotating speed. Hollowed stator slot design optimizes passive heat dissipation, effectively avoiding overheating and magnetic demagnetization under long-time full-load working status.

2. High-Grade Internal Components

Rotor Magnet: High-performance neodymium iron boron permanent magnet, strong magnetic flux, excellent resistance to high-temperature demagnetization;
Stator Coil: Reinforced by epoxy resin pressure pouring, great insulation, heat resistance and anti-vibration performance to prevent wire breakage;
Drive Shaft: High-strength alloy steel main shaft, matched with top and bottom sets of precision high-speed ball bearings, minimizing mechanical friction loss, outstanding anti-impact and stable high-speed support capacity.

3. Rigorous Quality Testing

Each unit passes comprehensive durability tests including static load, dynamic tension, high-temperature aging, continuous vibration and full-power long-time running. Featured with long service life, high energy conversion efficiency, low no-load current, quiet operation and linear throttle control experience.

Detailed Technical Specifications

Electrical Parameters

Model: 8120
KV Rating: 95KV
Compatible Battery: 12S Lithium Polymer Battery
No-load Speed (20V): 2000±5% RPM
Max No-load Current: ≤1.4A
Lead Wire: 70mm long bare high-temperature silicone wire

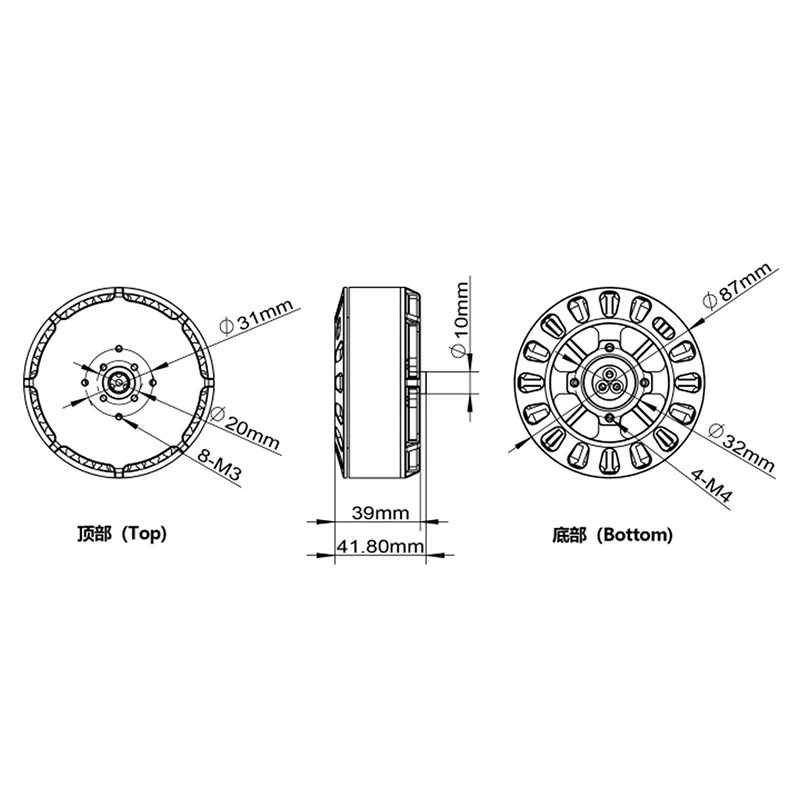

Mechanical Dimension (Refer to Engineering Drawing)

Overall Outer Diameter: 87mm
Overall Height: 39mm

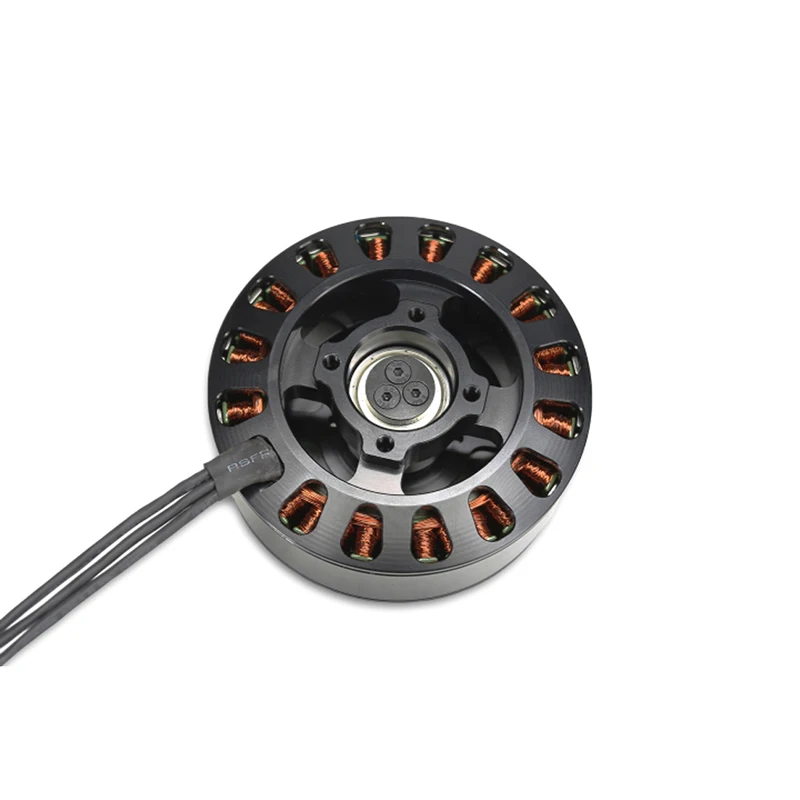

Stator Size: Φ81mm × 20mm, 36 Slots 40 Poles winding structure
Main Shaft Diameter: Φ10mm
Top Propeller Mount Holes: 8pcs M3 screws, mounting circle Φ31mm, center positioning hole Φ20mm
Bottom Fixing Holes: 4pcs M4 screws, pitch circle diameter Φ32mm
Net Weight of Single Motor: 520g

Recommended Matching Parts

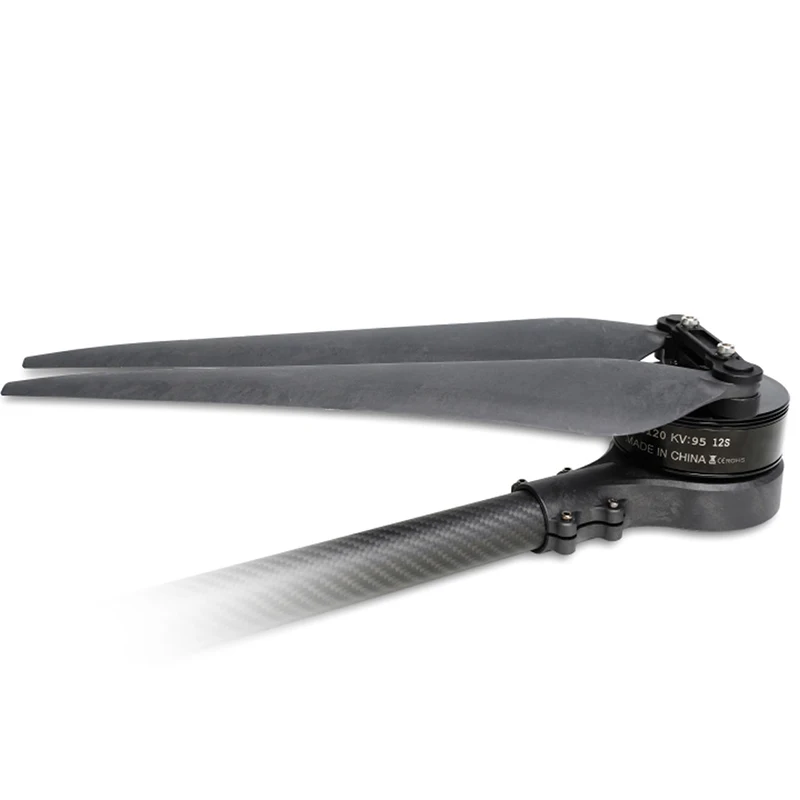

Matched Propeller: 30-inch folding propeller
Propeller Mount Aperture: 20mm / 31mm dual compatible size

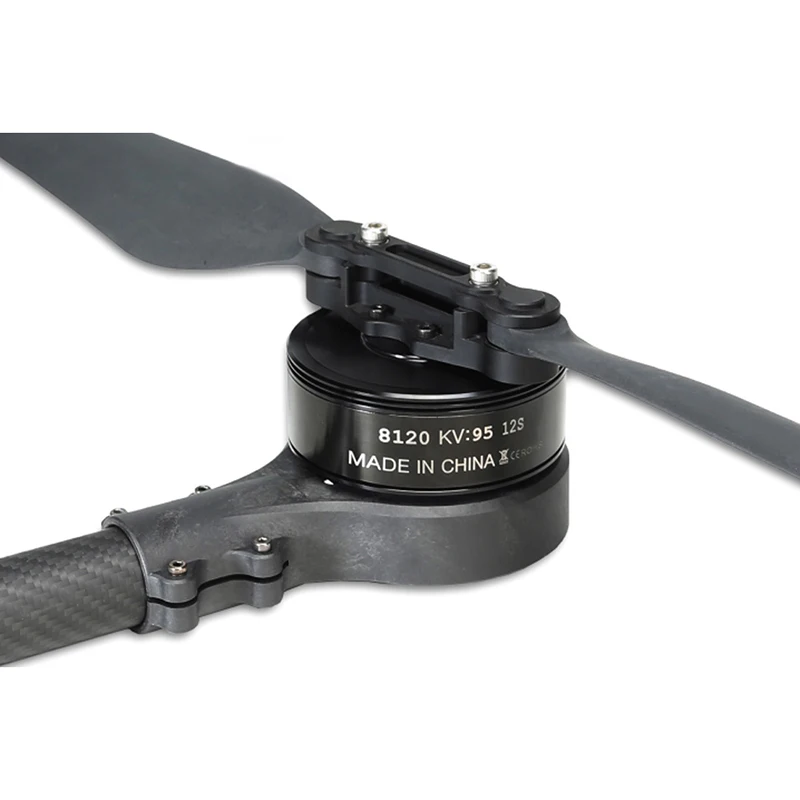

Optimal Combination: Dedicated motor base + 30-inch folding carbon fiber propeller for maximum flight efficiency

Packing List

1 x 8120 95KV 12S Brushless Motor

4 x M4×10mm Round Head Mounting Screws

Wide Application Scenarios

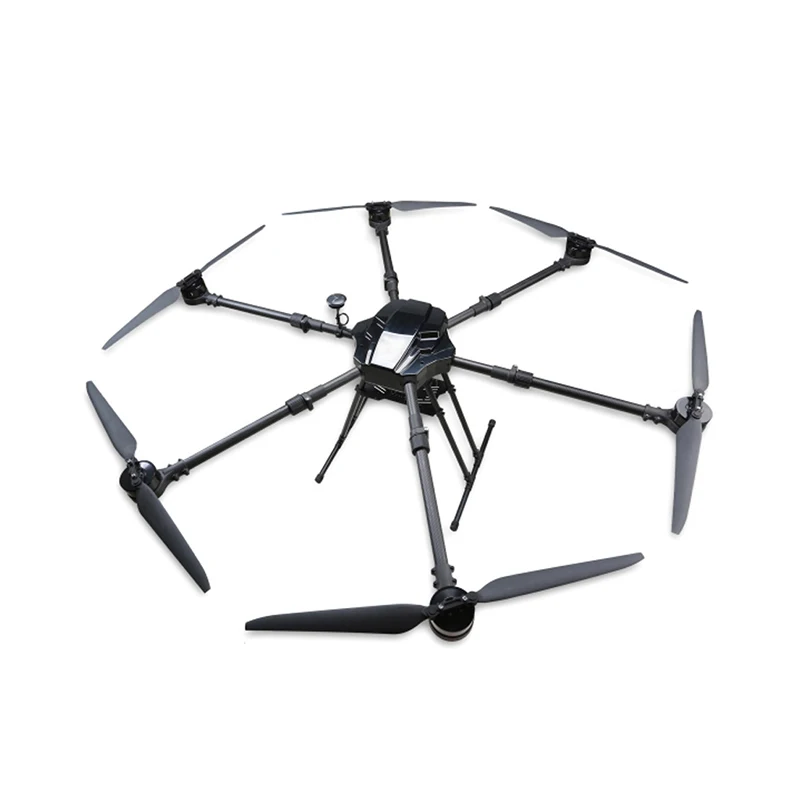

Large 6-axis plant protection spraying multi-rotor drones

Long-distance aerial mapping, security patrol & inspection industrial UAVs

Low-altitude cargo transportation and heavy lifting delivery aircraft

High-altitude broadcasting, object throwing and hanging operation heavy-duty flight platforms

Warm Tips

Please use 12S standard lithium battery for power supply, do not overvoltage to avoid burning the motor winding;
Tighten all mounting screws evenly during installation to prevent loose parts caused by high-frequency vibration;
Regularly check bearing flexibility and wire insulation condition after long-term heavy load use to extend service life;
Professional assembly and debugging are suggested for industrial UAV application.
