FEICHAO GT3C FS-GT3C 2.4GHz 3CH Transmitter w/ Battery GR3E Receiver 20KG 180/270 Degree Digital Servo 25T Arm For RC Cars Boat

Feichao

Sale price $61.12 Regular price $91.68

Shipping calculated at checkout.

FEICHAO GT3C FS-GT3C 2.4GHz 3CH Transmitter w/ Battery GR3E Receiver 20KG 180/270 Degree Digital Servo 25T Arm For RC Cars Boat

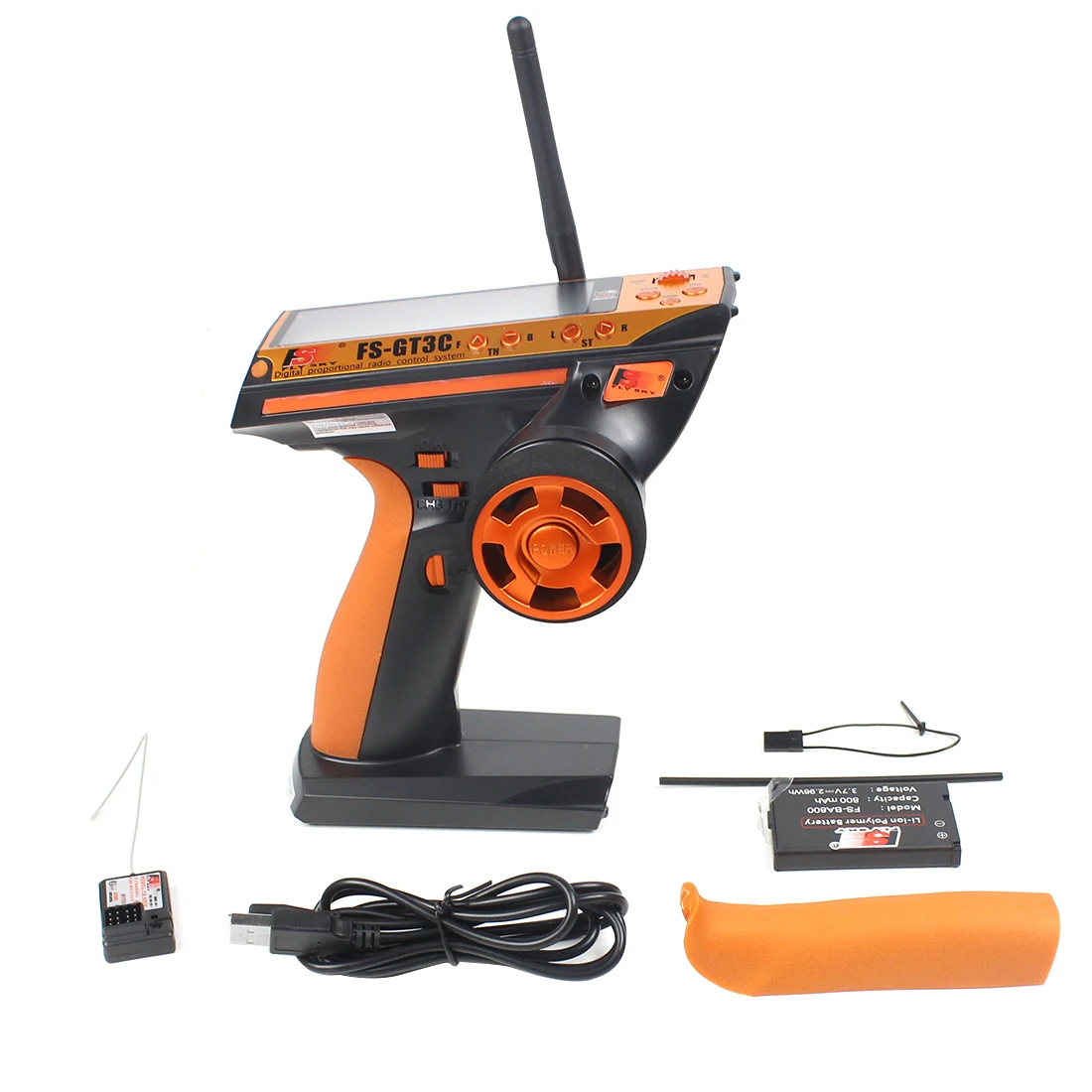

Package Includes:



FS-GT3C Transmitter*1



FS- GR3E Receiver*1



Battery*1



20KG 180 Degree or 270 Degree Digital Servo*1



25T metal arm*1(optional)





FS-GT3C Transmitter Parameters

Channels: 3

Model Type: Car/Boat

RF Range: 2.40Channels: 3

Model Type: Car/Boat

RF Range: 2.4055-2.475GHz

RF power: <20dBm

RF Channel: 140

Bandwidth: 500KHz

2.4GHz system: AFHDS

Modulation Type: GFSK

Stick Resolution: 1024

Low Voltage Warning: <3.5V

DSC Port: USB PPM

Steering Range: 90° L:45° R: 45°

Throttle Range: 35° F: 22.5° B: 12.5°

Chargeable: Yes

Antenna Length: 26mm

Weight: 303g

Power: 3.7V

Display: NTN Transmissive Segment LCD with Backlight, VA100*32mm

Size: 157*116*258mm

Color: Black/Orange/Gray

Certificate: CE0678, FCC

20KG 180 Degree or 270 Degree Digital Servo





20KG Servo:



- High-precision metal gears with hard anodizing
- CNC aluminium middle Shell,

Control system :PWM control (1500 u-sec is the central point)
Working voltage:4.8V ~ 6V
Working temperature: -20C°~ +60C°
Torque :4.8V /17.2kg.cm
6.0V /20.3kg.cm
 Idle speed :4.8V/0.15sec / 60 deg
                    6.0V/0.13sec / 60 deg
Steering angle: 180 / 270 degree
Idle current:4.8V/470mA 6.0V /650mA
Load current :4.8V/750mA 6.0V /950mA
Dead band :2usec
Lifetime:>15000 times without load
Moving angle:60°±10°
Drive type: MOS drive
Motor type:Cored motor
Potentiometer type:Direct drive
Signal booster type:Digital
Size:40.5X20.2X40.3mm
Weight : 62g (without accessories)
Ball Bearing:2BB
Gear material:Metal gear
Case material: PA66+fiber40%
Wire length:260mm
Wire gauge No and plug type:26AWG,JR plug
Brown wire:Negative
Red wire:Positive
Orange wire:Singal

Application:RC car, RC airplane, Helicopter
