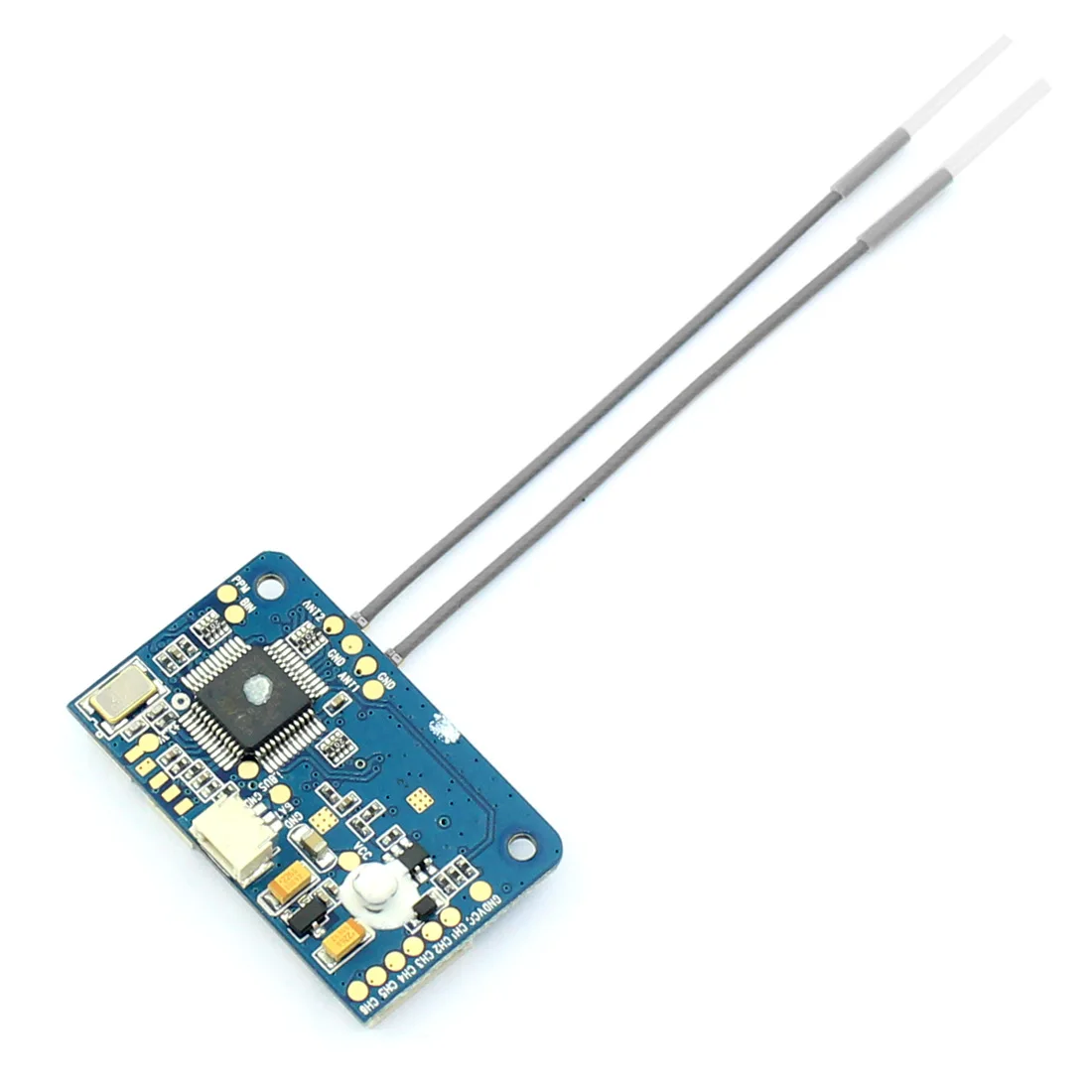

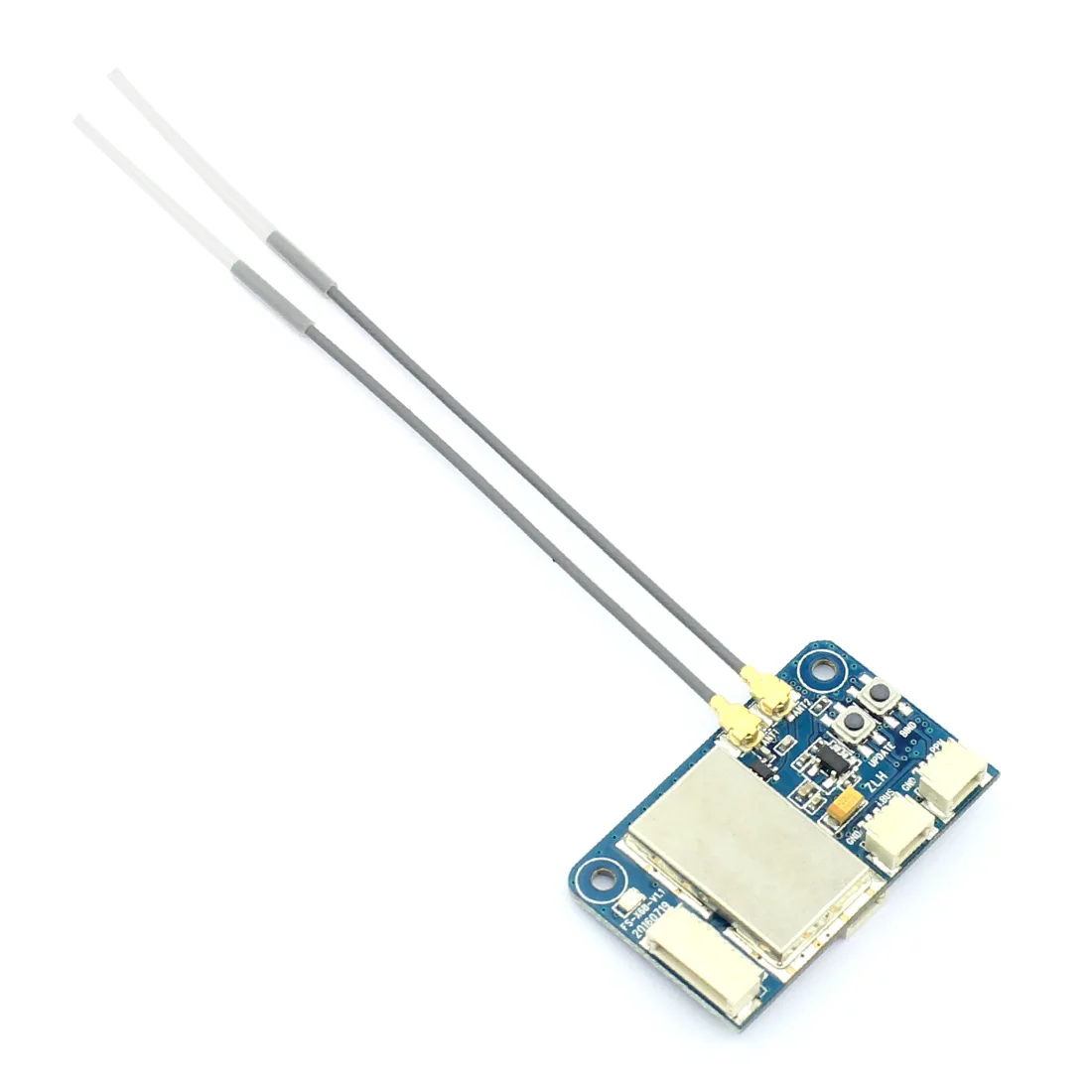

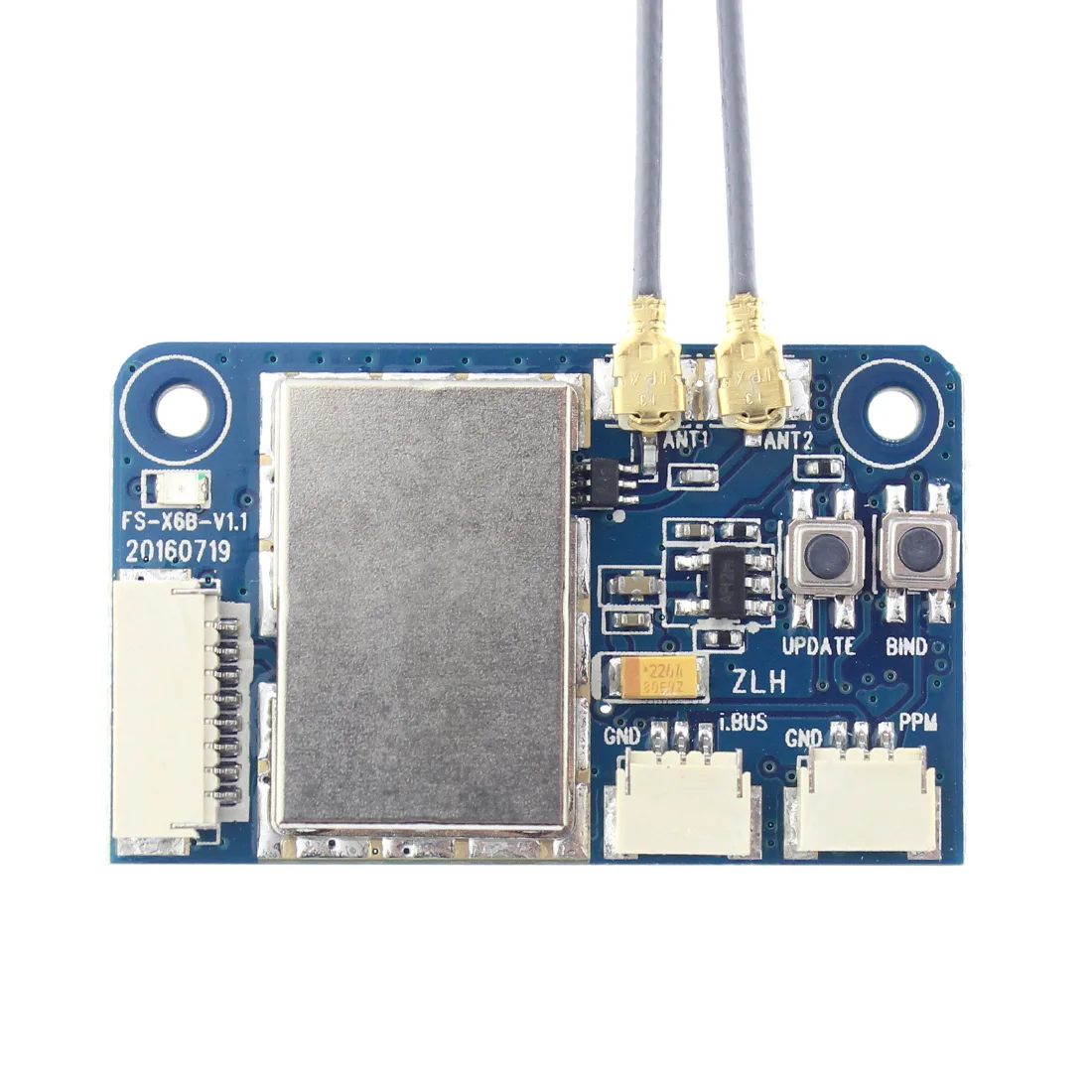

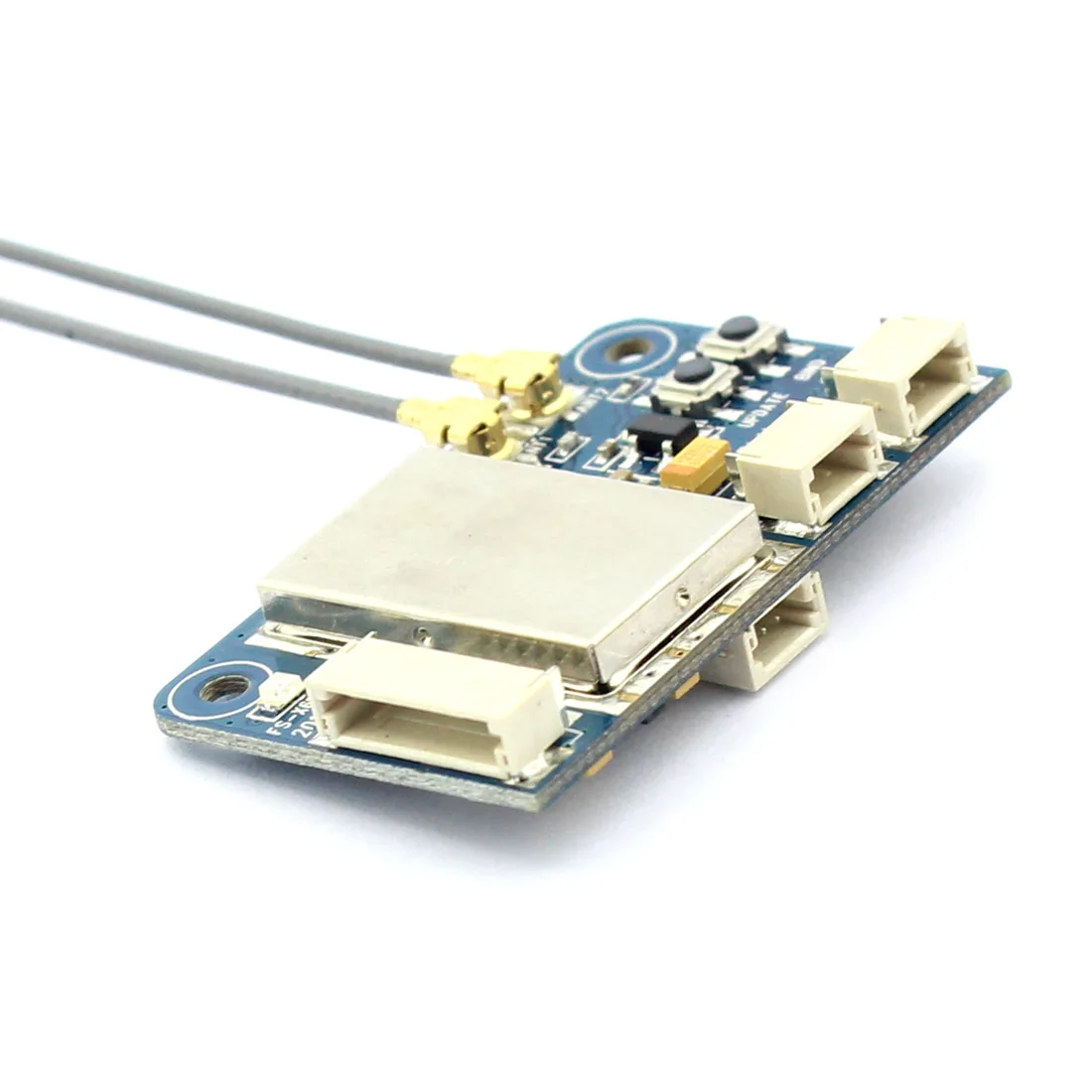

Flysky FS-X6B 2.4G PPM i-BUS 6CH Receiver for FS-I6X FS-i6S FS-i10 FS-TM10 FS-TM8 Transmitter Rc Quadcopter Aircraft Part

FS-X6B is a 6 channel two-way receiver designed for multi-rotor aircraft.

It uses the AFHDS 2A(Automatic Frequency Hopping Digital System) protocol and dual omnidirectional antenna with superior noise reduction techniques.

 It's compact, easy to install and boasts a rich easy to use interface.

The FS-X6B support 6 channel PWM output, standard PPM output and i-BUS support for up to 18 channels alongside a reliable voltage sensor interface.

Description:
Brand Name: Flysky
Item: X6B i-BUS 2.4GHz 6CH Receiver
Channels: 6(PWM), 8(PPM), 18(i-BUS)
Model Type: Multi-Totor
RF Range: 2.408-2.475 GHz

Brand Wigth: 500KHz

Number of bands: 135
RF Power: No more than 20 dBm
RX Sensitivity: -95dBm
2.4GHz protocol: AFHDS 2A
Modulation Type: GFSK

Stick resolution: 1024

Low voltage alarm: Yes

DSC port: PPM/PWM/i-BUS

Antenna Length: 93mm (Dual Antenna)
Power input: 4.0-8.4V
On-line Update: Yes(Wireless)

Range: >300m
Weight: 4.5g
Size: 36*22*7.5mm
i-BUS Port: Yes
Certificate: CE0678, FCC ID: N4ZX6B00

Compitable Transmitter: All AFHDS 2A Transmitter, for example FS-i10, FS-TM8, FS-i6,FS-i6S, FS-TM10

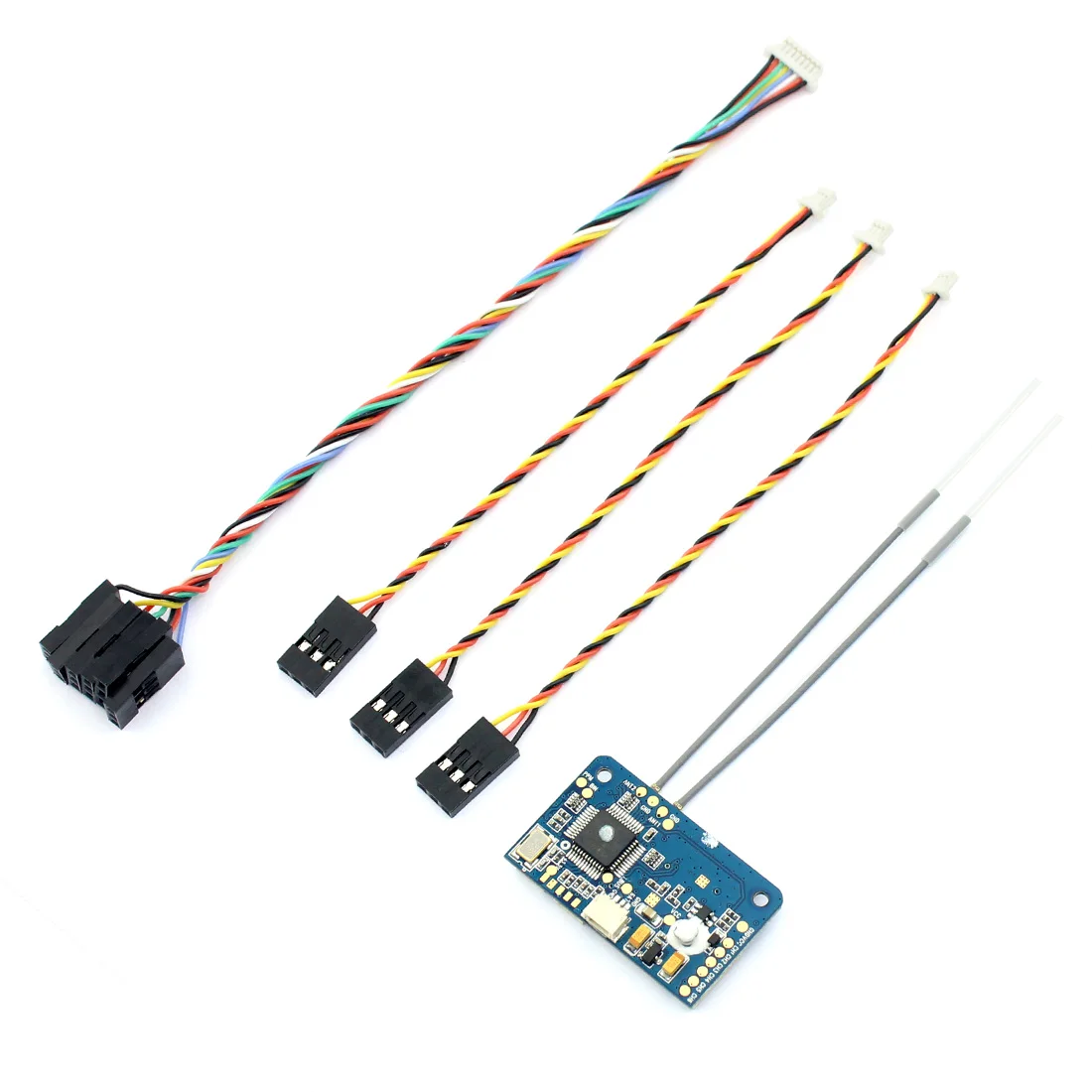

Package Included:

1X Flysky X6B 2.4GHz 6CH Receiver
