FlySky INr4-GYB NB4 Built-In Gyroscope Function Receiver Supports AFHDS 3 Transmitters For RC Car Model

The INr4-GYB uses AFHDS 3 (Automatic Frequency Hopping Digital System, 3rd generation).

external single antenna with back propagation

function, built-in high performance gyroscope

integrated BVD battery voltage detection, PPX6 splash-proof rating, the

Full compatibility with drift cars, recreational vehicles, F1 and linear acceleration cars.

Compact and lightweight design, easy to install.


Support

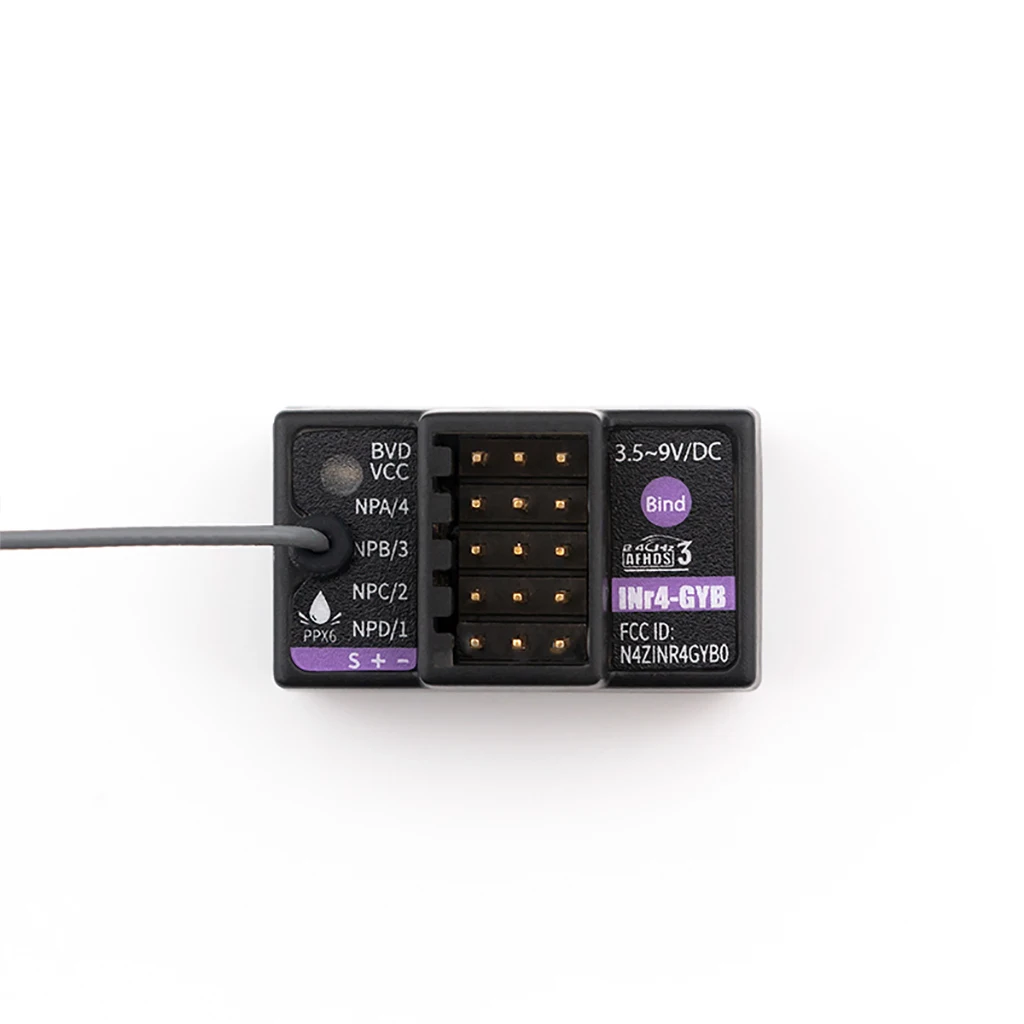

4 Newport functional interfaces (Newport interfaces can be customized for input or output signal types:i- BUS2/S.BUS/i-BUS/PPM, etc.).

Support for AFHDS 3 transmitters (*Remarks: currently only the

Noble series is currently only available with INr4-GYB gyroscope function).


Product parameters.

● Product model: INr4-GYB

Compatible transmitters: AFHDS 3 transmitters are supported (*Note: Currently only the Noble series is available with INr4-GYB).

Noble series can enable INr4-GYB gyroscope function)

Suitable for vehicles, boats, etc.

●PWM channels: 4

●Radio frequency: 2.4GHz ISM

●Wireless protocol: AFHDS 3Antenna Type: Single Antenna

●Input power: 3.5~9V/DC

●Data output: PWM/PPM/i-BUS2/S.BUS/i-BUS Temperature range: -10°C ~ -10°C Temperature range: -10°C ~ +60°C

●Humidity range: 20%-95%

●On-line update: Yes

●Exterior dimensions: 17*29*16.6mm

●Weight: 6.5g

Certification: CE, FCC ID:N4ZINR4GYB0
