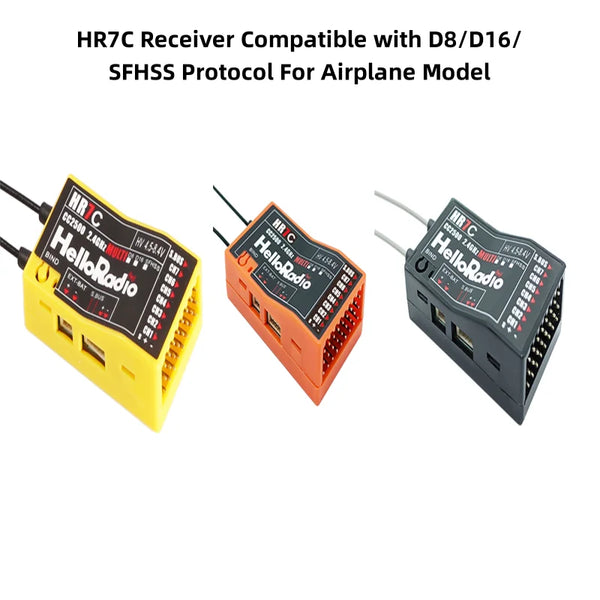

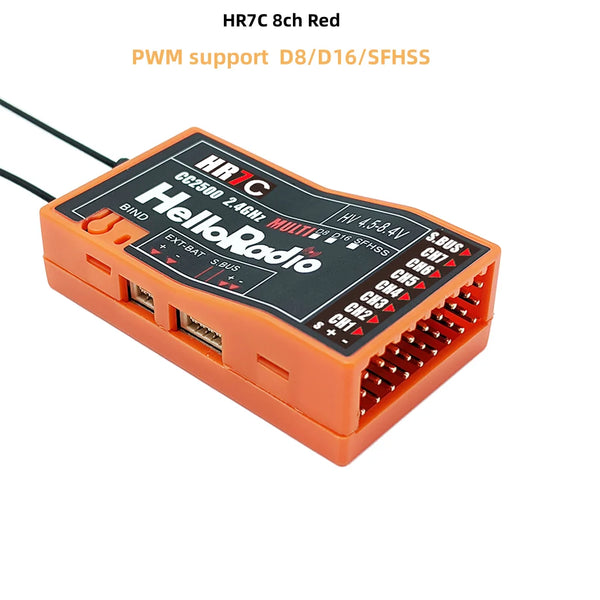

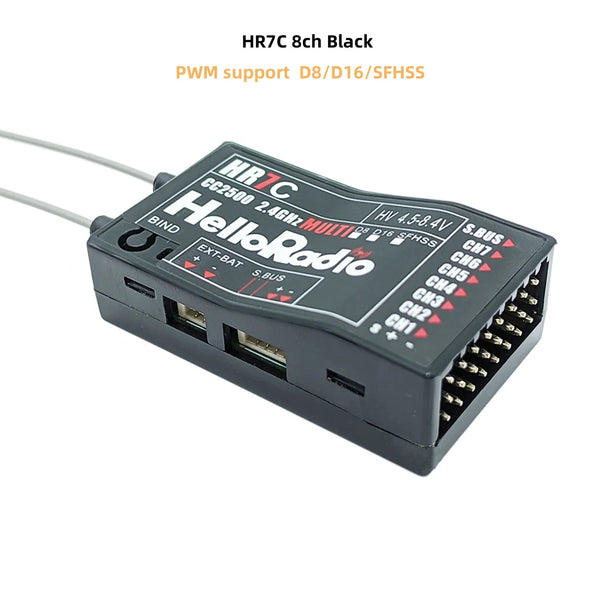

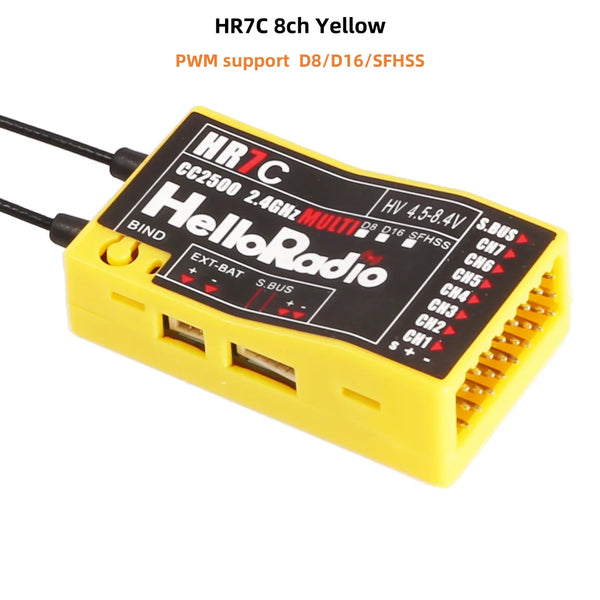

HelloRadio HR7E 8CH ELRS 2.4G / HR7C 8CH D8/D16/SFHSS PWM Power Supply DC 4.5-7.4 V Receiver Dual Antenna Fixed Wing Drone Boat

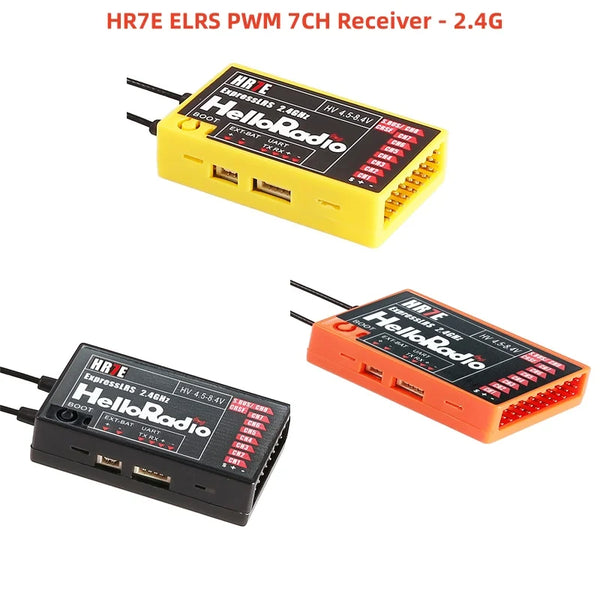

HelloRadio HR7E ELRS PWM 7CH Receiver - 2.4G for Fixed Wing Aircraft Remote Control Drones Model Airplanes Quadcopter
Specification Parameters

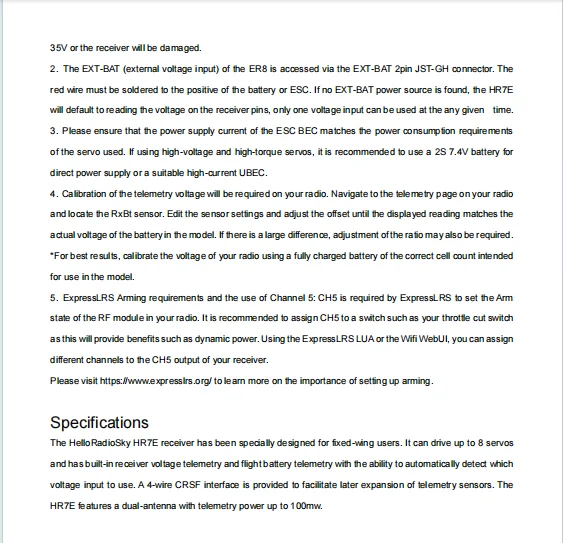

The HelloRadioSky HR7E receiver is specially designed for fixed-wing users.

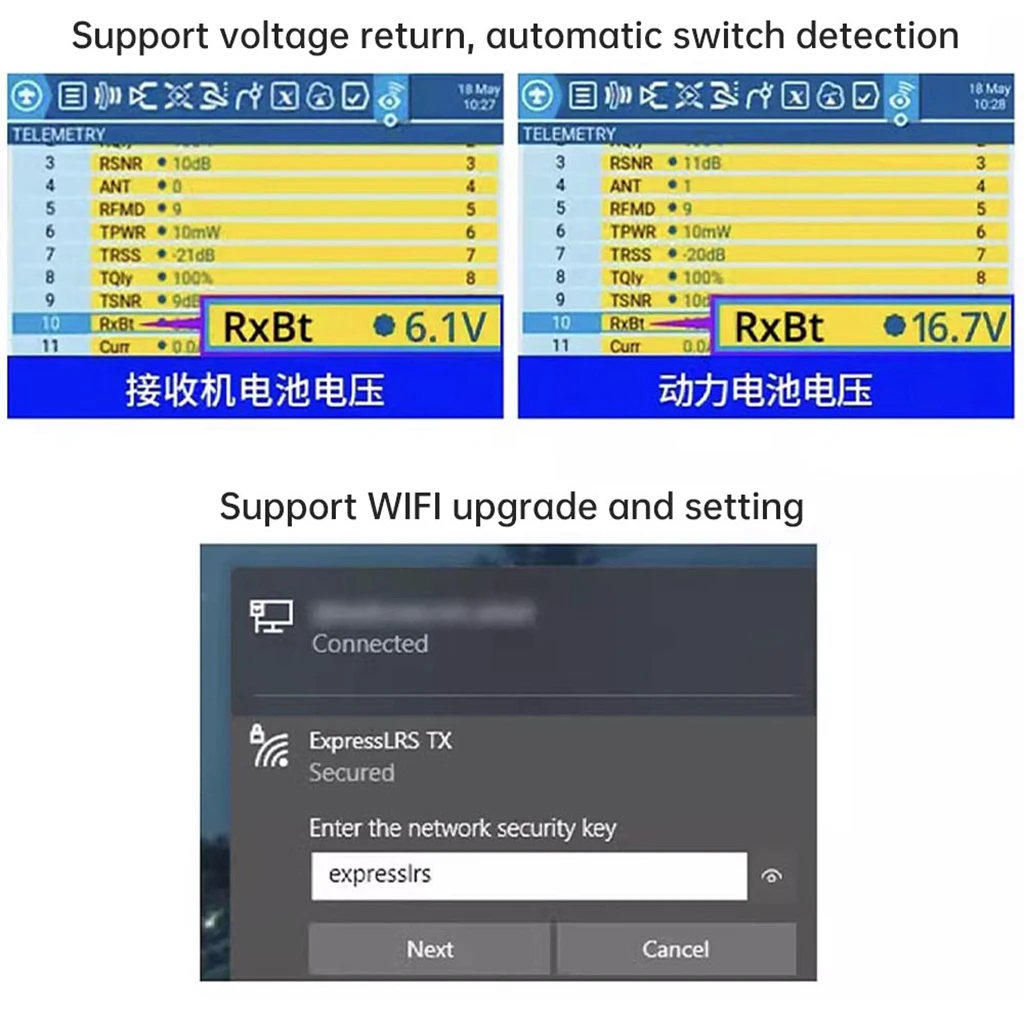

It can drive up to 7 servos at most and has built-in receiver voltage return and aircraft battery voltage

The return function can automatically detect the voltage input to be used.   A 4-wire CRSF interface is provided.

To facilitate the expansion of sensors in the future.   The HR7E is equipped with dual antennas and has a return transmission power as high as 100mw.

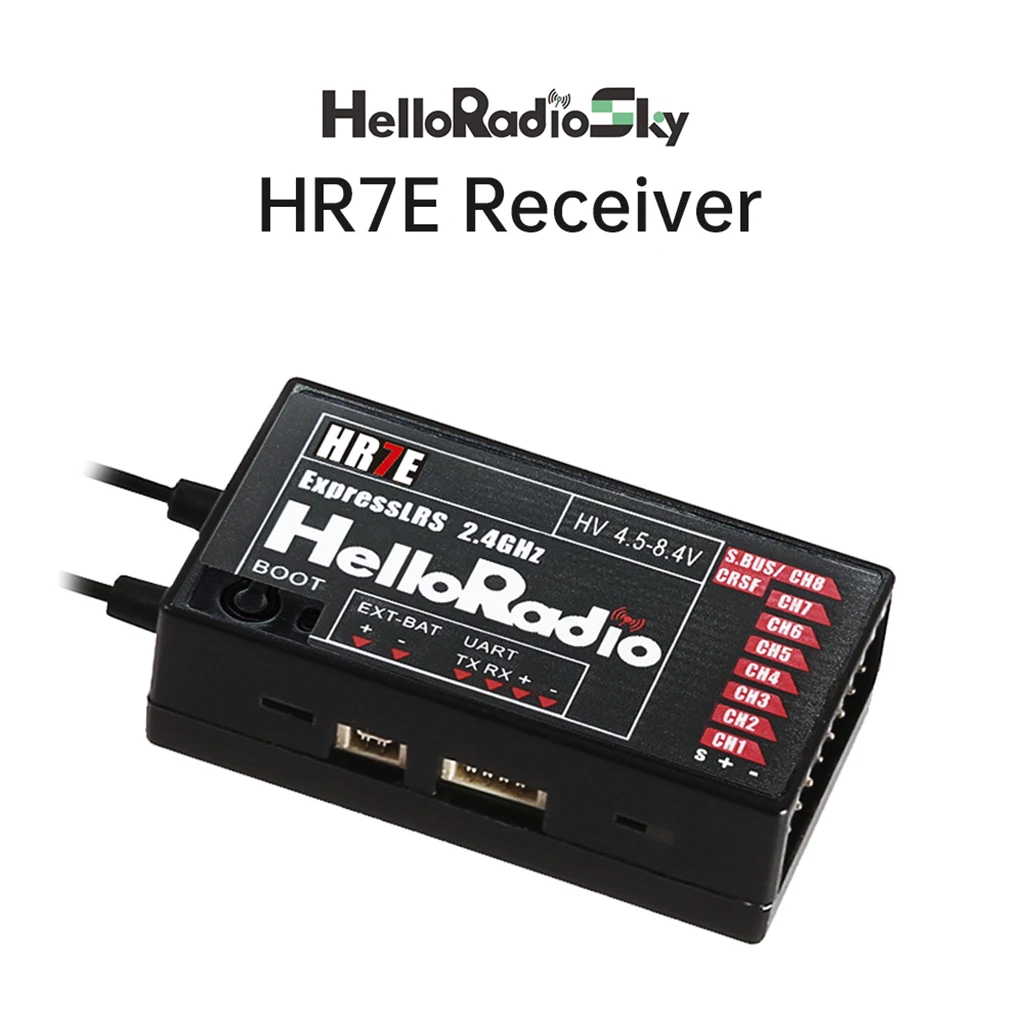

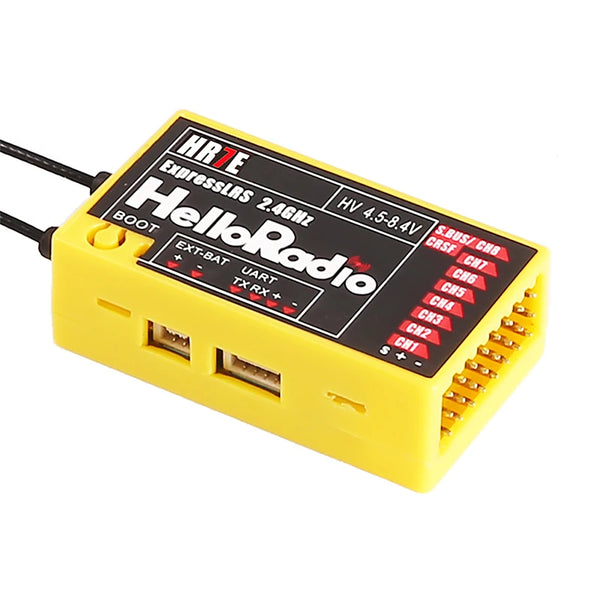

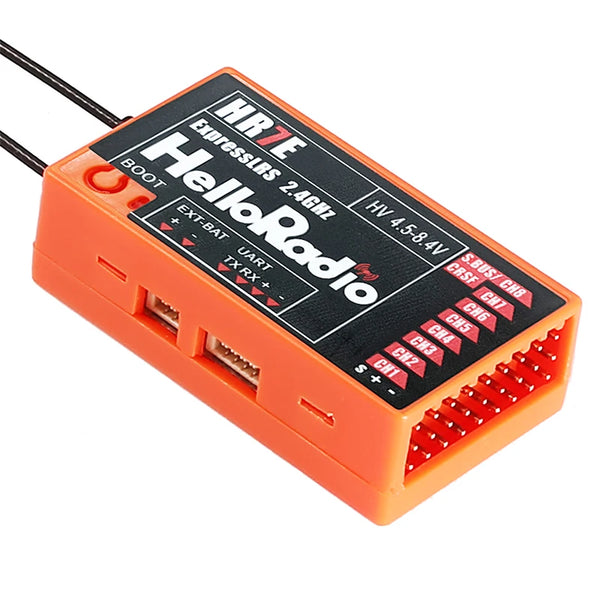

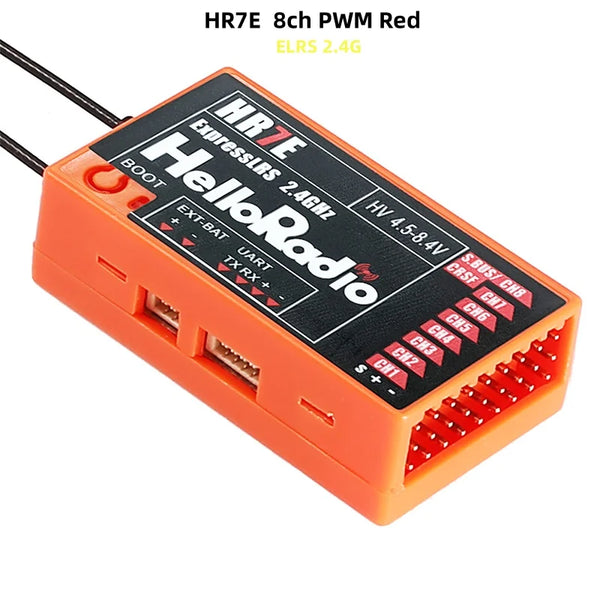

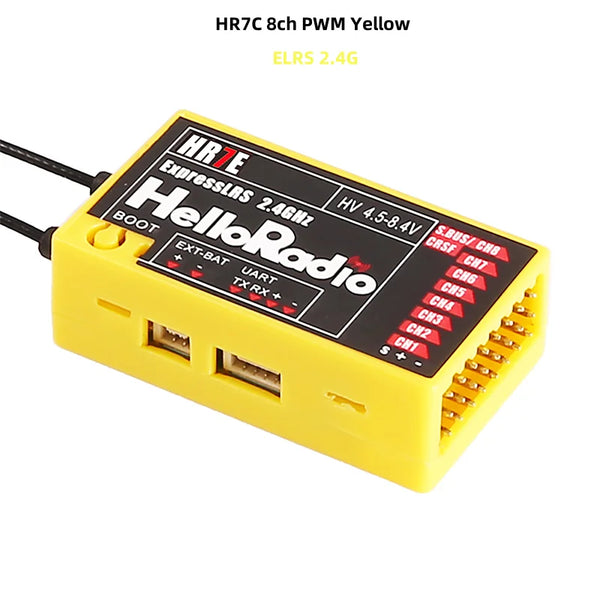

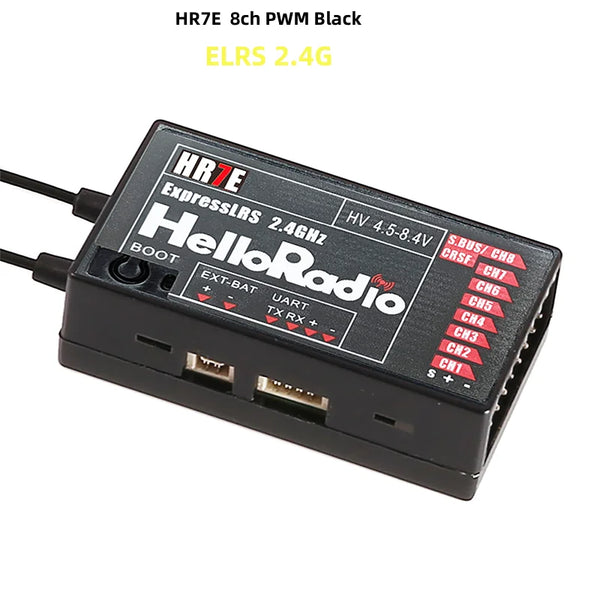

Product :HR7E 2.4ghz ELRS PWM receiver

Power supply :DC4.5-8.4V

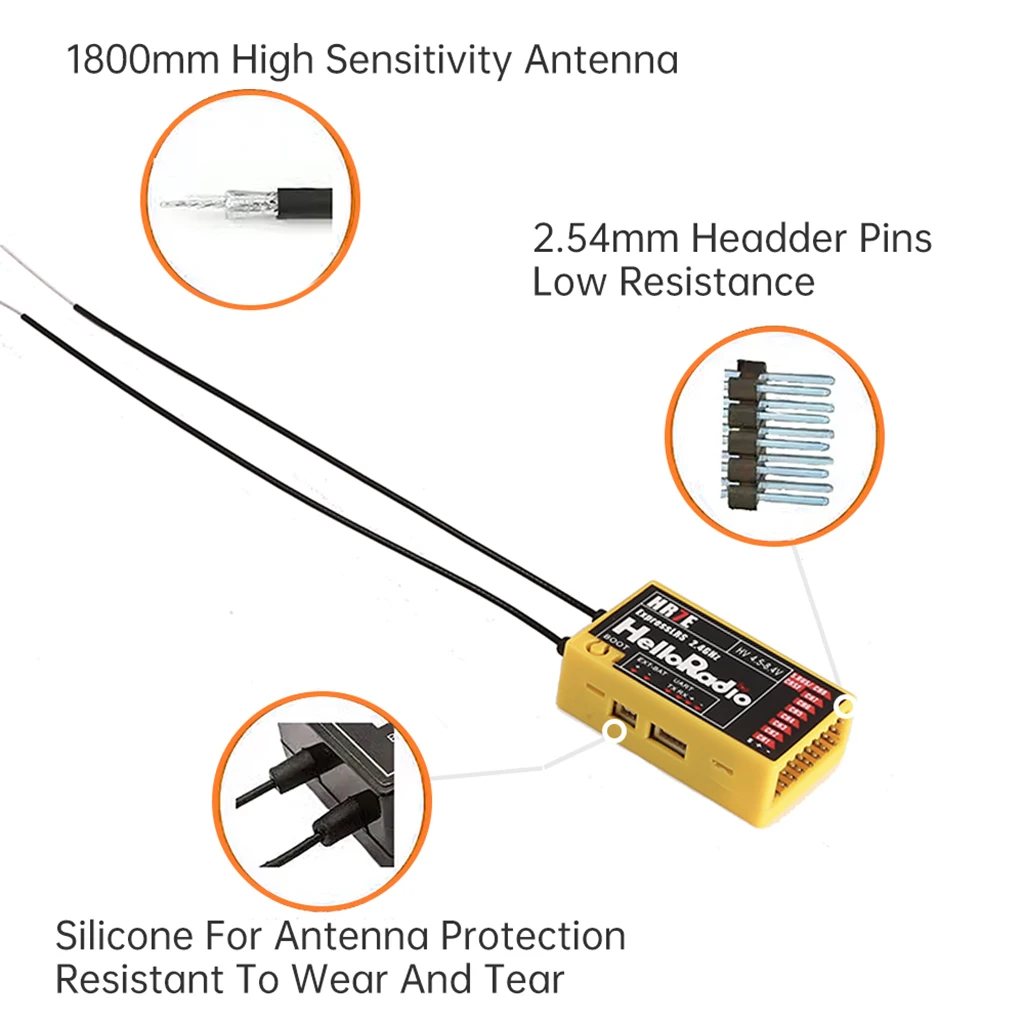

Antenna type :18cm high-sensitivity dual antennas

Wireless protocol: Pre-installed ExpressLRS 3.3.0

Output channel :8CHPWM

Return power: Up to 100mw(adjustable in LUA)

Return battery voltage detection range :DC4.0-35V

Bus interface :CRSF

Weight :10 grams

Dimensions :48*25*15mm

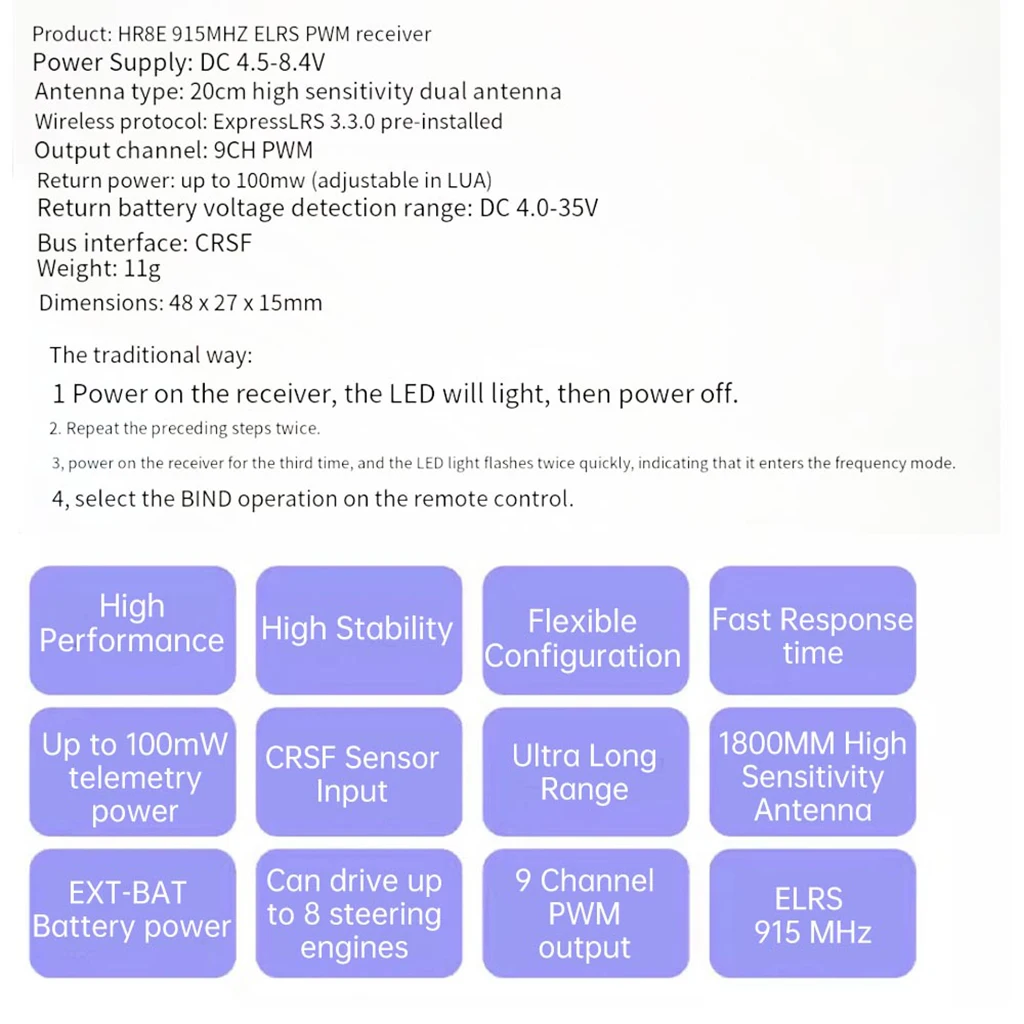

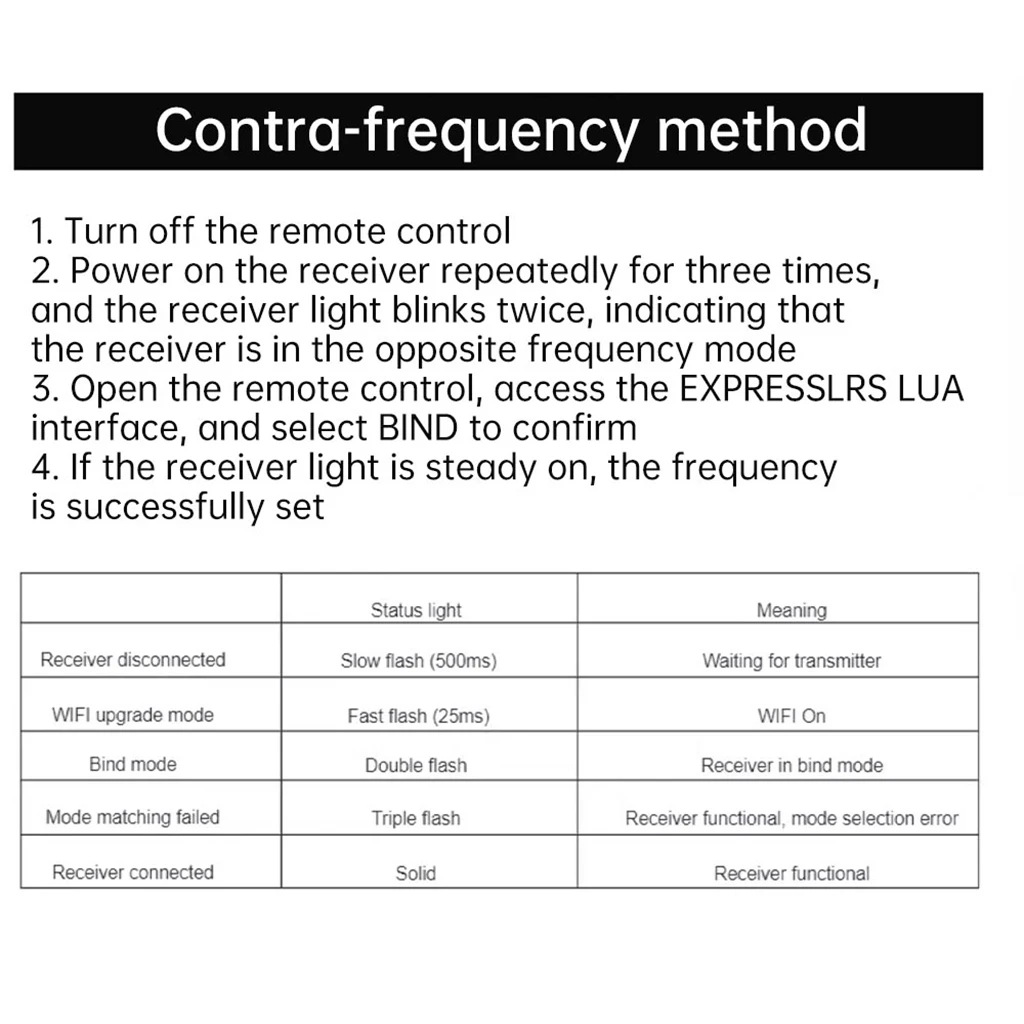

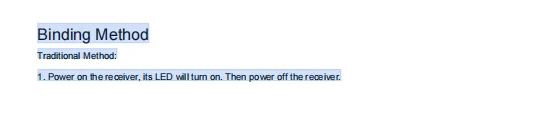

Frequency alignment method

Traditional way:

When the receiver is powered on, the LED light will turn on and then the power will be cut off.

Repeat the above steps twice.

3.   When the receiver is powered on for the third time, the LED light flashes twice, indicating that it has entered the frequency synchronization mode.

4.   Select the BIND operation on the remote control.


Package Includes:

1Pc HR7E 2.4GHZ ELRS PWM Receiver
