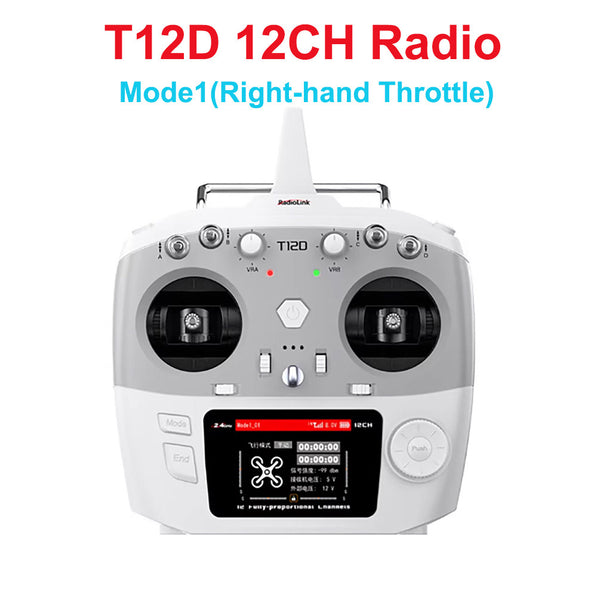

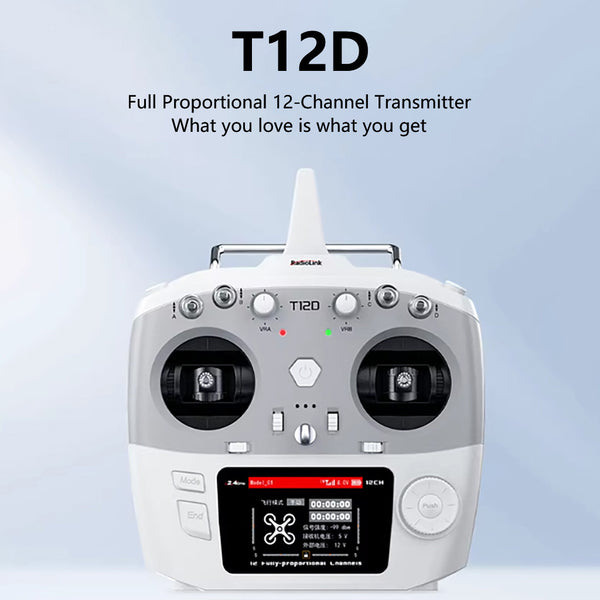

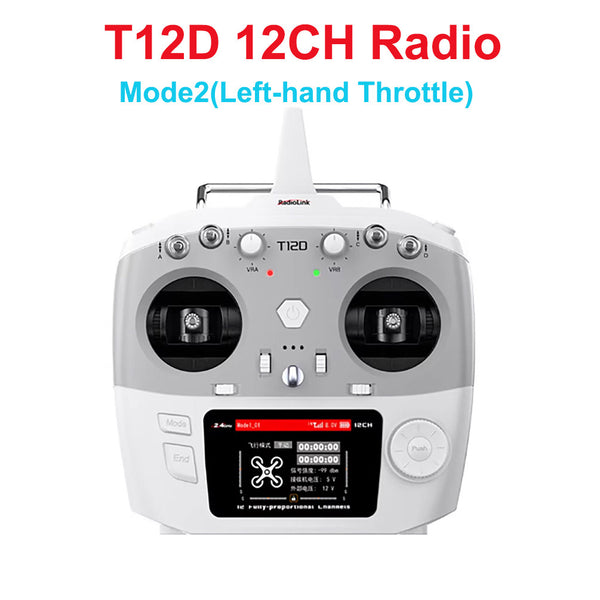

RadioLink T12D ELRS 2.4G 12CH 7.4V-18V Radio Transmitter 2.8inch Screen PWM / SBUS / PPM / CRSF Signal For RC Helicopters

RadioLink T12D ELRS 2.4G 12CH 7.4V-18V Radio Transmitter 2.8inch Screen PWM / SBUS / PPM / CRSF Signal For RC Helicopters

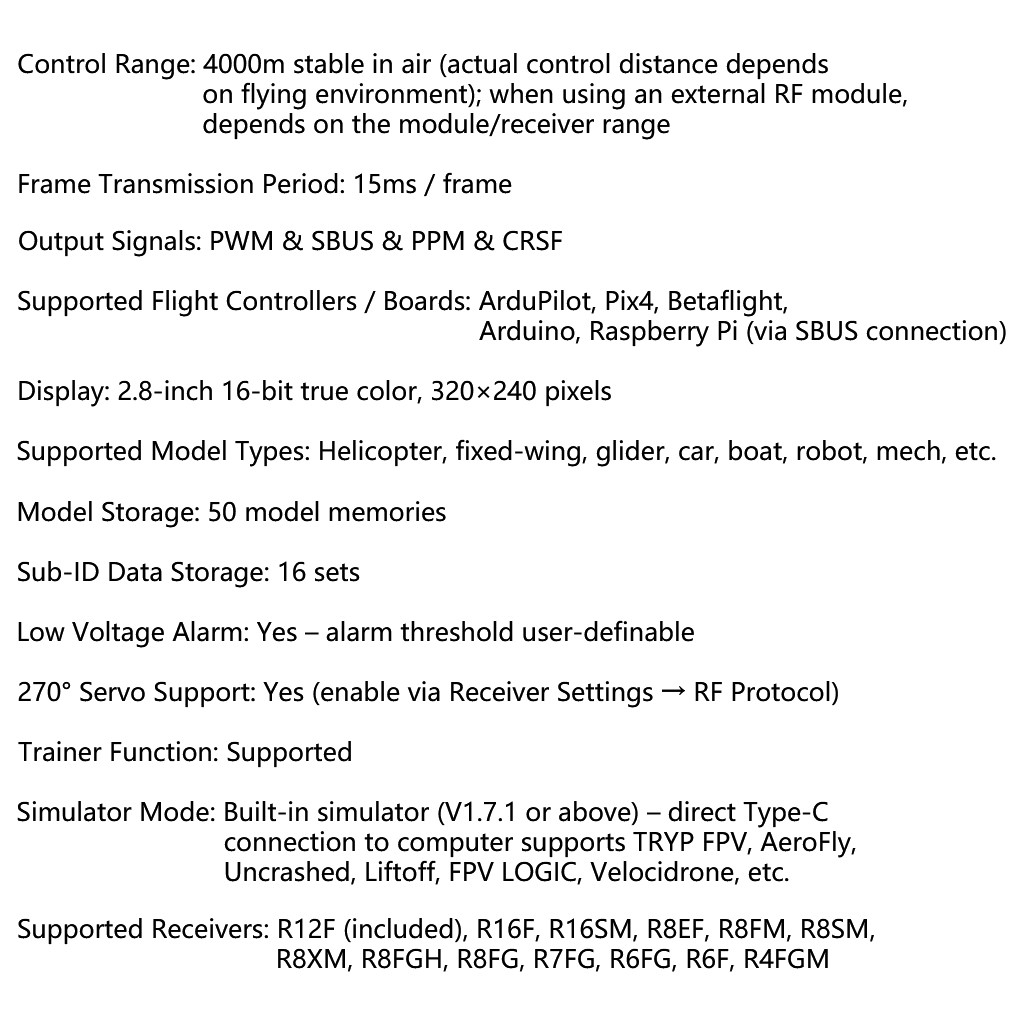

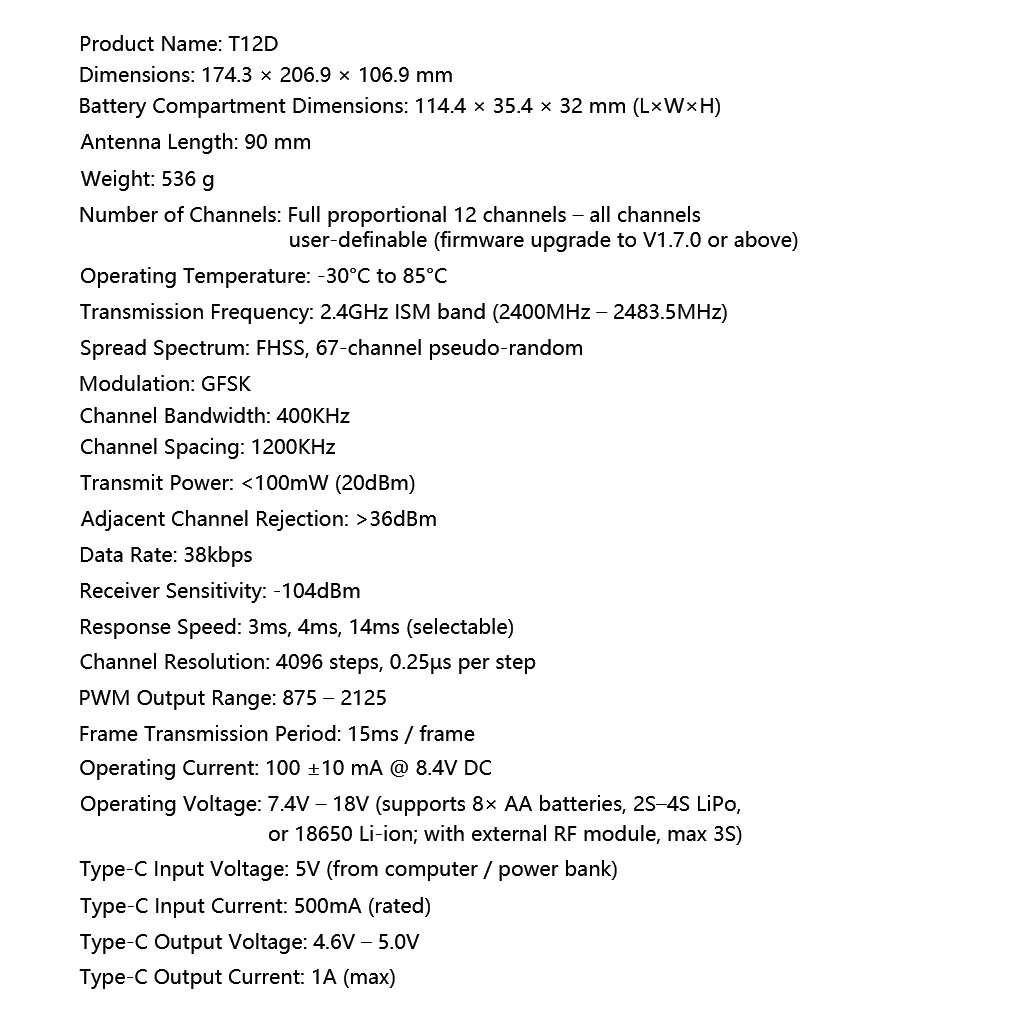

Specifications:

Item: T12D ELRS 2.4GHz 2.8inch Screen Radio Transmitter

Model: T12D

Size: 174 x 207 x 107mm

Weight: 600g, 700g(T12D M1 & T12D D)

Antenna Length: 90mm

Battery Compartment Size: 114 x 35 x 32mm

Display Screen: 2.8inch 16-bit true color screen, resolution 320*240 pixels

Channels: Full-scale 12 channels, 5-12 channels customizable

Transmission Frequency: 2.4GHz ISM band (2400MHz~2483.5MHz)

Spread Spectrum Method: FHSS 67-channel pseudo-random

Output Signal: PWM & SBUS & PPM & CRSF

Operating System: freeRTOS+LVGL GUI

Supported High-frequency Head Type: Supports mainstream TX Module heads such as ELRS and for Crossfire

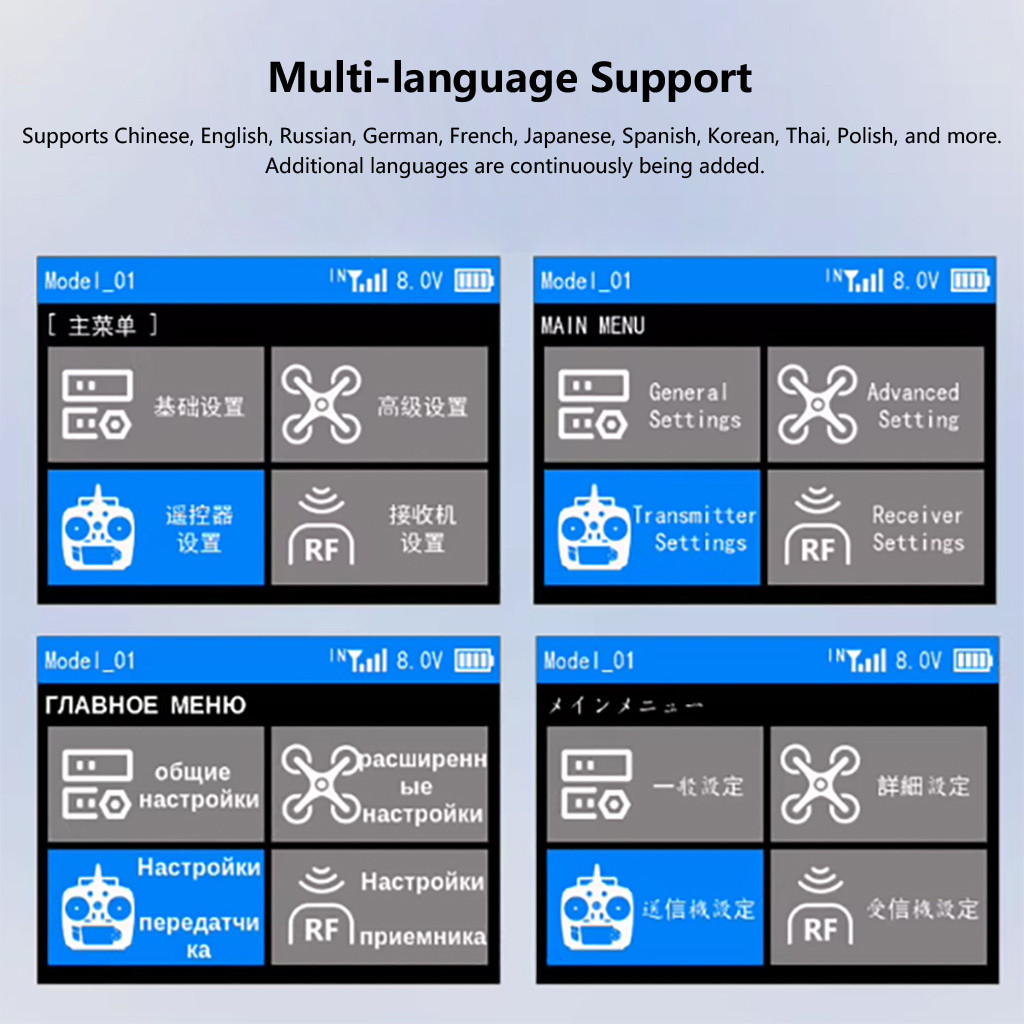

Menu Customization: Support, boot animation, background color, font color, function buttons, display pictures, etc. can be customized

Response Speed: 3ms, 4ms, 14ms optional

Channel Resolution: 4096, 0.5us per level

Modulation Mode: GFSK

Channel Bandwidth: 400KHz

Channel Spacing: 1200KHz

Transmission Power: <100mW(20dBM)

Adjacent Channel Suppression Ratio: >36dBM

Transmission Rate: 38kbps

Receive Sensitivity: -104dBM

PWM Output Range: 1.0ms-2.0ms

Frame Transmission Period: 15ms/frame

Working Voltage: 7.4V-18V (8 No. 5 batteries, 2S-4S lithium batteries or 18650 lithium batteries)

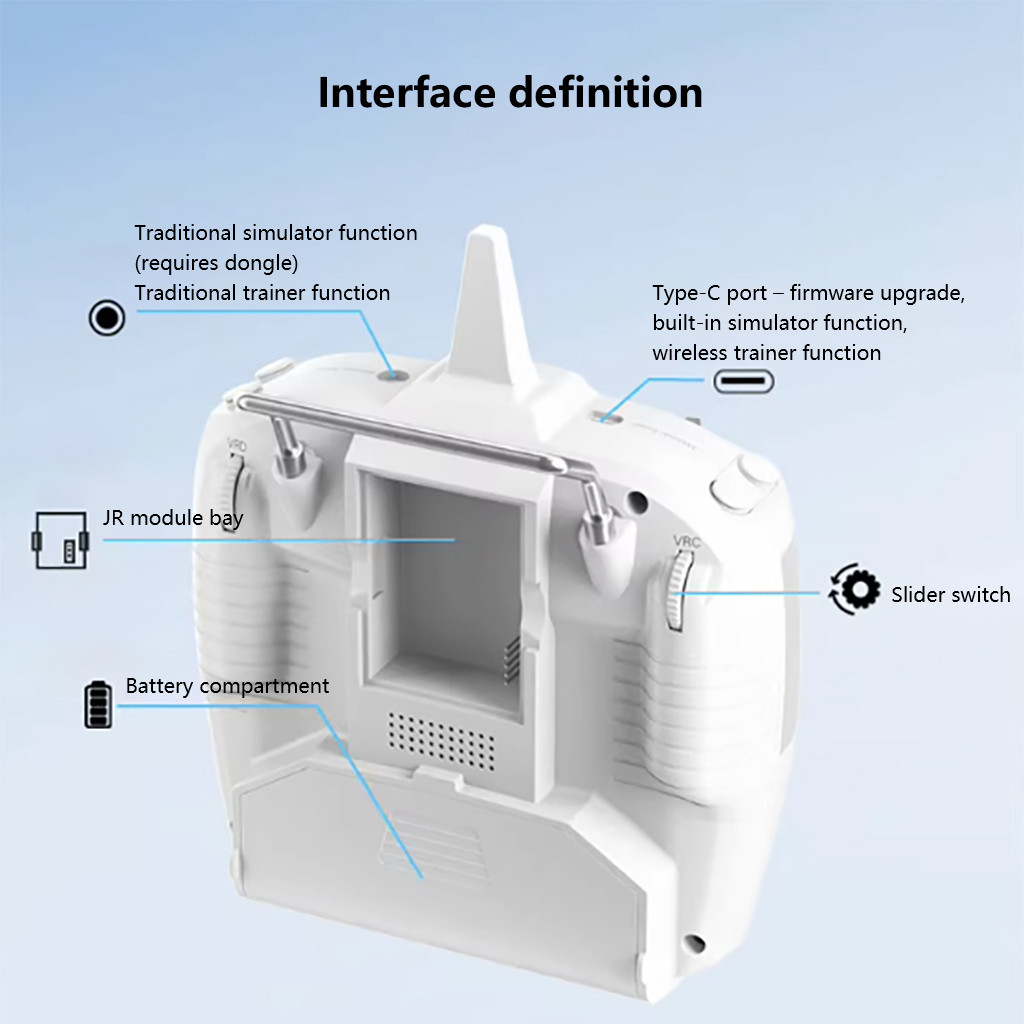

Type C Port Voltage And Current:

Input Voltage: 5V (can be connected to a computer or power bank via Type-C cable to power T12D)

Input Current: rated current 500mA

Output Voltage: 4.6V-5.0V

Output Current: maximum current 1A

Working Current: 100±10mA@8.4V DC

Model Storage: 100 sets of model data storage

Sub-ID Data Storage: 15 sets

Simulator Mode: Support external simulator

For Coach Function: Yes

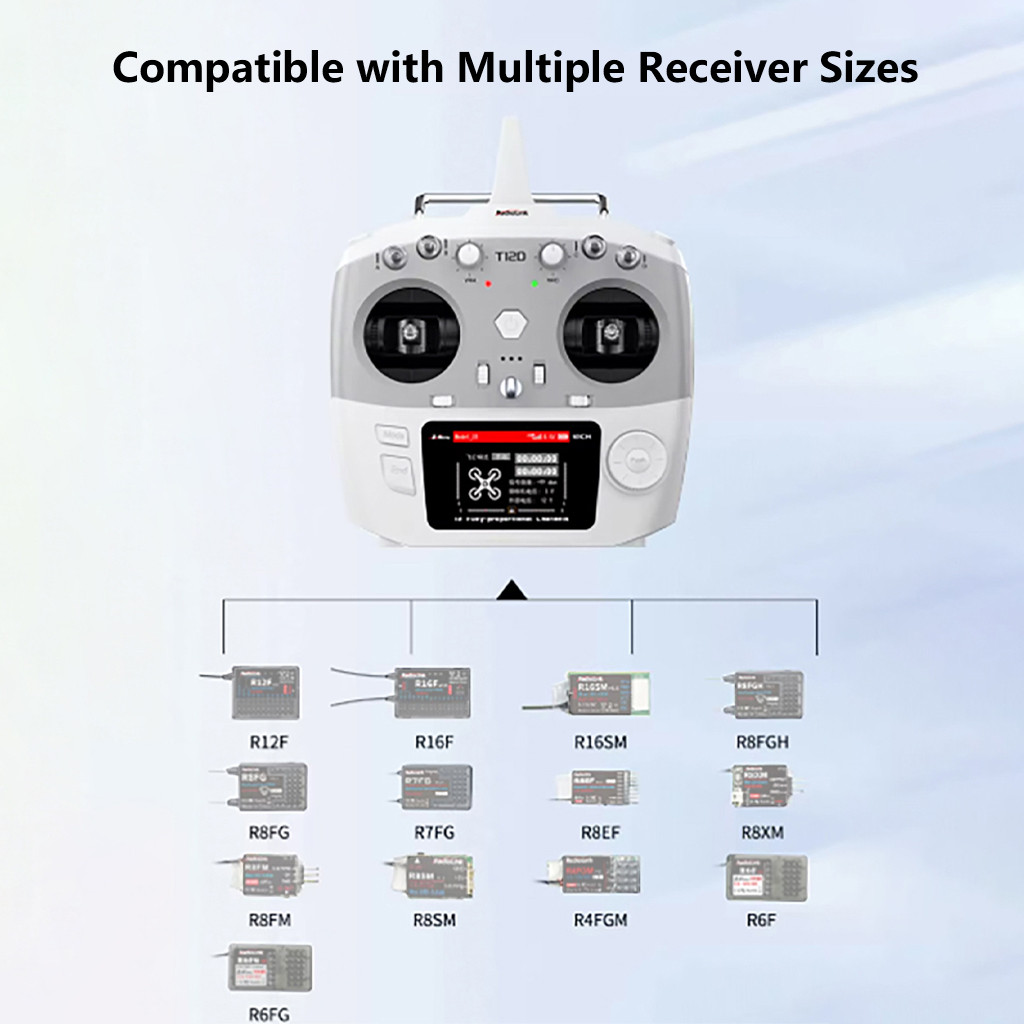

Supported Receiver Models: R16F (standard), R8EF, R8FM, R8SM, R8XM, R8FGH, R8FG, R7FG, R6FG, R6F, R4FGM, R4F

Supported Control Board Hardware Models: ardupilot, pix4, beta, for arduino, Raspberry Pi, just connect with sbus signal.

Working Environment Temperature: -30℃ to 85℃

Remote Control Distance: Aerial stable distance 4000 meters (actual control distance depends on the flight environment); when connecting to a high-frequency head, it depends on the control distance of the high-frequency head receiver.

Supported Models: Helicopters, fixed-wing aircraft, gliders, cars, ships, robots, mechas and other models.

Low voltage alarm: Yes, and the alarm value can be set by yourself.

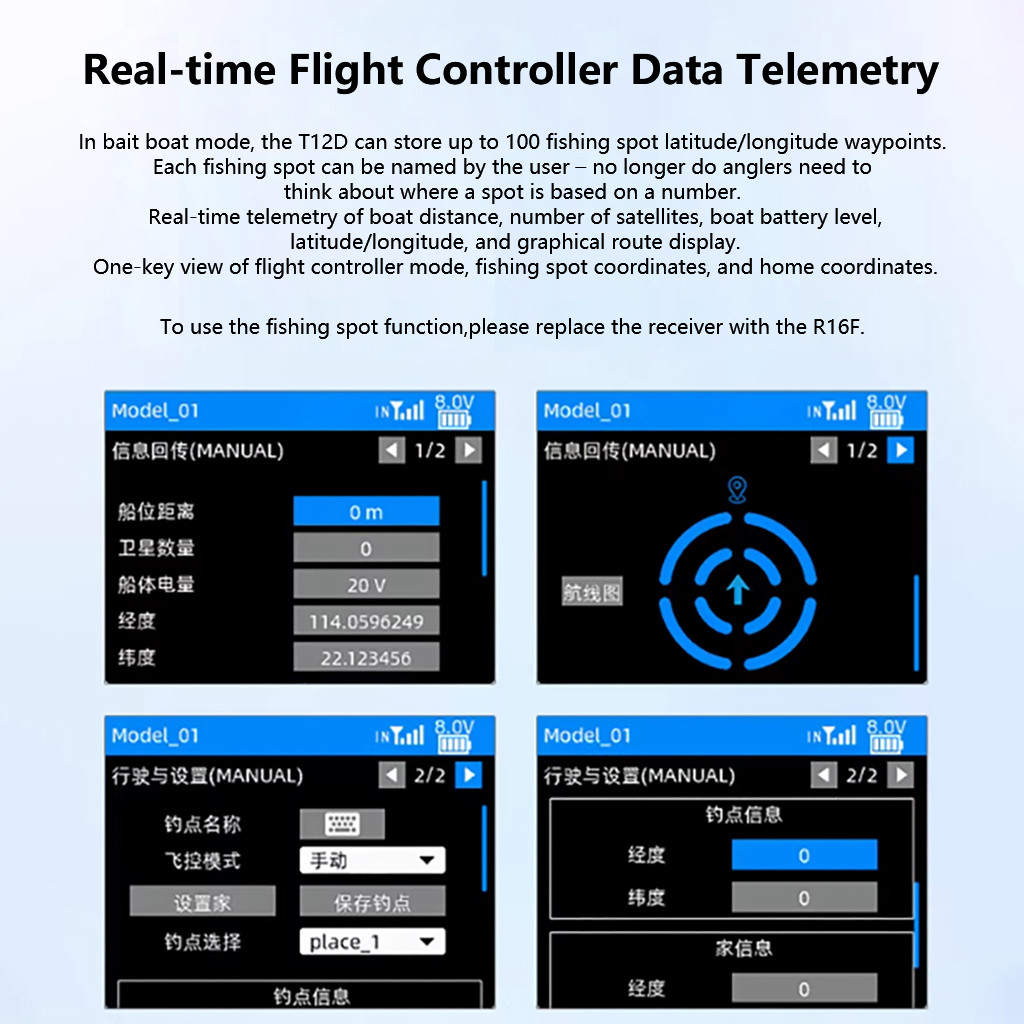

Signal Return: Receiver integrated signal, signal strength RSSI, receiver voltage, power battery voltage information transmission. R16F has built-in data transmission function, and can be connected to the flight control to transmit latitude and longitude, distance, number of satellites, heading and other information in real time.

Package Include:

1 x T12D Radio Transmitter

1 x Instruction Manual

Feature:

1. Enhanced Control and Precision:

With 12 fully proportional channels, the T12D offers superior control capabilities that surpass most high-end 12-channel remote controls. This ensures that you can precisely manage various complex operations, making it ideal for turb0jet aircraft, engineering vehicles, robots and so on.

2. Exceptional Communication Range:

The T12D offers an impressive 4000 meters control distance. Its upgraded and optimized communication technology enhances response speed and fault tolerance.

3. Advanced Operating System:

Utilizing the powerful and efficient freeRTOS system coupled with a visually appealing LVGL GUI, the T12D delivers a seamless user experience. It boasts a 3ms response time across all 12 channels and features a 1M bytes RAM Memory, 208MHz Basic Frequency Memory, and a vibrant 2.8-inch, 320*240 pixel color screen, providing instantaneous and accurate feedback.

4. Broad Module Compatibility:

The T12D fully supports TBS Crossfire and ELRS and other popular long-range modules, allowing for extensive parameter adjustments including protocol, baud rate, and WiFi mode. This perfect integration between a user-friendly interface and versatile module functions ensures comprehensive control over a wide range of aircraft and models.

5. Versatile Power Options and Protection.

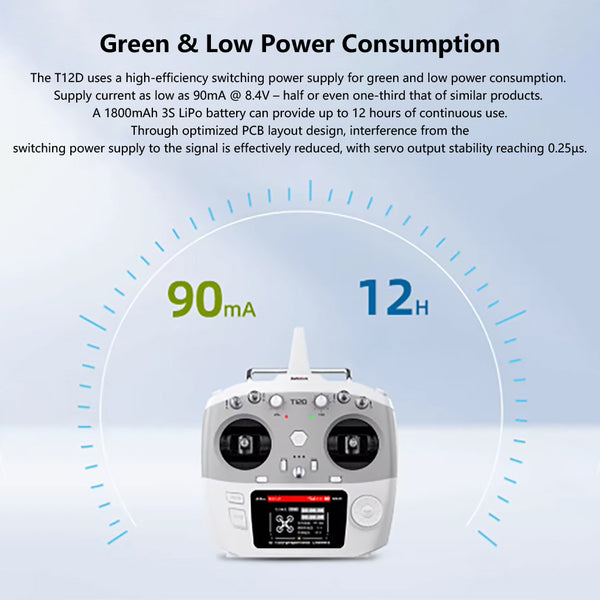

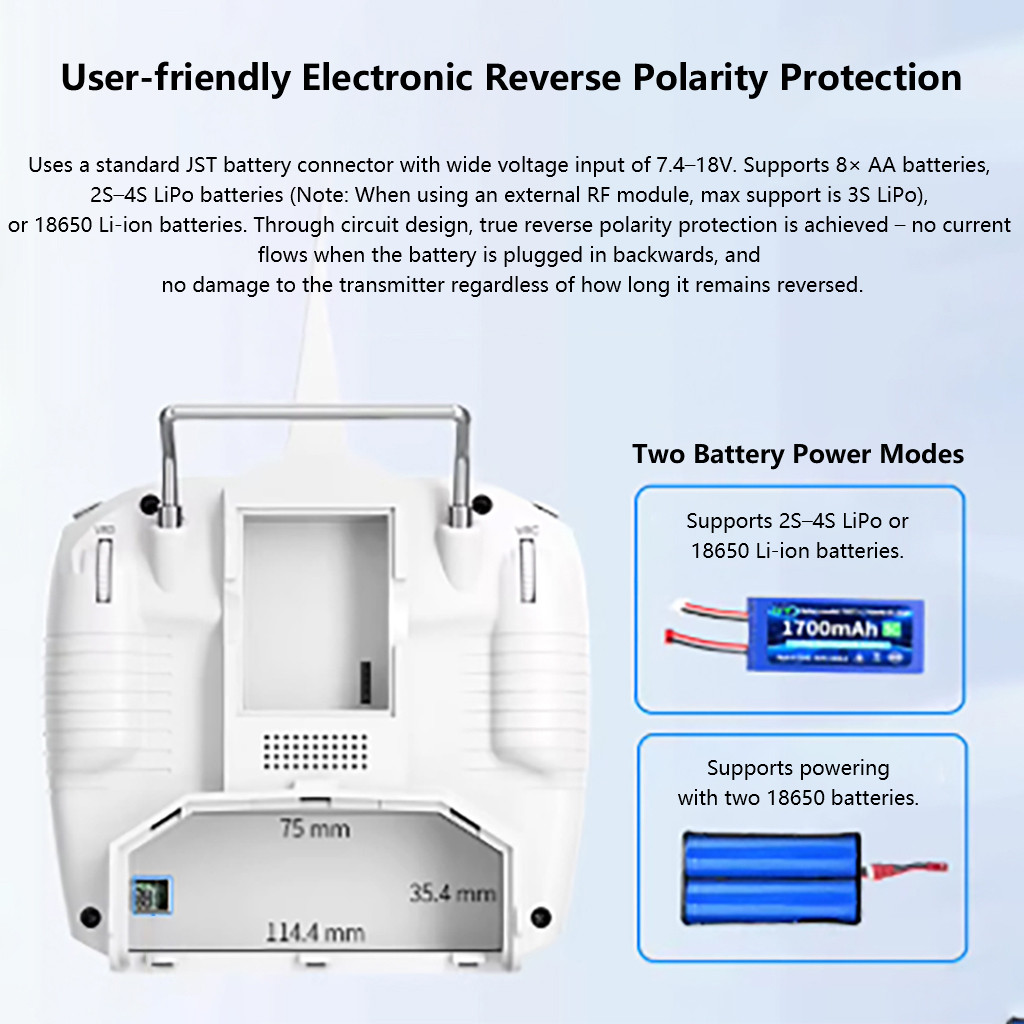

Boasting a smart power supply design, the T12D operates efficiently with only 100mA(±10mA)@8.4VDC. It supports multiple power sources, including AA batteries, 2S-4S LiPo or 18650 Lithium batteries, and even a computer or mobile power bank via Type C cable. Additionally, its reverse polarity protection circuit safeguards essential components, ensuring durability and reliability.
