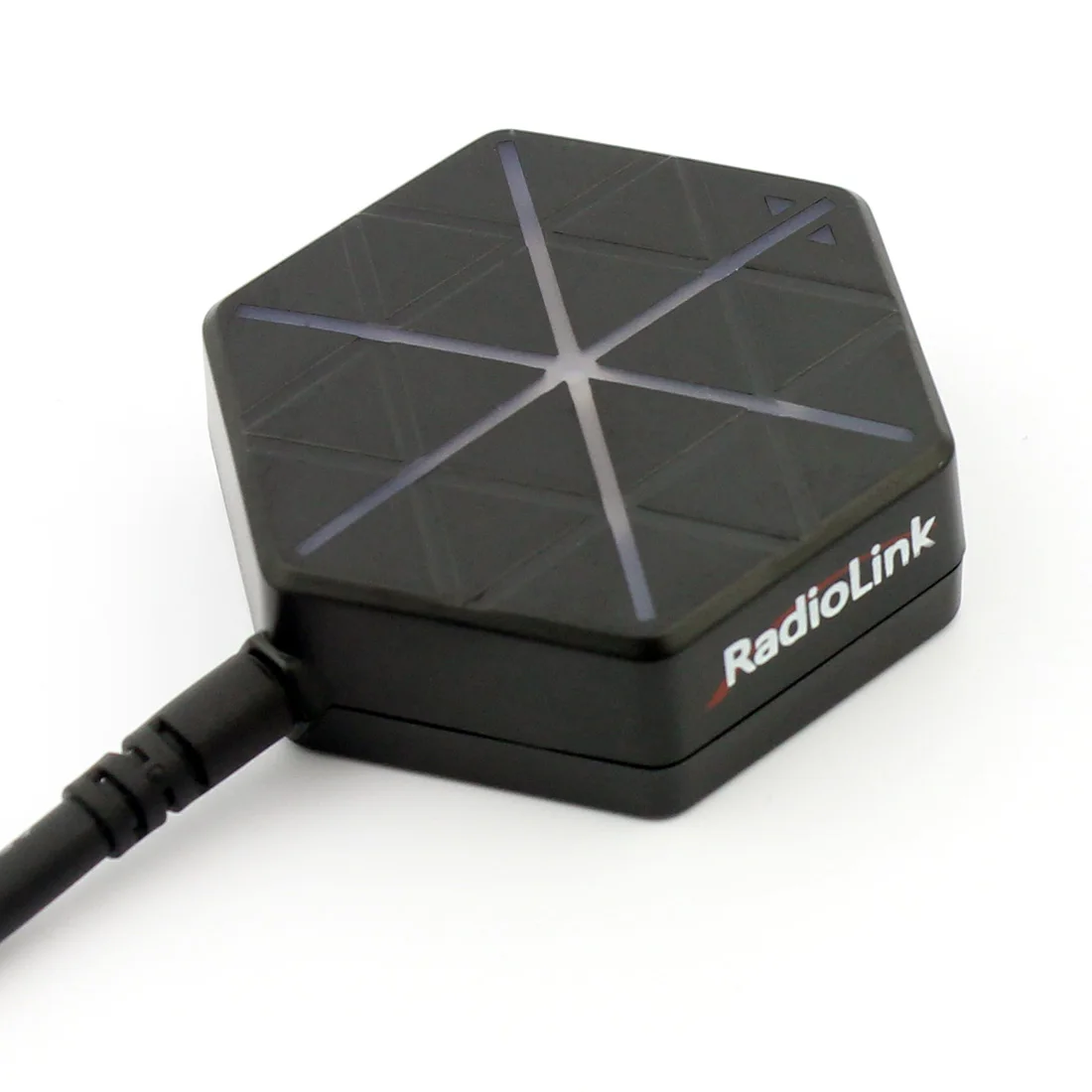

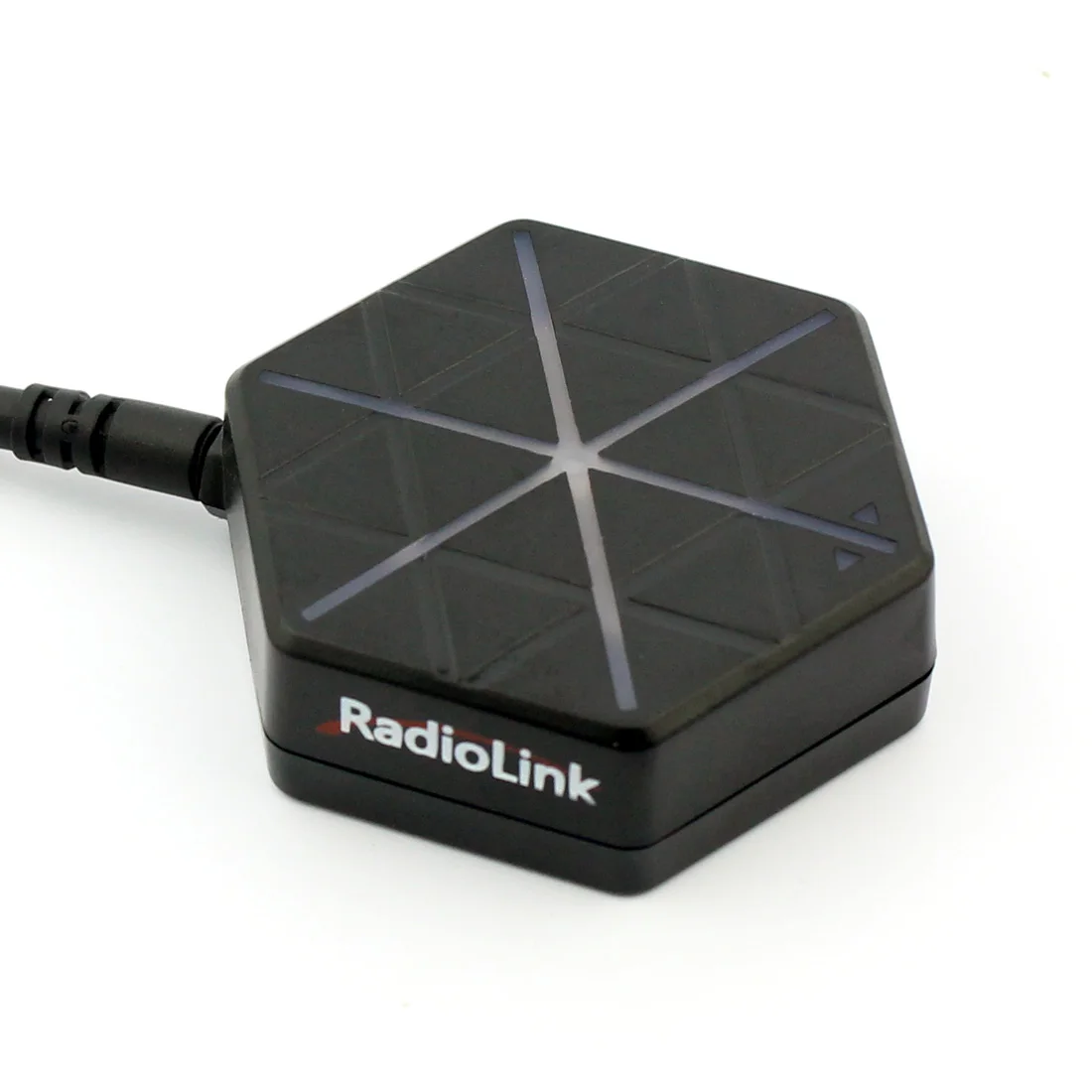

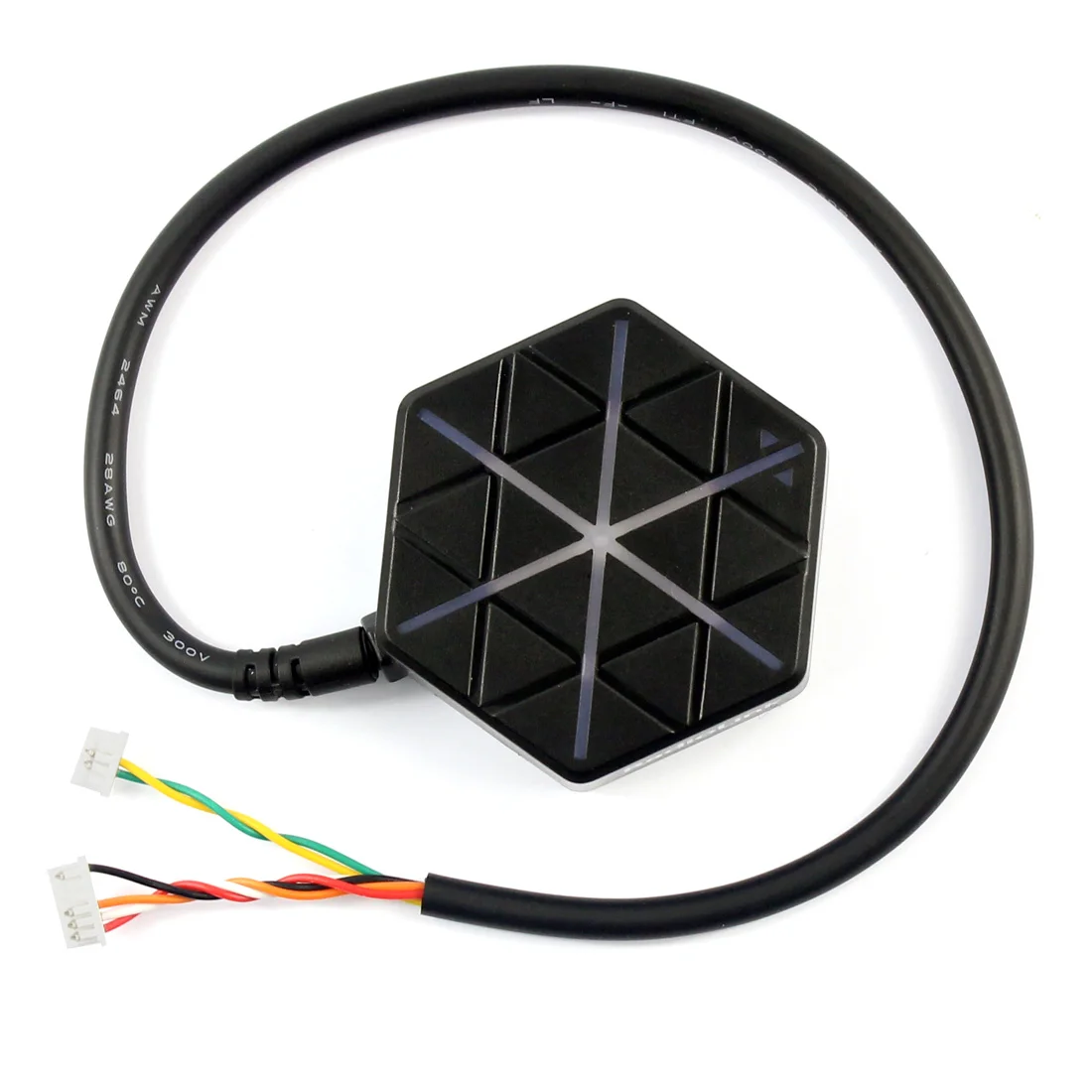

M10N GPS DIY FPV RC Plane Multicopter Flight Controller GPS Module with GPS Stand Holder Bracket

---- The Color of GPS Stand Holder Bracket will be changed by Factory. If you have special request about it, Please message us together with order information, Thanks.

Specification:
Brand name: Radiolink
Item name: M10N GPS Module
Positional Accuracy: 1m precision when working with concurrent GNSS, 2.5m precision when working with single
GNSS.
Velocity precision: 0.1m/s
Max height: 50000m
Max speed: 515m/s
Max acceleration: 4G
Max update rate: up to 18Hz
Sensitivity
Tracking & Nav.: -167dBm; Reacquisition:-163dBm; Cold start:-151dBm; Hot start:-159dBm
Time to first fix: Cold start: 26s, Hot start:1s.
Power supply: voltage 3.3VDC+-5%, current 50~100mA
Ports:
A. GPS UART interface, baud rate: 38.4K

B.Geomagnetic I2C interface

Feature
1. Top Configuration
1)  A.Concurrent reception of GPS/QZSS L1 C/A,GLONASS L10F, BeiDou B1
   B.SBASL1 C/A:WAAS, EGNOS, MSAS
2) Antenna : 2.5dbI high gain and selectivity ceramic antenna
3) Power amplify IC: MMIC BGA715L7 from Infineon
4) Filter: SAWF(Surface acoustic wave filter) form Murata
5) Geomagnetic: HMC5983 from Honeywell

2. Professional Design

Radiolink M10N GPS, benefits from professional wireless experiences of Radiolink engineers, exceed the limitation of IC sensitivity index from circuit schematic design to PCB placement.1 meter position accuracy, positioning in 23 seconds and valley stationkeeping ability make Radiolink GPS much better than the similar products.
3. High Performance Cost Ratio
Reasonable price with better hardware, software configuration and brand new exterior designs.

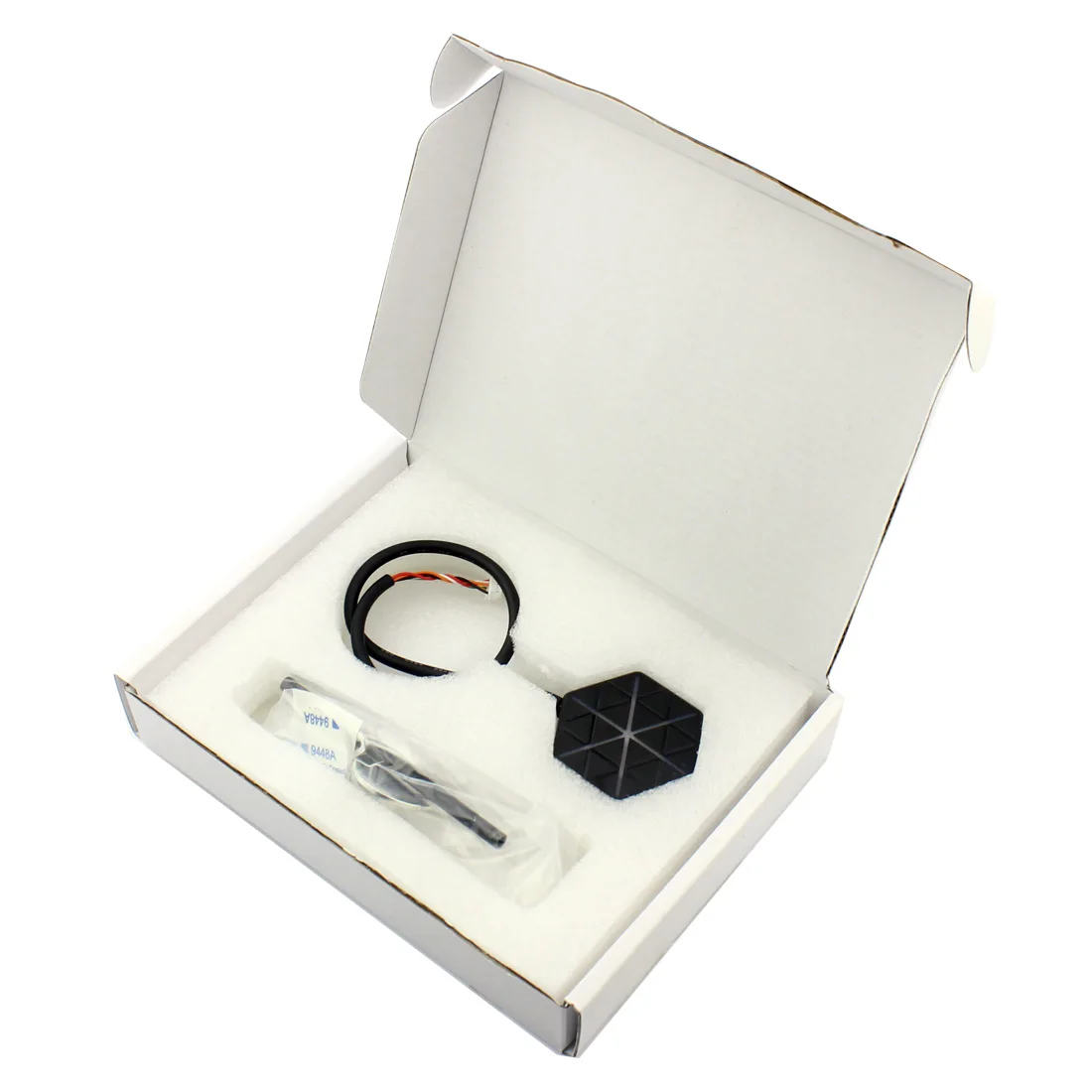

Package Included:

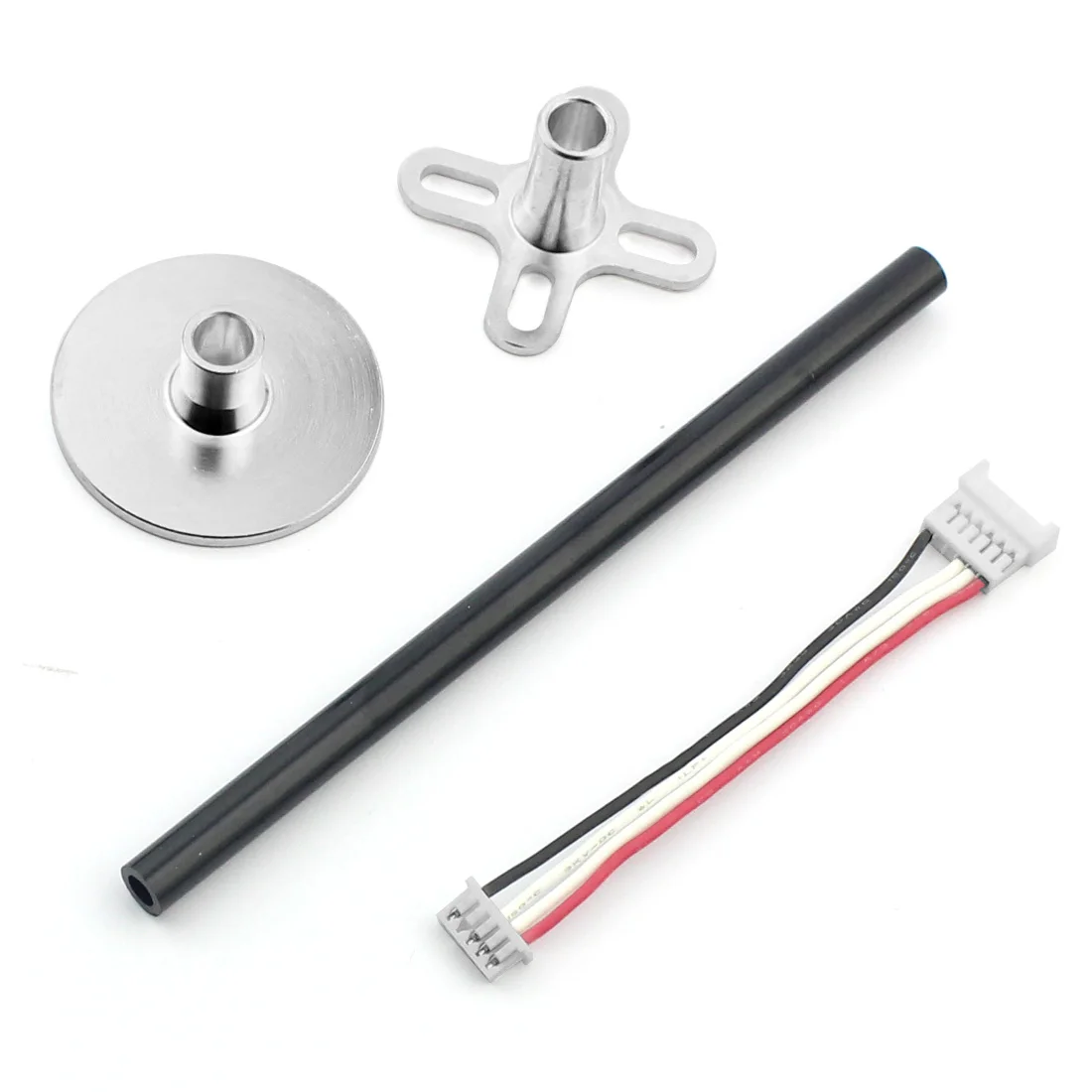

1x M10N GPS Module with Stand Holder
