JX Ecoboost CLS6331 30KG High Torque Servo 180 Degree CNC Shell Metal Gear Coreless Digital Servo For RC Model Accessories

JX Ecoboost CLS6331 30KG High Torque Servo 180 Degree CNC Shell Metal Gear Coreless Digital Servo For RC Model Accessories

Feature:

1.Full CNC metal on the cover in the shell.

2.High percision Taiwan-made aluminum gear with hard anodizing

3.High voltage coreless digital servo.

4.30kg Large torque

Brand:JX SERVO

Model:CLS6331

Description:30kg Ecoboost Coreless Motor Servo

Dead band: 2μs

Working Frequence:1520μs / 330hz

Motor: coreless motor

Operating Speed (4.8V): 0.15sec/60°

Operating Speed (6.6V): 0.12sec/60°

Stall Torque (4.8V): 23.26 kg.cm (322.99oz/in)

Stall Torque (6.6V): 30.64kg.cm (425.51oz/in)

Dimensions: 40.5X20.5X40mm /1.59X0.80X1.57in

Weight: 63g (2.22oz)

Connector Wire Length: JR 265 mm (10.43in)

Bearing: 2BB

Wire/Color:JR 265 mm/ -Brown +Red S Orange

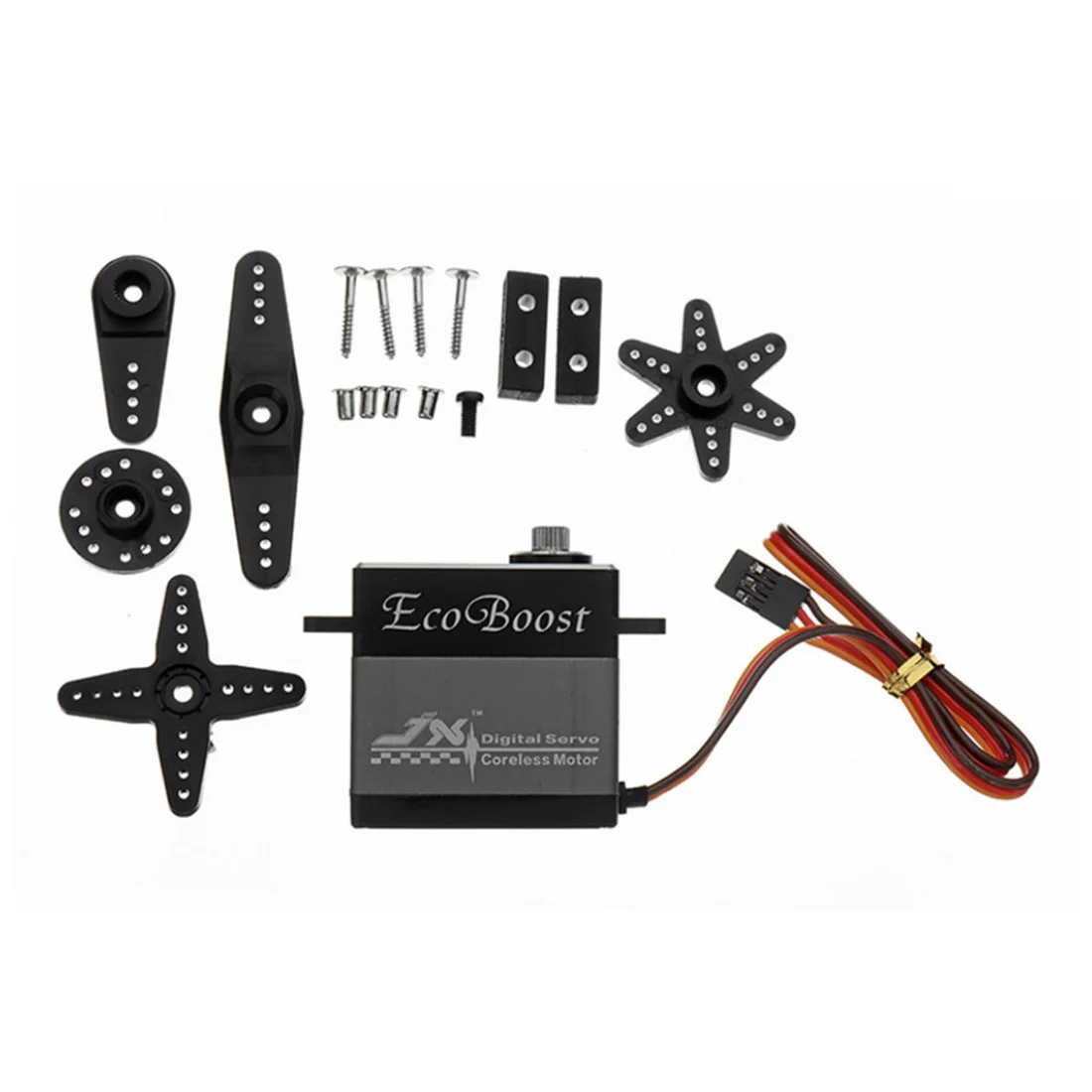

Package Included:

1 x Servo

1 x Bag of Accessories
