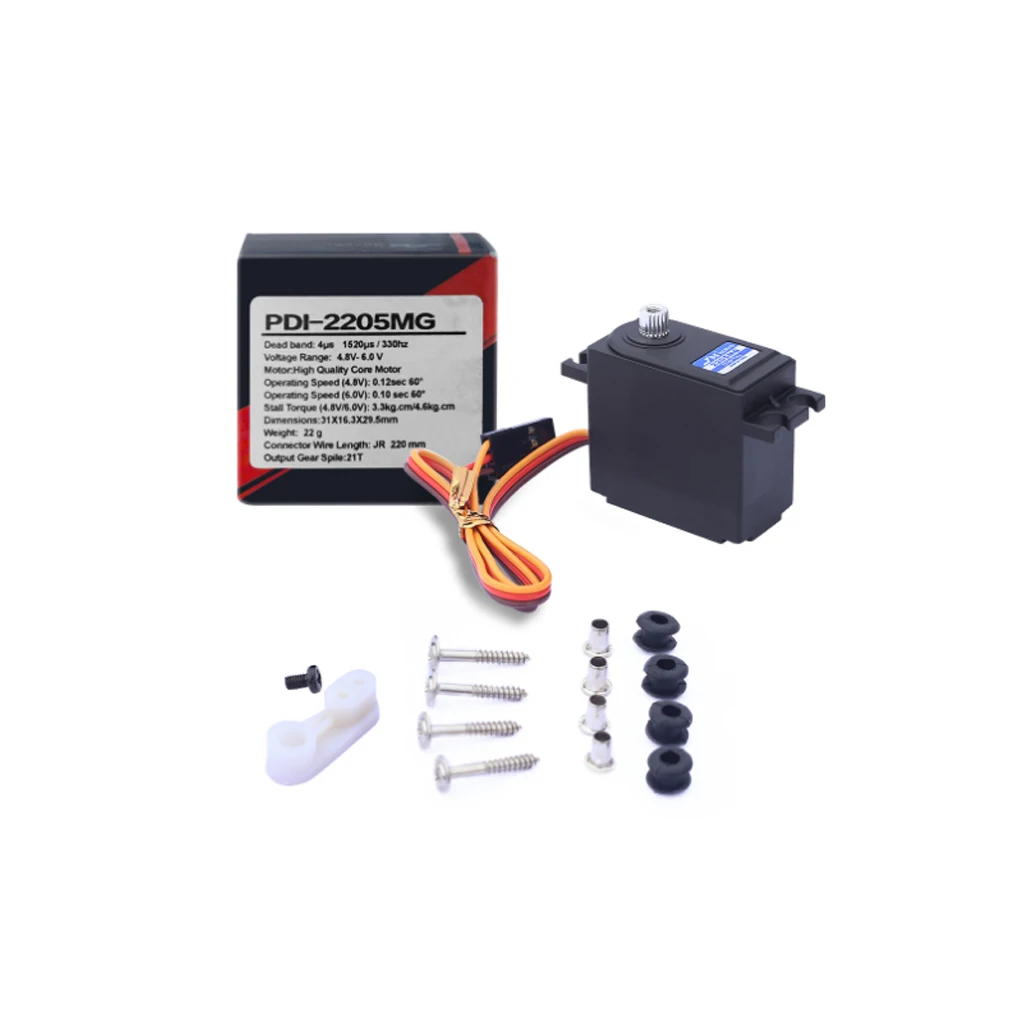

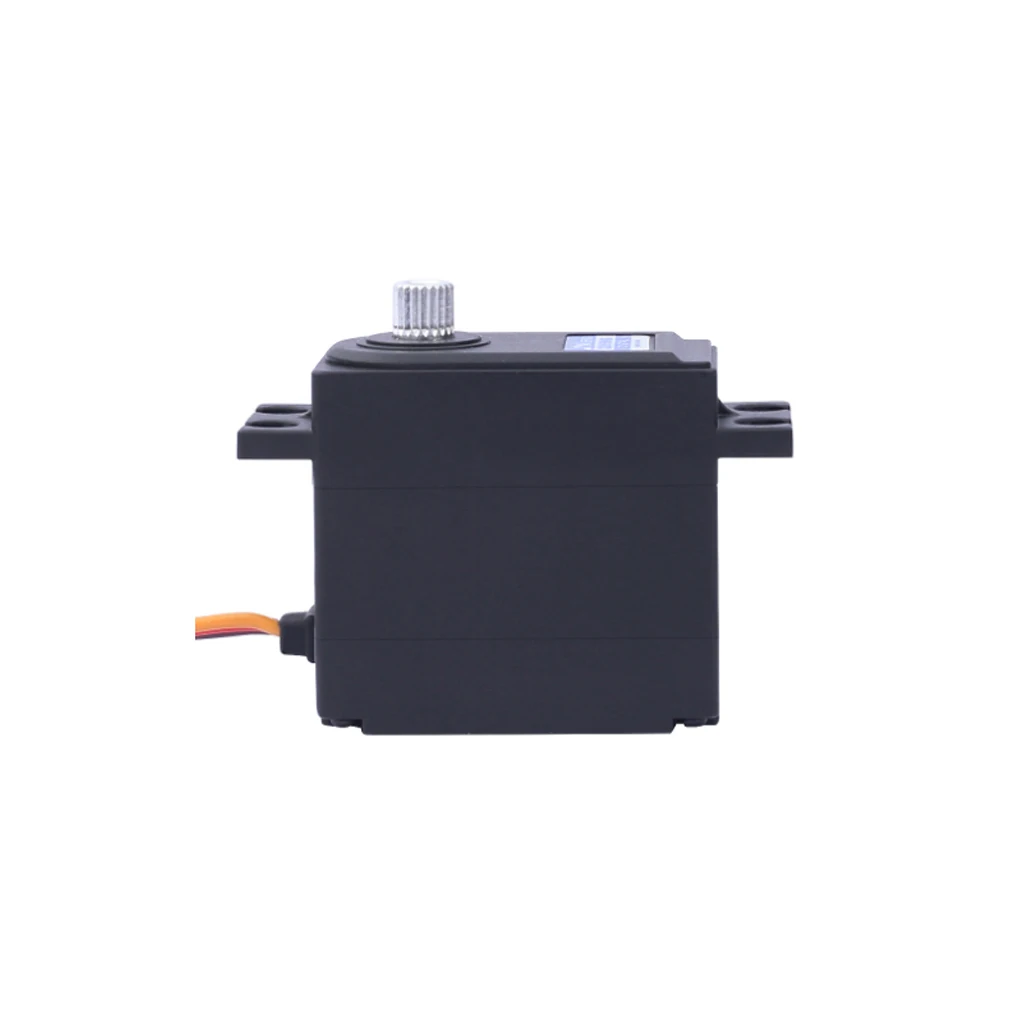

JX PDI-2205MG 4.6KG 22G Metal Gear Digital Servo For MJX14210/14209 For FY01 SB1508 For 1/12 14 RC Car

Specification:

JX PDI-2205MG 4.6KG 22G Metal Gear Digital Servo For MJX14210/14209 For Riaaria 1/12 14 RC Car Upgrate Parts Fy01 SB1508

Suit for :

For MJX14210/14209 Riaaria 1/12 14 RC Car Upgrate Parts Fy01 SB1508

For FY01/02/03

For SB BG1506/1507/1508

For JJRC Q391/1214

Model:PDI-2205MG---22G 4.6KG Metal gear digital servo

Dead band: 4μs

Working frequence: 1520μs / 330hz   Motor:High quality Core Motor

Operating Speed (4.8V): 0.12sec/60°

Operating Speed (6V): 0.10 sec/60°

Stall Torque (4.8V): 3.3kg.cm

Stall Torque (6V):  4.6 kg.cm

Dimensions: 31X16.5X29.6mm

Weight:  22 g

Connector Wire Length: JR  220 mm

Gear teeth:21T

Bearing: 2BB
