Waterproof Digital Servo 90/120/180/270/360 Degree RC Servo 12KG 20KG 25KG 30KG 35KG Full Metal Gear High Torque for Cars Robot

Feichao

Regular price $10.83

Shipping calculated at checkout.

Quantity

Features:

1, multiple waterproof design, to meet the application of different occasions, the use of imported ball bearings, imported metal gears, high accuracy and low noise, smooth rotation

2. The middle shell is made by CNC machining of aluminum alloy. The surface is anodized, which helps the motor to dissipate heat, improve the strength of the servo housing, and has a stylish appearance.

3. Built-in imported potentiometer (more than 1 million rotation life), accurate positioning. The main control IC uses the most advanced ASIC to process signals, has higher resolution, fast response time, large torque, and smooth and smooth rotation

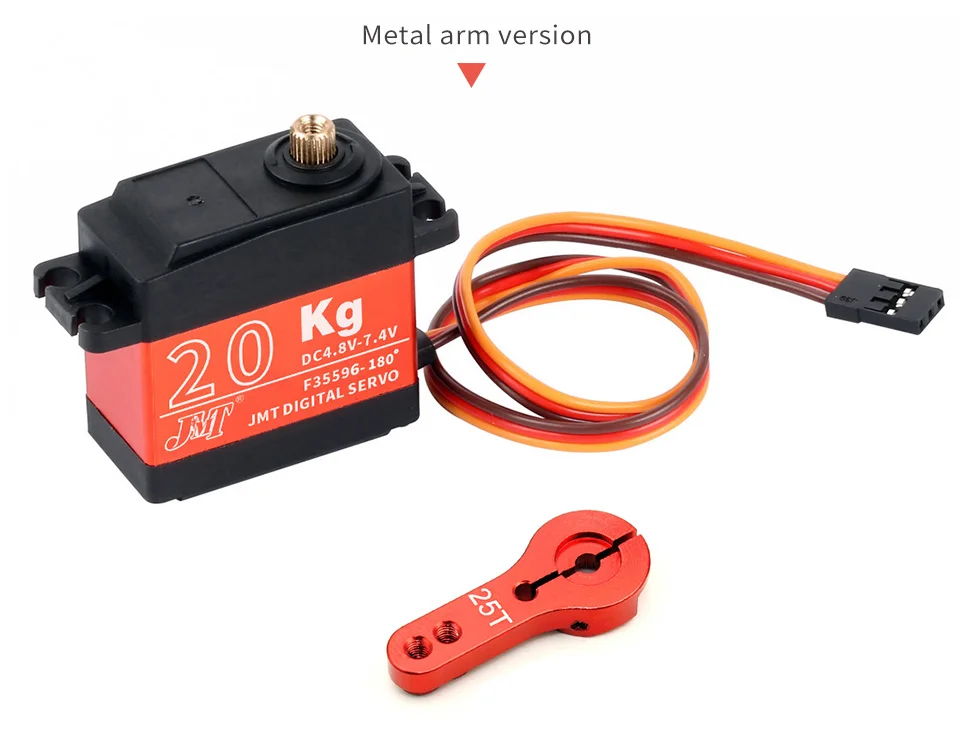

20KG Servo:

- High-precision metal gears with hard anodizing

- CNC aluminium middle Shell,

Control system :PWM control (1500 u-sec is the central point)

Working voltage:4.8V ~ 6V

Working temperature: -20C°~ +60C°

Torque :4.8V /17.2kg.cm

6.0V /20.3kg.cm

Idle speed :4.8V/0.15sec / 60 deg

6.0V/0.13sec / 60 deg

Steering angle: 90~180 / 270 / 360 degree

Idle current:4.8V/470mA 6.0V /650mA

Load current :4.8V/750mA 6.0V /950mA

Dead band :2usec

Lifetime:>15000 times without load

Moving angle:60°±10°

Drive type: MOS drive

Motor type:Cored motor

Potentiometer type:Direct drive

Signal booster type:Digital

Size:40.5X20.2X40.3mm

Weight : 62g (without accessories)

Ball Bearing:2BB

Gear material:Metal gear

Case material: PA66+fiber40%

Wire length:260mm

Wire gauge No and plug type:26AWG,JR plug

Brown wire:Negative

Red wire:Positive

Orange wire:Singal

Application:RC car, RC airplane, Helicopter

25KG Servo:

Apply Environmental Conditon:

1.Storage Temperature Range: -30°C～80°C

2.Operating Temperature Range: -25°C～70°C

Standard Test Environment:

1.Temperature Range: -25°C～70°C

2.Humidity Range: 65%±10%

Mechanical Specification:

1. Size: 40.0*20.5*40.5mm

2. Weight: 56g±2g

3. Gear type: 5 Metal

4. Limit angle: 360°

5.Bearing: 2BB

6. Horn gear spline: 25T Diameter:5.9mm

7. Horn type: Plastic, POM

8.Case : Engineering plastics(PBT)+Aluminum alloy

9. Connector wire: 320mm±5mm

10.Motor: Carbon brush motor

Electrical Specification:

1.Operat voltage: 4.8V - 7.2V

2.No load speed: 0.18sec/60° - 0.14sec/60°

3.Running current: 140mA - 200mA

4.Peak stall torque: 23.5kg.cm-26.8kg.cm

5.Stall current: 2600mA±10% - 3400mA±10%

6.Working voltage range: 4.8 - 7.2V

Control Specification:

1.Command signal: Pulse width modification

2.Amplifier type: Digital controller

3.Pulse width range: 500～2500usec

4.Neutral position: 1500usec

5.Running degree: 180°±3°(when 500～2500usec)

6.Dead band width: 5 usec

7.Rotating direction Counterclockwise: (when 1000～2000usec)

30KG Servo:

Apply Environmental Conditon:

1. Storage Temperature Range: -30°C～80°C

2. Operating Temperature Range: -25°C～70°C

Standard Test Environment:

1.Temperature Range: 25°C～70°C

2. Humidity Range: 65%±10%

Mechanical Specification:

1. Size: 40.0*20.5*40.5mm

2. Weight: 56g±2g

3. Gear type: 5 Metal

4. Limit angle:360°

5. Bearing:2BB

6. Horn gear spline: 25T Diameter: 5.9mm

7. Horn type: Plastic, POM

8. Case: Engineering plastics(PBT)+Aluminum alloy

9. Connector wire 320mm±5mm

10. Motor Carbon brush motor

Electrical Specification:

1. Operat voltage: 4.8V - 7.2V

2. No load speed: 0.24sec/60° - 0.17sec/60°

3. Runnig current: 140mA - 200mA

4. Peak stall torque: 29.5kg.cm - 32kg.cm

5. Stall current: 2600mA±10% - 3400mA±10%

6. Working voltage range: 4.8 - 7.2V

Control Specification:

1. Command signal: Pulse width modification

2. Amplifier type: Digital controller

3. Pulse width range: 500～2500usec

4. Neutral position: 1500usec

5. Running degree: 180°±3°(when 500～2500usec)

6. Dead band width: 5 usec

7. Rotating direction: Counterclockwise (when 1000～2000usec)

35KG Servo:

Apply Environmental Conditon:

1. Storage Temperature Range: -30°C～80°C

2. Operating Temperature Range: -25°C～70°C

Standard Test Environment:

1. Temperature Range: -25°C～70°C

2. Humidity Range: 65%±10%

Mechanical Specification:

1. Size: 40.0*20.5*40.5mm

2. Weight: 56g±2g

3. Gear type: 5 Metal

4. Limit angle: 360°

5. Bearing: 2BB

6. Horn gear spline: 25T Diameter :5.9mm

7. Horn type: Plastic, POM

8. Case: Engineering plastics(PBT)+Aluminum alloy

9. Connector wire: 320mm±5mm

10. Motor: Carbon brush motor

Electrical Specification:

1. Operat voltage: 4.8V - 7.2V

2. No load speed: 0.32sec/60° - 0.22sec/60°

3. Runnig current: 140mA - 200mA

4. Peak stall torque: 32.7kg.cm - 35.2kg.cm

5. Stall current: 2600mA±10% - 3400mA±10%

6. Working voltage range: 4.8 - 7.2V

Control Specification:

1. Command signal: Pulse width modification

2. Amplifier type: Digital controller

3. Pulse width range: 500～2500usec

4.Neutral position: 1500usec

5. Running degree: 180°±3°(when 500～2500usec)

6. Dead band width: 5 usec

7. Rotating direction: Counterclockwise (when 1000～2000usec)
