SKYRC e680 80W AC/DC Balance Charger Discharger 13.8V DC Power Supply for DJI Mavic Battery LiPo Li-ion LiFe NiCd NiMH PB LiHV

e680 Instruction Manual V1.0:

https://www.skyrc.com/files/131?open=1

Description:

80W AC/DC Balance Charger / Discharger / Power Supply

As the enhanced version of e660, SkyRC e680 is suitable for all current battery types: LiPo, Li-ion, LiFe, NiCd, NiMH, PB and also new generation LiHV with end voltage 4.35V, with the maximum 80W charge power and 8A charge current. Especially it supports DJI Mavic Battery with maximum 4A charge power.

Power Supply / Battery Voltage Meter / Battery Resistance Meter /

TVC / LiHV Battery Mode / for DJI Mavic Battery / AGM & Cold Charge Mode / Bigger Cooling Fan

e680 is capable of operating as a power supply with a maximum output of 80 watts so that it helps the hobbyists to power the DC equipment.

( with Cooling Fun; Output Socket 4mm Banana Plug; AD/ DC Inout;

Temperature Sensor Port )

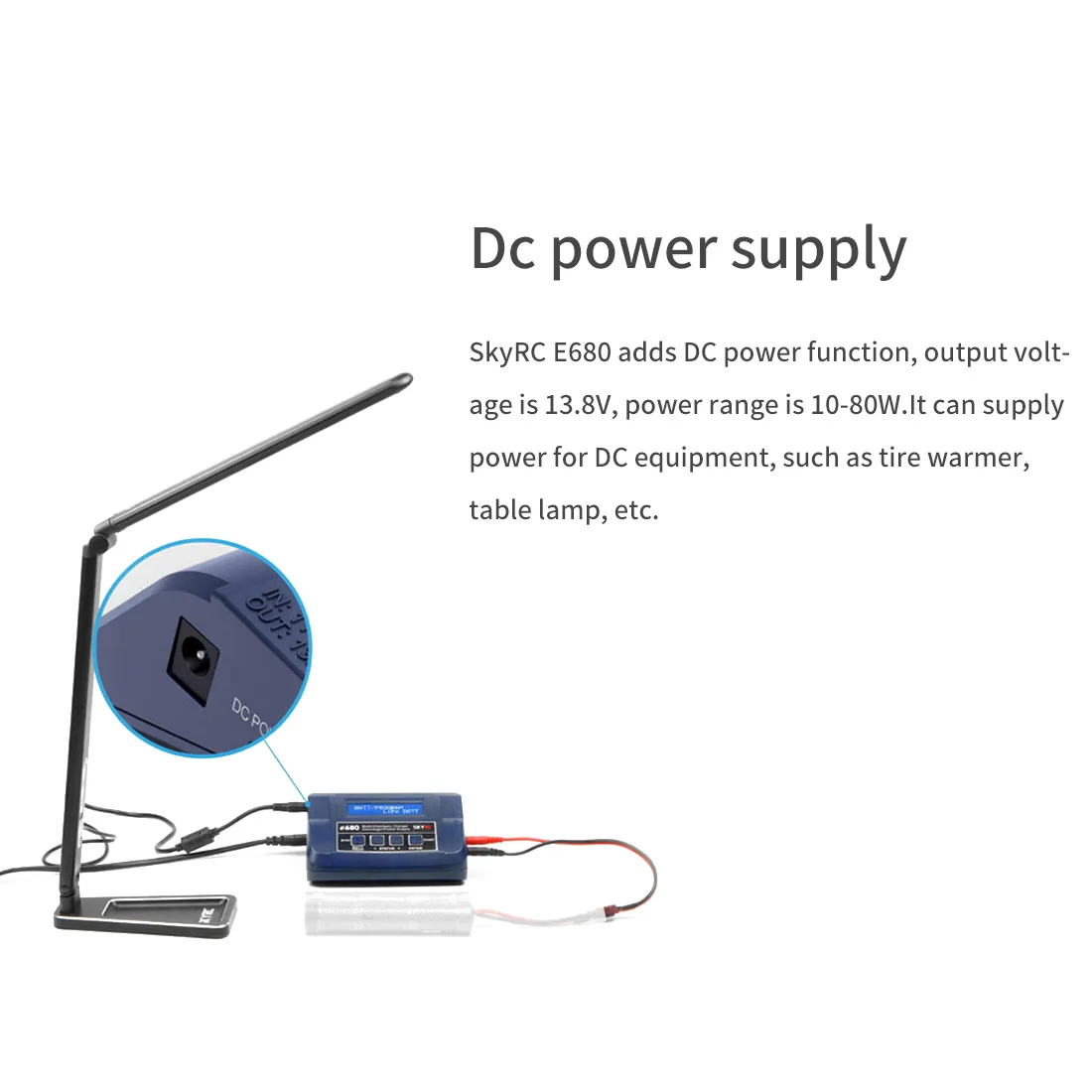

DC Power Supply

SkyRC e680 charger is integrated with DC power supply, which output voltage is 13.8V with power ranging from 10W to 80W. That is really convenient for drivers to power their DC devices, such as tire warmer, Pit light, etc.

Support for Charging DJI Mavic Battery

SkyRC e680 can charge DJI Mavic battery with the maximum charge current of 4A. The Mavic charging cable(SK-600023-06) is not included in the package. You need to purchase it separately.

AGM & Cold Charge Modes for PB Battery

SkyRC e680 can charge AGM battery and also can be used for charging PB battery at very low temperatures.

Thermal Cutoff

Battery internal chemical reaction will cause the battery temperature to rise. When the temperature limit is reached, the process will be terminated. This function is available by connecting optional temperature sensor cable (SK-600040-01), which is not included in the package. You need purchase it separately.

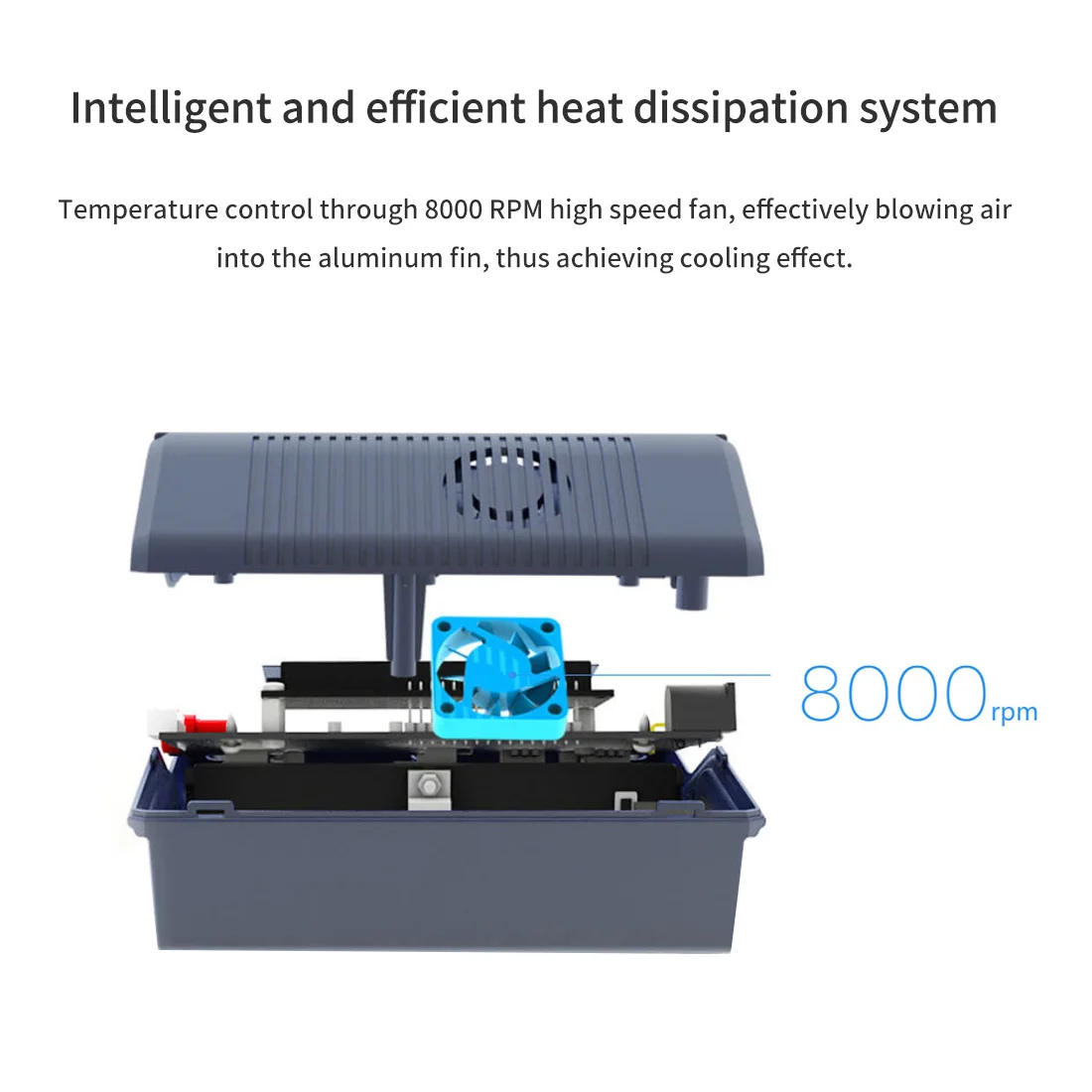

Smart & Efficient Cooling System

Temperature controlled 8000rpm high speed sleeve bearing cooling fan effectively blows the air through the extruded aluminum heat sink, effectively cooling the device.

Specification:

Excellent performance data max. 8A / 80W

Integrated power supply functionn 13.8V/80W

10 battery memory

TVC Terminal Voltage Control

Internal balancer with XH connector

Simplest 4-key operation

AGM and Pb cold charging modes

Suitable for LiPo/LiHV/Lilon/LiFe/NiCd/NiMH/Pb und DJI Mavic batteries

Input Voltage AC: 100V -240V

Input Voltage DC: 11V - 18V

Max Charge Power: 80W

Max Discharge Power: 10W

Charge Current Range: 0.1A - 8.0A

Discharge Current Range: 0.1A - 2.0A

Balancer current: max. 300mAh

Cells: LiPo/LiFe/LiIon/LiHV 1s - 6s

Cells: NiMH/NiCd 1s - 15s

Pb Battery Voltage:  2V - 20V

Weight: 390g

Dimension: 135x110x60mm

Package Included:

e680 charger x 1
