Tarot TL35P15 3515 400kv 6S Brushless Motor Multi-Rotor High-Efficiency Long-Range Motor For Multi-Axis Multi-Rotor Helicopter

Tarot TL35P15 3515 400kv 6S Brushless Motor Multi-Rotor High-Efficiency Long-Range Motor For Multi-Axis Multi-Rotor Helicopter

Product Description:

Tarot 3515/400KV brushless motor is specially designed for long-endurance application scenarios such as aerial surveying, mapping and surveying. It uses international standard aviation aluminum materials and is processed by high-precision CNC (precision 0.001mm). Every finished product has been inspected by strict quality standards. , To ensure the consistency of each batch.

Motor characteristics:

1: Brand new semi-closed structure design, lightweight, high strength, fast heat dissipation, effectively preventing sand and gravel debris from entering the motor, and also has good ventilation and heat dissipation effects;

2: Using extremely durable and high-quality bearings, the rotation is more stable;

3: Fully manual winding, each motor undergoes dynamic and static tests before leaving the factory to ensure the consistency of the motor;

4: IP35 dustproof and waterproof protection, unique structure to provide you with better safety guarantee.

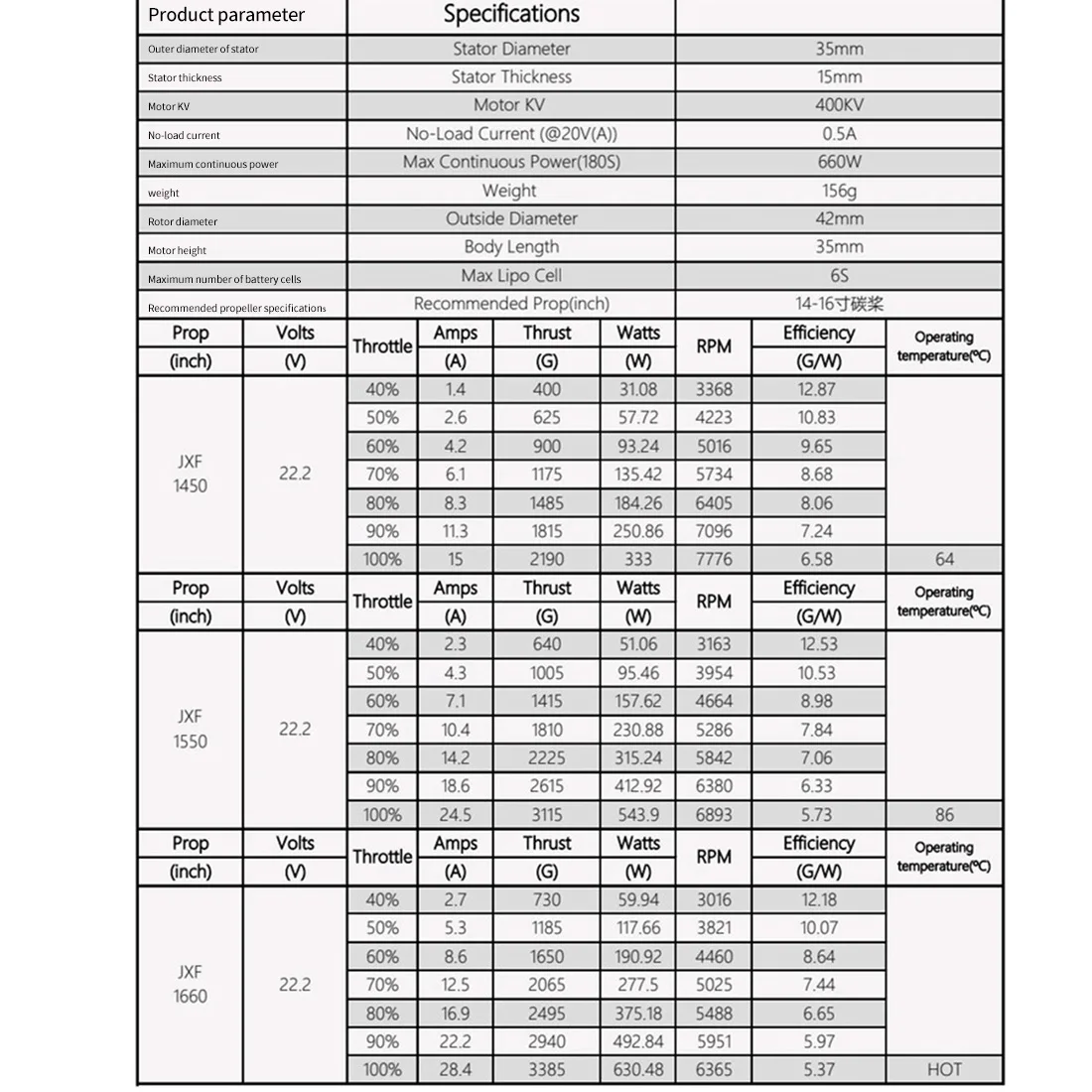

Product parameters:

Number of lithium battery cells supported: 6S

Propeller: 14-16 inches

Stator diameter: 35mm

No-load current: 0.5A

Stator end thickness: 15mm

Number of stator ends: 12N

Motor pole number: 14P

Speed: 400KV±5%

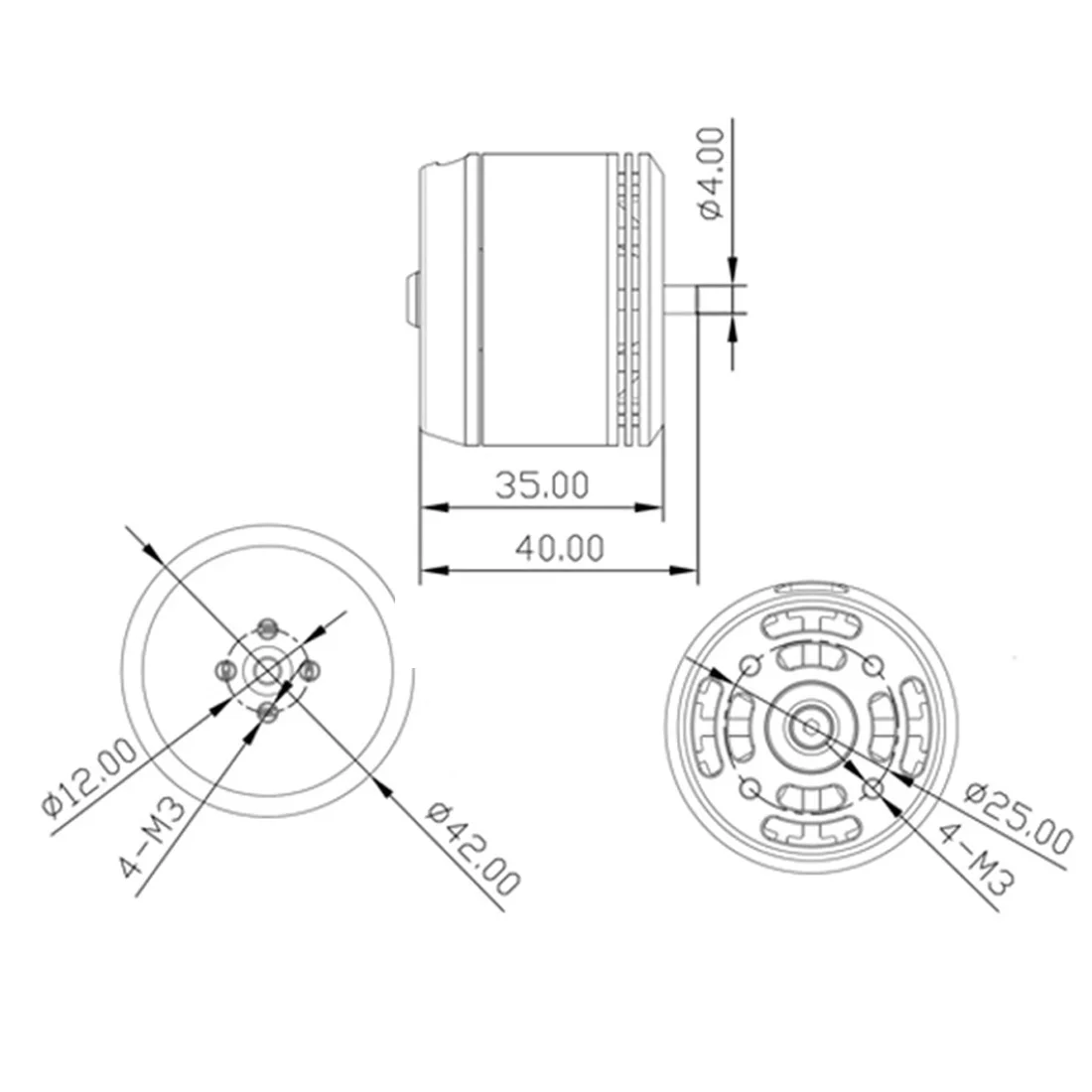

Motor outer diameter: 42mm

Shaft diameter: 4mm

Motor height: 35mm

Maximum continuous current: 28.4A

Maximum continuous power: 630W

Internal resistance: 85mΩ

Propeller installation hole pitch: 12mm

Motor mounting hole distance: 25mm

Motor weight: 142g

Specifications:

3515/400KV brushless motor×1

Propeller metal mounting piece Φ2.26mm×1

M3*6 cup head screw×4

M3*8 round head screw×4

PC packing box×1
