TAROT X8-Lite Multirotor 8-Axis Multi-copter Frame Kit Training Exercise Airframe for DIY RC Model Drone

Product parameters:
Symmetrical motor axis distance: 1050mm
Diameter of centre plate: 333mm
Clearance height of landing gear: 377mm
Net weight: 1.70KG

Product Description:
·Tarot's new Training Exercise frame X8-Lite
·Extra large shelf and battery compartment design
·Add new fan type light motor mount, split metal tee mount
·The ultimate value for money has been developed to give back to the market and with the recommended configuration can be used to achieve a hover time of 40 minutes.


Product Features:

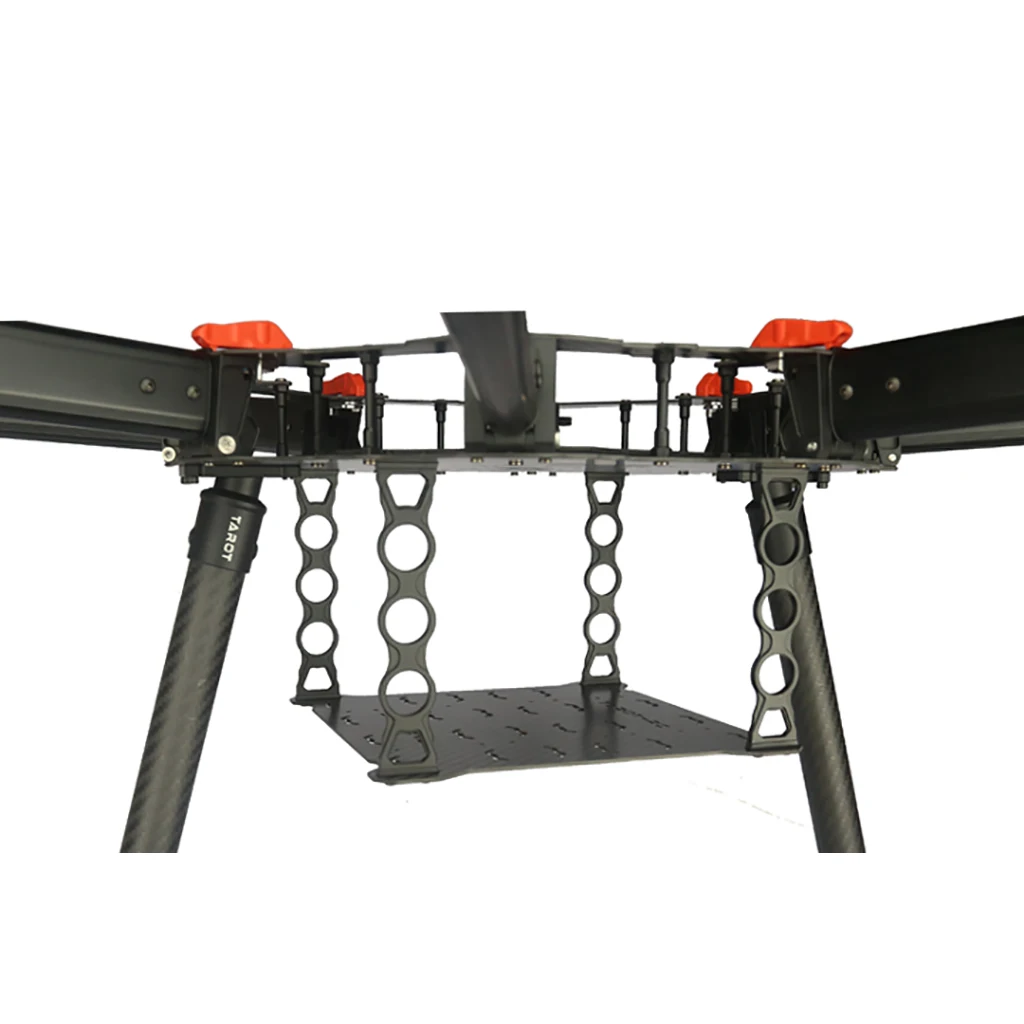

1: The X8-VUE is based on the original Tarot-X8 structure, with an upgraded shelving panel and a split-level shelving structure, with a double layer of independent space, easy to place and assemble, easily accommodating the power module system, flight control system, and digital transmission system.

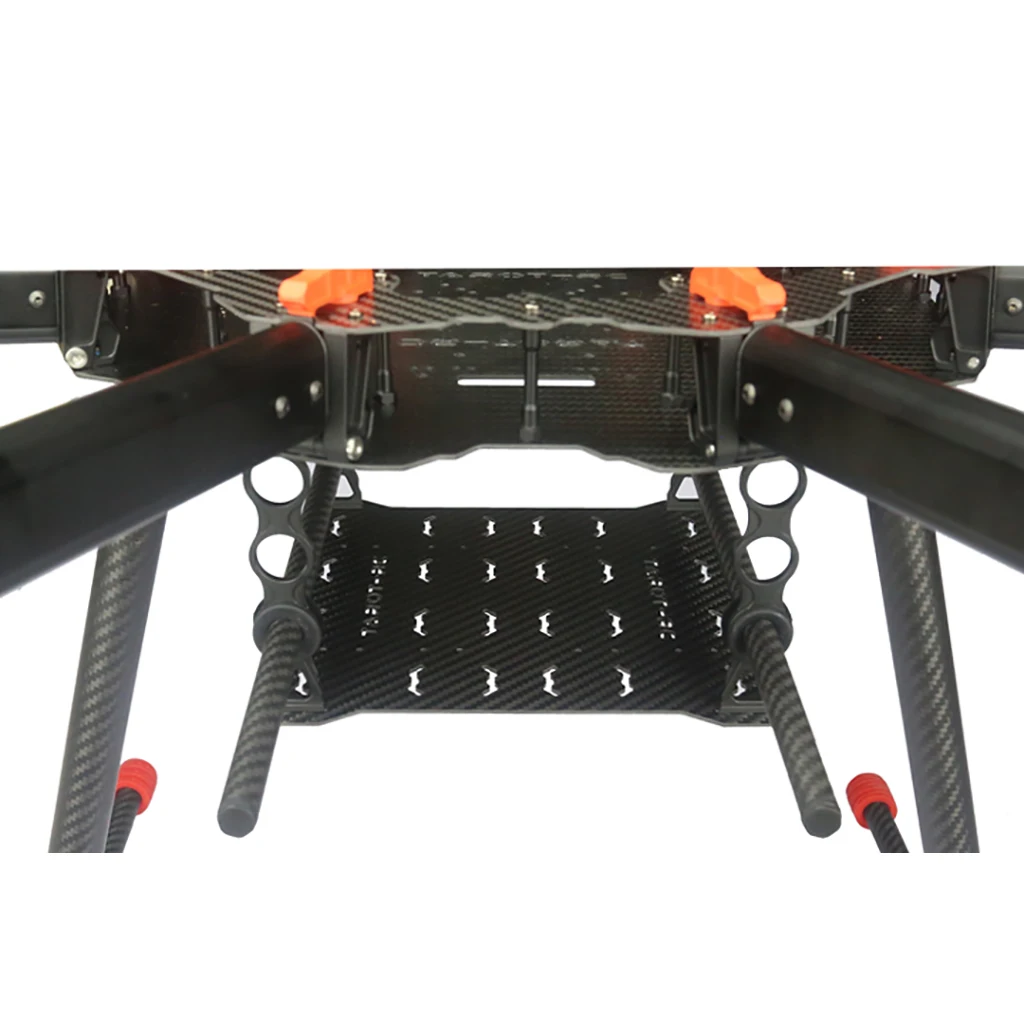

2: Using the new battery under mount, the component adopts a one-piece perforated design to ensure a large space for the battery compartment and at the same time can extend the cloud platform under mount component (additional parts), eliminating the need to re-mount on the bottom of the battery compartment, can directly hang 155mm/165mm mount spacing head (other spacing can be customized to mount the bottom of the battery compartment, the battery plate preset a variety of holes)

3: Use the new lightweight fan motor mount, suitable for motors up to Φ44mm, open motor fixing slot, compatible with most of the motor hole fixing on the market.

4: Using the new carbon fibre shock-absorbing tripod, the split metal tee assembly, measuring 349mm in length longitudinally and 440mm in length horizontally, the reinforced metal tee component ensures the stability of the drone when landing, and the frame connector part is fixed with a four-point symmetrical hole position.

Recommended configuration:(not included)
Motor: 6S 4012 320KV/Tarot Martin TL40P12
ESC: 40A/Tarot Hobbywing Custom Edition/XRotor-Pro-40A TL2930
Paddle: TAROT 1555 foldable prop holder set TL100D04
Battery: 22.2V 15000mAh
Take-off weight: 4.9KG
Hover time: 40Min
