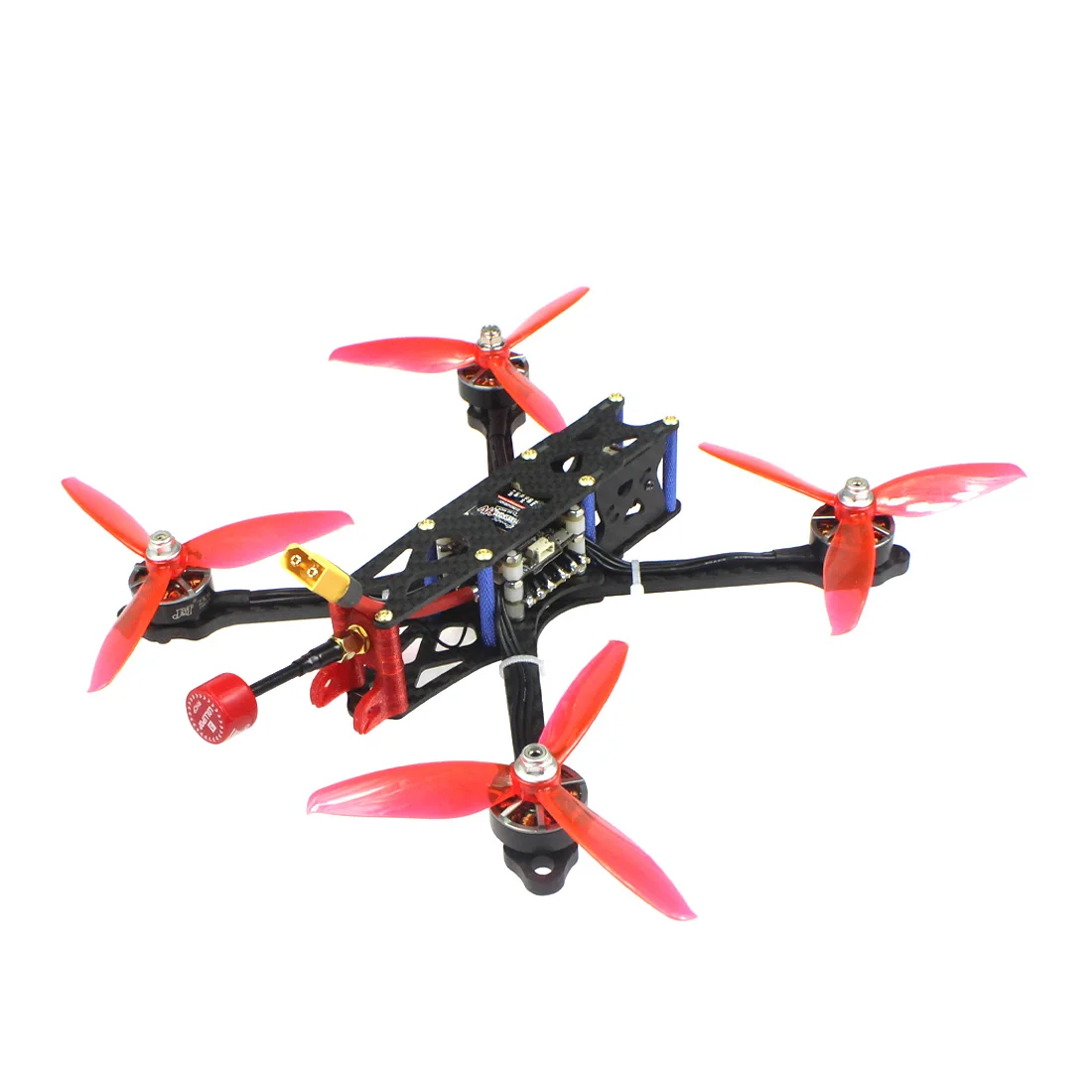

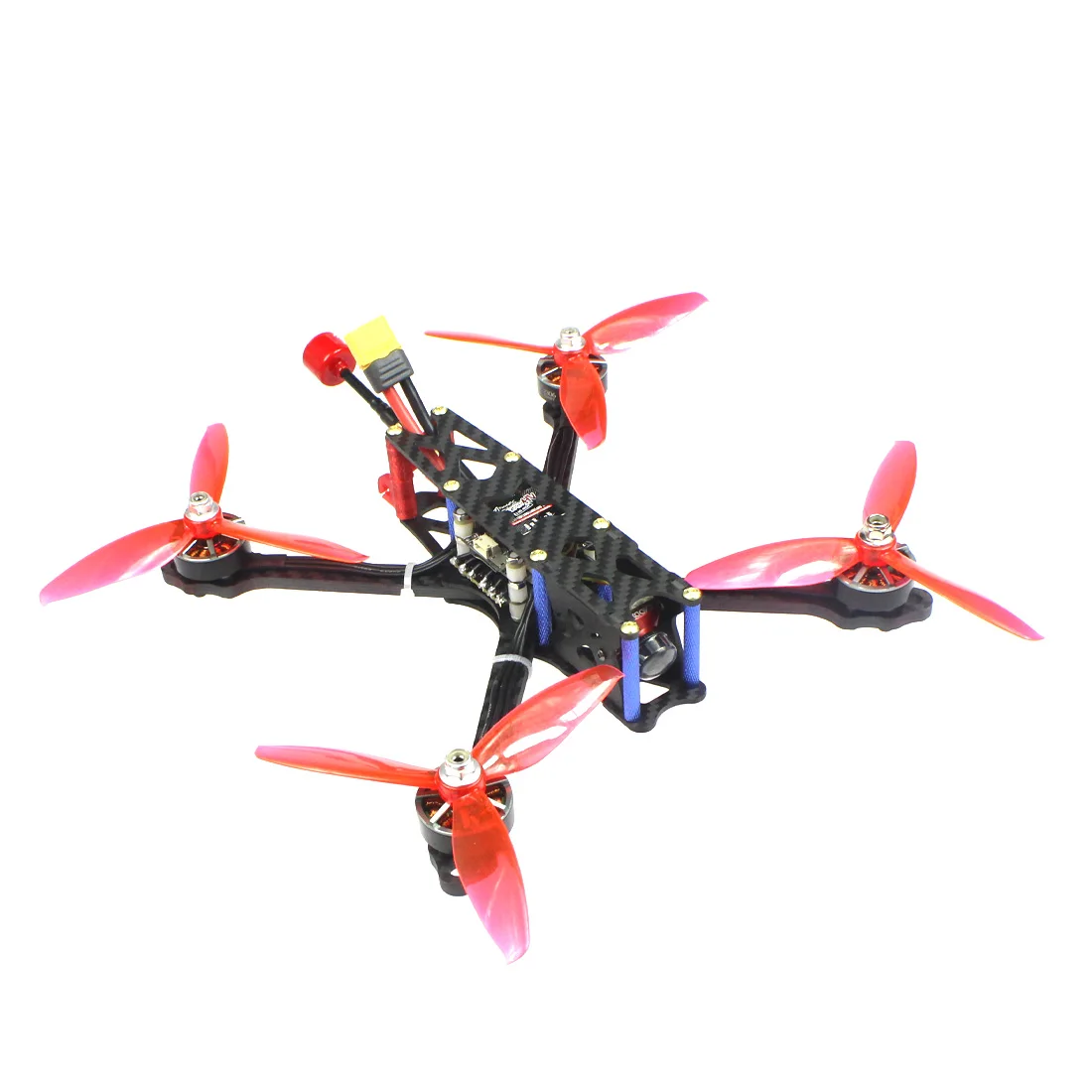

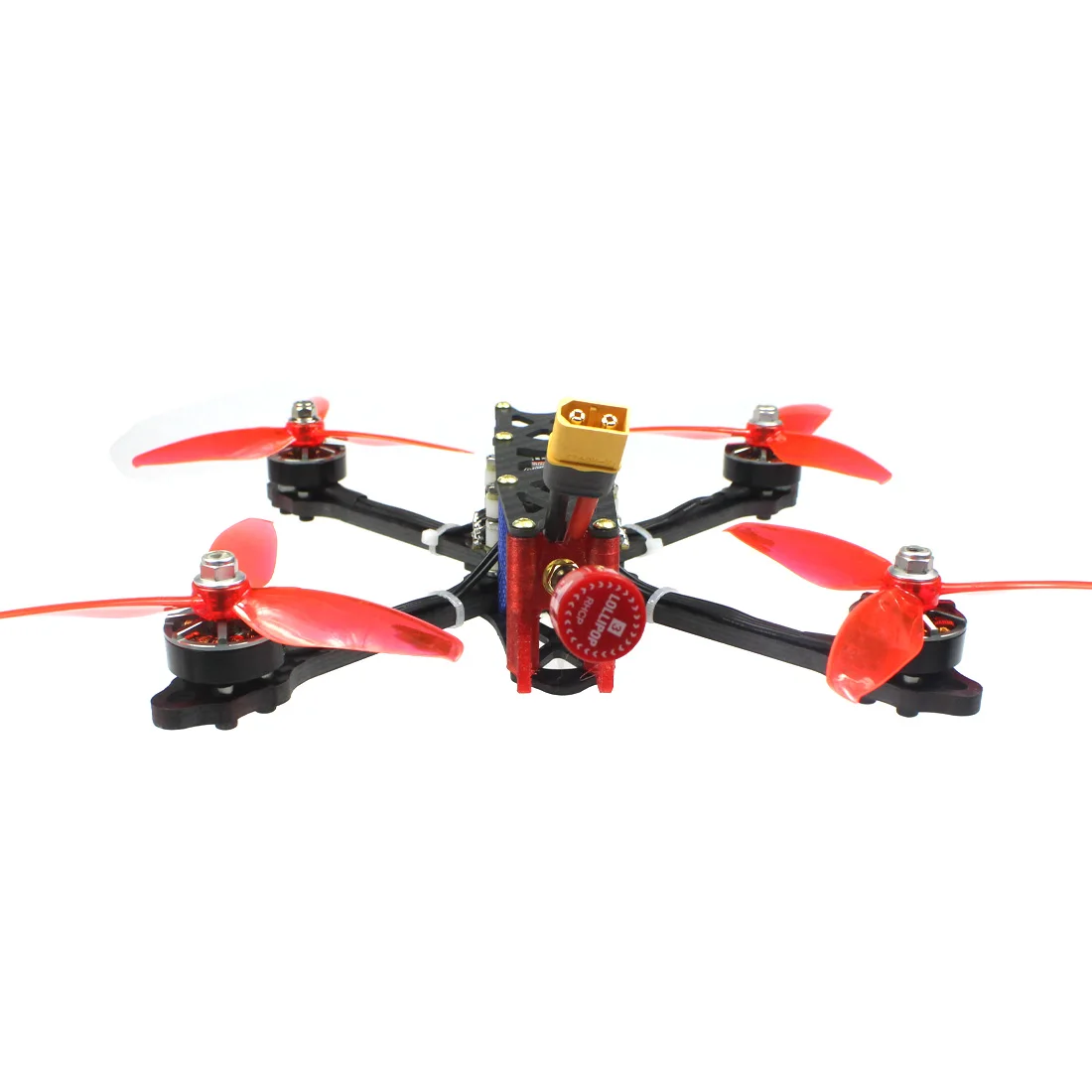

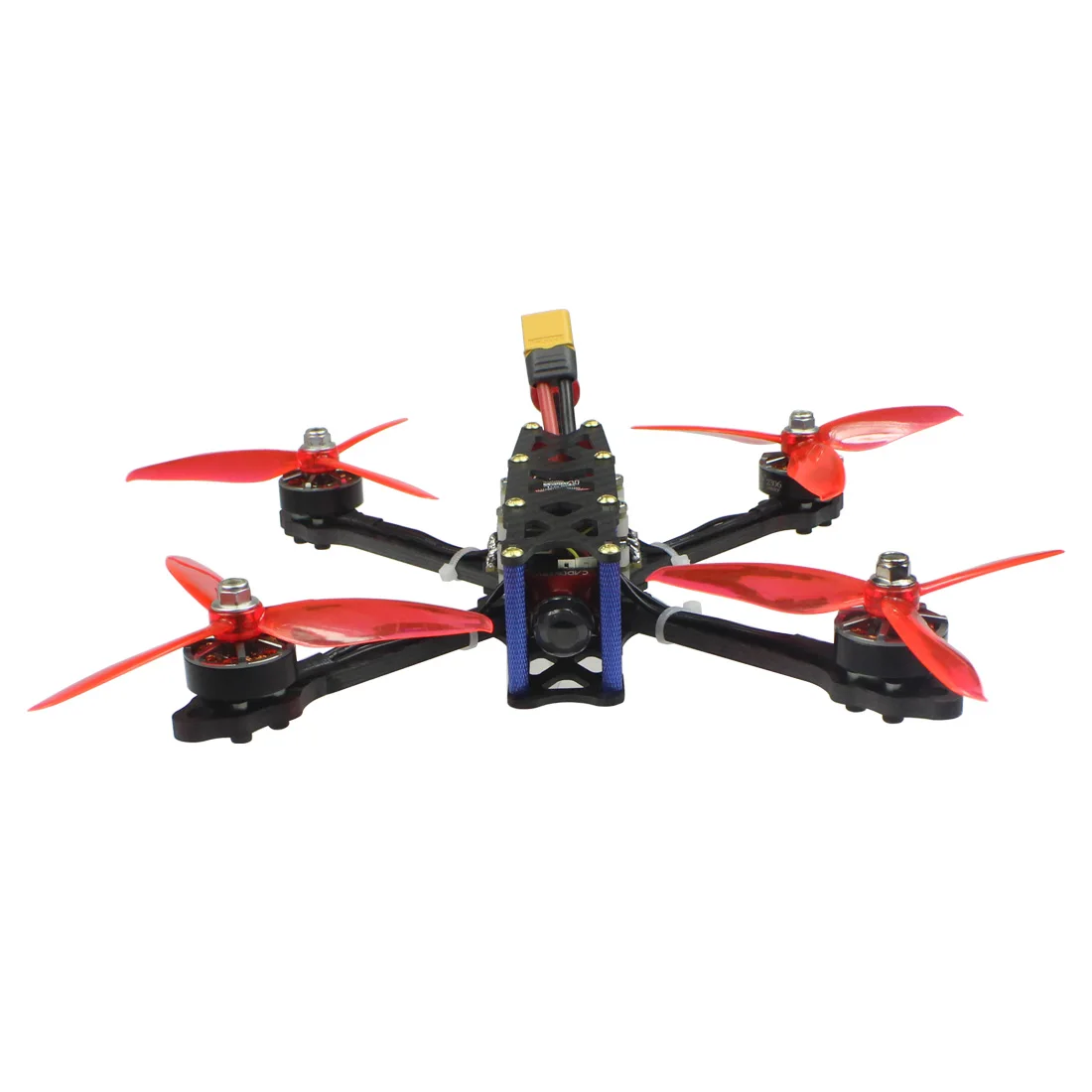

225mm 5inch PNP BNF RTF FPV Racing Drone RC Quadcopter 3-4S with Ratel 2 Camera 2306-2400kv Motor 3inch Mini FPV Goggles

Precautions:

1. Do not charge the battery when you are away from home, do not charge the battery immediately after flying, do not over-discharge the battery (over-discharge may cause the battery to become useless because it cannot be charged.) Please cut off the power immediately after the battery is fully charged. Please do not charge for a long time.

2. Do not modify any parameters and wiring without knowing the flight control and remote control.

3. Turn on the remote control before powering on the aircraft, unplug the power switch after the flight, and then turn off the remote control to prevent accidents.

4. This product has been welded, if you have any technical and assembly problems, please feel free to contact us, we have a dedicated technical team to answer related questions.

5. This product is not a toy and is not suitable for children under 14 years of age.

6. If you are a beginner, it is recommended to be assisted by an experienced adult.

7. Novices should pay attention to not holding the airplane by hand when the airplane is turning, and don't let children touch it to prevent it from being scratched.

8. When the airplane falls from a wall or hits other objects at a high altitude during flight, please turn off the start switch in time, otherwise it may cause damage to the flight control motor. After that, please check that the airplane is not damaged and the screws are not loose before you can take off again.

Functions and features:

Wheelbase 225mm

Built-in OSD Betaflight

Support BLHeliSuit configuration

Support voltage 3-4S

7-10 minutes flight time

The remote control distance is about 400 meters (FLYSKY remote control), about 2000 meters (T-lite remote control)

Paddle:

Model: 5043

Material: PC

Weight/G: 4.63G

Inner diameter of center hole: 5mm

Paddle diameter: 13.5mm

Center thickness: 7mm

Maximum blade width: 15.58mm

ESC:

Working voltage: 2-6S

Maximum continuous working current: 45A

Maximum instantaneous working current: 50A

Support communication modes: DShot150/300/600, PWM, Oneshot125, Oneshot42 and Multshot

Firmware version: BL16.7

Installation hole distance: 20 * 20mm / 30.5 * 30.5mm

Product size: 44 * 44 * 5.5

Packing size in mm: 62 * 58 * 18 mm

Product net weight: 13.6 grams

Package weight: 27 grams

Image transmission:

Weight: 12g

Input voltage range: 7-24V

Frequency: 48CH

Output power: 0mW / 25mW / 100mW / 200mW / 400mW / 600mW switchable

Transmission distance: ≥0.5km25mW, ≥1km200mW, ≥2km600mW

Installation size: 30.5*30.5mm

Motor:

2306 motor

Stator diameter: 23 mm

Stator thickness: 6 mm

Number of stator arms: 12 pieces

Number of stator poles: 14

Motor KV: 2400

Maximum continuous power: 750 watts

Weight: 32 grams

Outer diameter: 28 mm

Support voltage: 3~4S

Flight control:

Name: F4

Size: 36x36mm

Mounting hole: 30.5x30.5mm

STM32 F405 MCU can shorten the cycle time.

Support SBUS / PPM / IBUS receiver mode

Camera:

Sensor: CMOS 1/1.8

Lens: 2.1mm

Video format: PAL/NTSC switchable

Resolution: 1200TVL

Input voltage: 5V-40V

Weight: 5.9g

Size: 19*19*20mm

White balance: automatic
