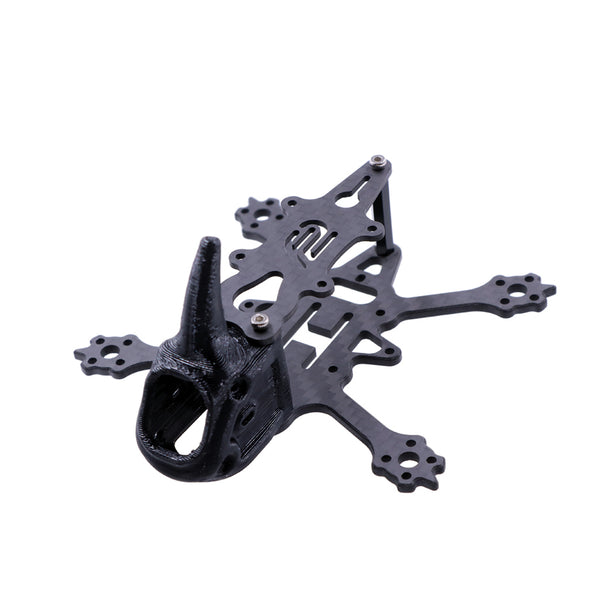

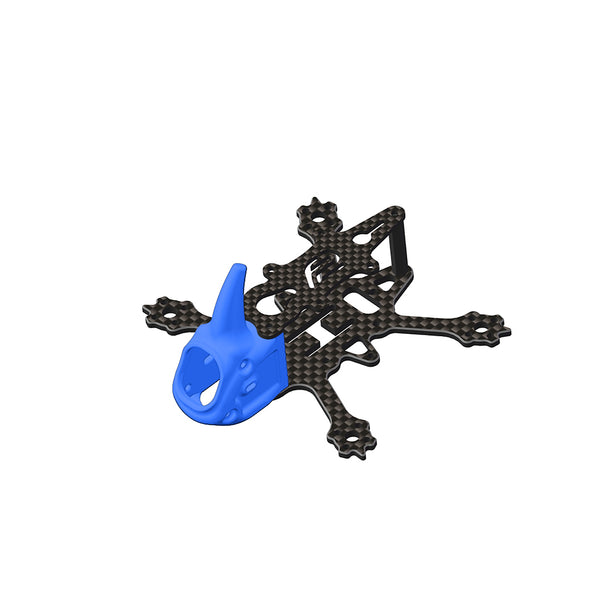

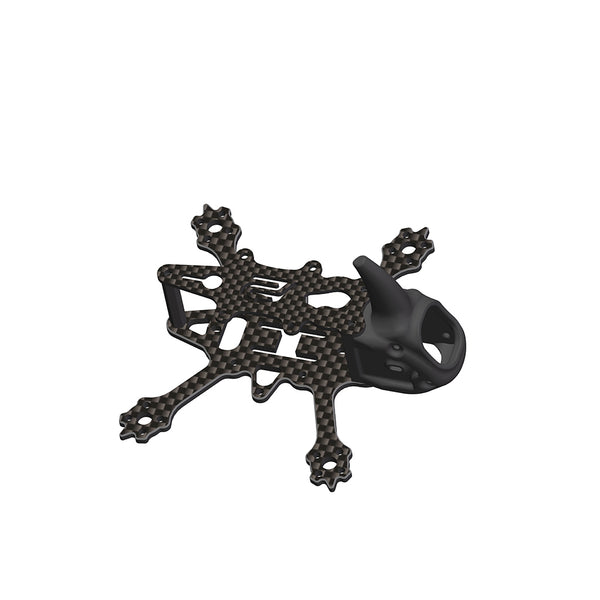

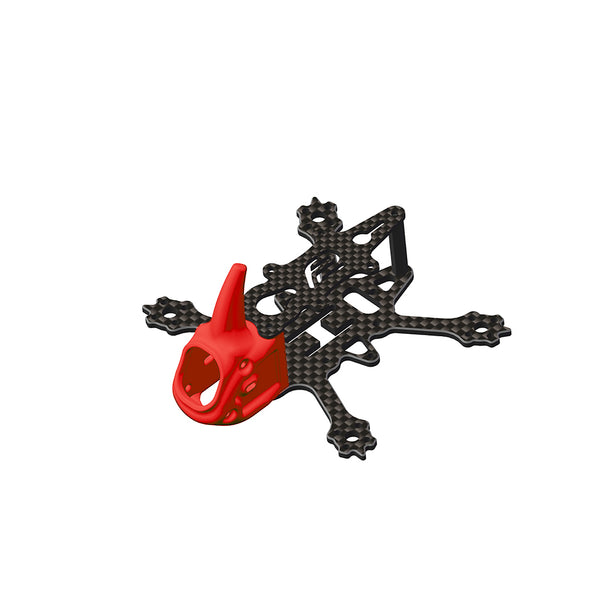

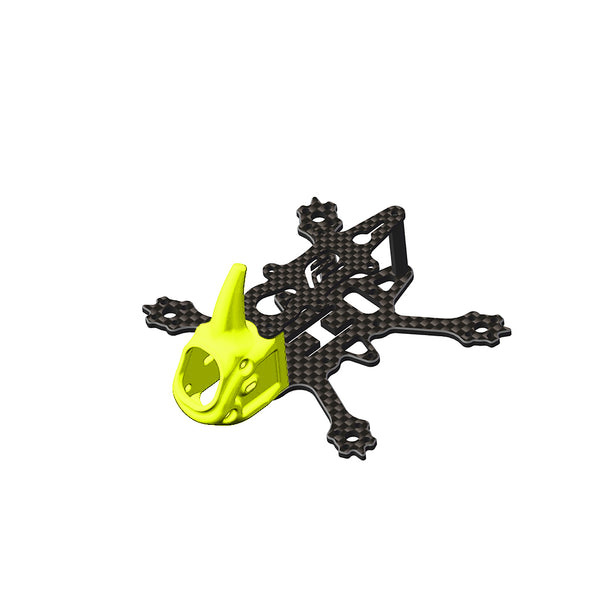

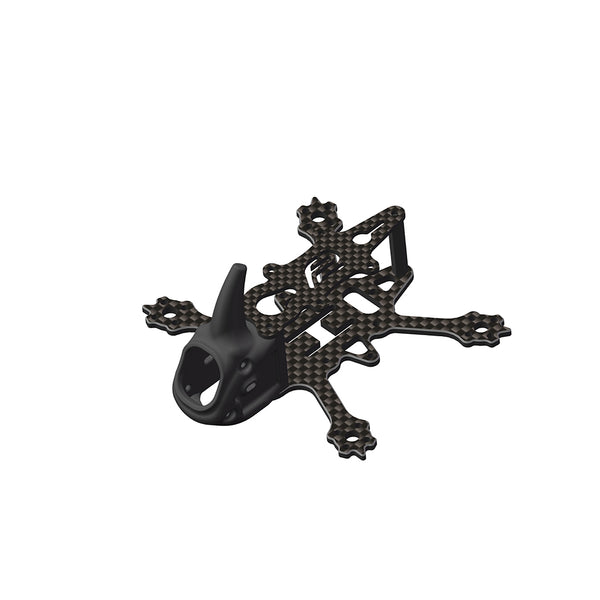

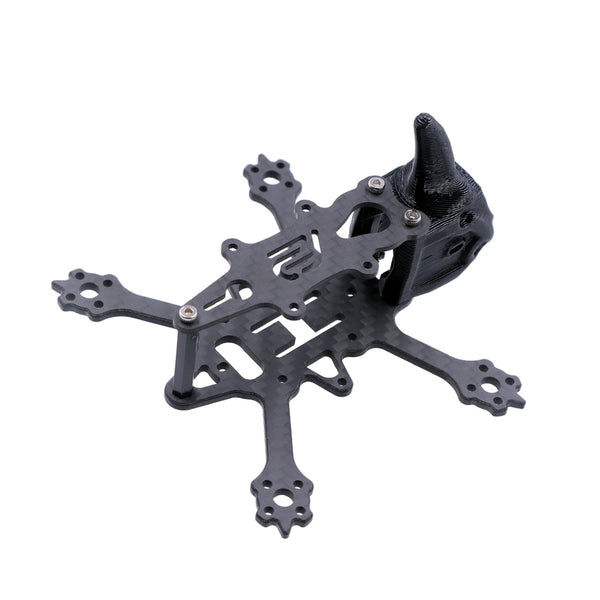

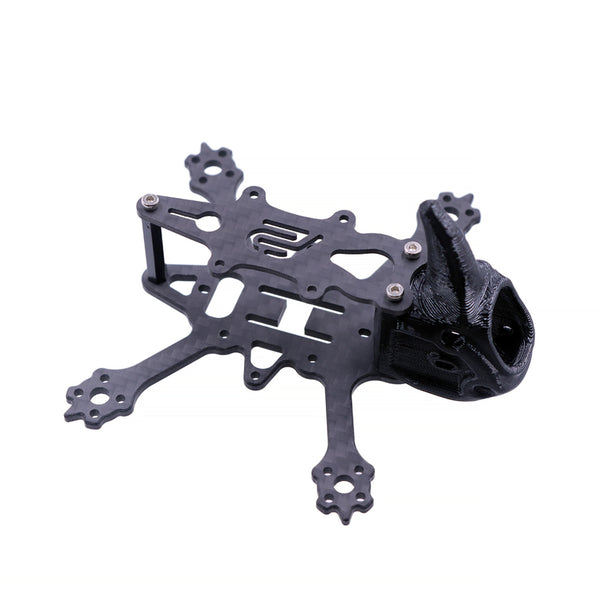

QWinOut 2inch 3K Carbon Fiber Frame Kit for RC Racing Drone Compatible for DJI O4 Air Unit
Sale

QWinOut 2inch 3K Carbon Fiber Frame Kit for RC Racing Drone Compatible for DJI O4 Air Unit

QWinOut

$8.65 $12.98

Shipping calculated at checkout.

2inch Propeller Frame Kit for FPV RC Racing Drone for DJI O4 Air Unit Elrs 5.8G VTX Turbo Eos2 F722 1103 1104 1106 1204 Motor

Specification:

Model: Cub-2-O4 v2.
Wheelbase: 89mm.
Bottom Plate Thickness: 2.5mm.
Upper Plate Thickness: 1.5mm.
FC Hole distance: 25.5*25.5 /26.5*26.5 / 20*20MM
Motor Hole distance: 9*9MM
Suitable propeller: 2Inch
Suitable FPV camera: 14MM(Nano series / DJI O4 lite)

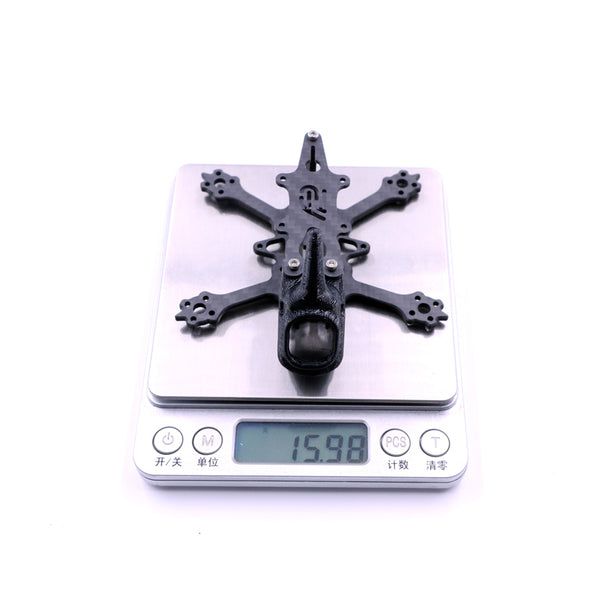

Weight: 16g（Different production batches will vary ）.
Material: 3K Carbon Fiber.


Package list:
This product is an empty machine version, without any electronic equipment.





































Customer Reviews

Based on 1 review
0%
(0)
0%
(0)
100%
(1)
0%
(0)
0%
(0)
P
Philip Reitz
The Plastic Standoffs are Terrible

Frame is decent, but if your FC is in a Diamond shape you need to unscrew the motors from the frame to connect usb. Canopy has good shock absorption but the print quality is lacking. The included hardware doesn’t tighten well with the plastic standoffs. The hardware freely spins so eventually it comes out in minor crashes. If you get this frame make sure you buy 20mm metal standoffs for it.
