4PCS JX PDI-D60HV HV Digital Servo 7.4V 0.05s 4.2kg Coreless for RC Airplane Heli Drone Quadcopter Fixed Wing

JX Servo

Regular price $20.98

Shipping calculated at checkout.

2. Product Main Description

Product Overview

The JX PDI-D60HV is an ultra-lightweight 6.1g micro high-voltage digital servo specially designed for lightweight RC models, tiny FPV fixed-wing aircraft, mini helicopters, small RC cars and DIY robotic projects. Adopted coreless motor + all metal 20T output gear structure, it delivers ultra-fast response speed and stable high torque under 7.4V high voltage input, perfectly solving the weight restriction problem of micro RC models while maintaining powerful driving performance.

Core Advantages

Ultra Light 6.1g BodyOnly 6.1 grams net weight, greatly reduces the overall takeoff weight of tiny FPV planes and micro drones, effectively improves flight endurance and maneuverability.

High Voltage Wide Voltage InputSupport DC 4.8V~7.4V wide voltage working range (HV high voltage version). Max stall torque reaches 4.2KG.cm at 7.4V, strong driving force for small control surfaces.

Coreless Motor & Metal Gear TransmissionCoreless motor features faster acceleration, lower inertia and higher efficiency than traditional iron-core motors; 20T metal spline output gear resists wear and impact, long service life for frequent high-frequency operation.

Extremely Fast Response Speed0.05 second/60° rotation speed under 7.4V voltage, ultra-sensitive steering feedback, ideal for competitive FPV and aerobatic fixed-wing aircraft.

Precision Digital Control System330Hz high frequency working, 2μs dead band, accurate angle positioning, no jitter during operation, stable control signal output.

Standard JR Connector & Compact Structure150mm JR standard cable, compatible with most mainstream flight controllers and RC receivers; compact 20.2x8.5x21.6mm casing with fixed mounting lugs, easy to install and fix.

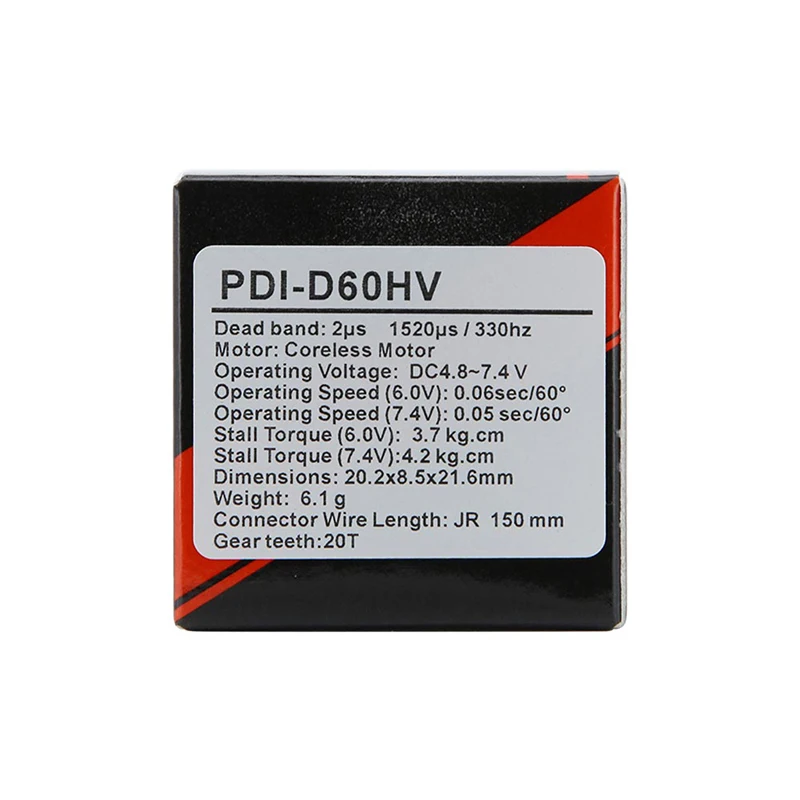

Detailed Technical Specifications

Item	Parameter
Model	PDI-D60HV (D60HV)
Weight	6.1g
Dimension	20.2 x 8.5 x 21.6 mm
Working Voltage	DC 4.8V ~ 7.4V
Motor Type	Coreless Motor
Gear Material	Metal Gear, 20T Spline Output Shaft
Operating Speed	6.0V: 0.06sec/60°; 7.4V: 0.05sec/60°
Stall Torque	6.0V: 3.7KG.cm; 7.4V: 4.2KG.cm
Dead Band	2μs, Working Frequency: 1520μs / 330Hz
Connector	JR standard plug
Wire Length	150mm
Origin	Made in China

Wide Application Scenarios

Tiny FPV fixed-wing aircraft, RC glider, indoor mini helicopter
1/24, 1/28 mini RC drift cars, micro crawler vehicles
Small bionic robots, robotic arm, DIY smart mechanical projects
RC boat rudder control, miniature model door lock and linkage mechanism
All lightweight RC hobby model upgrade & replacement servo parts

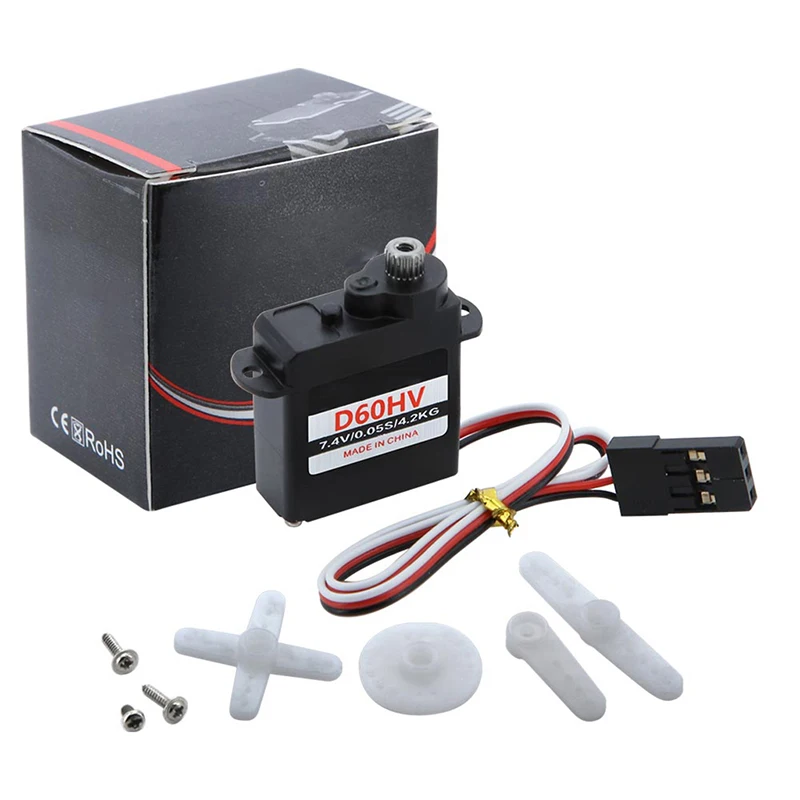

Package Includes

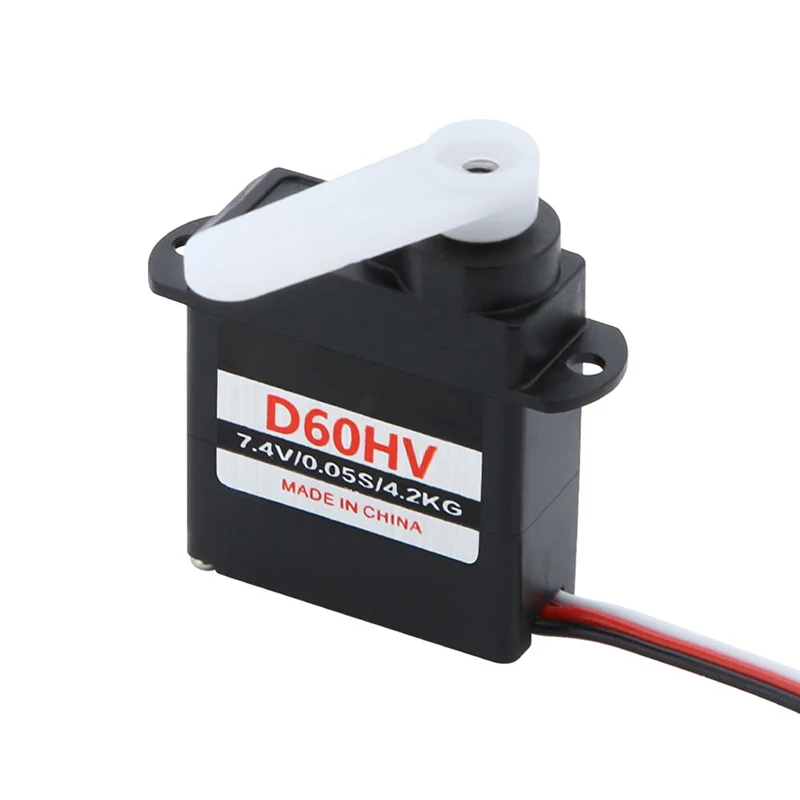

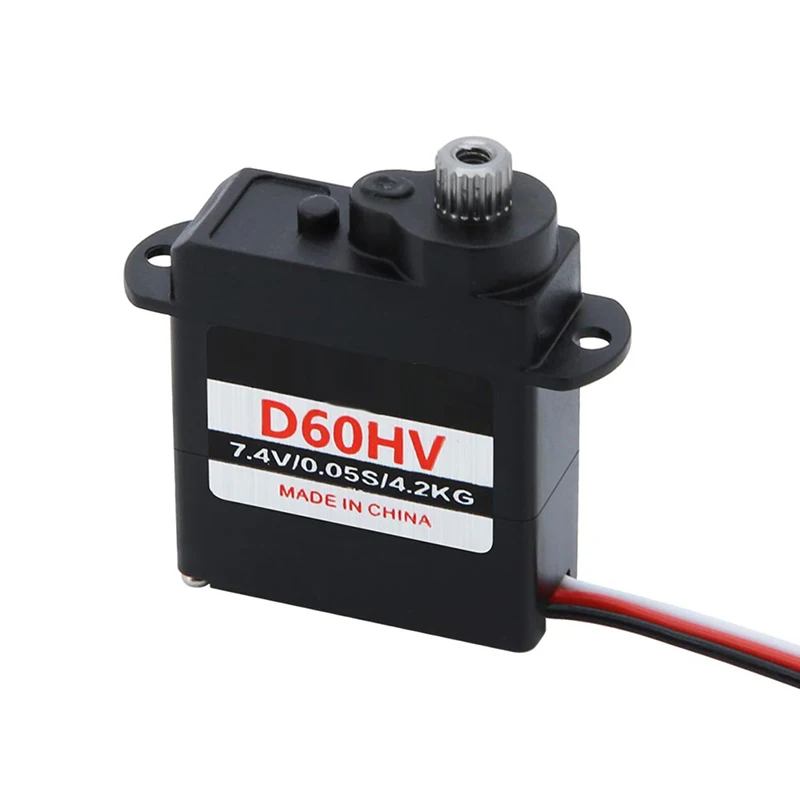

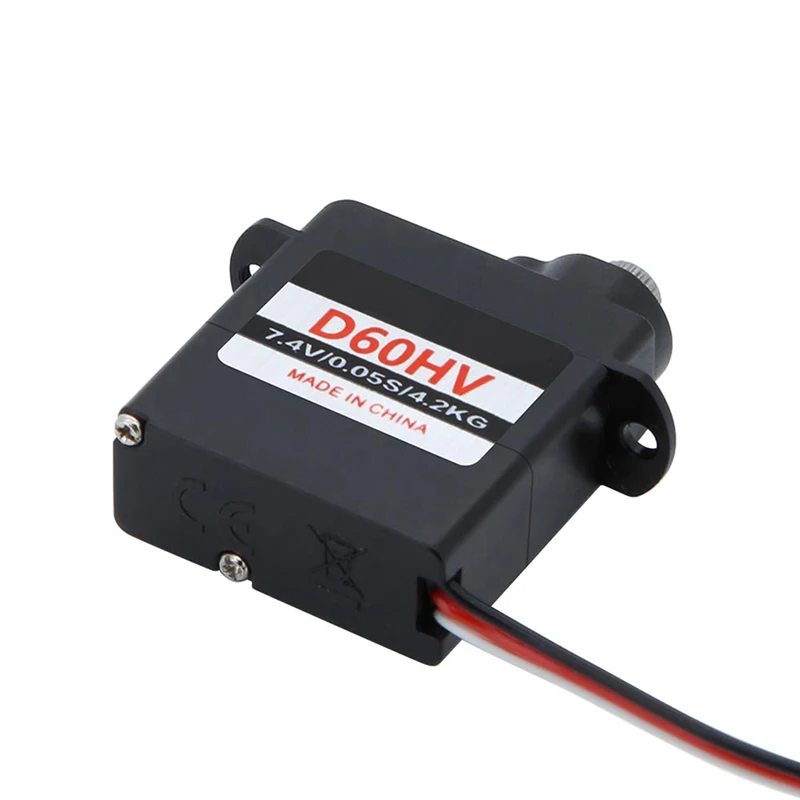

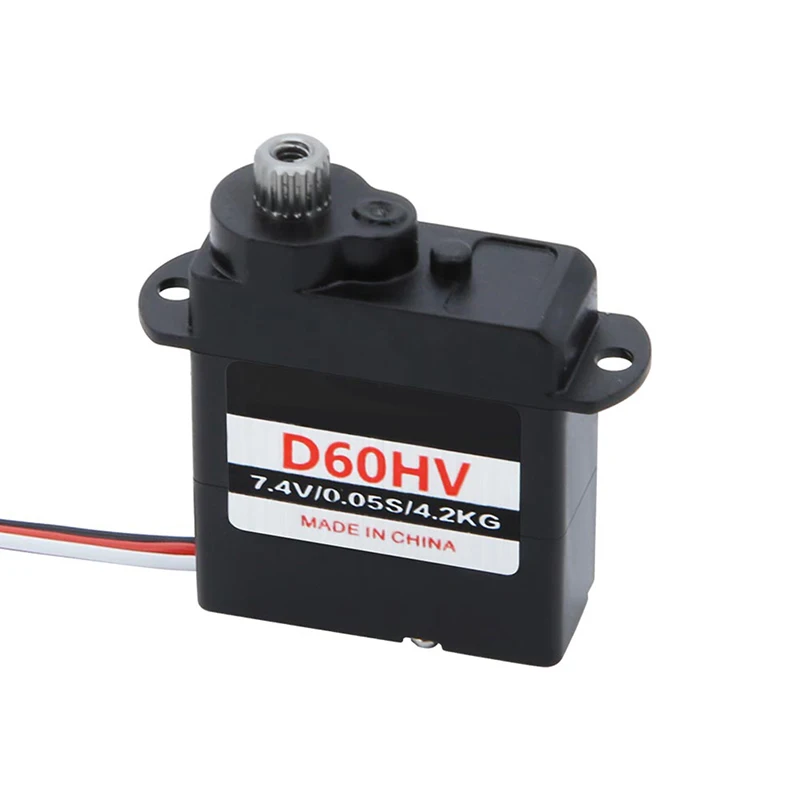

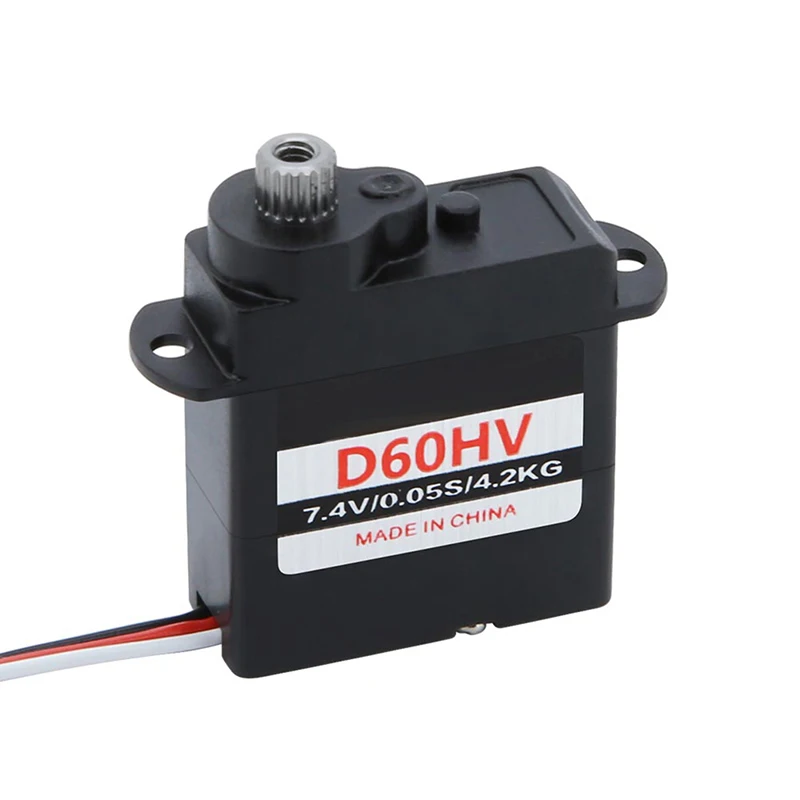

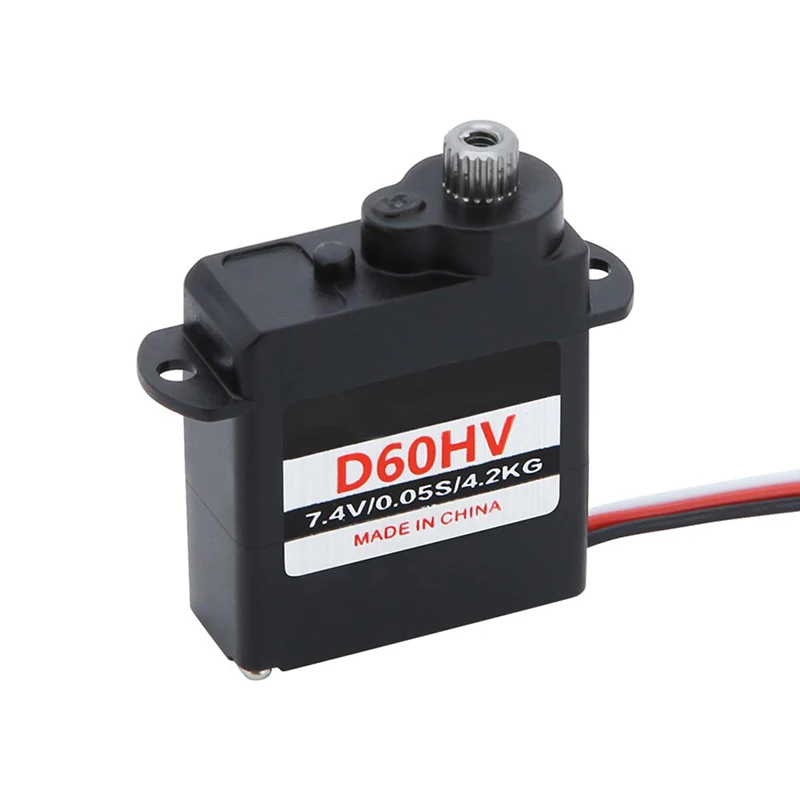

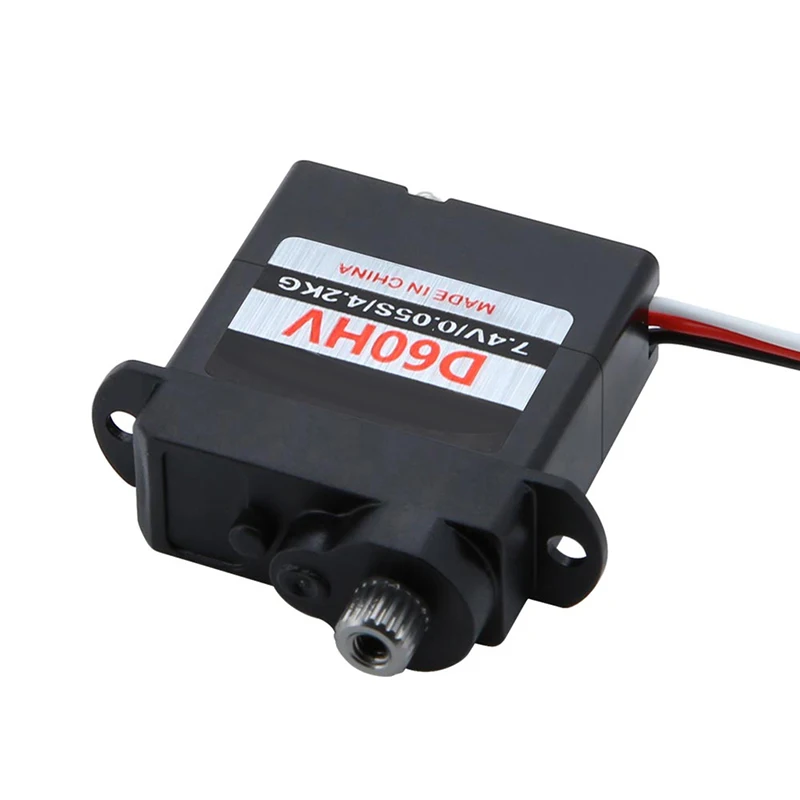

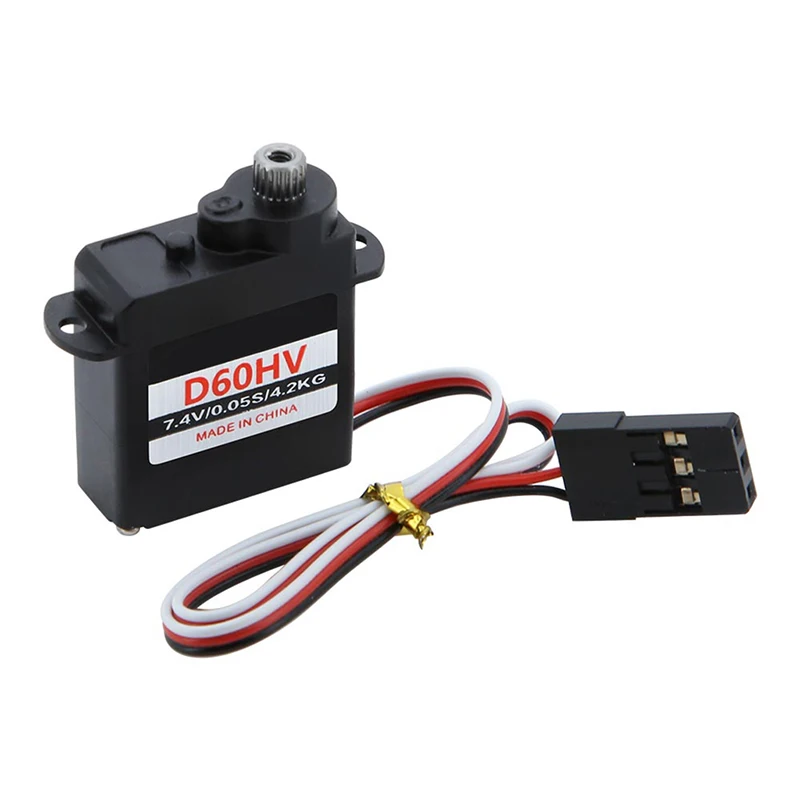

1 x JX PDI-D60HV Micro Digital Servo (as shown in pictures)

Note: Servo arm and mounting screws are not included in the basic package.
