QWinOut 5.1 Inch Carbon Fiber X-Frame Kit 230mm Wheelbase 7mm Thickness Arm For FPV Racing Freestyle Drone for DJI O4 Pro/O4 Lite Camera

QWinOut

Regular price $138.27

Shipping calculated at checkout.

5.1 Inch Carbon Fiber X-Frame Kit 230mm Wheelbase 7mm Thickness Arm For FPV Racing Freestyle Drone for DJI O4 Pro/O4 Lite Camera

Product Overview

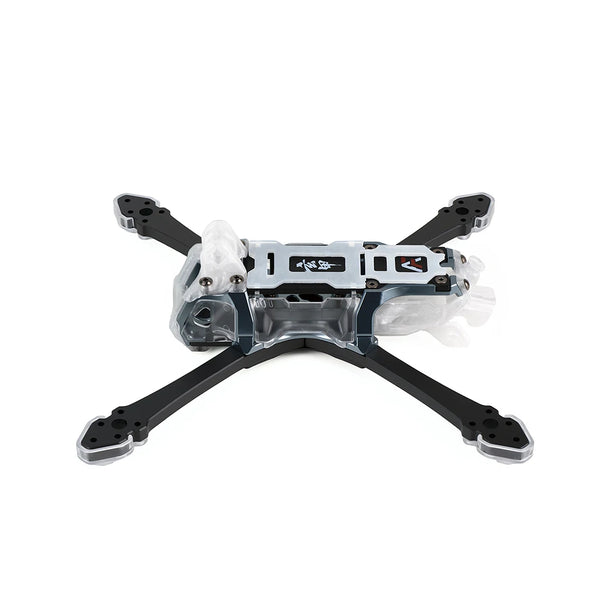

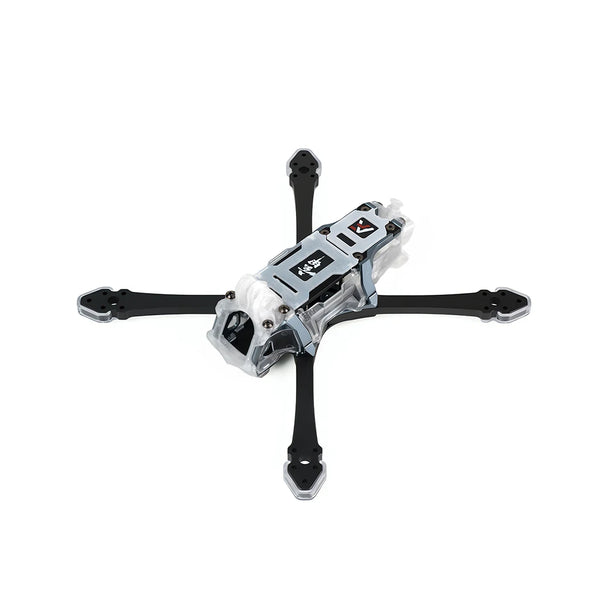

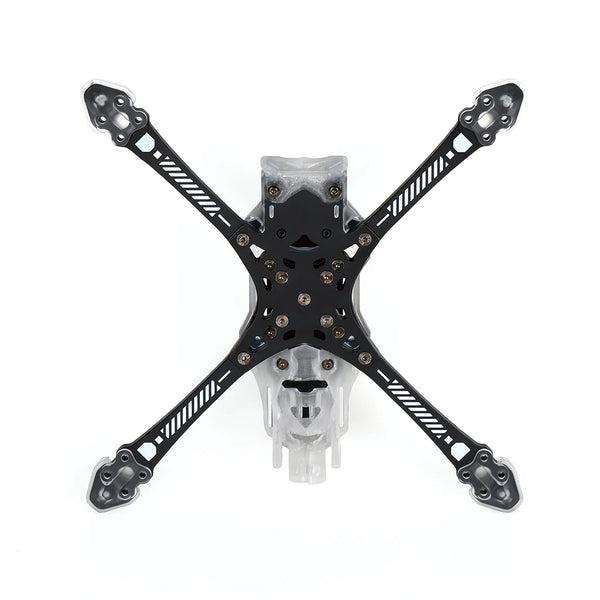

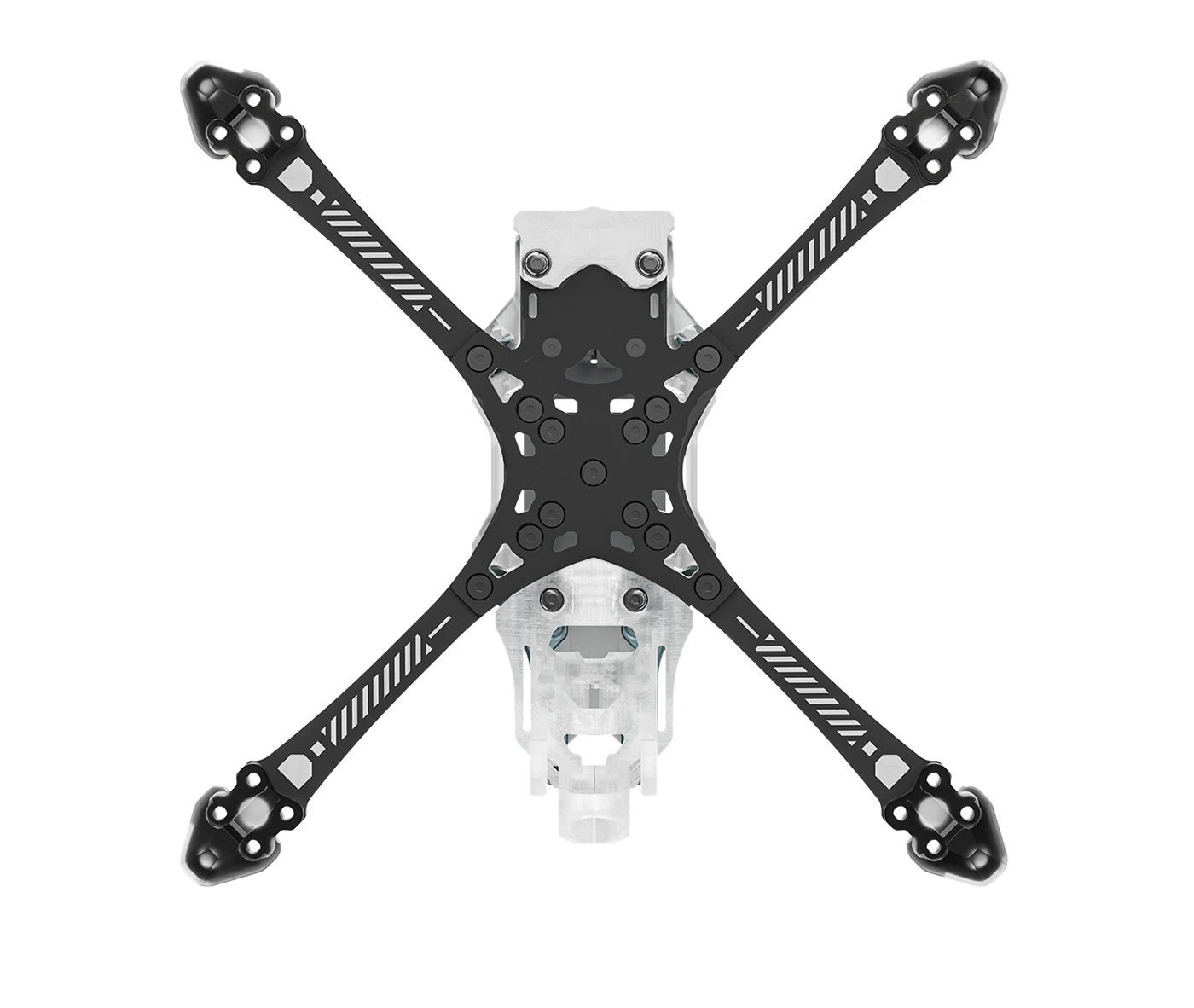

The BANDO 5 is a high-performance 5.1-inch FPV racing drone frame crafted from 7075 aviation aluminum alloy and durable 3D-printed components. Designed for competitive FPV racing and freestyle flying, it features a lightweight "zero-gap" structure, European-style dovetail battery plate, and compatibility with O4 Pro/O4 Lite cameras. Available in three color options (Pink/Blue/Black), it delivers exceptional strength-to-weight ratio for agile, stable flight.

Key Features

Premium Material & Lightweight Design

7075 Aviation Aluminum Alloy: Core structural parts use high-strength 7075 aluminum, offering superior rigidity and durability while keeping the total frame weight at only 205g±5g (including 3D-printed parts).

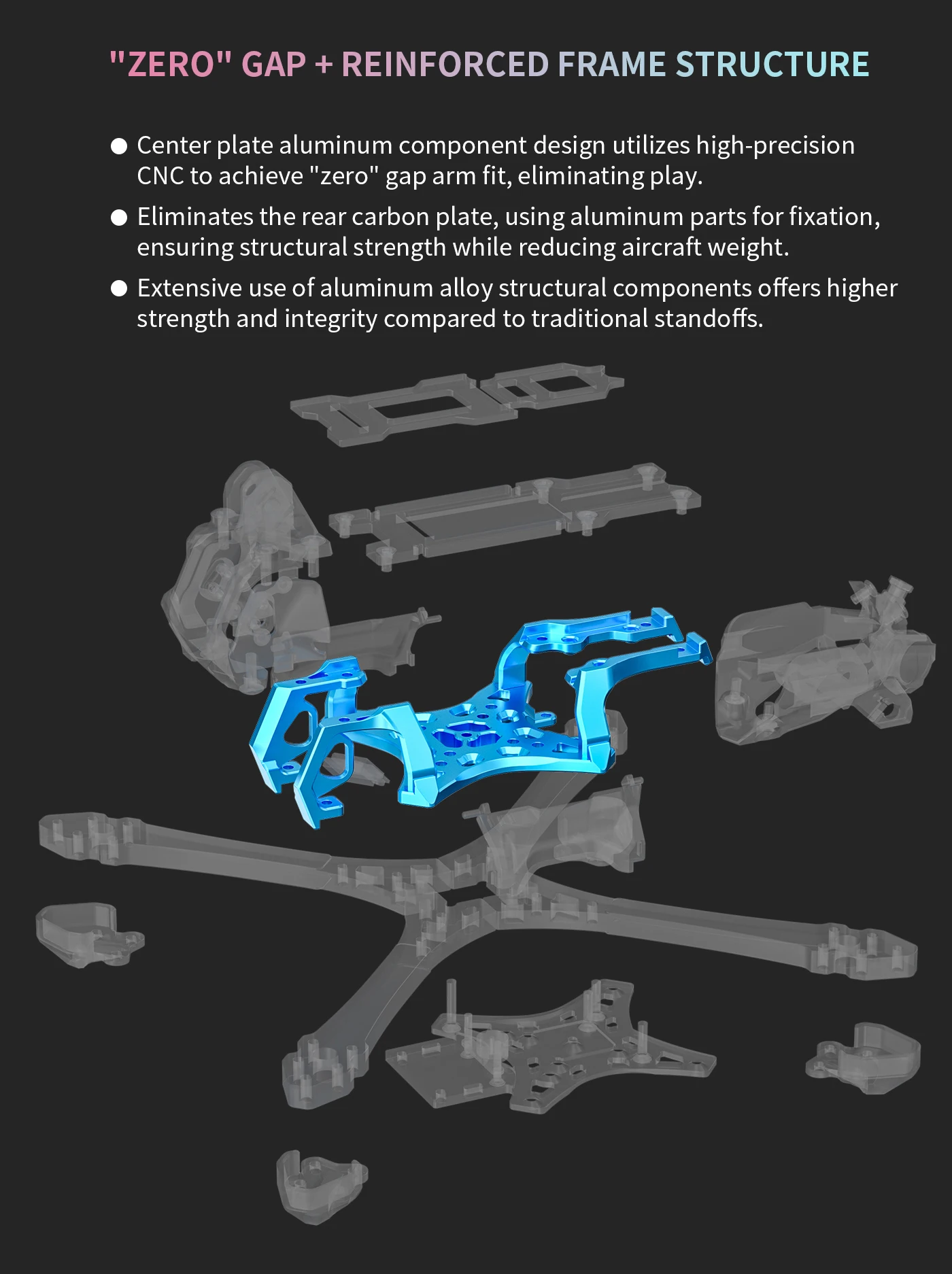

"Zero-Gap" Structure: Eliminates bottom carbon fiber plates, using aluminum parts to reduce weight while maintaining maximum structural integrity.
European Dovetail Battery Plate: T700+ surface-treated carbon fiber battery plate with 60° dovetail design, protecting the battery and ensuring secure mounting during high-speed maneuvers.

Precision Engineering & Compatibility

5.1-inch Propeller Compatibility: Optimized for 5.1-inch propellers, balancing agility and efficiency for racing and freestyle.
Camera Compatibility: Supports DJI O4 Pro/O4 Lite cameras and simulated camera mounts, with dedicated 3D-printed camera mounting parts.
CNC Machined Center Plate: High-precision CNC machining ensures "zero-gap" component fitting, eliminating color mismatch and ensuring perfect alignment.

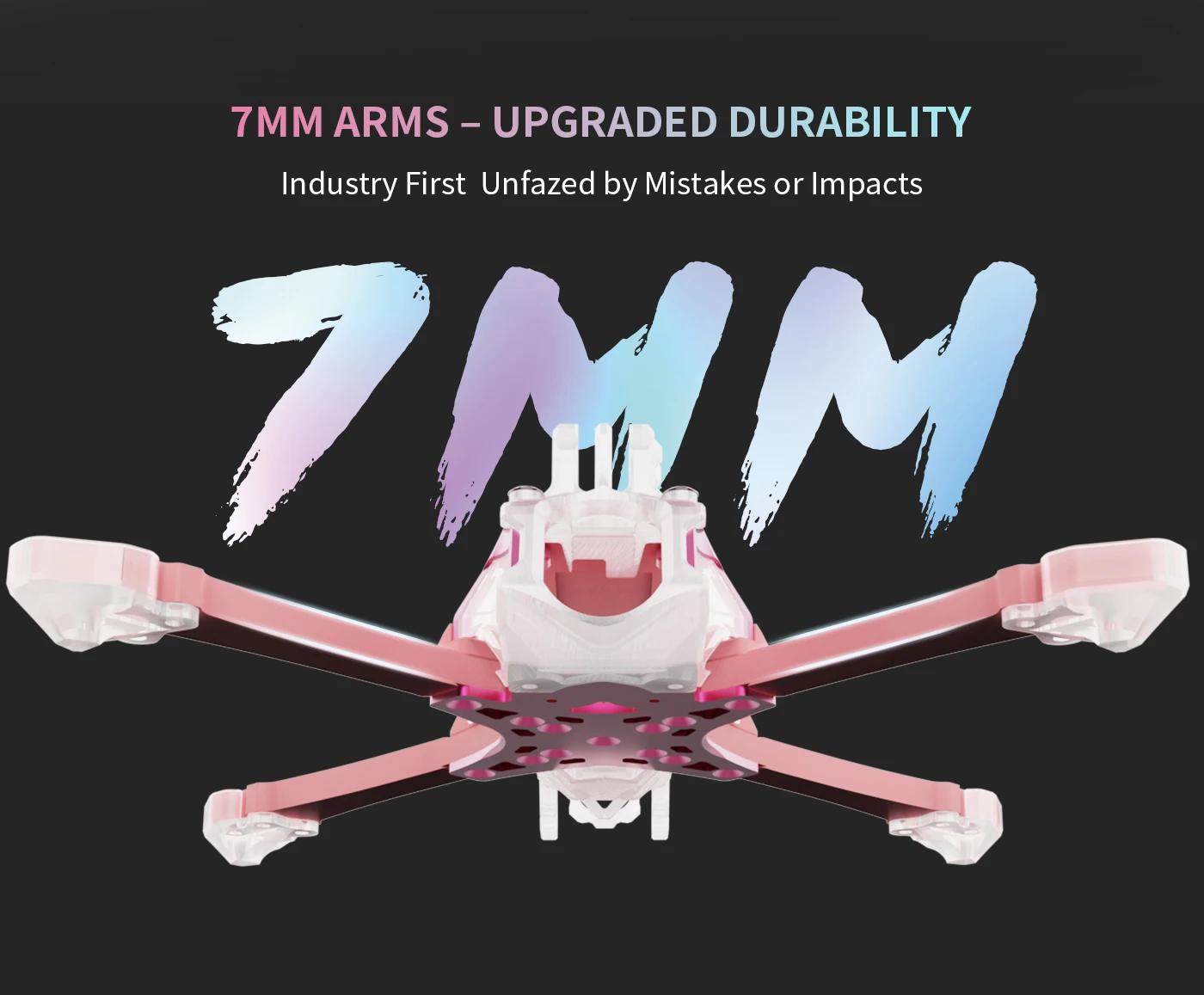

7M Motor Mount Upgrade: Reinforced motor mount design for improved durability and vibration resistance.

Customizable Aesthetics

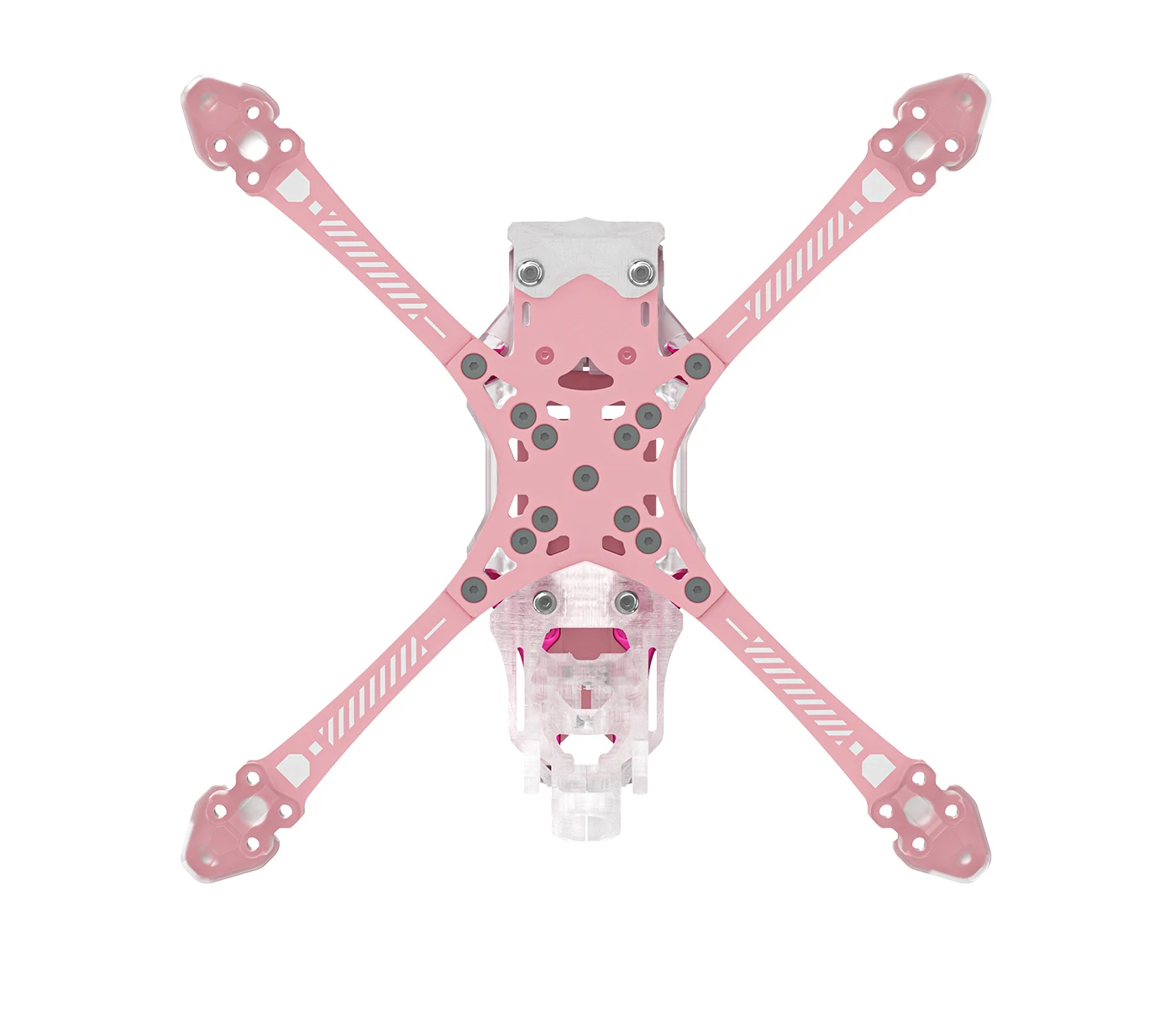

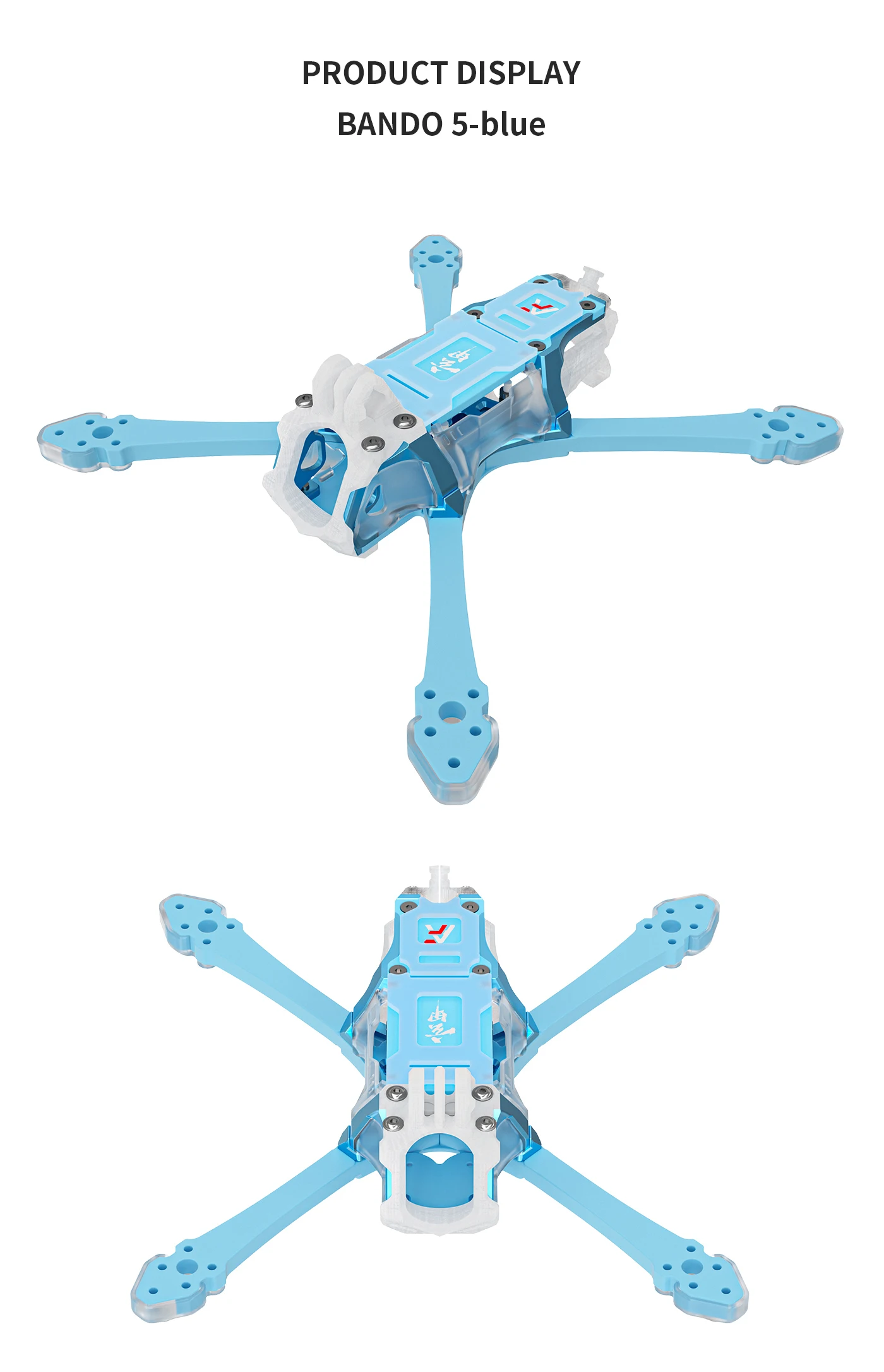

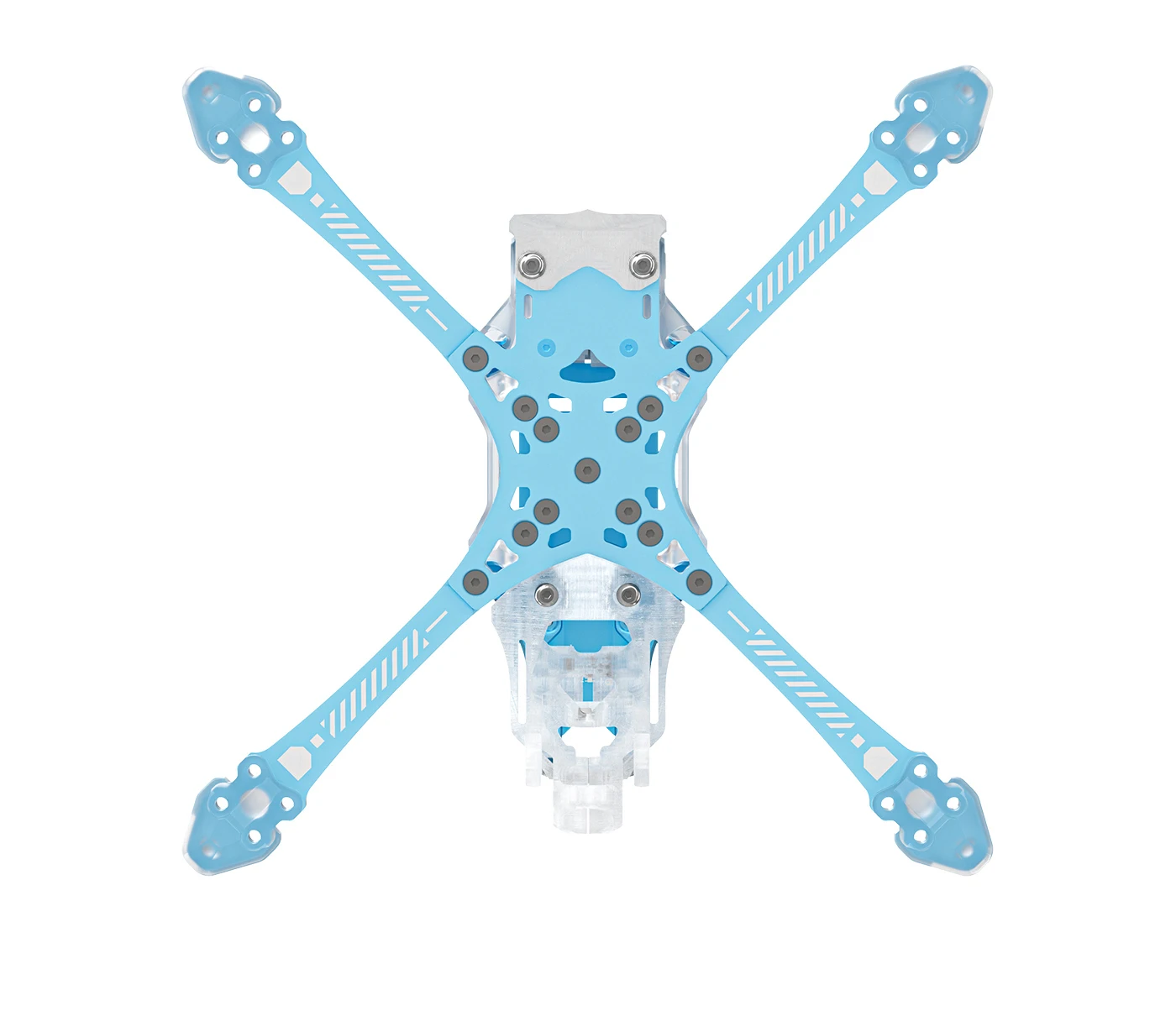

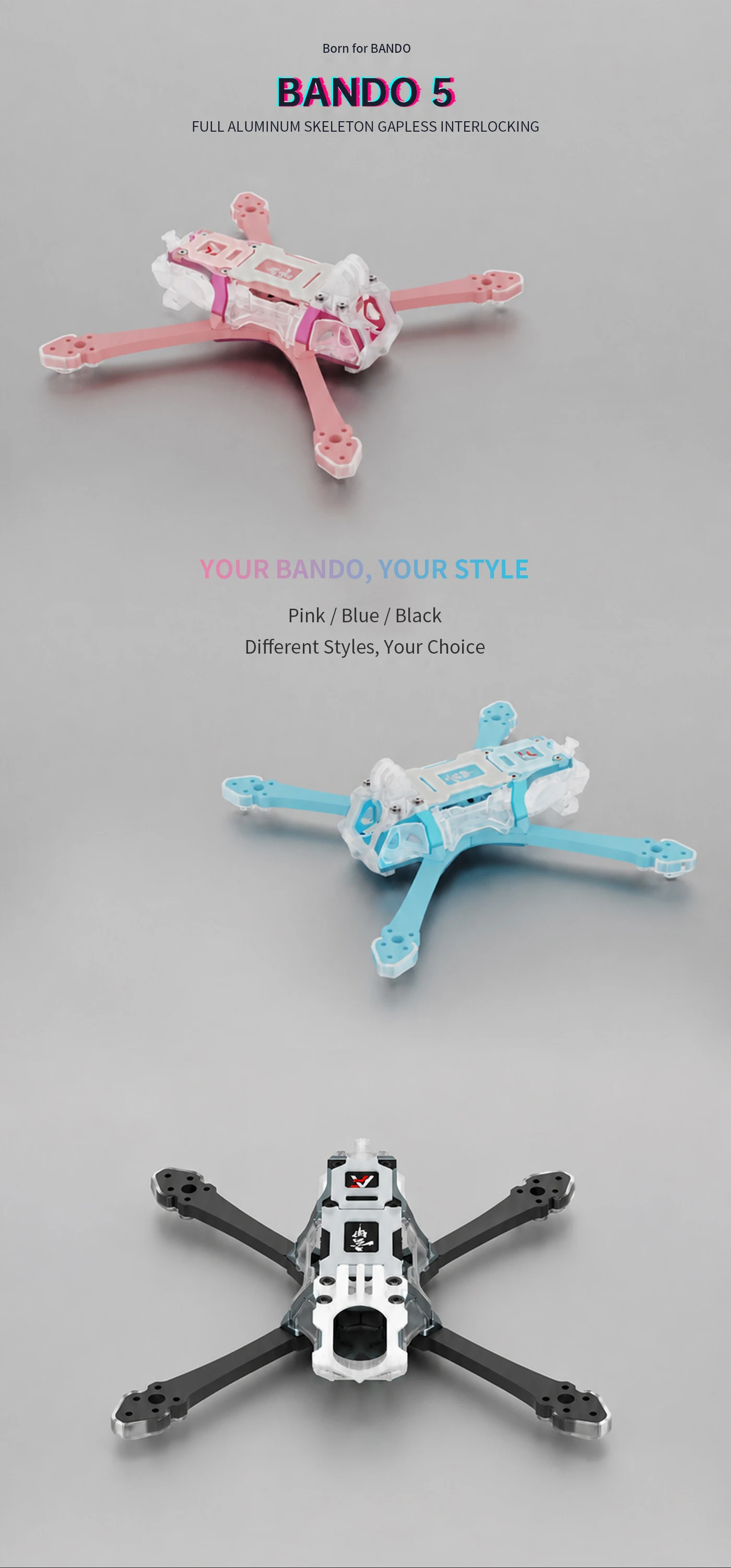

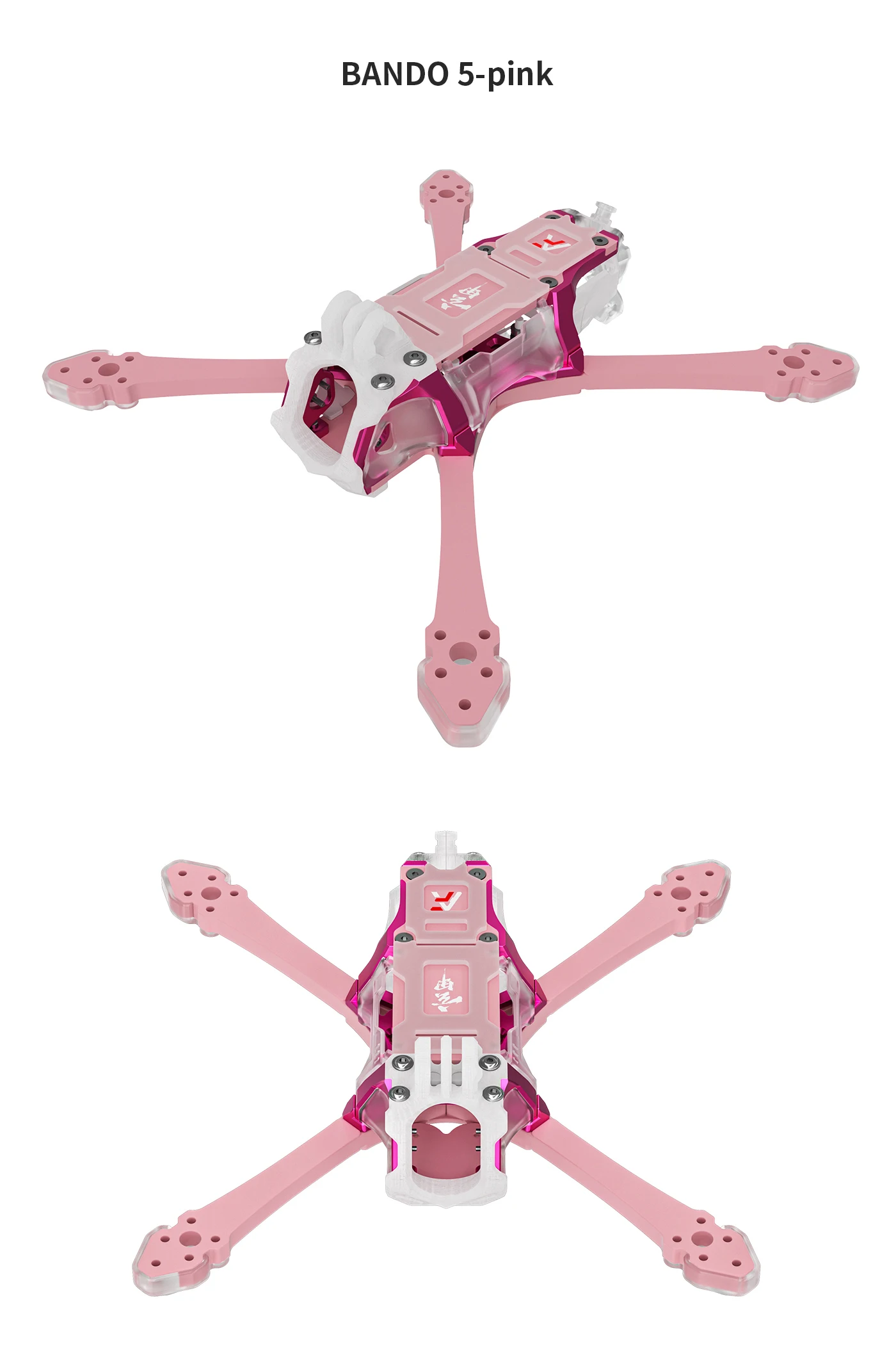

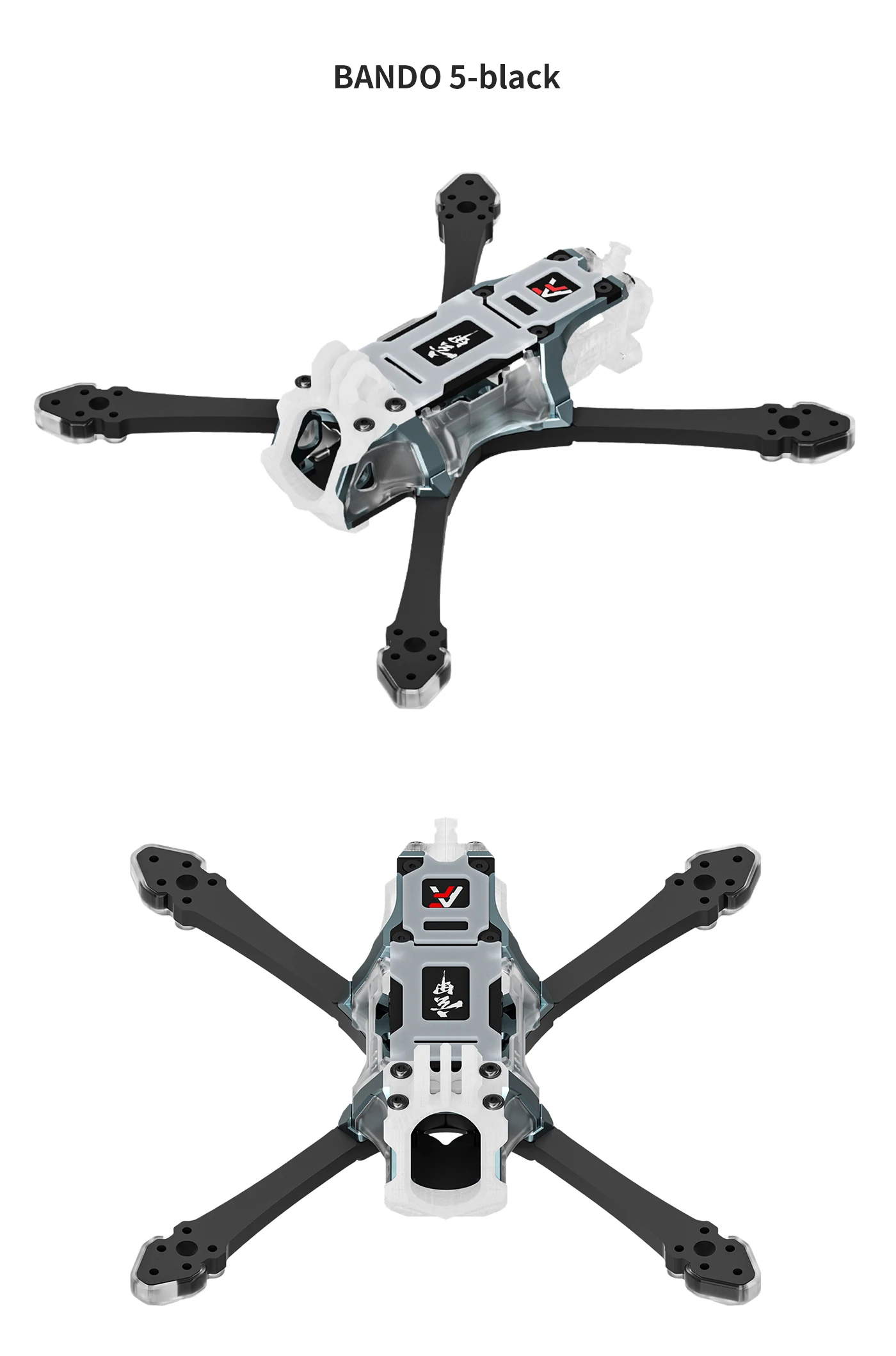

Three color options: Pink, Blue, Black to match your personal style.
Modular design allows easy replacement of parts and customization for different flying styles.

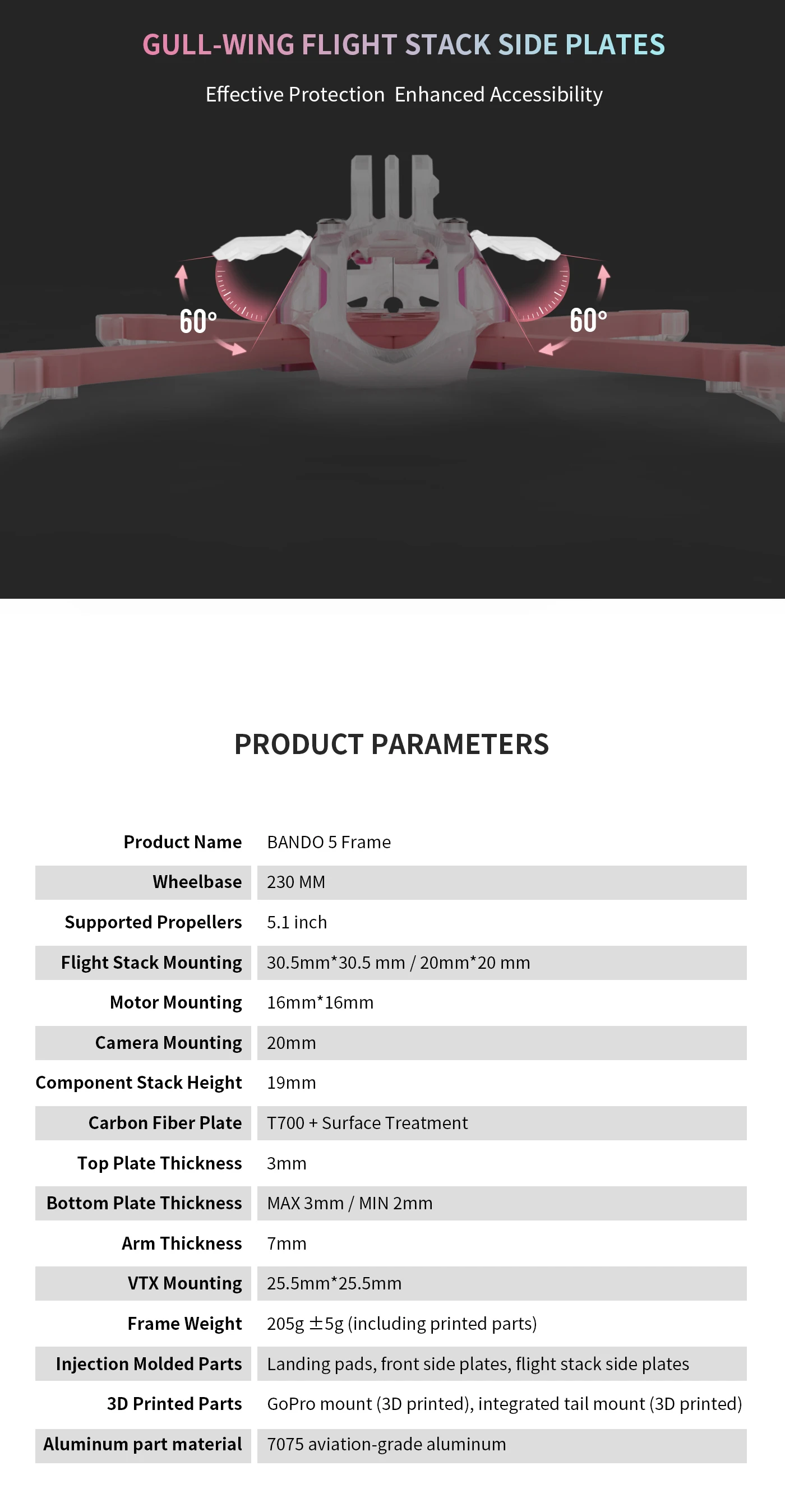

Product Specifications

Item	Details
Product Name	BANDO 5 Frame Kit

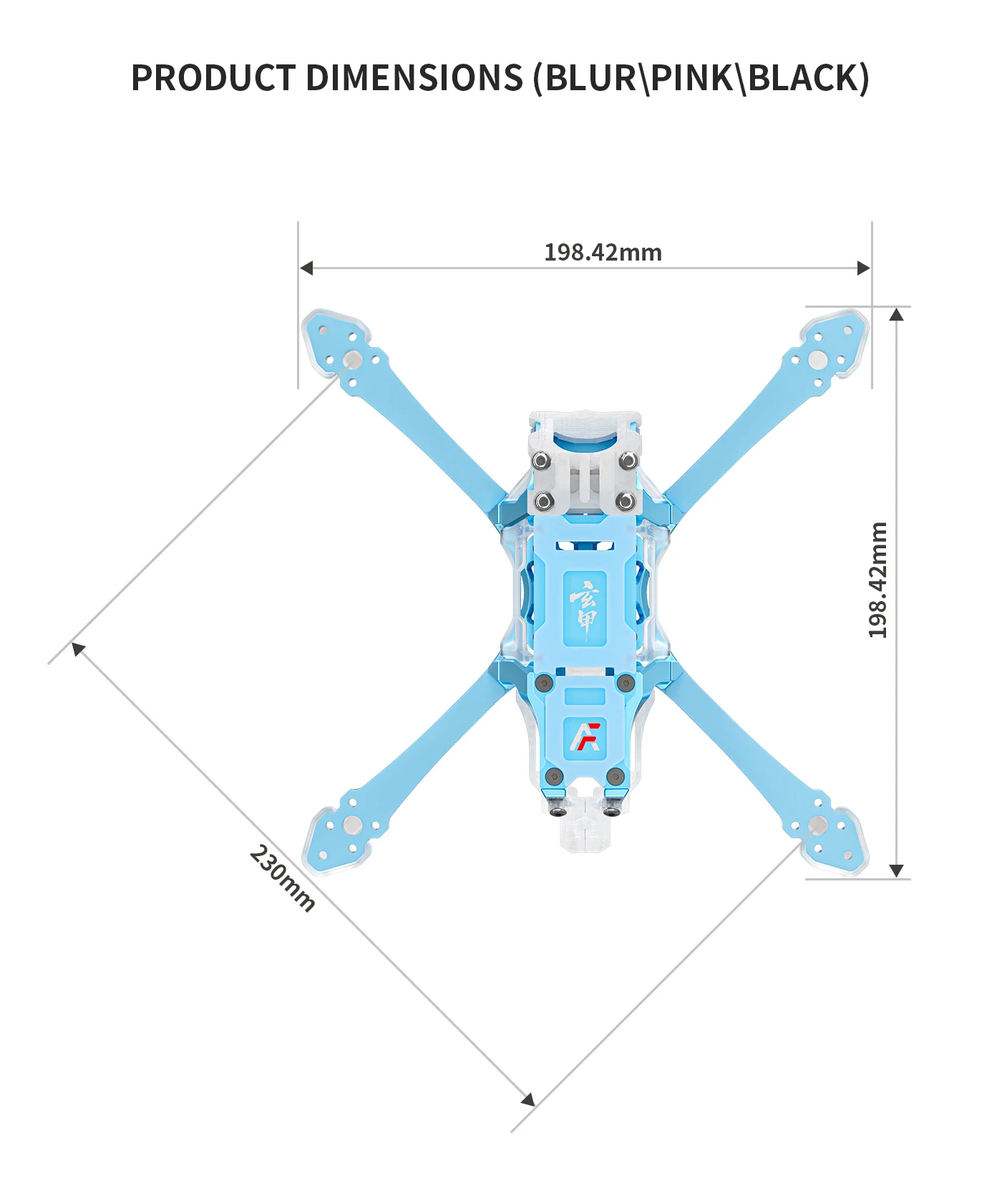

Wheelbase	230mm
Compatible Propellers	5.1-inch
Motor Mount	7M (reinforced design)
Camera Mount	DJI O4 Pro/O4 Lite / Simulated Camera
Material	7075 Aviation Aluminum Alloy + 3D Printed Parts + T700 Carbon Fiber
Frame Weight	205g±5g (including 3D-printed parts)
Upper Plate Thickness	3mm
Lower Plate Thickness	MAX 3mm / MIN 2mm
Battery Plate	T700+ surface-treated carbon fiber (19mm thickness)
Color Options	Pink / Blue / Black

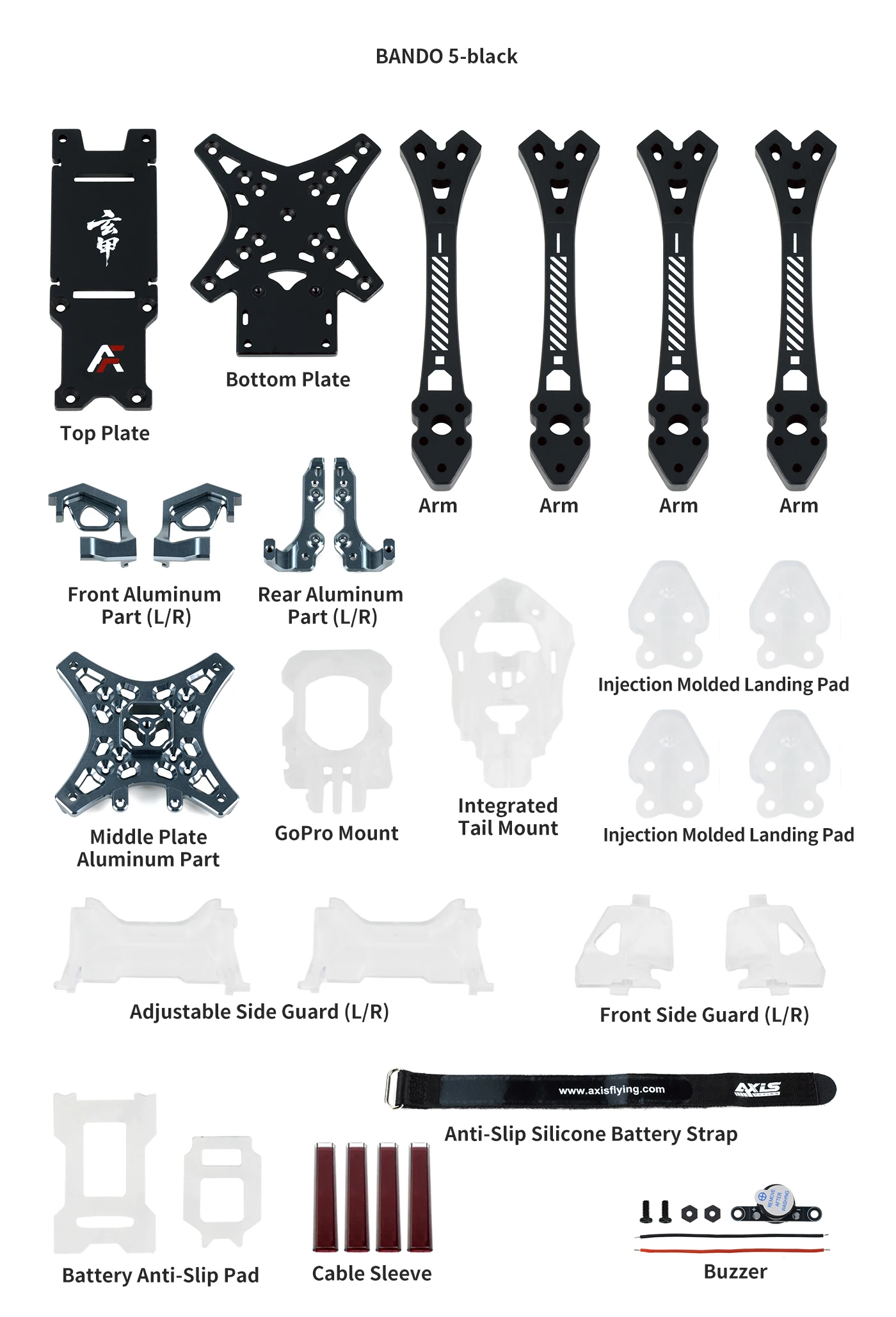

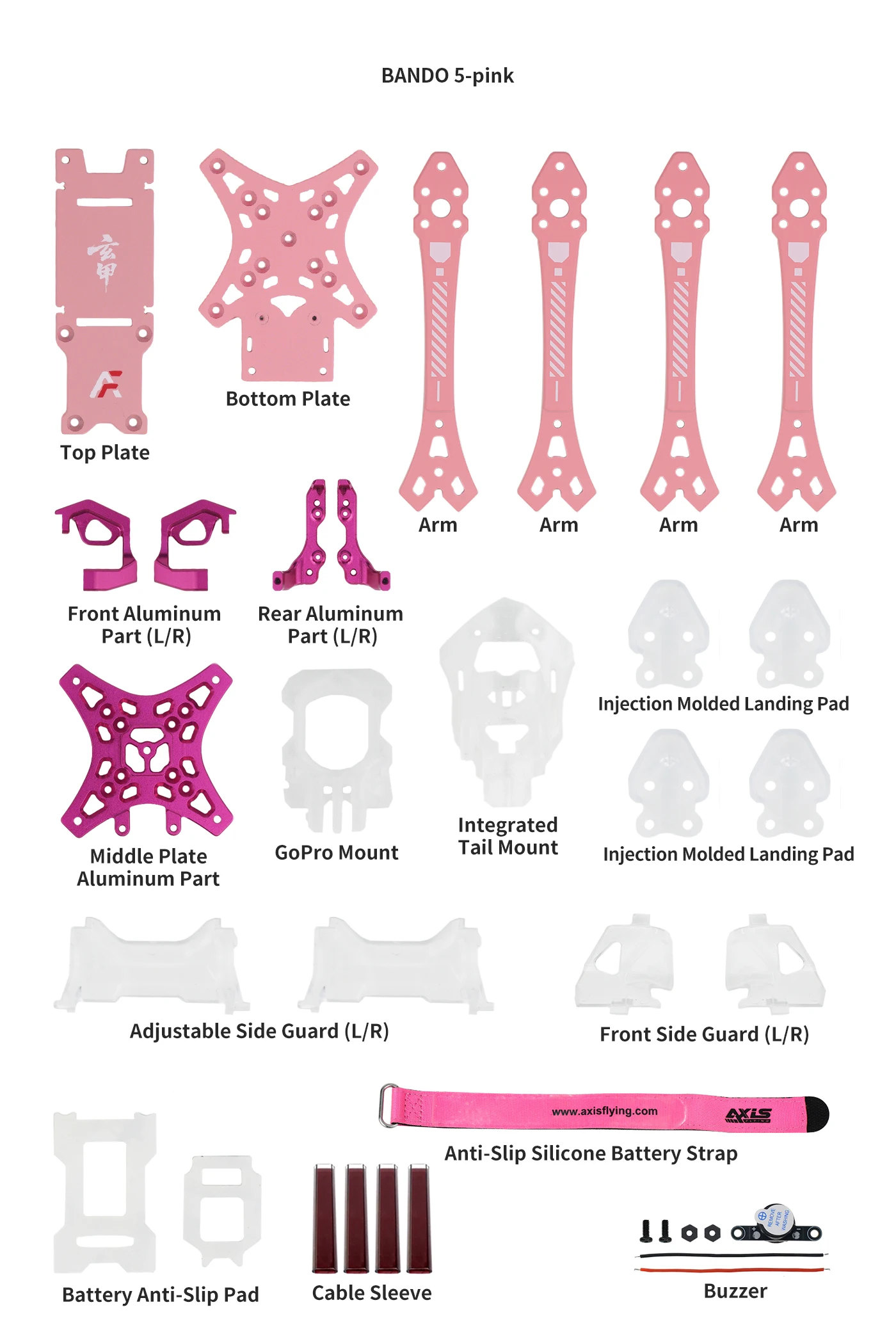

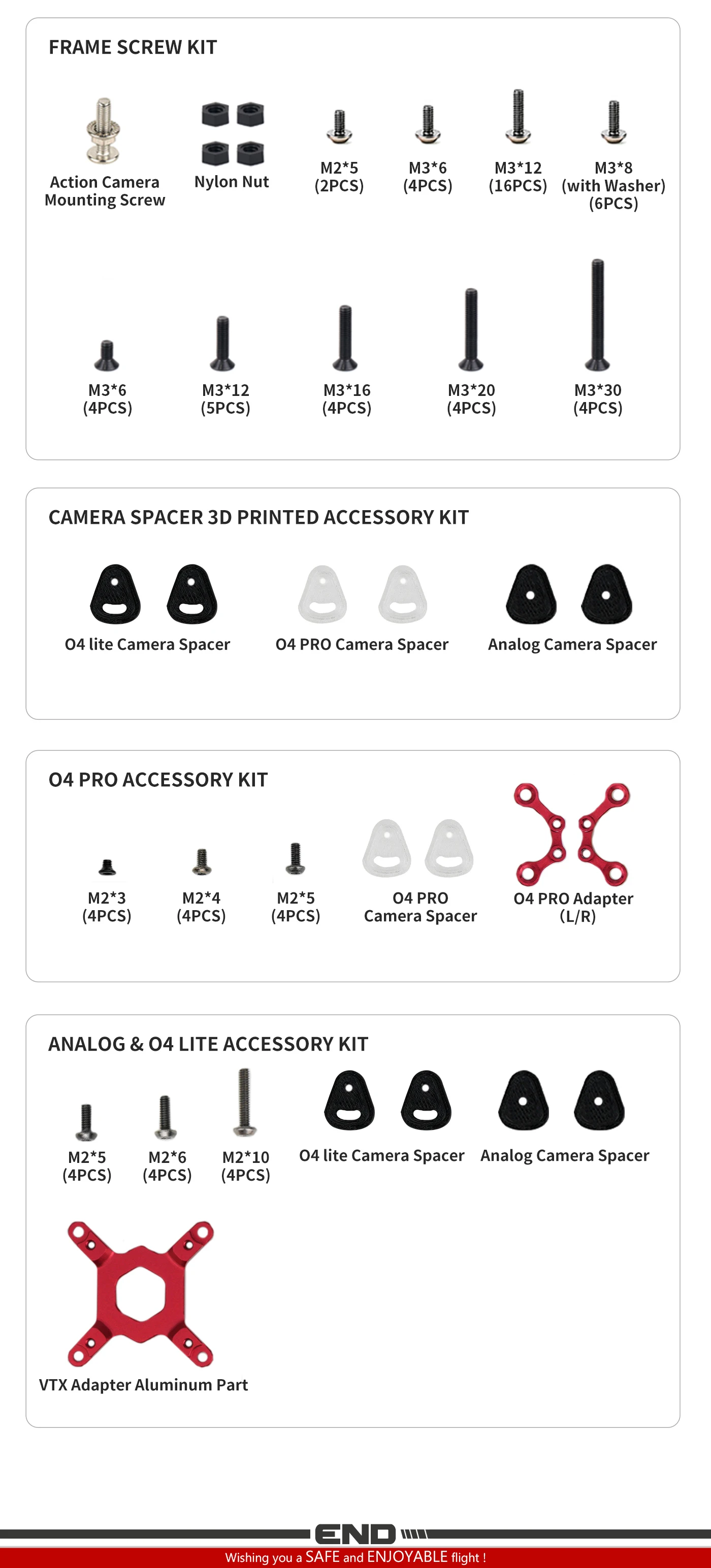

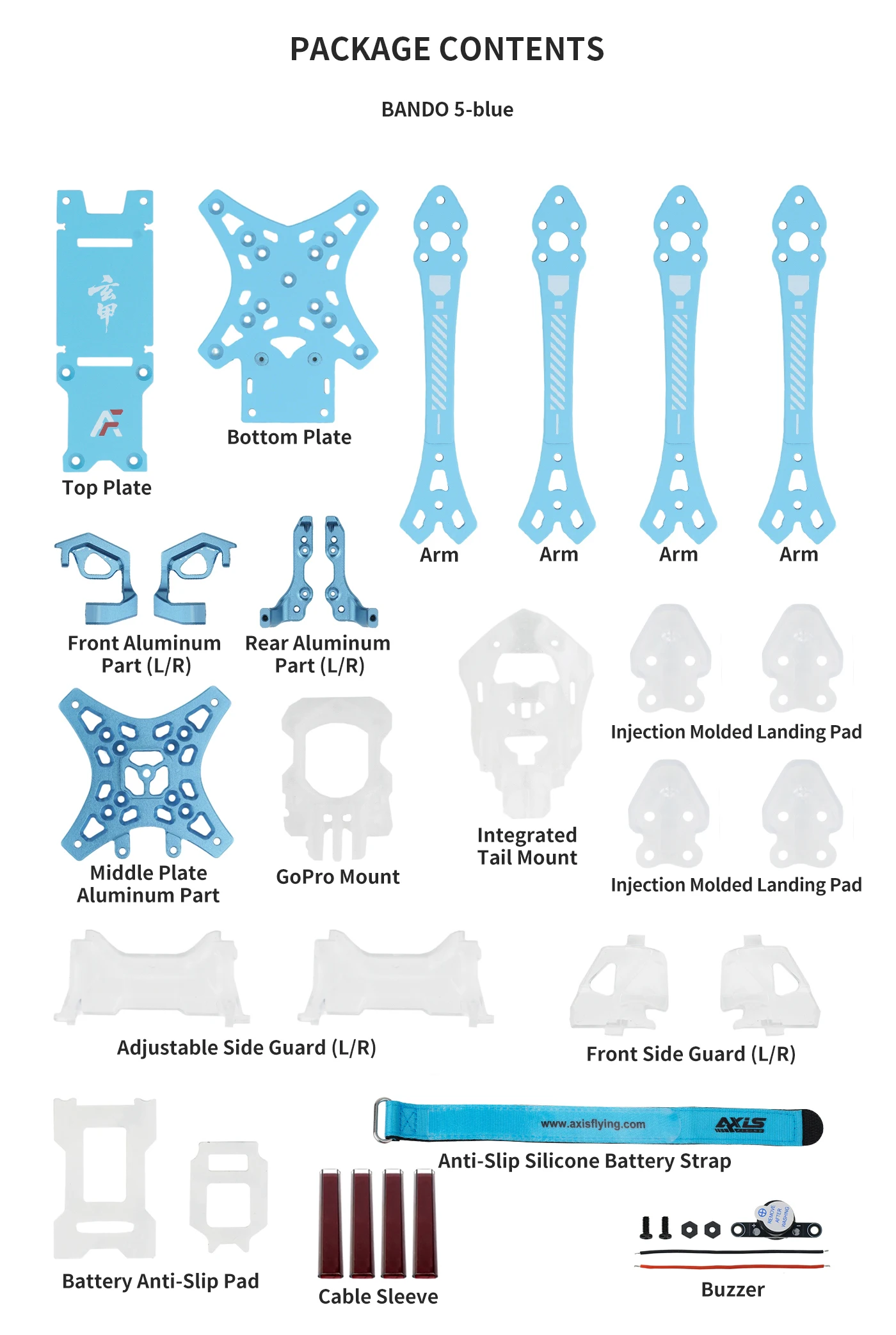

Package Contents

Full set of frame components (aluminum alloy + 3D-printed parts)

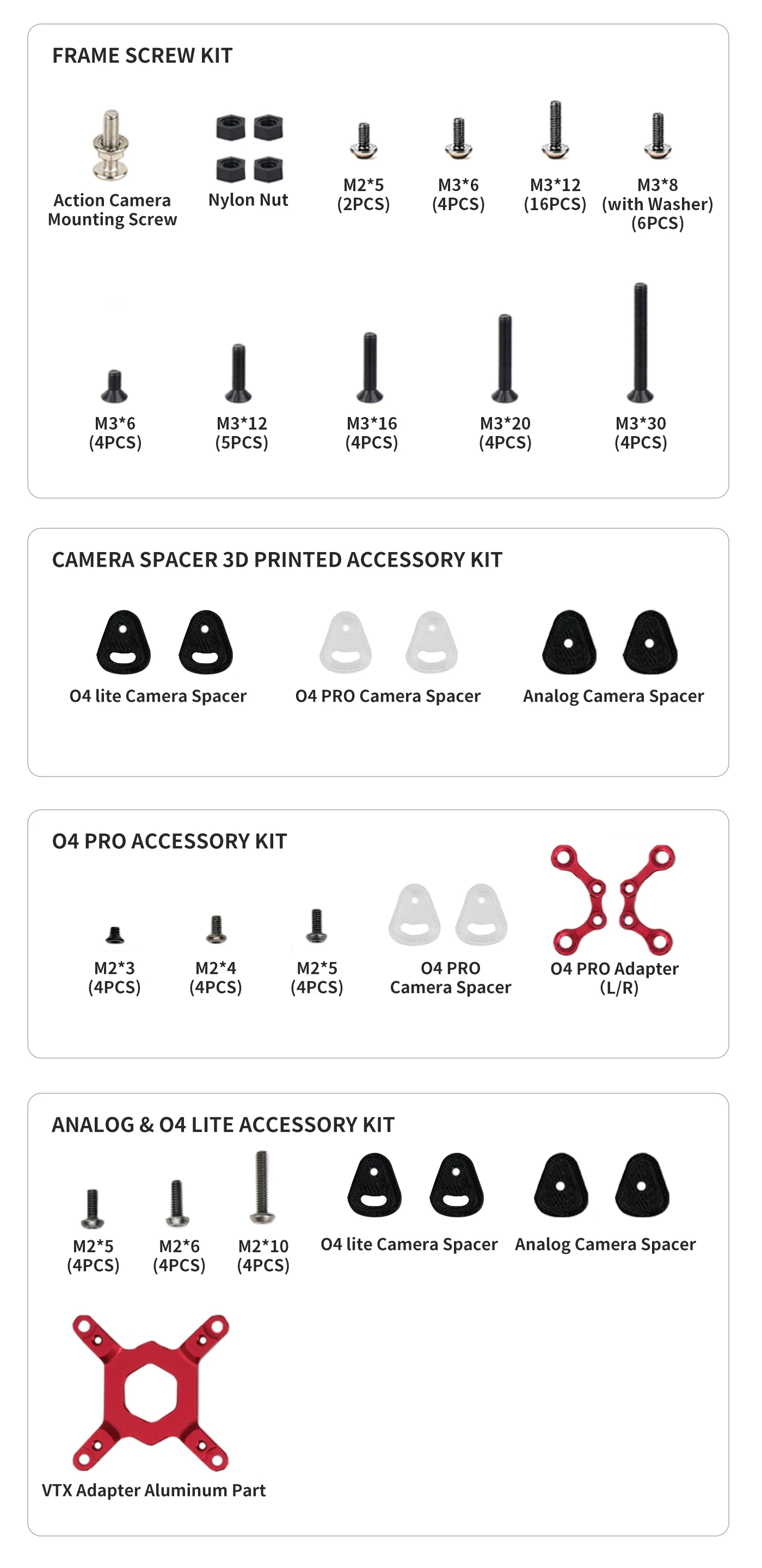

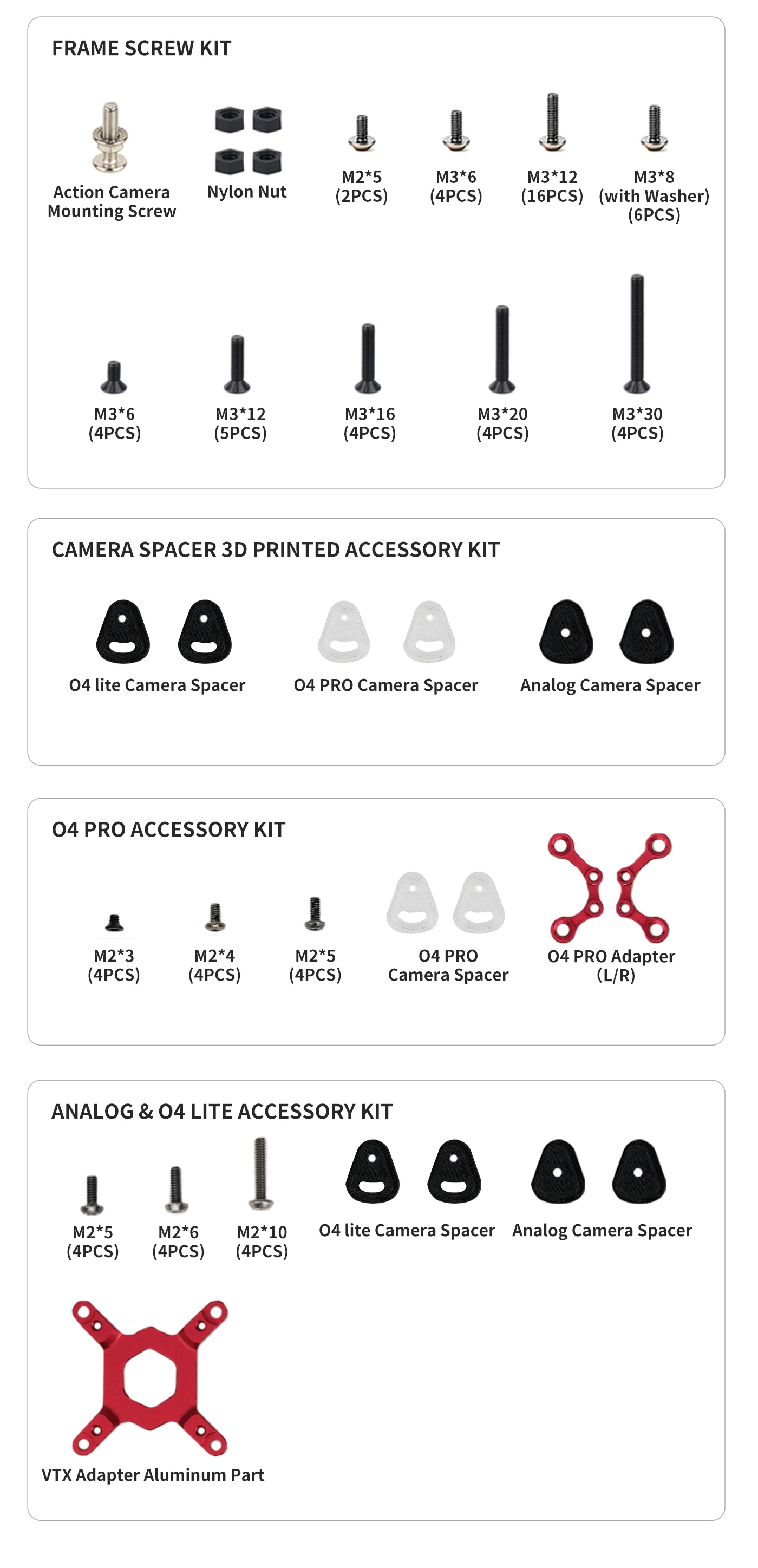

Complete screw kit (M2/M3/M1.6 screws, nuts, washers)
Battery strap, anti-slip pads, buzzer, and other necessary accessories
Optional O4 Pro/O4 Lite camera mounting kits (sold separately)

Application Scenarios

Ideal for FPV racing competitions, freestyle flying, and drone enthusiasts looking for a lightweight, durable, and high-performance frame. Perfect for building a custom racing drone with optimal power-to-weight ratio.
