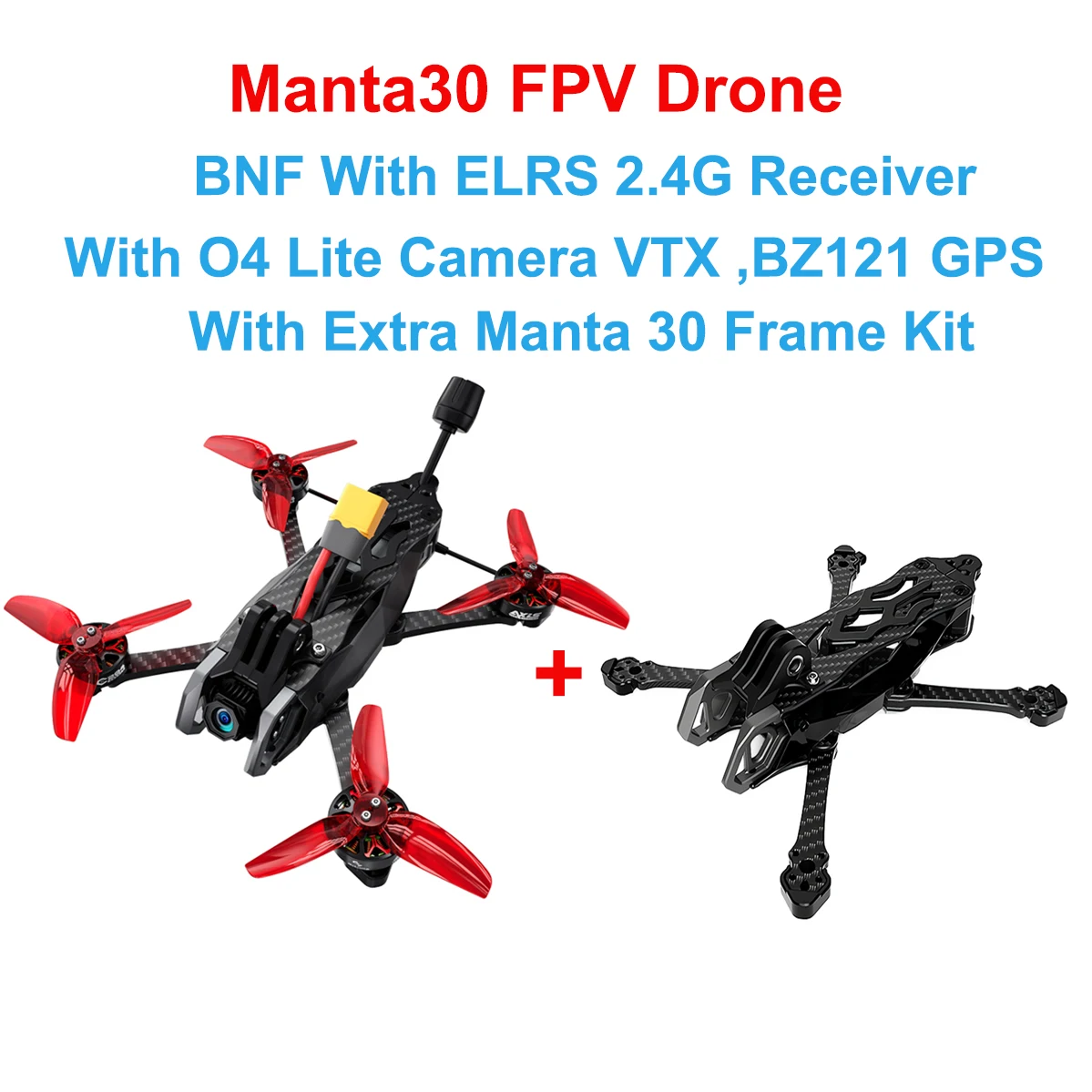

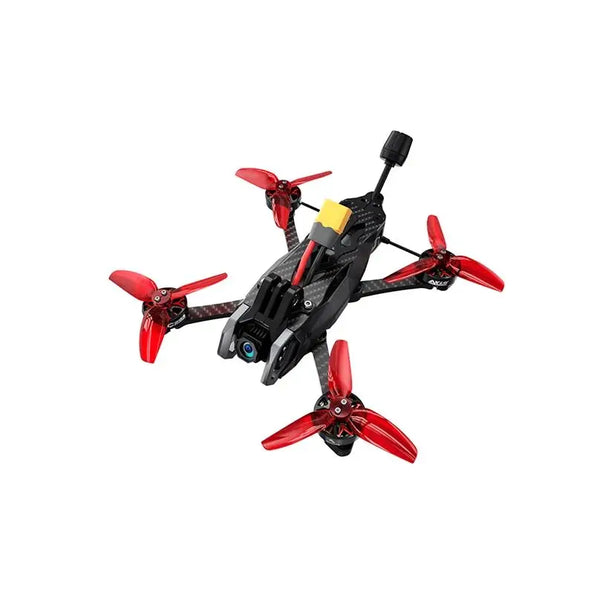

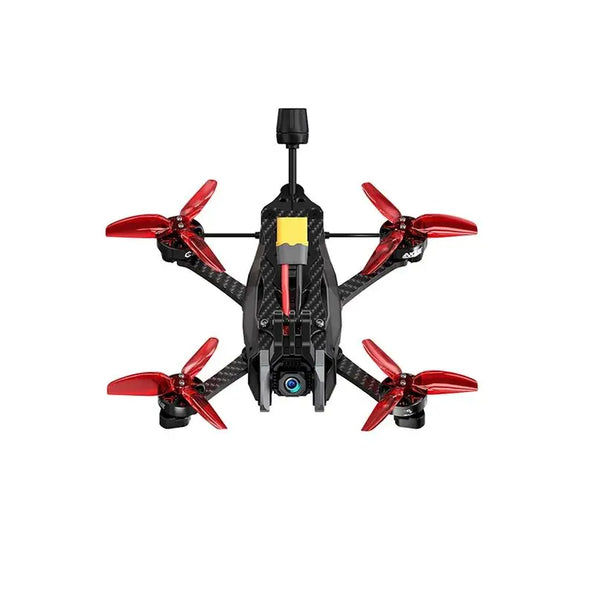

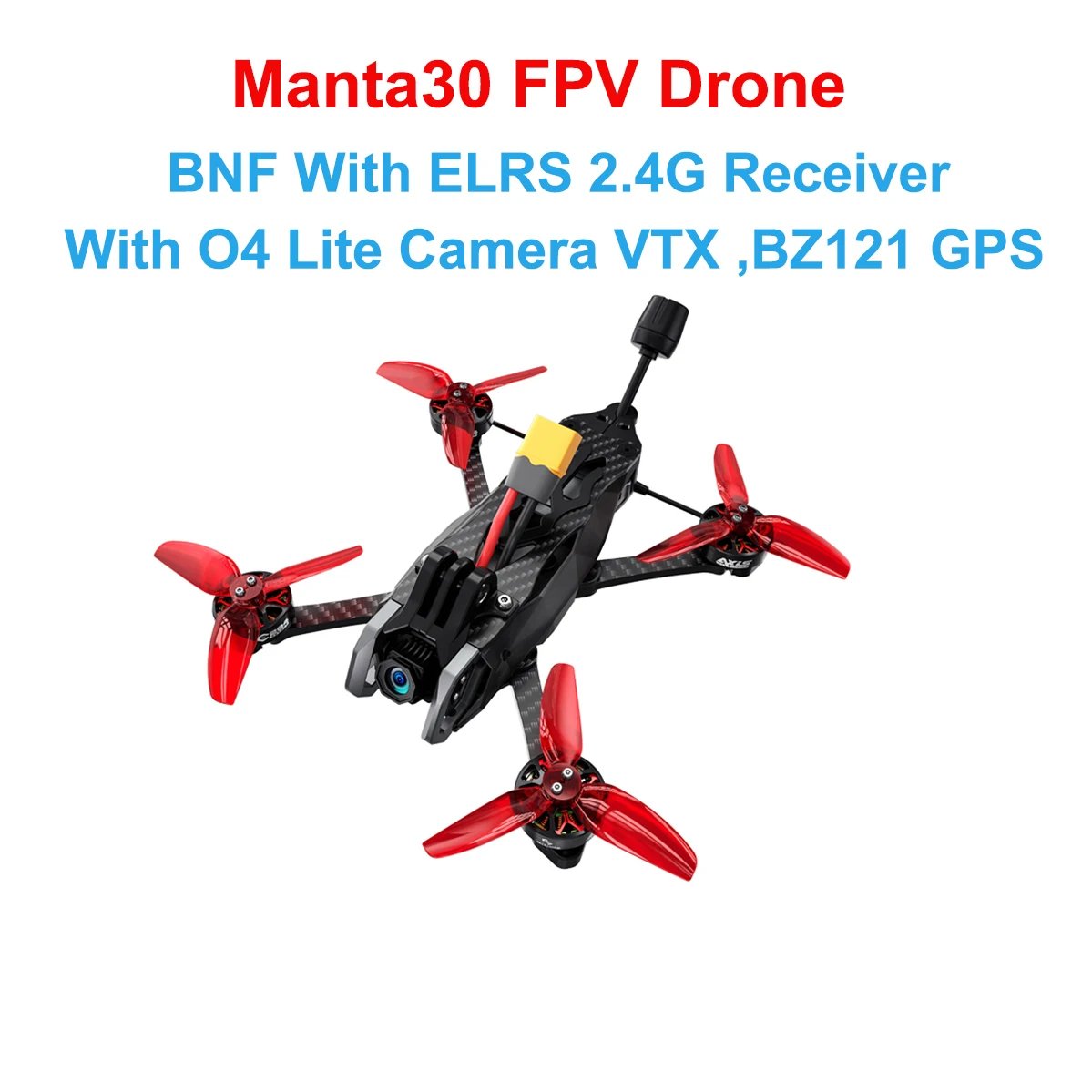

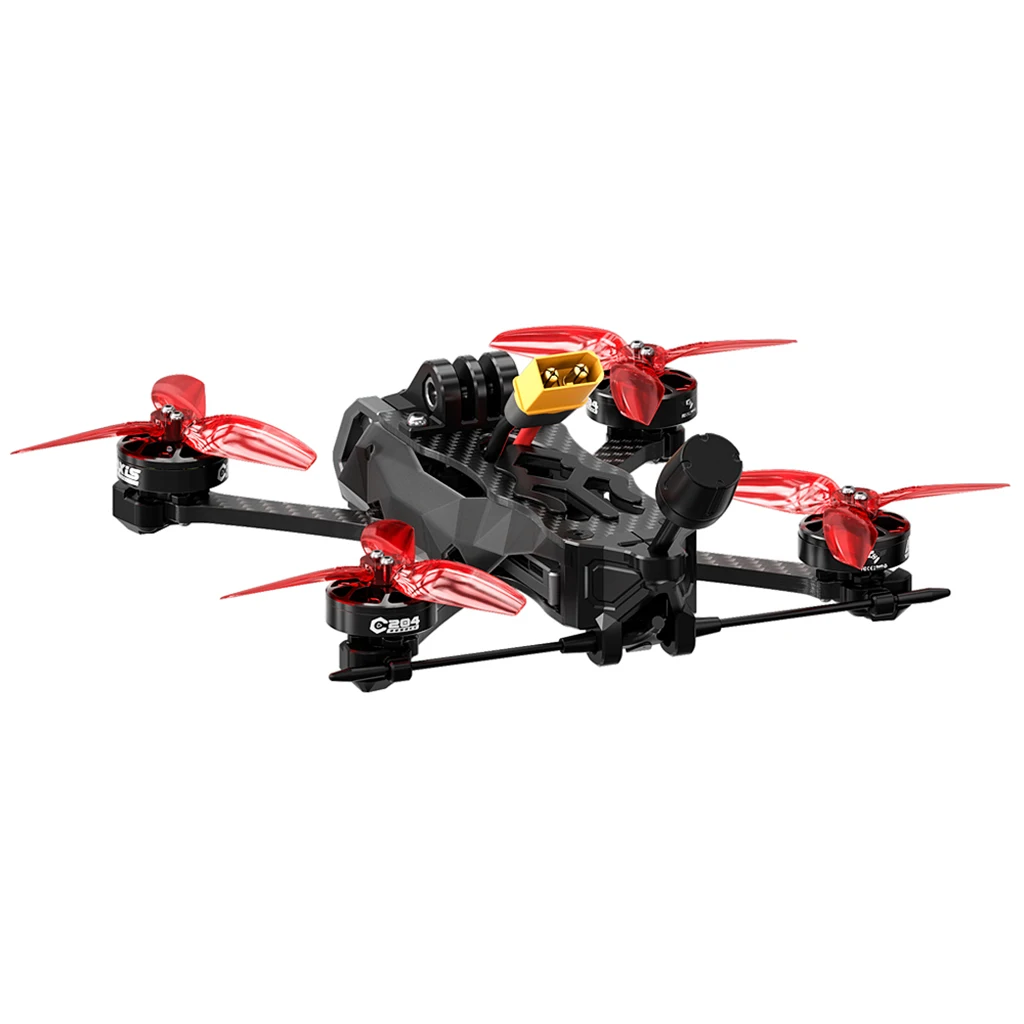

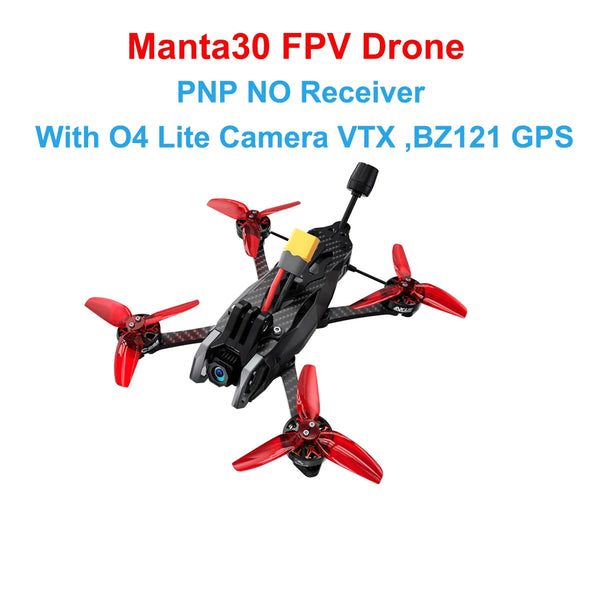

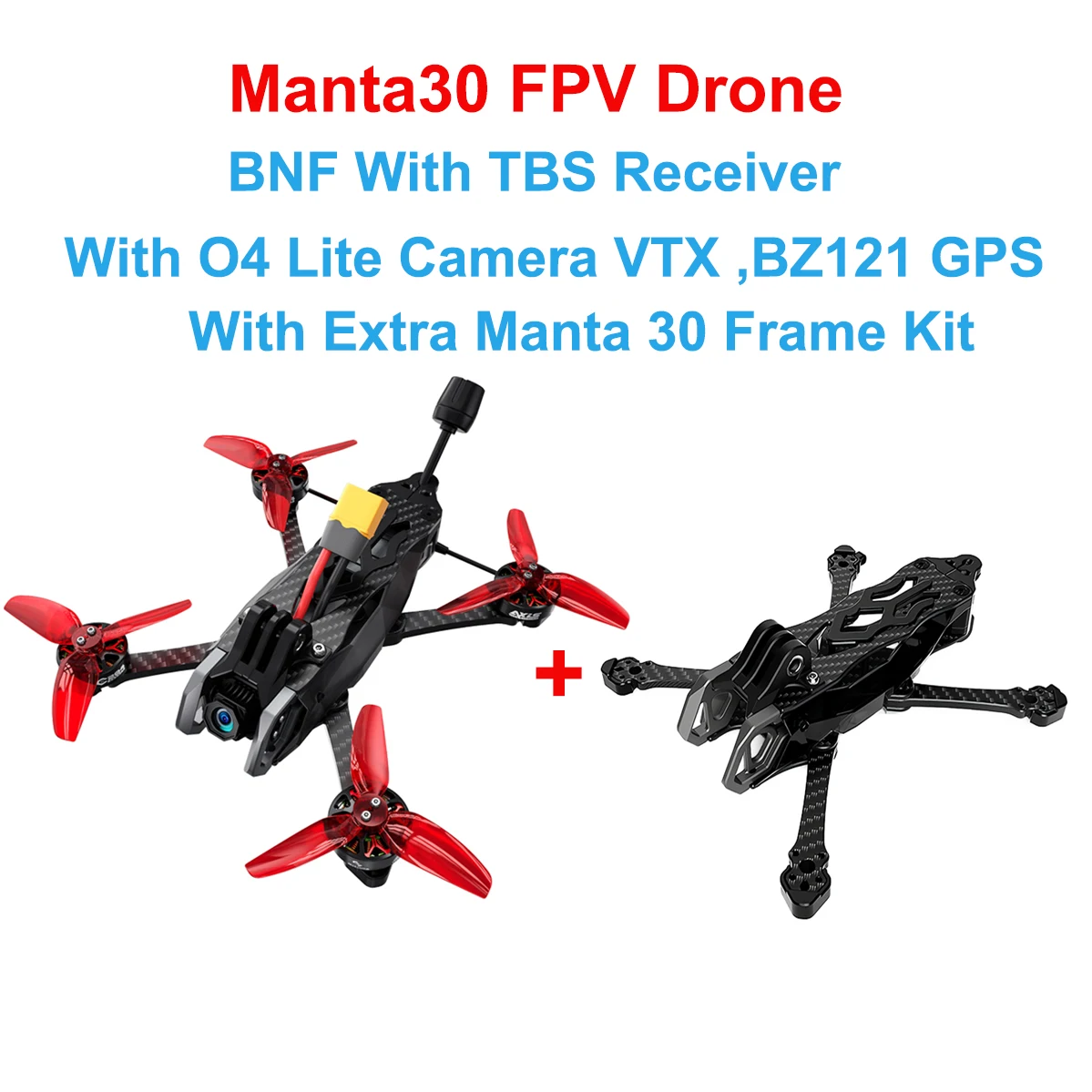

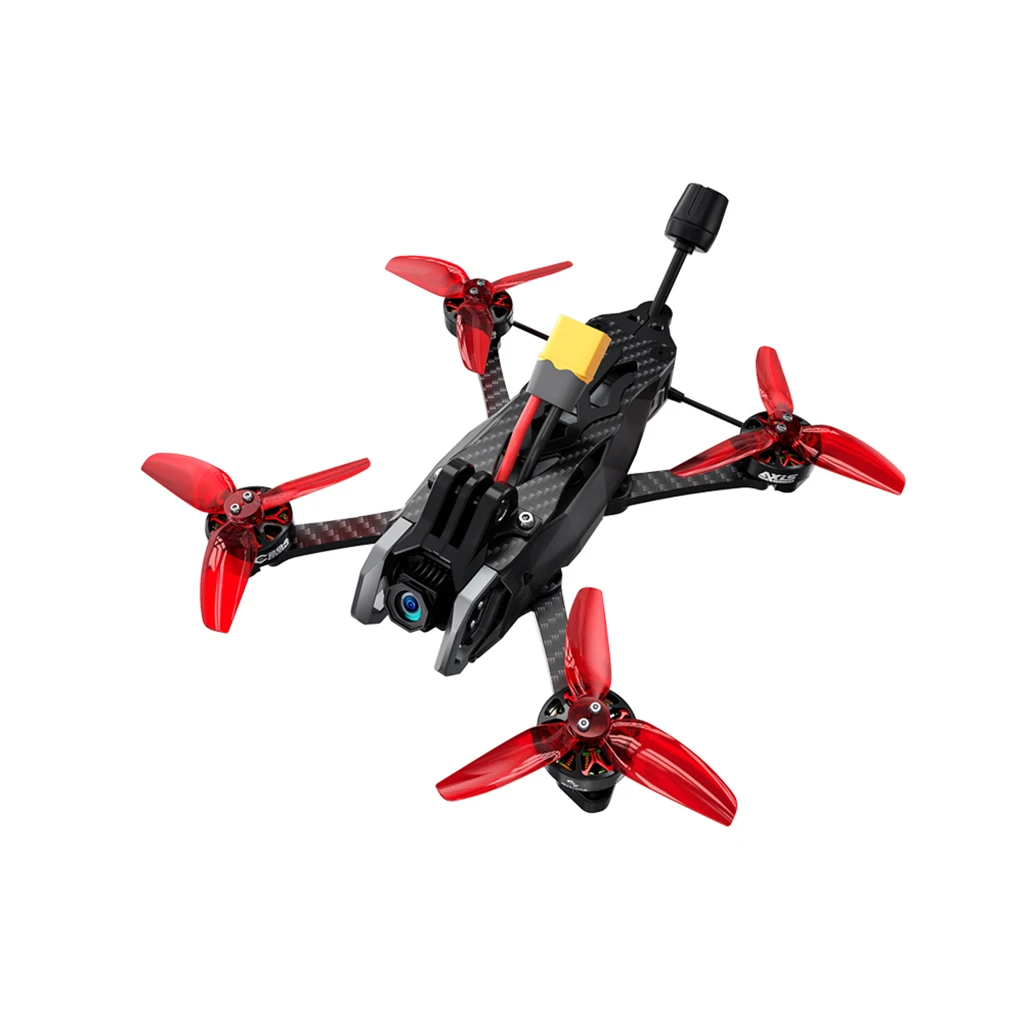

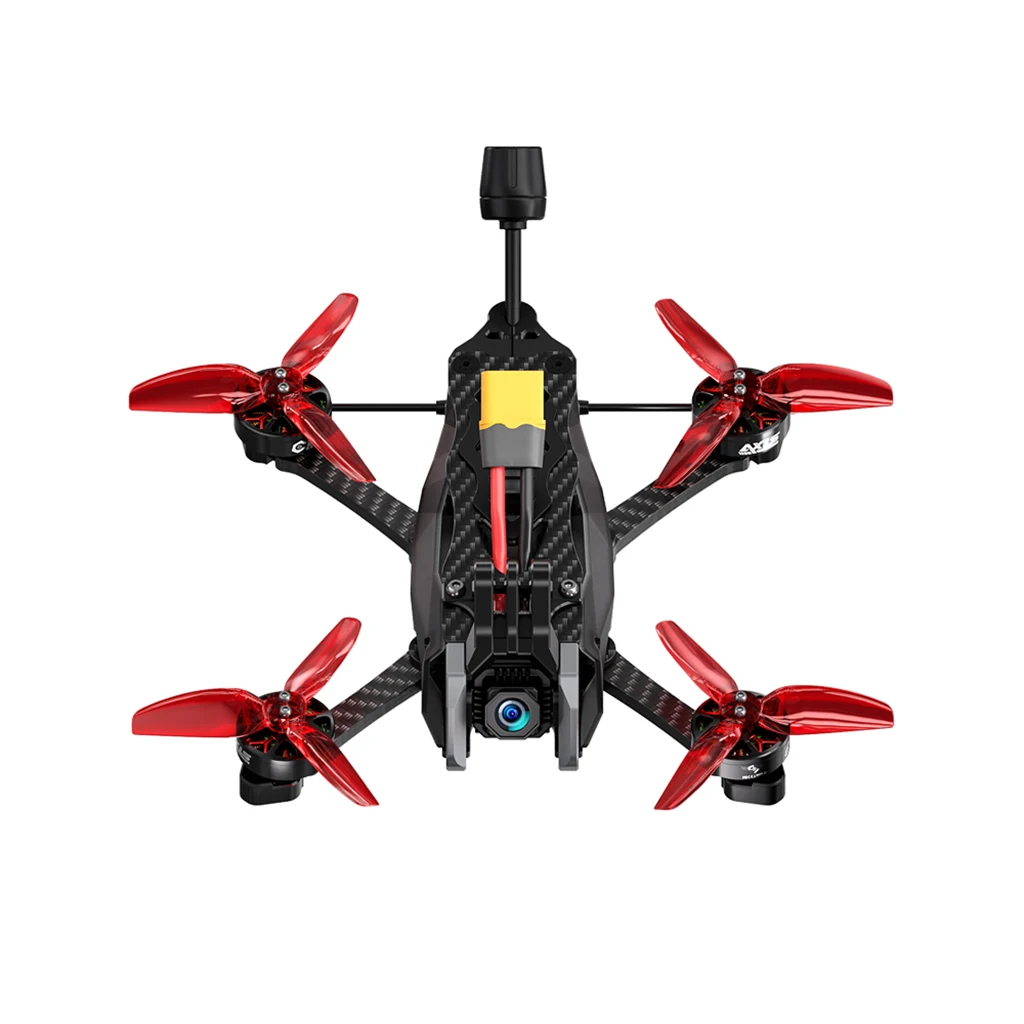

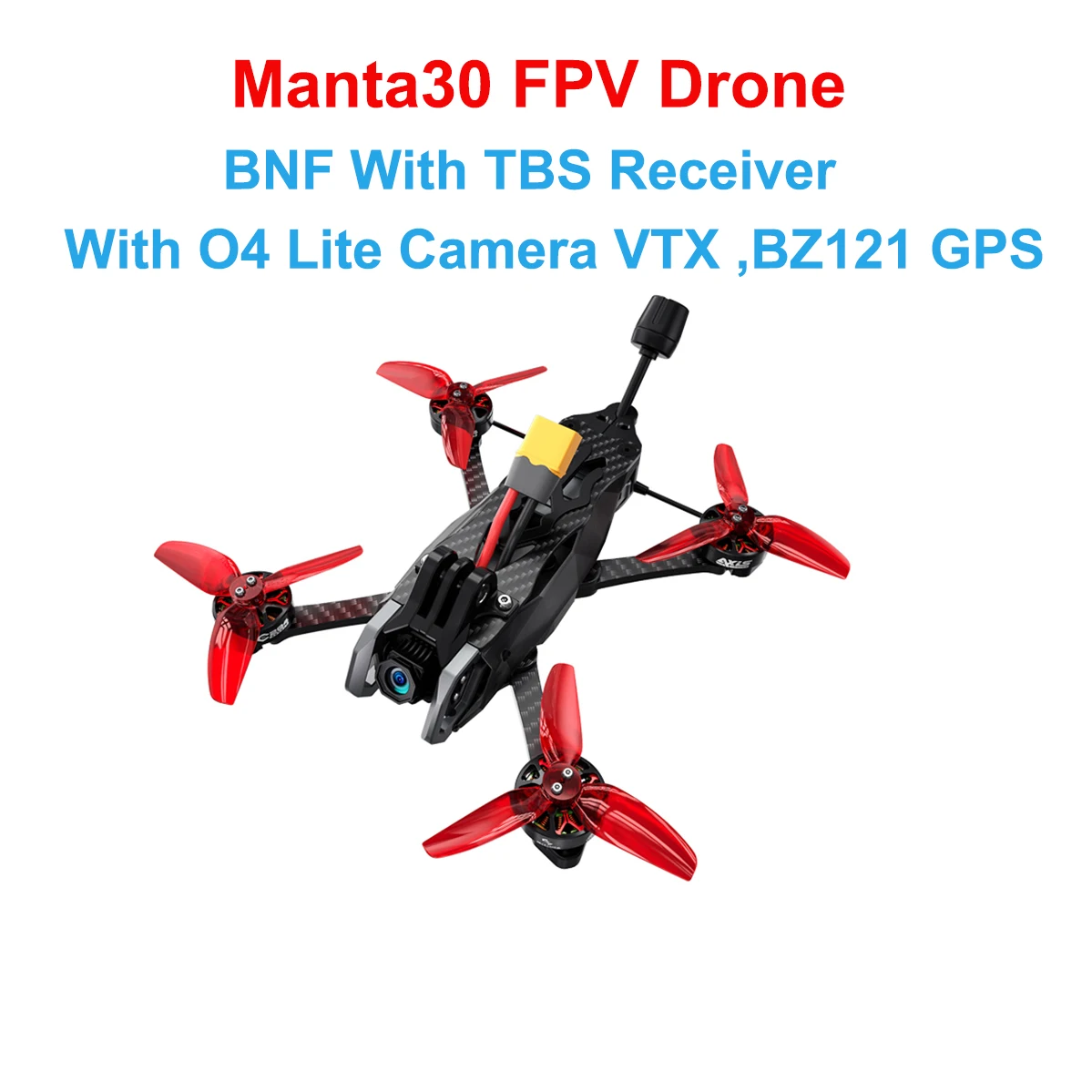

Axisflying 6S Manta30 3inch FPV Drone with GPS O4 Lite Camera VTX Argus F745 AIO Flight Controller 40A ESC 2650KV Motors
Axisflying

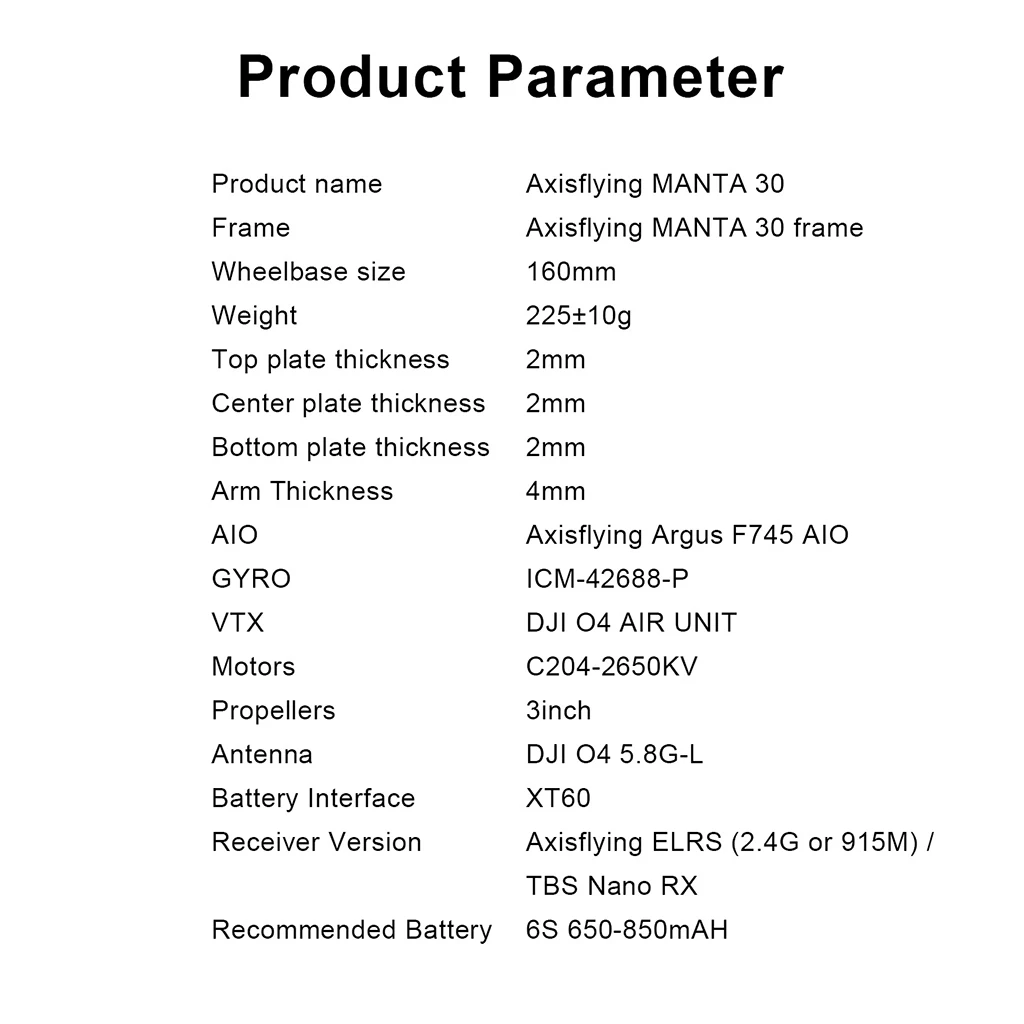

Axisflying MANTA30 frame Wheelbase size : 160mm
Weight: 225±10g
Top plate thickness: 2mm
Center plate thickness: 2mm
Bottom plate thickness: 2mm
Arm Thickness: 4mm
AIO: Axisflying Argus F745 AIO
GYRO: ICM-42688-P

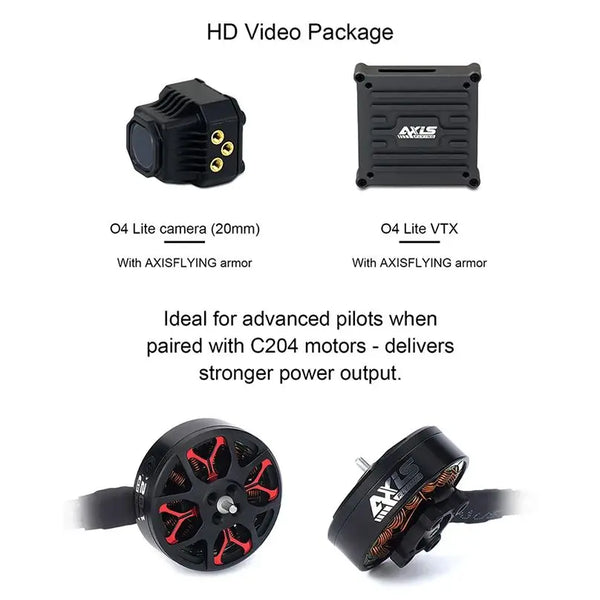

VTX: for DJI O4 AIR UNIT
Motors: C204-2650KV
Propellers: 3inch
Antenna: for DJI O4 5.8G-L
Battery Interface: XT60
Receiver Version: Axisflying ELRS (2.4G or 915M) /TBS Nano RX
Recommended Battery : 6S 650-850mAH(Not including)

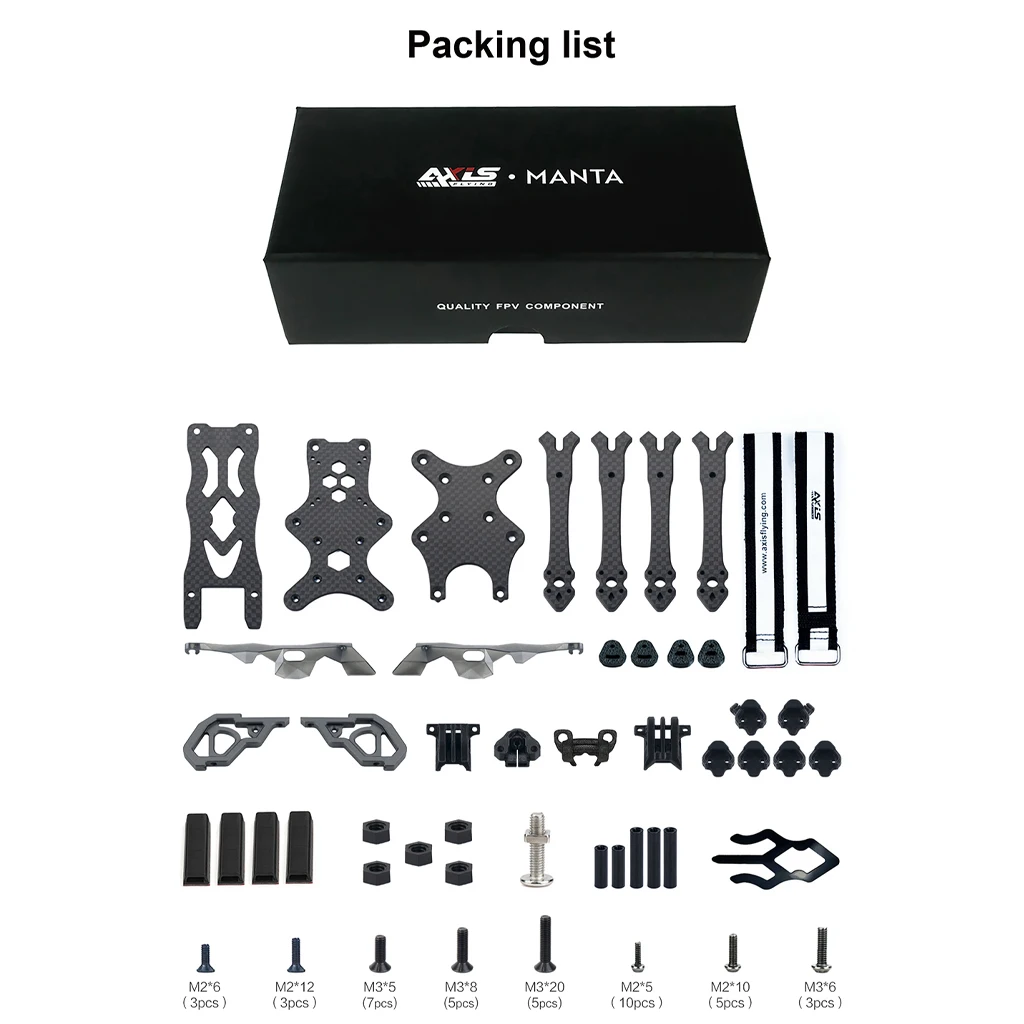

Packing List:
MANTA30 Quadcopter *1
Propeller *2L + 2R
Battery Strap *2
Battery pad *2

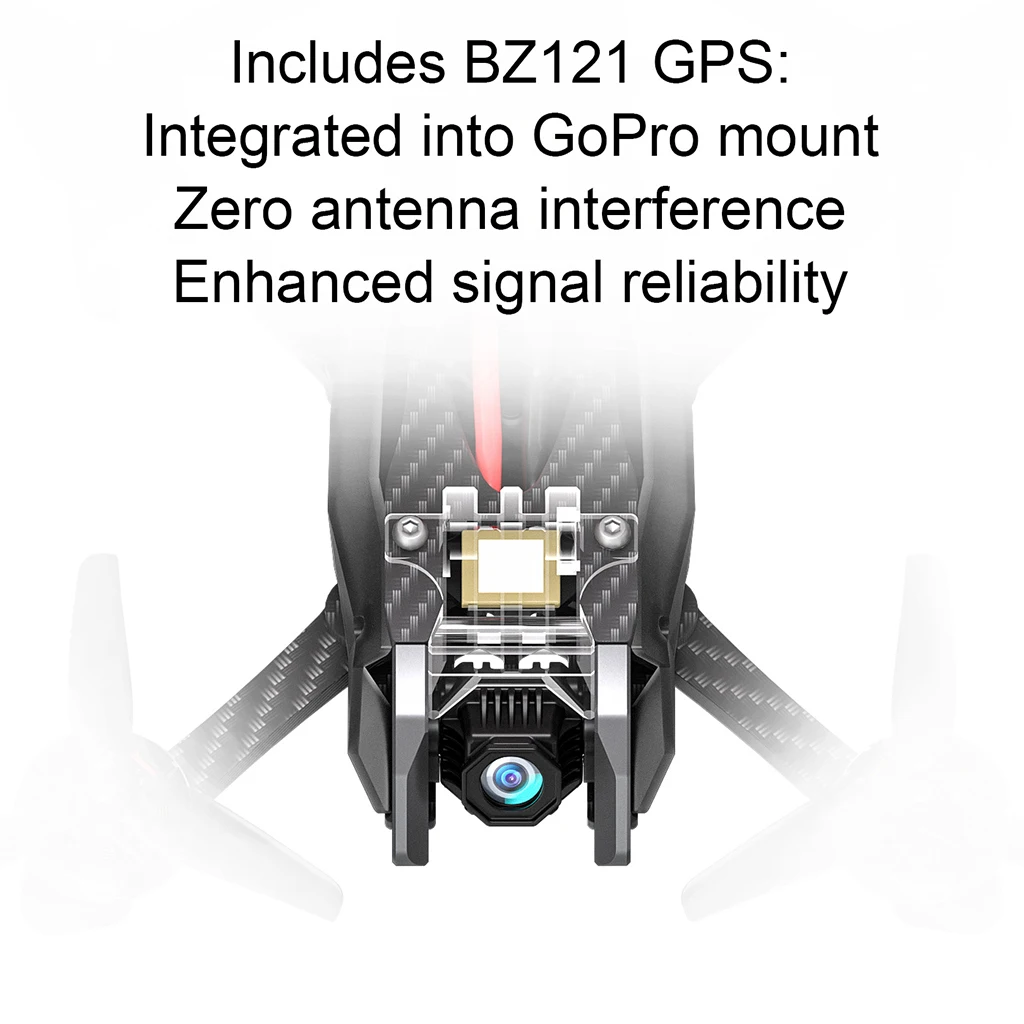

For GoPro Mount(Practical Version) *1
M1.5L Hex Screwdriver *1
M2L Hex Screwdriver *1
M3L Hex Screwdriver *1
Manual *1
Stickers *2

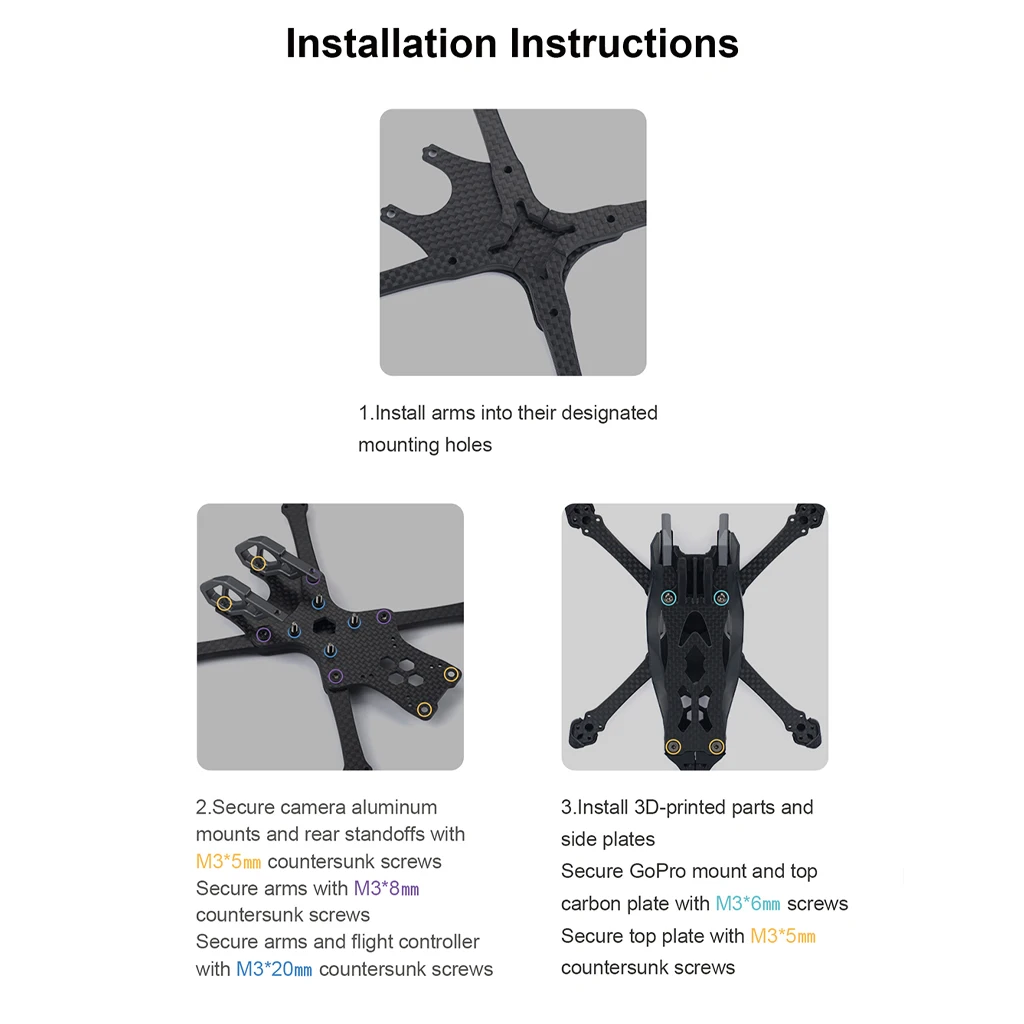

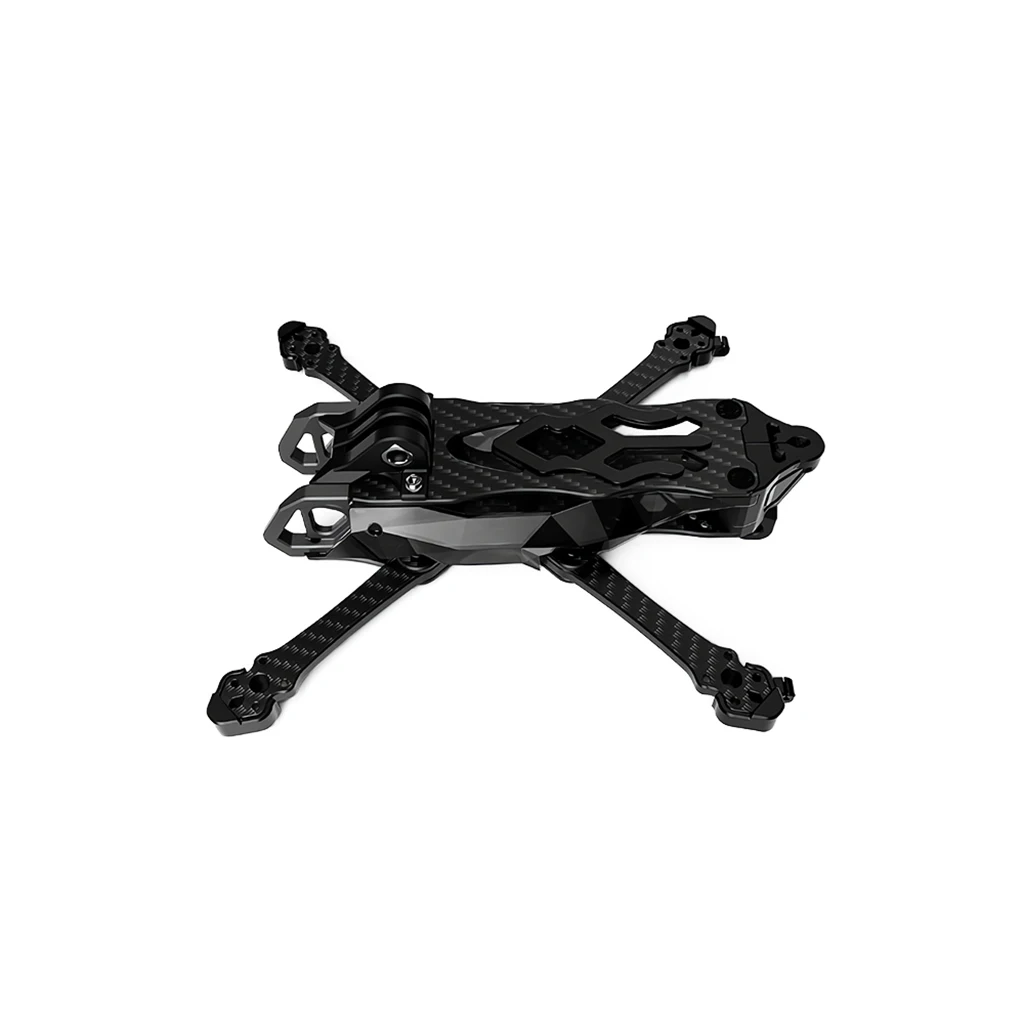

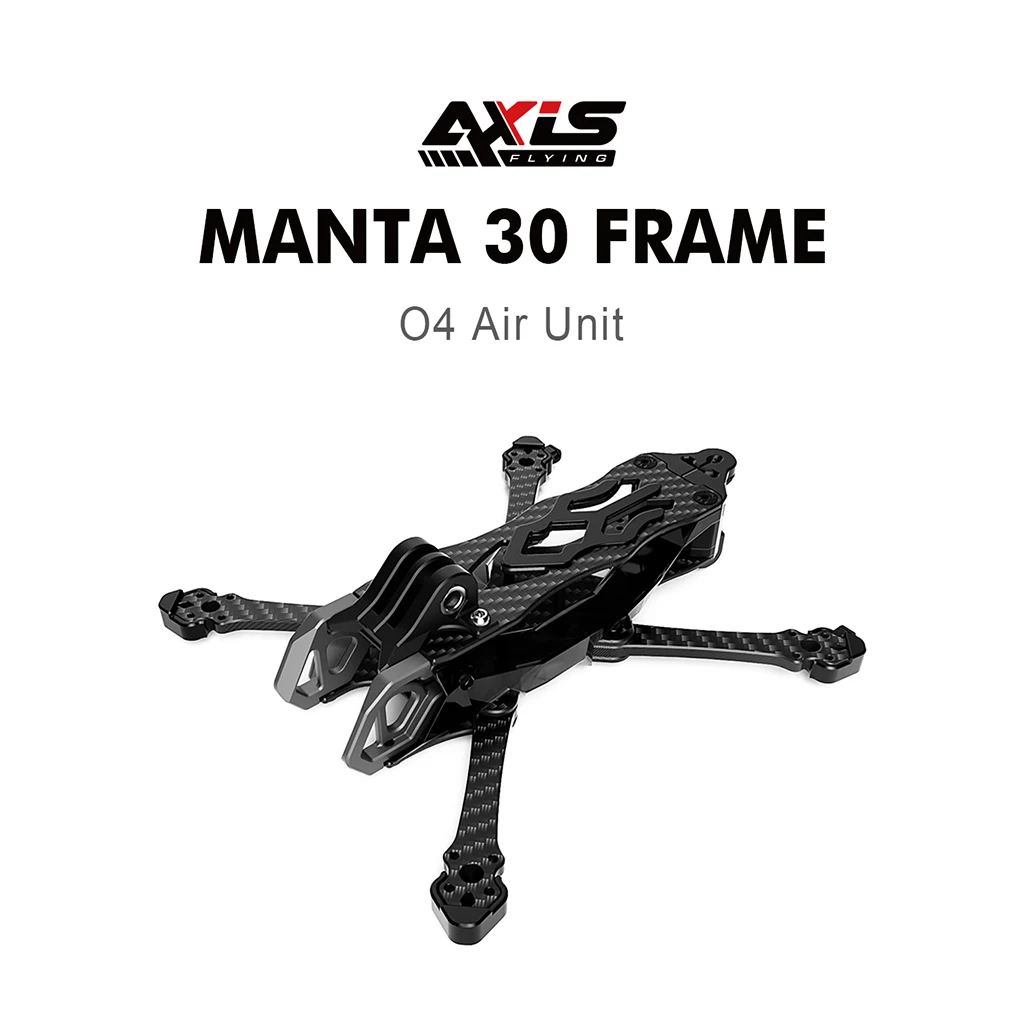

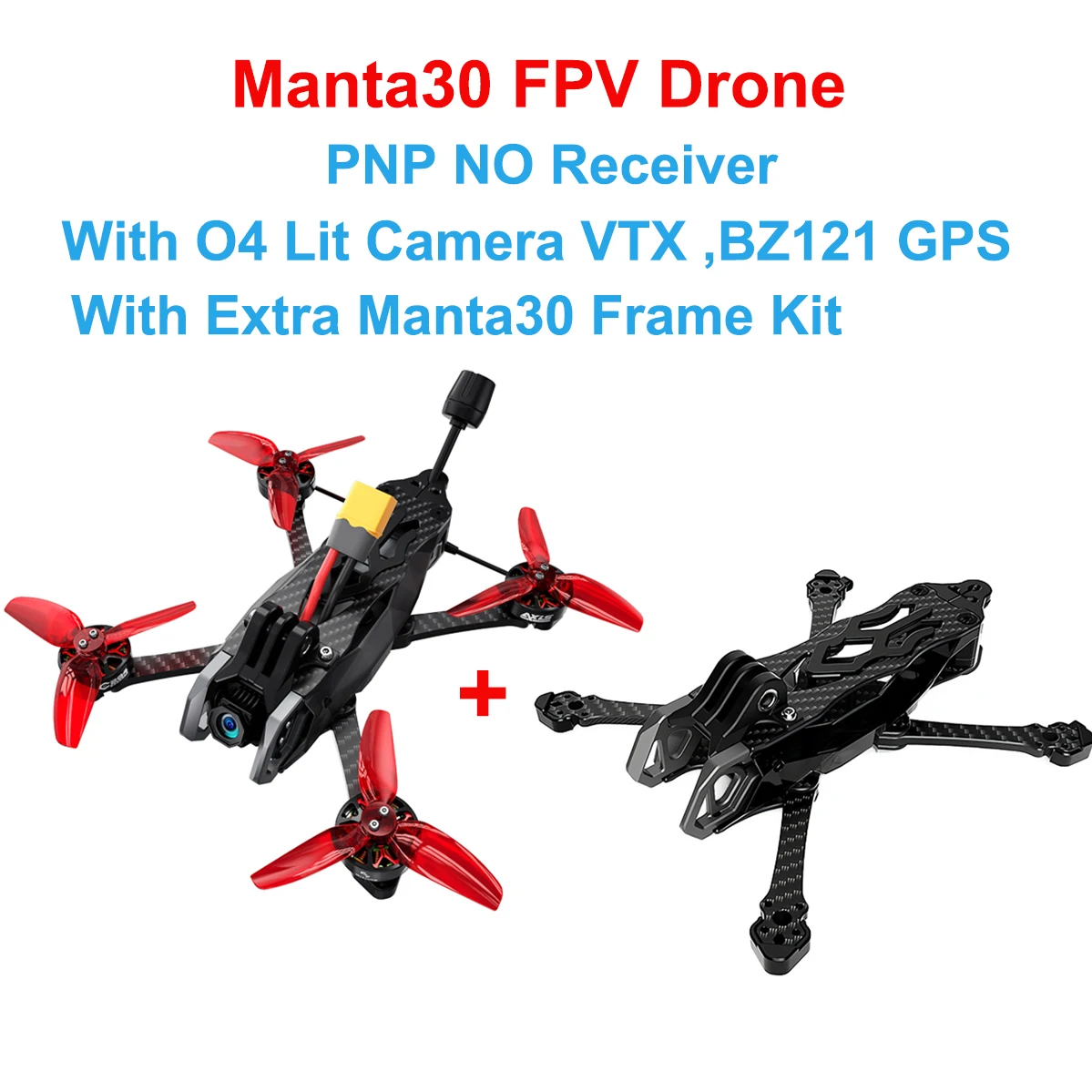

Manta 30 Frame Kit
Arm Thickness:4mm
Wheelbase:160mm
Camera installation:19-20mm
Top Plate Thickness:2mm
Stack installation:20mm*20mm(M3)
Middle Plate Thickness:2mm
VTX installation:25.5mm&30.5mm
Bottom Plate Thickness:2mm
Supported Prop Size: Max 3 inch
Carbon Fiber Plate:T700
Motor installation:12*12mm(M3)
Electronics Layer Height:16mm
Frame Weight: 86±5g(lncludes printouts)
