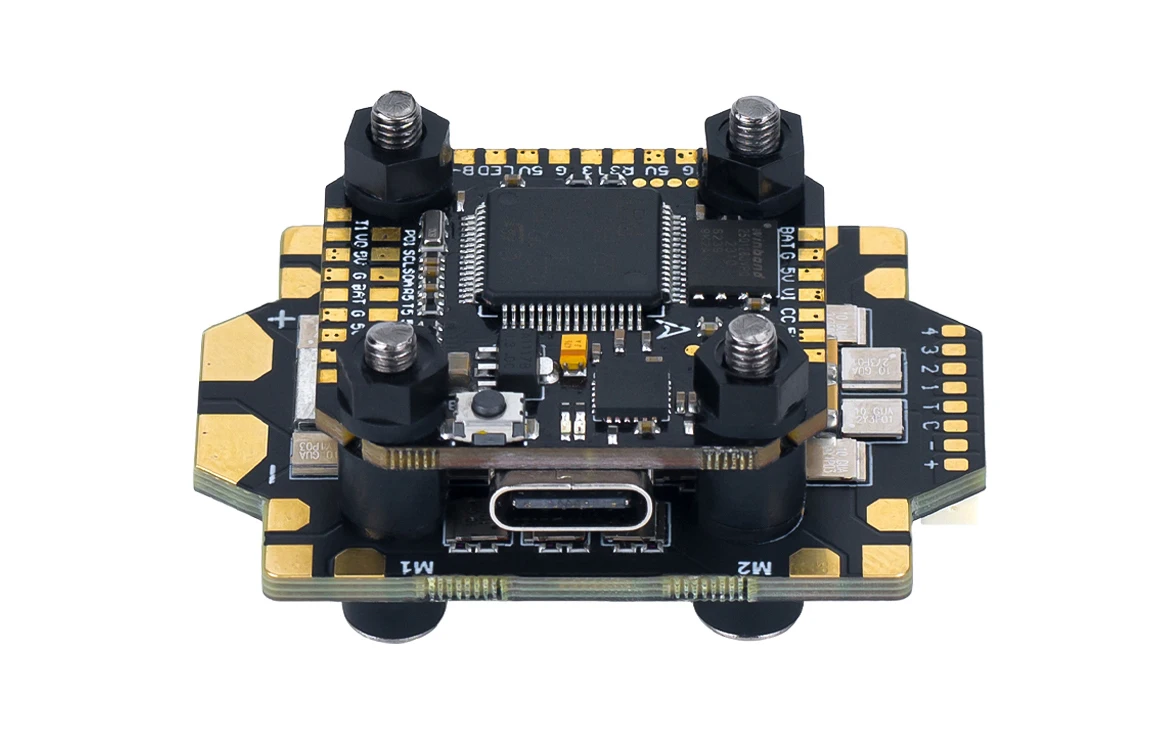

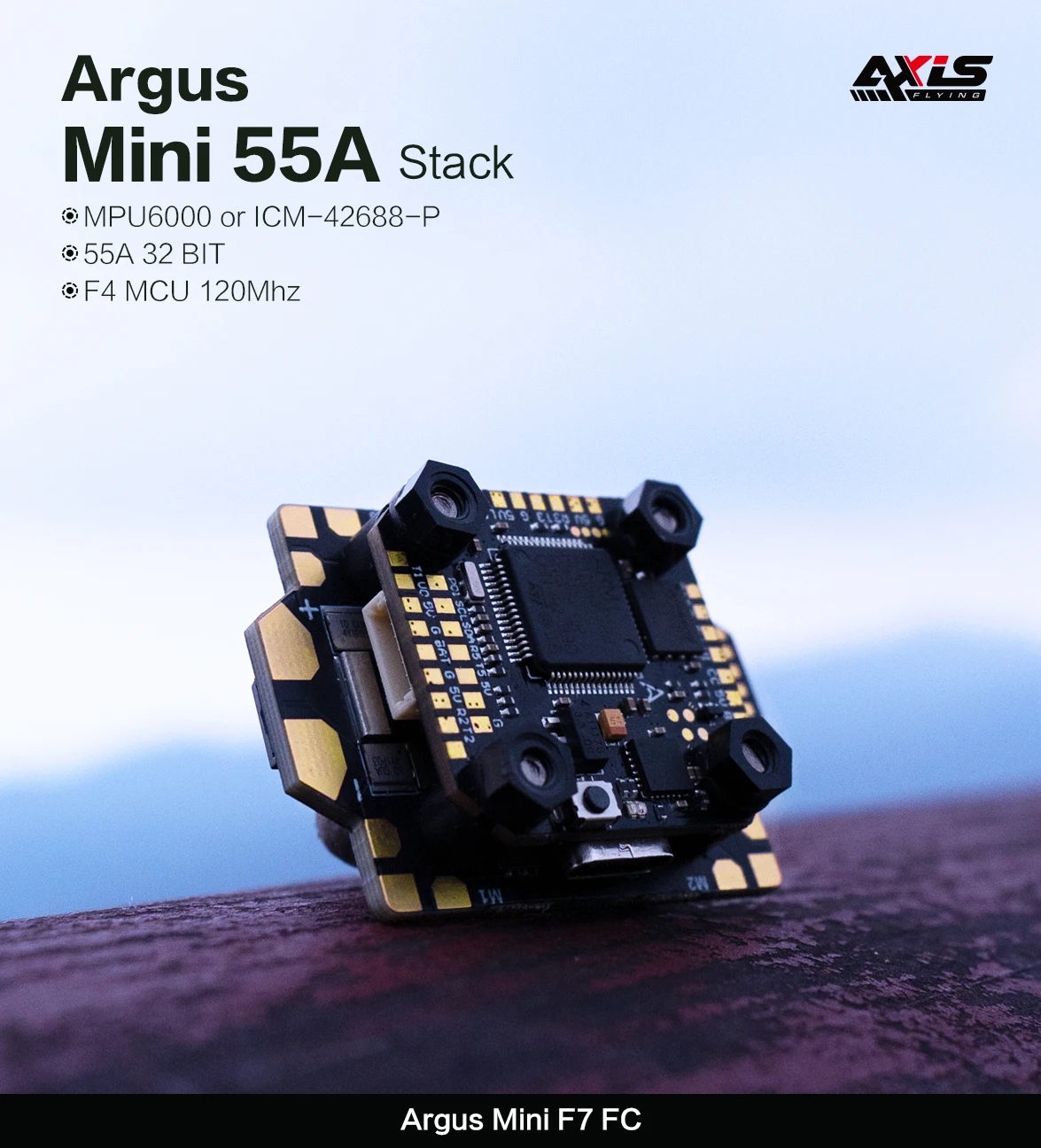

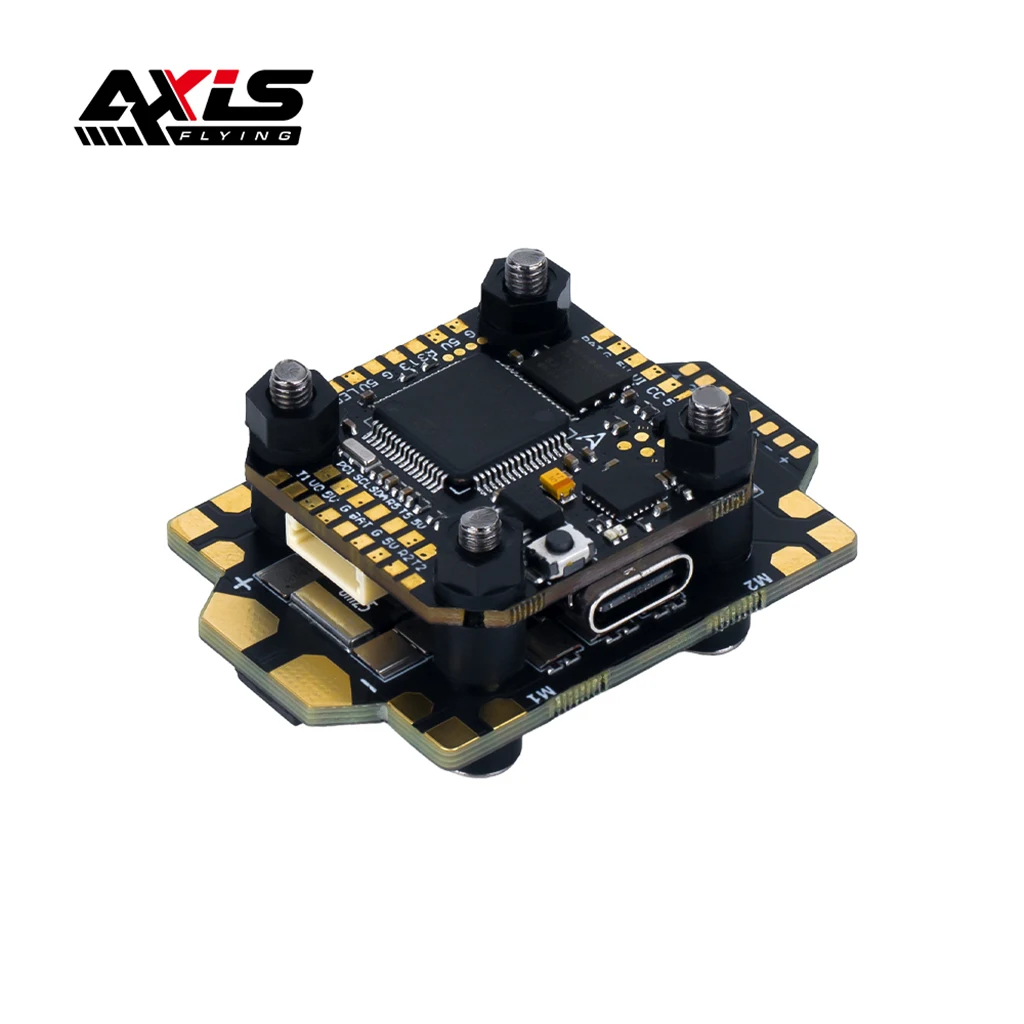

Axisflying Argus-Mini 55A Stack F7 Pro Flight Controller MPU6000 / ICM-42688-P 55A ESC for RC FPV Drone
Axisflying
AXISFLYING Argus-Mini 55A Stack F7 Pro Flight Controller MPU6000 / ICM-42688-P 55A ESC for RC FPV Freestyle Drones

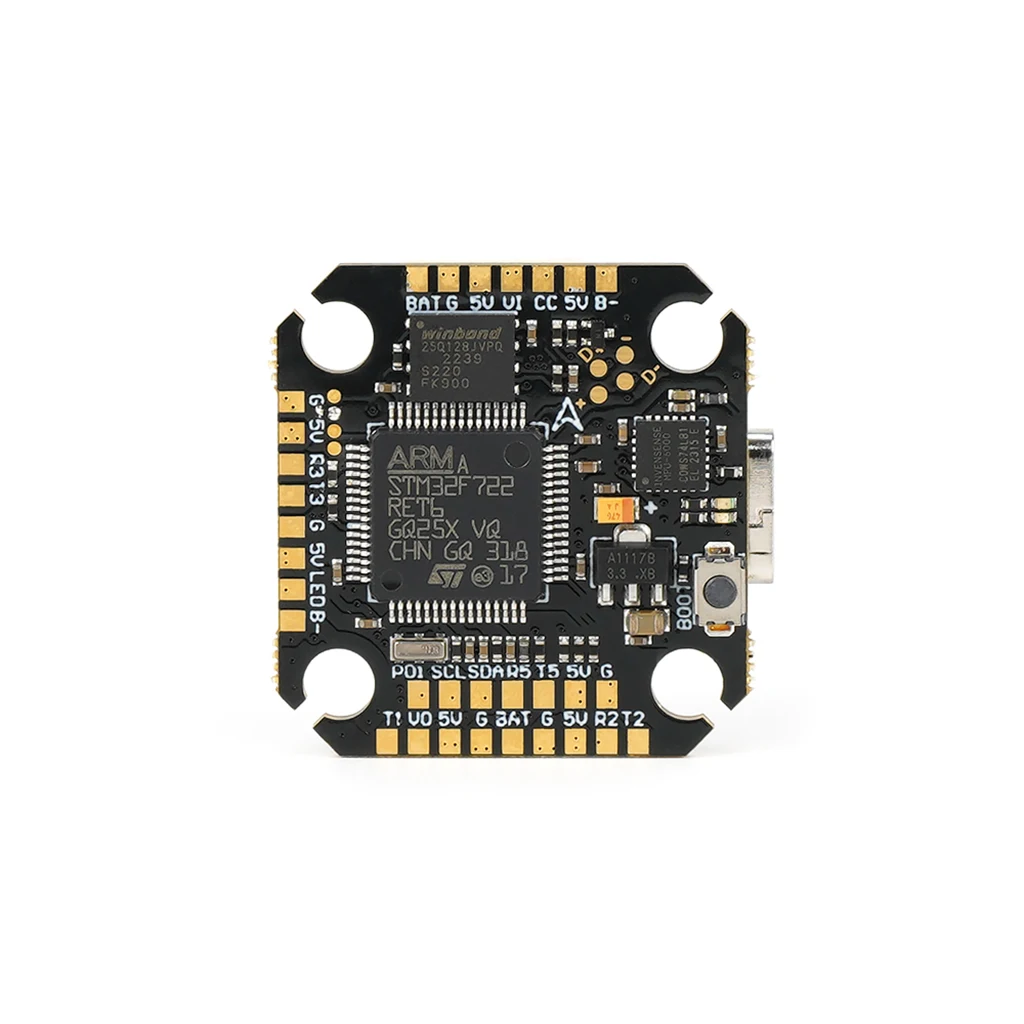

Argus-Mini F7 Flight Controller
FC target:AXIS FLYING F7 PRO
Ports:UART1-5
MCU:STM32F722RET6
Barometer:Supported
Gyro:MPU6000 or ICM-42688-P
black box:16M
Input voltage:4-6S Lipo(14.8-26.1V)
Size:28.5*27*6.2mm
BEC:5V(3A Max)
Mounting pattern:20*20mm/M2/M3
OSD:Supported
Weight: 5g
Argus Mini 55A ECS
ESC target:BLHeli32_ATF4_04- Rev.32.9
Telemetry:Supported
MCU:AT32F421G8U7
PWM frequency:24-96kHz
Input Voltage:2~6S Lipo
Amperage Meter: Scale 200
Continuous current: 55A
Size:44.3*31.3mm
Burst current: 65A
Mounting pattern:20*20*04mm
BEC: Not supported
Weight: 11g
