BETAFPV C03 FPV Micro Camera  2.1mm lens  1/3'' CMOS sensor 160° FOV suit For M03 5.8G VTX For FPV Quadcopters

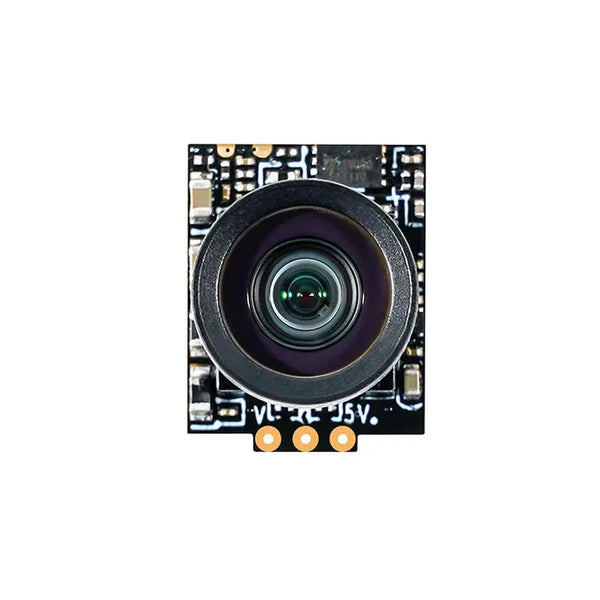

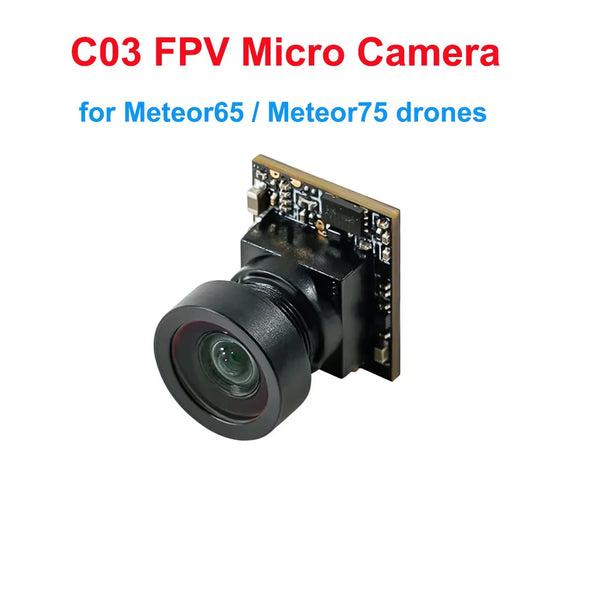

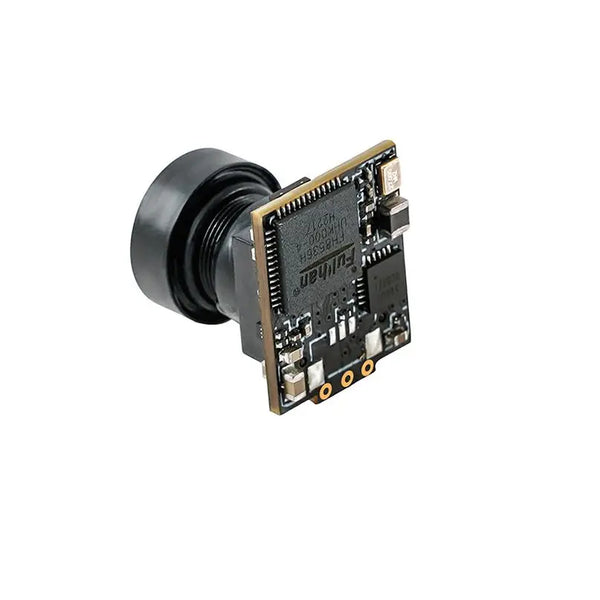

C03 FPV Micro Camera, specially designed for indoor micro FPV quadcopters, comes with a 1.45g lightweight, 1/3'' CMOS sensor, 2.1mm lens for 160° FOV, and excellent latency. Recommend using C03 FPV Micro Camera with BETAFPV Micro Canopy.

Bullet Points

• Made of high-quality ABS material and covered by BETAFPV Micro Canopy, the C03 FPV Micro Camera is durable enough for use.

• Miniature, and lightweight design, weighing only 1.45g. Completely match with M03 5.8G VTX on micro whoop drone.

• 1200TVL resolution and 1/3" CMOS sensor ensure a high-quality and clear image

• Global WDR camera, 4:3 aspect ratio, shoot clear dynamic image even in low light condition

• 2.1mm lens, FOV 160° beyond the wide angle for recording more wide and beautiful scenes.

Specification

• Item: C03 FPV Micro Camera

• Image Sensor: 1/3" CMOS Sensor

• Horizontal: 1200TVL with Global WDR

• Signal System: NTSC (4:3)

• Lens : 2.1mm(M7) FOV 160°

• S/N Ratio: >50db

• Electronic Shutter Speed: Auto

• Auto Gain Control (AGC): Auto

• Min. Illumination: 0.01Lux@1.2F

• D-WDR: Auto

• Day/Night: Color

• Power: DC 3-5.5V

• Current: 100mA@5V / 120mA@3.3V

• Housing Material: ABS

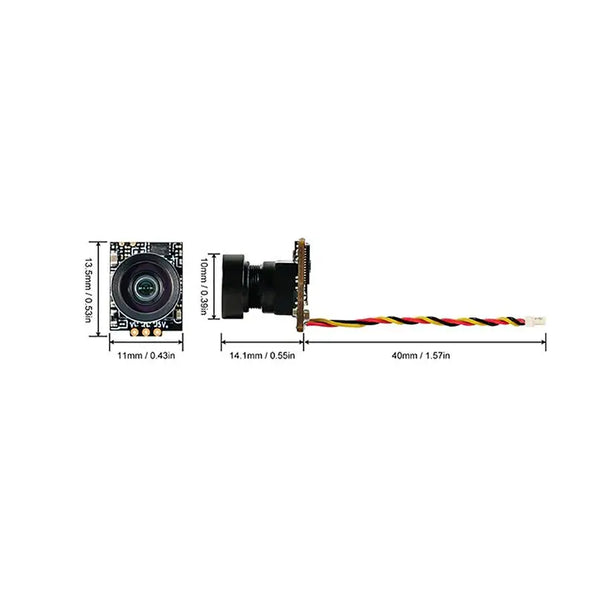

• Dimension: 11*14.1*13.5mm

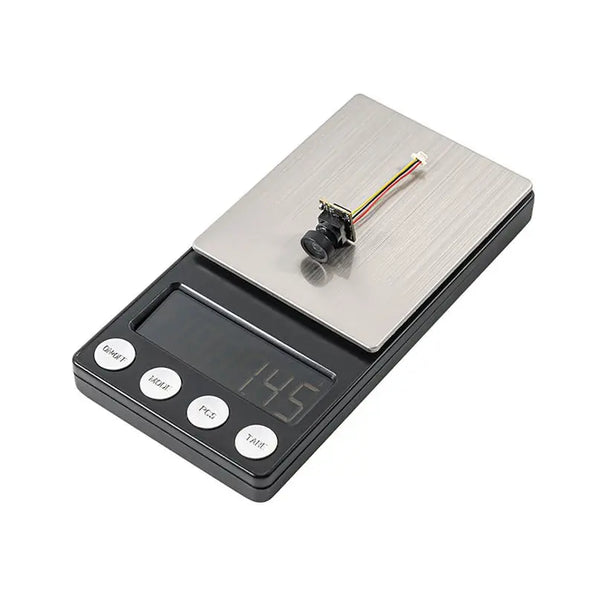

• Net weight: 1.45g

Plug-N-Play Connector

C03 FPV Micro Camera features a JST-0.8 connector, a special design in plug-and-play, that makes it easy to install without soldering. Suitable for Meteor series drones, BETAFPV F4 1S 5A AIO FC,BETAFPV M03 VTX, and NBD BeeBrain flight controllers.

Recommend Parts

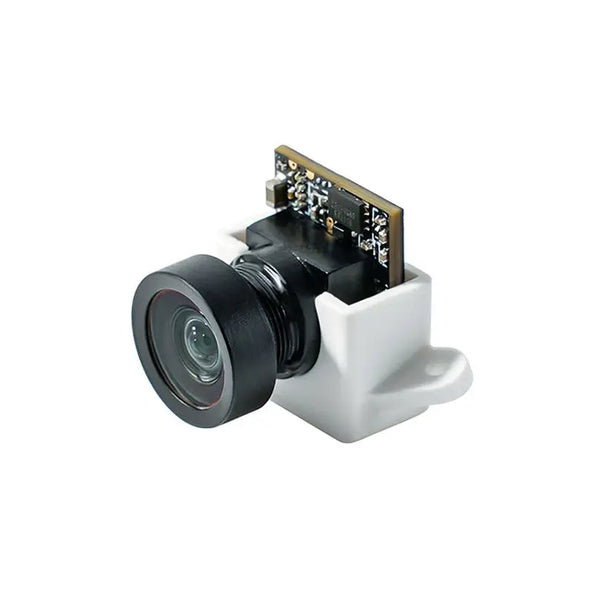

• Canopy: BETAFPV Canopy for Micro Camera 2022

• VTX: BETAFPV M03 5.8G VTX

• FC: BETAFPV F4 1S 5A AIO FC, NBD BeeBrain flight controllers

• Drones: Meteor65/75 drones, or other micro whoop drones in the market.

Package

1 * C03 FPV Micro Camera

4 * M1.4*5 Screws

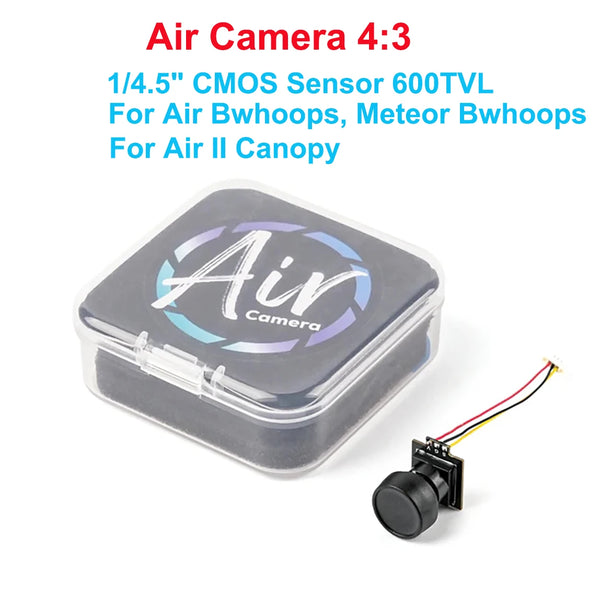

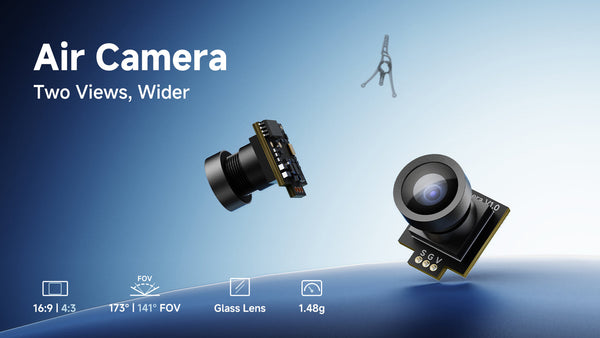

The Air Camera offers both 16:9 and 4:3 aspect ratios, giving you the flexibility to match your flying style. The 16:9 delivers 33% more horizontal view than standard 4:3, paired with a 173° ultra-wide FOV – so you can see more through every corner and react faster. Inside, a new CMOS sensor brings stable color rendition while running cooler, ensuring consistent performance flight after flight. And the glass lens delivers sharper video quality and stands up to scratches better than plastic. Whether you're threading gates or diving gaps, the Air Camera gives you a clearer, wider, truer view of the action.

Bullet Points

• 16:9 & 4:3 aspect ratios – 33% more horizontal view in 16:9

• 173° ultra-wide FOV (16:9) / 141° FOV (4:3)

• New CMOS sensor – vivid colors, less heat, stable performance

• Glass lens – sharper video, scratch-resistant

Specifications

• Image Sensor: 1/4.5" CMOS Sensor

• FOV: 173° (16:9) / 141° (4:3)

• Horizontal: 600TVL

• Signal System: NTSC (16:9 / 4:3)

• S/N Ratio: 40.59dB

• Electronic Shutter Speed: Auto

• Auto Gain Control (AGC): Auto

• Power: DC 5-12V

• Current: 60mA@5V

• Connector: JST-0.8mm, cable length 40mm

• Dimension: 11*13*12.5mm

• Net Weight: 1.48g

Diagram

16:9 & 4:3 Aspect Ratios

The Air Camera introduces a 16:9 aspect ratio, giving you 33% more horizontal view than the standard 4:3. With its 173° ultra-wide FOV, you can see more of the track ahead – essential for racing courses with tight, continuous corners or complex freestyle environments. The classic 4:3 version is also available with a 141° FOV. Choose the frame that fits your flying style.

Note: If you choose the 16:9 aspect ratio, ensure your FPV goggles or screen also support 16:9. Otherwise, the image may appear deformed.

CMOS - Better Color

The new image sensor chip integrates CMOS and color processing in a compact design. Expect vivid, stable color rendition with low power consumption – which means less heat, more flight time, and consistently better color in every shot.

Glass Lens – Clarity That Lasts

The Air Camera features a precision glass lens for superior image stability and video quality. Unlike plastic, it's also highly resistant to scratches – keeping your view clear, run after run.

Recommended Parts

• Canopy: Air II Canopy

• FC: Matrix 1S 5IN1 II, Matrix 1S 5IN1

• Drones: Air whoops, Meteor whoops

Package

• 1 *  Air Camera
