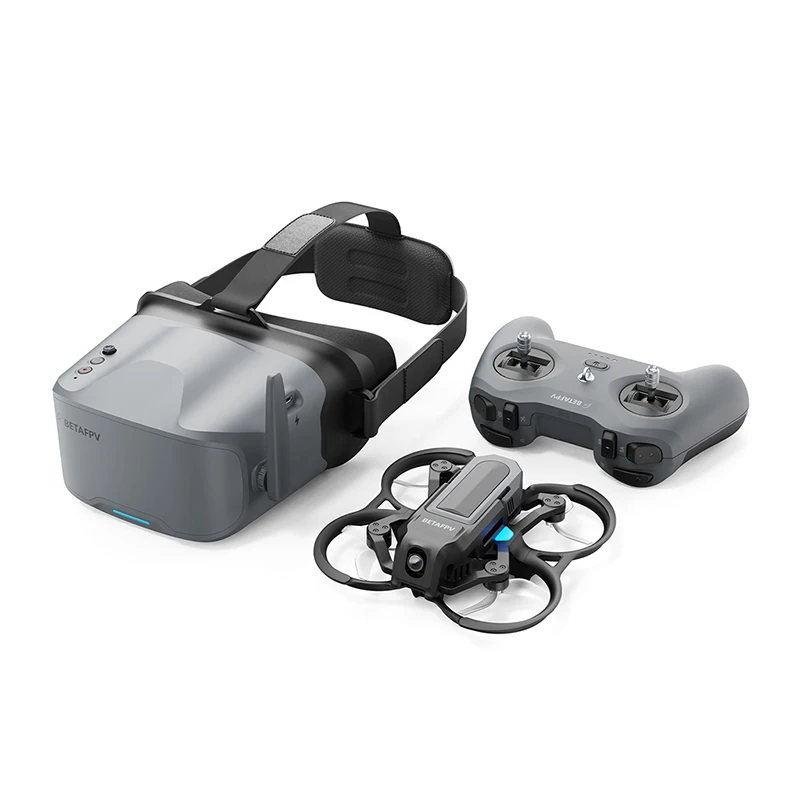

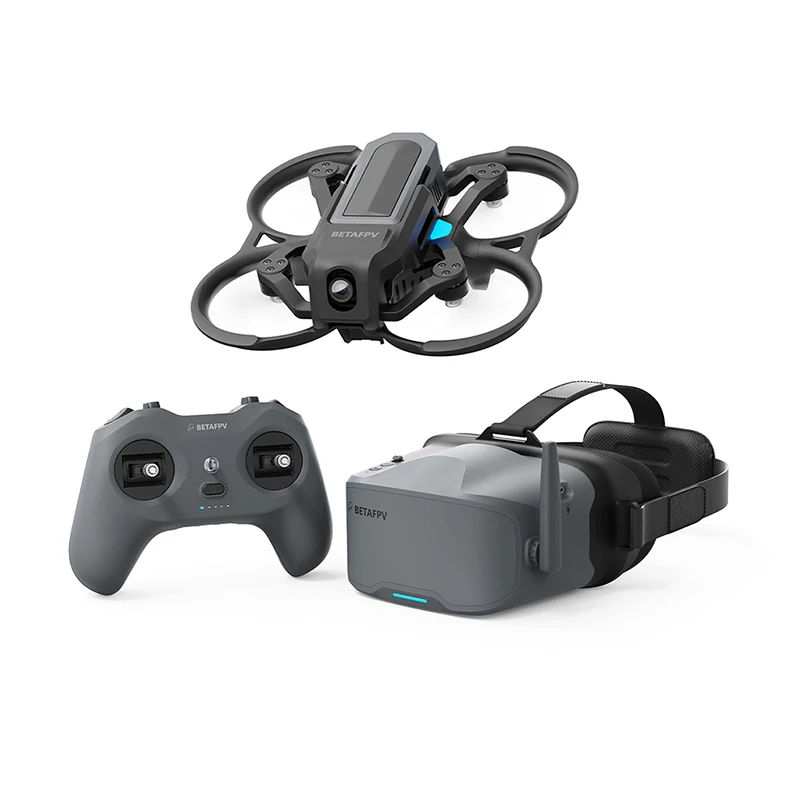

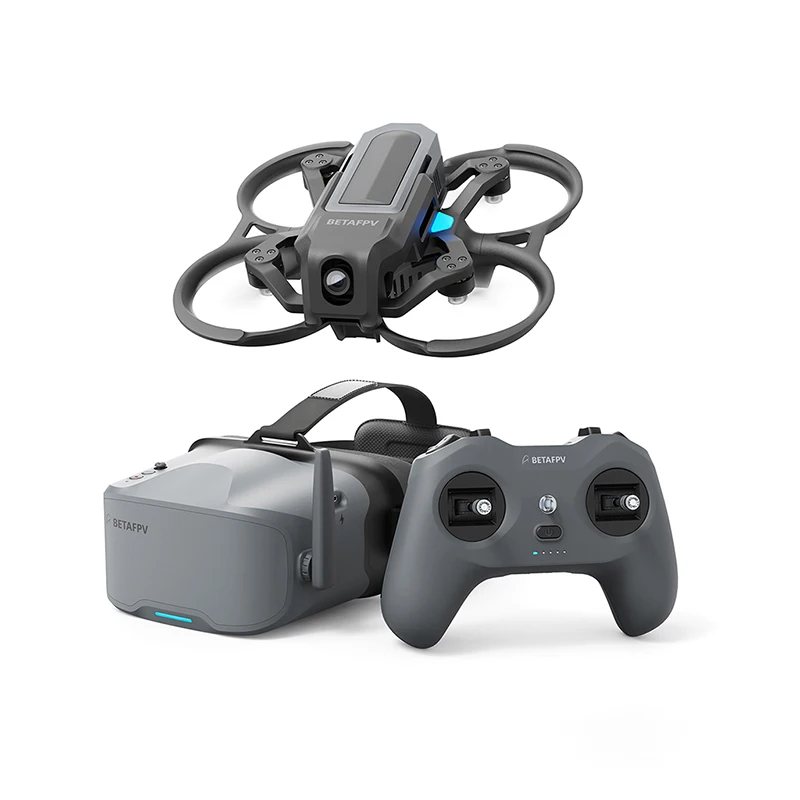

BETAFPV Aquila20 V1.0 FPY Kit ELRS 2.4G 1S 3.0 Receiver VR04 FPV Goggles LiteRadio 4 SE Remoter Controller Analog Model

Description:

Aquila20 Analog Kit

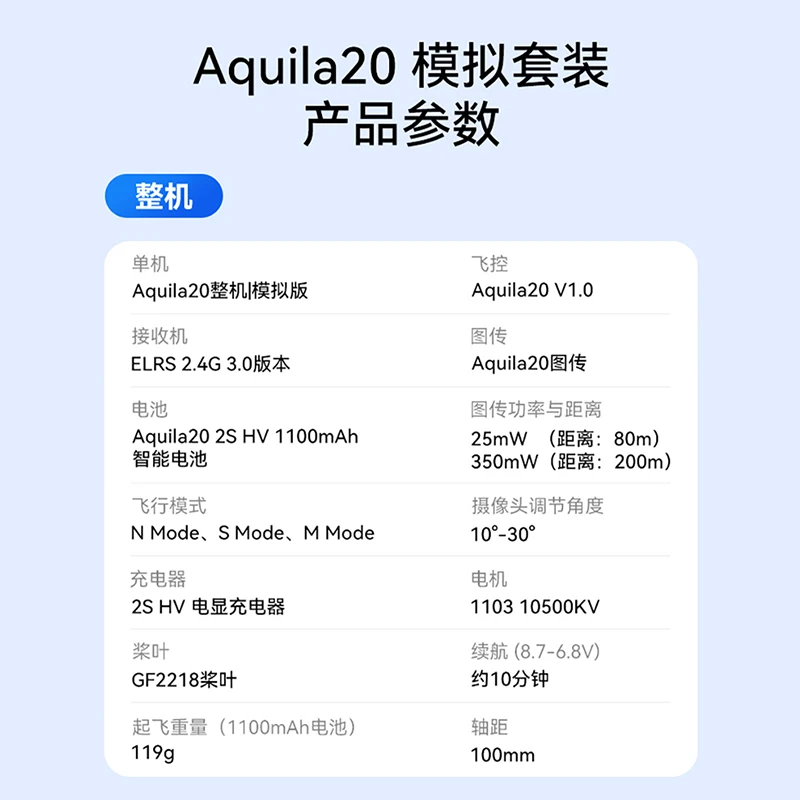

Product Specifications

Complete System

Single Unit

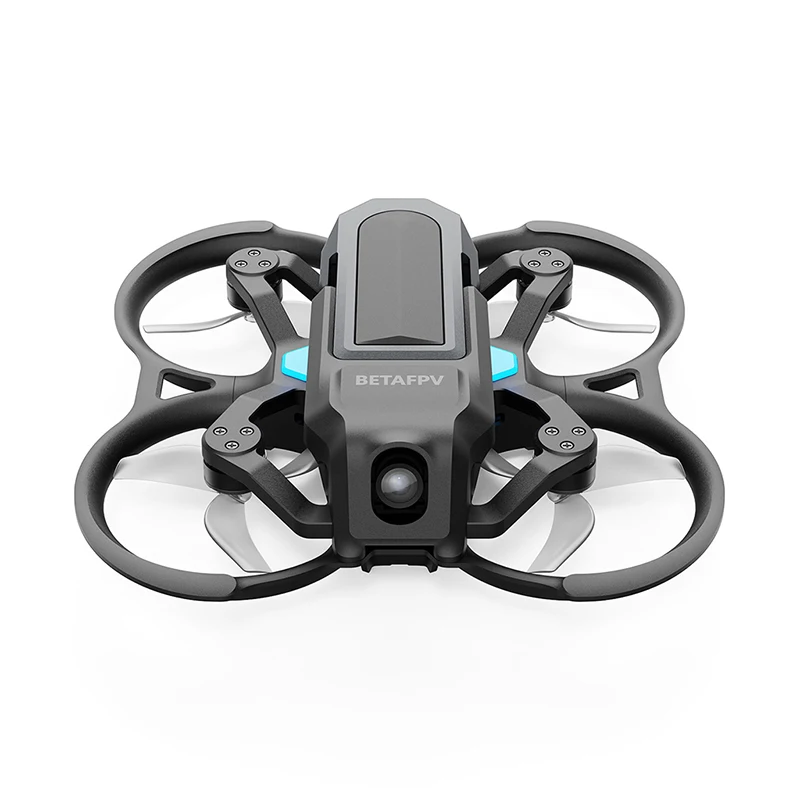

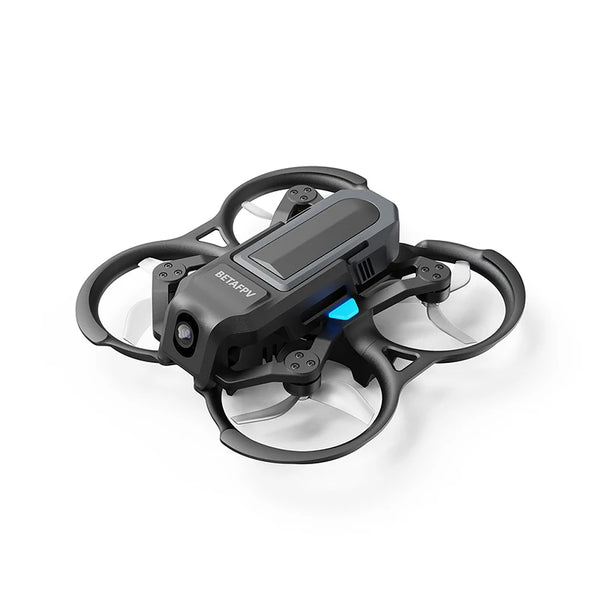

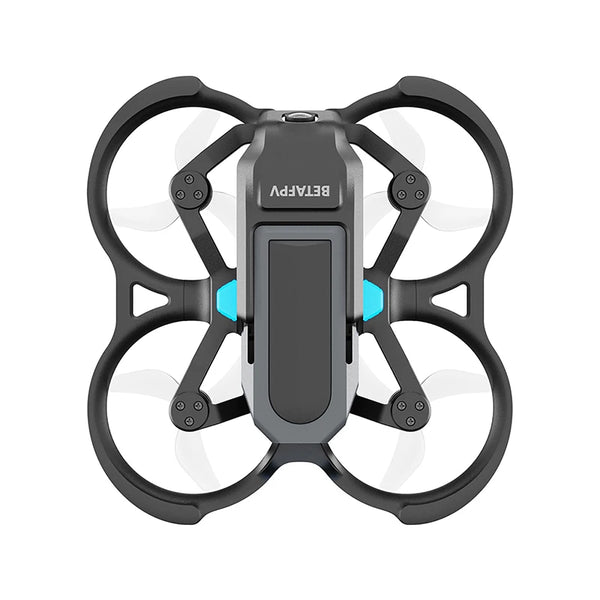

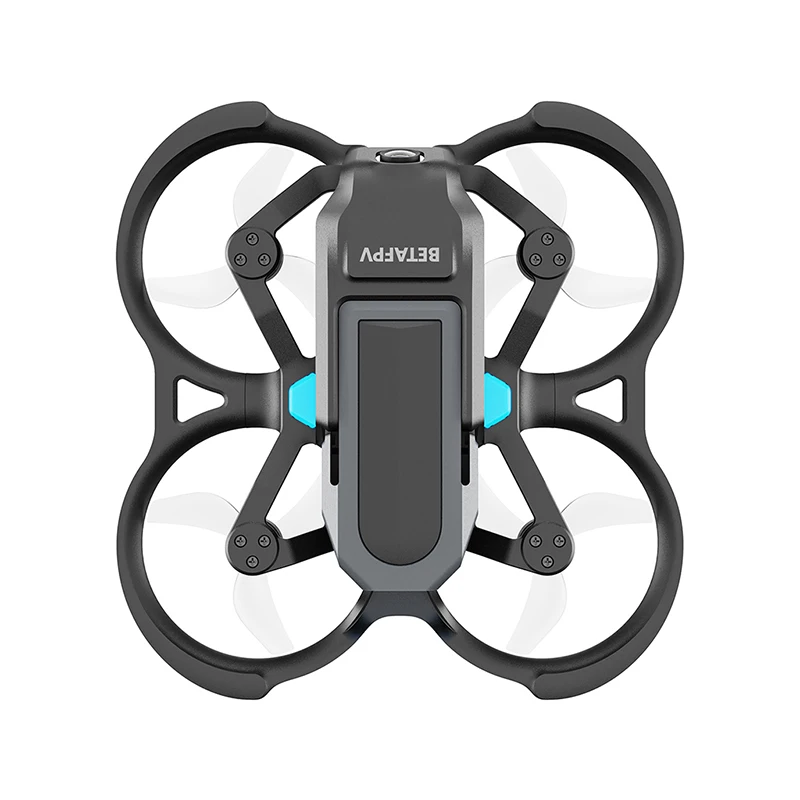

Aquila20 Complete System | Analog Edition

Flight Controller: Aquila20 V1.0

Receiver: ELRS 2.4G 3.0 Version

Video Transmitter: Aquila20 Video Transmitter

Battery: Aquila20 2S HV 1100mAh Smart Battery

Video Transmitter Power & Range

25mW (Range: 80m)

350mW (Range: 200m)

Flight Modes: NMode, SMode, MMode

Camera Adjustment Angle: 10°-30°

Charger: 2S HV Digital Display Charger

Motors: 1103 10500KV

Propellers: GF2218 Propellers

Flight Time (8.7-6.8V): Approx. 10 minutes

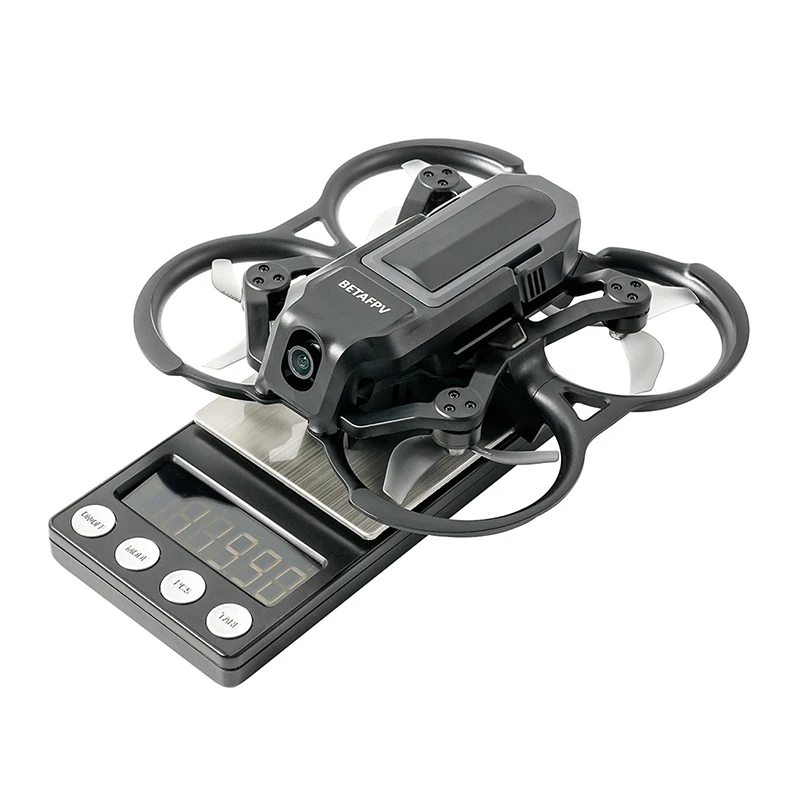

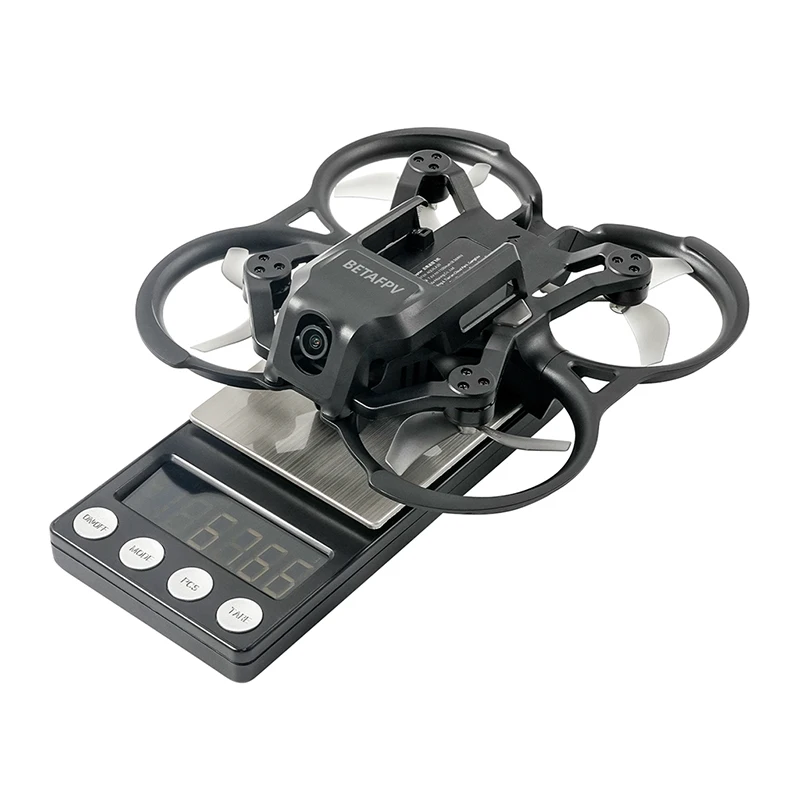

Takeoff Weight (1100mAh Battery): 119g

Wheelbase: 100mm

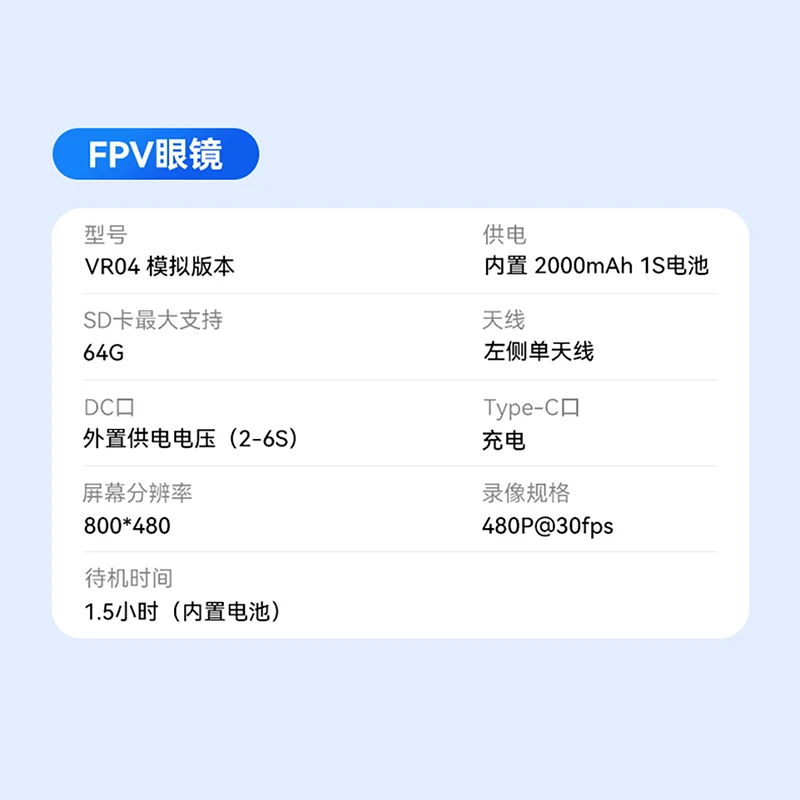

FPV Goggles Model: VR04 Analog Version

Maximum SD Card Support: 64G

DC Port External Power Supply Voltage (2-6S) Screen Resolution 800*480

Standby Time: 1.5 hours (built-in battery)

Power Supply: Built-in 2000mAh 1S battery

Antenna: Single antenna on left side

Type-C Port Charging

Recording Specifications: 480P@30fps

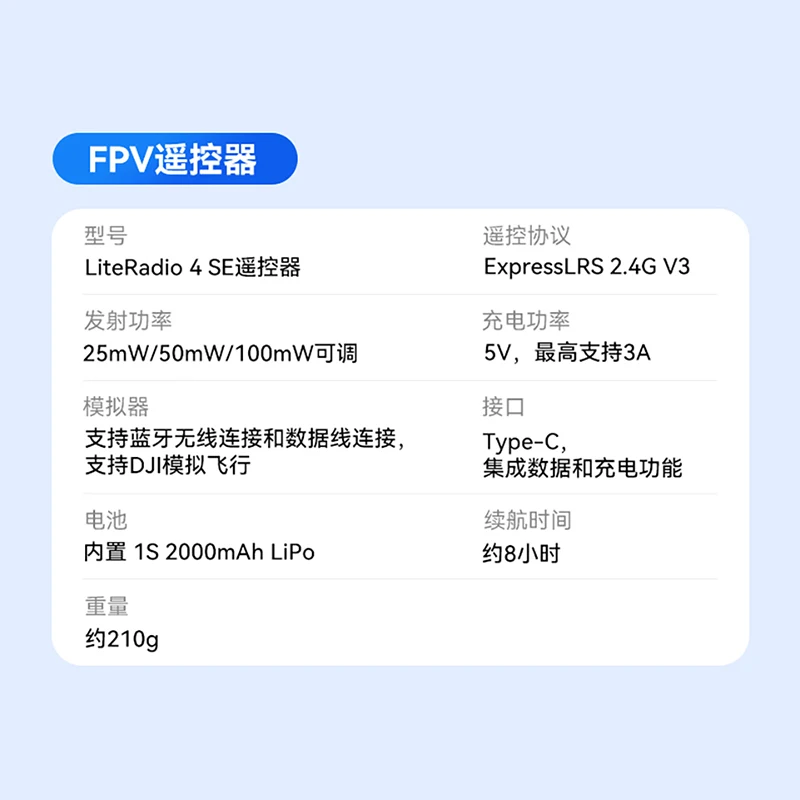

FPV Transmitter

Model

LiteRadio 4 SE Transmitter

Transmit Power: Adjustable 25mW/50mW/100mW

Simulator: Supports Bluetooth-Compatible wireless connection and USB cable connection, compatible with DJI Simulator

Battery: Built-in 1S 2000mAh LiPo

Weight: Approx. 210g

Control Protocol: ExpressLRS 2.4GHz V3

Charging Power: 5V, supports up to 3A

Interface: Type-C, integrated data and charging functionality

Battery Life: Approx. 8 hours

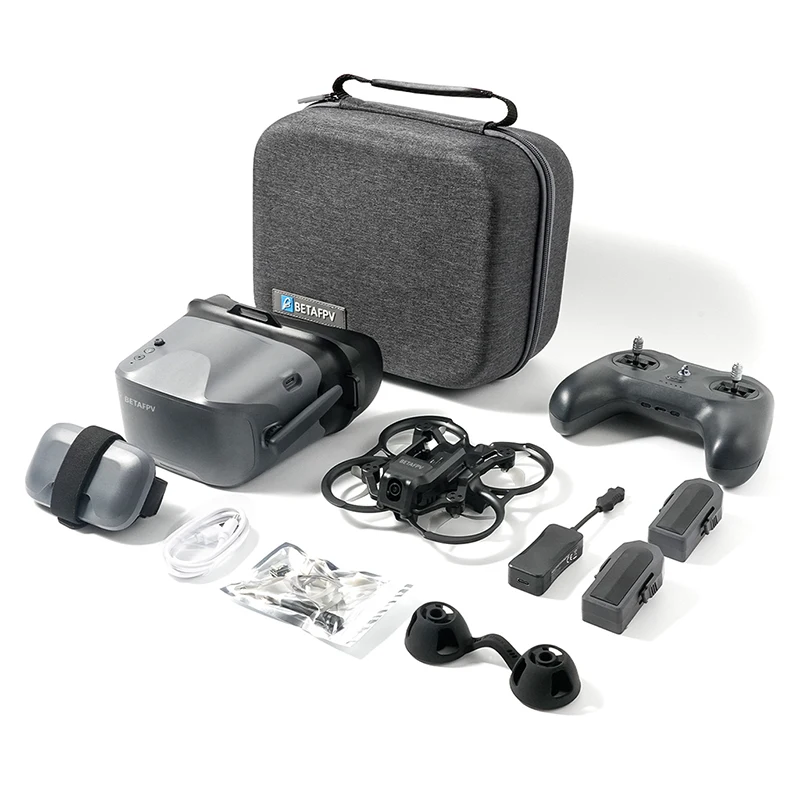

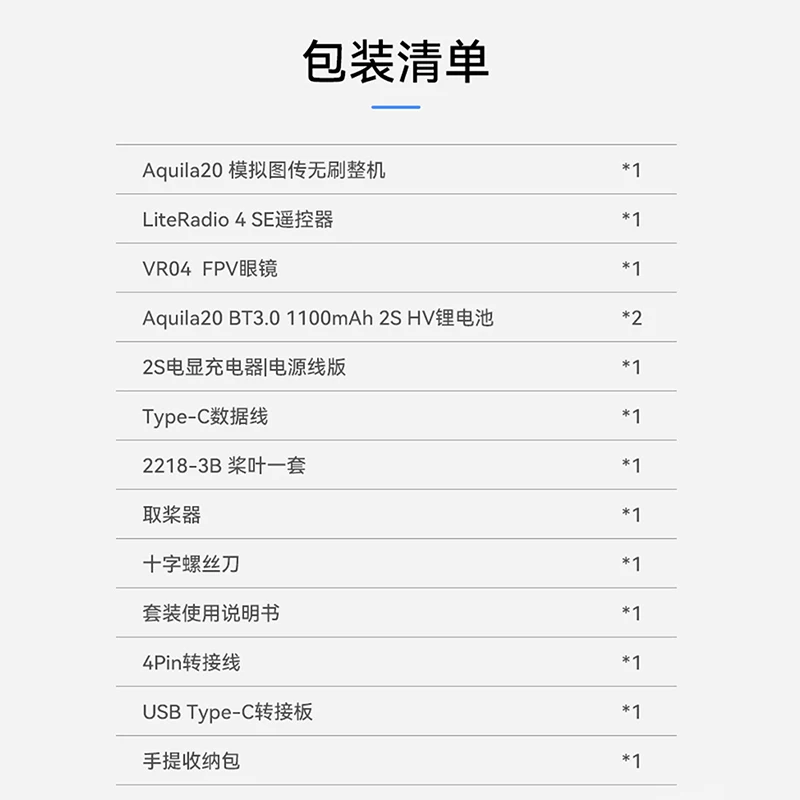

Package Contents:

Aquila20 Simulator FPV Brushless Complete Aircraft *1

LiteRadio 4 SE Remote Controller *1

VR04 FPV Goggles *1

Aquila20 BT3.0 1100mAh 2SHV Lithium Battery *2

2S Battery Monitor Charger | Power Cable Version *1

Type-C Data Cable *1

2218-3B Propeller Set *1

Propeller Removal Tool *1

Phillips Screwdriver *1

User Manual *1

4-Pin Adapter Cable *1

USB Type-C Adapter Board *1

Carry Case *1
