BETAFPV offers 2 versions of the 2S Battery Charger and Voltage Tester, each with different ports - BT3.0 and XH2.54 - capable of charging both LiHV 8.7V and LiPo 8.4V batteries. Not only does it have a digital display function, but it also features 2S battery voltage monitoring capabilities. Additionally, it supports PD3.0 fast charging protocol. This compact and portable charger is fully functional and user-friendly, and caters to the charging needs of 2S quadcopter enthusiasts, empowering them to recharge their batteries anytime, anywhere.

Note: LiHV(8.7V) stands for High Voltage Lithium Polymer 2S batteries and LiPo(8.4V) stands for Normal Lithium Polymer Batteries.

• A compact and portable 2S Battery Charger and Voltage Tester with a digital display, specifically designed for the BT3.0 series of batteries.

• It supports the PD3.0 fast charging protocol, offering higher power output and multiple charging options for a faster and safer charging experience with compatible devices.

• Equipped with a digital display function and capable of monitoring battery voltage during charging.

• With dual variants boasting BT3.0 and XH2.54 ports, this charger offers RC users different connection options.

• Featuring a Type C interface instead of a USB interface, providing an even wider selection of charging options

• Fulfilling the charging requirements of 2S batteries, this charger is a go-to choice for discerning enthusiasts.

• Battery Type: BT3.0-LiHV(charging voltage:8.7V) / XH2.54-LiPo(charging voltage:8.4V)

• Product Color: White(BT3.0) / Black(XH2.54)

• Input Interface: Type-C USB

• Input Voltage Range: 5-12V

• Input Power: Maximum 15W

• Maximum Input Current: 2.5A

• Charging Protocol: PD3.0

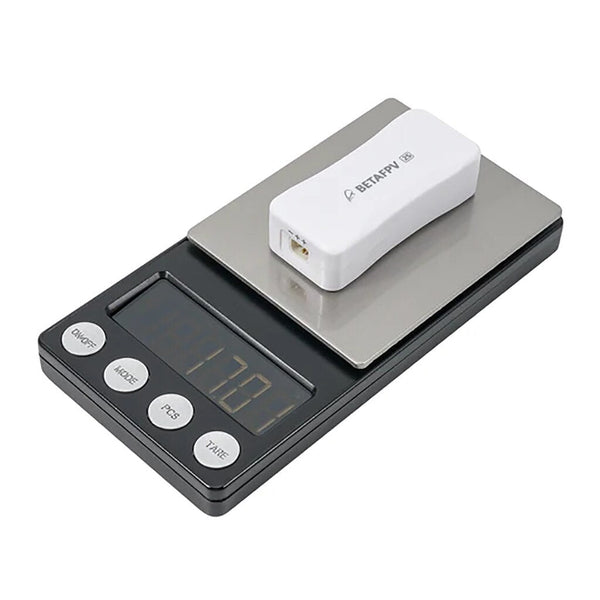

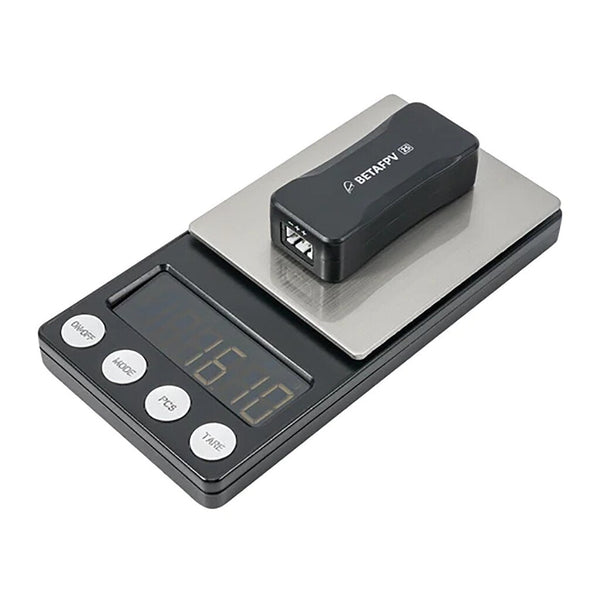

• Weight (per charger): 17.0±1.0g

• Dimensions (L×W ×H): 61*25*17mm

• Battery Capacity Display: LED Digital Display displays the total voltage and individual cell voltage of the 2S battery.

• LED Digital Display and Red LED indicate charging status:

Note: When the charger fails to charge or the red light flashes, please check whether the battery is normal or replace the battery for charging.

Usage Notes

Please note the polarity markings on the device and do not connect the charger in reverse polarity.

The 2S Battery Charger and Voltage Tester only supports charging for 2S batteries, not 1S batteries.

The charger can only charge one battery at a time and is not designed for charging two or more batteries simultaneously.

XH2.54

This charger is compatible with 2S LiPo batteries(8.4V) and has an XH2.54 battery port. Please note that charging 2S LiHV batteries (8.7V) may result in undercharging. We recommend using a LiPo 2S battery with a corresponding balance connector available in the market. During the charging process, if the digital display shows a voltage exceeding 8.4V (e.g. 9V), please disconnect the power supply immediately and check if there is any issue with the battery or the charger.

This charger is designed to charge 2S LiHV batteries(8.7V) with a BT3.0 battery port. Please note that attempting to charge 2S LiPo batteries(8.4V) may pose a risk of overcharging. To ensure safe and optimal charging, we recommend using it with the BETAFPV BT3.0 450mAh 2S LiHV battery. During the charging process, if the digital display shows a voltage exceeding 8.7V (e.g. 9V), please disconnect the power supply immediately and check if there is any issue with the battery or the charger.

The BETAFPV BT3.0 series accessories represent a line of products tailored exclusively for 2S whoop drones, comprising three categories of items, connectors, battery, and charger, forming an integrated set of accessories capable of working in perfect harmony. The BT3.0 connectors obviate the need for balance connectors while streamlining the BT3.0 450mAh 2S Battery (2PCS) and enabling greater convenience and higher performance of the 2S drones. When used in conjunction with the 2S Battery Charger and Voltage Tester, a more efficient and stable charging experience can be realized.

We highly recommend combining the following products to upgrade your 2S whoop drone with a set of efficient and user-friendly accessories:

• BT3.0 Connectors

BT3.0 450mAh 2S Battery (2PCS)

2S Battery Charger and Voltage Tester

Recommend Parts

Quadcopter: Pavo Pico Brushless Whoop Quadcopter, Meteor85 Brushless Whoop Quadcopter

Package

1 * 2S Battery Charger and Voltage Tester | XH2.54/BT3.0

1 * 70*50mm Manual in Chinese and English

1 *100*150mm Anti-static Bag

1 * Service Card

BETAFPV BT2.0 Battery Charger and Voltage Tester V2 for PH2.0 BT2.0 Plug 1S Battery

Check out the brand new BT2.0 Battery Charger and Voltage Tester. Compare with the first version, the V2 charger uses the Type-C input port to replace the USB input. The charging is no longer limited by the socket, pilots can have more charging options. Meanwhile, the new charger has upgraded the design of appearance. Come with the hidden design of the electric display and charging instructions, which are simple and beautiful.

What's more, this charger is tailored for the BT2.0 series battery. Not only a charger but also a cell voltage tester!

Bullet Points

Specially made for our BT2.0 series battery. It has two functions of testing
voltage and charging in one, compact and easy to carry.

Come with a Type-C input port to replace the USB input, which makes the
charging is no longer limited by the socket, pilots can get more
charging options.

The new charger also upgrades the design of appearance. With the hidden design of the electric display and
charging instructions, it is simple and beautiful.

Supports to charge two batteries at the same time, its charging current is 1A,
BT2.0 300mah battery can be fully charged in 20 minutes, BT2.0 450mah 1S
battery can be fully charged in 30 minutes.

Power-on state

OUT1/OUT2 can be charged simultaneously

Input: USB-5V/2A

Output: 4.35V/1A

The red light indicates charging, and the green light indicates full charged

Power-off state

OUT1 can be used as a battery tester while OUT2 does not possess any function

Specifications

Model: BT2.0 1S Battery Voltage Checker V2

Plugs: BT2.0

Connector: Type-C

LCD: White

Weight: 12.37g

Dimensions: 52.7*23.2*14.2mm

BT2.0 Connector

BETAFPV exclusive designed BT2.0 connector has broken through the bottle-neck
of PH2.0 connector. BT2.0 connector decreased internal resistance of connector effectively to allow more current that is transferred, which means it supports 9A continuous current(15A burst) offers stronger power and longer flight time on 1S brushless drones while PH2.0 just supports 4.5A You can enjoy more flight time without disturb of low voltage warning through solving the problem of voltage sag. For more instruction, click here to reach.

There is a graph of comparison between BT2.0 connector and PH2.0 connector
(solid pins version) in BETAFPV 1S 300mAh battery. The discharge current
is 9A in this testing. You could see that it has double time (about
2minutes) with BT2.0 connector.

Much more choices of BT2.0 series accessories. We know some of the pilots
might have a question about how to deal with the old PH2.0 1S battery.
So we provide some accessories like BT2.0 Power whoop connectors for
those people who wanna convert the PH2.0 connector to a BT2.0 connector.

• BT2.0 Connectors (10pcs)

• 2S Whoop Cable Pigtail (BT 2.0)

• BT2.0 1S Whoop Cable Pigtail

• BT2.0-PH2.0 Adapter Cable

• BT2.0 Battery Charger and Voltage Tester

• BT2.0 Connector 1S Lipo Charger Board

• BT2.0 450mAh 1S Battery

• BT2.0 300mAh 1S Battery

• BT2.0 260mAh 1S Battery

Package

1 * BT2.0 Battery Charger and Voltage Tester V2
