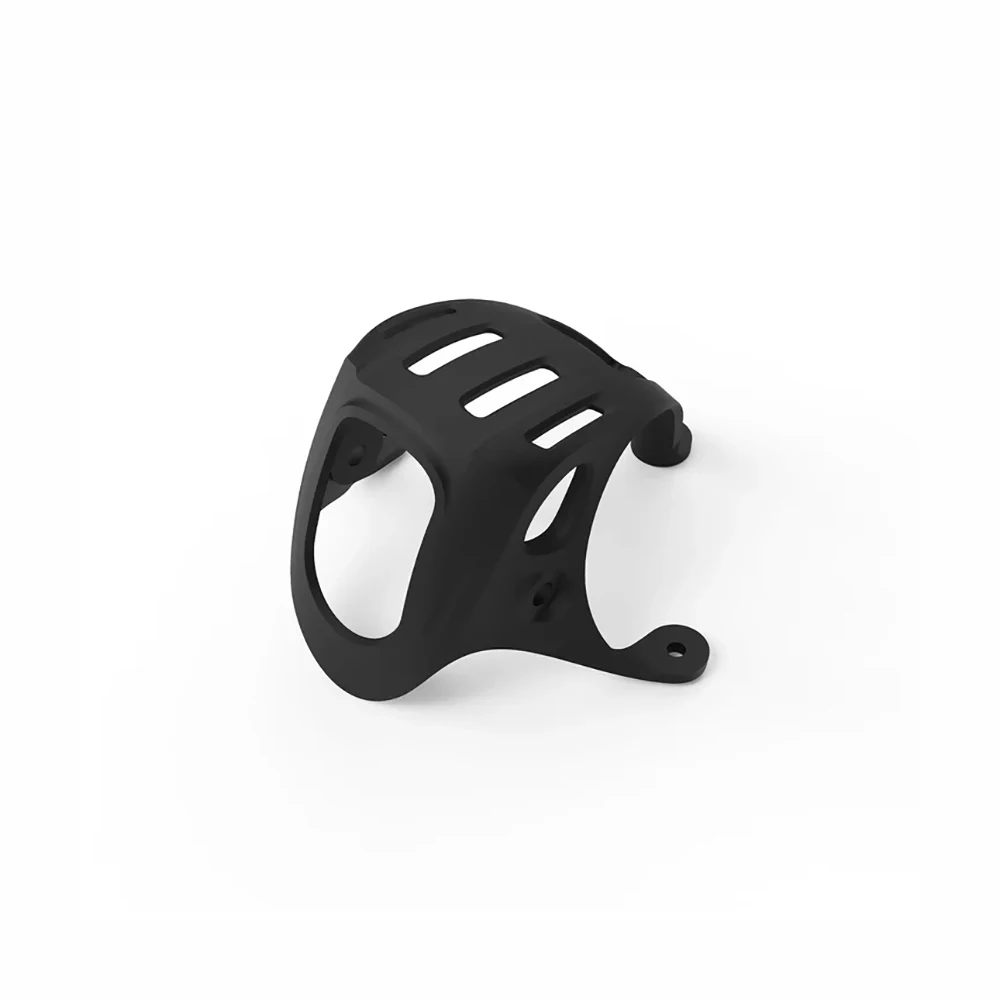

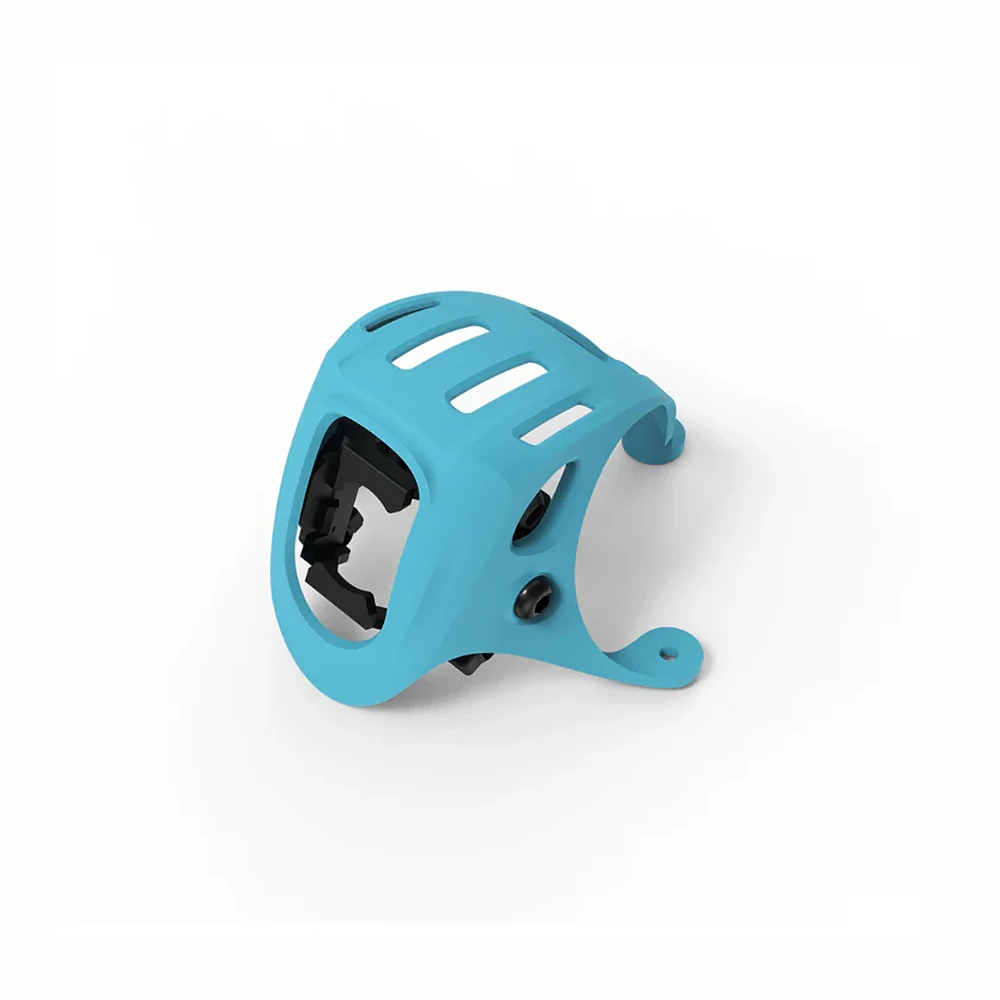

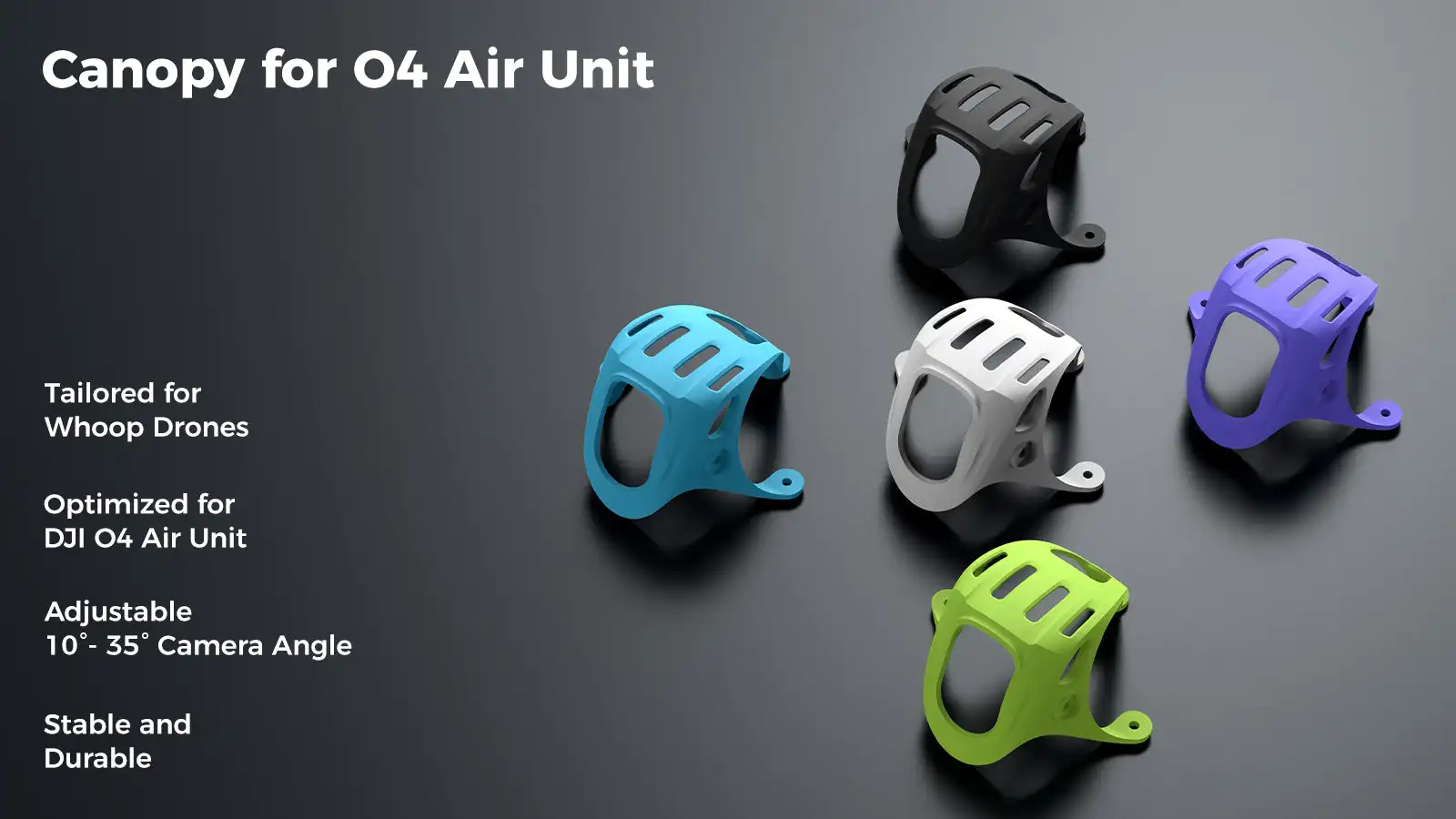

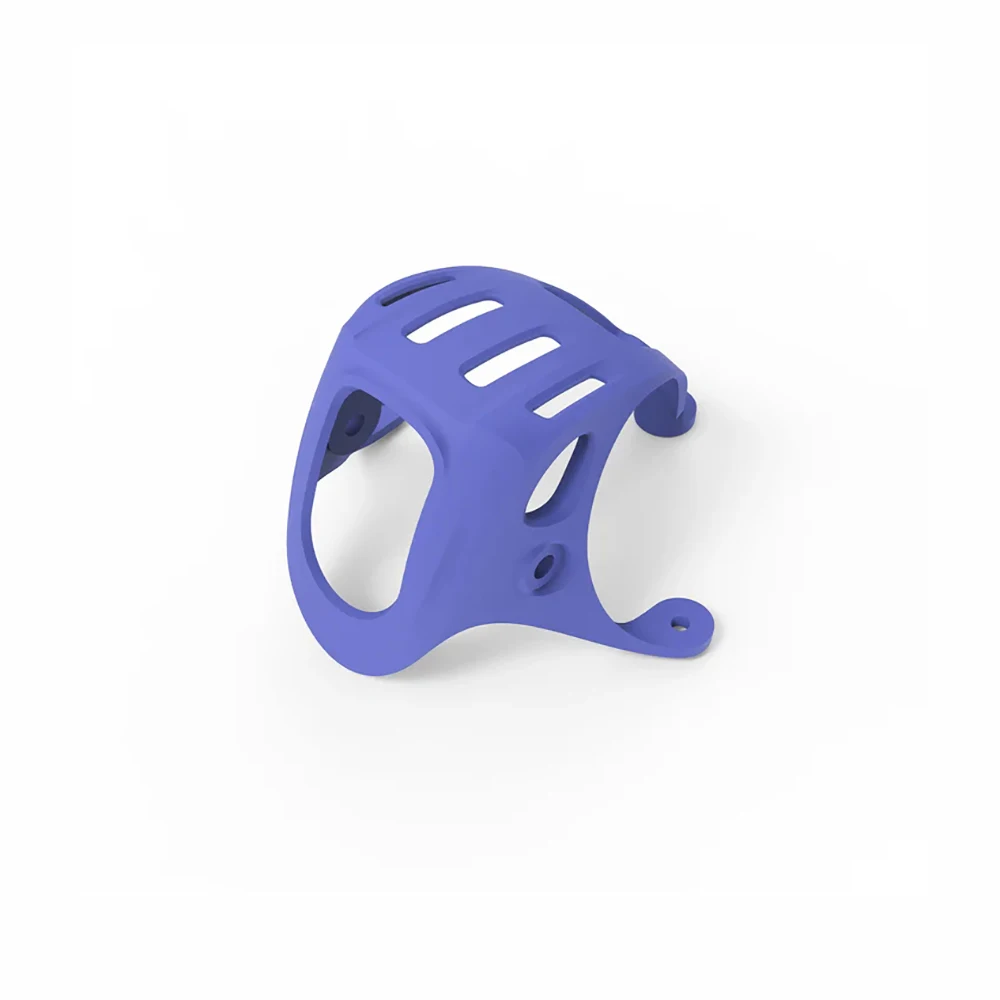

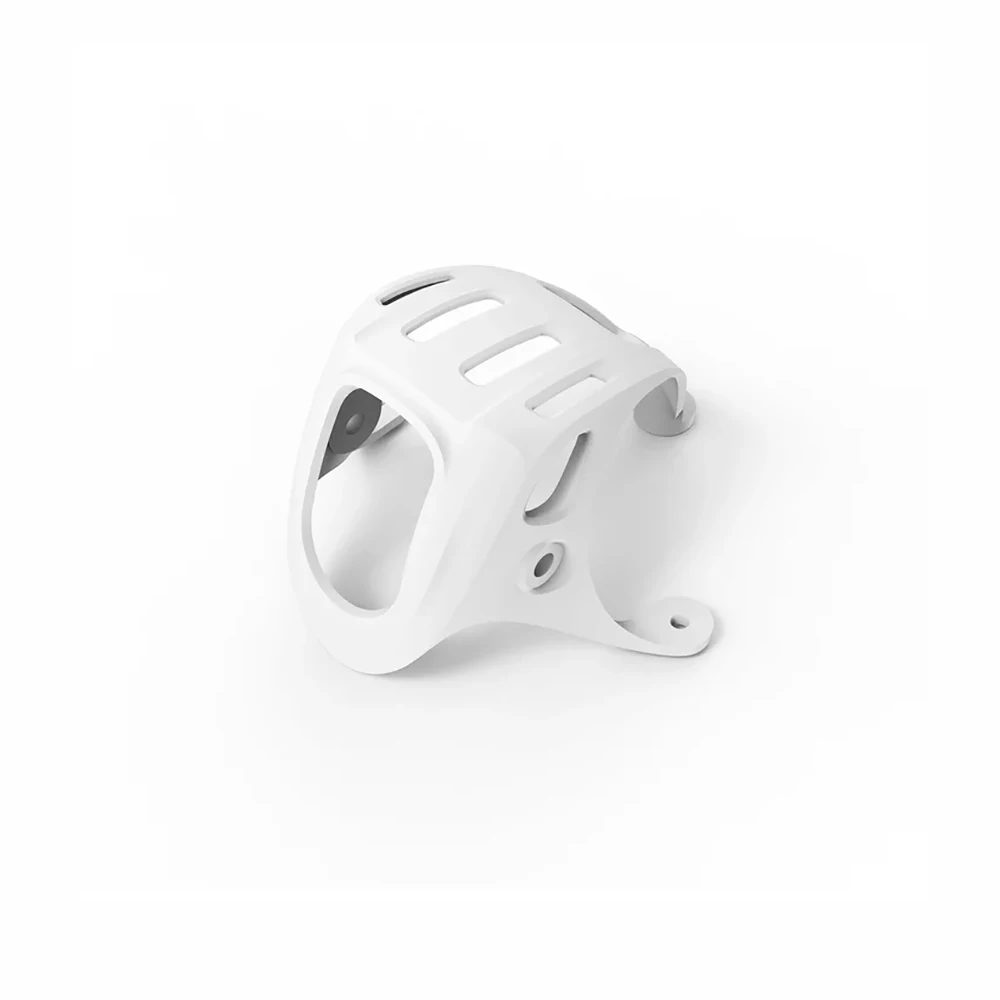

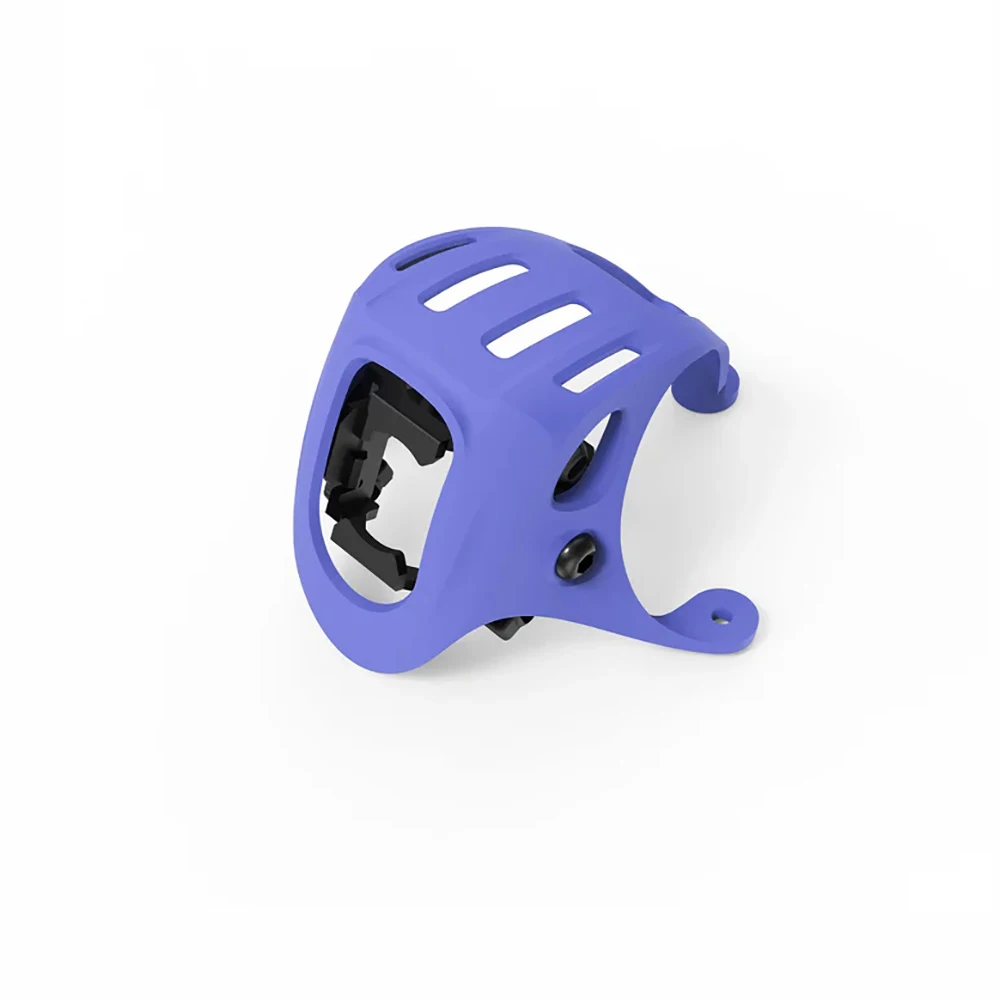

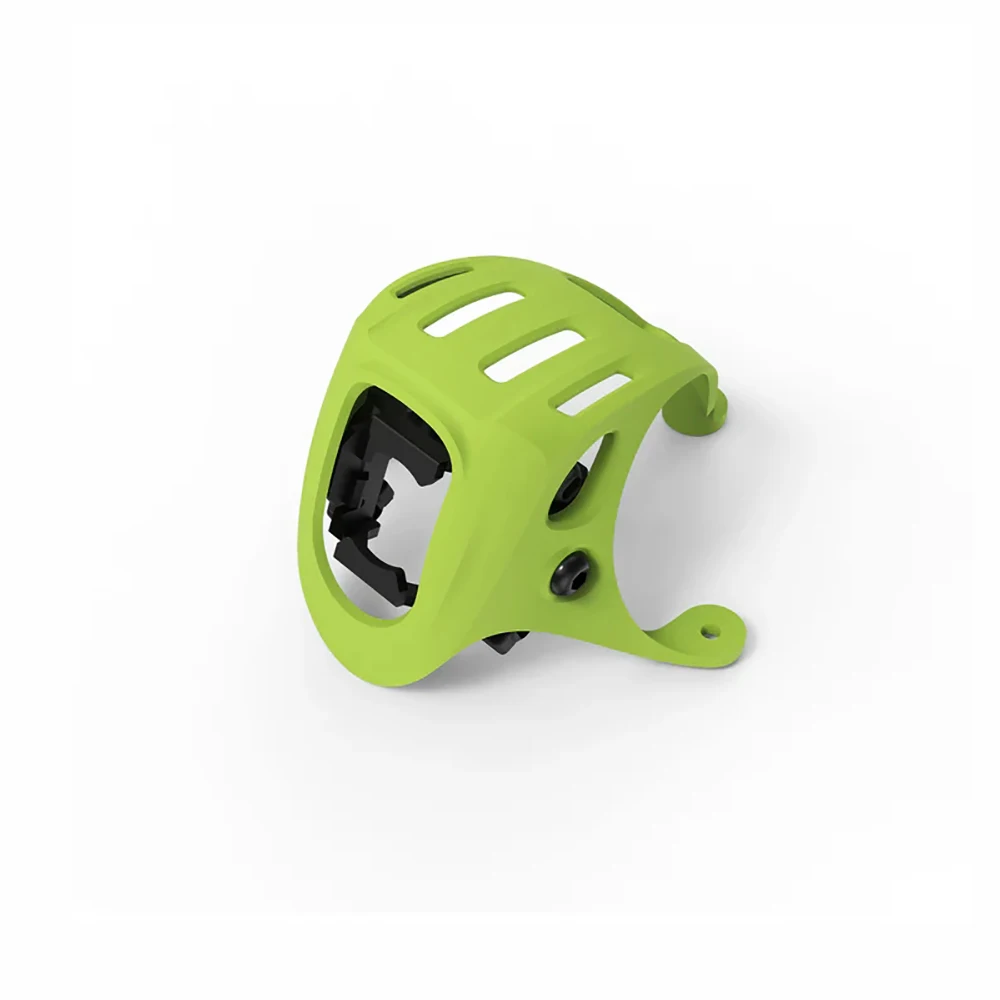

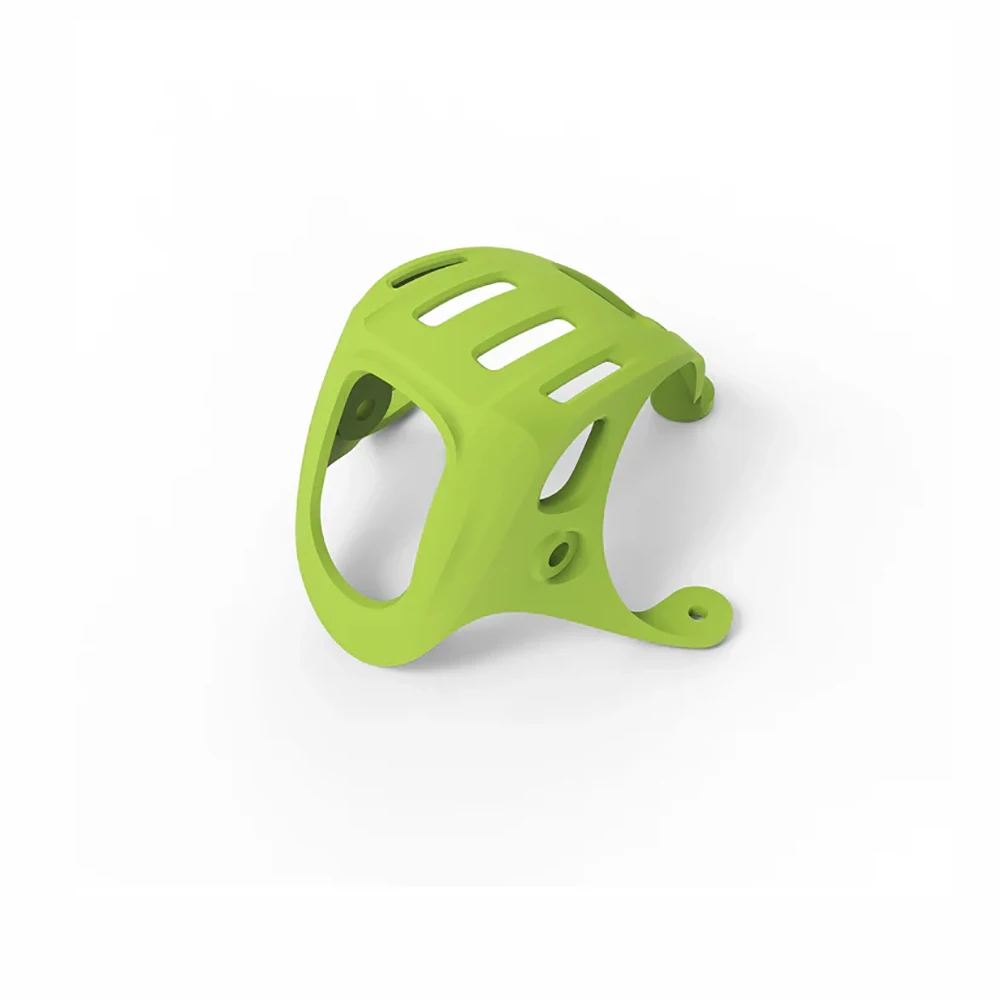

Colorful Canopy for O4 Air Unit

Tailored for whoop drones, the Canopy for O4 Air Unit integrates BETAFPV's signature micro canopy design with optimized inner space and mounting holes for DJI O4 Air Unit's shock-absorbing components. Featuring an adjustable camera angle from 10° to 35°, it ensures perfect HD footage without capturing the frame or top cover. With standard 25.5mm x 25.5mm mounting holes, it also supports DIY customization, giving pilots the flexibility to build their ideal whoops for any flying scene.

Bullet Points

• Optimized for DJI O4 Air Unit: Incorporates Shock-absorbing Components for stable HD footage.

• Adjustable Camera Angle: 10° to 35° range to suit various shooting scenes.

• DIY-Friendly: Standard 25.5mm x 25.5mm mounting holes for customization flexibility.

• Classic BETAFPV Style: Retains the iconic Micro canopy design while protecting the camera.

Specifications

• Item: Canopy for O4 Air Unit

• Material: PP

• Color: White/Black/Green/Blue/Purple

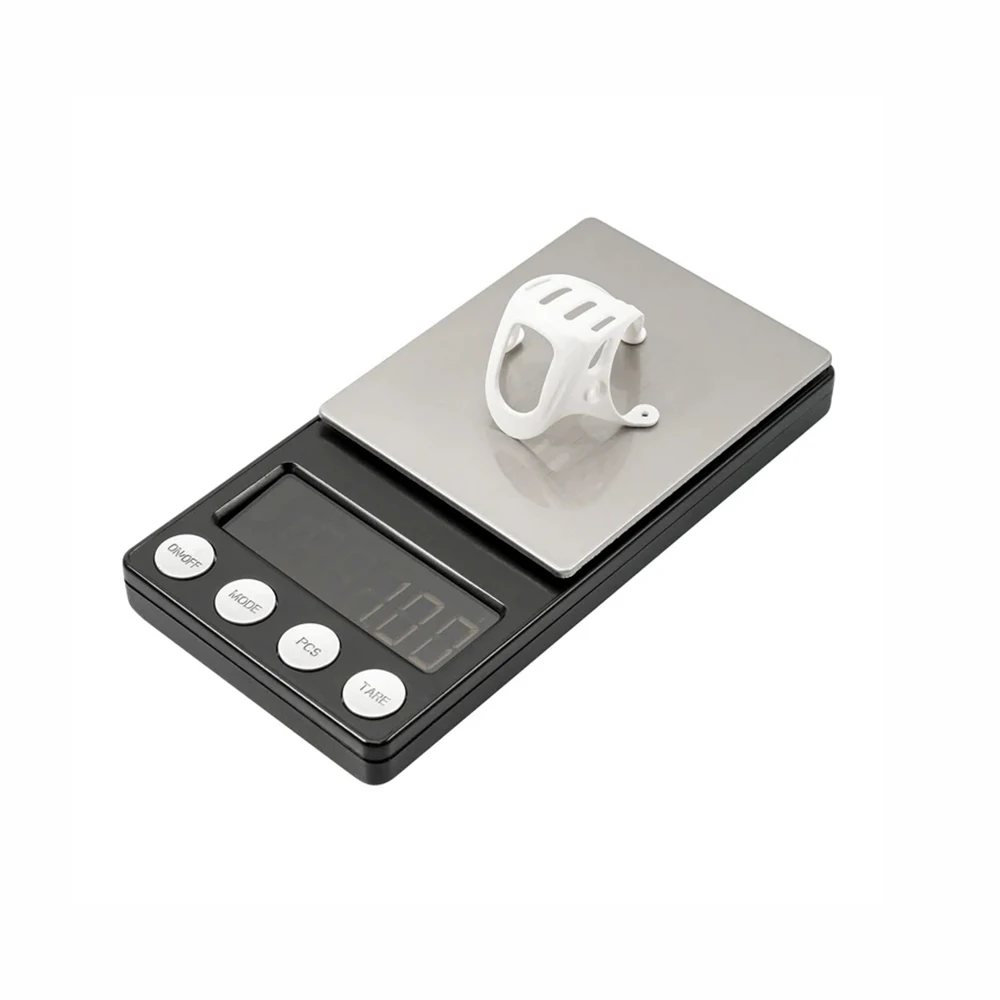

• Weight: 1.00g

• Mounting holes: 25.5mm * 25.5mm

• Camera installation spacing: 20mm

• Compatible camera: for DJI O4 Camera

• Tilt: 10°-35°

• Compatible frame: Meteor65 Pro Frame, Meteor75 Pro Frame

Diagram

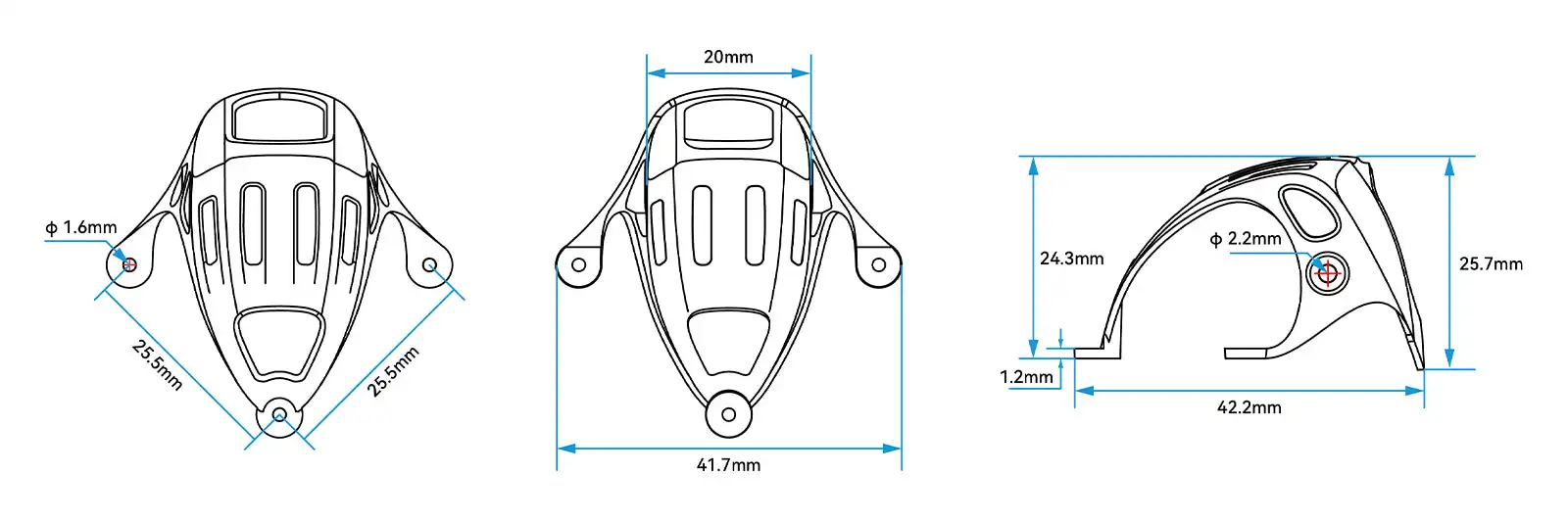

Diagram of Canopy for O4 Air Unit:

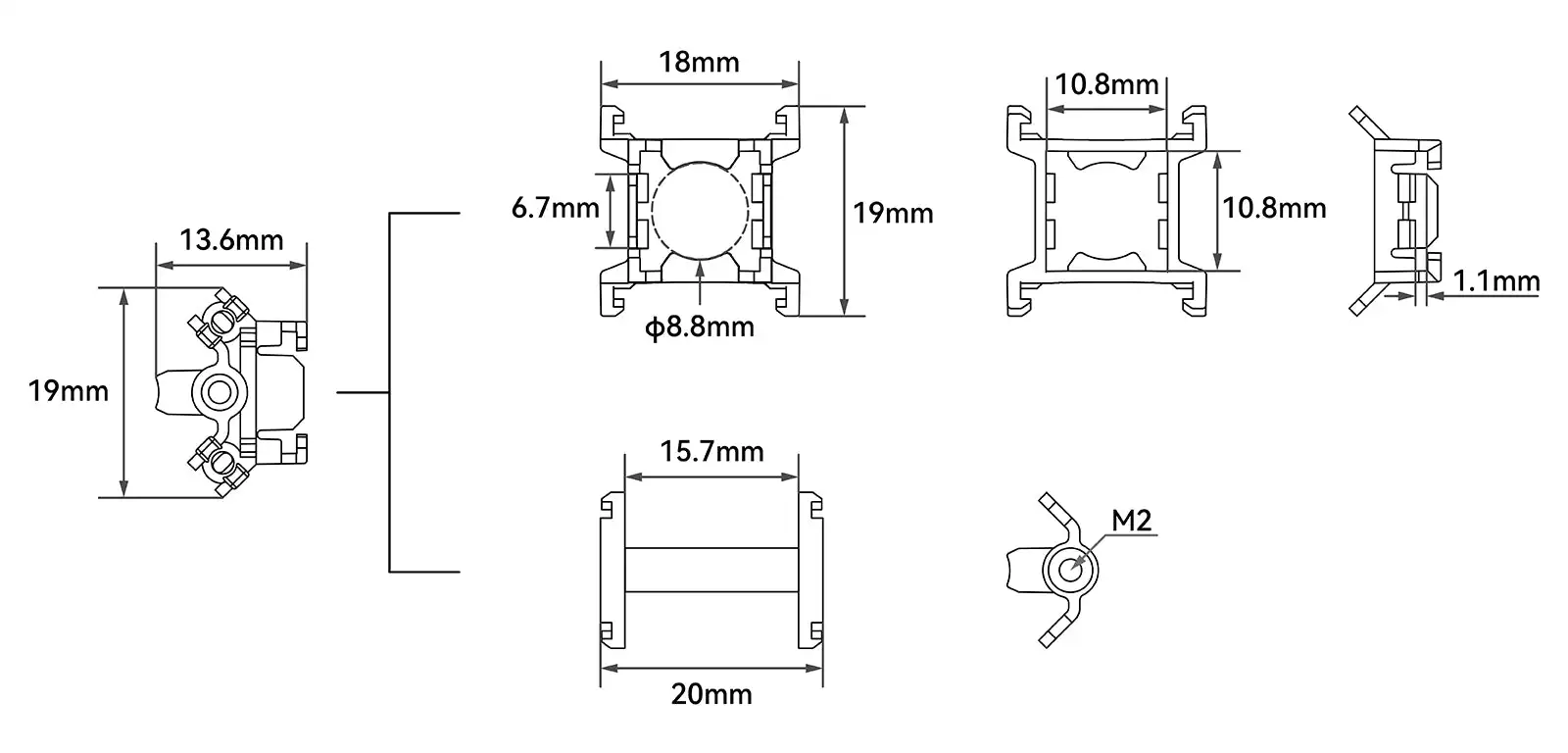

Diagram of Shock-absorbing Components for O4 Air Unit:

Optimized for Stability

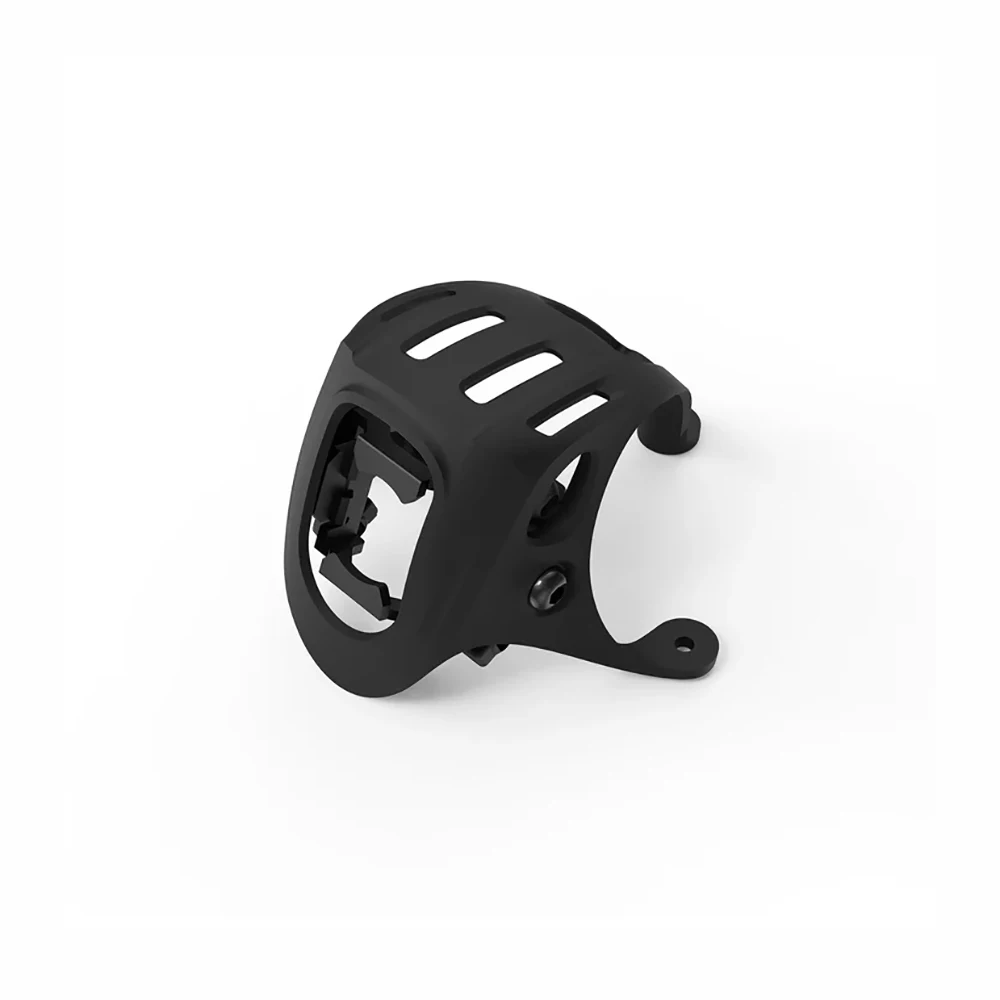

The Canopy is meticulously designed to accommodate the DJI O4 Air Unit along with its Shock-absorbing Components. Its precise inner space and mounting hole design ensures secure attachment while minimizing vibrations.

Note: This Canopy includes the Shock-absorbing Components for the O4 Air Unit. For additional spare components, please visit the Shock-absorbing Components for O4 Air Unit page for more details.

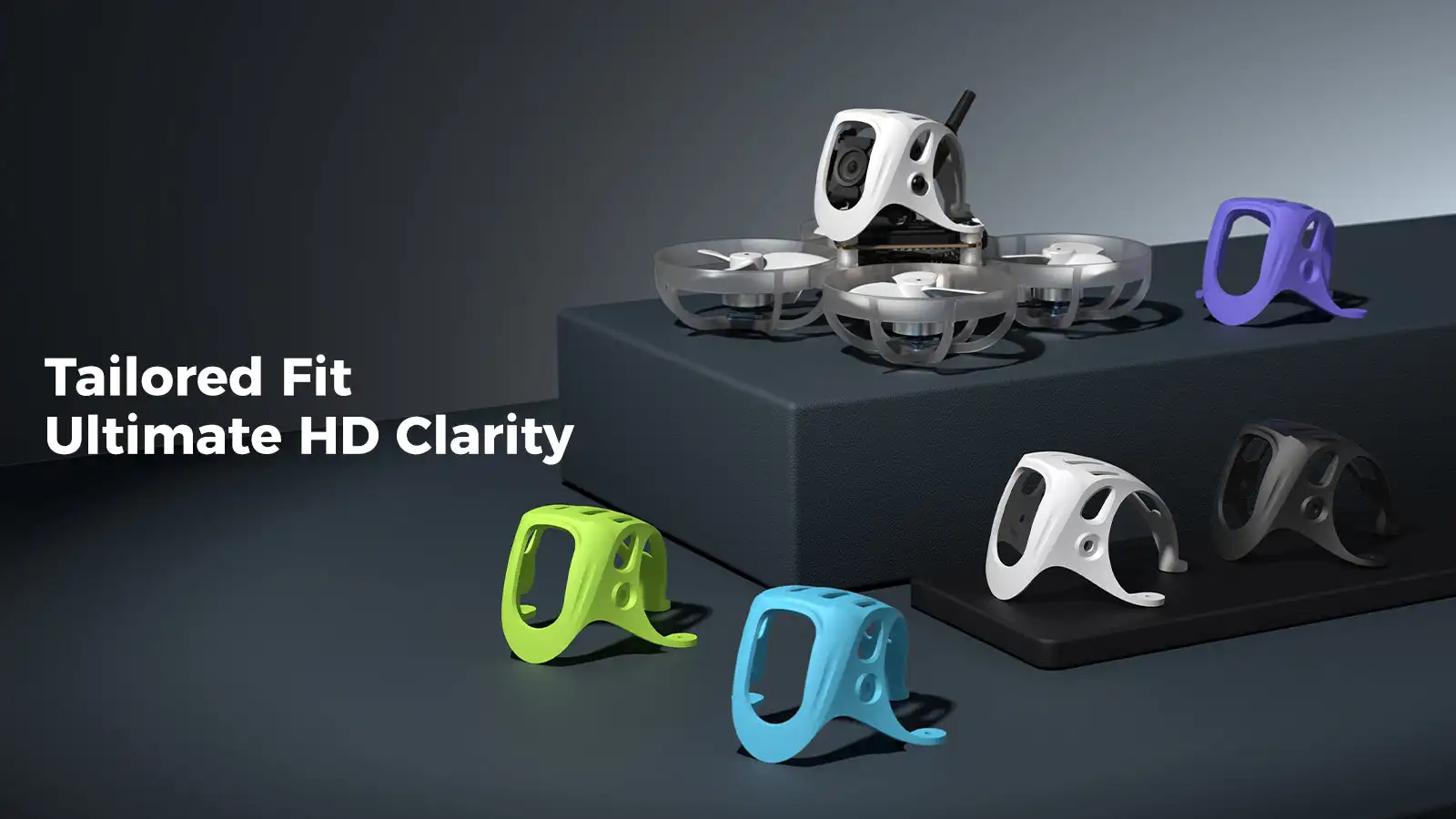

Versatile Canopy Design

The Canopy offers a 10° to 35° adjustable camera angle, ensuring flawless HD footage across various shooting scenarios. Its 25.5mm x 25.5mm mounting holes provide flexibility, allowing pilots to customize their tiny whoops to perfection.

Recommended Parts

• Whoops: Meteor65 Pro O4, Meteor75 Pro O4

• Frames: Meteor65 Pro Frame, Meteor75 Pro Frame

• Accessory: Shock-absorbing Components for O4 Air Unit

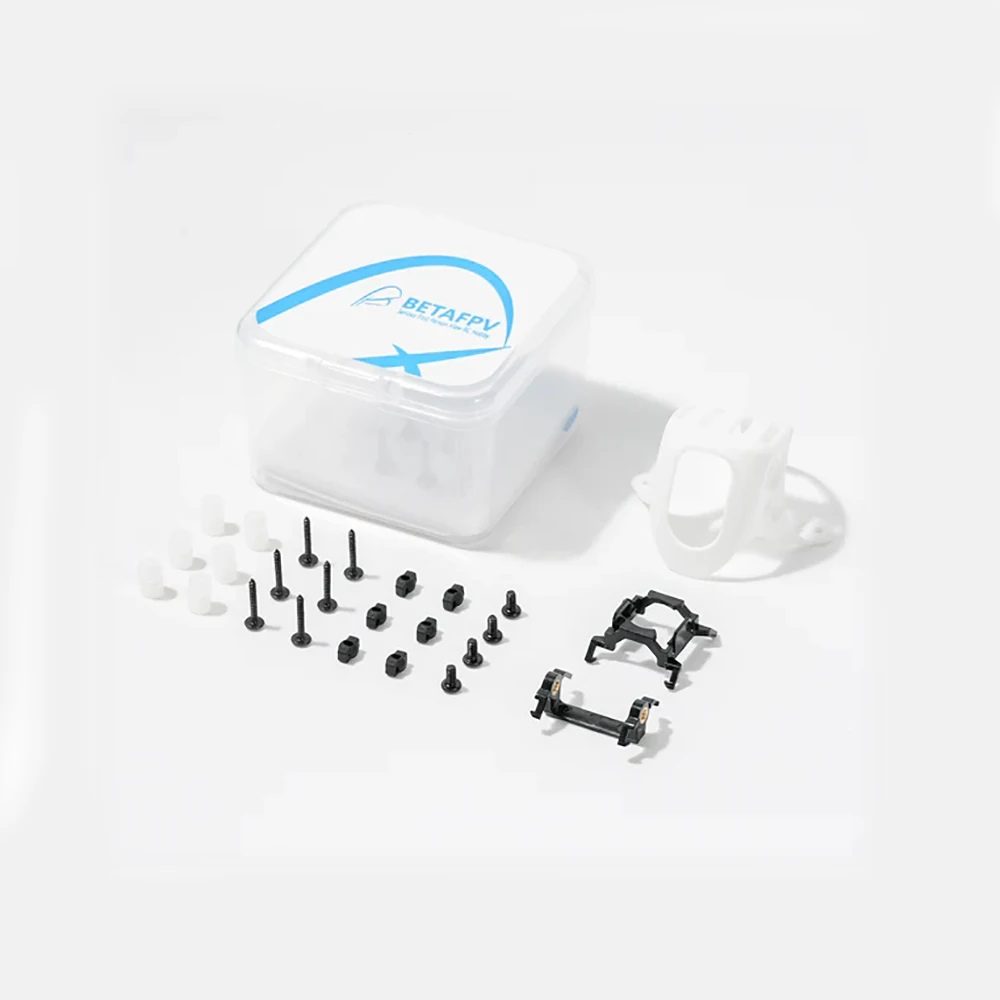

Package

1 * Canopy for O4 Air Unit (White/Black/Green/Blue/Purple)

1 * DJI O4 Camera Bracket

1 * Shock-absorbing Mount for DJI O4 Camera

6 * Shock-absorbing Balls for DJI O4 Camera

6 * HD Shock-absorbing Balls

4 * M2*4 Flat Head Socket Cap Screws

6 * M1.4*10*4 Phillips Flat Washer Head Tapping Screws

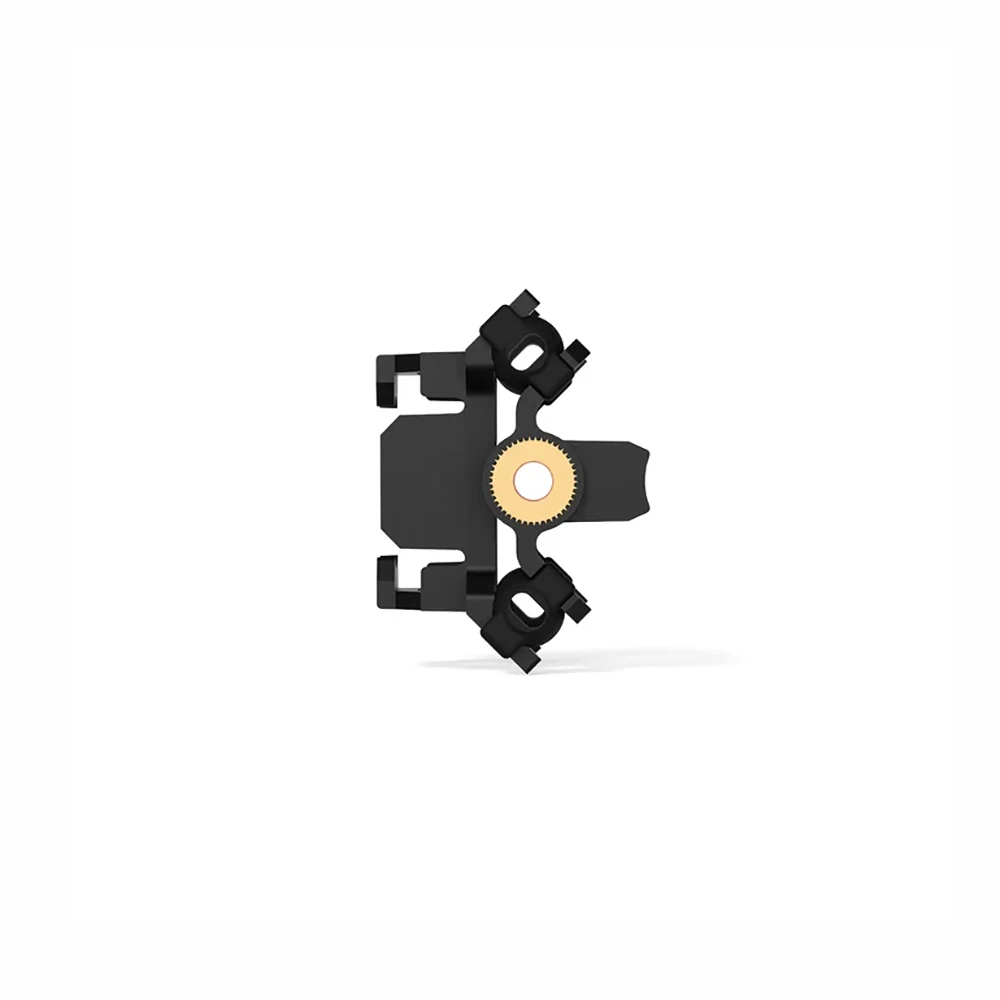

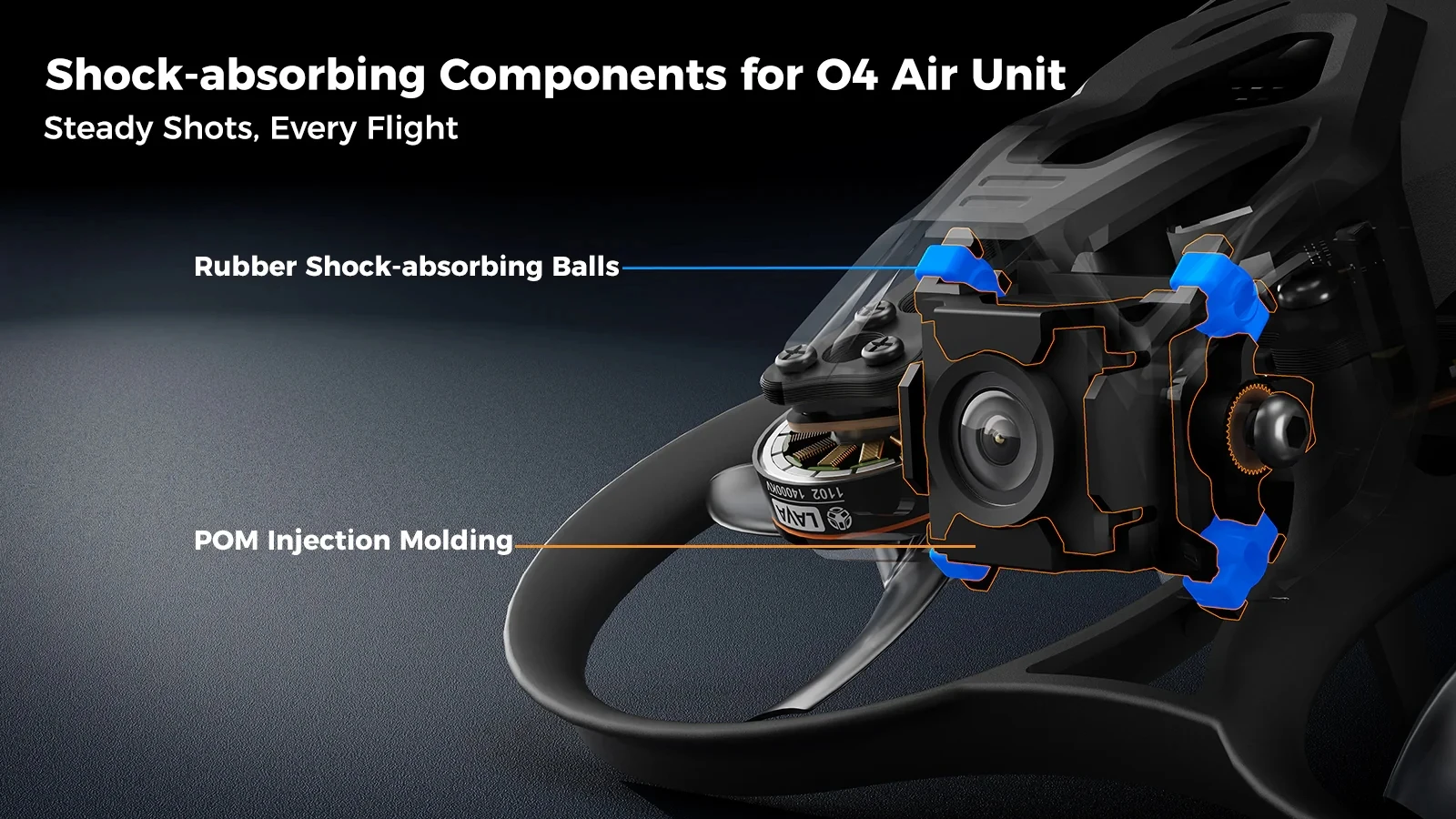

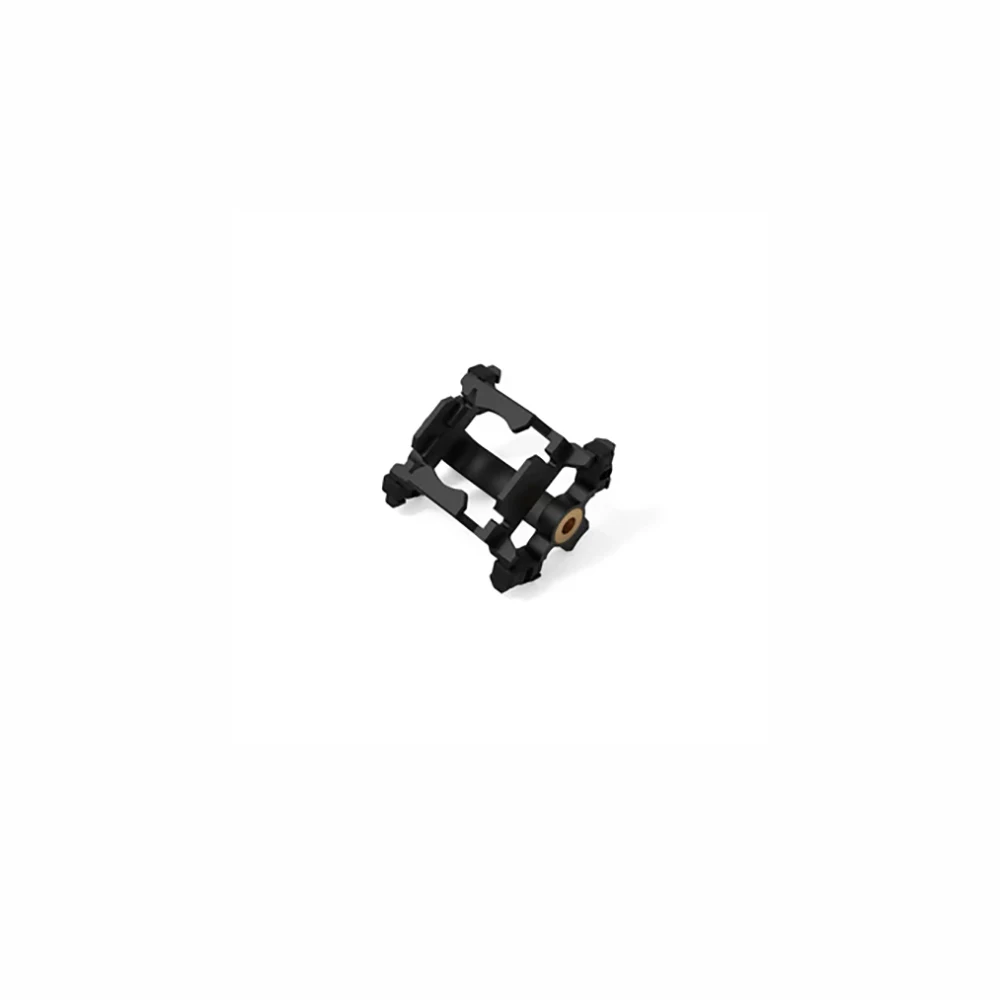

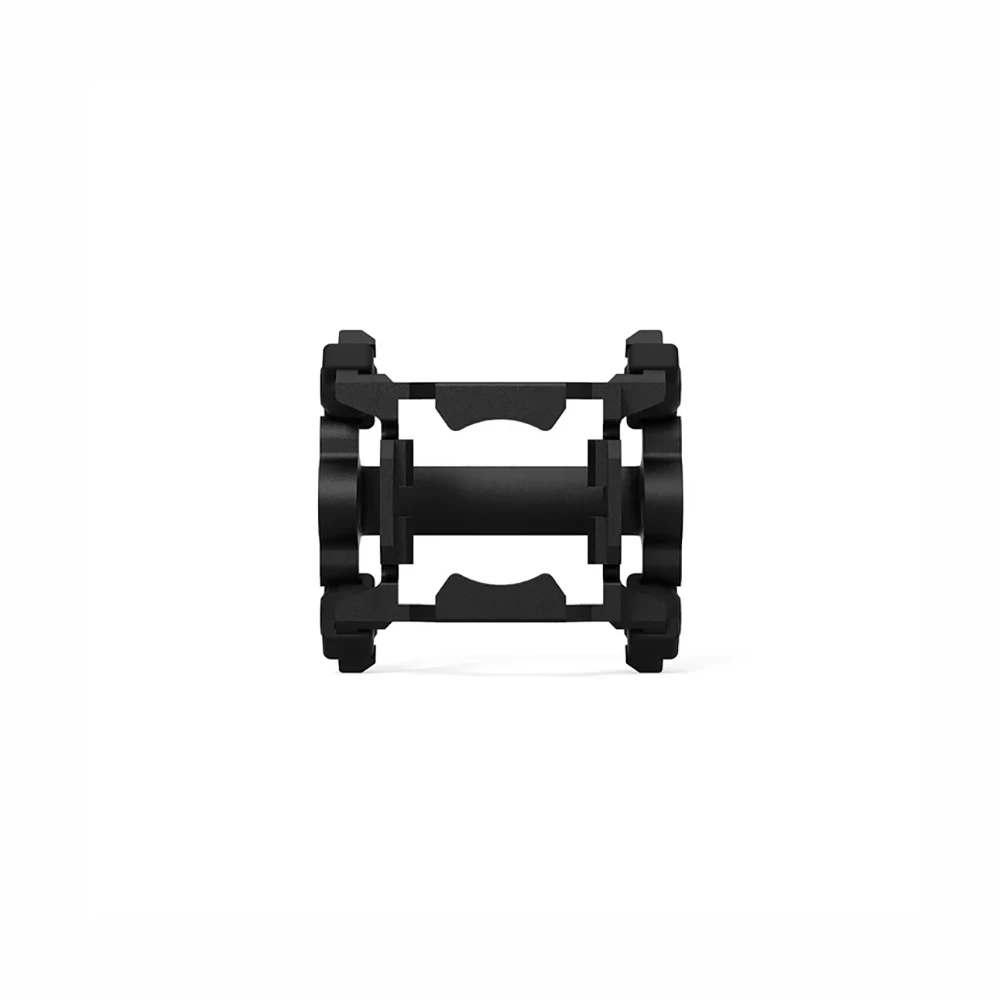

Shock-absorbing Components for O4 Air Unit

Designed specifically for the DJI O4 Air Unit, these components effectively isolate and absorb high-frequency vibrations to prevent image shake or jello effects during FPV filming. The system uses a POM material bracket with four custom shock-absorbing balls for structural strength and durability. With a universal 20mm mounting width, it’s compatible with various HD whoop drones, ensuring easy installation and optimal video stabilization. This innovative solution enhances footage quality, making it ideal for high-definition FPV aerial cinematography.

Bullet Points

Designed for DJI O4 Air Unit: Effectively isolates and absorbs high-frequency vibrations to prevent image shake and jello effects, ensuring smoother FPV footage.

High-Strength POM Material: Crafted from durable POM, known for its exceptional stiffness and reliability in performance.

Versatile Compatibility: Features a 20mm mounting hole spacing, making it compatible with various for DJI air units for flexible HD drone builds.

Specifications

• Item: Shock-absorbing Components for O4 Air Unit

• Material: POM

• Color: Black

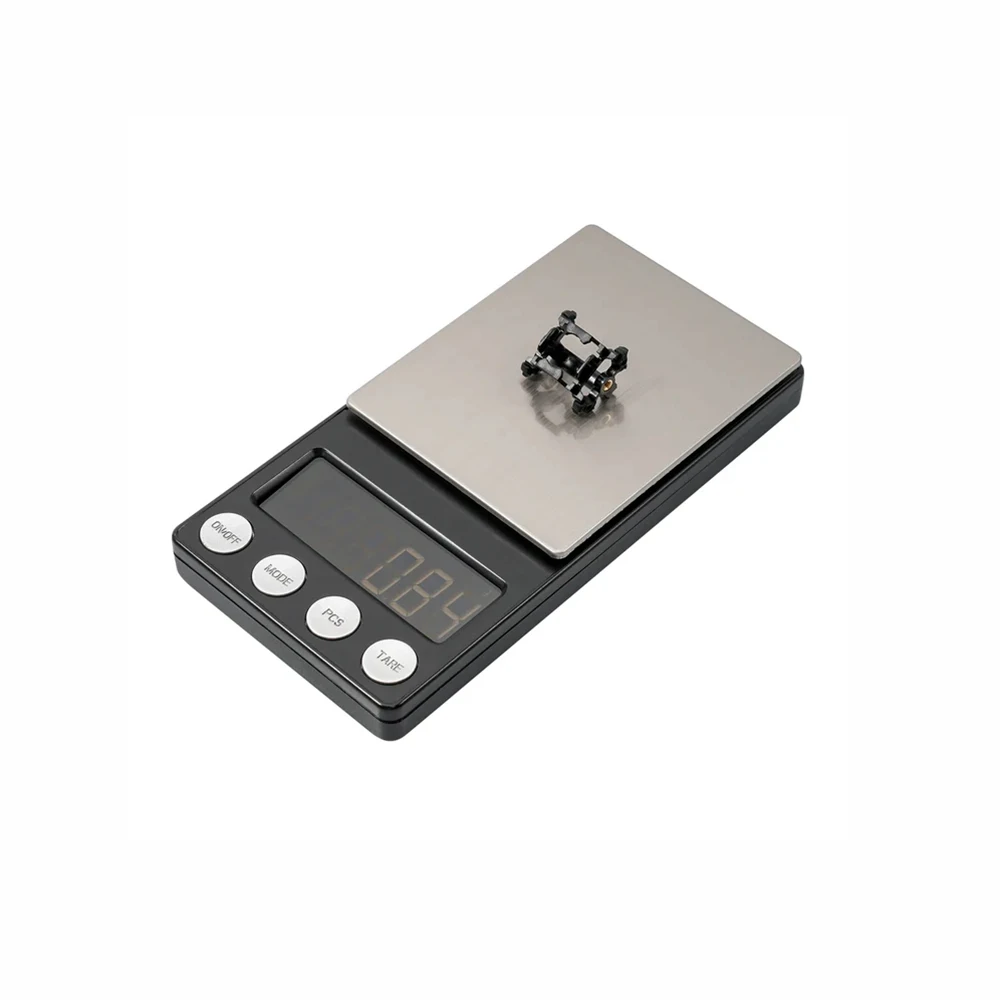

• Weight: 0.82g

• Installation spacing: 20mm

• Compatible camera: for DJI O4 Camera (with Shock-absorbing Components for O4 Air Unit)

• Compatible canopy & bracket: Canopy for O4 Air Unit, O4 Air Unit Bracket

Diagram

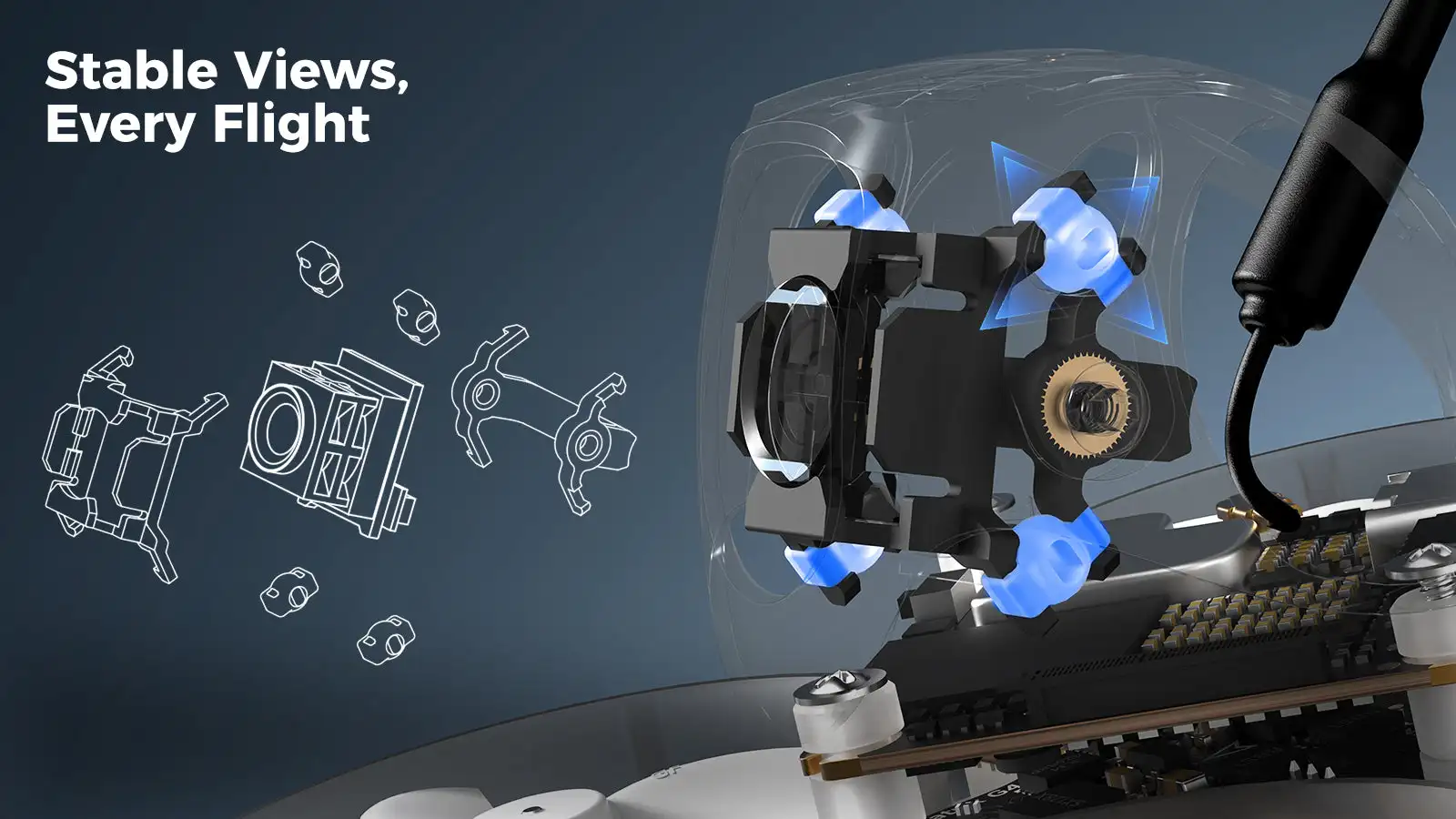

Fly Stable, Capture Full HD

To address the DJI O4 Air Unit's sensitivity to high-frequency vibrations caused by its built-in gyroscope for video stabilization, we developed dedicated shock-absorbing components. These components use four carefully designed shock-absorbing balls to securely connect the DJI O4 Camera to the bracket. This innovative design effectively isolates and absorbs high-frequency vibrations, ensuring smooth, stable footage and eliminating image shake or jello effects during FPV filming. Perfect for creators seeking high-quality aerial videography.

How to Install

1. Place the DJI O4 Air Unit into the bracket securely.

2. Attach the unit to the bracket using the four shock-absorbing balls, ensuring proper alignment and stability.

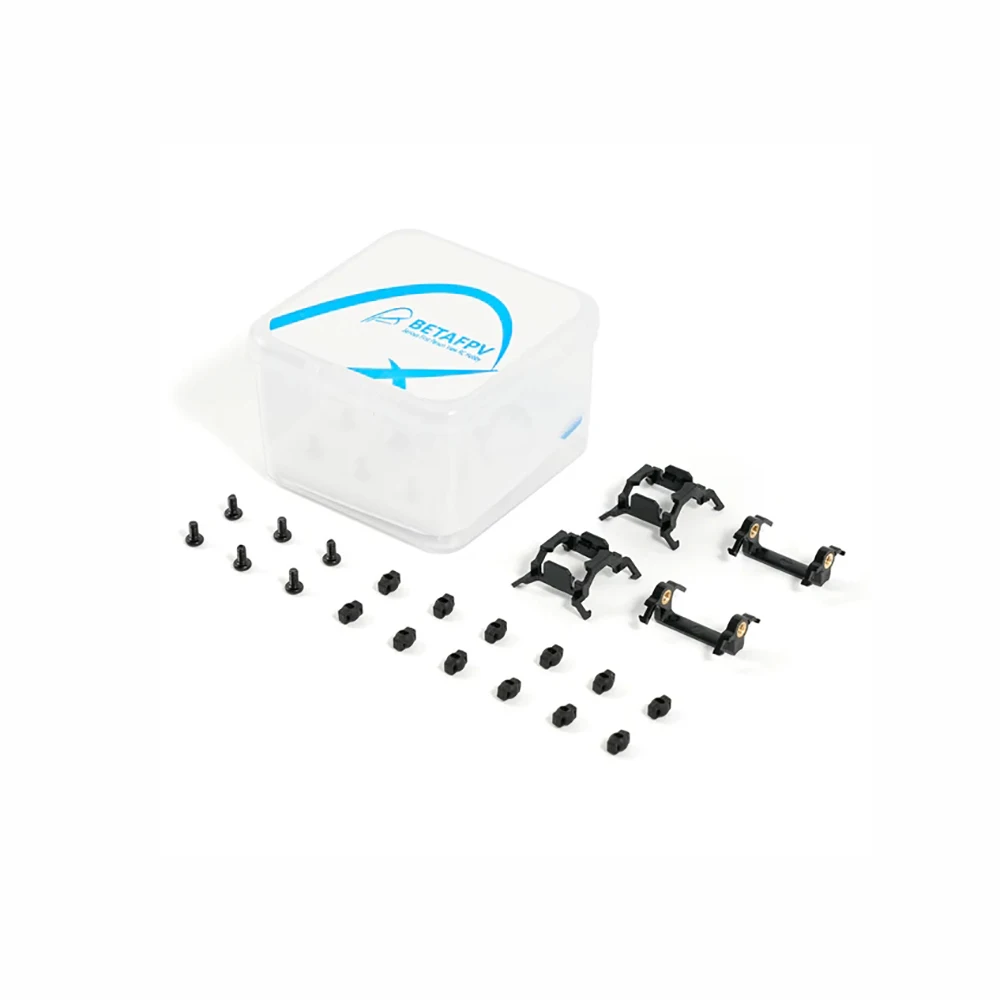

Package

2 * for DJI O4 Camera Bracket

2 * Shock-absorbing Mount for DJI O4 Camera

12 * Shock-absorbing Balls for O4 Camera

6 * M2*4 Flat Head Socket Cap Screws
