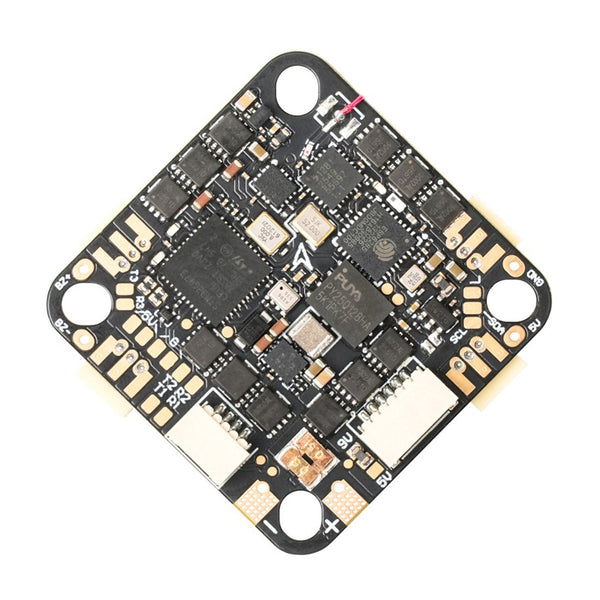

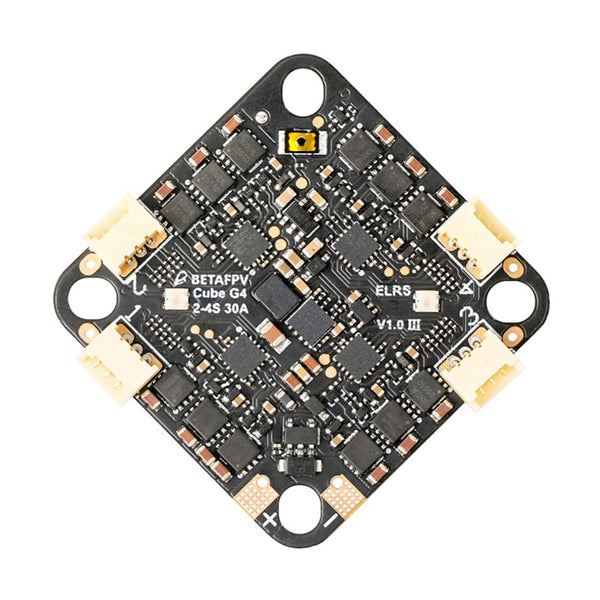

BETAFPV Cube G4 2S-4S 30A 3in1 ELRS 2.4GHz Flight Controller CM42605 Gyroscope For FPV Toy Airplane Quadcopter

BETAFPV Cube G4 2S-4S 30A 3in1 ELRS 2.4GHz Flight Controller CM42605 Gyroscope For FPV Toy Airplane Quadcopter

Specifications:

Weight: 35g

Installation Hole Spacing: 26mm × 26mm

Gyroscope: CM42605

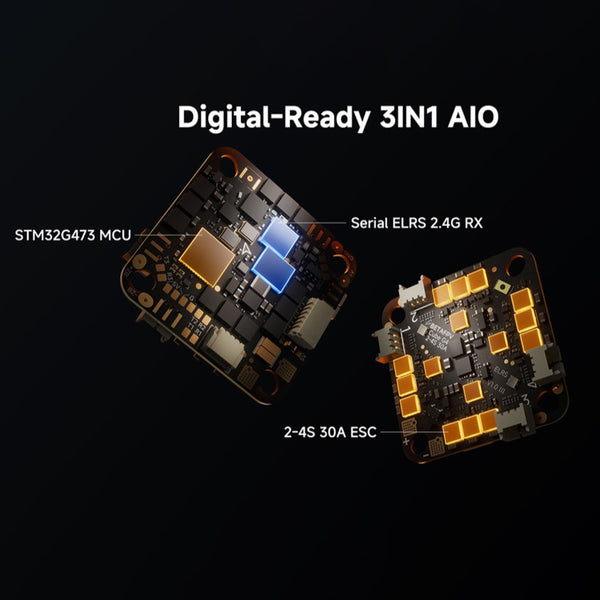

MCU: STM32G473CEU6

Gyroscope refresh rate: 8kHz

Black box memory: 16MB

Sensor: Voltage / Current detection, barometer (TCBP001TA)

BEC Output: 9V@2A, 5V@3A

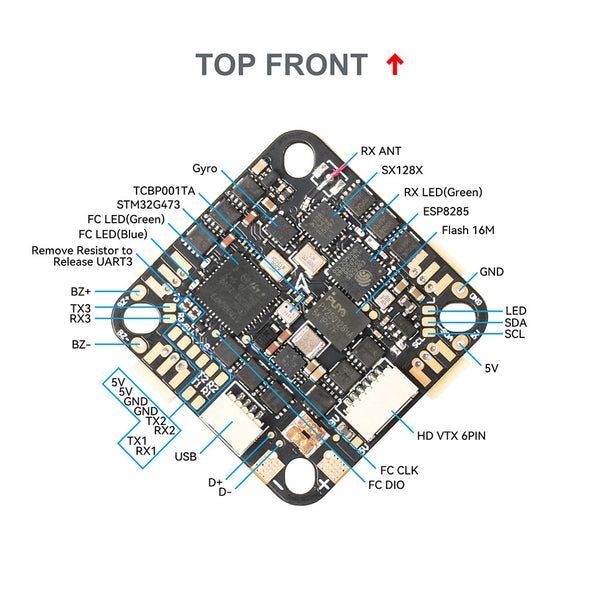

UART 1, UART 2, UART 3 (for receiver), UART 4 (for high-definition image transmission)

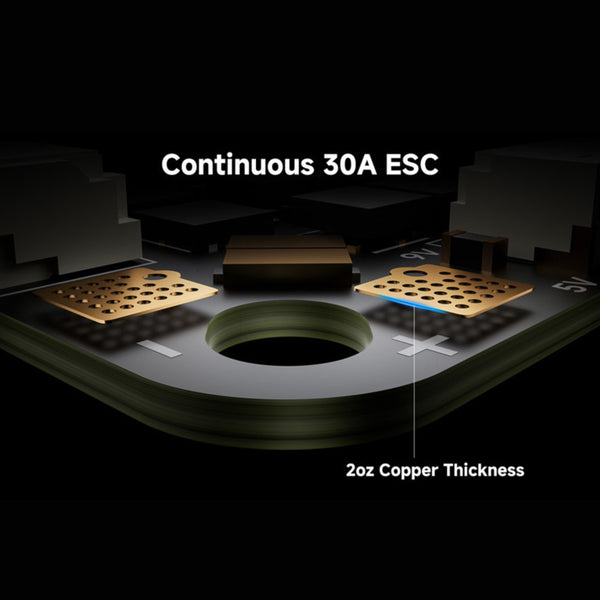

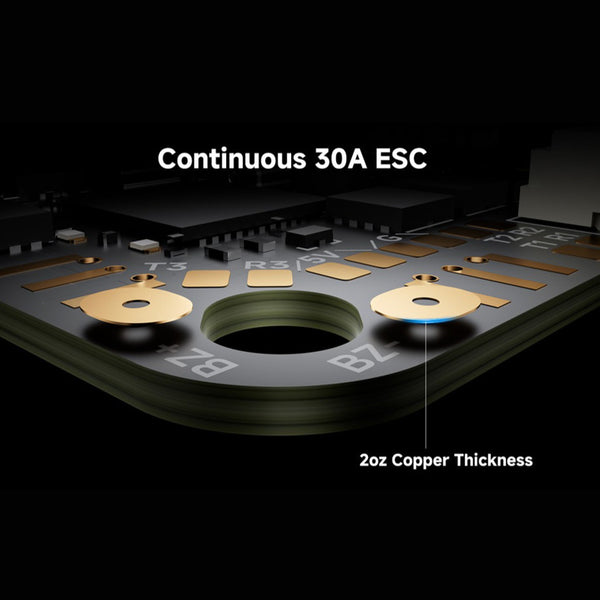

ESC Continuous Current: 30A

USB-compatible Interface: SH1.0-4Pin

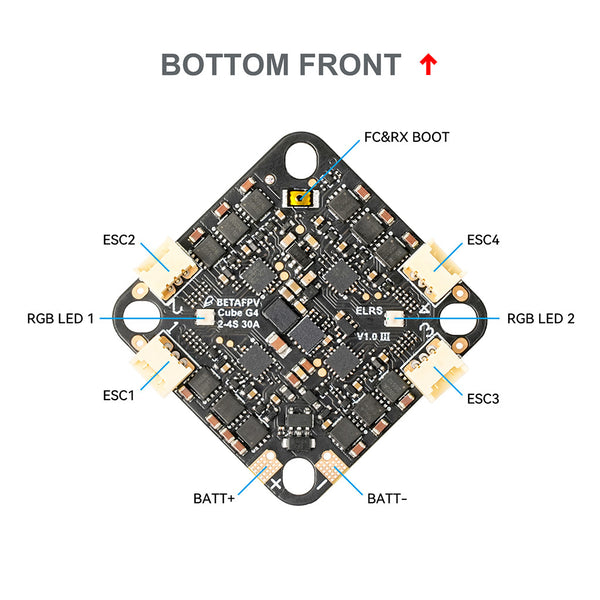

Motor Socket: JST 1.25

Battery Onterface: XT30

Betaflight OSD: None

Receiver Serial: ELRS 2.4GHz (V3.5.6)

Receiver Firmware: 2.4G AIO RX

Flight Control Firmware: 2025.12.0-beta_SETAFPVG473_V3

ESC Firmware: C-X-70 48KHz.Hex

ESC Input: Lipo / Lihv 2S-4S

ESC IC Digital Signal Protocol: DShot150, DShot300, D DShot60

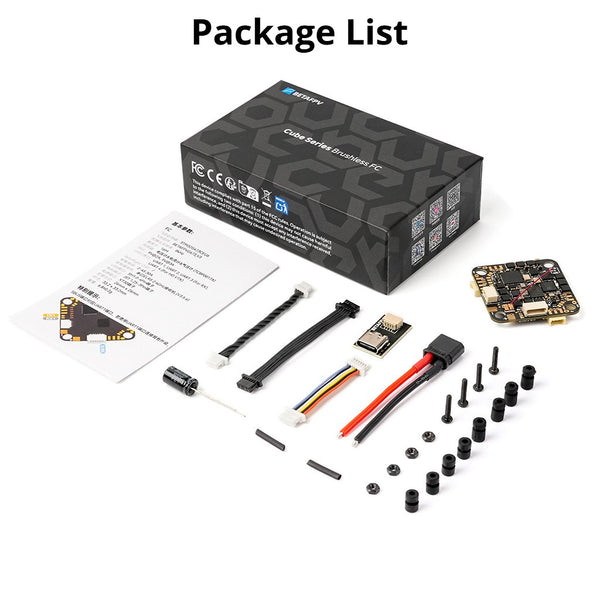

Package Includes:

Cube G4 2-4S 30A 3in1 Flight Control * 1

25V 220uF capacitor * 1

Data transmission cable 30mm * 1

Data transmission cable 50mm * 1

XT30 power cord 50mm * 1

USB-compatible adapter board * 1

USB-compatible adapter cable * 1

8mm shock-absorbing ball * 4

6.6mm shock absorber ball * 4

M2 nut * 4

M2*10 screws * 4

0.8mm heat shrink tubing * 2
