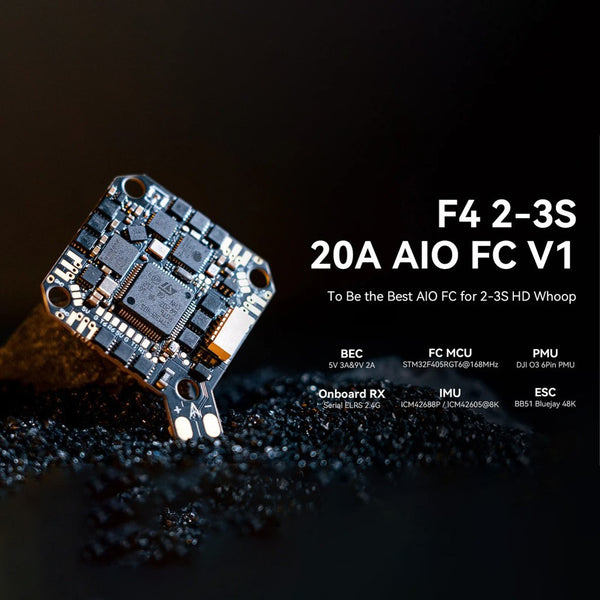

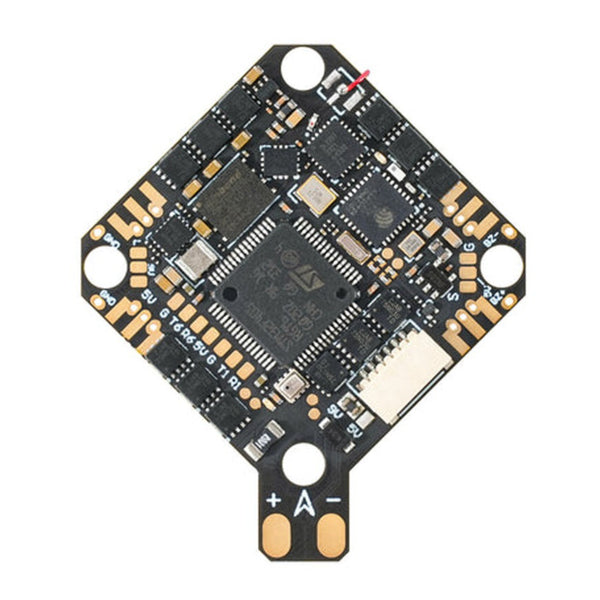

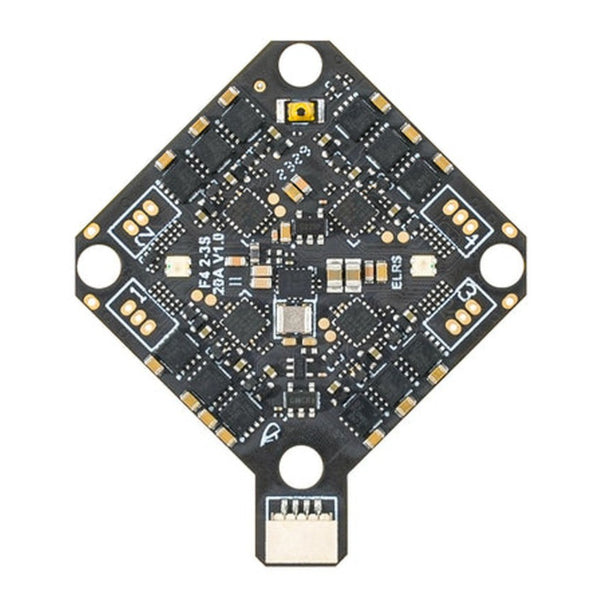

BETAFPV F4 2-3S 20A AIO FC V1 With USB-compatible Port For DJI O3 HD VTX For Pavo20 Pro II / Pavo20 Pro FPV Quadcopter

BETAFPV F4 2-3S 20A AIO FC V1 With USB-compatible Port For DJI O3 HD VTX For Pavo20 Pro II / Pavo20 Pro FPV Quadcopter

Description:

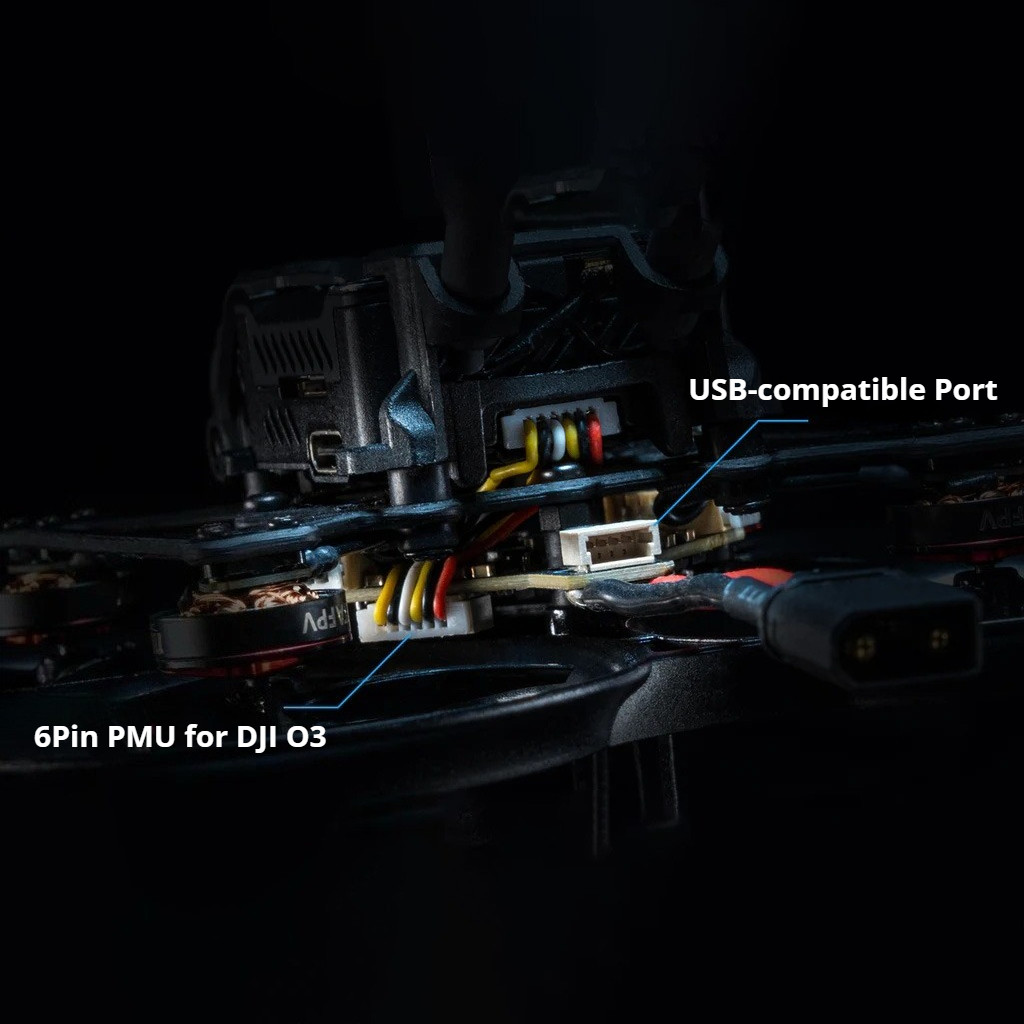

F4 2-3S 20A AIO FC V1 is specifically designed for HD VTX, utilizing 2-3S batteries for enhancing the flight experience. It features a dual BEC solution that delivers stable power outputs of 9V@2A for DJI O3 and 5V@3A for external devices. With a 20A ESC, it enables agile flight and increases dynamic. And connector for DJI O3 HD VTX and USB-compatible port for easy installation and maintenance.

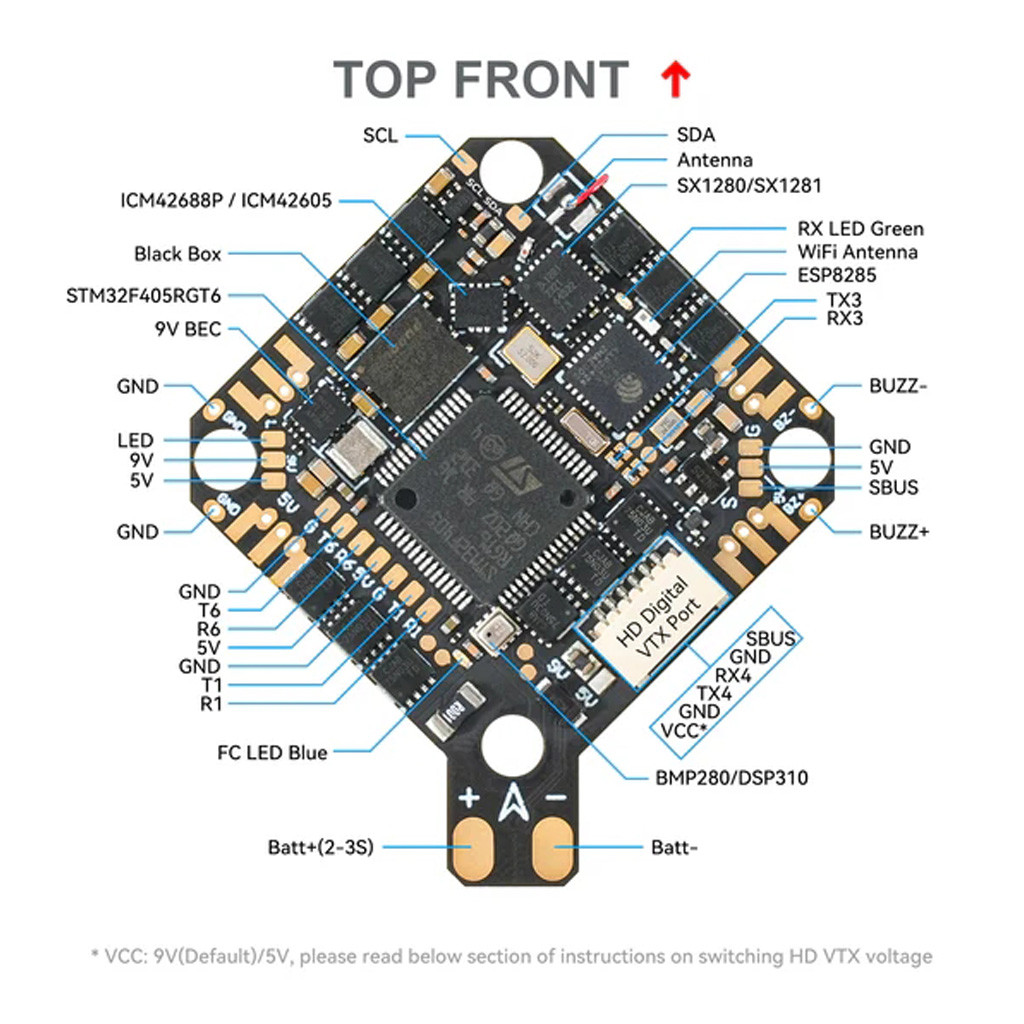

Specifications:

Recommend Quadcopter: Pavo20 Pro II, Pavo20 Pro, Pavo Pico, HX115 SE Toothpick Quadcopter

Weight: 25g

Mounting Hole Size: 26mm x 26mm

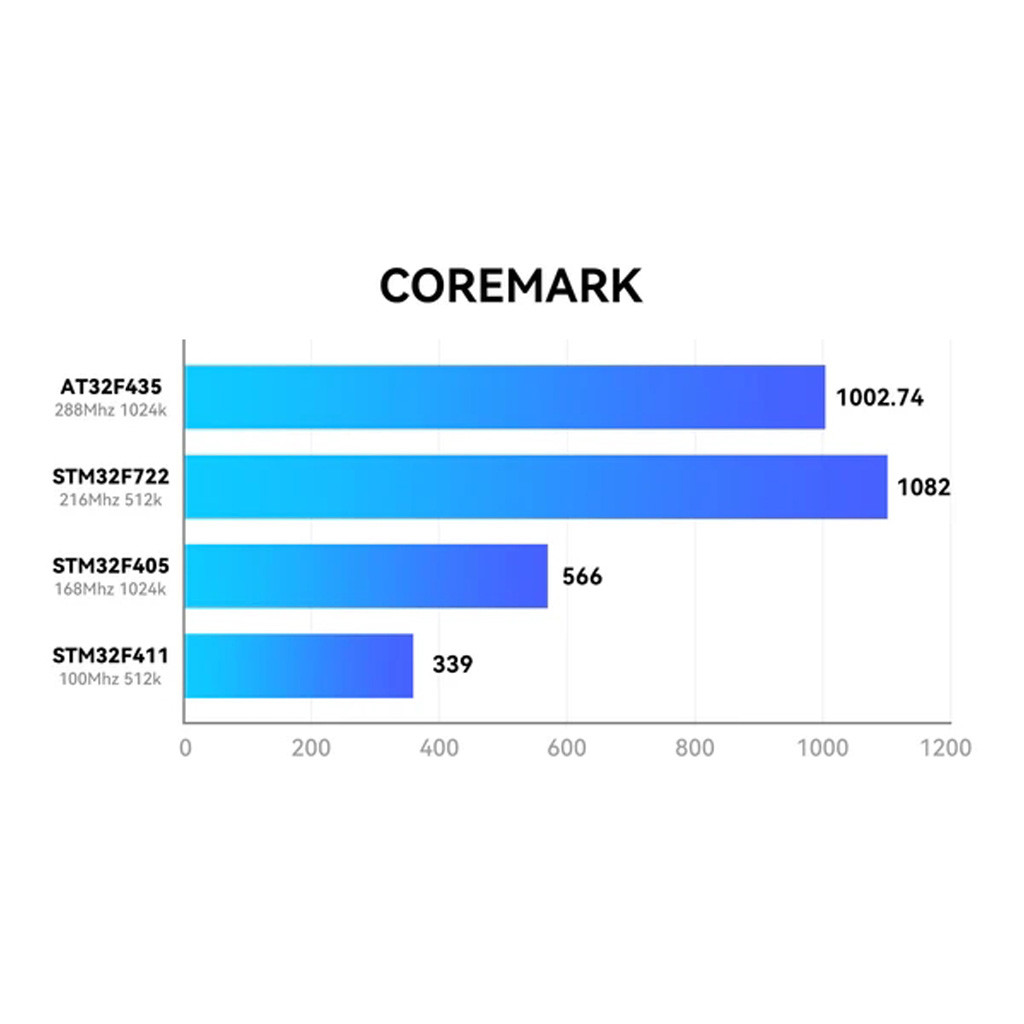

CPU: STM32F405RGT6 (168MHz)

Six-Axis: ICM42688P/ICM42605 (SPI connection)

Sensor: Barometer (BMP280/DSP310), Voltage & Current

RX: Serial ELRS 2.4G Receiver

RX Firmware Version: AIO 2400 RX ELRS V3.3.0

FC Firmware Version: Betaflight_4.4.1_BETAFPVF405

ESC Firmware: C_X_70_48_V0.19.2.hex for BB51 Bluejay hardware

ESC Input Voltage: 2-3S

Antenna: Enameled wire

Blackbox Memory: 16MB

5V BEC: 5V 3A@8V supply

9V BEC: 9V 2A@8V supply

USB Port: SH1.0 4-Pin

Continuous Current: 20A

Peak Current: 25A

Signal support: D-shot300, D-shot600

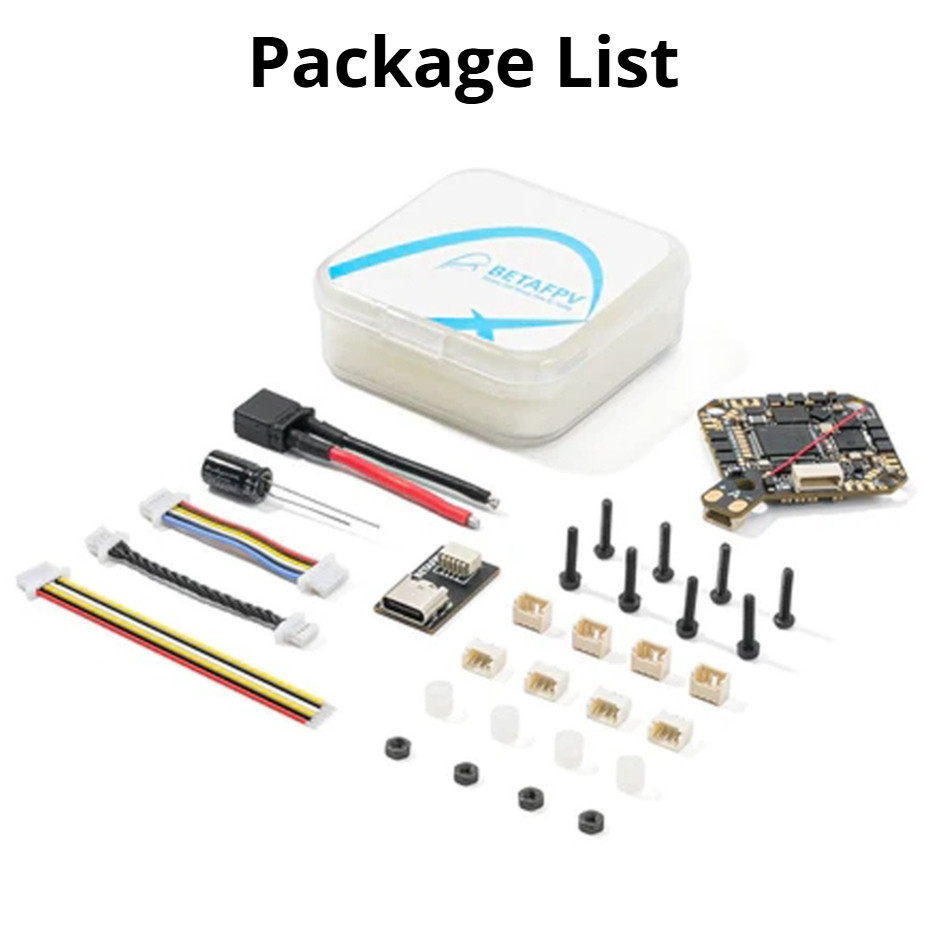

Package Includes:

1 * F4 2-3S 20A AIO FC V1

4 * M2*10 Machine Screw

4 * M2*10 Nylon Screw

4 * M2 Nuts

4 * Shock Absorbing Ball

4 * JST1.25mm Angle Socket

4 * JST1.25mm Straight Socket

1 * SH1.0 4Pin Adapter Cable

1 * Type-C to SH1.0 Adapter

1 * XT30 Power Cord

1 * Filter Capacitor

1 * 30mm Double-head VTX connector wire

1 * 60mm Single-head VTX connector wire
