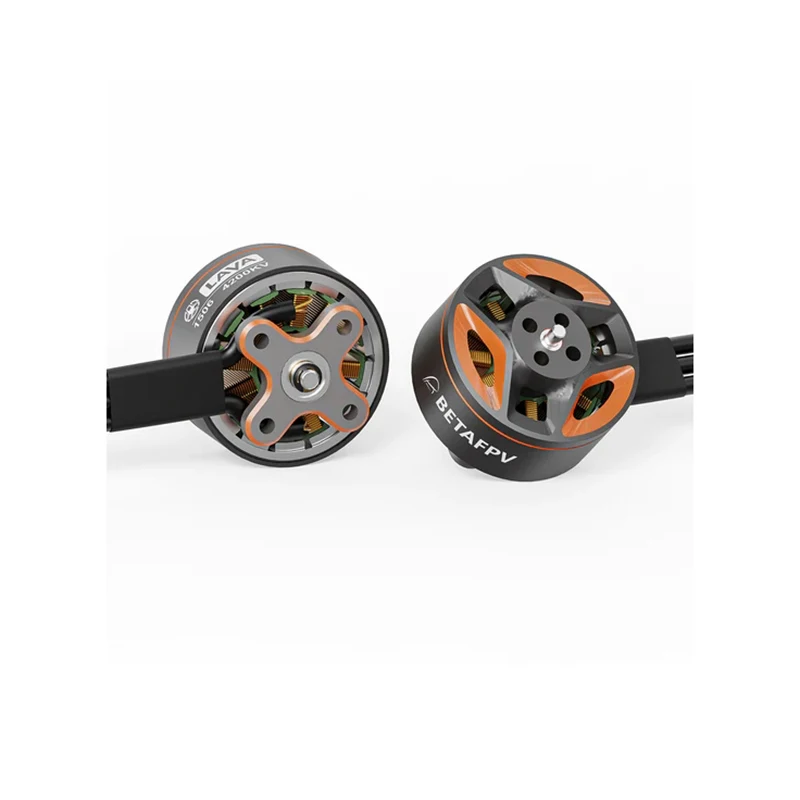

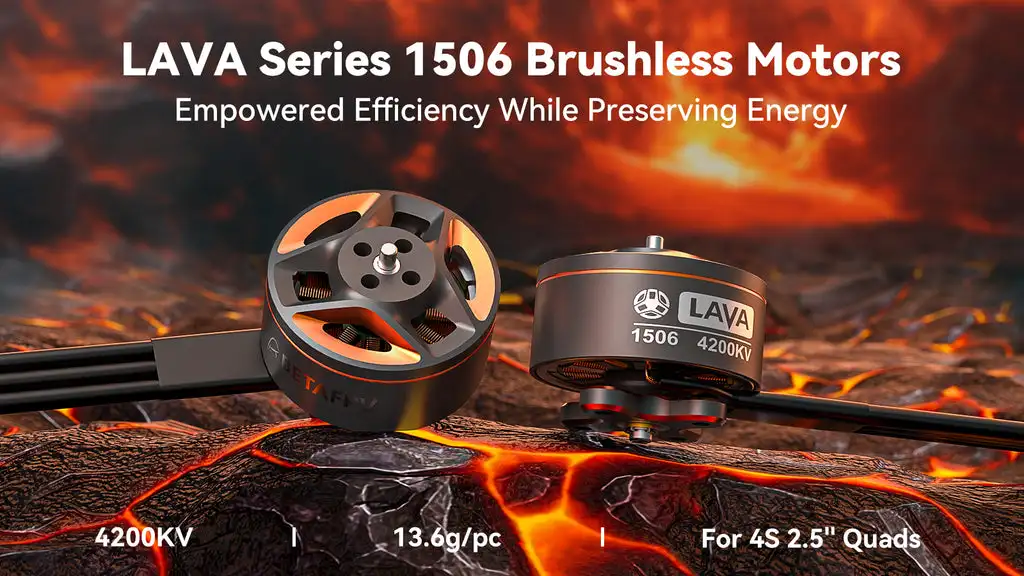

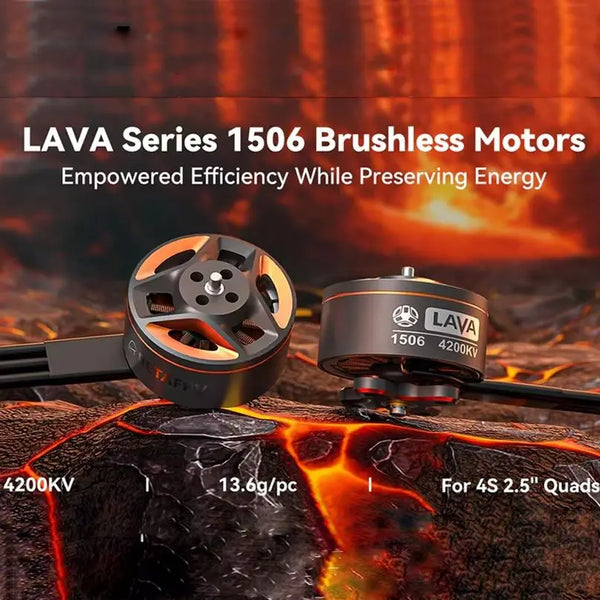

BETAFPV LAVA Series 1506 4200KV Brushless Motors 1.5mm Shaft for Pavo25 V2 Brushless Whoop Quadcopter For 4S 2.5'' RC Quadcopter

LAVA Series 1506 Brushless Motors is designed for the 4S 2.5'' quads, with smoother torque output performance. Combined with the GF D63 3-Blade Propellers 1.5mm Shaft and the F722 35A AIO V2 Flight Controller, it could enable pilots to effortlessly freestyle. Easily meet competitively challenging drone competitions and professionally shot film creation needs, bringing you a superb flight experience and high-quality image output, leading the 4S 2.5'' quads to preserve energy flight while more efficiency.

Bullet Point

• The LAVA Series 1506 Brushless Motors are designed specifically for 4S 2.5'' quads, providing a significant boost in power and taking our Pavo25 V2 Brushless Whoop Quadcopter to new heights.

• GF D63 3-Blade Propellers 1.5mm Shaft will be the best match with LAVA Series 1506 Brushless Motors, which forms a highly efficient power system, guaranteeing powerful flight capabilities and reduced noise levels.

• When paired with the F722 35A AIO V2 Flight Controller, the LAVA Series 1506 Brushless Motors lets pilots experience a powerful and thrilling flight.

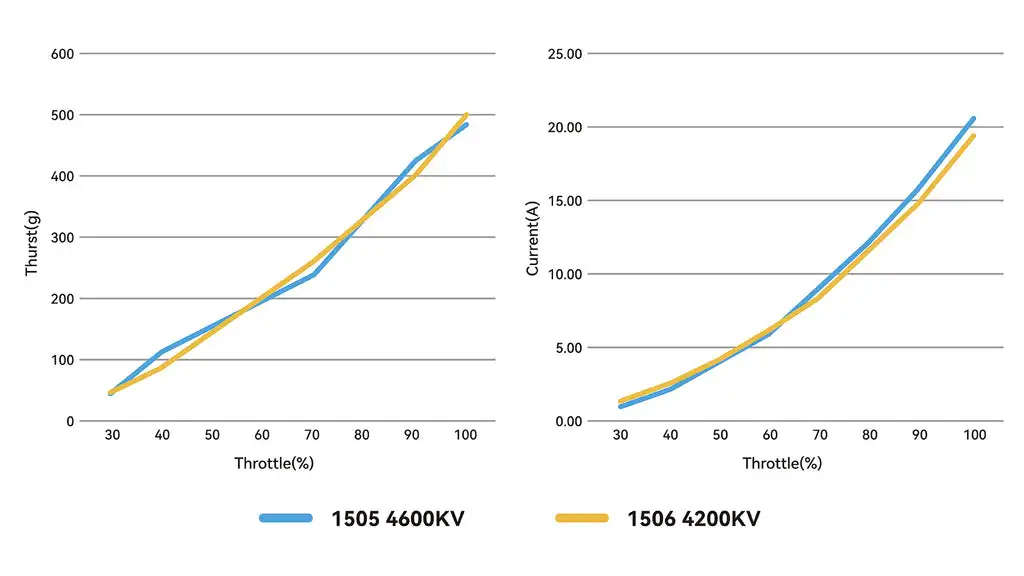

• Compared to the 1505 4600KV Brushless Motor, it boasts a 15g increase in maximum thrust, ensuring smoother and more efficient power output while conserving energy, and enhancing pilots' overall flying experience.

Specification

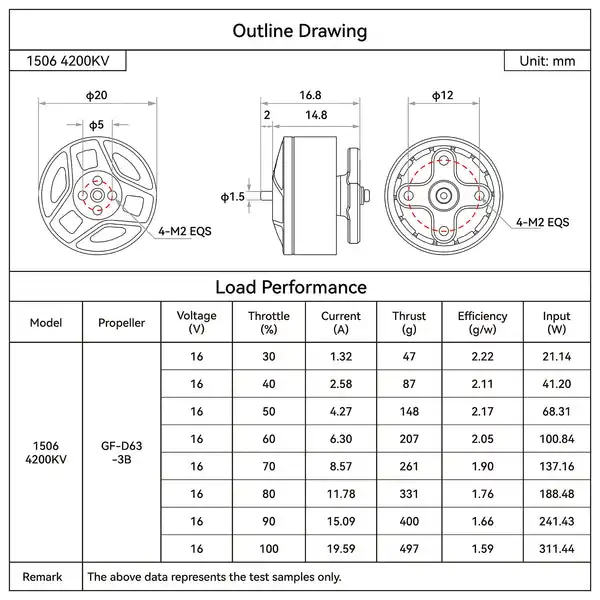

• Items: LAVA Series 1506 4200KV Brushless Motors

• Maximum Power: 313.44W

• Maximum Current: 19.59A

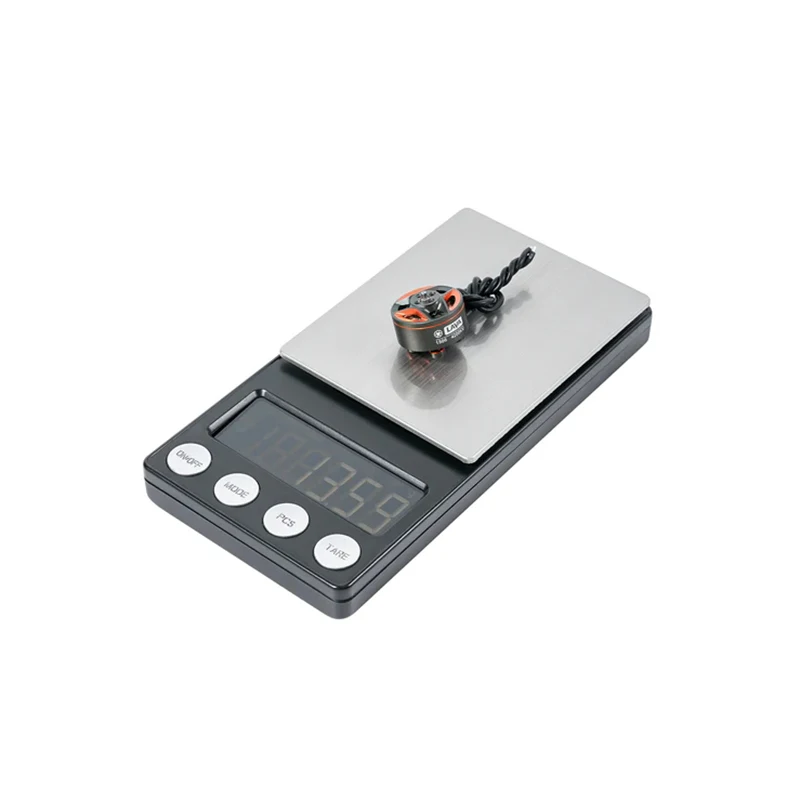

• Weight: 13.6g

• Shaft Diameter: ø1.5mm

• Shaft Length: 4mm

• Wire Specification: 24AWG

• Wire Length: 80mm

• Motor Mounting Hole Size: 4*M2 Ø12mm

• Propeller Mounting Hole Size: 4*M2 Ø5mm

Recommended Parts

• Props: GF D63 3-Blade Propellers 1.5mm Shaft

• Quad: Pavo25 V2 Brushless Whoop Quadcopter

• Flight Controller: F722 35A AIO V2 FC

• Battery: LAVA Series 4S 850mAh LiPo Battery, 4S 650mAh LiPo Battery

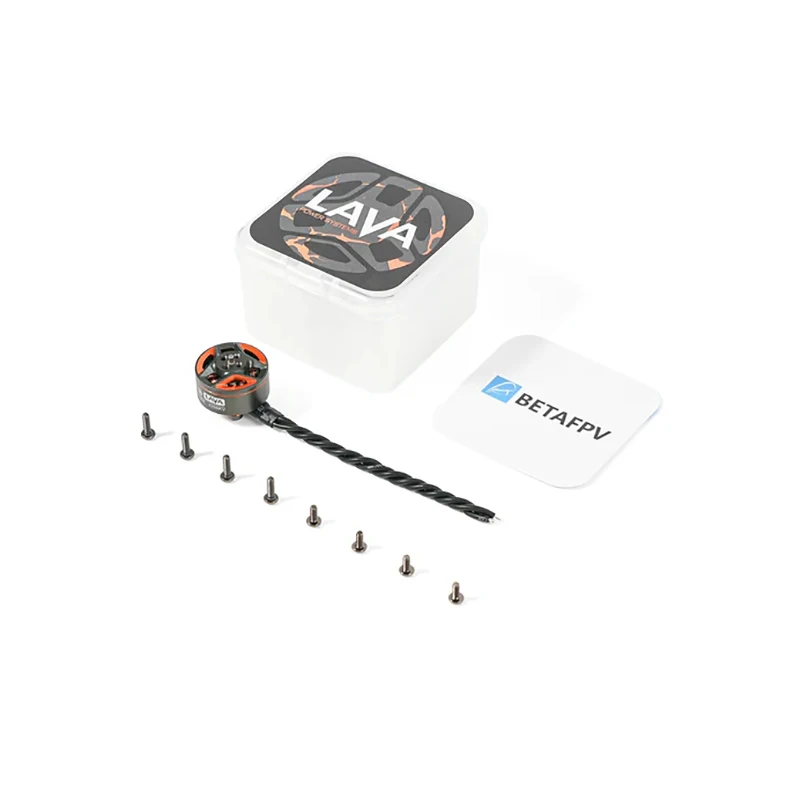

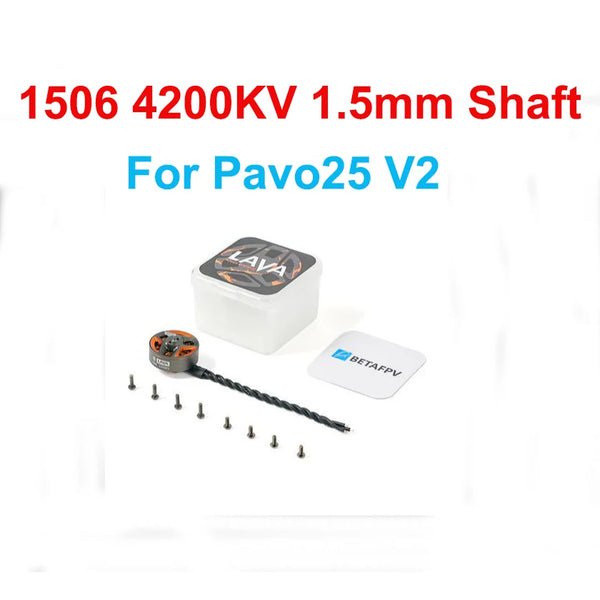

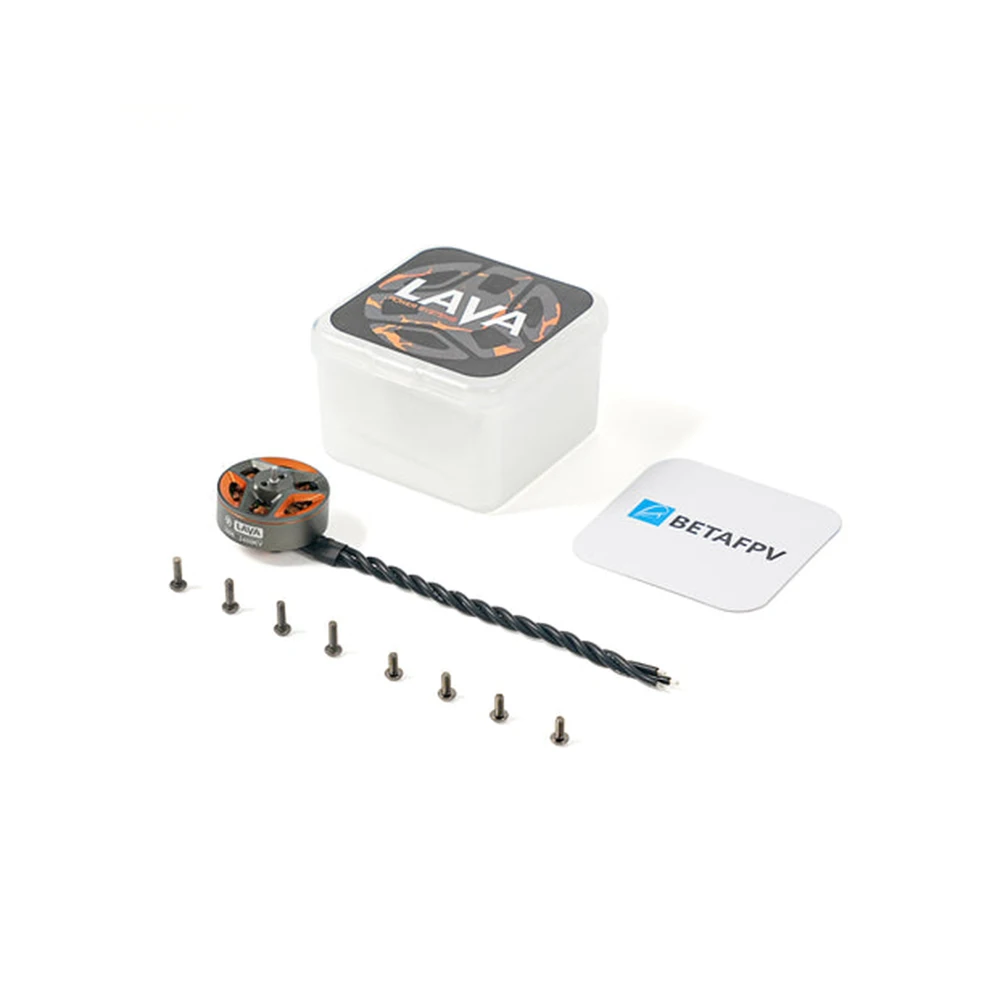

Package(1pcs)

1 * LAVA Series 1506 4200KV Brushless Motors

4 * M2 * 5 Hex Flat Head Screw

4 * M2 * 7 Hex Flat Head Screw

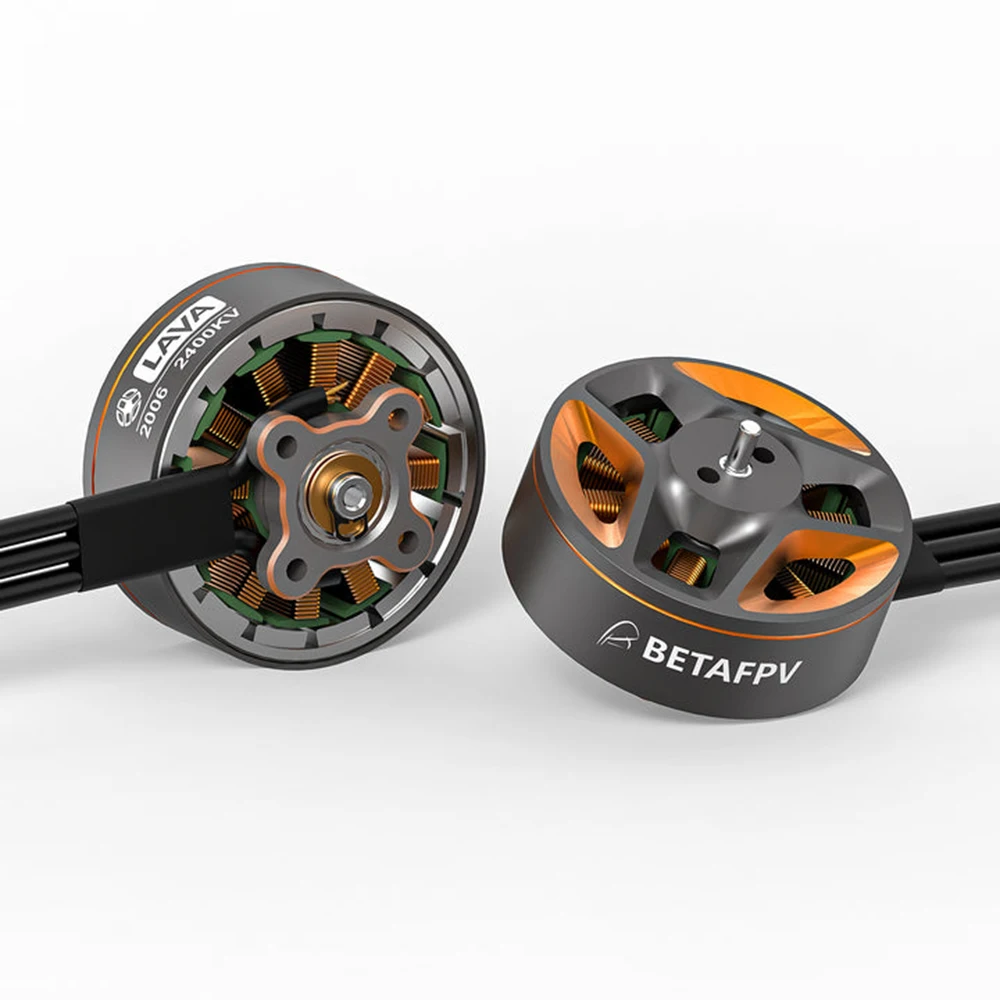

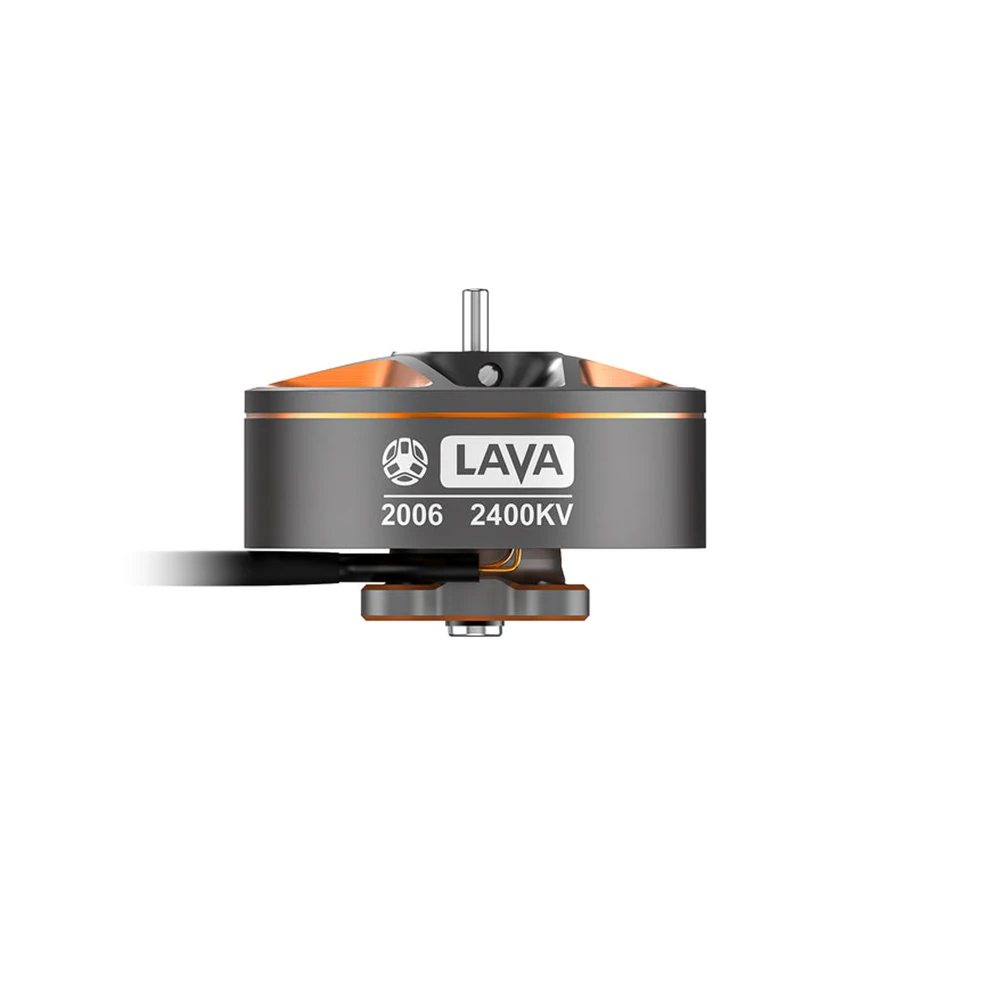

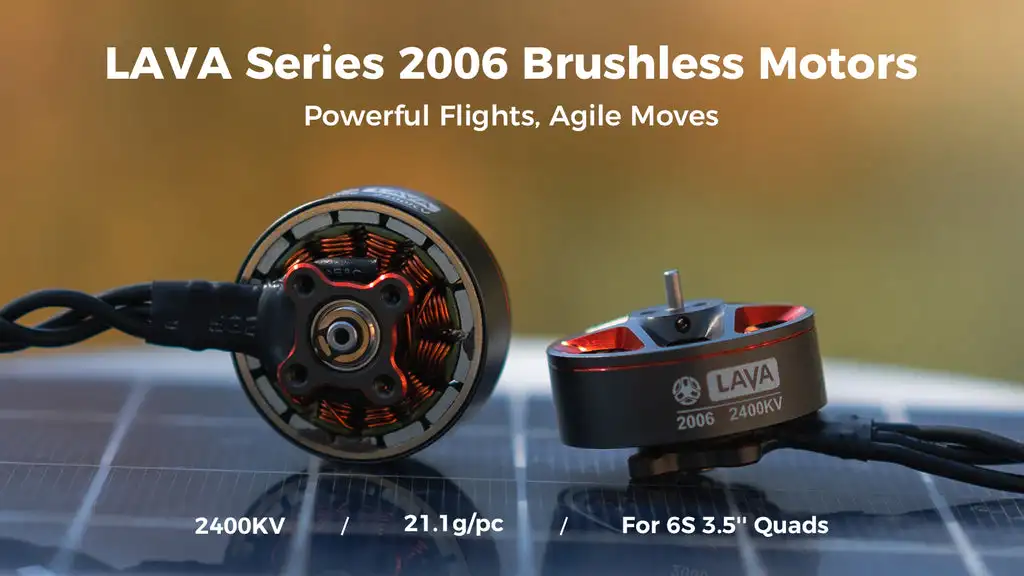

LAVA Series 2006 Brushless Motors is designed for the 6S 3.5'' quads, with high agility and acceleration. Combined with GemFan D90S 3-Blade Propellers (1.5mm Shaft)and the F722 35A AIO V2 FC, itcould offer pilots flexible control. Easily meet competitively challenging drone competitions and professionally shot film creation needs, bringing you a superb flight experience and high-quality image output, leading the 6S 3.5'' quads to a smoother and more stable flight level.

Bullet Point

• Specifically designed for 6S 3.5'' quads, this motor offers high agility and acceleration and features a high-performance 2400KV motor. Pilots enjoy flexible control and get more room for additional payload capacity.

• These high torque motors feature GemFan D90S 3-Blade Propellers (1.5mm Shaft) to minimize prop wash oscillation and deliver lightning-fast responses, resulting in heightened thrust and power.

• Perfectly matched with the F722 35A AIO V2 Flight Controller, this motor will bring pilots a powerful flight footage shooting experience with a 6S battery.

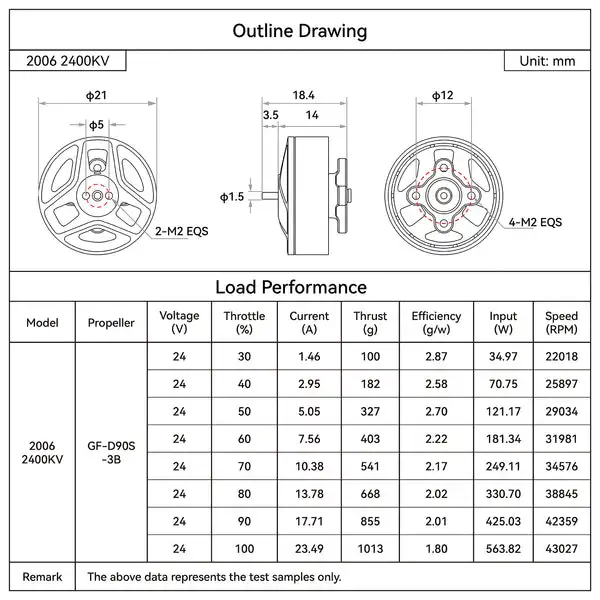

Specification

• Items: LAVA Series 2006 Brushless Motors

• Motor KV: 2400KV

• Maximum Power: 563.82W

• Maximum Current: 23.49A

• Color: Gray mixed orange

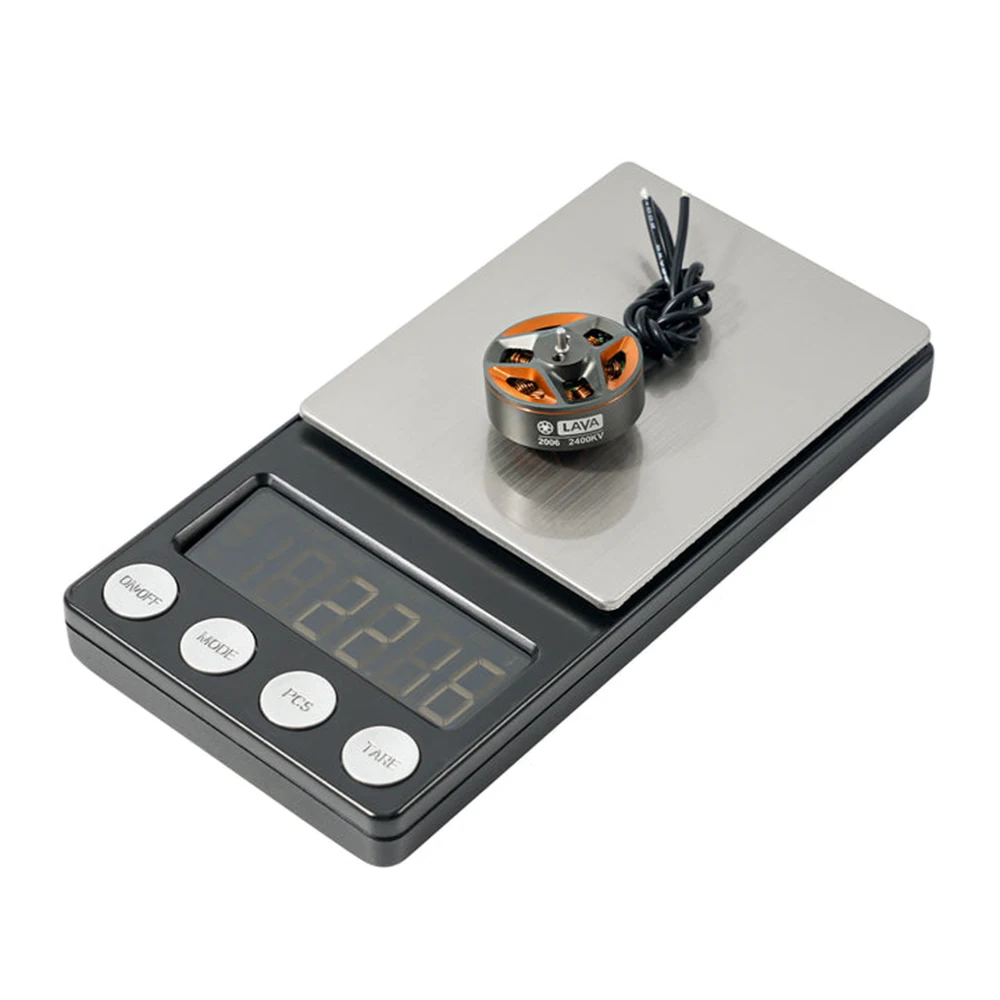

• Weight: 22.2g

• Shaft Diameter: ø1.5mm

• Shaft Length: 3.5mm

• Wire Specification: 22AWG

• Wire Length: 100mm

• Motor Mounting Hole Size: 4*M2 Ø12mm

• Propeller Mounting Hole Size: 2*M2 Ø5mm

Recommended Parts

• FC:F722 35A AIO V2 FC

• Props: GemFan D90S 3-Blade Propellers(1.5mm Shaft)

• Battery: LAVA Series 6S 1100mAh LiPo Battery, 6S 1050mAh~1400mAh Battery

• Quadcopter:Pavo35

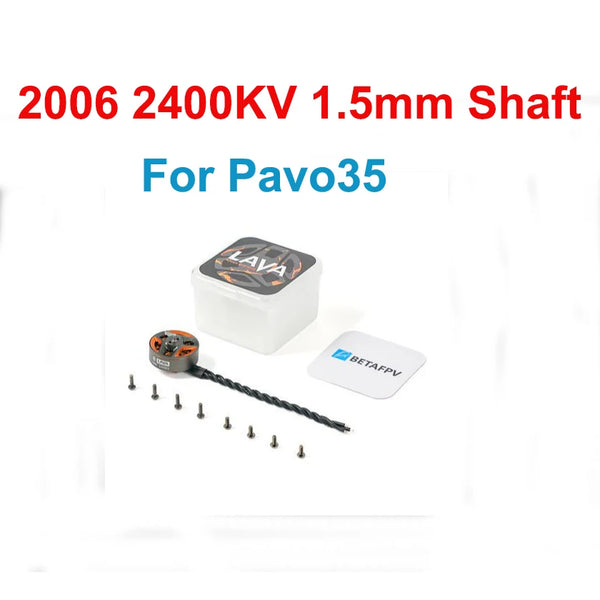

Package(for 1pc)

1 * LAVA Series 2006 Brushless Motors

4 * Hex Flat Head Screw M2*5

4 * Hex Flat Head Screw M2*7

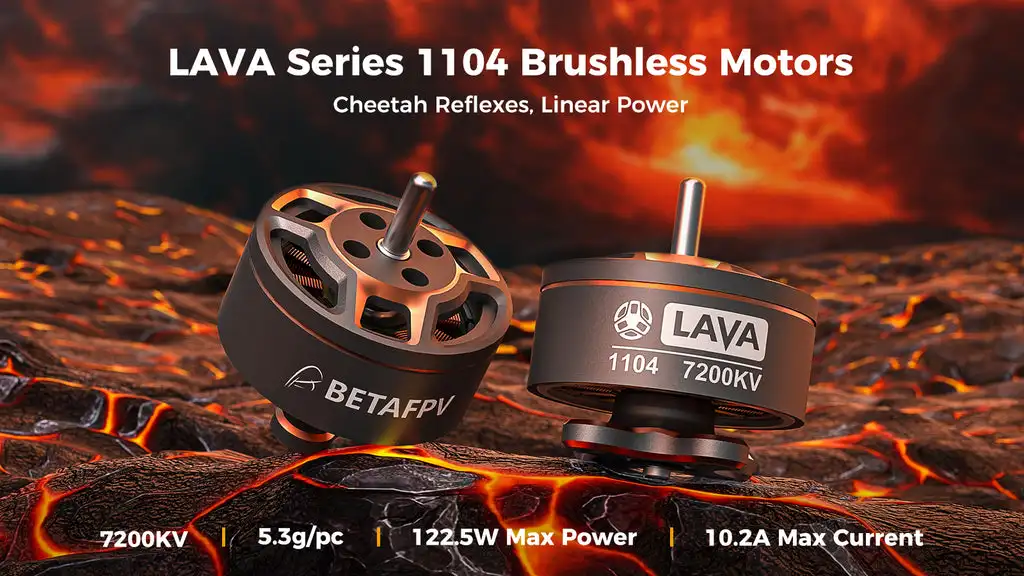

LAVA Series 1104 | 7200KV Brushless Motors is designed for the 3S 2.2'' quads, with smoother torque output performance. Combined with the lower pitch Gemfan 2218 3-Blade Propellers (1.5mm Shaft) and theF4 2-3S 20A AIO FC V1, it could enable pilots to swift, agile, and smooth freestyle. Ensuring enough creative space for cinewhoop to explore and capture the most imaginative aerial feats, easily meet professionally shot film creation needs, leading the 3S 2.2'' quads for cinewhoop to new heights.

Bullet Point

• Unleash the power of freestyle with the LAVA Series 1104 | 7200KV motors, precision-engineered for 3S 2.2'' quads. Experience a quantum leap in performance, taking thePavo20 Pro Brushless Whoop Quadcopterfreestyle experience to new heights.

• With the lower pitch Gemfan 2218 3-Blade Propellers, the max thrust can reach more than 230g, achieving a thrust-to-weight ratio greater than 5:1, delivering a faster and more agile freestyle experience.

• Paired with the above GF props, the force efficiency is as high as 4.7g/w when flying at low throttle, and even at full throttle load conditions, it can reach 1.9g/w, providing an efficient propulsion system for the quad.

Specification

• Items:  LAVA Series 1104 | 7200KV Brushless Motors

• Maximum Power: 122.5W

• Maximum Current: 10.2A

• Weight: 5.3g

• Shaft Diameter: ø1.5mm

• Shaft Length: 5mm

• Wire Specification: 28AWG

• Wire Length: 24/80mm

• Motor Mounting Hole Size: 4*M2 Ø9mm

• Propeller Mounting Hole Size: 4*M2 Ø5mm

Note: Only the 24mm length Version has a connector, suitable for the Pavo20 Pro.

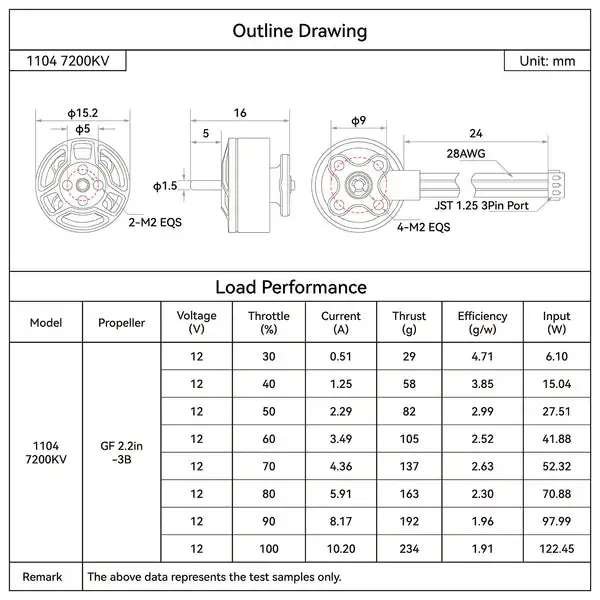

The picture below is the diagram of the LAVA Series 1104 | 7200KV Brushless Motors(24mm).

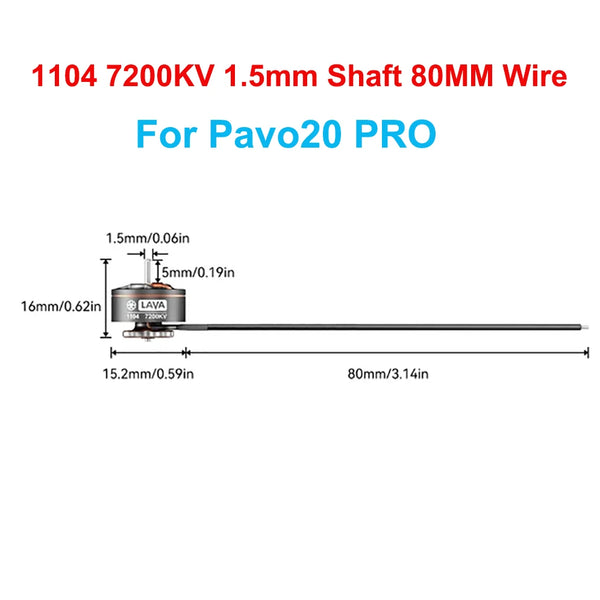

The picture below is the diagram of the LAVA Series 1104 | 7200KV Brushless Motors(80mm).

The picture below shows the load performance of the LAVA Series 1104 | 7200KV Brushless Motors.

Recommended Parts

• Props: Gemfan 2218 3-Blade Propellers (1.5mm Shaft)

• Quad:Pavo20 Pro Brushless Whoop Quadcopter

• Flight Controller:F4 2-3S 20A AIO FC V1

• Battery: LAVA Series 3S 450mAh / 550mAh Battery

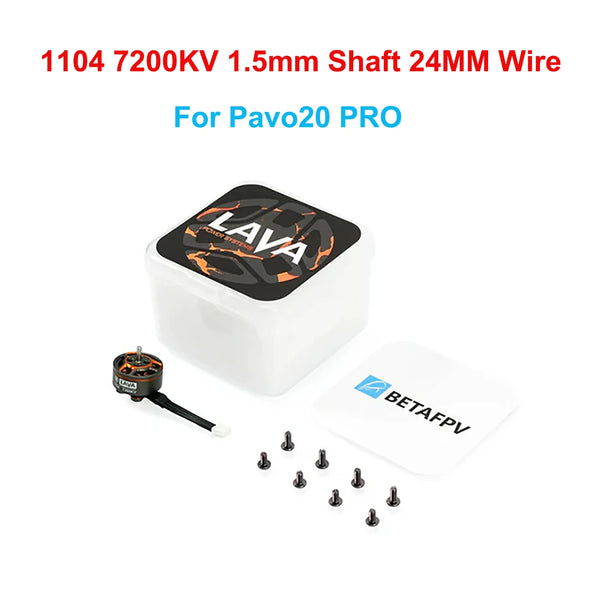

Package

1 * LAVA Series 1104 | 7200KV Brushless Motors

4 * M2 * 4 Hex Flat Head Screw

4 * M2 * 5 Hex Flat Head Screw
