QWinOut Meteor85 Brushless BWhoop Frame Kit for 1103 11000KV Motors F4 Flight Controller for Meteor85 2S HD Digital VTX Drone

QWinOut

Regular price $7.78

Shipping calculated at checkout.

QWinOut Meteor85 Brushless BWhoop Frame Kit for 1103 11000KV Motors F4 Flight Controller for Meteor85 Meteor85 2S HD Digital VTX

This frame is customized for 85mm whoop drone and the frame for Meteor85Meteor85 HD Digital VTX. With a marvelous design on the battery slot which keeps a low profile and triangle bilateral stretch structure of motor mounting position, this frame weighs only 11.32g.

Bullet Point

  • The new design frame reserves a battery slot, making it conveniently free from the battery strap and perfect for QWinOut 450mAh 2S battery compared to the previous 85mm whoop frame.

  • With the low profile of battery slot height, the drone's gravity center is reduced, and improved the sense of compactness.

  • Meteor85 frame’s motor mounting position uses a triangle bilateral stretch structure, making the frame more aesthetic. It provides you more durable and smoother flight experience.

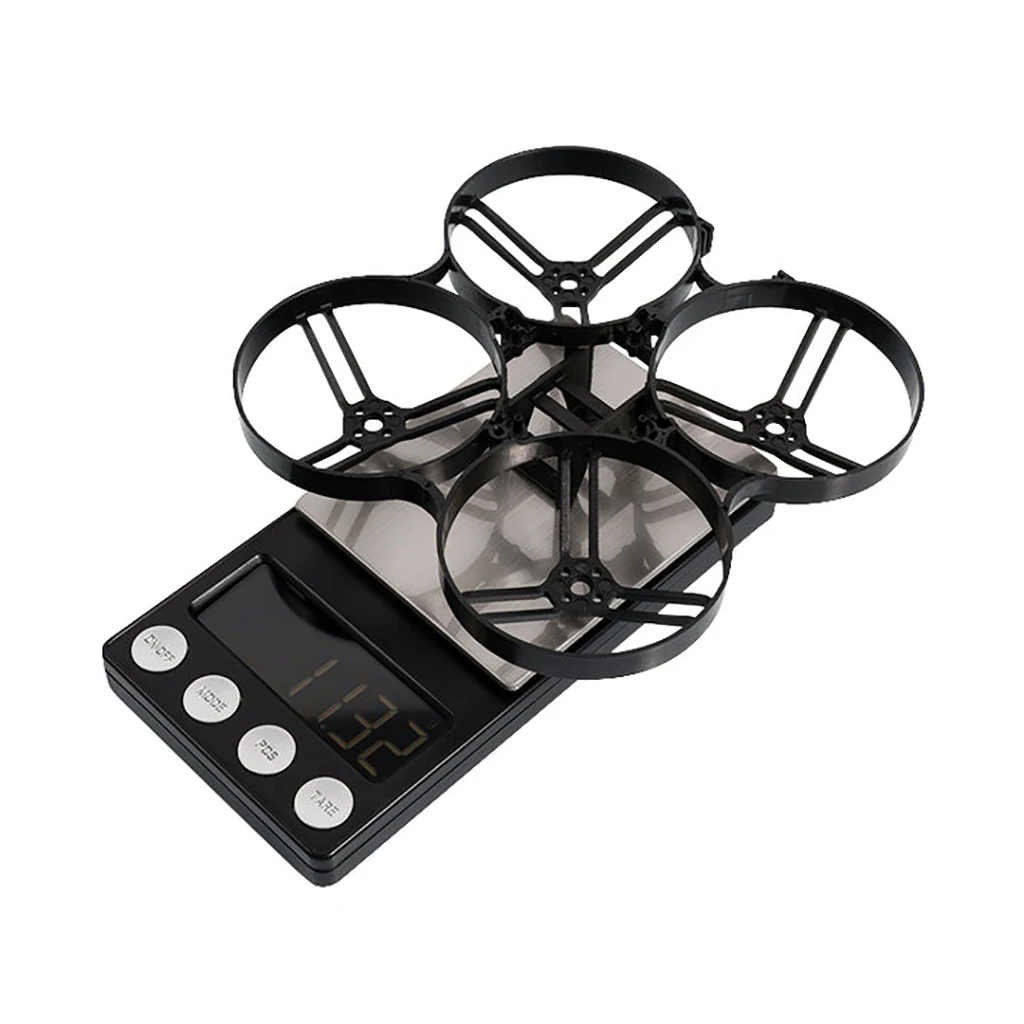

  • The ultra-light and durable frame is PP material only 11.32g, which can match theF4 1-2S 12A AIO Brushless Flight Controller.

  • The frame is suitable for 2" propellers like Gemfan 2015 2-Blade, Gemfan 2020 4-Blade props.

  • Recommend using QWinOutcanopy for nano HD camera, which is suitable for Caddx ant camera, or other nano cameras. It can also match the lighter QWinOut canopy for micro camera and install with C02 Camera, C03 Camera, M03 5.8G VTX.

Specification

Material: PP

Wheelbase: 87.7mm

Motor mounting hole: 110x motors, such as 1103 11000KV motors

FC mounting hole: fully compatible with whoop style FC board mounting pattern, 26mm x 26mm

Weight: 11.32g

Recommended Parts

Package

1 * Meteor85 Brushless Whoop Frame (Black or grey)
