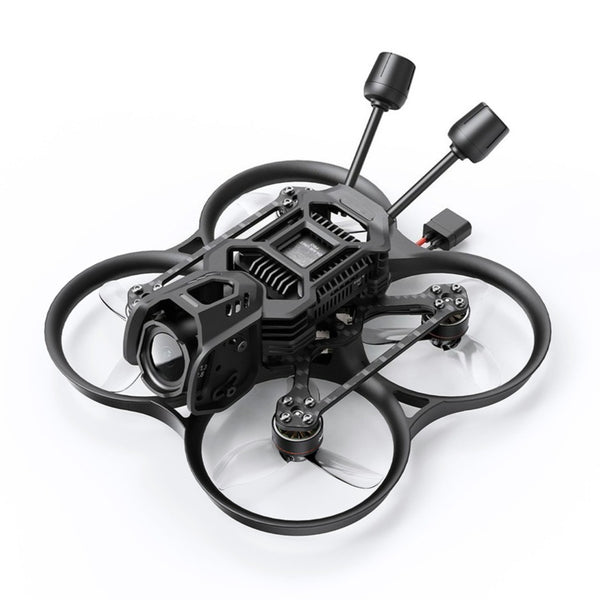

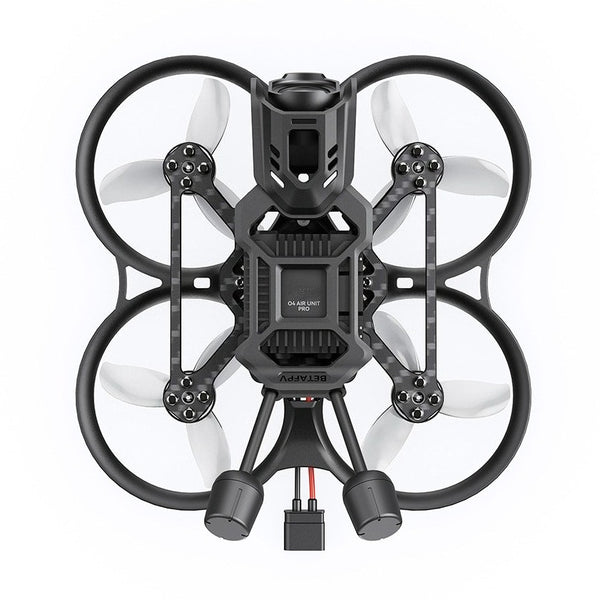

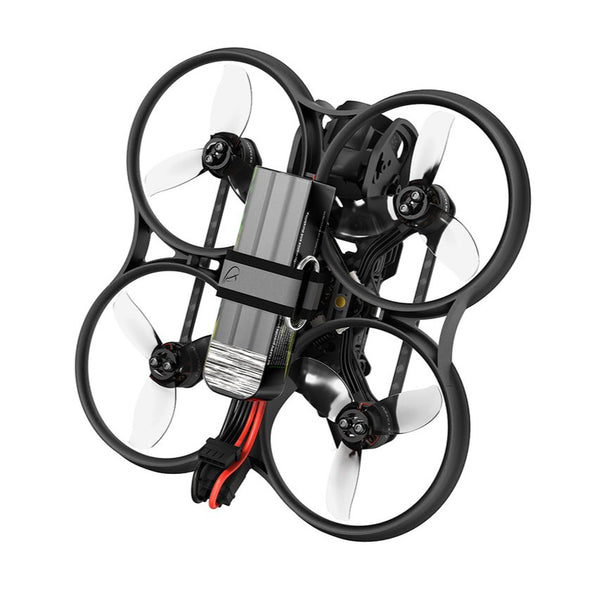

BETAFPV Pavo20 Pro II O4 Pro 3S/4S FPV Brushless Whoop Quadcopter With O4 Pro Air Unit VTX For DJI O4 Pro/O4 Air Unit VTX

BETAFPV Pavo20 Pro II O4 Pro 3S/4S FPV Brushless Whoop Quadcopter With O4 Pro Air Unit VTX For DJI O4 Pro/O4 Air Unit VTX

Note:

* The O4 Pro version includes the O4 Pro Air Unit VTX, while the PNP versions does not include the O4 Pro Air Unit VTX.

* The difference between the 3S version and the 4S version is that:

The flight controller, motor, and battery used vary, but all other parameters are same.

Specifications:

Item: Pavo20 Pro II Brushless Whoop Quadcopter

Wheelbase: 93.9mm

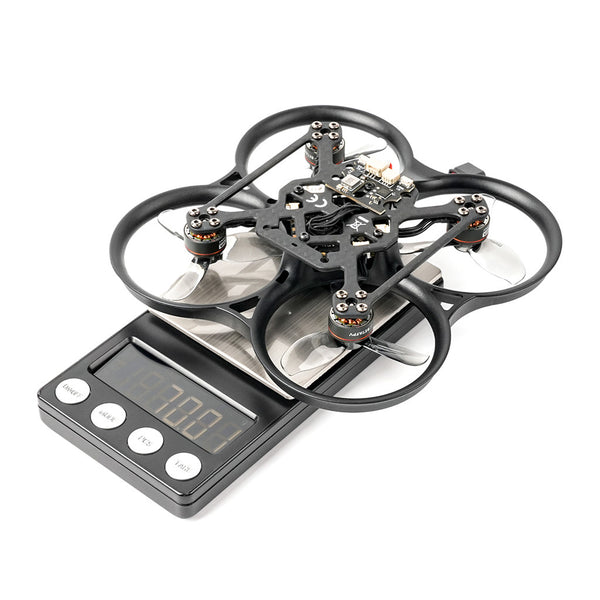

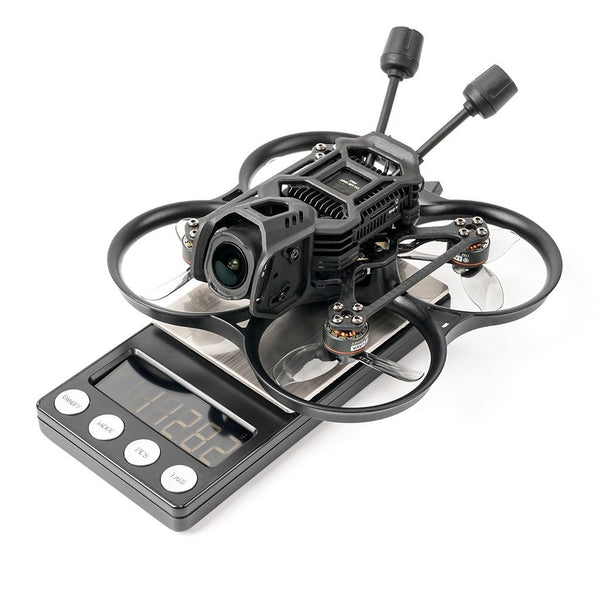

Weight: 300g (O4 Pro Version), 300g (PNP Version)

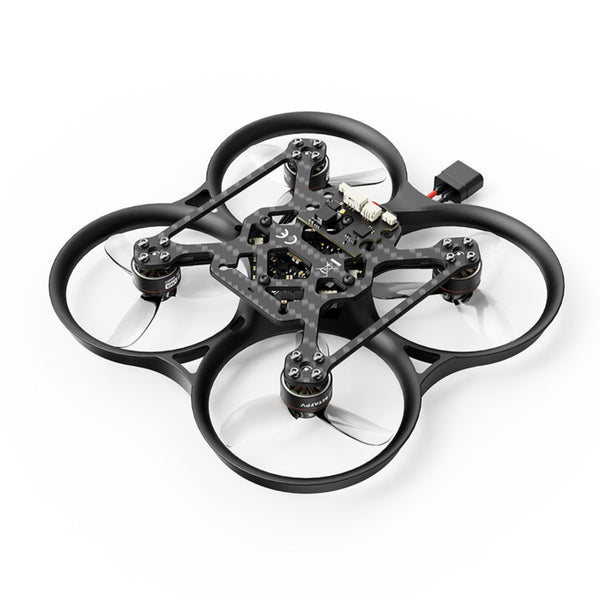

Frame: Pavo20 Pro II Brushless Frame

RX Version: Serial ELRS, SBUS

Propeller: GF 2218 3-blades Propellers (1.5mm Shaft)

HD VTX Bracket: O4 Pro Air Unit Bracket, O4 II Air Unit Bracket

Battery Connector: XT30

Battery Slot: 20mm * unlimited height

Strip: RGB LED Strip

Flight Controller:

4S Version: Cube G42-4S 30A

3S Version: F405 2-3S20A ELRS V1

Motor:

4S Version: LAVA Series 1104 5500KV Brushless Motor

3S Version: LAVA Series 1104 7200KV Brushless Motor

Recommended Battery:

4S Version: LAVA II 4S 580mAh / 680mAh

3S Version: LAVA II 3S 580mAh / 680mAh

Flight Time:

4S Version: 8:30 (used 580mAh); 10:30 (used 680mAh)

3S Version: 7:30 (used 580mAh); 9:00 (used 680mAh)

Recommended Parts:

Frame: Pavo20 Pro II Brushless Frame

VTX: for DJI O4 Pro Air Unit, for DJI O4 Air Unit

VTX Bracket: O4 II / O4 Pro Air Unit Bracket

Propellers: GF 2218 3-Blade Propellers (1.5mm Shaft)

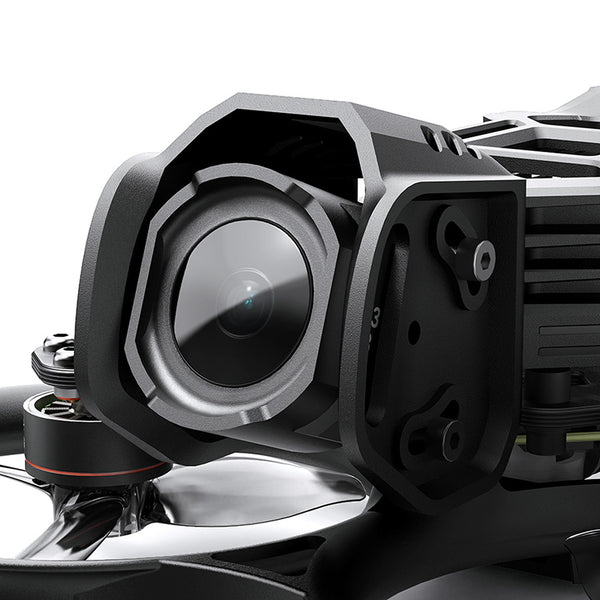

Filter: ND Filter for O4 Pro Camera

LED Strip: RGB LED Strip

Package Includes:

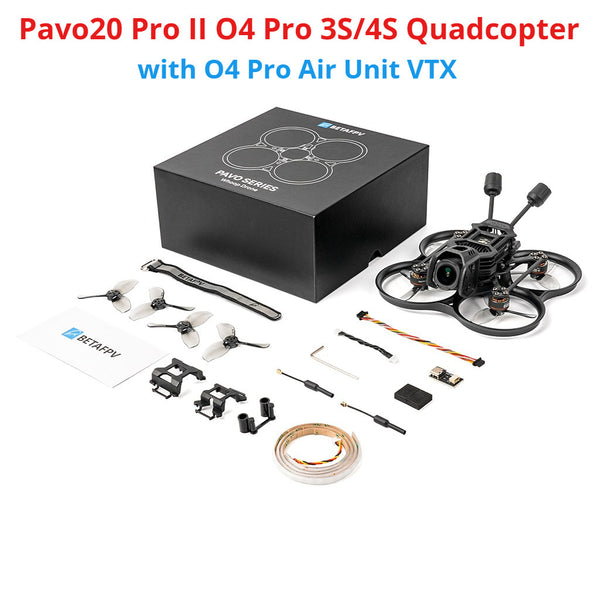

ELRS / SBUS O4 Pro Version :

1 x Pavo20 Pro II Brushless Whoop Quadcopter

1 x O4 Pro Air Unit VTX

4 x LAVA Series 1104 Brushless Motors

4 x GF 2218 3-blades Propellers (1.5mm Shaft)

1 x Type C to SH1.0 Adapter

1 x SH1.0-4Pin Adapter Cable

1 x SH1.0-6Pin HD Cable (100mm)

1 x RGB LED Strip (500mm)

1 x RGB Board

2 x 5.8G VTX Antenna Mount

1 x H1.5 Hex Screwdriver

1 x User Manual

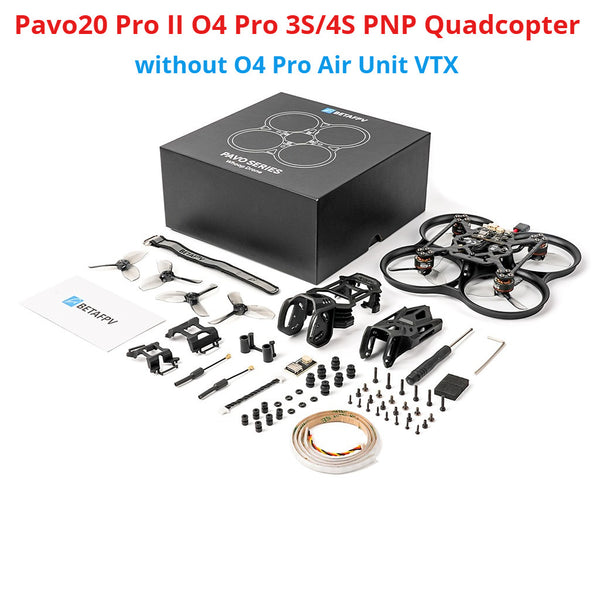

ELRS / SBUS PNP Version :

1 x Pavo20 Pro II Brushless Whoop Quadcopter

1 x O4 Air Unit Pro Bracket

4 x LAVA Series 1104 Brushless Motors

4 x GF 2218 3-blades Propellers (1.5mm Shaft)

1 x Top Plate for O4 Air Unit Bracket II

1 x Bottom Plate for O4 Air Unit Bracket II

1 x Type C to SH1.0 Adapter

1 x SH1.0-4Pin Adapter Cable

1 x RGB LED Strip (500mm)

1 x RGB Board

6 x Shock-absorbing Balls for O4 Air Unit Pro Bracket (6.6mm)

6 x Shock-absorbing Balls for O4 Air Unit Bracket (8.8mm)

6 x Shock-absorbing Pads for O4 Air Unit Bracket (1.5mm)

6 x M2*10 Cylindrical Socket Head Cap Screws

6 x M2*4 Button Head Socket Cap Screws

6 x M2*4 Socket Head Cap Self Tapping Screws

8 x M1.4*6 Phillips Flat Washer Head Tapping Screws

2 x 5.8G VTX Antenna

1 x 5.8G VTX Antenna Mount

1 x Phillips Screwdriver

1 x H1.5 Hex Screwdriver
