Tarot TL9603 Dia 25mm Motor Mounting Plate Kit Black For Multi-copter Hexacopter Octocopter

Tarot TL9603 Dia 25mm Motor Mounting Plate Set Black For Multi-copter Hexacopter Octocopter

(2 colors optional,if you have request,please contact us,thanks)

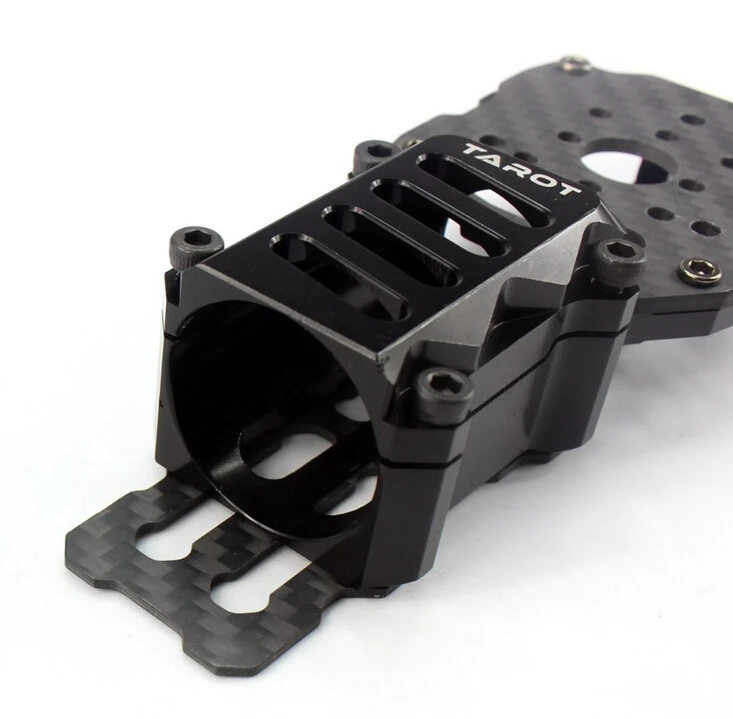

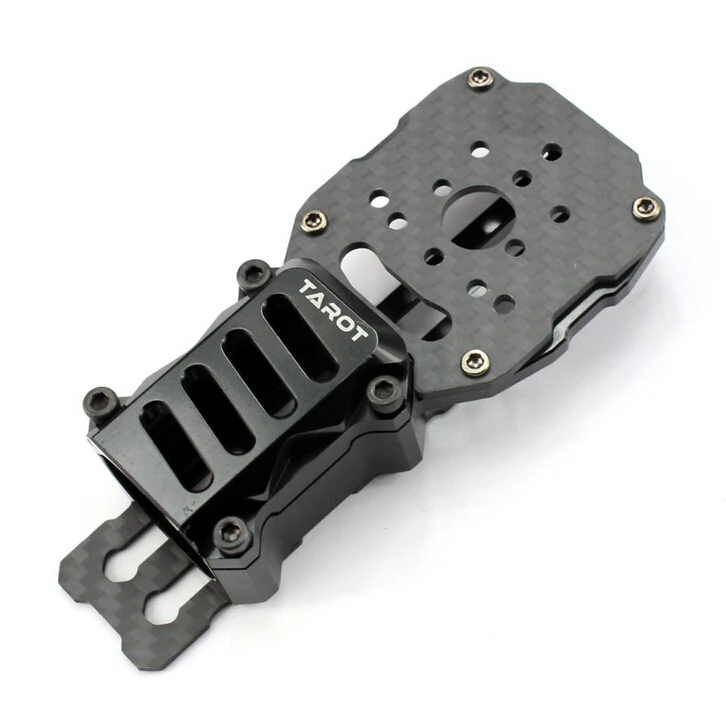

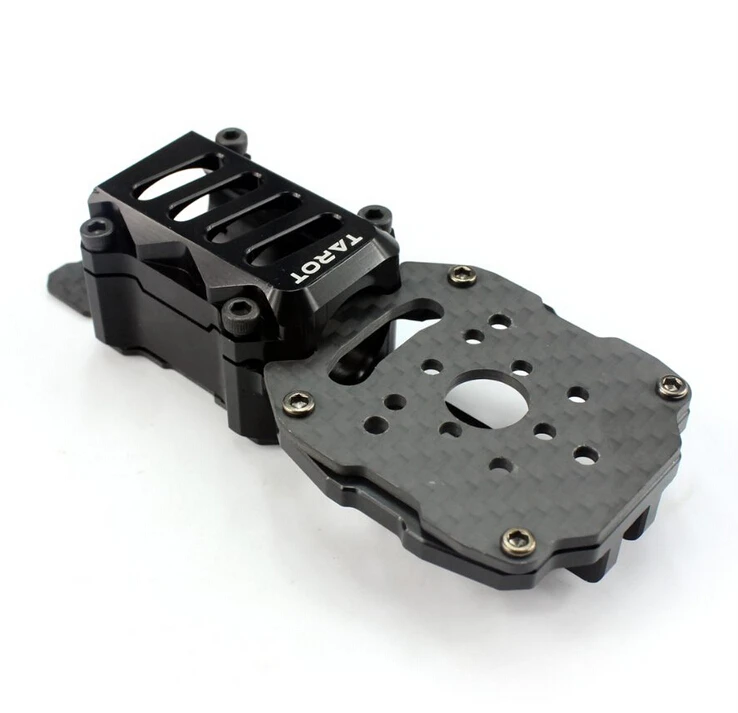

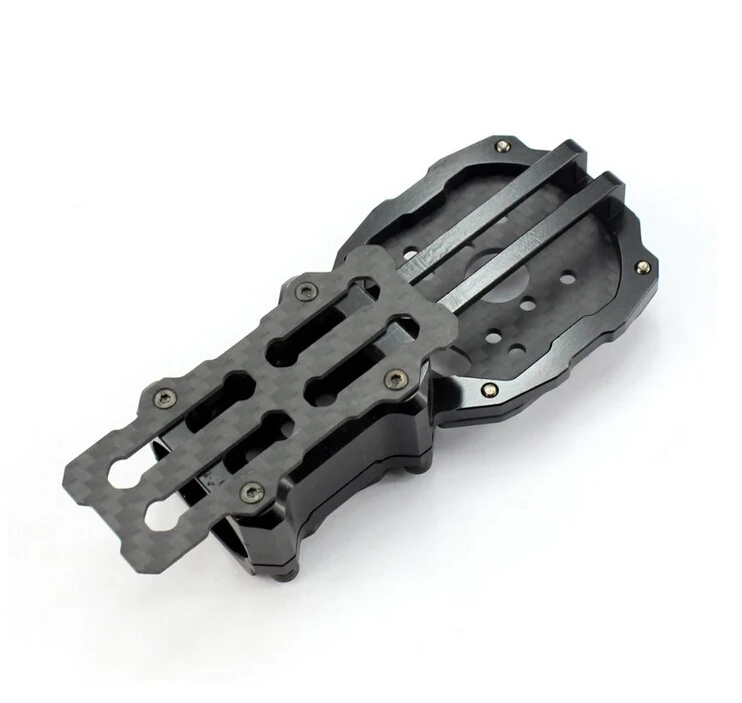

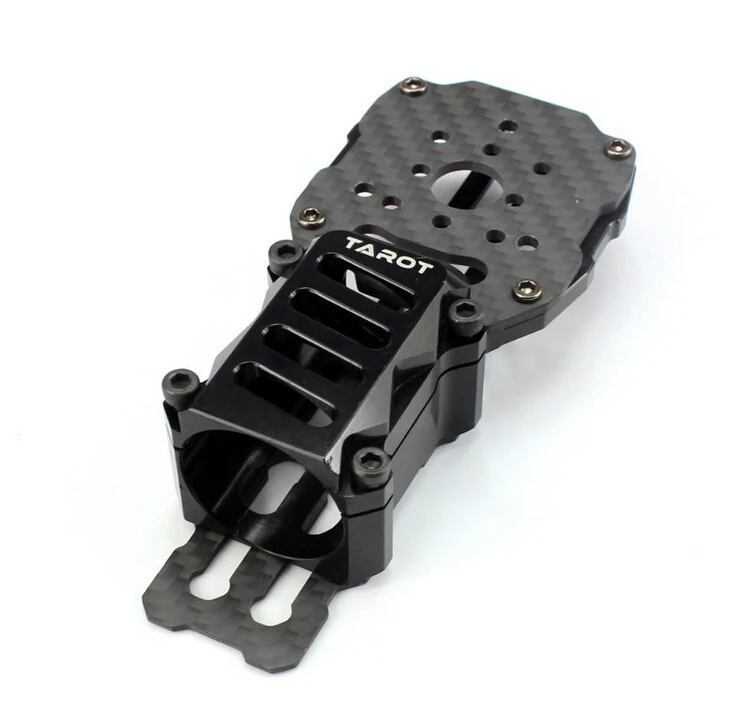

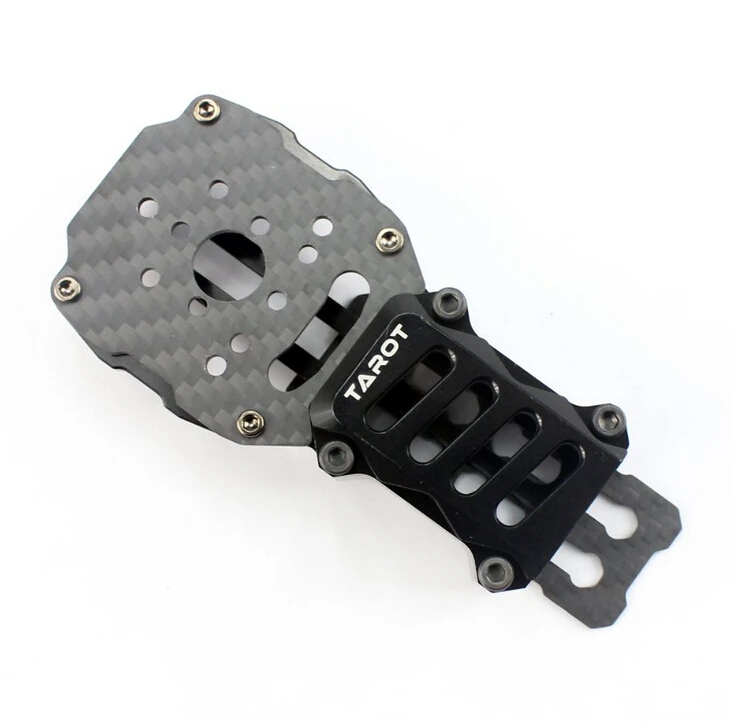

Tarot TL9603 25mm Motor Mounting Plate Set Black for Multicopter Hexa Octocopter

Tarot New 25mm Motor Mount adopts 6061T6 aluminum CNC precision machining, for six-axis or eight-axis aircraft 25mm carbon tube DIY rack (T810/T960/TL100B01) components, with the ESC installation position. ESC carbon fiber board import Toray the 3K pure carbon fiber woven by high temperature and high pressure prefabricated CNC precision plus Workers,The overall design of the lightweight two-color metal parts with a strong Perspective of impact, the body of the air to provide a good visual direction. Motor mounting hole spacing: 16MM/19MM/25MM /Installation 27MM equilateral triangle.Many Tarot aircraft parts for your choice.

Tarot New 25mm Motor Mount Specifications:
- pure carbon fiber ESC tabs x 1 (62 x 29.3 x 1.3MM) 2.2G
- Pure carbon fiber motor adapter plate x 1 (52 x 45 x 2.0MM) 5.2g
- Metal 25mm Motor Mount x 1 (92.5 x 48 x 27MM) 36.0G
- M3 x 10MM Cup Head Hexagon collar screw x 4
- M2.5 x 6.5 Allen stepped screw x 4
- M2 x 6mm flat head socket head cap screws x 4
