DarwinFPV 1504 2300KV 3600KV 3800KV Blushless Motor FPV Multirotor for 2.5-4 Inch Long Range Cinewhoop Drone

DarwinFPV

Regular price $17.22

Shipping calculated at checkout.

Product Overview

Pls note the 1504 3800KV with 3 hole(As the picture showing).If have any questions pls contact us!

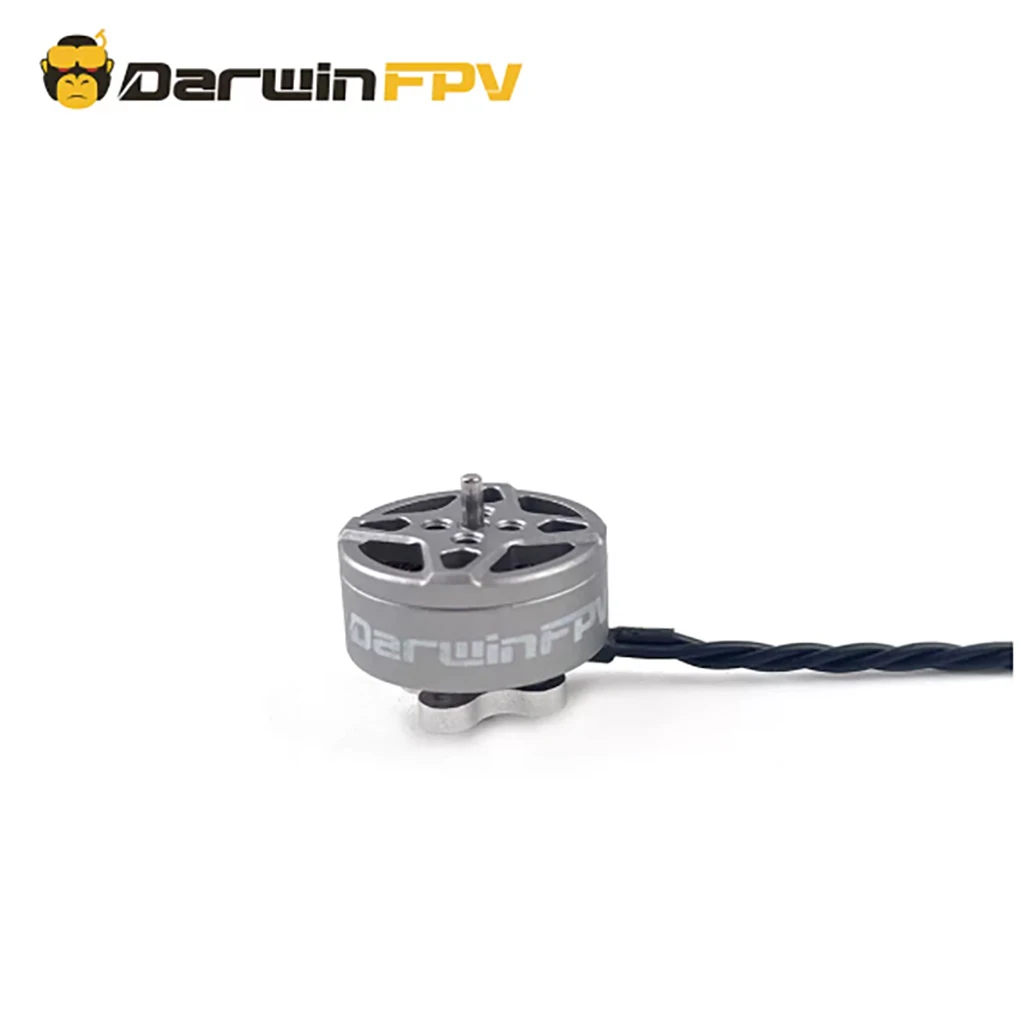

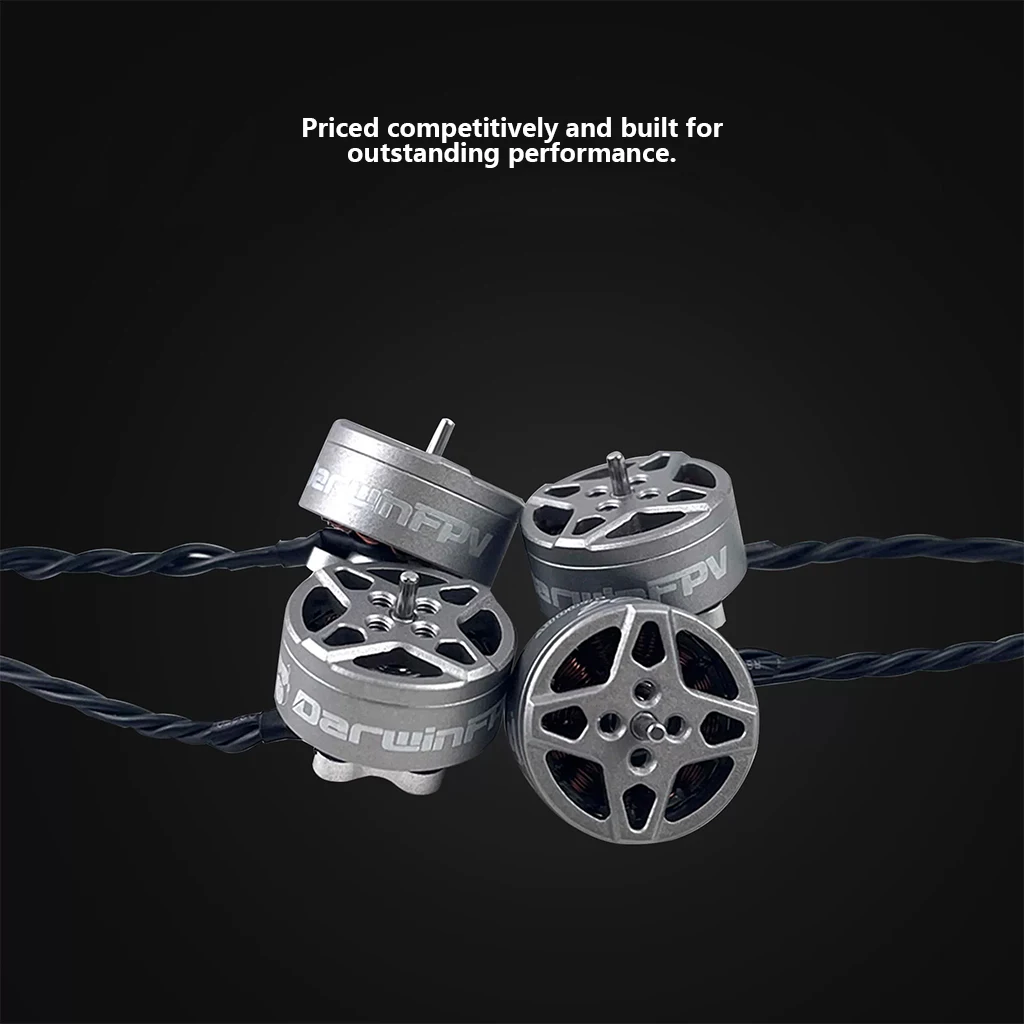

DarwinFPV 1504 series brushless FPV motor is tailor-made for 2.5~4-inch cinewhoop, freestyle and long-range drones, supplied in Split Type and Integrated 3-Hole Type with 3 KV options: 2300KV / 3600KV / 3800KV. Adopting premium N45H magnetic steel and optimized magnetic circuit structure, this motor achieves ultra-low power consumption, high thrust efficiency and stable continuous output, with much more competitive price than mainstream brand motors.

Core Highlights

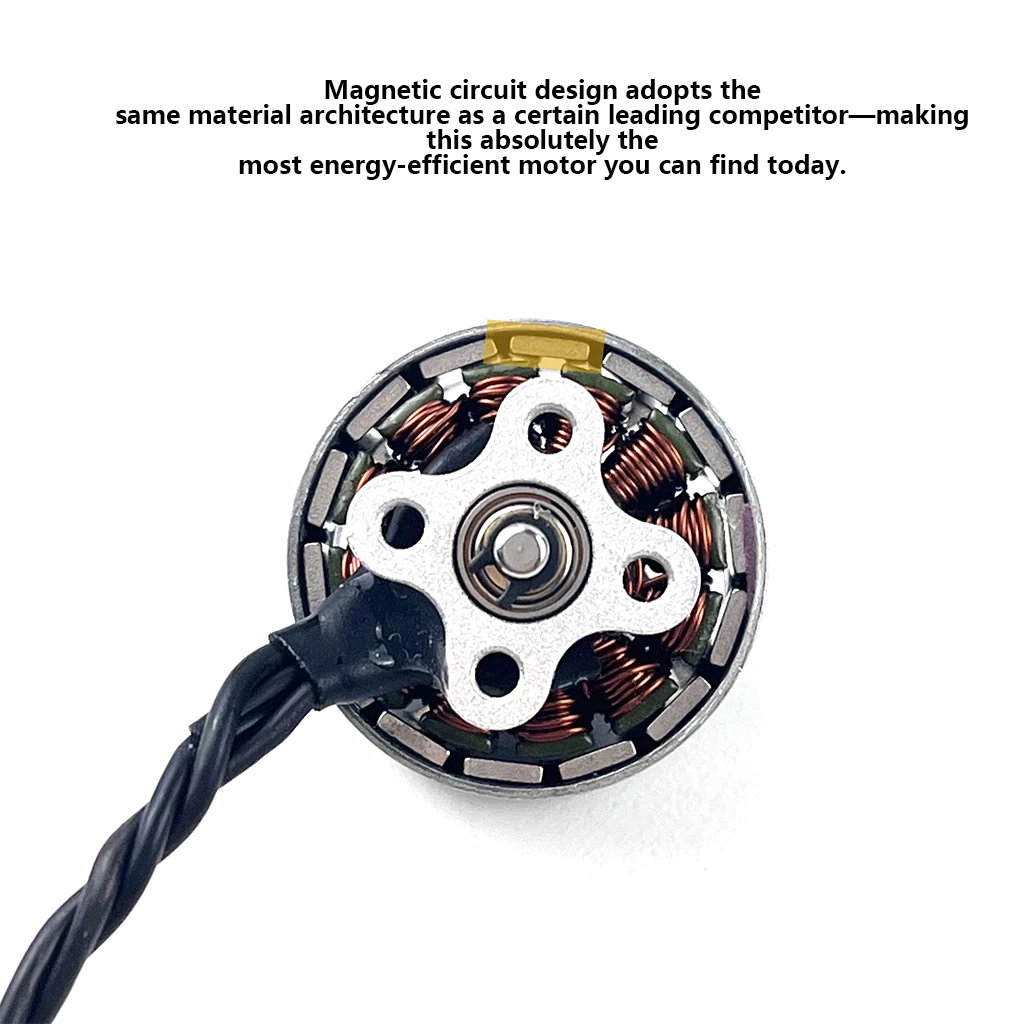

1. N45H High-Grade Magnet, Ultra Energy-Saving Magnetic Circuit Design

Equipped with N45H high-performance magnetic steel, the internal magnetic circuit adopts mature low-loss material architecture. It greatly reduces idle current and power loss under full throttle, delivering outstanding flight endurance for long-range drone missions, the most power-saving 1504 motor in the market.

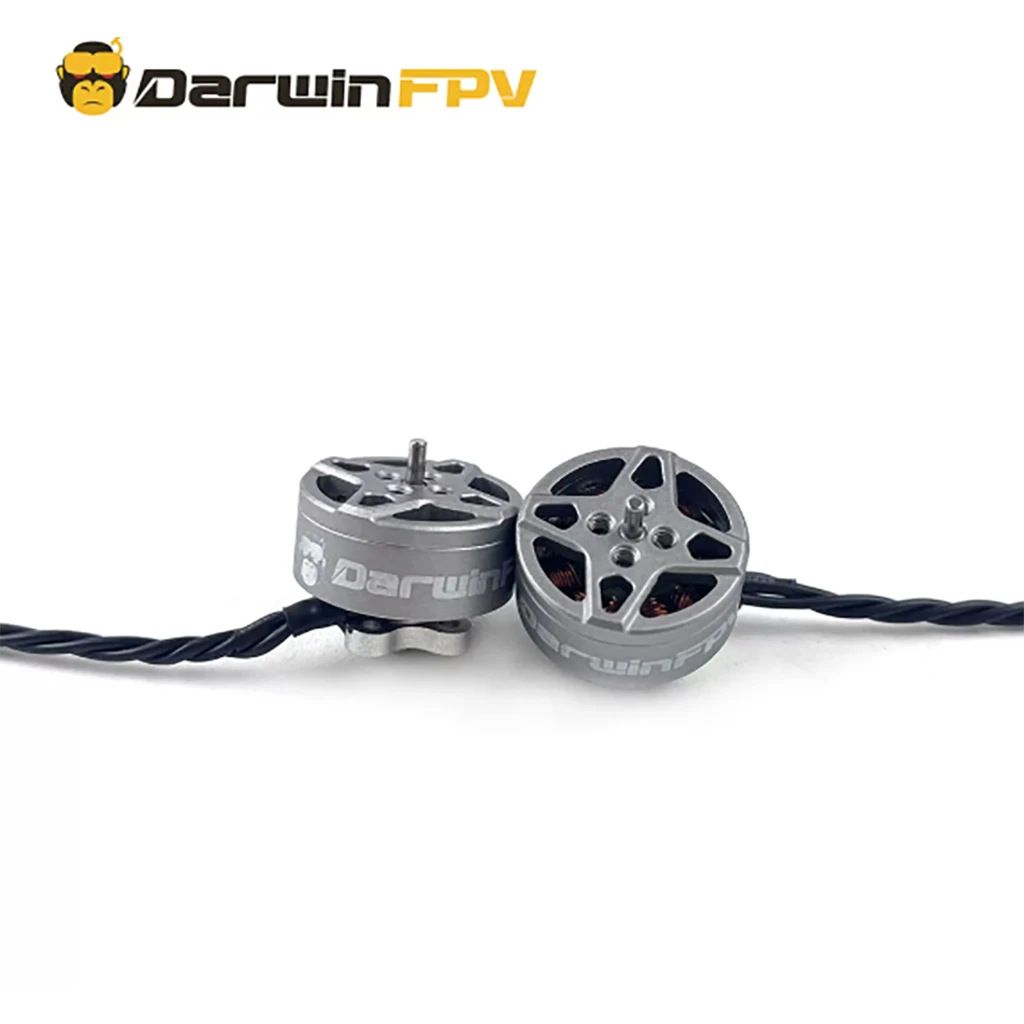

2. Two Structural Versions, Universal Mount Compatibility

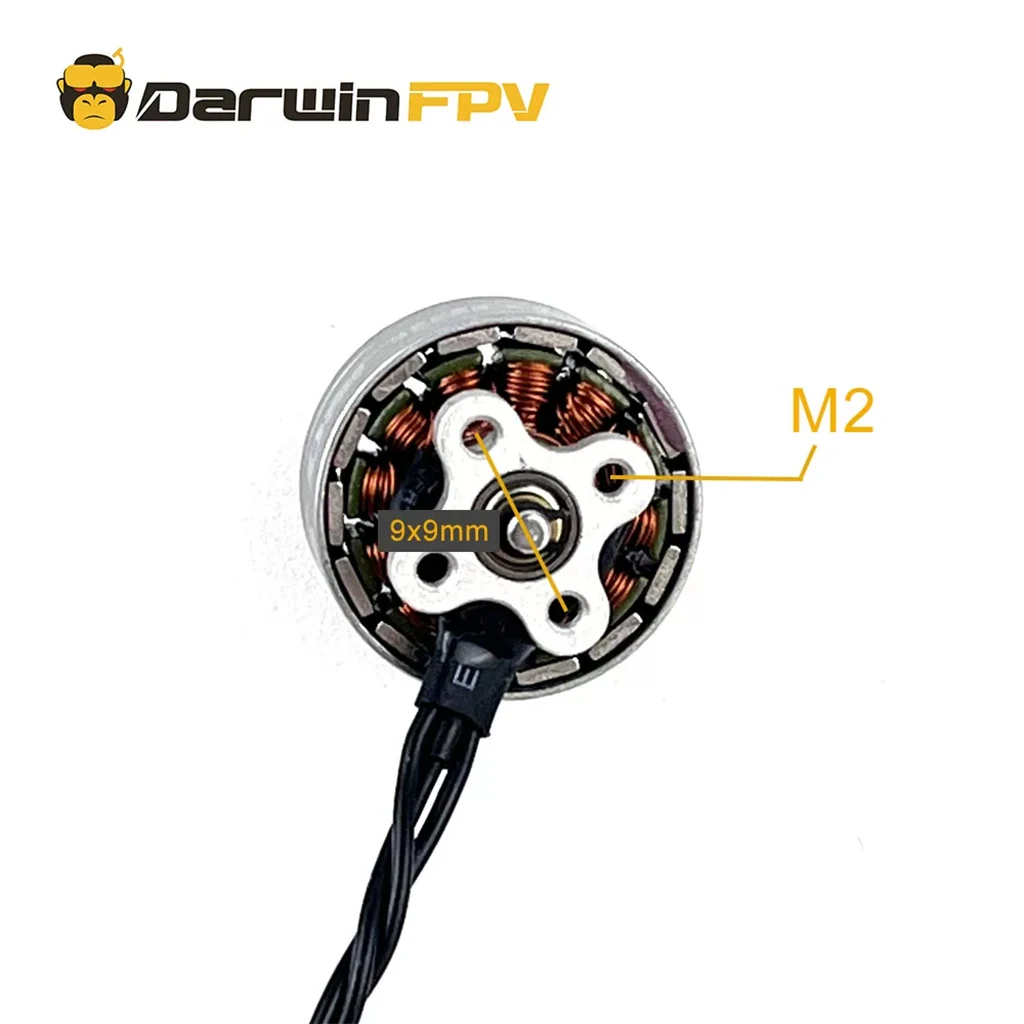

Split Type: 9×9mm M2 mounting hole, 150mm 28AWG wire, weight 9.1±0.2g, shaft Φ1.5×3.5mm, match 3~3.5-inch freestyle & 4-inch long-range drones
Integrated 3-Hole Type: 10×10mm 3-hole M1.6 mount, 90mm 28AWG wire, weight 9.4±0.2g, shaft Φ2×5mm, fit 2.5-inch tiny cinewhoop aircraftBoth versions share the same stator size Φ15×4mm, lightweight body without sacrificing thrust performance.

3. Multiple KV & Voltage Options, Wide Application Scenarios

Model	KV	Rated LiPo Voltage	Recommended Drone Size	Max Power
1504	2300KV	6S (24V)	4-inch long range	223.2W
1504	3600KV	4S (16V)	3~3.5-inch freestyle	193.6W
1504 3-Hole	3800KV	3S (12V)	2.5-inch tiny cinewhoop	97.2W

12N14P slot-pole design offers smooth rotation, low vibration and high linear throttle response for freestyle acrobatics and steady long-range cruising.

4. Excellent Thrust & Power Efficiency Test Data

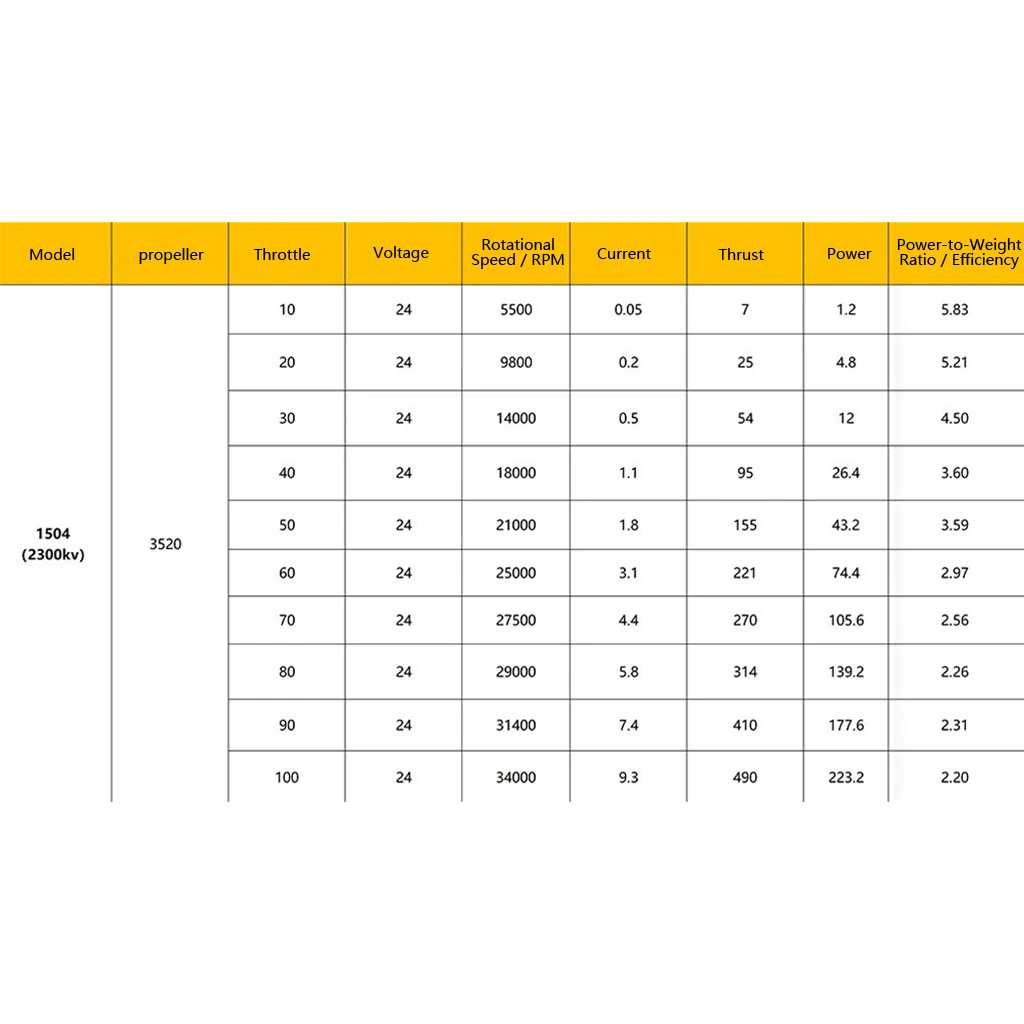

2300KV (6S + 3520 prop): Max thrust 490g, peak power 223.2W, low idle loss for extended flight time

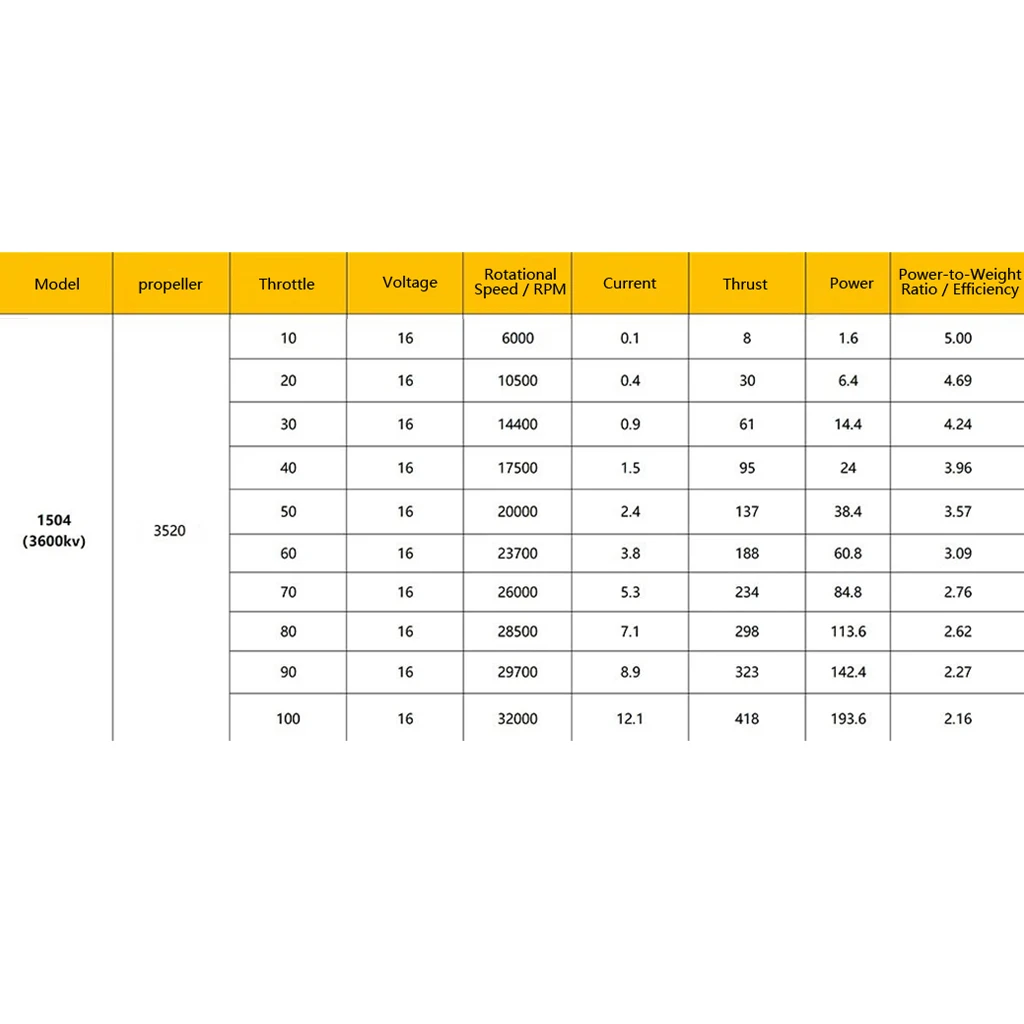

3600KV (4S + 3520 prop): Max thrust 418g, stable power output for freestyle flight

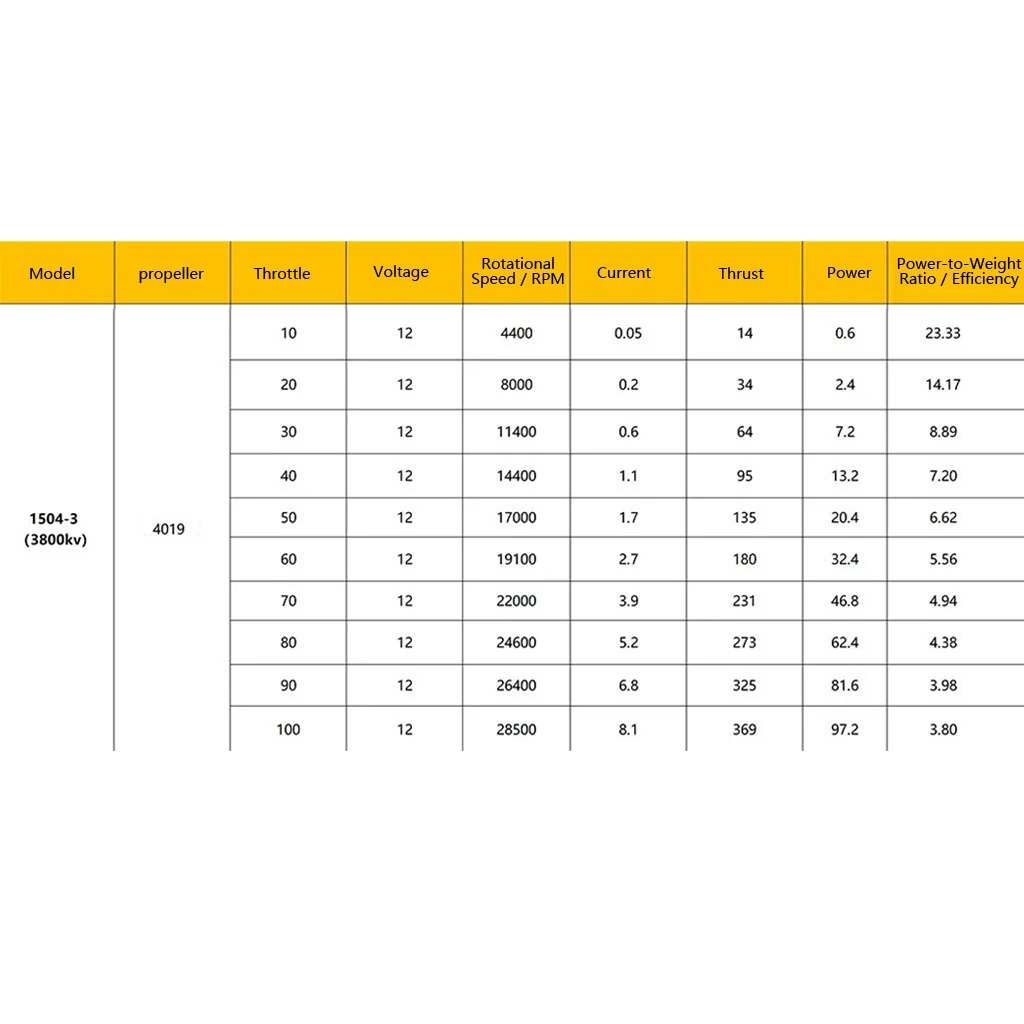

3800KV (3S + 4019 prop): Max thrust 369g, compact power perfect for small cinewhoop drones

5. Super Cost-Effective, Complete Accessory Package

The motor costs less than half of competing mainstream brands, while matching premium performance. Each package includes 1 motor, matched mounting screws and DarwinFPV decorative stickers, ready for direct installation without extra purchases.

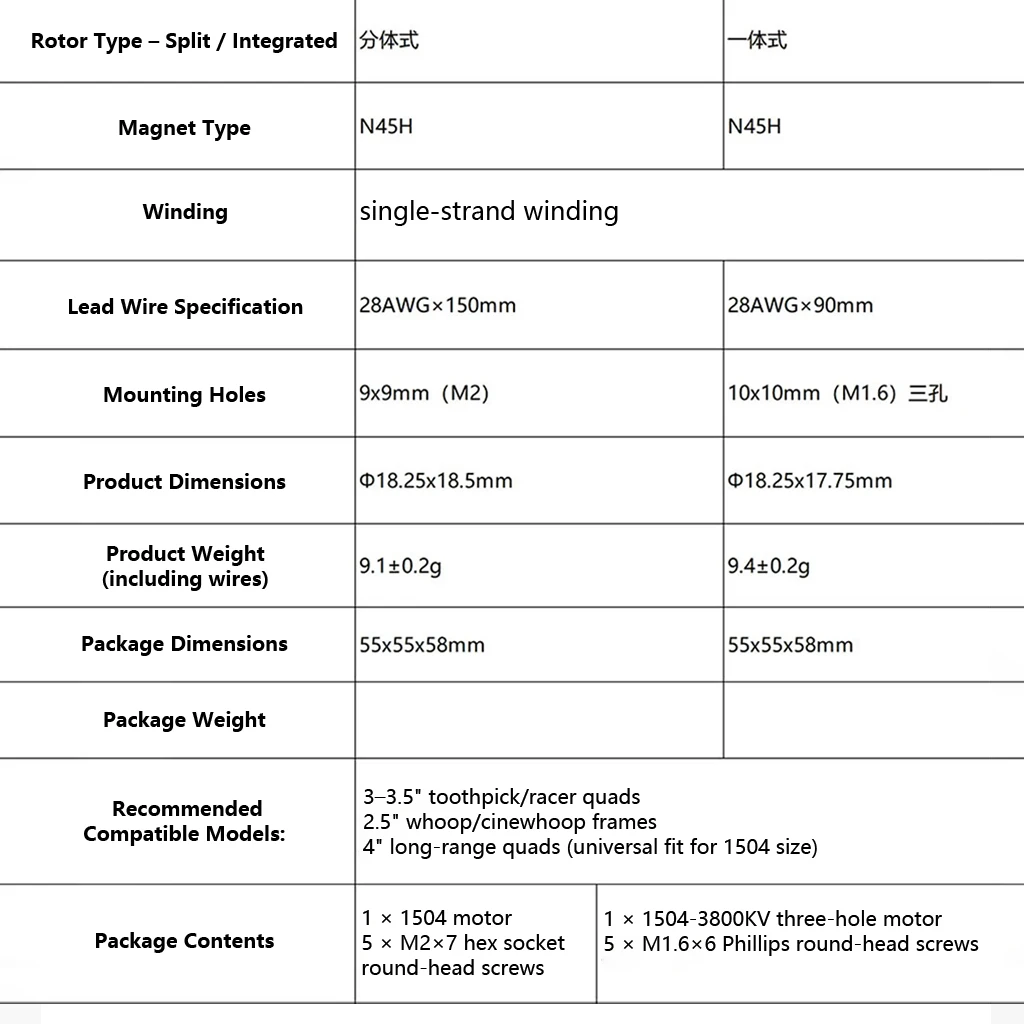

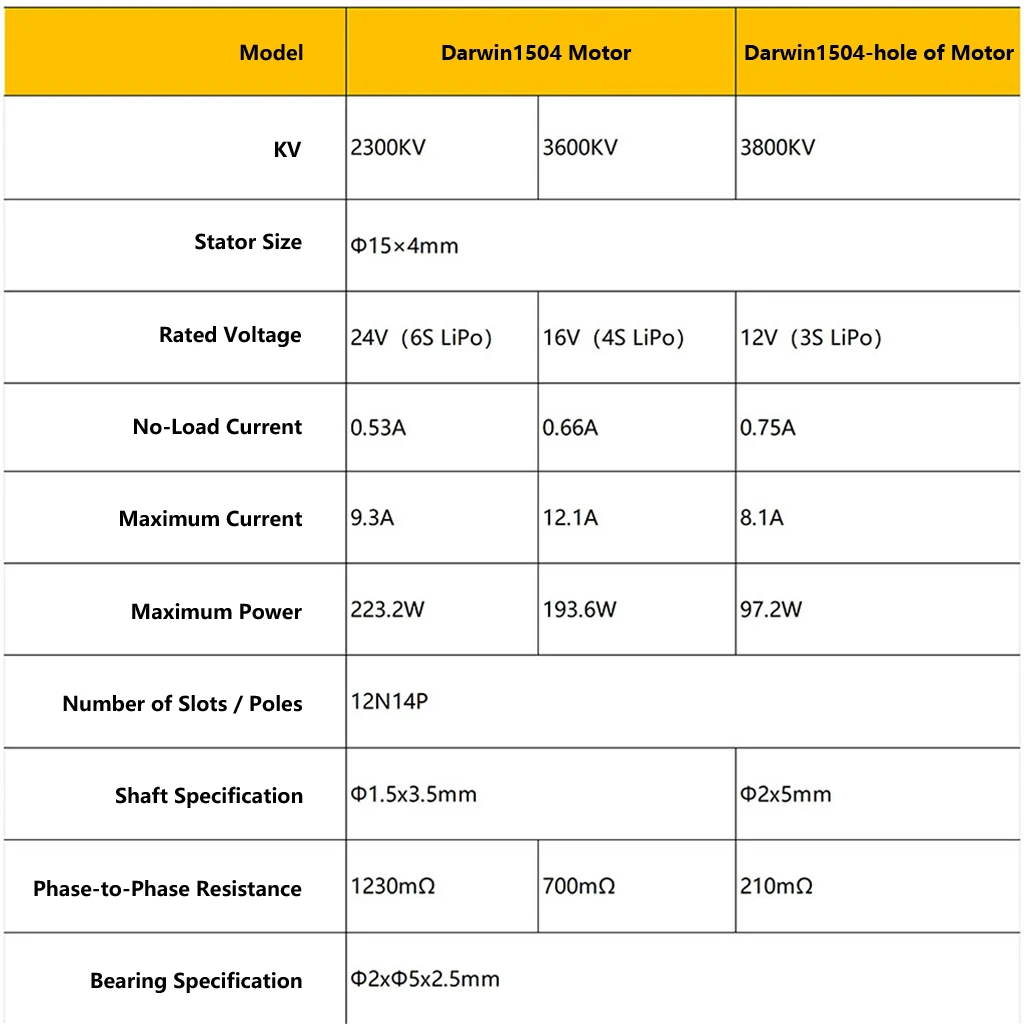

Full Parameter Specification

Item	Split Type 1504	Integrated 3-Hole 1504
Rotor Style	Split Rotor	Integrated Rotor
Magnet Grade	N45H	N45H
Winding	Single Strand	Single Strand
Wire Spec	28AWG ×150mm	28AWG ×90mm
Mount Hole	9×9mm M2	10×10mm 3-hole M1.6

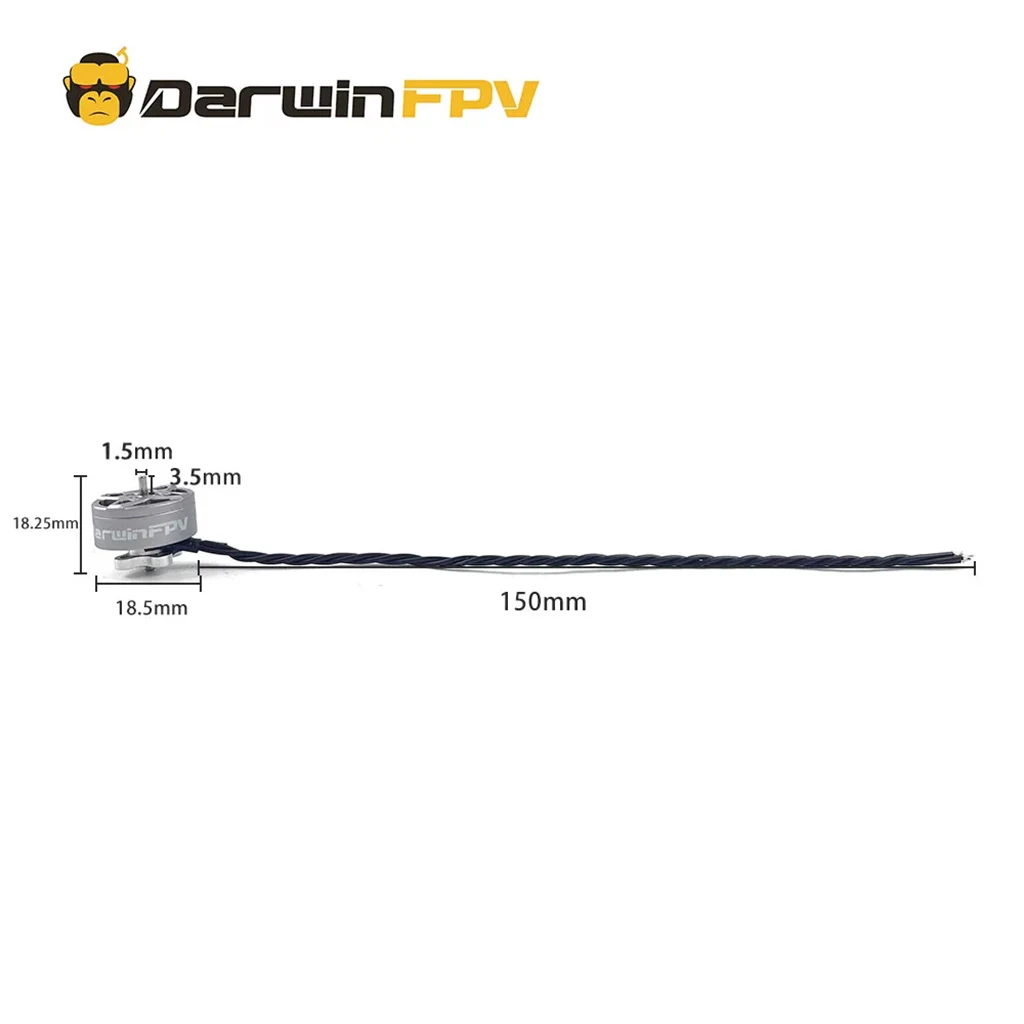

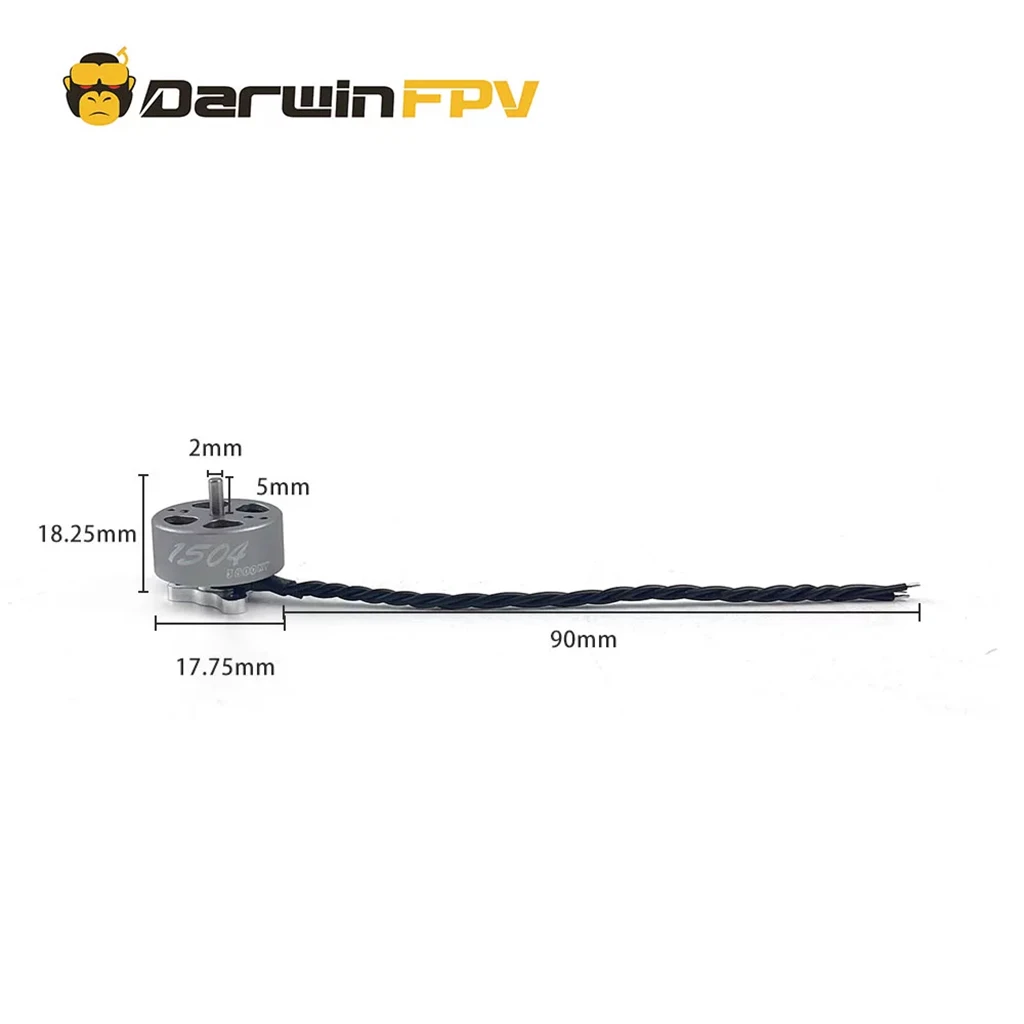

Dimension	Φ18.25×18.5mm	Φ18.25×17.75mm

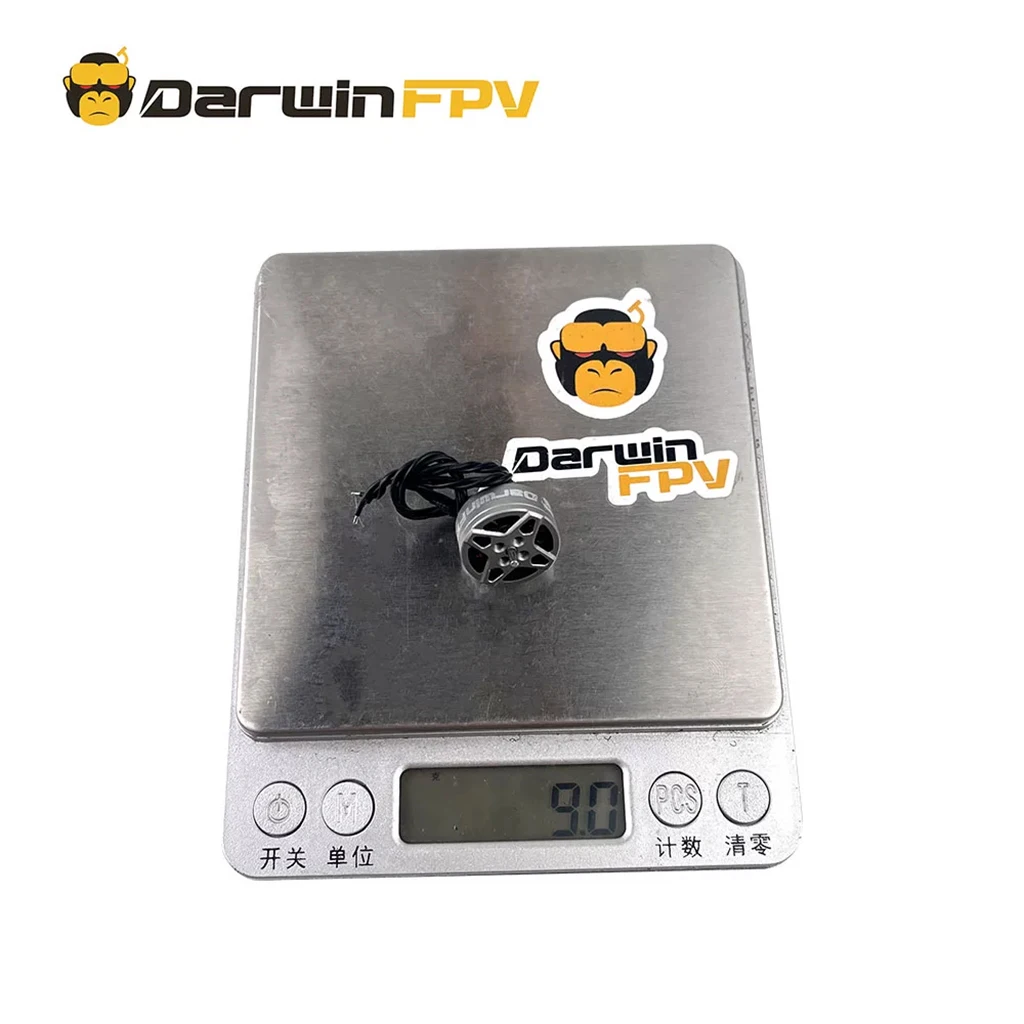

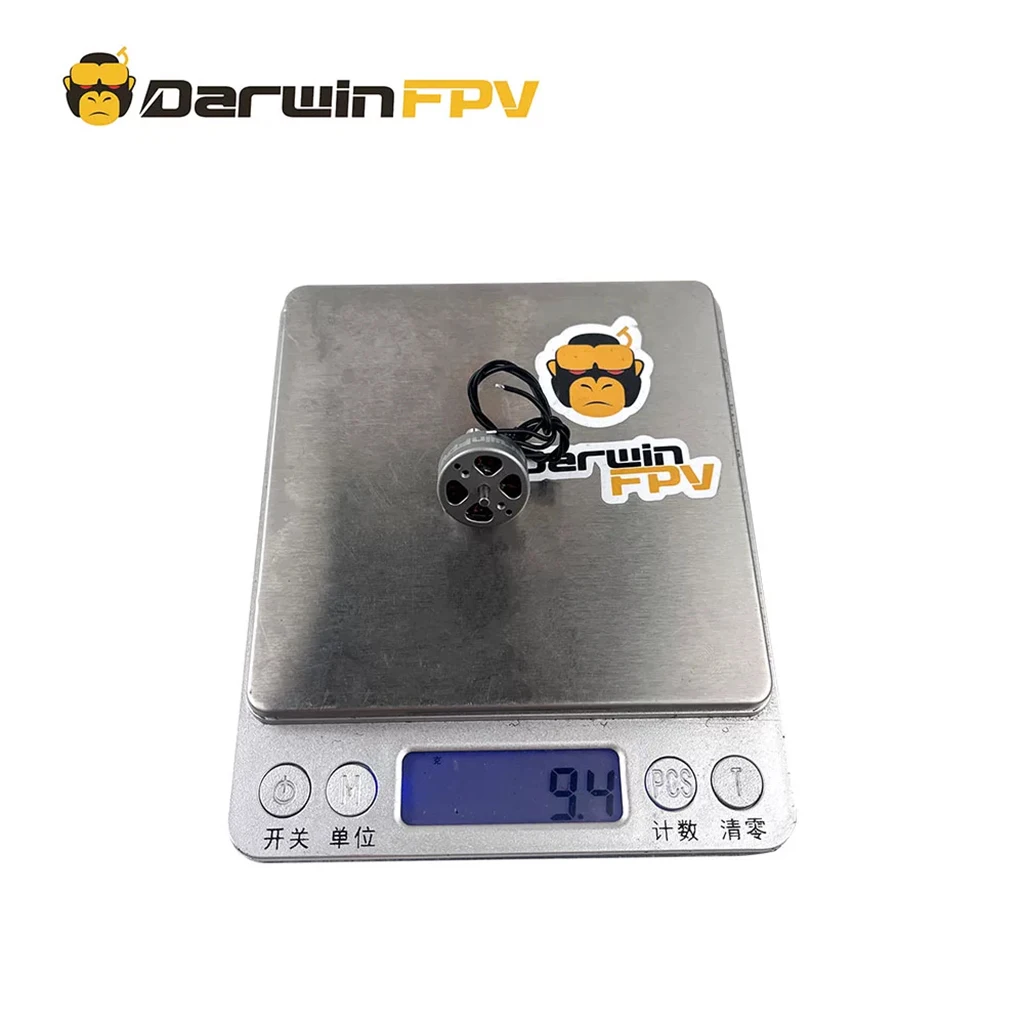

Net Weight	9.1±0.2g	9.4±0.2g
Shaft Size	Φ1.5×3.5mm	Φ2×5mm
Slot-Pole	12N14P	12N14P
Bearing Size	Φ2×Φ5×2.5mm	Φ2×Φ5×2.5mm
Package Size	55×55×58mm	55×55×58mm

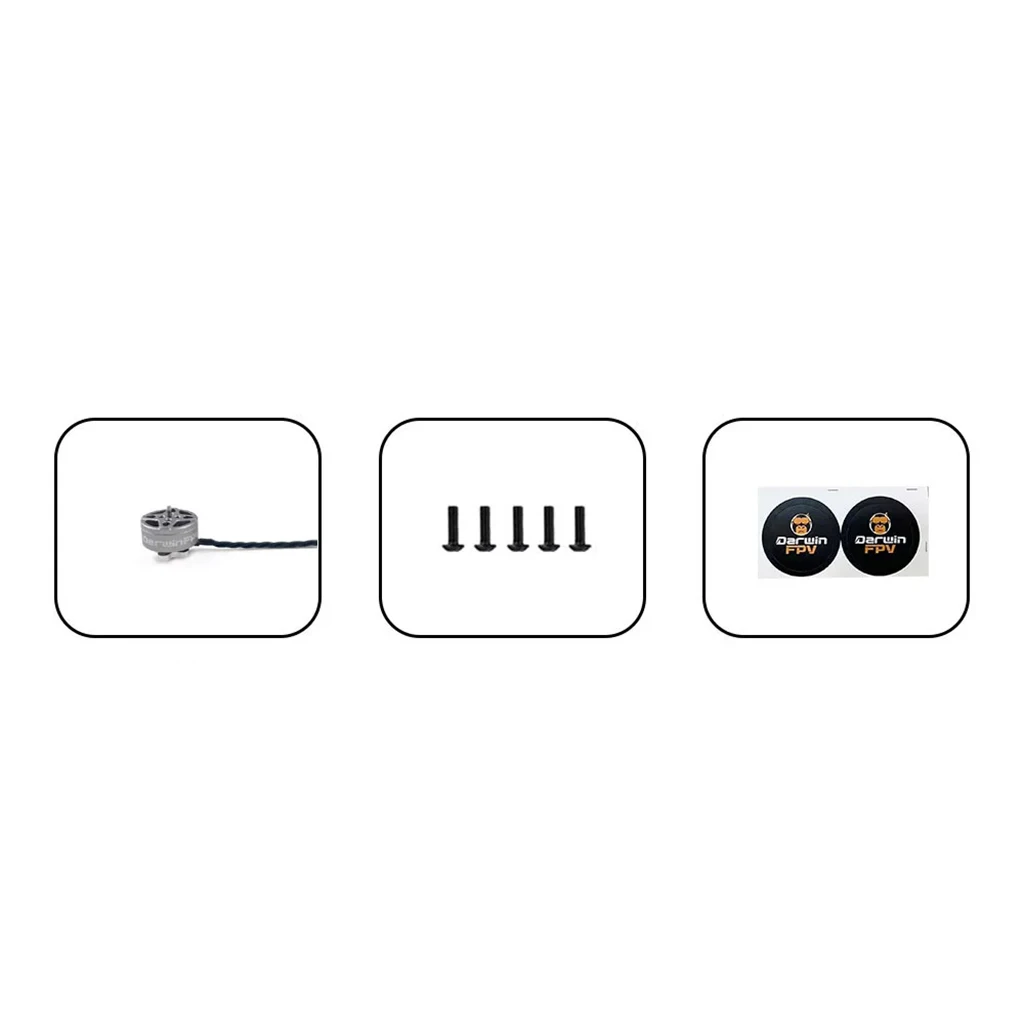

Package List

1 × DarwinFPV 1504 Brushless Motor5 × Matched Mounting Screws (M2 for split, M1.6 for 3-hole)1 × DarwinFPV Brand Sticker

Application Tips

Match propellers: 3520 for 4S/6S KV versions, 4019 for 3S 3800KV motor
Voltage limit strictly following rated LiPo to avoid burnout
Tighten mounting screws evenly to reduce vibration during flight
