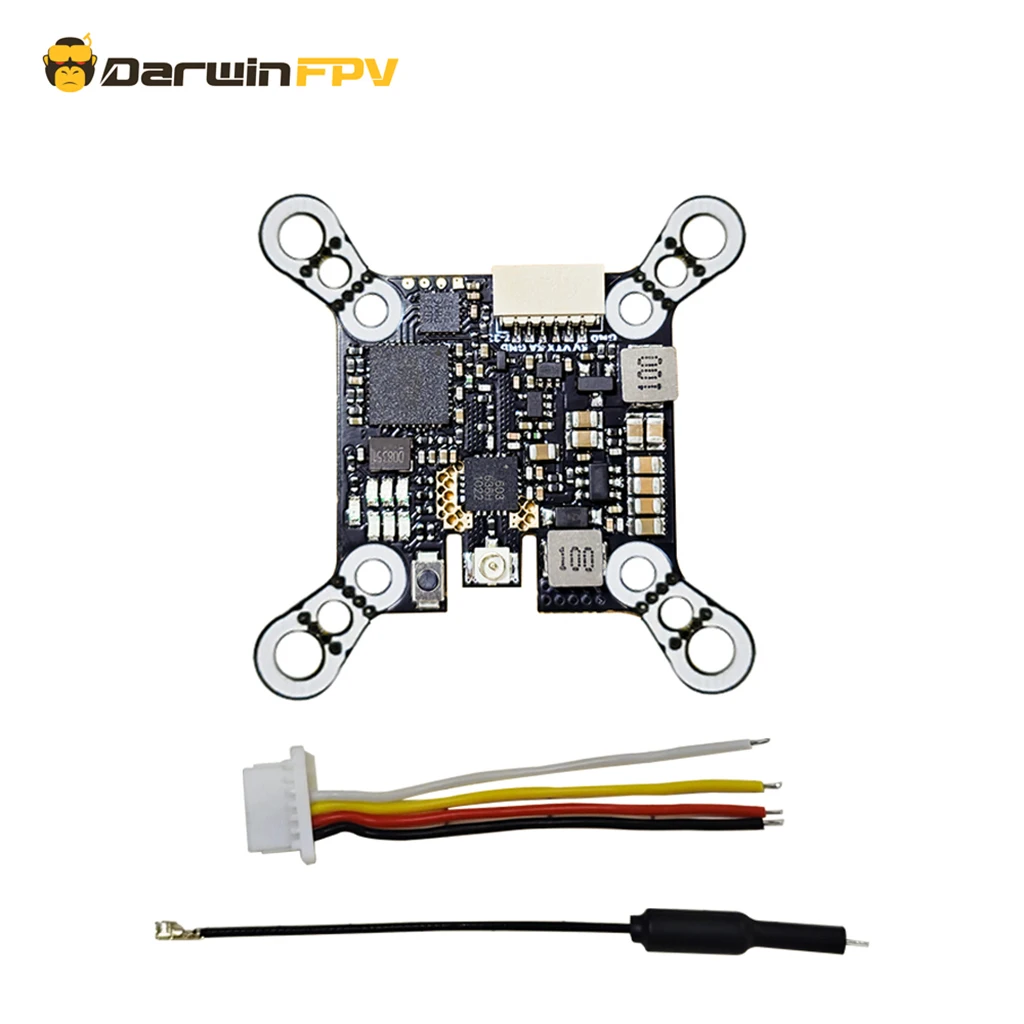

DarwinFPV 5.8G 40CH 1200mW Switchable Video Transmitter 1.2W VTX For Baby Ape / Pro / V2 FPV Quadcopter For FPV Drones DIY

Frequency: 5.8G

Channels:40CH

Input Voltage: 5V

Extra features: Smart audio

Output power: 25mW/100mW/200mW Swichable

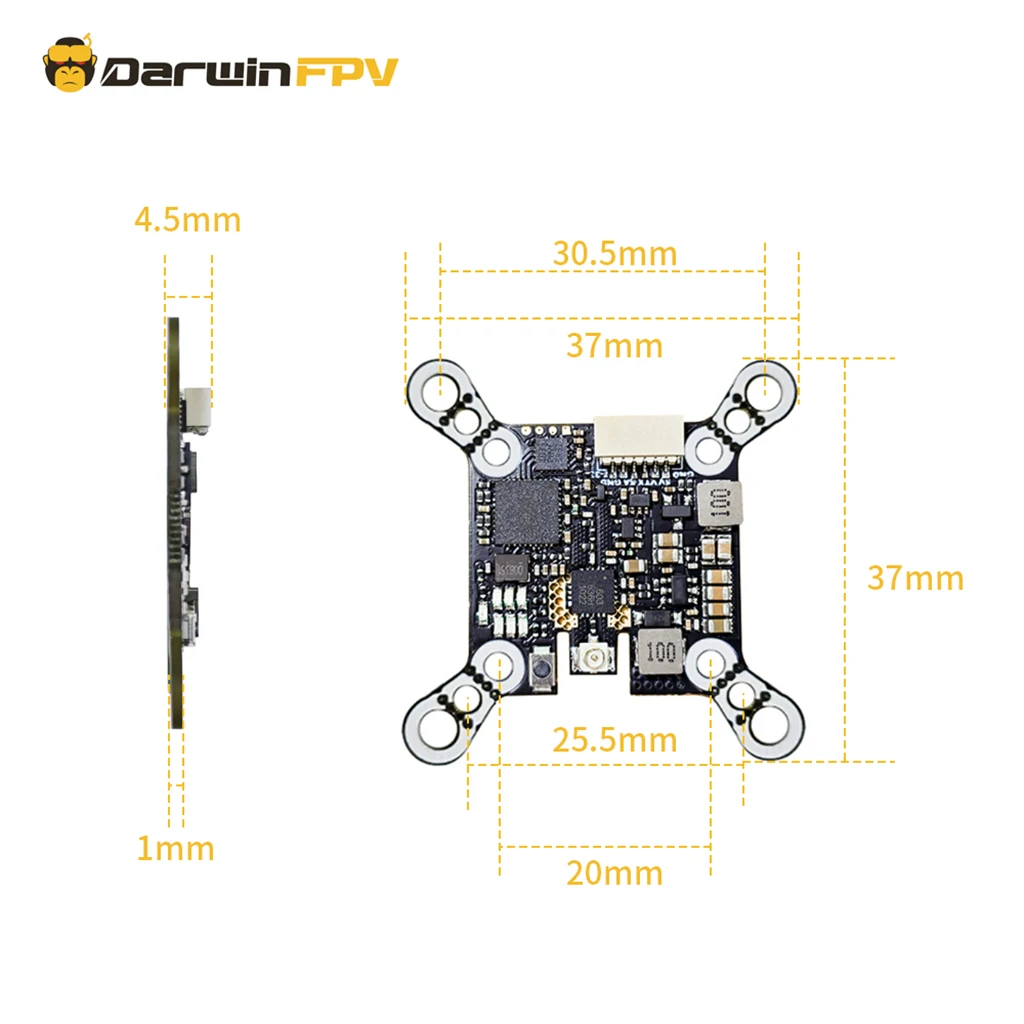

Dimensions: 20mm*20mm M2

Weight: 3.2g

The VTX button is used to manually set the power, but it is not recommended to change it by yourself. Manually need to change the line sequence and quantity of the connecting lines. Improper operation will cause the VTX board to burn.

If necessary, it is strongly recommended to use the BF link ti change the power parameters!

Red light represents power

red light flashes 1 time: 25mW

red light flashes 2 times: 100mW

red light flashes 3 times: 200mW
