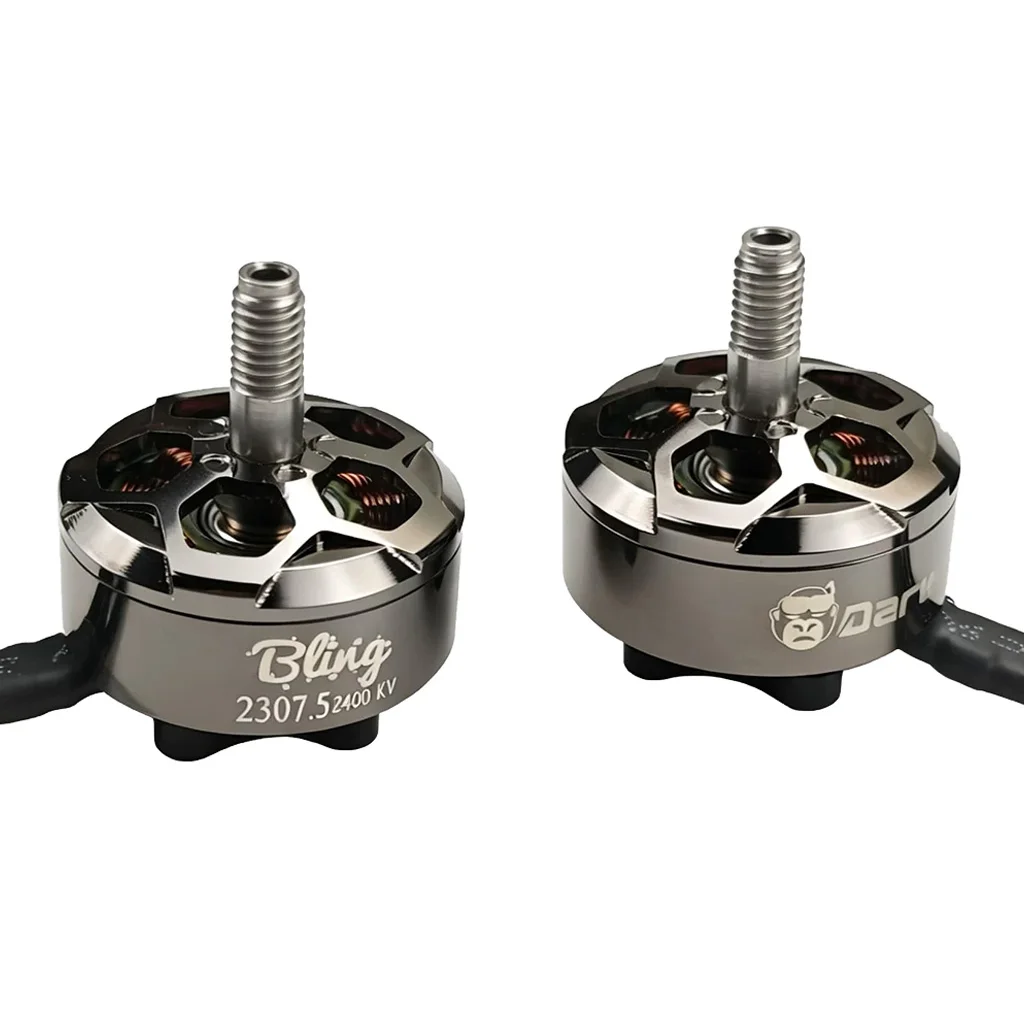

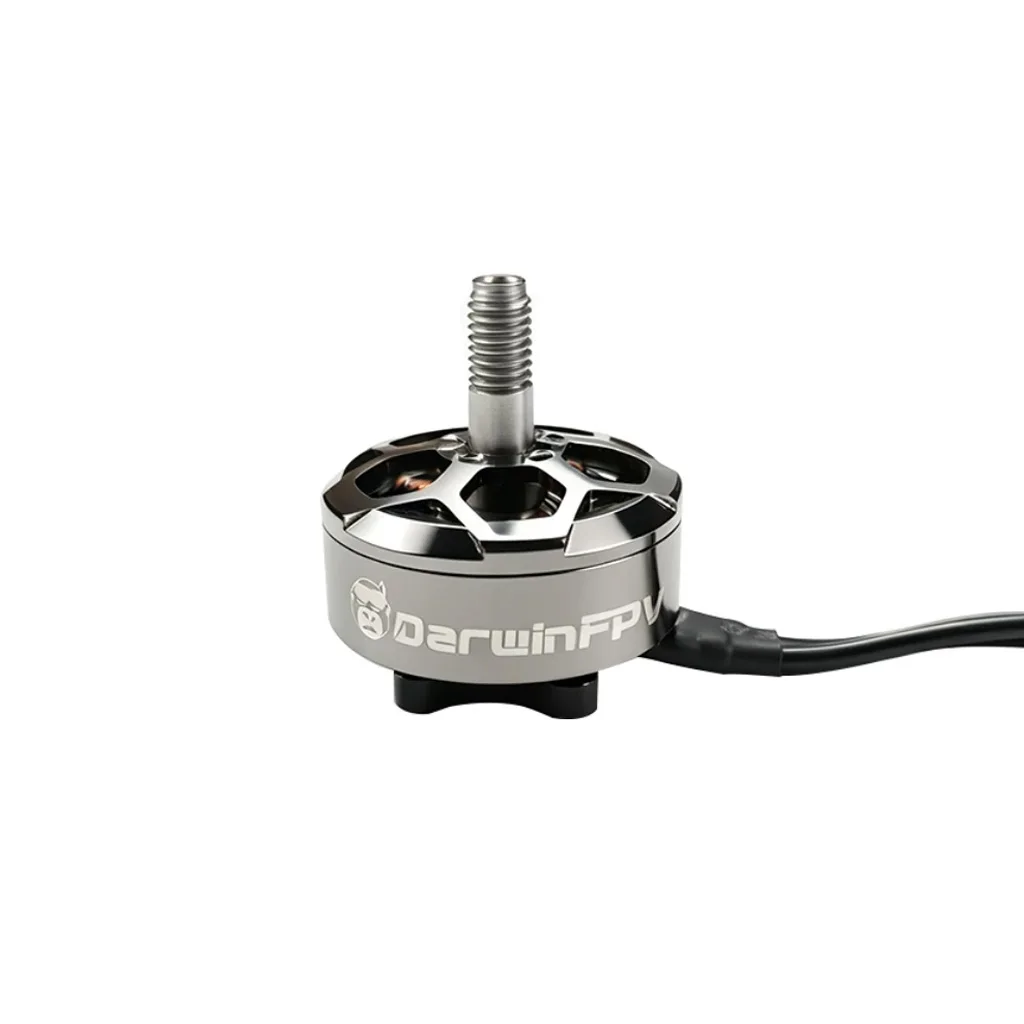

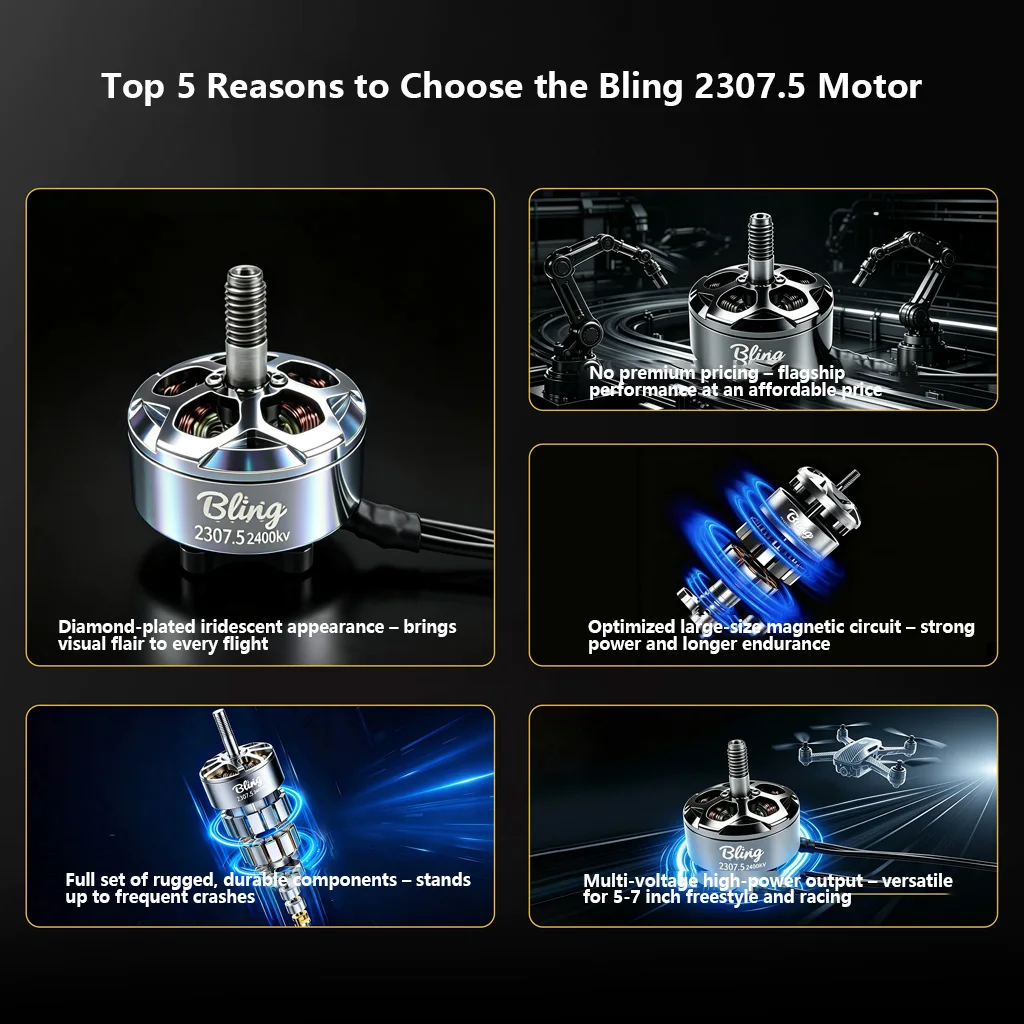

DarwinFPV Bling 2307.5 2400KV Brushless Motor 12N14P 20AWG 150MM Wire for 5inch Freestyle FPV RC Quadcopter

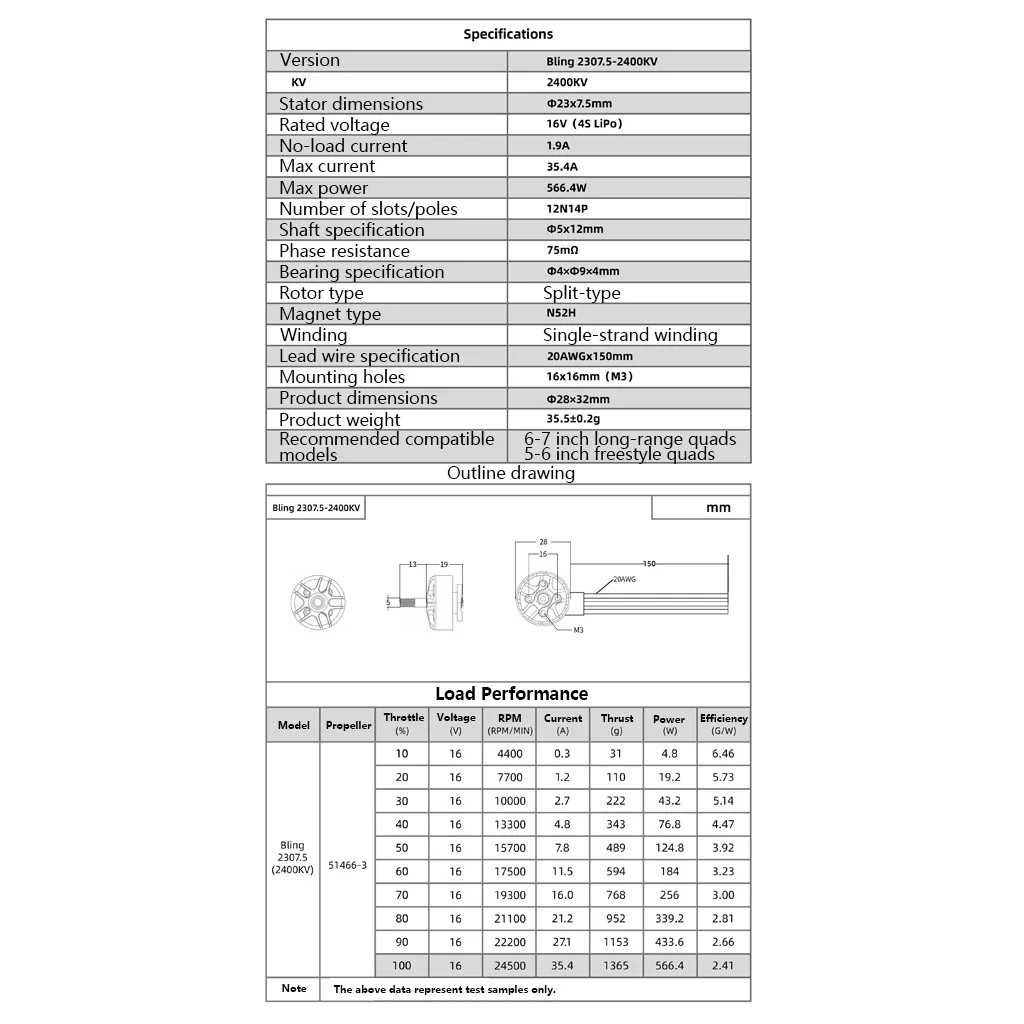

Bling 2307.5-2400KV
Stator dimensions:23x7.5mm
Rated voltage: 16V (4S LiPo)
No-load current: 1.9A
Max current: 35.4A
Max power: 566.4W
Number of slots/poles: 12N14P
Shaft specification: 5x12mm
Phase resistanc: 75mΩ
Bearing specification: 4xФ9x4mm

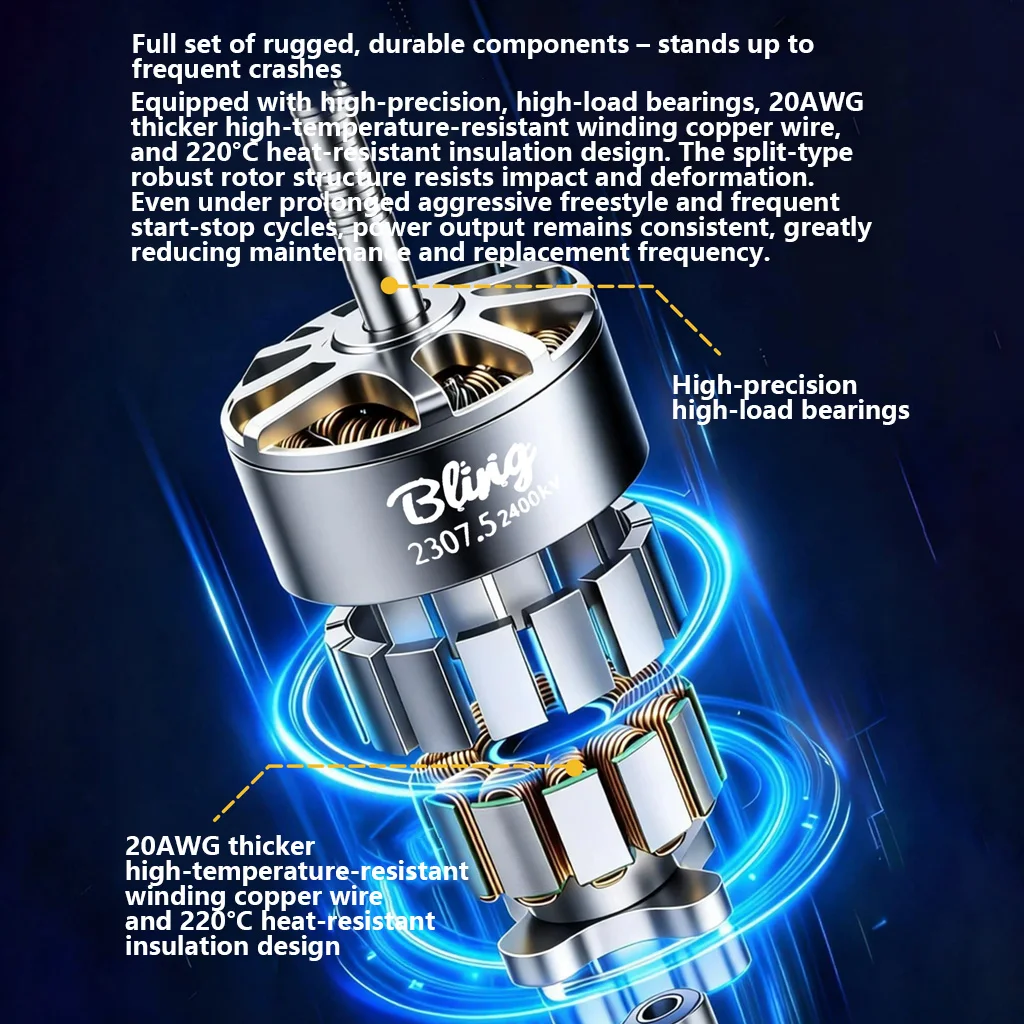

Rotor type: Split-type

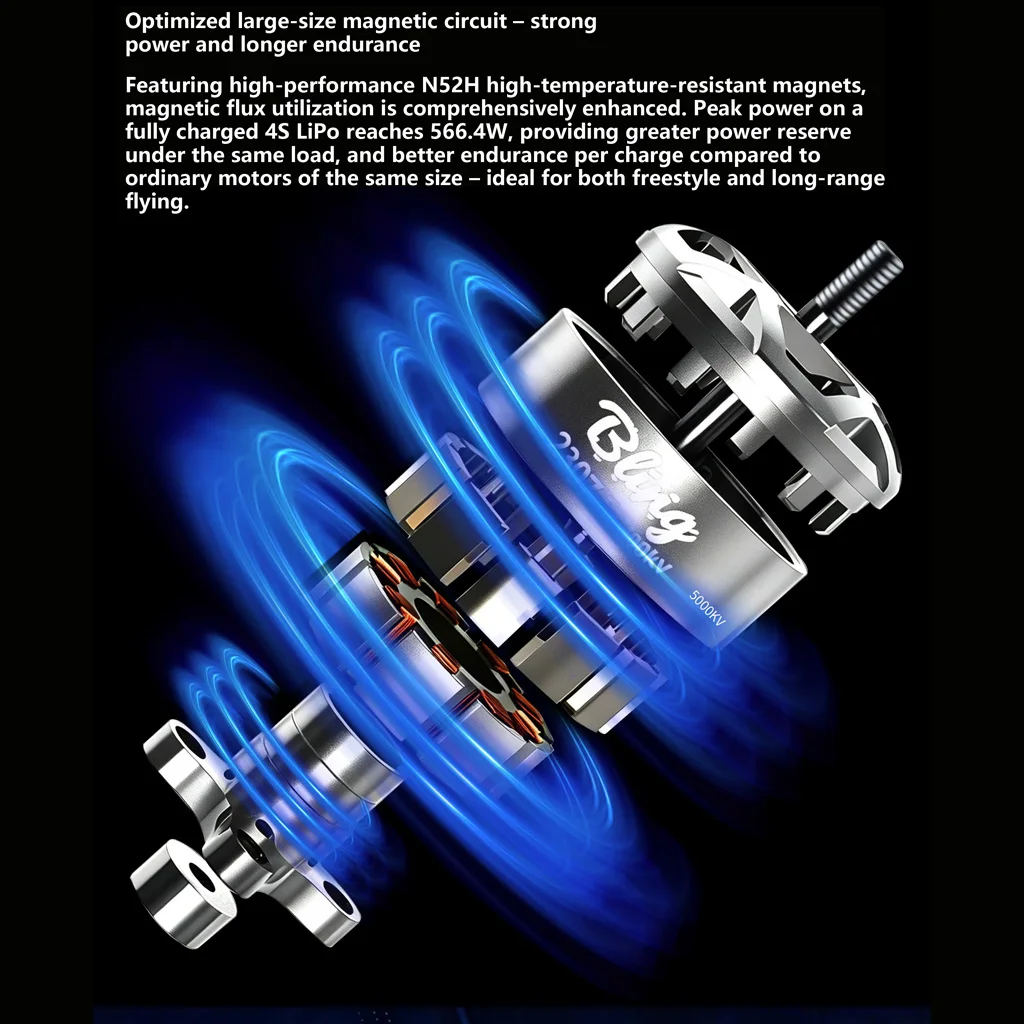

Magnet type: N52H
Winding: Single-strand winding
Lead wire specification: 20AWGx150mm

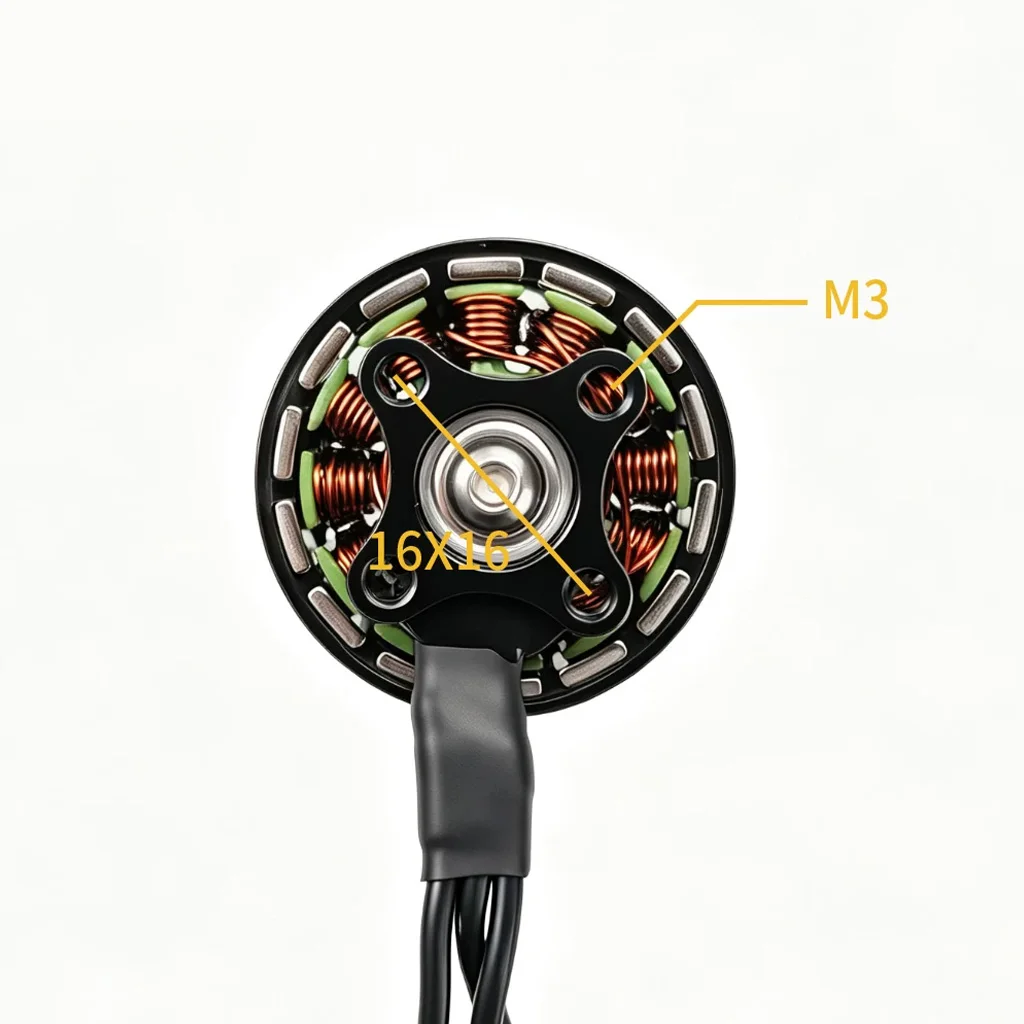

Mounting holes: 16x16mm(M3)
Product dimensions: 28x32mm

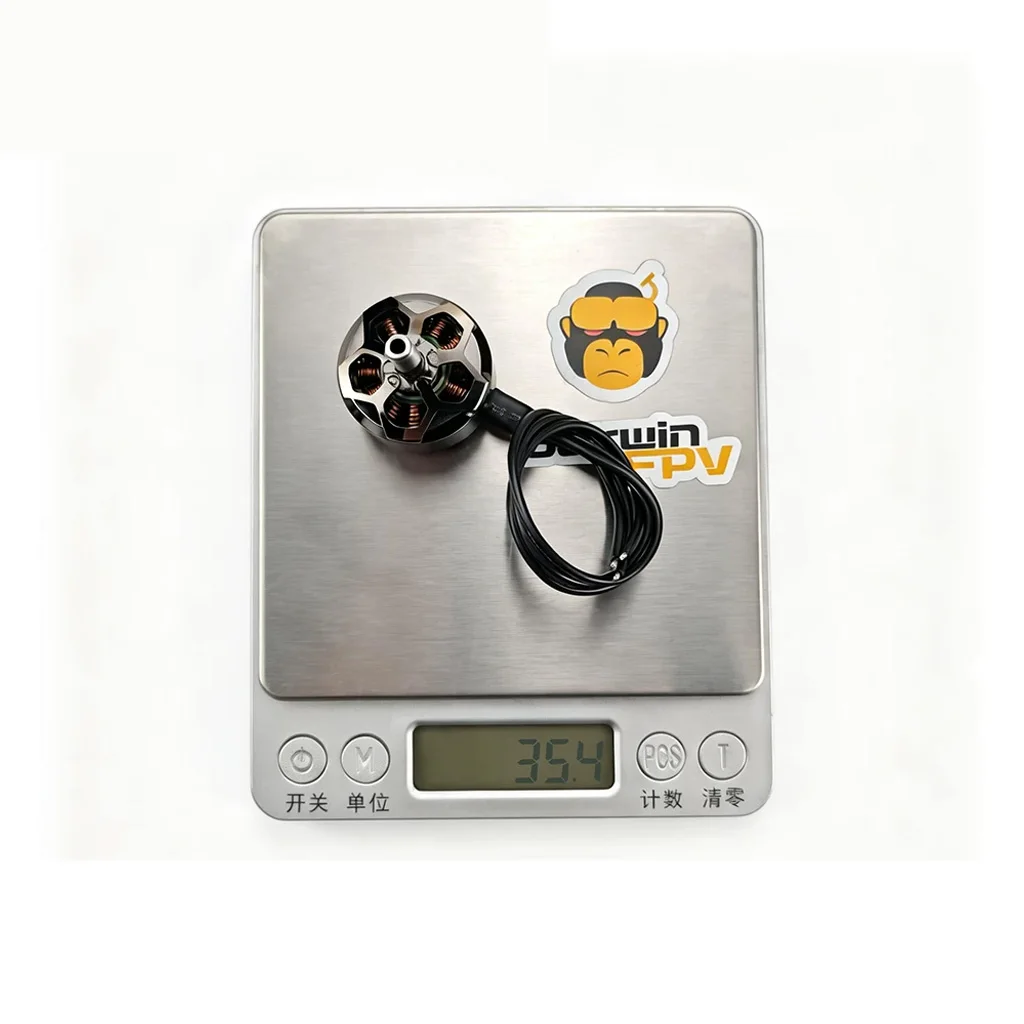

Product weight: 35.5±0.2g
Recommended compatible: 6-7 inch long-range quads
