DarwinFPV Darwin129 7Inch FPV Drone Quadcopters ELRS 2.4G Receiver M80 GPS F4 OSD 50A BLHeli_S Dshot600 800mW 1200TVL Camera FPV

DarwinFPV

Sale price $289.76 Regular price $434.64

Shipping calculated at checkout.

DarwinFPV Darwin129 280mm 7 Inch FPV Drone Quadcopters PNP BNF ELRS 2.4G Receiver F4 OSD 50A BLHeli_S Dshot600 800mW 1200TVL Camera FPV Quadcopter

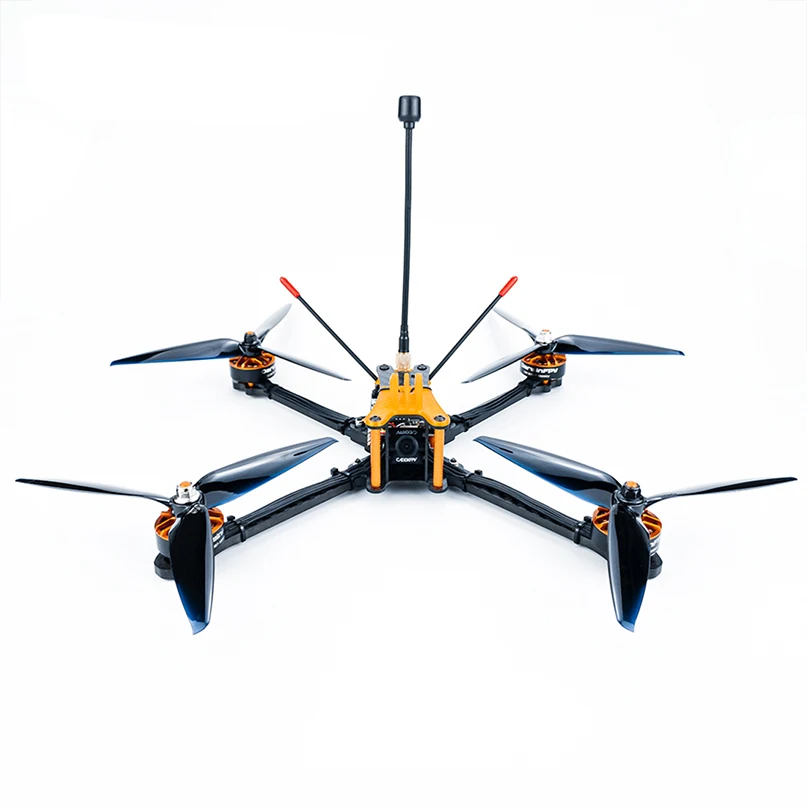

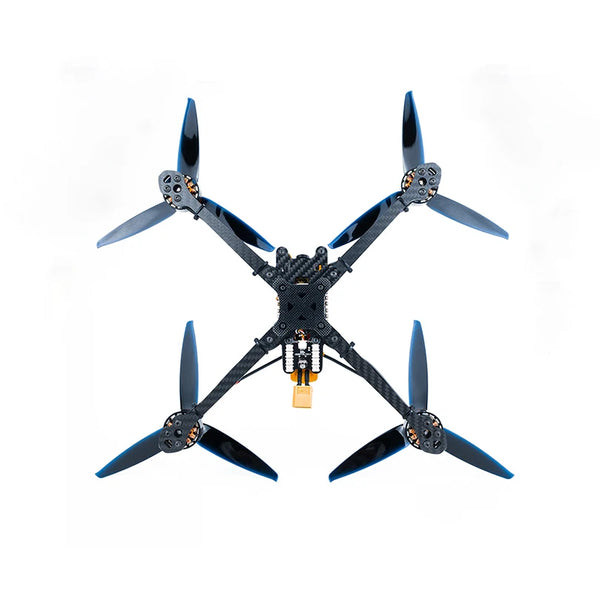

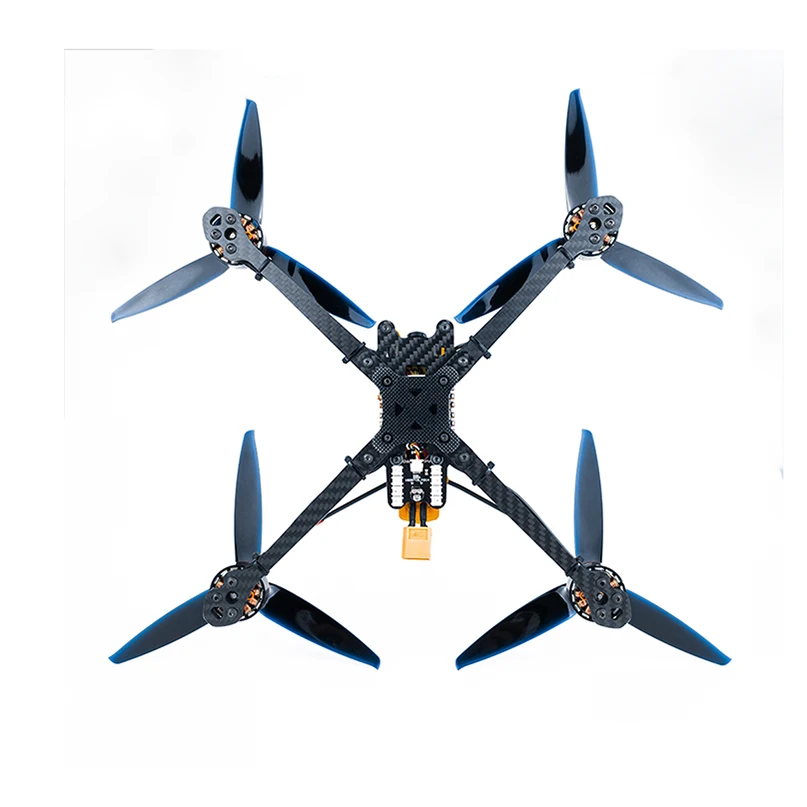

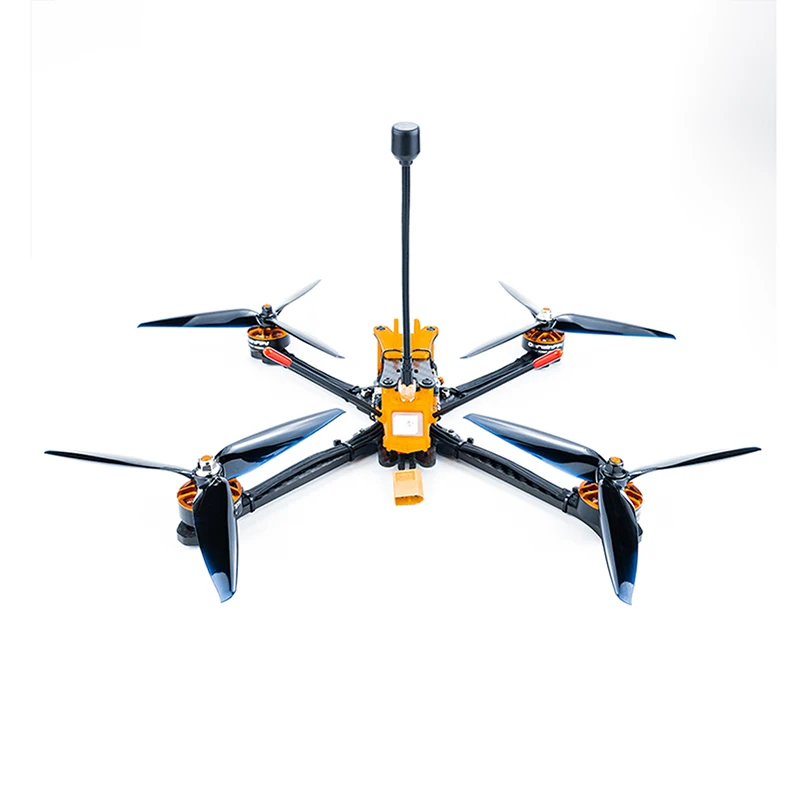

Darwin129 280mm 7 Inch FPV Drone

Wheel base: 280mm
Darwin129
Frame arm thickness:5mm
Frame kit material: 3K carbon fiber



2507 1800KV 3-5S Brushless Motors
Motor KV:1800KV
Idle Current (Io/10V):0.89A
Lipo Cell:3-5S
Weight:39g
Max Continuous Current:42A
Max Continuous Power:840W
Max thrust:1488g(4S/7")
Configu-ration:12N/14P
Motor Resistance (RM):0.0586Ω
Stator Diameter:25mm
Stator Thickness:7mm
Motor Diameter:30.8mm
Motor Body Length:20mm
Overall Shaft Length:35mm
Prop adapter shaft:M5
Bolt holes spacing:16mm
Bolt thread:M3
Propeller:7"

4IN1 50A BLHeli-S ESC

F4-50A stack
Continuous current: 50A
Peak current: 60A(10S)
Lithium battery section number: 2-6S
BEC:5V 2A
ESC weight: 10.8g
Fimware: BL_S
Maximum support throttle signal: DSHOT600
Mounting hole: M3 30.5*30.5mm



F4 Flight controller
Lithium battery section number: 3-6S
BEC: 10V1A,4.5V, 3.3V
MCU: STM32F405
F4 Flight Controller
Gyro: MPU6000
OSD:AT7456E
Firmware: MATEKF405
Weight: 7.2g
Mounting hole: M3 30.5*30.5mm
Support barometer, black box



5.8G 40CH 800MW TX805 FPV Transmitter VTX
Frequency: 5.8G

Channels: 40CH
Input voltage: 7V~24V
5V camera supply:120mA(MAX)----25mW@12V 5V
camera supply: 200mA(MAX)----200mW@12V 5V
camera supply: 300mA(MAX)----600mW@12V5V
camera supply: 350mA(MAX)----800mW@12VExtra
features: Smart audio
Power supply: 5V output for Camera
Output power:25mW/200mW/600mW/800mW
switchable Antenna connector: MMCX
Cable connector: Solder pads
Dimensions: 36mm*22mm*5mm,30.5 stackable hole
Weight: 8g(excluding antenna)

CADDXFPV Turbo Micro F2
Image Sensor:1/3"COMS Sensor
Horizontal Resolution:1200 TVL
TV System:NTSC/PALchangeable
Image:16:9/4:3
WDR:D-WDR
Min, Illumination:0.001Lux F1.2
Lens:2.1mm lens
Synchronization:Intemal
Electronics Shutter:PAL:1/50~100,000;
NTSC:1/60~100,000
S/N Ratio:>52dB(AGC OFF)
Turbo Micro F2
Video Output:CVBS
Audio:YES
Auto Gain Control:YES
BLC:YES

Camera OSD:YES
DNR:2 DNR
Language:ENG/CHN
Image Flip:Support
Day/Night:Auto/Color/B&W
Dimension:19mm*19mm*19mm
Wide Power Input:DC4.5-40V
Work Temperature:-20℃~+60℃
Work Humidity:20%~80%
Weight:5.5g (N.W.)
Color:Black

Darwin M80 GPS

Item Nome:GPS+GLONASS
Power Supply:5V
Support Rate:115200dps
Receiving Sensitivity:Trace-167dBmCapture-160dBm
Size:18mm*18mm*7.1mm



Gemfan Flash 7040-3 Flash Durable 2L2R

Material: PC
Mounting hole:5mm
Center thickness: 8mm
Weight: 7.9g
Color:Black or Transparent at random

Lipo Battery
Recommend 4S

Not included
