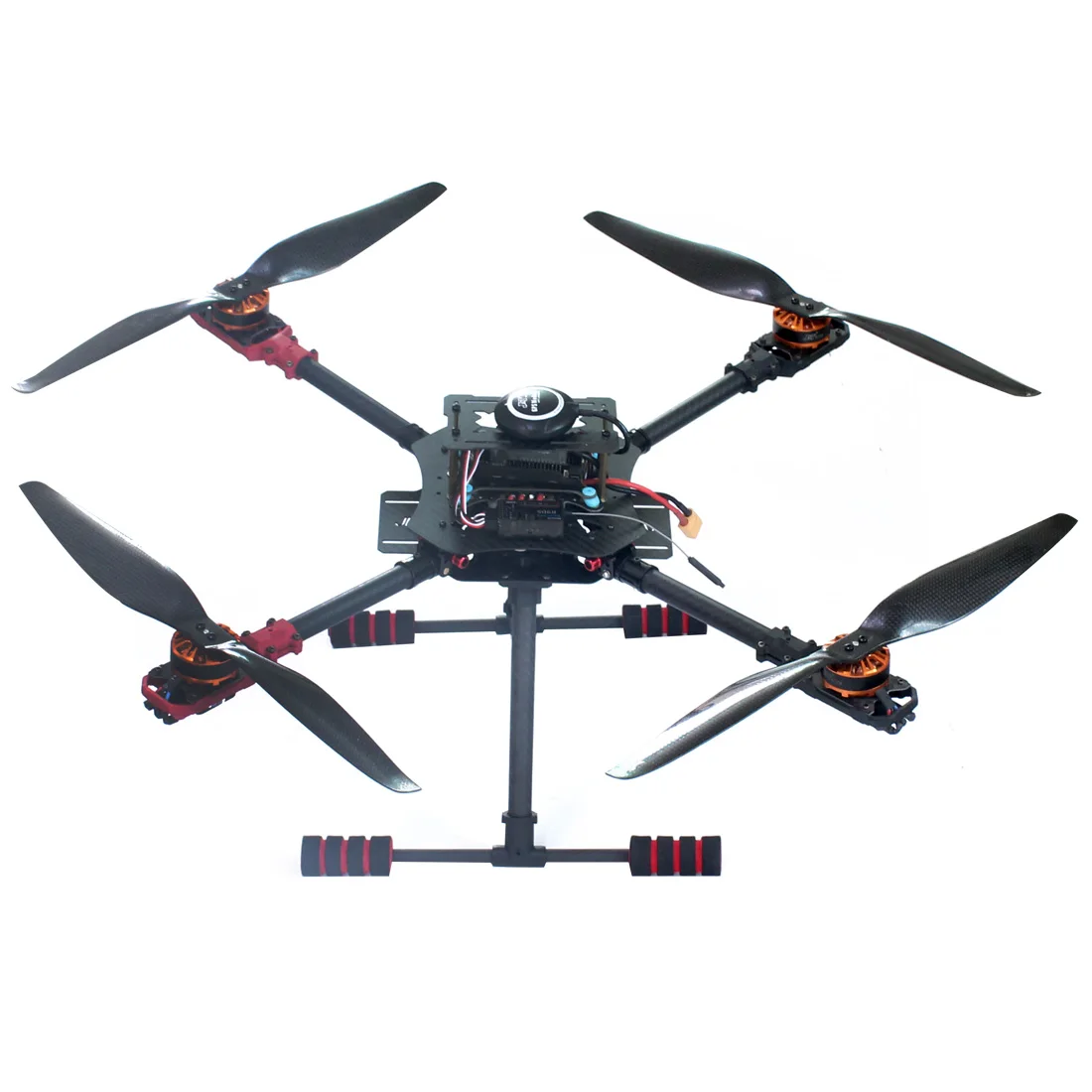

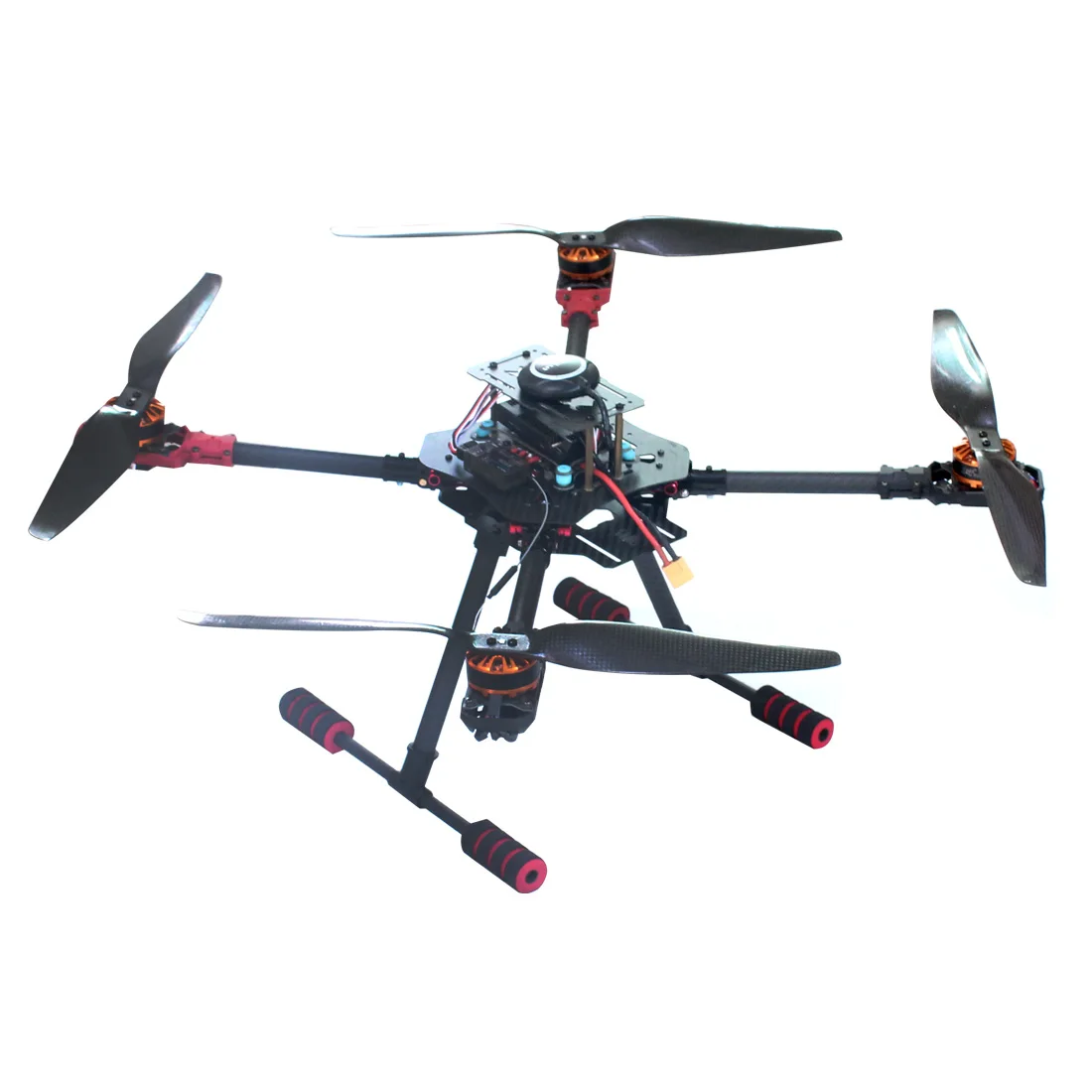

DIY 560mm Carbon Fiber DIY Drone Folded Frame Kit W/ 700KV Brushless Motor 40A ESC 1455 Props APM2.8 With compass RC Quadcopter

JMT

Sale price $265.07 Regular price $344.60

Shipping calculated at checkout.

  •

  • DIY Drone 560mm Carbon Fiber Foldable Frame With 700KV Brushless Motor 40A ESC 1455 Propellers APM2.8 With compass RC Helicopter

  •  Frame kit is unassembly,any quesions , pls contact us freely .

  •
  • Set B package included

  • Carbon fiber folding frame kit x1

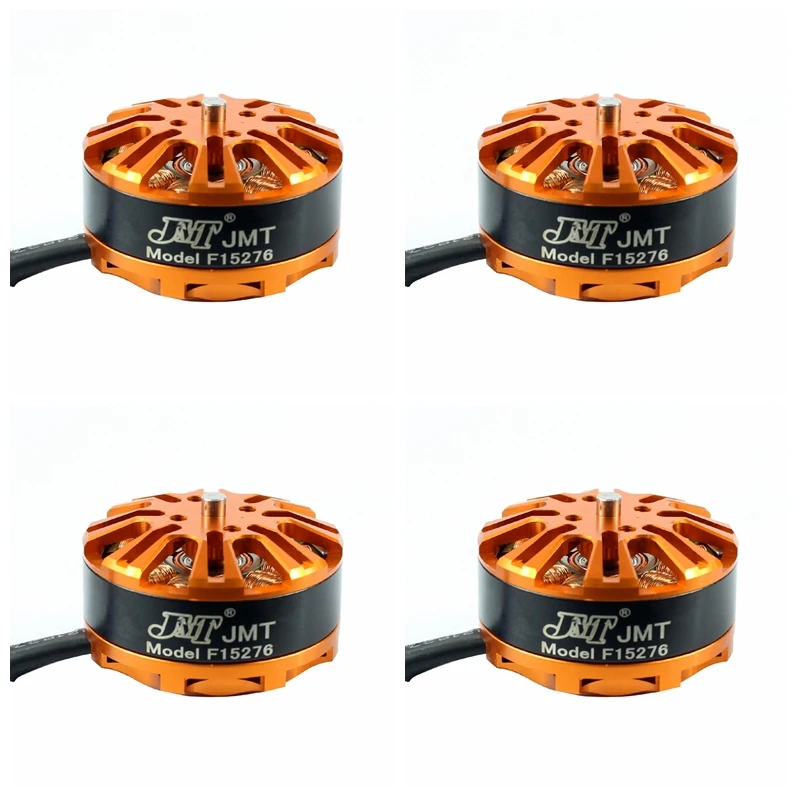

  • HYD3508 700kv brushless motor x4

  • 1455 carbon fiber propeller x2

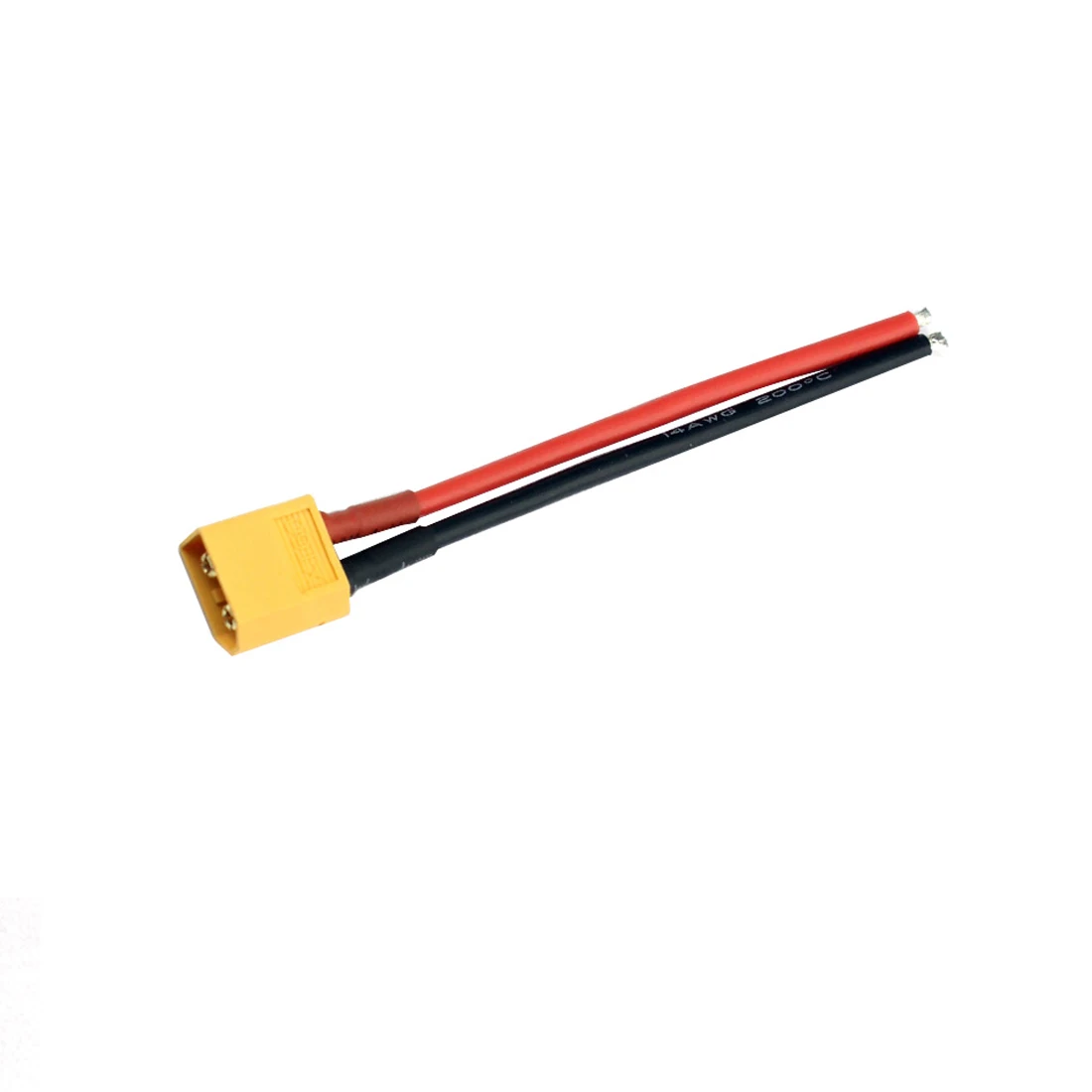

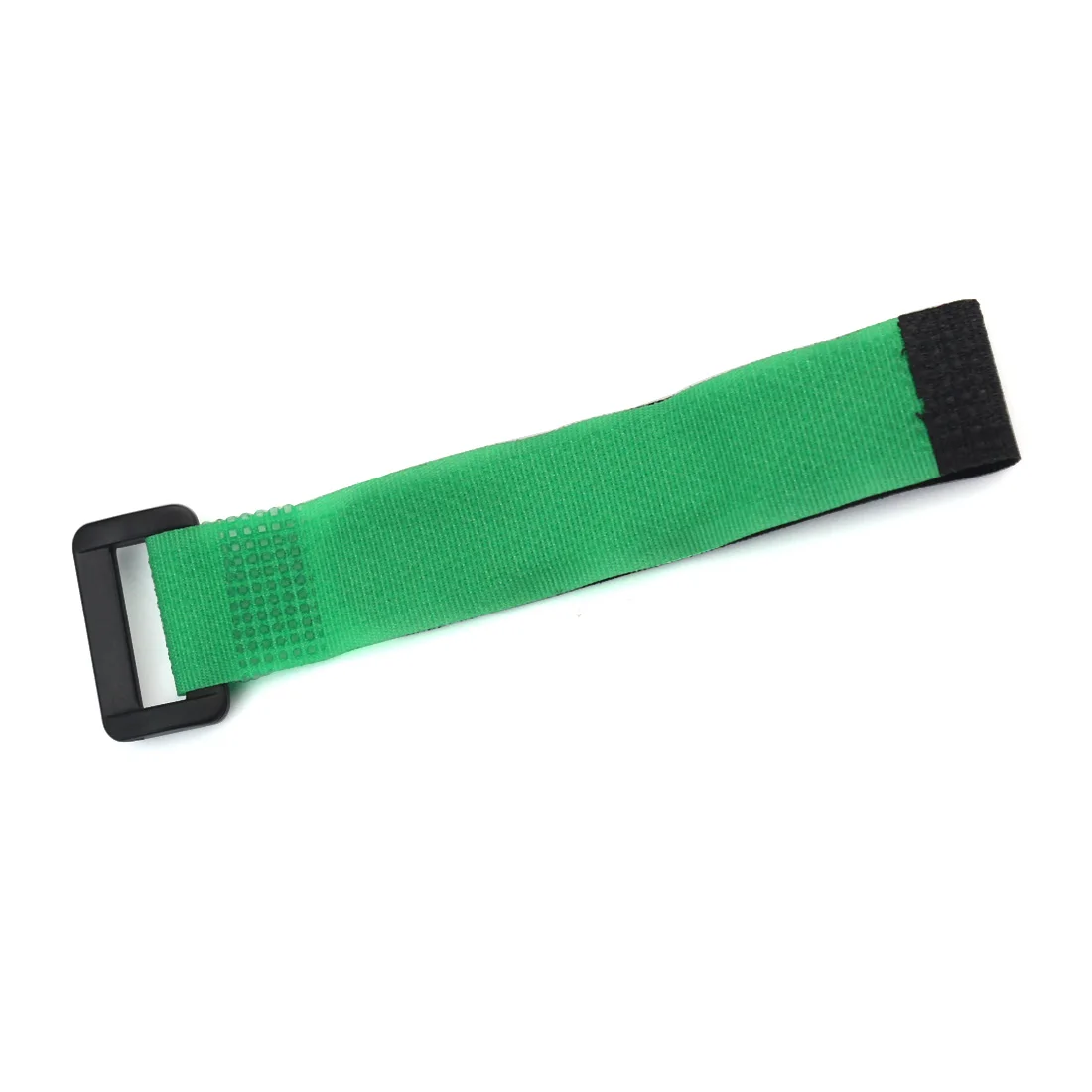

  • XT60 cable x1

  • black reverse buckle tie x1

  • Non-folding Landing gear x1

  • Antenna Holder x1

  • GPS X1

  • APM2.8 With compass X1

  • MWC connection cable X5

  • 15cm Servo extention cable x1

  •



  • Set C package included :

  • Carbon fiber folding frame kit x1

  • HYD3508 700kv brushless motor x4

  • 1455 carbon fiber propeller x2

  • XT60 cable x1

  • black reverse buckle tie x1

  • Non-folding Landing gear x1

  • Antenna Holder x1

  • GPS X1

  • APM2.8 With compass X1

  • MWC connection cable X5

  • 15cm Servo extention cable x1

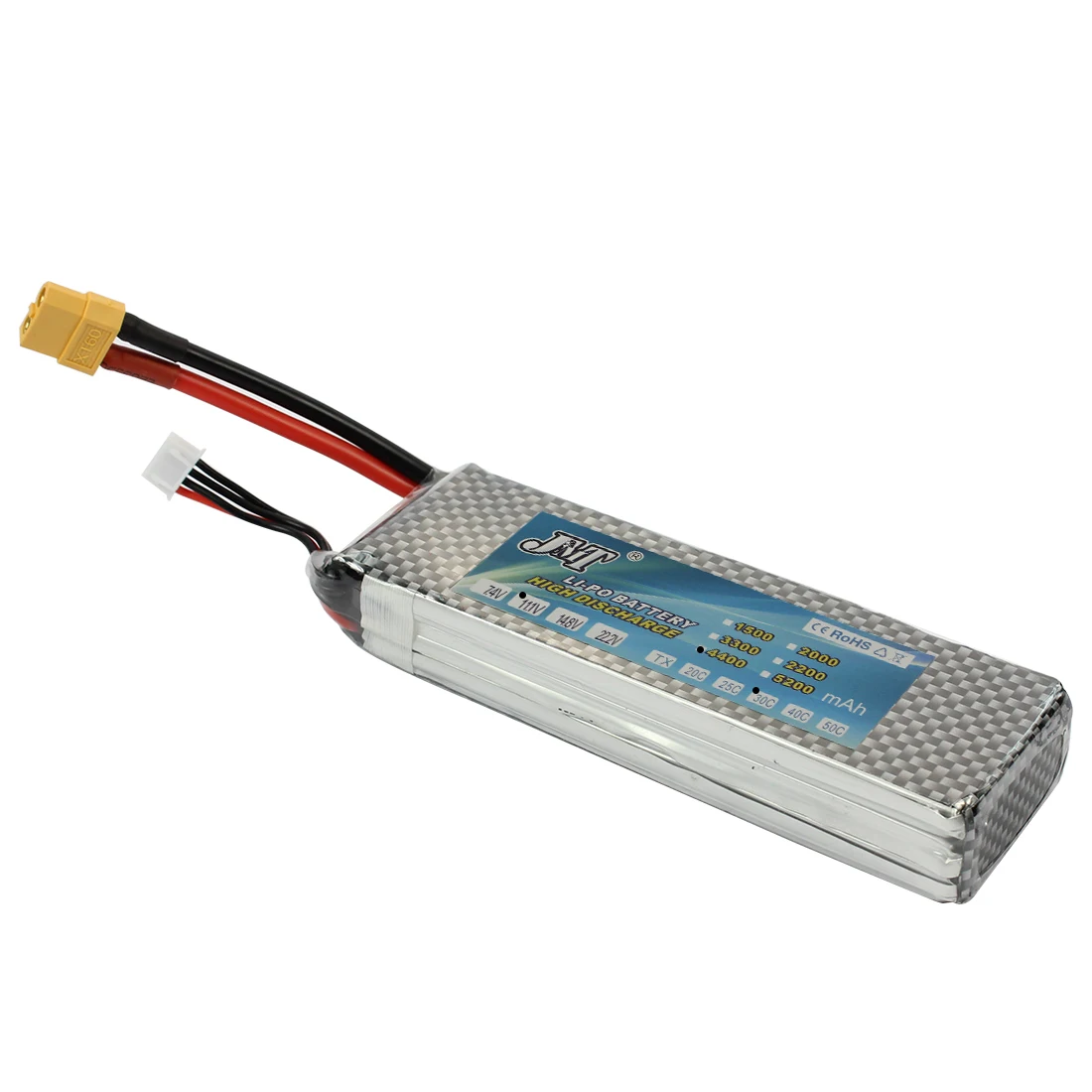

  • 11.1V 4400MAH XT60 Battery x1

  • B3 pro Charger x1

  •



  •

  • Set D package included :

  • Carbon fiber folding frame kit x1

  • HYD3508 700kv brushless motor x4

  • 1455 carbon fiber propeller x2

  • XT60 cable x1

  • black reverse buckle tie x1

  • Non-folding Landing gear x1

  • Antenna Holder x1

  • GPS X1

  • APM2.8 With compass X1

  • MWC connection cable X5

  • 15cm Servo extention cable x1

  • Radiolink AT9S Radio with RD9S Receiver  x1









Set E pacakge included :



Carbon fiber folding frame kit x1

HYD3508 700kv brushless motor x4

1455 carbon fiber propeller x2

XT60 cable x1

black reverse buckle tie x1

Non-folding Landing gear x1

Antenna Holder x1

GPS X1

APM2.8 With compass X1

MWC connection cable X5

15cm Servo extention cable x1

Radiolink AT9S Radio with RD9S Receiver  x1

11.1V 4400MAH XT60 Battery x1

B3 pro Charger x1





Set F pacakge included :



Carbon fiber folding frame kit x1

HYD3508 700kv brushless motor x4

1455 carbon fiber propeller x2

XT60 cable x1

black reverse buckle tie x1

Non-folding Landing gear x1

Antenna Holder x1

GPS X1

APM2.8 With compass X1

MWC connection cable X5

15cm Servo extention cable x1

Radiolink AT9S Radio with RD9S Receiver  x1

Gimbal x1





Set G pacakge included :



Carbon fiber folding frame kit x1

HYD3508 700kv brushless motor x4

1455 carbon fiber propeller x2

XT60 cable x1

black reverse buckle tie x1

Non-folding Landing gear x1

Antenna Holder x1

GPS X1

APM2.8 With compass X1

MWC connection cable X5

15cm Servo extention cable x1

Radiolink AT9S Radio with RD9S Receiver  x1

Gimbal x1








More Details :

Frame kit:


  • Wheelbase: 560mm

  • Fit for Motor:2212-3508(920kv - 700kv)

  • Fit for ESC: 20A-40A

  • Height of the Landing Skid: 190mm

  • Fit for Propeller: 10-12 inch

























Propeller:



High quality 100% 3K all carbon fiber board which imported from Japan improve material.

Each pair of propellers has perfect dynamic poise and static balancing which balance by manpower.

Especially improves the air-powered efficiency and aerofoil stability.

High quality ultra-light carbon fiber propellers especially designed for multicopters.

Carbon fiber forward propeller*1

Carbon fiber reverse propeller*1

Length:14inch,Pitch 5.5,Main Hole Dia 4mm,Side Holes Dia 3mm,Center distance 12mm





Motor:

Motor KV: 700KV

Shaft: 4.0mm

No-load Currency (A): 0.4A

Maximum Currency (A): 18.0A

Power: 198W

Weight: about 90g

Input Voltage: 2-4S LOPO

Suitable Propeller: 12"-15" Props

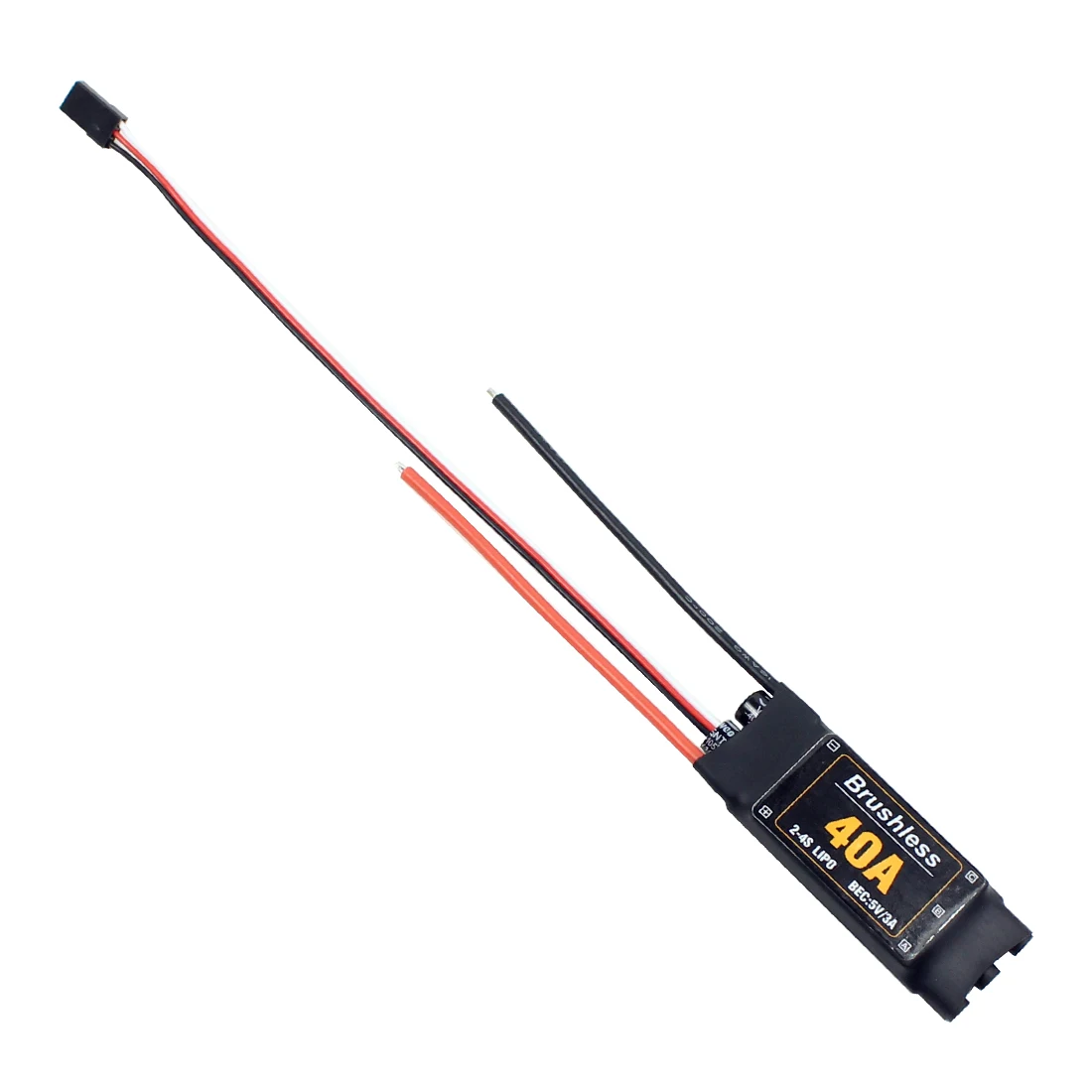

ESC:

Types: long, short

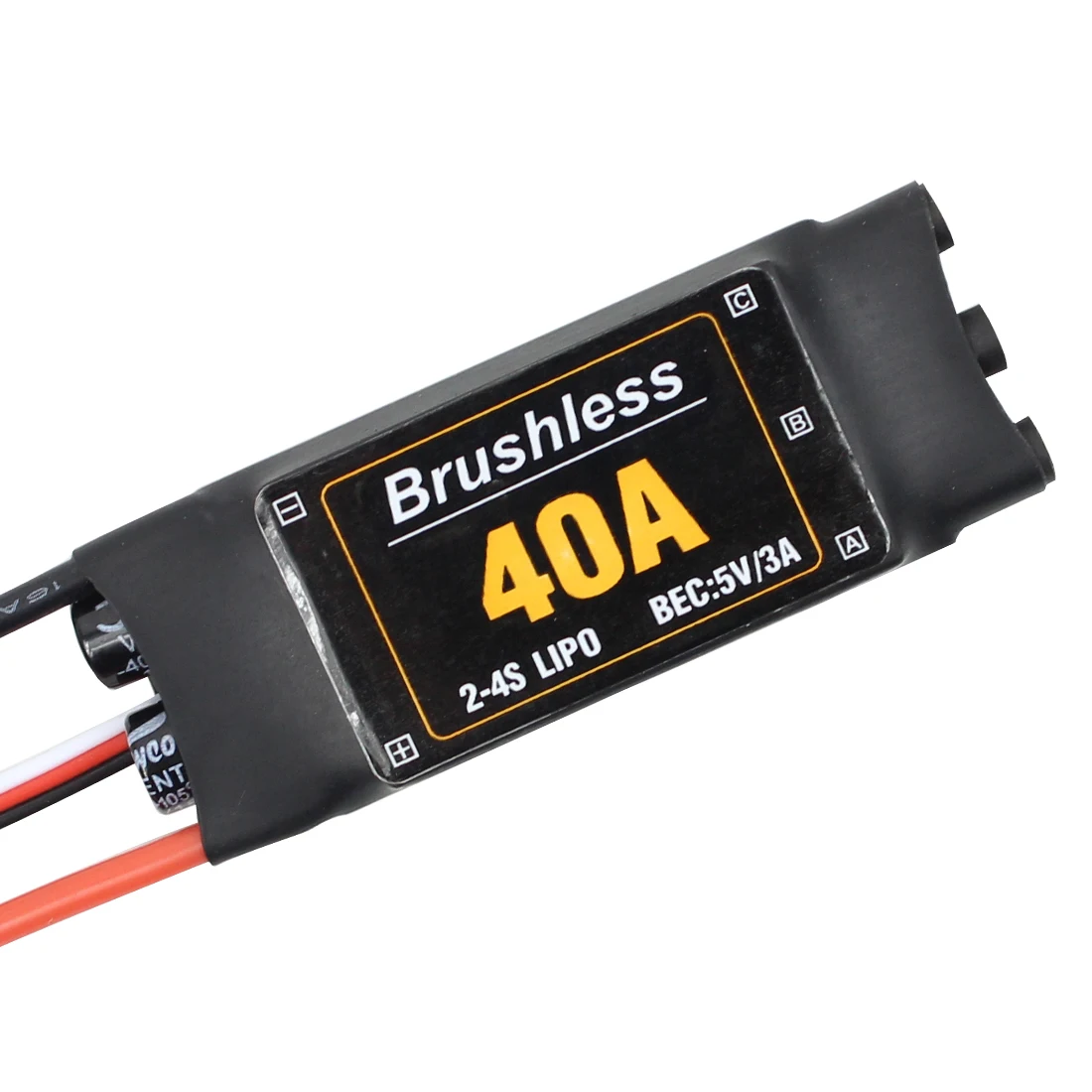

Current:  40A
Output capacity: continuous current 40A, short-time current 55A (not less than 10 seconds)
Power input: 2-4 lithium batteries(Not Included)
BEC output: 5V@3A (linear regulator mode - linear mode)
Maximum speed: 210,000 rpm for 2-pole motor, 7000 rpm for 6-pole motor, 35,000 rpm for 12-pole motor
Size: (Approx) 68x25x8mm














APM2.8



- Arduino Compatible!

- Can be ordered with top entry pins for attaching connectors vertically, or as side entry pins to slide your connectors in to either end horizontally

- Includes 3-axis gyro, accelerometer and magnetometer, along with a high-performance barometer

- Onboard 4 MegaByte Dataflash chip for automatic datalogging

- Optional off-board GPS, uBlox LEA-6H module with Compass.

- One of the first open source autopilot systems to use Invensense's 6 DoF Accelerometer/Gyro MPU-6000.

- Barometric pressure sensor upgraded to MS5611-01BA03, from Measurement Specialties.

- Atmel's ATMEGA2560 and ATMEGA32U-2 chips for processing and usb functions respectively.







Charger :

Input Voltage : 100 - 240V AC50 / 60Hz

Output Current: 3*800mA
Suitable for 2 cell and 3 cell Li-Po Batteries
Led Indicator:
When power is on : Orange
Stand by mode : Green
Battery Charging : Red

Battery Full : Green

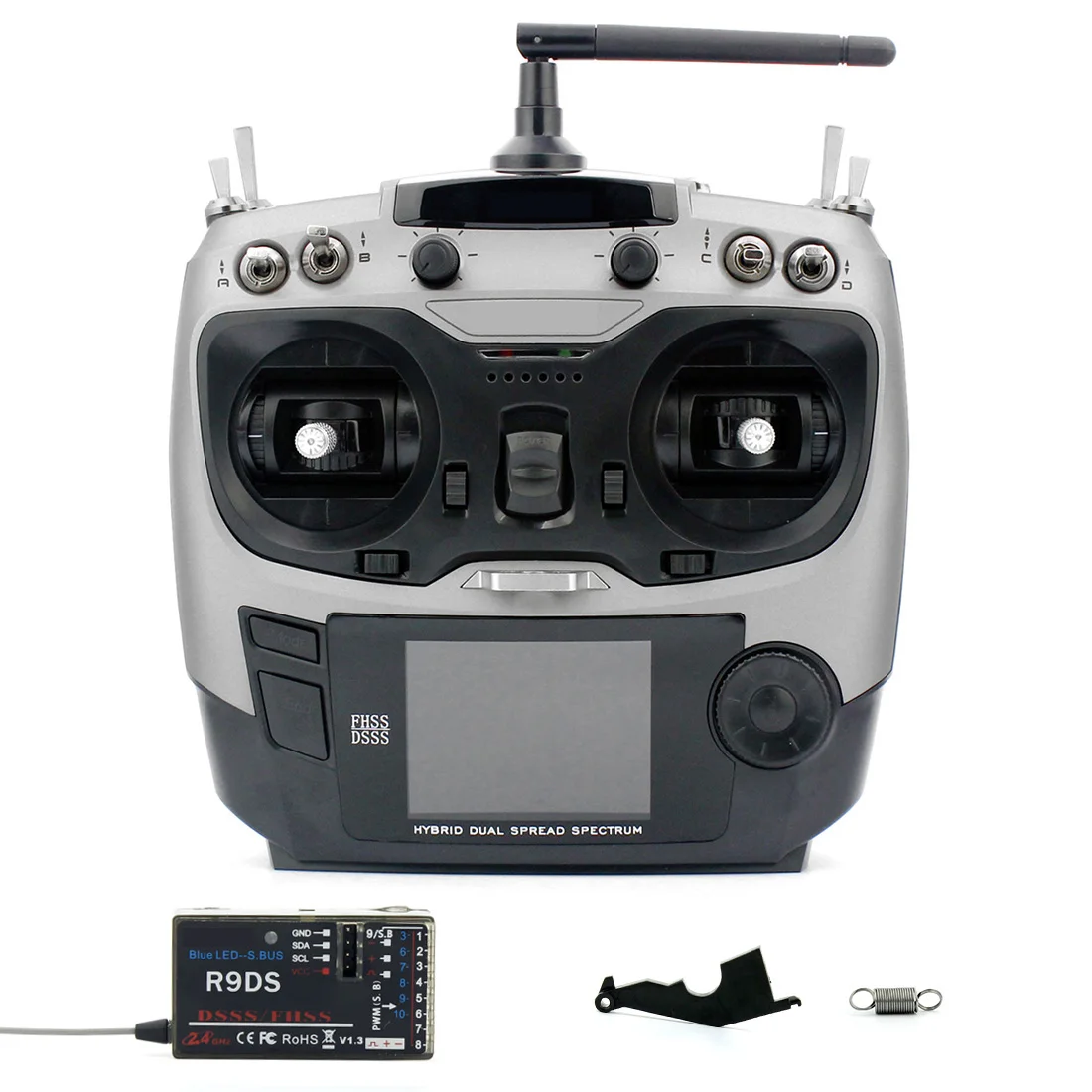

AT9S Transmitter :

Channels: 10ch/12ch

Mode: Mode 1 or Mode 2

Signal: SBUS/PWM/PPM/CRSF

Frequency: 2.4GHz ISM bands (2400MHz to 2483.5MHz)

Channel Bandswidth: 5.0 MHz

Spread Spectrum: DSSS&FHSS/CRSF

Modulation Mode:QPSK

Adjacent Channel rejection: >38dbm

Transmission Power:

DSSS & FHSS  <100mW(20dbm)

CRSF: 10mW/25mW/100mW/500mW/1W/2W(Optional)

Operating Current: DSSS&FHSS < 90mA@12V

CRSF  Depends on the transmission power selecte

Operating Voltage: 7.4~18.0V



4096 Section Precision

Screen: 2.8 inches 16 colorful screen, 240*320 pixels

Channel: 10 channels , 5-10 channels are customized

Size: AT9S- 183*100*193mm

Weight: 0.88kg

Control Range: DSSS&FHSS - 4KM in the air (Maximum range is tested in an unobstructed area free of interference)



Compatible receivers:

12CH - R12DSM, R12DS,

10CH- R9DS, R6DS,R6DSM

CRSF: RX from BLACKSHEEP



R12DSM Receiver Specifications

Signal: SBUS/PPM

Channel: 12CH

Control Distance: 4000m on air

Working Voltage: 4.8-6V

Working Current: 40-180mA(input voltage: 5V)

Size: 30*15mm

Weight: 2.5g





Gimbal:

- Simple structure and light weight,CNC aluminum alloy structure
- Brushless motor direct drive
- With anti-vibration rubber balls,easy to adjust
- Compatible with Gopro3+, 3,2,1
- with 2pcs 2208 motors and V3 gimbal controller,sensor
- with motor protector which can help heat dissipation
- gimbal weight: 400g



Note:
1.This gimbal is not include gopro 3.
2.Users need learn how to install the component and test its effects.
It's will get better results after a period of testing.

3.Assembled tuning good, no assembly instructions
