Flysky FS-i6S 2.4G 10CH AFHDS Touch Screen Transmitter + FS-iA6B 6CH Receiver + Mobile Holder Self Center Throttle Mode

Flysky

Sale price $62.39 Regular price $58.90

Shipping calculated at checkout.

Flysky FS-i6S 2.4G 10CH AFHDS Touch Screen Transmitter + FS-iA6B 6CH Receiver + Mobile Holder Set Radio System Self Center Throttle Mode DIY RC Multicopter



------ Please choose if you request the Mobile Holder Set or not.

This version is with 6CH Receiver FS-IA6B, Please confirm this informaiton before order and if any questions, please message us.

aeProduct.getSubject()aeProduct.getSubject()

Overview:

The FS-i6S transmitter and FS-iA6B receiver constitute a 10 channel 2.4GHz AFHDS 2A digital proportional computerized RC System. This system supports quadcopters.

The AFHDS 2A (Automatic Frequency Hopping Digital System Second Generation) developed and patented by Flysky is specially developed for all radio control models.Offering superior protection against interference while maintaining lower power consumption and high reliable receiver sensitivity,Flysky's AFHDS technology is considered to be one of the leaders in the RC market today.

Description:

Brand Name: Flysky

Item Name: FS-i6S with FS-iA6B receiver

Note: If this transmitter bind with the FS-iA10B receiver,it can extend to 10 channel.

Specifications:

  FS-i6S Transmitter FS-iA6B Receiver

Channel 6 6

Frequency 2.4055 - 2.475GHz 2.4055 - 2.475GHz

Width 500KHz -----

Number 140 140

Transmitting Power <20dbm -----

Receiver Sensitivity ----- -105dbm

2.4G Mode AFHDS AFHDS

Modulation System GFSK GFSK

Joystick Resolution 4096 class -----

Low-Voltage Alarm <4.2V -----

Charging Port Yes (USB) -----

Input Voltage 4.2V-6.0V 4.0V-6.5V DC

Antenna Length 26mm (dual antenna) 26mm (dual antenna)

Weight 410g 14.9g

Dimension 179*81*161mm 47*26.2*15mm

Color Black,white (optional) Black

Mode Mode Switch

(Self Centering Throttle)

-----

Certification CE0678,FCC CE0678,FCC



Features:

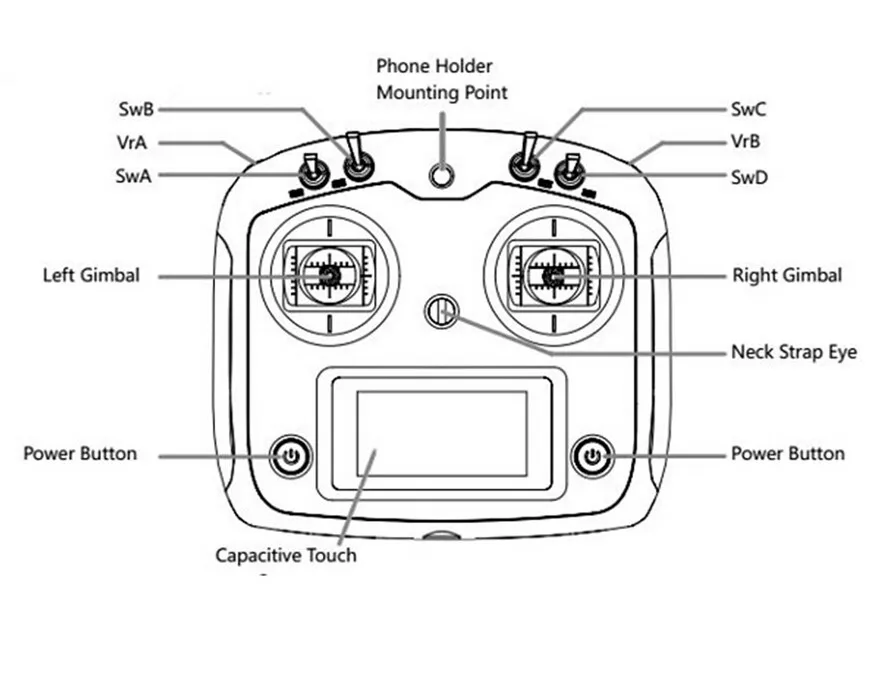

Full touchscreen interface,more convenient to control

Bidirectional Communication

Capable of sending and receiving data,each transmitter is capable of receiving data from temperature,altitude and many other types of sensors,servo calibration and i-BUS Support.

Multi-channel Hopping Frequency

This systems width ranges from 2.4055GHz to 2.475GHz. This is divided in 140 channels. Each transmitter hops between 16 channels (32 for Japanese and Korean versions) in order to reduce interference from other transmitters.

Omni-directional Gain Antenna

The high efficiency Omni-directional high gain antenna cuts down on interference,while using less power and maintaining a strong reliable connection.

Unique ID Recognition System

Each transmitter and receiver has its own unique ID. Once the transmitter and receiver have been paired,they will only communicate with each other,preventing other systems accidentally connecting to or interfering with the system's operation.

Low Power Consumption

The system is built using highly sensitive low power consumption components,maintaining high receiver sensitivity,while consuming as little as one tenth the power of a standard FM system,dramatically extending battery life.

English Manual

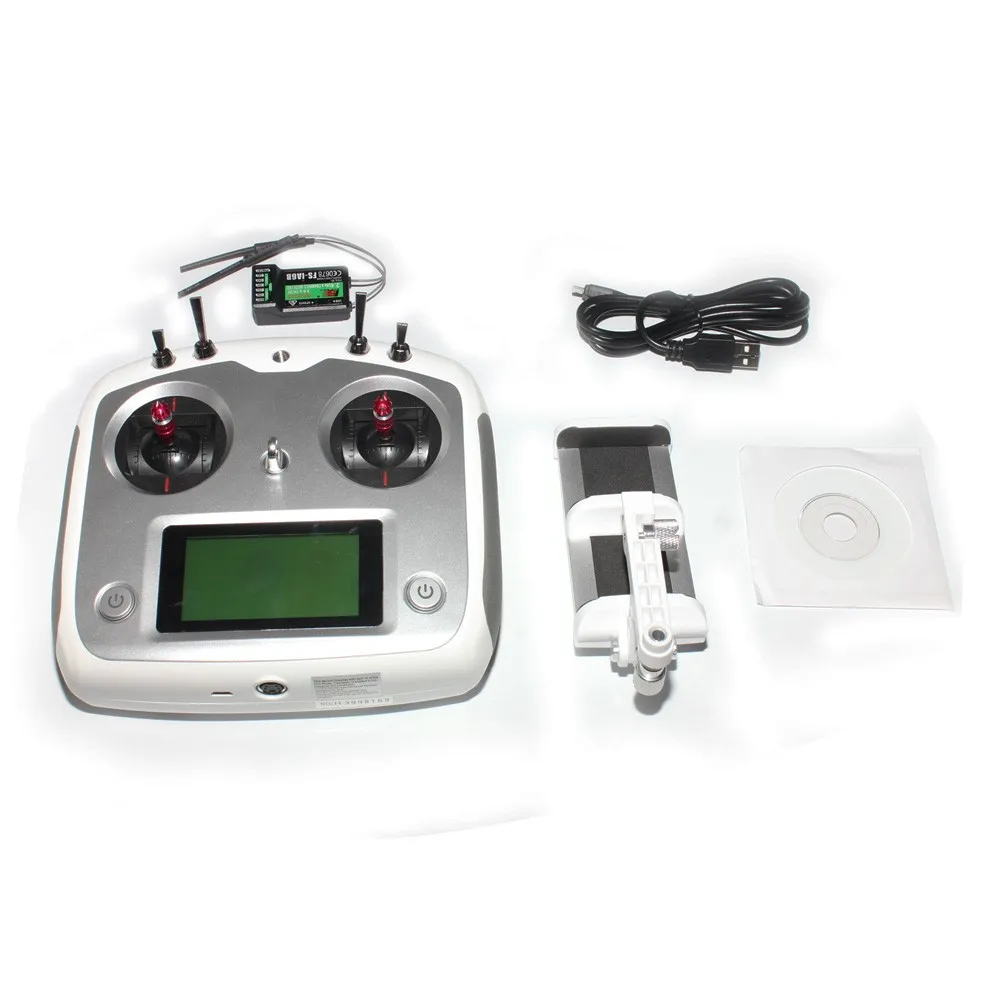

Package Included:

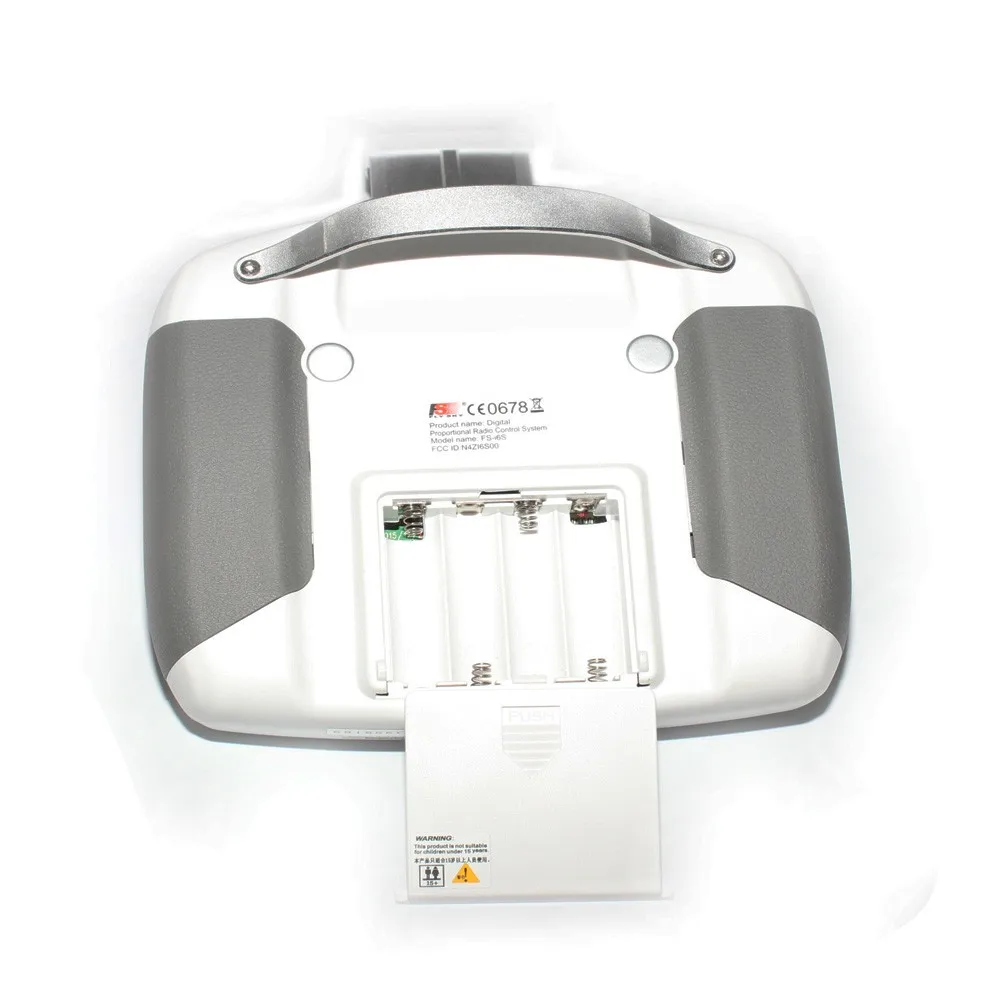

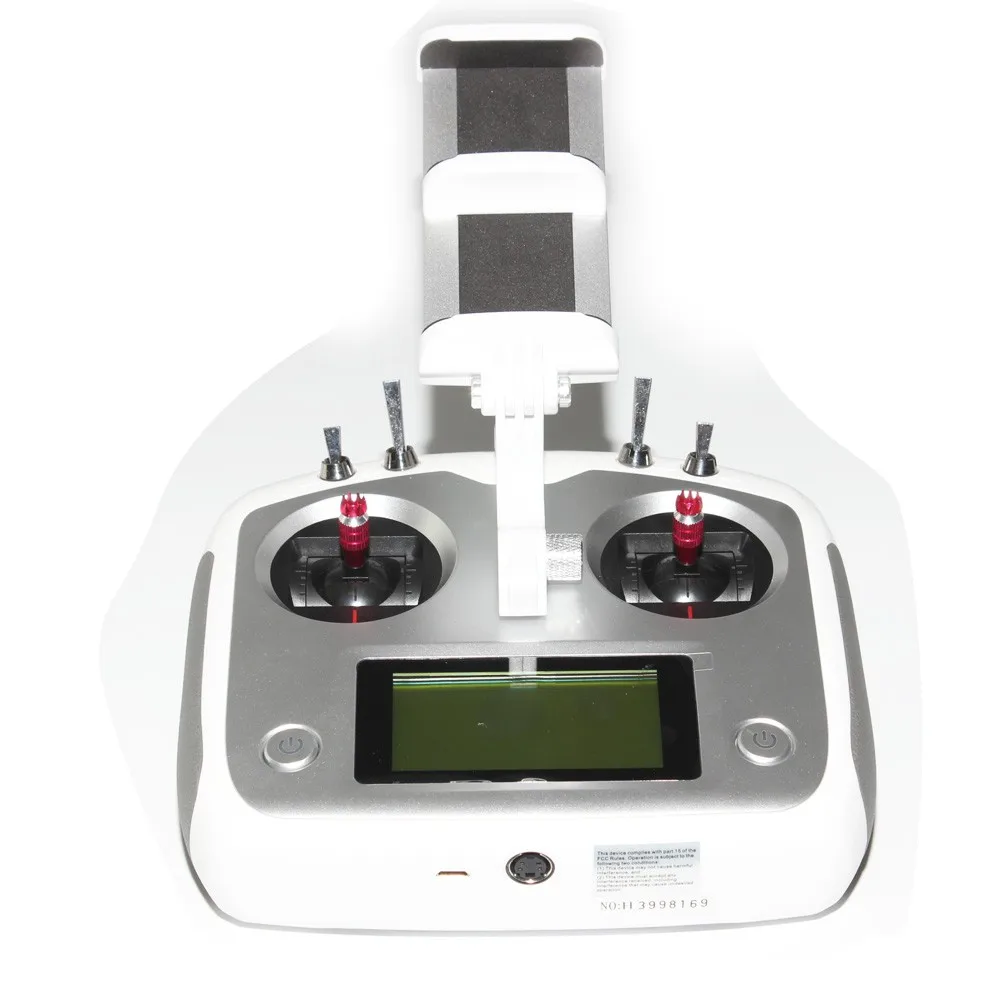

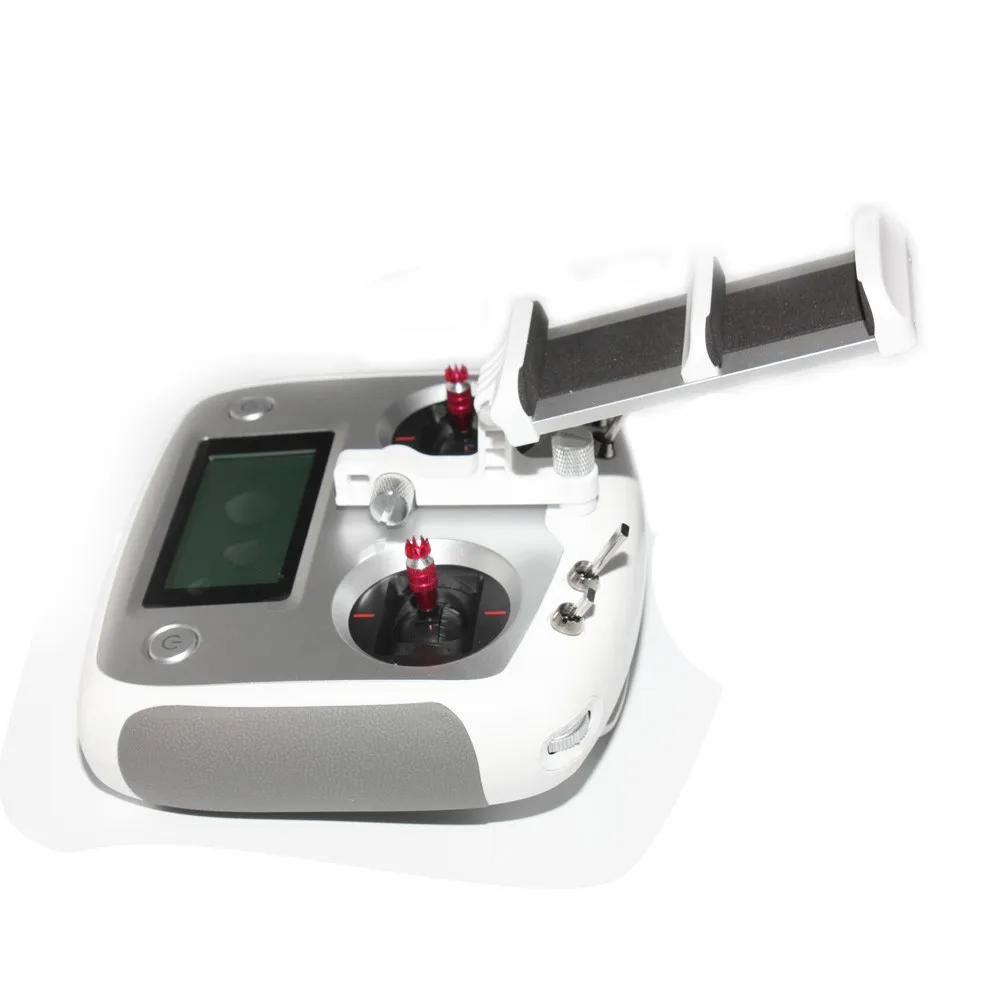

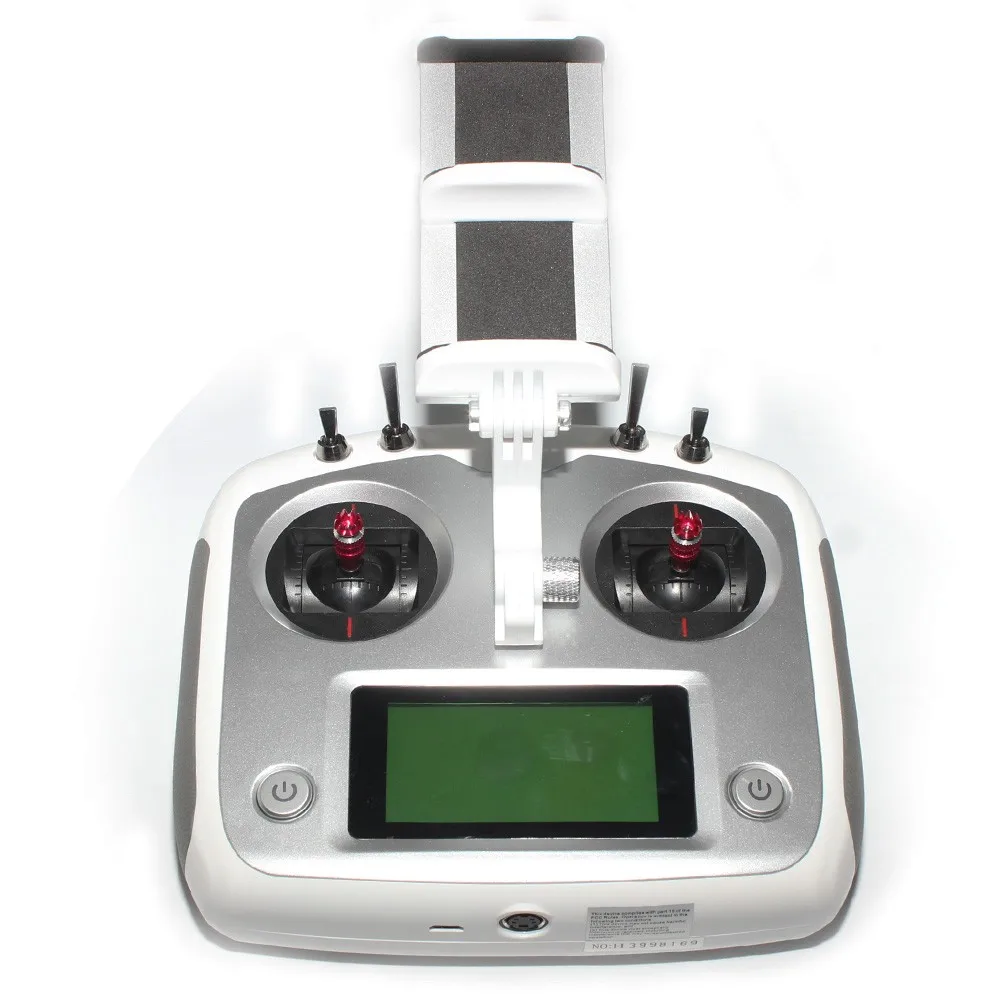

1x Flysky FS-i6S Transmitter

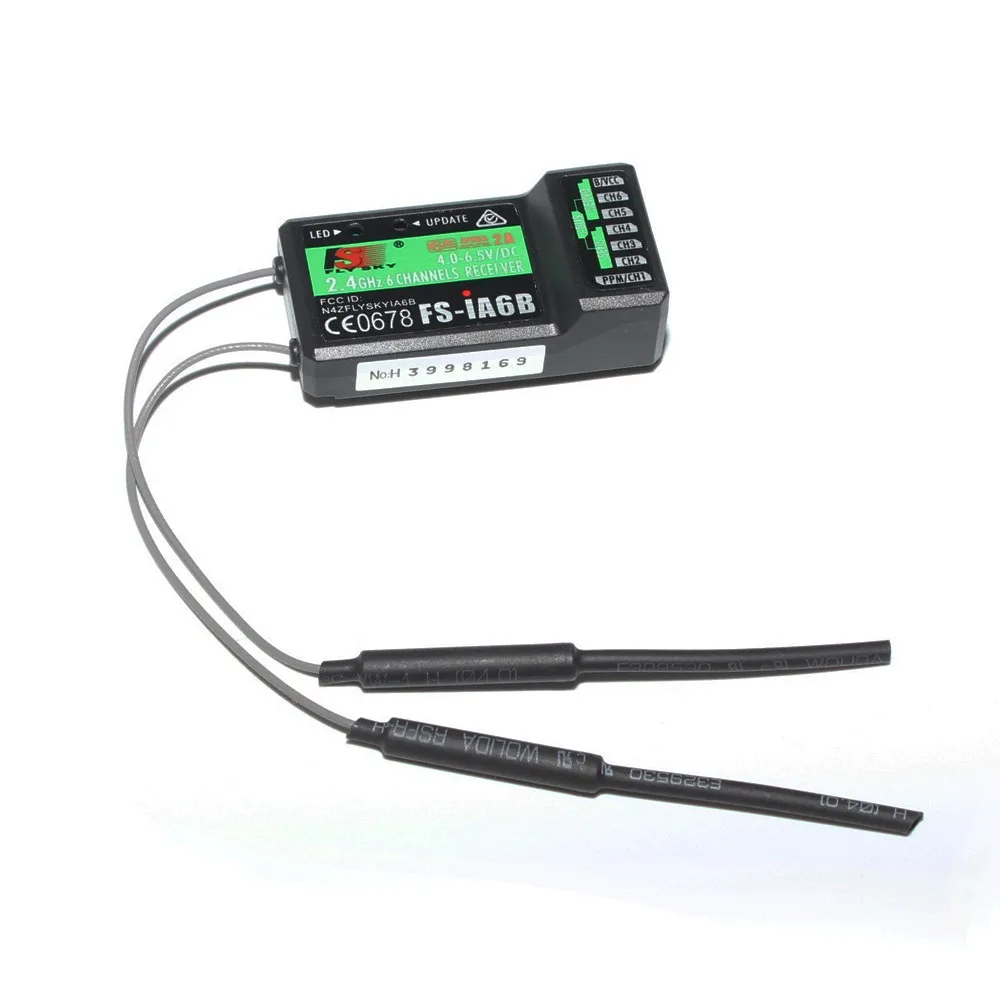

1x Flysky FS-iA6B Receiver

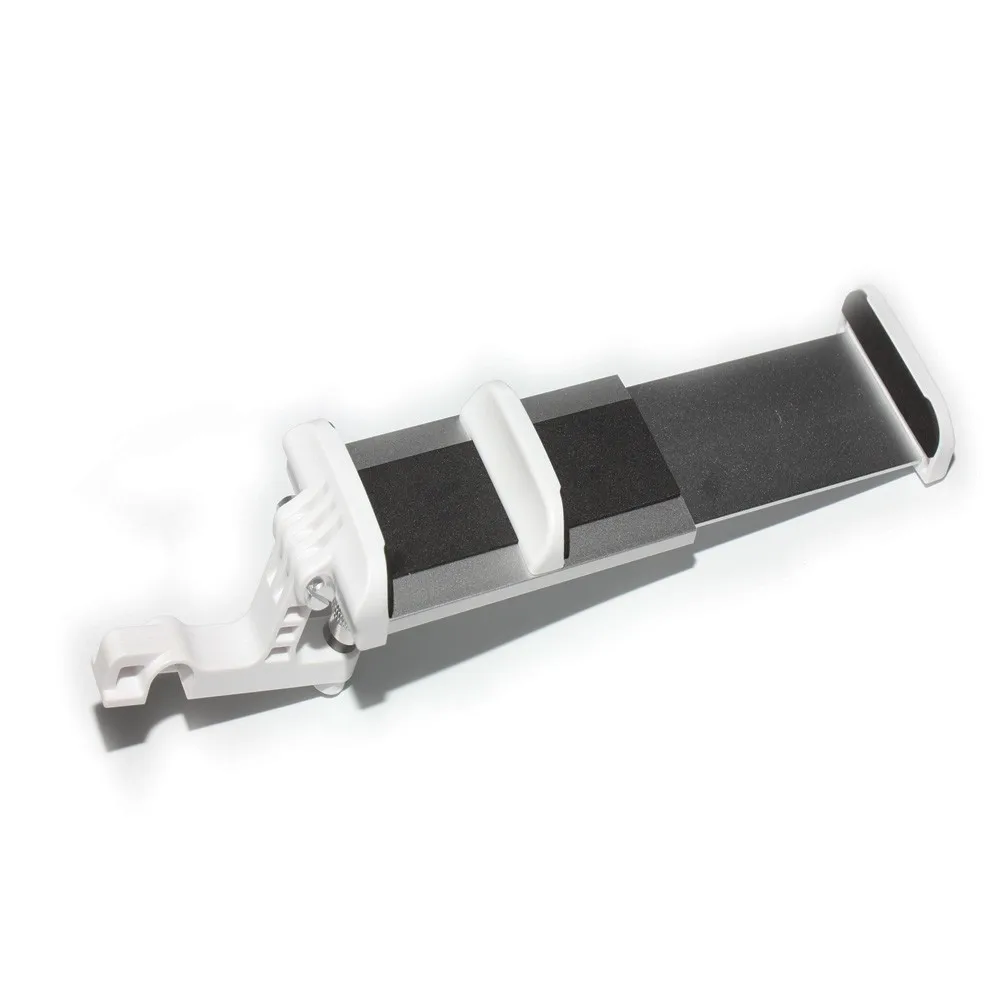

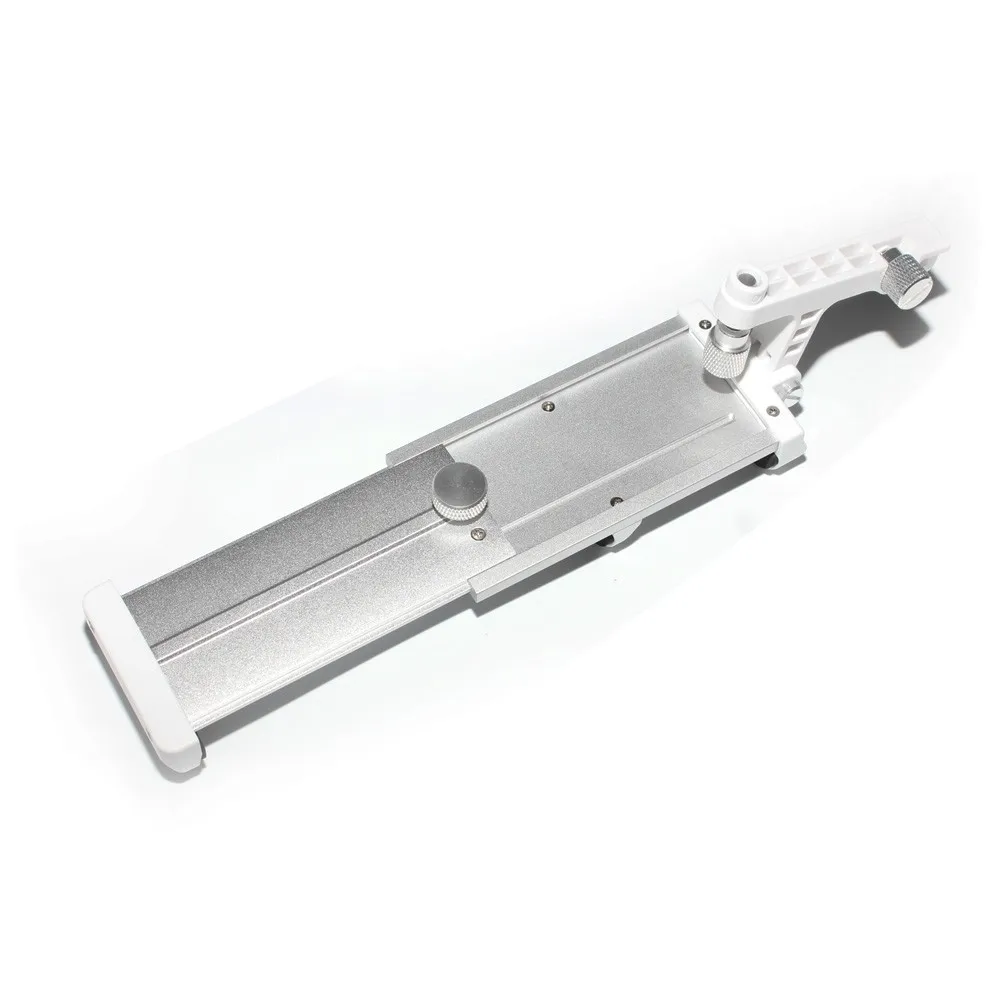

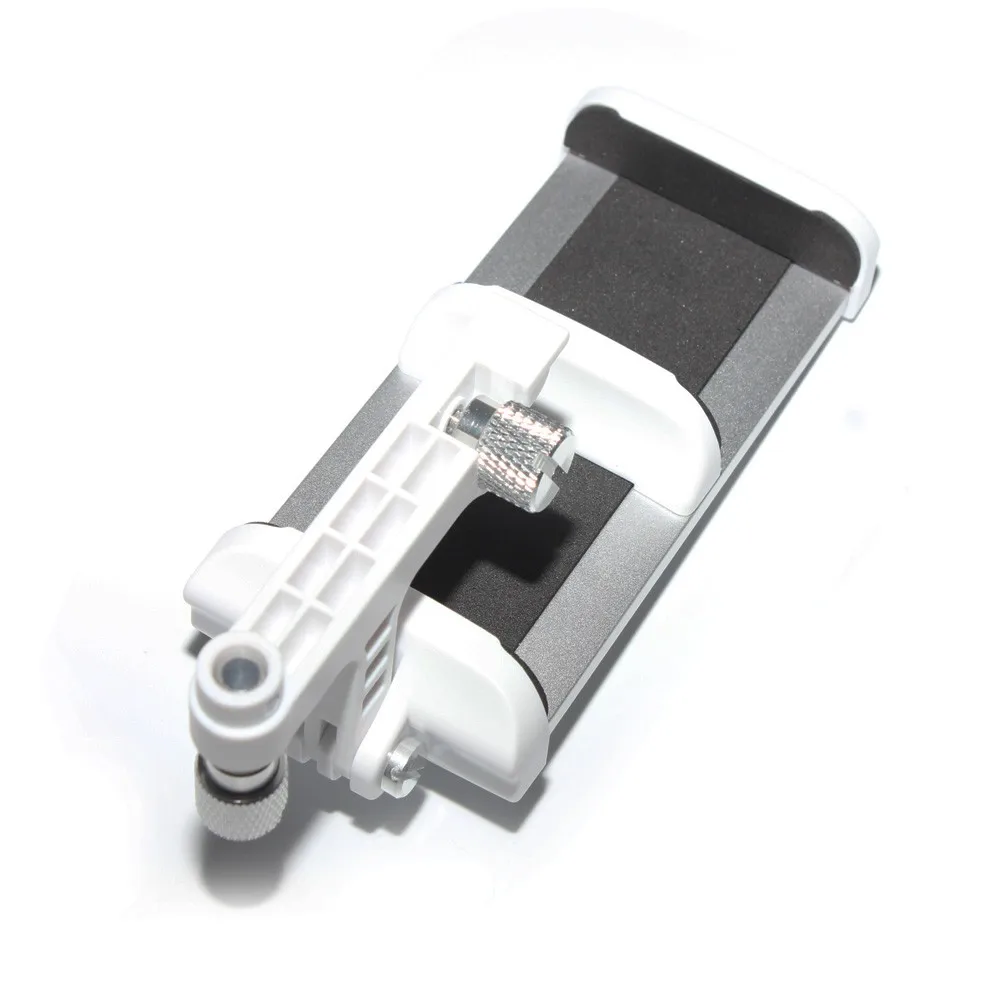

1x Mobile Holder Set(If you choose no holder, then there's no holder)

1x User Manual
